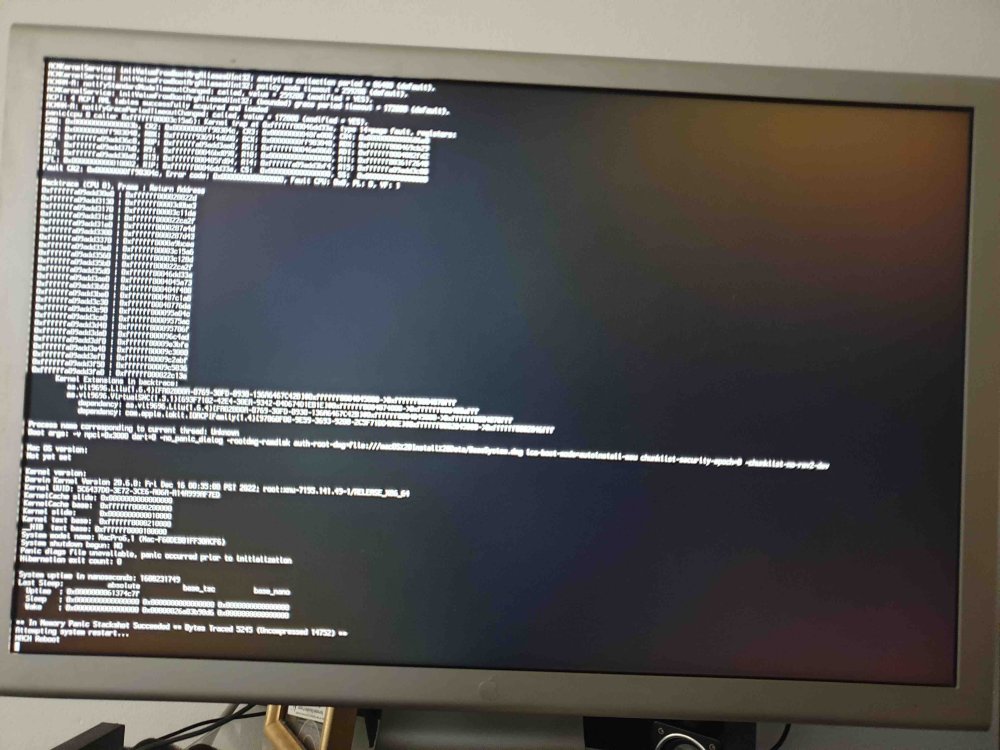

drone4zone Posted March 24, 2023 Share Posted March 24, 2023 Ive been trying to boot into Big Sir Using OpenCore here is what is happening . Dx79SR Intel Board DDR 13300 i73960X EFI.zip Link to comment Share on other sites More sharing options...
RoberT_XeS Posted March 29, 2023 Author Share Posted March 29, 2023 (edited) On 3/24/2023 at 6:51 PM, drone4zone said: Ive been trying to boot into Big Sir Using OpenCore here is what is happening . Dx79SR Intel Board DDR 13300 i73960X EFI.zip 5.58 MB · 1 download 1. Don't use CPUTSCSync. 2. Try using VoodooTSCSync. it should work. 3. Also reset NVRAM VoodooTSCSync.kext.zip Edited March 29, 2023 by RoberT_XeS 1 Link to comment Share on other sites More sharing options...

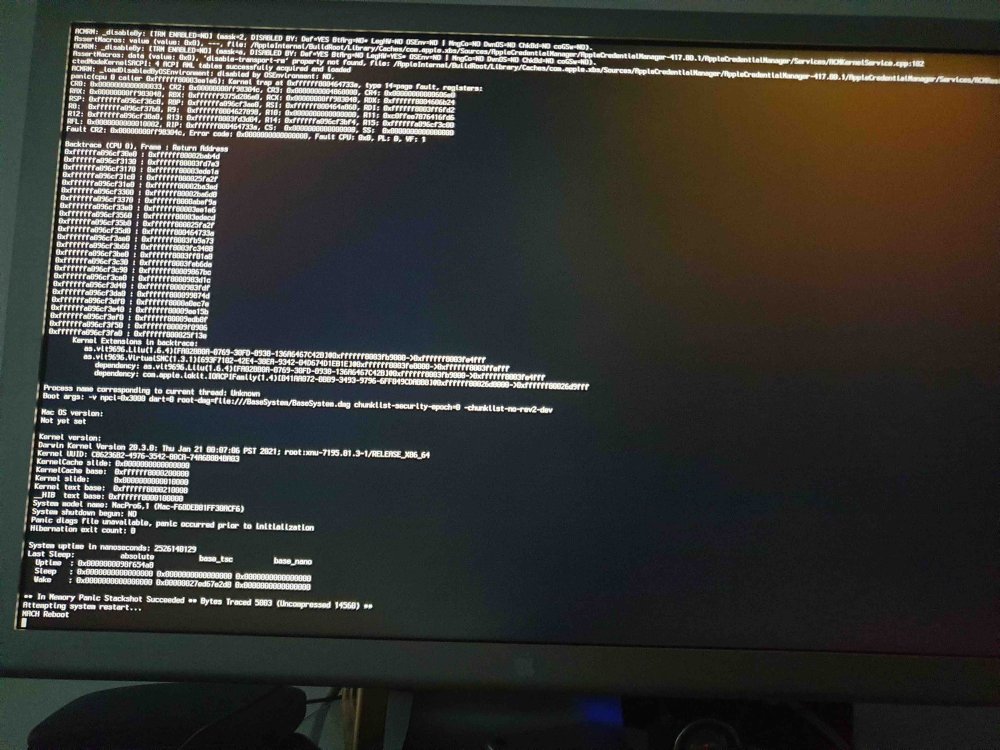

drone4zone Posted April 1, 2023 Share Posted April 1, 2023 On 3/29/2023 at 3:12 AM, RoberT_XeS said: 1. Don't use CPUTSCSync. 2. Try using VoodooTSCSync. it should work. 3. Also reset NVRAM VoodooTSCSync.kext.zip 9.65 kB · 2 downloads Hi Robert I tried VoodoTSCsync and FakeSMC ,Cleaned NVram, also tried your kexts files mostly black screen and had to hard reboot, this last was best I got till it KP. It reboot loops , I got a quick snap shot for you here is my files last used . EFI.zip Link to comment Share on other sites More sharing options...
RoberT_XeS Posted April 1, 2023 Author Share Posted April 1, 2023 (edited) 14 hours ago, drone4zone said: Hi Robert I tried VoodoTSCsync and FakeSMC ,Cleaned NVram, also tried your kexts files mostly black screen and had to hard reboot, this last was best I got till it KP. It reboot loops , I got a quick snap shot for you here is my files last used . EFI.zip 5.91 MB · 1 download Try this and let me know if it works...and send me the error message if you get one EFI.zip or you can try one from here Edited April 1, 2023 by RoberT_XeS Link to comment Share on other sites More sharing options...

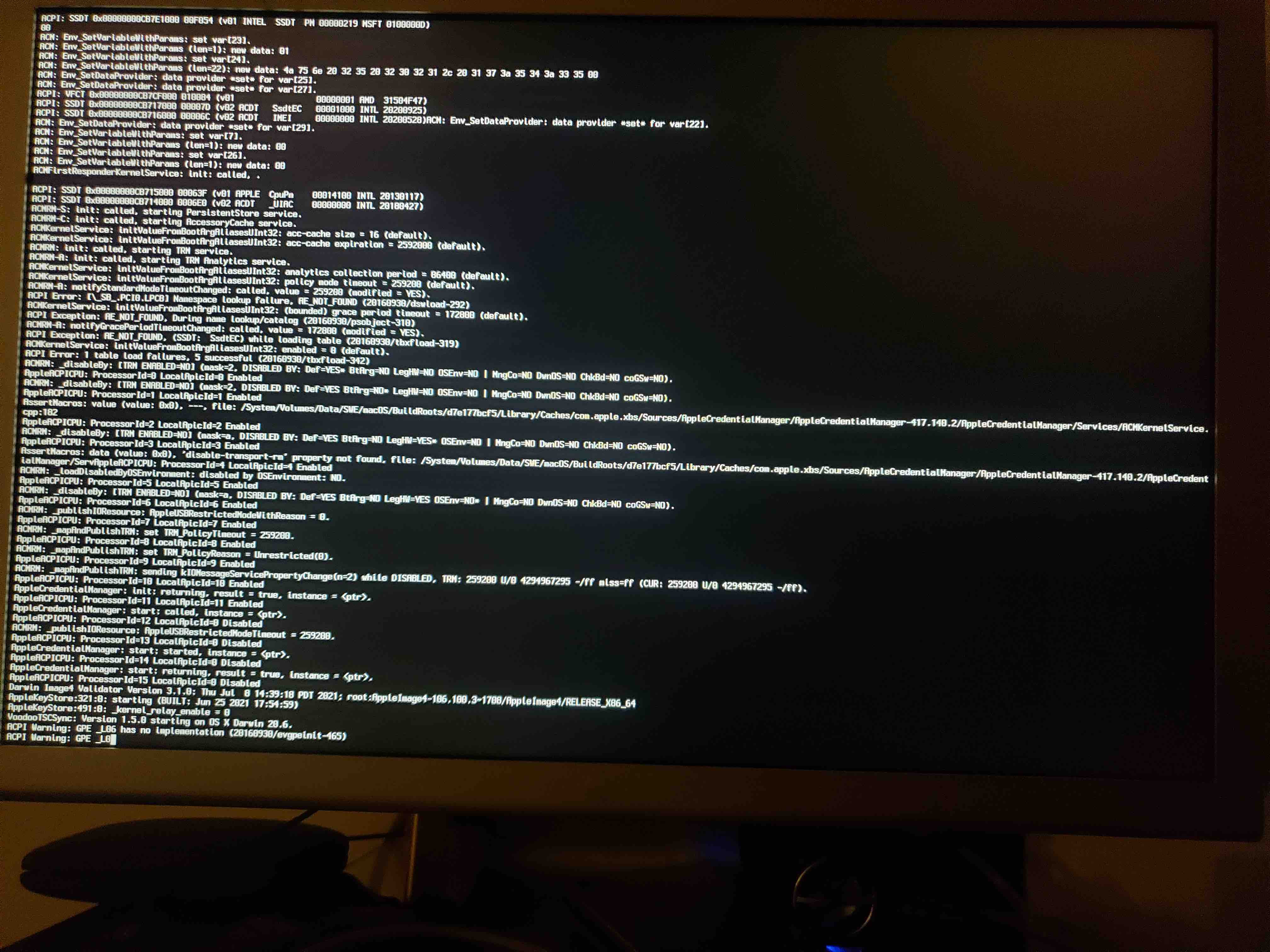

drone4zone Posted April 3, 2023 Share Posted April 3, 2023 Ok I tried EFI and same KP Tried other EFI and they would not even make it to picker screen only black screen and I restarted. here is the best EFI i at least made it to KP with attatched with errors screen . EFI.zip Link to comment Share on other sites More sharing options...
drone4zone Posted April 3, 2023 Share Posted April 3, 2023 11 hours ago, drone4zone said: Ok I tried EFI and same KP Tried other EFI and they would not even make it to picker screen only black screen and I restarted. here is the best EFI i at least made it to KP with attatched with errors screen . EFI.zip 5.92 MB · 0 downloads My Mojave SSD drive on Clover runs well with SSDTS patching USB 2.0Mojave-patched.zip,AHCIPort patching USB 3.0 GenericUSB kext Link to comment Share on other sites More sharing options...
RoberT_XeS Posted April 12, 2023 Author Share Posted April 12, 2023 (edited) On 4/3/2023 at 5:13 PM, drone4zone said: My Mojave SSD drive on Clover runs well with SSDTS patching USB 2.0Mojave-patched.zip,AHCIPort patching USB 3.0 GenericUSB kext Try this EFI it should work for you. Just disable AppleIntelCPUPowermanagement.kext and AppleIntelCPUPowerManagementClient.kext under kernel section https://www.insanelymac.com/applications/core/interface/file/attachment.php?id=387506&key=0a37f4311bcc1cb2f01cdbba0780e9aa Edited April 12, 2023 by RoberT_XeS Link to comment Share on other sites More sharing options...

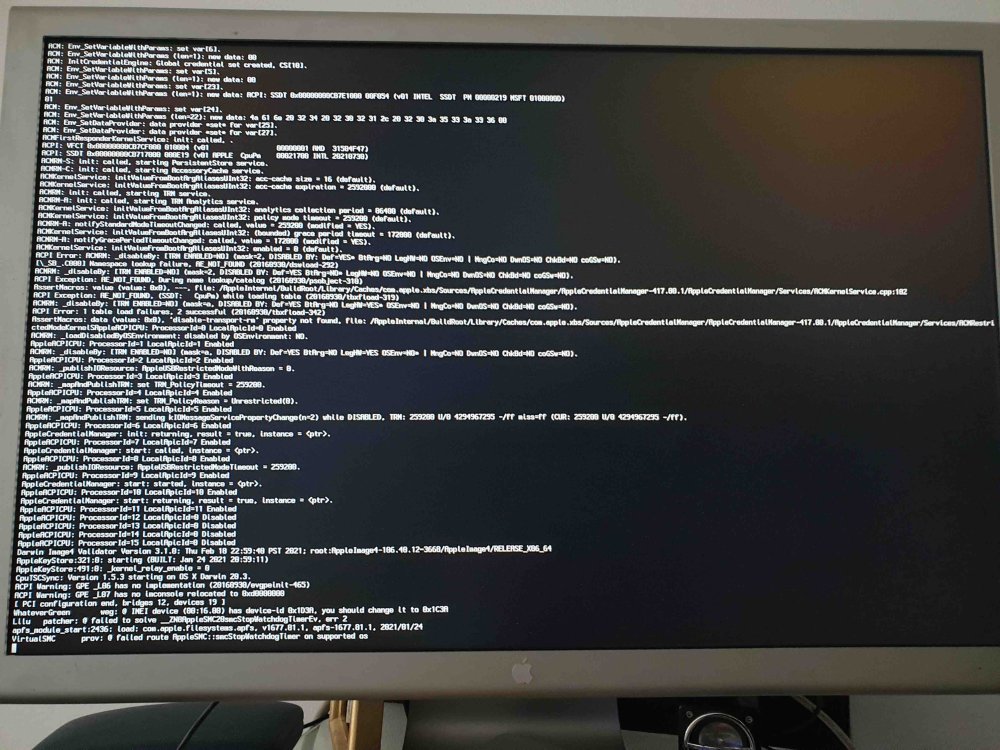

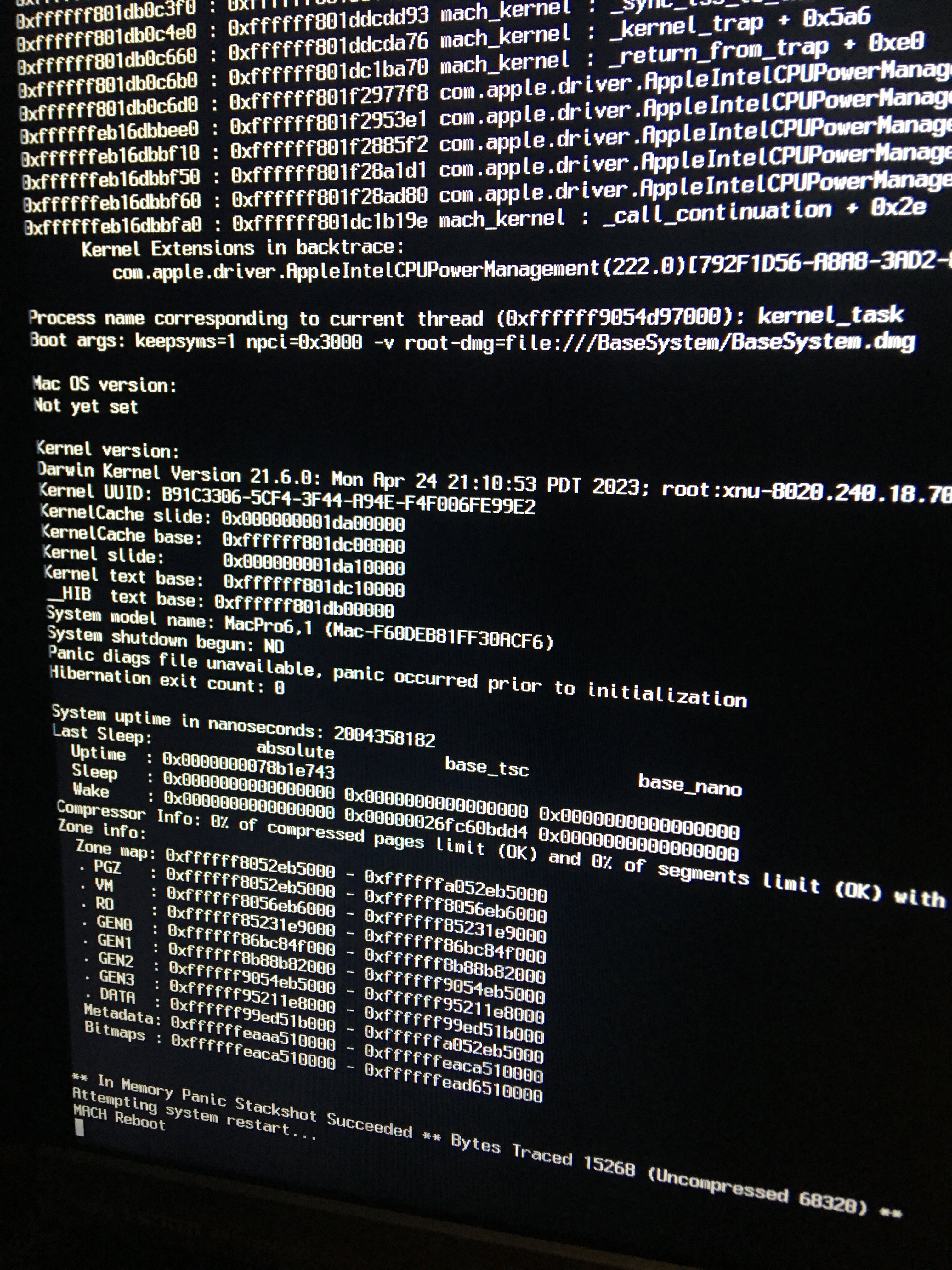

drone4zone Posted April 12, 2023 Share Posted April 12, 2023 disable AppleIntelCPUPowermanagement.kext and AppleIntelCPUPowerManagementClient.kext under kernel section Hangs at this for over 15 minutes, then it continues to a quick restart here is the snapshot . I also tried VoodoTSCSYncKex. same result. I notice the smbios was different on this EFI from macPro6,1 to iMacPro1,1 . I use OCAuxillaryTools to edit configPlist I only disabled the two patches under kernel like you mentioned powerManagement kexts. Link to comment Share on other sites More sharing options...

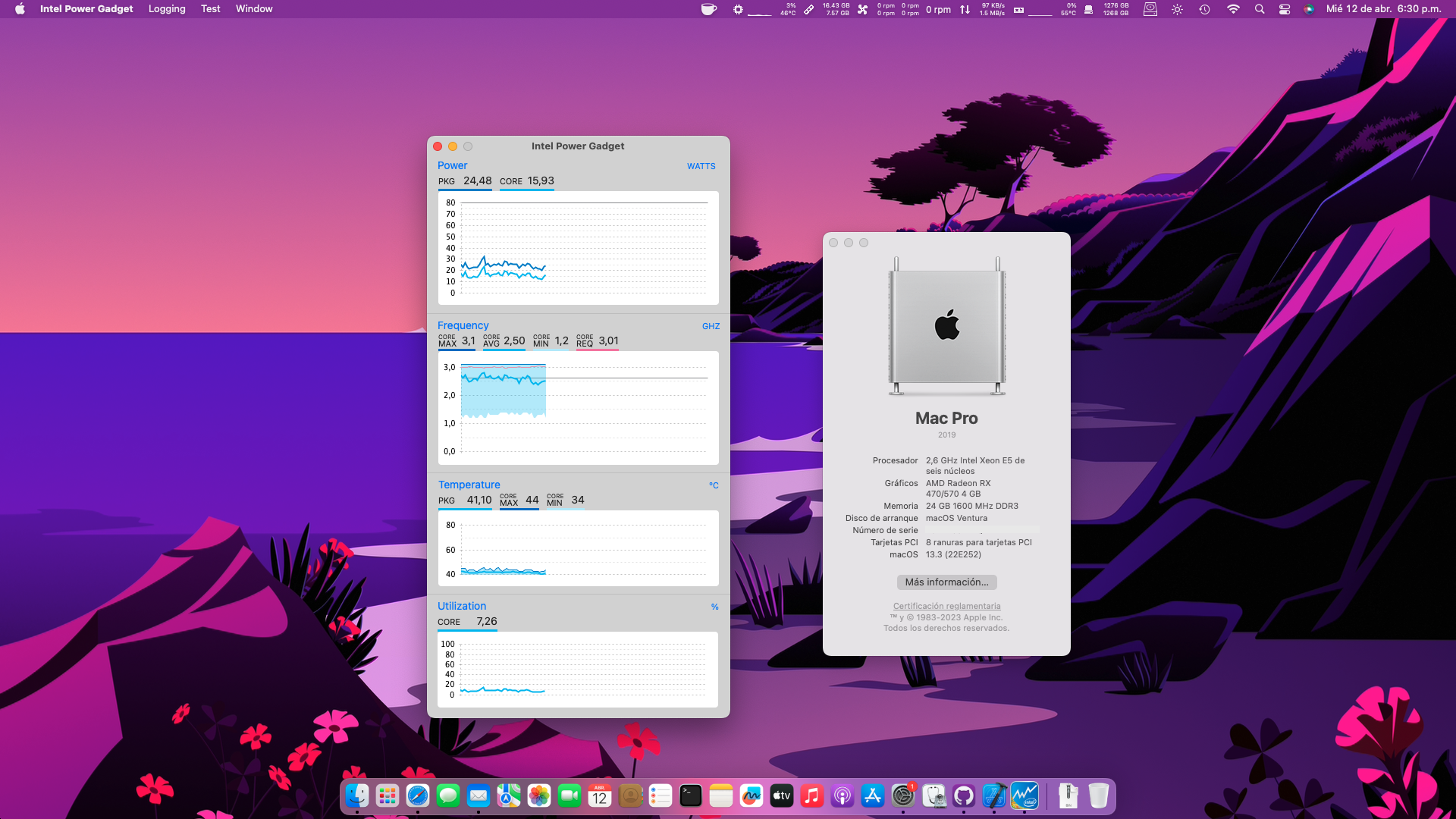

anerik70 Posted April 12, 2023 Share Posted April 12, 2023 Finally! Ventura with PowerManagement in Chinese Mobo Atermiter X79G. I had to unlock MSRE2 with a modified Bios using FPT tool under Windows 1 Link to comment Share on other sites More sharing options...
Dadoproduccion Posted June 27, 2023 Share Posted June 27, 2023 Thank you so much for sharing! I'm still stuck striving to install Monterey macOS. I have a Gigabyte X79-UP5 wifi / i7 3930K / 32GB Ram / GPU AMD Radeon RX580 Saphire I have been working with Big Sur, but I'm receiving kernel panic issues. I didn't change anything. I tried using ACPI-ENC and APCI-UN instead of X-79, just to see some difference but nothing. Usually I was using with Big Sur, CPUTSCSync but right now I'm using according to your recommendation: VoodooTSCSync Thank you in advance. Link to comment Share on other sites More sharing options...
cankiulascmnfye Posted June 27, 2023 Share Posted June 27, 2023 @Dadoproduccion I am pretty sure this can't work. You need additional Booter and Kernel patches and Kexts to use Sandy Bridge CPUs on Monterey and newer: https://github.com/5T33Z0/OC-Little-Translated/blob/main/14_OCLP_Wintel/Sandy_Bridge_Ventura.md 1 Link to comment Share on other sites More sharing options...
ramirezzz Posted June 27, 2023 Share Posted June 27, 2023 9 hours ago, cankiulascmnfye said: @Dadoproduccion I am pretty sure this can't work. You need additional Booter and Kernel patches and Kexts to use Sandy Bridge CPUs on Monterey and newer: https://github.com/5T33Z0/OC-Little-Translated/blob/main/14_OCLP_Wintel/Sandy_Bridge_Ventura.md Avoid this guy. He is a fraud. 1 1 Link to comment Share on other sites More sharing options...
Dadoproduccion Posted June 29, 2023 Share Posted June 29, 2023 Hi everyone! Thank you for sharing the link for Ventura. Yesterday, I realized my great mistake, simply, I didn't have to move anything JUST the 2 lines in Kernel: Kernel > Patch Section 751AB9 to EB13B9 (For some this patch is causing Kernel Panic in Monterey 12.3) 3E7539 to 3E9090 (For some this patch is causing Kernel Panic in Monterey 12.3)Just that !! Thank you to RoberT_Xes for sharing this. After more than 25 days, I couldn't install Monterey. But not, I started working in the Post Install. Working: Audio, Bluetooth (Native), Wifi (Fenvi), Ethernet (Need to fix Apple ID, because appears a message about Couldn't connect to the server), 4 Displays good. (I have 2 RX580, I don't know how to configure the frame buffer to make it work 4 display with just 1 GPU) And finally, by now, striving to get the USB3. NO success yet. Thank you 2 Link to comment Share on other sites More sharing options...
RoberT_XeS Posted July 3, 2023 Author Share Posted July 3, 2023 On 6/30/2023 at 3:07 AM, Dadoproduccion said: Hi everyone! Thank you for sharing the link for Ventura. Yesterday, I realized my great mistake, simply, I didn't have to move anything JUST the 2 lines in Kernel: Kernel > Patch Section 751AB9 to EB13B9 (For some this patch is causing Kernel Panic in Monterey 12.3) 3E7539 to 3E9090 (For some this patch is causing Kernel Panic in Monterey 12.3)Just that !! Thank you to RoberT_Xes for sharing this. After more than 25 days, I couldn't install Monterey. But not, I started working in the Post Install. Working: Audio, Bluetooth (Native), Wifi (Fenvi), Ethernet (Need to fix Apple ID, because appears a message about Couldn't connect to the server), 4 Displays good. (I have 2 RX580, I don't know how to configure the frame buffer to make it work 4 display with just 1 GPU) And finally, by now, striving to get the USB3. NO success yet. Thank you follow this word by word Steps for creating USB Mapping For Windows or Mac i. Download USBToolBox (This is the tool to create USBMapping). ii. Run as an Administrator if you are on Windows. iii. Select Discover Ports (Press D) iv. Now take a USB Drive and insert the USB Drive into every USB Ports one by one. (This step is very important please don't skip it. This will highlight all the ports in whichever you are inserting the USB Drive) v. Go Back (Press 'B') vi. Now select the option 'Select Ports and Build Kext' (Press S) vii. Select 'Enable All Populated Ports' ( Press P) viii. Select 'build UTBMap.kext' (This will create a UTBMap.kext file) ix. Now download USBToolBox.kext x. Now copy the UTBMap.kext and USBToolBox.kext file into the EFI/OC/Kexts Folder xi. Add these kext entries in the kernel Section. xii. Now when you boot into the Mac you will have all the USB Working properly. Link to comment Share on other sites More sharing options...
futureorkun Posted October 8, 2023 Share Posted October 8, 2023 Motherboard: Asus p9x79 processor: 4930k graphics card: RX 580 I am waiting for EFI help for ventura installation. Thanks... Link to comment Share on other sites More sharing options...
RoberT_XeS Posted October 9, 2023 Author Share Posted October 9, 2023 (edited) On 10/8/2023 at 7:26 PM, futureorkun said: Motherboard: Asus p9x79 processor: 4930k graphics card: RX 580 I am waiting for EFI help for ventura installation. Thanks... You can use the following EFI to install Ventura or Sonoma. First use the EFI as it is. If it does not work then use any one of the given DSDT one at a time and check. If you have your own DSDT then you can use that . EFI_VENTURA_AND_SONOMA.zip Edited October 9, 2023 by RoberT_XeS Link to comment Share on other sites More sharing options...

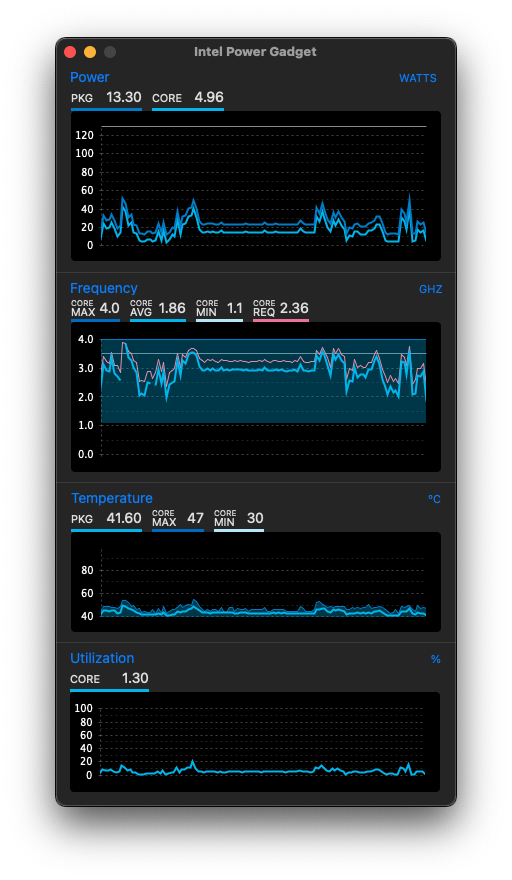

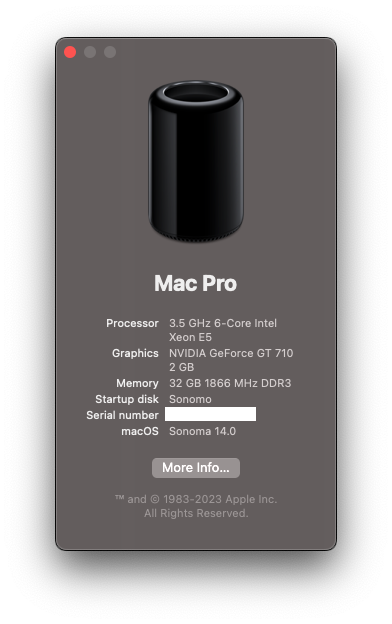

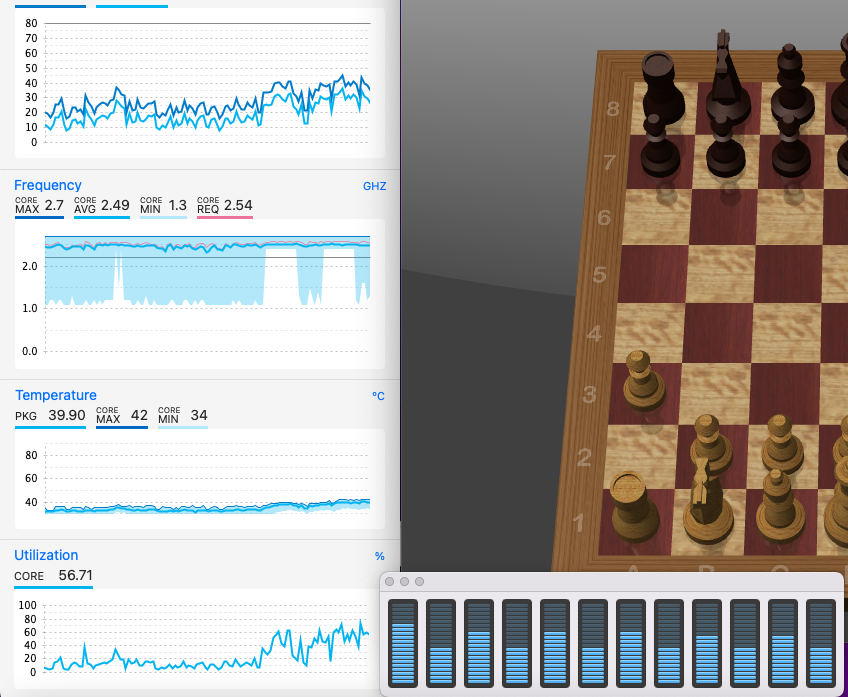

RoberT_XeS Posted October 9, 2023 Author Share Posted October 9, 2023 On 4/13/2023 at 5:28 AM, anerik70 said: Finally! Ventura with PowerManagement in Chinese Mobo Atermiter X79G. I had to unlock MSRE2 with a modified Bios using FPT tool under Windows Use Mac Pro 6,1. It will give you proper Power Management. Look at my PowerManagement. 1 Link to comment Share on other sites More sharing options...
futureorkun Posted October 11, 2023 Share Posted October 11, 2023 RobertT_XeS motherboard P9X79 processor 4930k graphics card RX 580. I have attached my EFI file and system report. I can't boot, getting an AHCI error. Which opencore patches should I use? Can you patch my config file? EFI_2_x79.rar Results.zip Report.htm Link to comment Share on other sites More sharing options...
RoberT_XeS Posted October 12, 2023 Author Share Posted October 12, 2023 (edited) 10 hours ago, futureorkun said: RobertT_XeS motherboard P9X79 processor 4930k graphics card RX 580. I have attached my EFI file and system report. I can't boot, getting an AHCI error. Which opencore patches should I use? Can you patch my config file? EFI_2_x79.rar 4.5 MB · 0 downloads Results.zip 24.18 kB · 0 downloads Report.htm 937.52 kB · 0 downloads Try this DSDT and let me know if it works for you DSDT clean no GFX.amlDSDT Final 2GFX.aml Edited October 12, 2023 by RoberT_XeS Link to comment Share on other sites More sharing options...
futureorkun Posted October 12, 2023 Share Posted October 12, 2023 I don't have the device with me right now, I will let you know when I try it. Link to comment Share on other sites More sharing options...
vtec100000000rpm Posted October 12, 2023 Share Posted October 12, 2023 (edited) Thank you, Mr.Robert. I've got boot my fake X79 board with Monterey. Then I want to get PowerManagement, but SSDTPRGen warns and aborts. Anyone can generate SSDT-PM? Desktop/DSDT.aml <- rename from SSDT-0-PROC.aml Desktop/APIC.aml EssentialsList-2023-10-12 15.21.54.zip SI79F-ACPI-origin.zip SSDTPRGen.textClipping Edited October 12, 2023 by vtec100000000rpm Link to comment Share on other sites More sharing options...
RoberT_XeS Posted October 13, 2023 Author Share Posted October 13, 2023 (edited) 22 hours ago, vtec100000000rpm said: Thank you, Mr.Robert. I've got boot my fake X79 board with Monterey. Then I want to get PowerManagement, but SSDTPRGen warns and aborts. Anyone can generate SSDT-PM? Desktop/DSDT.aml <- rename from SSDT-0-PROC.aml Desktop/APIC.aml EssentialsList-2023-10-12 15.21.54.zip 267.82 kB · 2 downloads SI79F-ACPI-origin.zip 27.76 kB · 1 download SSDTPRGen.textClipping 8.29 kB · 1 download Run this app from olarila and check https://olarila.com/files/Utils/SSDT PM Gen.app.zip Or https://www.olarila.com/topic/6451-guide-generate-ssdt-for-power-management-with-ssdtprgen/ Edited October 13, 2023 by RoberT_XeS Link to comment Share on other sites More sharing options...

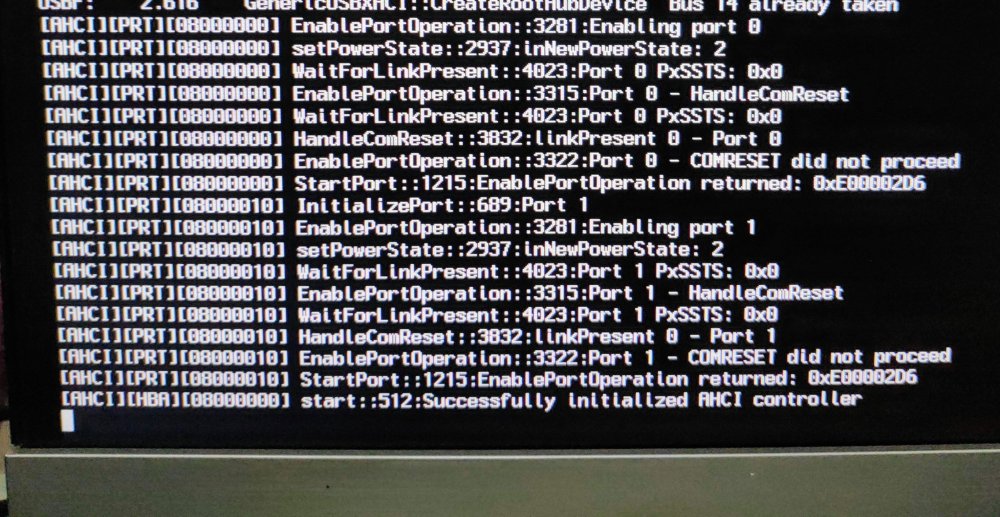

futureorkun Posted October 13, 2023 Share Posted October 13, 2023 stuck at start::512:Successfully initialized AHCI controller error continues. DSDT did not work. Kernel panics. Link to comment Share on other sites More sharing options...
RoberT_XeS Posted October 13, 2023 Author Share Posted October 13, 2023 3 hours ago, futureorkun said: stuck at start::512:Successfully initialized AHCI controller error continues. DSDT did not work. Kernel panics. try this DSDT.aml Link to comment Share on other sites More sharing options...
vtec100000000rpm Posted October 14, 2023 Share Posted October 14, 2023 17 hours ago, RoberT_XeS said: Run this app from olarila and check https://olarila.com/files/Utils/SSDT PM Gen.app.zip Or https://www.olarila.com/topic/6451-guide-generate-ssdt-for-power-management-with-ssdtprgen/ Nice app ! Thank you. (^_^) Link to comment Share on other sites More sharing options...
