[Release] macOS Big Sur 11.3


45 posts in this topic

Recommended Posts

hi all Today I updated BG 11.3, I'm having problems with some usb2 and usb3 ports does not detect them
Of the eight USB ports of the Asus Z87 plus motherboard in signature only 3 work for me.
I used Hackintool to pack the usb ports, same problem.
Any suggestions
Thank you

Schermata 2021-04-27 alle 20.31.19.png

Link to comment
Share on other sites

Re-installed Big Sur, it was version 11.2.3, I have installed version 11.3 . I have kept the old installation of Clover 5133 (latest) in the EFI. For sound, I have used Voodoo HDA Audio, packaged by chris1111 (version 2.9.6, I know 2.9.7 exists, but chris1111 has not packaged it for Clover yet).  This type of updating by (almost) clean install worked before. Now, sound is gone. Voodoo HDA Audio stopped working, no audio hardware is shown in System Preferences. On 11.2.3 it was working. I have tried several combinations, like re-installing Voodoo HDA Audio, deleting it and then re-installing it, tried AppleALC, I have re-installed the OS the second time, nothing worked. I have attached the EFI partition.

Unfortunaly, due to things related to ADHD, I find hard to switch from Clover to OpenCore, altought it would probably be the best.

EFI1.zip

Link to comment
Share on other sites

42 minutes ago, ludox said:

hi all Today I updated BG 11.3, I'm having problems with some usb2 and usb3 ports does not detect them
Of the eight USB ports of the Asus Z87 plus motherboard in signature only 3 work for me.
I used Hackintool to pack the usb ports, same problem.
Any suggestions
Thank you

Schermata 2021-04-27 alle 20.31.19.png

Solved I disabled XhciPortLimit on the clover, I updated usb.kext, now all eight work

Link to comment
Share on other sites

my old motherboard (GA-Z97P-D3) has been updated to Big sur 11.3 with opencore 0.6.6 .  It took about 20 minutes.

I disabled  XhciPortLimit  in opencore on a USB boot drive to test if that would have consequences with BigSUR 11.2.x : NONE All USB device were OK. And did the update , the first reboot showed me a "macintosh HD" for the update that was selected by default by the picker, 3 reboots and tadaaam : all my USB devices are working : Apple Keyboard, laser printer, webcam, USB3 external drive, inside USB2 for Bluetooth via a Fenvi card, Wifi as a regular Airport device.

The day before : i did the update on a Macbook Air 13" (2015)  and a Macbook pro 15" core I7 ( mid 2015). It was very slow on the Macbook Air.

Screenshot 2021-04-28 at 10.02.01.png

Link to comment
Share on other sites

On 4/27/2021 at 6:14 PM, Cyberdevs said:

Thanks for the update. I guess there's something wrong with the installer I have, I'm downloading the full installer as we speak so I'll give it a try when it's done.



Do you have the "Connect Drivers" Option enabled? If not, it is the reason why the installer won't be detected. Especially if HFSPlus.efi is not the first entry in the list of drivers.

Link to comment
Share on other sites

On 4/27/2021 at 1:10 PM, LIMITANT said:

I agree

USBInjectall is not the right way ; USBPort.kext is so much easier and correct .

@XanthraX remap your USB ports as a kext and forget about it forever

I did it. I lost a port, but the rest of all work. XhciPortLimit disabled.



Link to comment
Share on other sites

7 hours ago, 5T33Z0 said:

Do you have the "Connect Drivers" Option enabled? If not, it is the reason why the installer won't be detected. Especially if HFSPlus.efi is not the first entry in the list of drivers.

Yes the Connect Drivers is enabled, the issue was with the installer somehow. I downloaded the installer via Software update and it's working.

  • Like 1
Link to comment
Share on other sites

Hello how are things today?



I have a fix also that can be worth a try.



I do not use SSDT-EC-USBX.aml, SSDT-UIAC.aml, USBports.kext

I use FakePCID_XHCIMux.kext from Rehabman does work.

Hackintool verifies the ports on one side is 3 and the other is 2.

The only patch is a hotpatch SSDT-4x0G2b.aml which defines EHO1 and EHO2
along with some other important aspects not related to USB.



I get USB3 and 2

USB3 with 5gb

USB2 with 480mbps


Give it a try.



Disable XHCI check and limits in configs. kind of borks the system.
I found this Mux takes care of a lot issues.



For those who want to save energy the way to go is to install

the patches for those unknowns that are left over after you insert usb sticks into all ports on your system. it is good to do this every update and prior to it to prevent no USB.



The USB Mux attached here brings power to USB ports as well. In my case when upgraded to new OS
the power going to the ports was nill. After installed works like a charm.  I tried the USBmap thing

and it said, No need so it passes this port checker.  It is good to have



FakePCIID_XHCIMux.kext.zip

Edited by makk
Link to comment
Share on other sites

Hey.

No USB3 on my MSI B460A-Pro on Release Big Sur 11.3 and 11.4 beta.

In Big Sur 11.2 no problem with usb map solution

In Big Sur 11.3 I remap,  but the USB3 don't appear.

Any patch for this or we wait for a new version?

Link to comment
Share on other sites

https://github.com/corpnewt/USBMap

Its sample USBMap.kext for X299 System 11.3 You can Disable #Ports.



USBMap.kext.zip

Edited by nmano
Link to comment
Share on other sites

I had problems with USB on AsRock mobo z270 to.

Quick AsRock z270 guide.

The board has SSDT called SSDT-3-xh_rvp08.aml which I had to disable in OC and load fixed one SSDT-3USB.amlwith disabled ports that I don't use.  8 ports what is in total 14 ports. 2x usb2 and 6x usb3 with usb2 support.



OC Delete apci table

<key>Delete</key>
		<array>
			<dict>
				<key>All</key>
				<false/>
				<key>Comment</key>
				<string>xh_rvp08</string>
				<key>Enabled</key>
				<true/>
				<key>OemTableId</key>
				<data>eGhfcnZwMDg=</data>
				<key>TableLength</key>
				<integer>0</integer>
				<key>TableSignature</key>
				<data>U1NEVA==</data>
			</dict>
		</array>

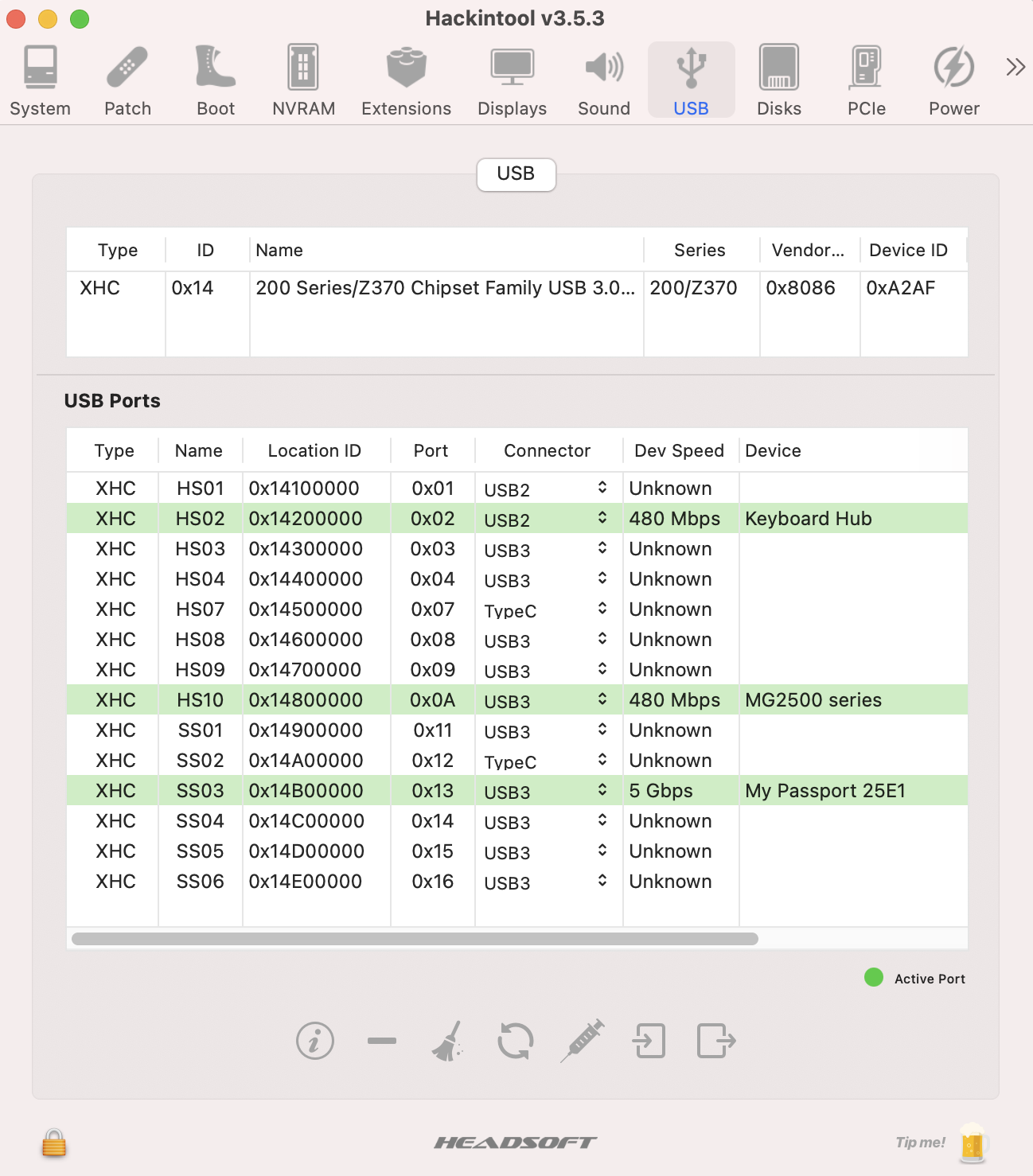

Screenshot 2021-04-29 at 23.56.58.png

Link to comment
Share on other sites

Hi all,

Finally today I was able to update from 11.2.3 to 11.3 without loosing bluetooth and all ports work after making a USBMap.kext with corpnewt USBMap...

Thanks to all that made suggestions and to all that had the same problems, losing ports and various problems with this update.

Thank you all...

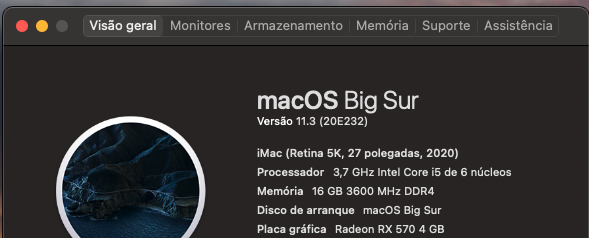

Captura de ecrã 2021-05-02, às 12.52.50.png

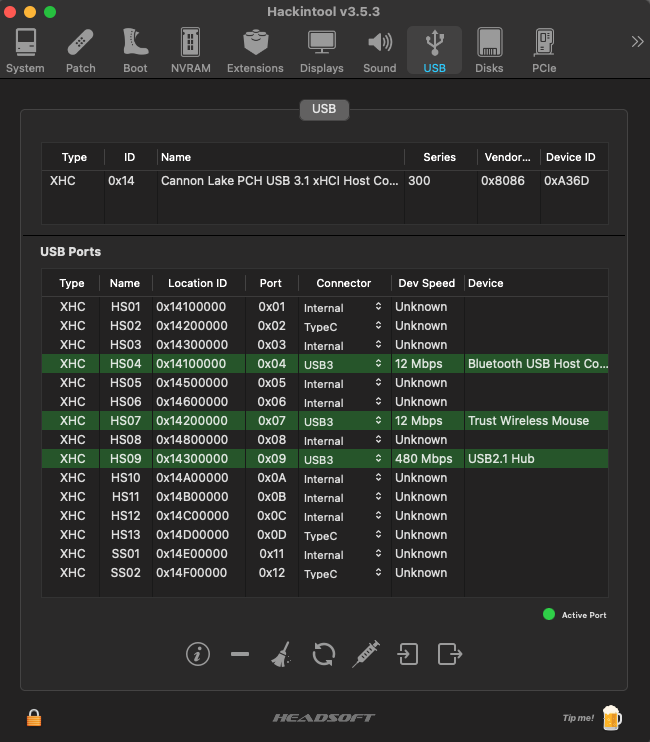

Captura de ecrã 2021-05-02, às 13.01.43.png

  • Like 2
