Marvell Yukon PCI-E 8056 works?

91 posts in this topic

Recommended Posts

Hi



I am using Asus p5b-deleuxe board/jas osx 10.48 resed.



I can run Sata(good performance on WD drive, sloooow on Seagate 7200.10) , Pata, sound(2ch) and onboard yukon (no jumbo frame).



The only missing working hardware is Yukon 8056 PCI-E, Realtek 8187L.



Anyone who know to make the missing hardware works?



Thanks

Share this post


Link to post
Share on other sites
Advertisement

This question has been asked a couple of times, there is even a thread dedicated to this board, and a tutorial on it.

http://forum.insanelymac.com/index.php?sho...426&hl=asus



If your using JaS 10.4.8 your going to need the IONetworking.kext from 10.4.7, the one in 10.4.8 doesn't work right.



sudo nano /System/Library/Extensions/IONetworking.kext/Contents/PlugIns/AppleYukon.kext/Info.plist

search for "8053" (no quotes) and replace with "8056" (no quotes)

Then search for "4362" (no quotes) and replace with "4364"

save the file, repair permissions and reboot.

Share this post


Link to post
Share on other sites

Hi



I has been followed your guide, but i still can't to use the yukon 8056.

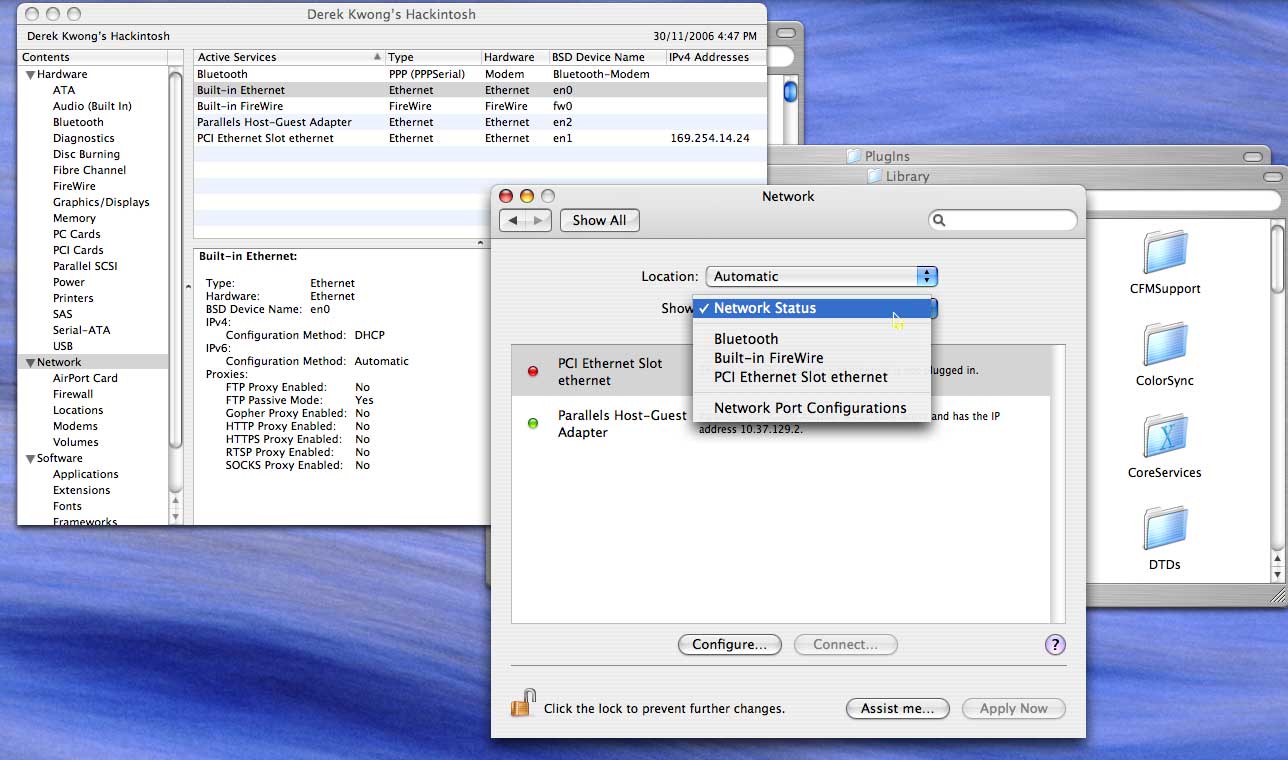

In the network preference, it don't display the 8056 yukon. It only display the 8001 yukon.



I would like to make dual ethernet port works.



Please help


Share this post


Link to post
Share on other sites

To get your Yukon 88E8056 Ethernet to work, you need to add your device id to the AppleYukon.kext. Go to Terminal and type:

cd /System/Library/Extensions											 <-- changes directory
sudo nano IONetworking.kext/Contents/PlugIns/AppleYukon.kext/Info.plist   <-- edits file

 (find and change: <key>Yukon-88E8053</key>)
 (to:			  <key>Yukon-88E8056</key>)	   <-- change "53" to "56"

 (find and change: <string>Yukon Gigabit Adapter 88E8053</string>)
 (to:			  <string>Yukon Gigabit Adapter 88E8056</string>)	   <-- change "53" to "56"

 (find and change: <string>0x436211AB</string>)
 (to:			  <string>0x436411AB</string>)	<-- change "62" to "64"

(press Control-O)								   <-- saves changes
(press Y and Enter)								 <-- accepts saving to existing file
(press Control-X)								   <-- exits nano

sudo chown -R root:wheel IONetworkingFamily.kext	<-- repairs permissions
cd /System/Library								  <-- changes directories
sudo rm -rf Extensions.mkext Extensions.kextcache   <-- rebuilds kextcache on reboot

Then reboot.

Share this post


Link to post
Share on other sites
To get your Yukon 88E8056 Ethernet to work, you need to add your device id to the AppleYukon.kext. Go to Terminal and type:
cd /System/Library/Extensions											 <-- changes directory
sudo nano IONetworking.kext/Contents/PlugIns/AppleYukon.kext/Info.plist   <-- edits file

 (find and change: <key>Yukon-88E8053</key>)
 (to:			  <key>Yukon-88E8056</key>)	   <-- change "53" to "56"

 (find and change: <string>Yukon Gigabit Adapter 88E8053</string>)
 (to:			  <string>Yukon Gigabit Adapter 88E8056</string>)	   <-- change "53" to "56"

 (find and change: <string>0x436211AB</string>)
 (to:			  <string>0x436411AB</string>)	<-- change "62" to "64"

(press Control-O)								   <-- saves changes
(press Y and Enter)								 <-- accepts saving to existing file
(press Control-X)								   <-- exits nano

sudo chown -R root:wheel IONetworkingFamily.kext	<-- repairs permissions
cd /System/Library								  <-- changes directories
sudo rm -rf Extensions.mkext Extensions.kextcache   <-- rebuilds kextcache on reboot

Then reboot.



Hi



I did try this, but the problem is still comes as post #3.

Share this post


Link to post
Share on other sites

Thanks everyone...this worked for me in trying to get the Ethernet working on my Gigabyte 965P-DS4, which also has the Yukon Marvell 8056 (as a built in).



Just one thing though, the file I had to edit was



/System/Library/Extensions/IONetworking.kext/Contents/PlugIns/AppleYukon.kext/Contents/Info.plist

Share this post


Link to post
Share on other sites

Sorry to say, I had no luck...tried it for 5-6 times with different IONetworkingFamily.kext



it's no problem to change the numbers from 8053 to 8056 and 62... to 64... then repair chmod/chown,permissions...

some IONetworkingFamily.kext have Yukon 1 and Youkon2 inside...yukon 2 is 11b or so and the yukon 1 shows 7 in info,

however only the Yukon 1 plug in has the 8053 so I did only corrected this one.



Has anyone a working LAN with intel 865 motherboard (using Yukon 8056) ?

Do I need to "replace" another file, too ?

Share this post


Link to post
Share on other sites

This worked for me.



A couple things to clarify the instructions above for anyone new to this:



1) IONetworking.kext = IONetworkingFamily.kext -- I spent a lot of time trying to figure out where IONetworking.kext went only to realize it's also IONetworkingFamily.kext



2) After I rebooted, the card showed up under networking, but it said the cable was disconnected. My router also reflected that. After trying to figure out if I had a bad cable, I did this:



a) open a terminal window

c) sudo -s

;) ifconfig en1 down

d) ifconfig en1 up



HTH,

theacolyte

Share this post


Link to post
Share on other sites
will this also work for 88E8055 ? :(





I'd also like to know this, because yesterday I tried to install OS X on my new laptop (Fujitsu Siemens Amilo Pro V3545) and my network and sound didn't work (haven't tried wireless yet, but I think it doesn't work either).



EDIT: It works for 88E8055 too. Now I just need to get WiFi and Sound working and I'll be happy. :D

Share this post


Link to post
Share on other sites

any help for the 88E1116?



I know what you are doing with the first key, and the first string, but the second one where, you change some seemingly irrelevant hex "<string>0x436211AB</string>" I have no idea what that is, or how to find out what that would be on mine. Any help?

Share this post


Link to post
Share on other sites
I'd also like to know this, because yesterday I tried to install OS X on my new laptop (Fujitsu Siemens Amilo Pro V3545) and my network and sound didn't work (haven't tried wireless yet, but I think it doesn't work either).



EDIT: It works for 88E8055 too. Now I just need to get WiFi and Sound working and I'll be happy. :)



Hey Marvell, I've got a similar laptop to yours. Mine is the v3505 and after installation of osx 10.48 i get a black screen. Please can you help?



I'd also like to know this, because yesterday I tried to install OS X on my new laptop (Fujitsu Siemens Amilo Pro V3545) and my network and sound didn't work (haven't tried wireless yet, but I think it doesn't work either).



EDIT: It works for 88E8055 too. Now I just need to get WiFi and Sound working and I'll be happy. :yoji:





sorry i meant fejker

Share this post


Link to post
Share on other sites

Hi there sorry to hi jack the forum. i am to install the Marvell Yukon 88E8056 on my GA-965P-DS3 (Rev 3.3) board. i have installed the gigaby...3-4pack.1.2.dmg which installed my sounds great. when i try to



cd /System/Library/Extensions

sudo nano IONetworking.kext/Contents/PlugIns/AppleYukon.kext/Info.plist



i dont get any information in the terminal at all likes a blank file. can any 1 help



when browsing System/Library/Extensions i cam across IONetworkingfamily.kext but no file for IONetworking.kext

Share this post


Link to post
Share on other sites

sudo nano /System/Library/Extensions/IONetworkingFamily.kext/Contents/PlugIns/AppleYukon.kext/Contents/Info.plist



You're missing a few things in the path and targeting a nonexistent kext. A few seconds examining the extensions directory also helps.

Share this post


Link to post
Share on other sites
To get your Yukon 88E8056 Ethernet to work, you need to add your device id to the AppleYukon.kext. Go to Terminal and type:
cd /System/Library/Extensions											 <-- changes directory
sudo nano [url="http://IONetworking.kext/Contents/PlugIns/AppleYukon.kext/Info.plist"]IONetworking.kext/Contents/PlugIns/AppleYukon.kext/Info.plist[/url]   <-- edits file

  (find and change: <key>Yukon-88E8053</key>)
  (to:			  <key>Yukon-88E8056</key>)	   <-- change "53" to "56"

  (find and change: <string>Yukon Gigabit Adapter 88E8053</string>)
  (to:			  <string>Yukon Gigabit Adapter 88E8056</string>)	   <-- change "53" to "56"

  (find and change: <string>0x436211AB</string>)
  (to:			  <string>0x436411AB</string>)	<-- change "62" to "64"

(press Control-O)								   <-- saves changes
(press Y and Enter)								 <-- accepts saving to existing file
(press Control-X)								   <-- exits nano

sudo chown -R root:wheel IONetworkingFamily.kext	<-- repairs permissions
cd /System/Library								  <-- changes directories
sudo rm -rf Extensions.mkext Extensions.kextcache   <-- rebuilds kextcache on reboot

Then reboot.





That worked for me. Thanks

Share this post


Link to post
Share on other sites

everything worked on 10.4.8 :D ......then upgraded to 10.4.10 (uphuck, pascalw), now my network is wacked :P . I can surf the web, see one of my m$ computers, but not the other, and both m$ computers cannot see my Hack.



Been stuck on this for three days and I am going nuts. I also did the apple security update for 10.4.10.



checked the /System/Library/Extensions/IONetworkingFamily.kext/Contents/PlugIns/AppleYukon.kext/Contents/Info.plist.....looks fine



when I go to fix an alias for the Network shares I get the network "greyed"out. If I get info on a network share the "fetching" just keeps spinning around.



uphuck 10.4.9 v1.3 + PascalW 10.4.10 Update


Intel® Core™2 Duo E6400 @ 3.20GHz (9x355) • Gigabyte GA-965P-DS3 (F5 BIOS) • 2x2GB Kingston DDR2-667ATI X1600 256MB PCI-E (QE/CI/Q2DE) • Realtek ALC883 [

multichannel 5.1/7.1 (out-1/2/3/4, in/mic)] • 2x250GB Seagate SATA •

Xbench 170/240

Share this post


Link to post
Share on other sites
Hi there sorry to hi jack the forum. i am to install the Marvell Yukon 88E8056 on my GA-965P-DS3 (Rev 3.3) board. i have installed the gigaby...3-4pack.1.2.dmg which installed my sounds great. when i try to







i dont get any information in the terminal at all likes a blank file. can any 1 help



when browsing System/Library/Extensions i cam across IONetworkingfamily.kext but no file for IONetworking.kext





i have similiar problem too..... can anyone help us ???



or by uploading Info.plist somewhere in the net.... thx in advance

Share this post


Link to post
Share on other sites

fejker or tkay2_24 please help me to install lan Marvell 88E8055 on V3505 notebook



p.s. if had or know were can get other drivers for the note mail me pls.

Share this post
