Posted (edited)

Hi, i want install MacOS catalina in my laptop.

i created a USB bootable with Catalina and Clover but it crashed at startup.

Thanks in advance.

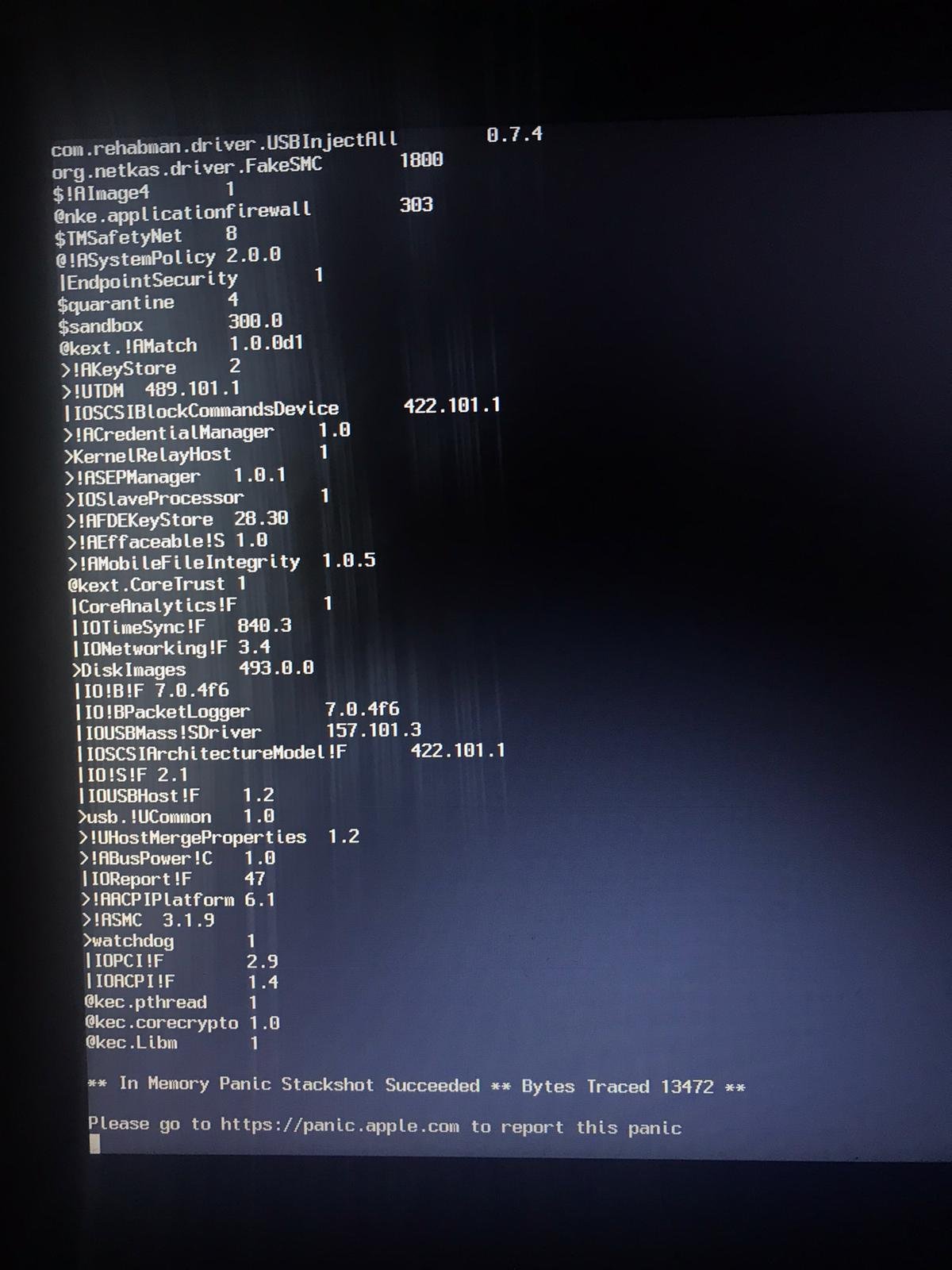

P.S I upload my EFI’s folder and crash screenshot



Sorry for my bad english.



This is my laptop:

CPU: intel i7 6500U

Graphics: Intel HD Graphics 520

Ethernet: Realtek FE Family

Wireless: Dell 1820A (BCM94350ZAE)

USB 3.0




EFI.zip

Edited by End3rPower50

Share this post


Link to post
Share on other sites
Posted (edited)

You've disabled renaming of Embedded Controller EC0 device to EC; I'd re-enable this if I were you.

https://osxlatitude.com/forums/topic/12393-requirements-for-catalina/



Then, you've opted for a desktop iMac17,1 SMBIOS + SKL desktop HD530 settings on your laptop; wouldn't MBP13,1/MBP13,2 profile and the layout recommended for HD520 graphics appear far more appropriate?




Given that it's an HP laptop, you may also need to activate the Kernel LAPIC patch should you encounter Lapic KP.



Edited by Hervé

Share this post


Link to post
Share on other sites
15 hours ago, Hervé said:

You've disabled renaming of Embedded Controller EC0 device to EC; I'd re-enable this if I were you.

https://osxlatitude.com/forums/topic/12393-requirements-for-catalina/



Then, you've opted for a desktop iMac17,1 SMBIOS + SKL desktop HD530 settings on your laptop; wouldn't MBP13,1/MBP13,2 profile and the layout recommended for HD520 graphics appear far more appropriate?




Given that it's an HP laptop, you may also need to activate the Kernel LAPIC patch should you encounter Lapic KP.



I changed AAPL,ig-platform-id to 00001619, i enabled EC patches and kernel Lapic and SMBIOS is MacBook Pro 13,2.

EFI 3.zip

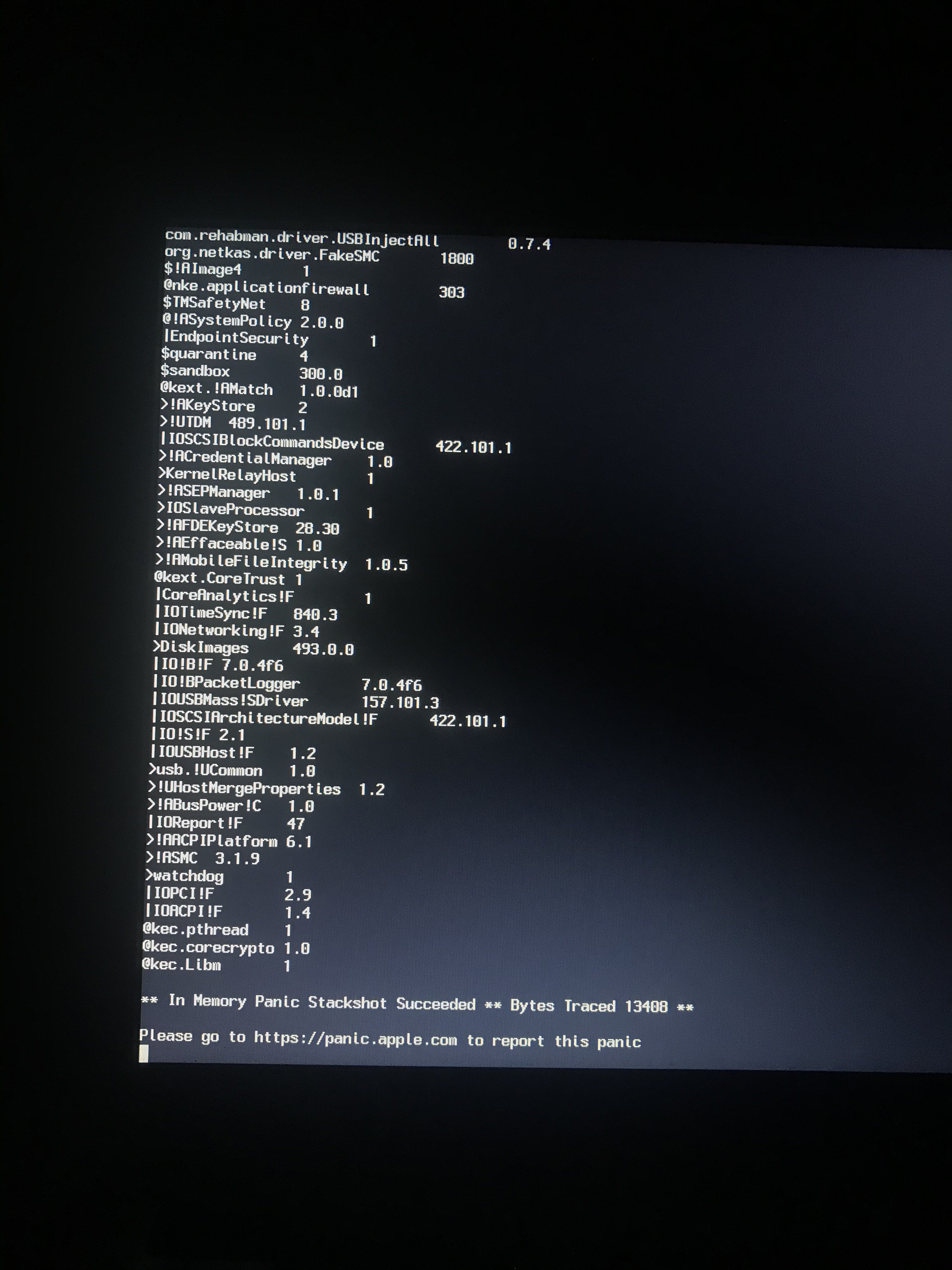

WhatsApp Image 2020-04-08 at 11.13.24.jpeg

Share this post


Link to post
Share on other sites
