[SUCESSO] Instalado Catalina no DELL 5557 - Hackintosh

6 posts in this topic

Recommended Posts

Boa tarde a todos, estou fazendo um hack em um notebook Dell 5557, as configurações estão abaixo.

Preciso de ajuda para terminar alguns detalhes que nao consegui, alguém poderia ajudar?



bem com a minha pasta EFI que pode ser baixada nesse post vc poderá fazer o seu hack mais facilmente nesse modelo,

pois quase tudo ja esta configurado e pronto pra uso.



ESPECIFICAÇÕES TÉCNICAS

Processador Intel Core i7 - 6ª Geração Intel Core i7-6500U
Velocidade: 2.5 GHz até 3.1 GHz com Max Turbo Cache: 4Mb

Memória RAM Quantidade: 16GB DDR3L 1600MHz (2X8).

Armazenamento Capacidade: 240 GB SSD
Tela Tamanho:15.6” Resolução: FULL HD 1920x1080p Touch
Webcam integrada de alta definição (720p) com microfone digital

Gráfico Integrado Intel HD 520
NVIDIA® GeForce 930M com 4GB DDR3 Dedicada

Áudio Realteck ALC255


Dell Wireless 1707 WiFi, chip ar9565

1x  HDMI 1.4ª
2x USB 3.0
1x USB 2.0
1x Ethernet 10/100 RJ-45
1x Entrada de Cartão 5 em 1 (SD, SD 3.0, SDHC, MS e MS PRO)

Leitor de Cartão
Tipo: SD, SDHC, SD3.0, MS, MS Pro

Alimentação Bivolt 3 células 43Wh





O QUE NÃO FUNCIONA?

BRILHO DA TELA

BLUETOOTH

SONO (Hibernação)

HDMI (audio e video) deve ser por causa da nvidia eu acho.

GRAFICOS DEDICADOS NVIDEA 930M (NAO CONSEGUIR DESATIVAR PERMANENTE)



O QUE FUNCIONA?



GRAFICOS INTEL

WI-FI - a intel original foi substituída pela DELL dw1707 ar9565

AUDIO

TECLADO

TRACKPAD (com gestos)

TOUCHSCREEN (com alguns gestos)

TECLAS  DE ATALHO

PLACA DE REDE RJ45

GERENCIAMENTO DE ENERGIA



A DSDT E AS SSDT

PACHS BASICOS APLICADOS.

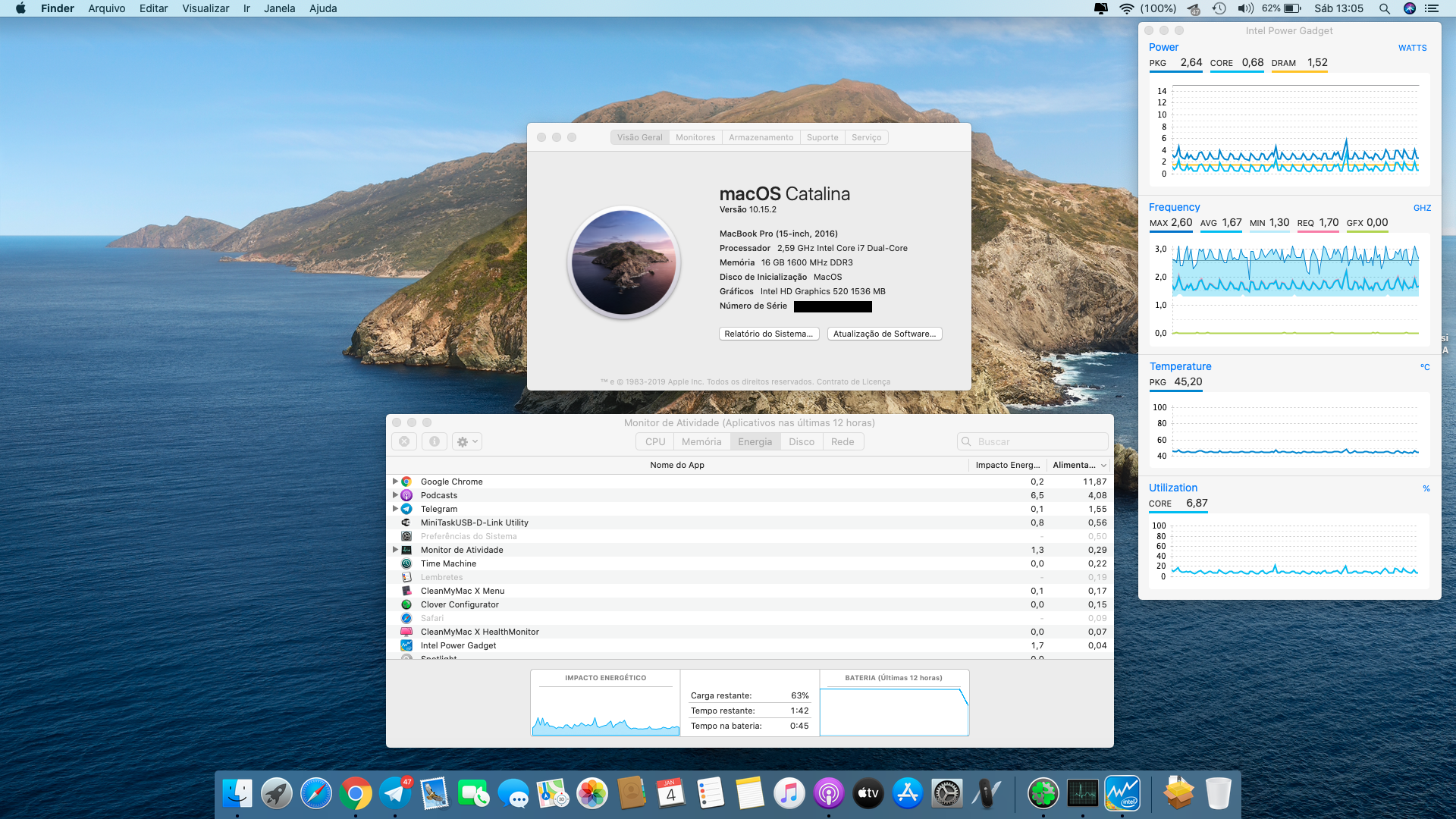

Aparentemente o gerenciamento de energia está funcionando bem, pelo menos o processador parece esta bem estável.



291147713_CapturadeTela2020-01-04as13_05_29.thumb.png.7f09e78df23b41977f01b2c858629a82.png

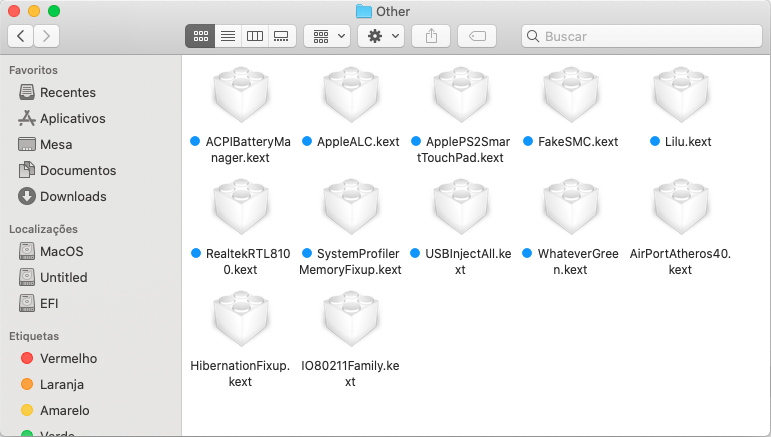

PASTA OTHER CLOVER (DEPOIS DESSA IMAGEM FOI ADICIONADO MAIS DUAS KEXT QUE NAO ESTAO PRESENTES NA IMAGEM, PARA FUNCIONAR

O TOUCH E PARA O WIFI CONSEGUIR ENCONTRAR AS REDES.

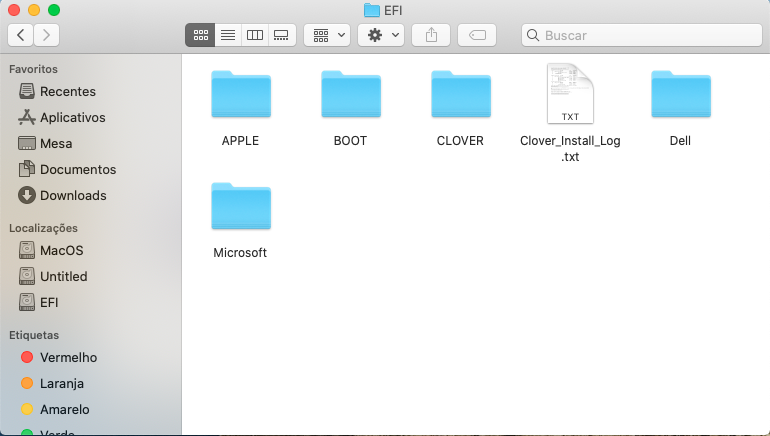

EFI



1260526827_CapturadeTela2020-01-04as12_54_19.png.911ef688c43700a64ae2d81f263c6cb7.png

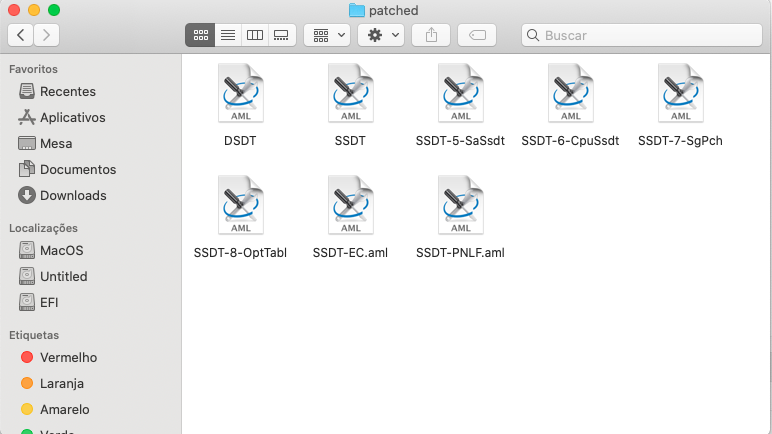

ACPI/PACHER



1323737922_CapturadeTela2020-01-04as12_56_48.png.8ae8e0dac777ea1451afbad7843743df.png





ESTAREI DEIXANDO UM LINK PARA DOWNLOAD DA MINHA PASTA EFI, CASO ALGUEM ESTEJA FAZENDO ESSE MESMO HACK ESSA PASTA PODERÁ AJUDAR.



ATENÇÃO



LEMBARDO QUE OS ARQUIVOS DSDT E SSDT, SSDT DE 5 A 8 SÃO DO MEU NOTEBOOK, QUEM FOR USAR DEVER EXTRAIR E CONSTRUIR SEUS PROPRIOS DSDT E SSDT.

O SSDT-EC E O SSDT-PNLF PODEM SER USADOS POIS SÃO GENERICOS.



LINK DE DOWNLOAD EFI DELL 5557-P39F

https://drive.google.com/open?id=1Q2tnoqQZ9K44Bv6k2k1yauaHCAop_ZyW



QUEM PUDER AJUDAR A CORRIGIR OS PROBLEMAS RESTANTE EU AGRADEÇO, OBRIGADO.





Edited by ricardos7
MUDANÇA NO TITULO DE AJUDA PARA SUCESSO DE INSTALAÇÃO.

Share this post


Link to post
Share on other sites
Advertisement
On 11/28/2019 at 7:09 AM, artur_pt said:

tentei acompanha o tópico, mas ninguém responde mas la, consegui instalar o sistema, e tenho boa parte funcionando, só que tenho um erro no dsdt q nao consigui resolver, ja li os guias e mesmo assim nao achei solução, assim meu bruilho de tela noa funciona, e nao sei se o gerenciamento de energia esta funcionando corretamente, o audio nos falantes estao bons, mas nos fones nao prestam, poderia me ajudar com o meu dsdt?

DSDT originDELL5557.zip

Report.htm

EFI.zip

Share this post


Link to post
Share on other sites

olá



verifica as kext se estão na ultima versão



usas estas ssdt no folder patched



usa os fix para o DSDT e podes usar o original em patched



tenta usar o necessário do config.plist no teu config



Inspiron5557.zip



bom hack



Share this post


Link to post
Share on other sites
Posted (edited)
On 12/22/2019 at 5:03 PM, artur_pt said:

olá



verifica as kext se estão na ultima versão



usas estas ssdt no folder patched



usa os fix para o DSDT e podes usar o original em patched



tenta usar o necessário do config.plist no teu config



Inspiron5557.zip



bom hack



tentei essa pasta mas deu kernel panic e o sistema nem subiu, mas ja consegui instalar o catalina com a ajuda de um amigo do telegram, so nao conseguir fazer o controle de brilho funcionar, ou seja o brilho até tem o controle nas preferencias mais simplemente nao altera o brilho da tela. outra coisa é a desativação da nvidia que nao conseguir fazer, seguir o guia mas nao funcionou. mas o hack esta digamos 80% pronto, so falta esses 3 detalhes, desativar Nvidia, corrigir o brilho (ja tentei de tudo) e corrigir o sono.



PODERIA MOVER O TOPICO PARA A AREA DO CATALINA?

Edited by ricardos7
ATUALIZAÇÃO

Share this post


Link to post
Share on other sites
