[GUIDE] X99 Xeon V3 Haswell-EP Mojave 10.14.x (2019)


48 posts in this topic

Recommended Posts

Hi, it did fix USB3, still had to mess around as your config does never boot on my systems. What tool did you use to undervolt Vega ? I like bios modding cards, as i did with Rx580 , sadly no such thing on Vega . Did not play any fullscreen game so cannot report on that. Would love to speed up boot times, but thats sure out of my league, outside some tuning of system services with https://gist.github.com/pwnsdx/d87b034c4c0210b988040ad2f85a68d3

  • 3 weeks later...

use VgTab to modify powerplay tables and generate a kext or ssdt

[mods the BIOS values after its loaded so I guess technically not a BIOS mod ;) ]



fullscreen game issue may be CPU timer/sync issue, will test some things. May also help with the keyboard timer during FileVault 2 password entry screen



Xeon E5 v3 All Core Turbo and undervolt :



https://github.com/freecableguy/v3x4 (requires BIOS mod)



Guide: https://www.win-raid.com/t3874f16-GUIDE-Haswell-E-EP-Xeon-CPUID-F-Turbo-Unlock.html



USB3 boot issue was a bad USB device

Edited by e97
  • 2 weeks later...

Compiled TSCAdjustRest.kext with Xcode 11.3.1

Edit the TSCAdjustRest.kext/Content/Info.plist
Change the IOCPUNumber value to CPU # of threads - 1



ex. E5-2678 v3 => 12 cores, 24 threads -> IOCPUNumber = 23



This seems to have fixed USB3 startup issues, micro stutter, and more.. will know for sure after a few days



Thanks for the tip @WhenMusicAttacks

Edited by e97
On 1/26/2020 at 9:09 PM, e97 said:

Compiled TSCAdjustRest.kext with Xcode 11.3.1

Edit the TSCAdjustRest.kext/Content/Info.plist
Change the IOCPUNumber value to CPU # of threads - 1



ex. E5-2678 v3 => 12 cores, 24 threads -> IOCPUNumber = 23



This seems to have fixed USB3 startup issues, micro stutter, and more.. will know for sure after a few days



Thanks for the tip @WhenMusicAttacks


i did not notice any improvement in micro stutters in testing, but i am not sure what kind of stutter you had in the first time, so hey glad to help back my friend :)

Here's compiled TSCAdjustRest and VoodooTSCSync.



2020-02-01 using  Xcode 11.3.1 Build version 11C504



If TSCAdjustRest doesn't work well, try VoodooTSCSync.





DL: TSCAdjustReset.kext.zip



Source: https://github.com/interferenc/TSCAdjustReset







DL: VoodooTSCSync.kext.zip



Source: https://github.com/RehabMan/VoodooTSCSync













Edited by e97
  • Like 1
  • 1 month later...
  • 4 weeks later...

Hi! I have a huanan x99 motherboard and an e5 2678v3 processor.  I can’t turn on speedstep and turboboost according to this instruction.  And the script for creating ssdt does not recognize this processor “unknown processor”.. help is good for me (

On 4/24/2020 at 1:54 AM, Ryanfromrussia said:

Hi! I have a huanan x99 motherboard and an e5 2678v3 processor.  I can’t turn on speedstep and turboboost according to this instruction.  And the script for creating ssdt does not recognize this processor “unknown processor”.. help is good for me (





with the patch xcpm_bootstrap my system does not boot. Hangs on FinalizeBootstruct, RandomSeed. I enter information in SMBIOS - memory slot. But this does not solve the problem .. When I turn off this patch, the system boots up, but as before I do not have speedstep and turboboost. But, with NullCpu kext only speedstep  worked.. plz help!  Mojave 10.14.6

Edited by Ryanfromrussia
On 3/27/2020 at 8:58 AM, zzmadd said:

Hi,



I'm trying to understand which motherboard you used.

YOu say: "SZMZ X99-8D3".

I couldn't find a specific model. Would a Huananzhi board like this one work?

https://it.aliexpress.com/item/4000197657606.html?spm=a2g0s.8937460.0.0.601f2e0eTQBoze



Thanks.



This is the board:

https://it.aliexpress.com/item/4000786291209.html

https://it.aliexpress.com/item/4000439515295.html

https://it.aliexpress.com/item/4000794489933.html



On 4/23/2020 at 6:54 PM, Ryanfromrussia said:

Hi! I have a huanan x99 motherboard and an e5 2678v3 processor.  I can’t turn on speedstep and turboboost according to this instruction.  And the script for creating ssdt does not recognize this processor “unknown processor”.. help is good for me (



Havent used the Huanan X99 board and don't have one to test. Since you got the board running you are almost there, try removing NullCpu and create a SSDT.



Best way to get help:

1) search first,

2) if nothing similar, make a new thread with full system specs and config files.



This way others with the same board can help you and others can find and benefit too.

Edited by e97
  • Like 1
On 5/5/2020 at 5:49 PM, e97 said:

Thanks for your reply. That's the Jingsha board but there's an identical board sold by Kllisre:

https://it.aliexpress.com/item/4000552611991.html?spm=a2g0y.12010612.8148356.16.725d71d8pYeINj



I was able to run this board. I'm really happy about it. Just sleep doesn't work at all. Turbo is unlocked.

https://it.aliexpress.com/item/4000741824519.html?spm=a2g0y.12010612.8148356.18.725d71d8pYeINj



E5 2620 V3 - Cinebench R15: 960



Any advice?

Edited by zzmadd
On 5/7/2020 at 1:52 AM, zzmadd said:

Thanks for your reply. That's the Jingsha board but there's an identical board sold by Kllisre:

https://it.aliexpress.com/item/4000552611991.html?spm=a2g0y.12010612.8148356.16.725d71d8pYeINj



Same manufacturer, different sellers.



Thats a DDR4 board:

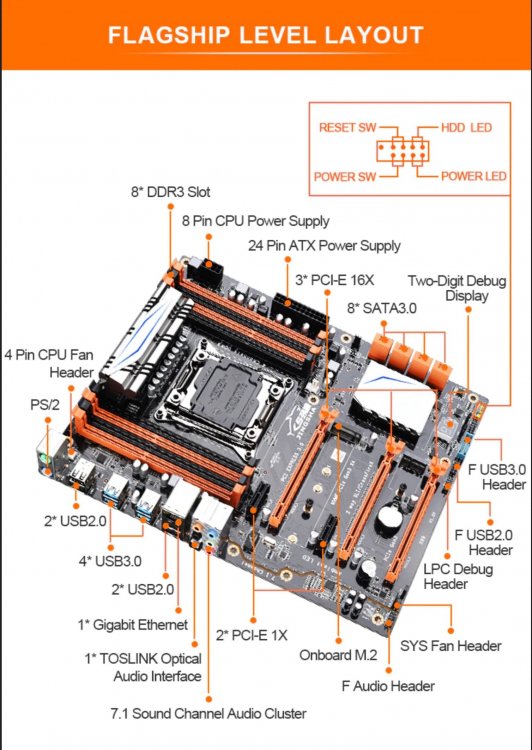

the one I linked and use is DDR3 :









On 5/7/2020 at 1:52 AM, zzmadd said:

I was able to run this board. I'm really happy about it. Just sleep doesn't work at all. Turbo is unlocked.

https://it.aliexpress.com/item/4000741824519.html?spm=a2g0y.12010612.8148356.18.725d71d8pYeINj



E5 2620 V3 - Cinebench R15: 960



Any advice?



Congrats! Sleep depends on sleep state hardware support, BIOS support and then proper config.



People seem to have better luck with OpenCore. Like most things hackintosh, trial and error.





Edited by e97
  • 1 month later...
  • 4 weeks later...
  • 3 weeks later...
  • 2 weeks later...

Hi, I'm trying to instal macOS Mojave.

My PC: GPU - AMD RX580 Pulse 4GB
CPU - Intel Xeon e5 2620v3 [6c/12t] (TurboBoost 3.2GHz)
Motherboard - LGA2011v3 Kllisre X99Z v102(bios - huananzhi x99-TF)
RAM - DDR4 Kllisre 2400MHz(1866MHz) Dual Chanel

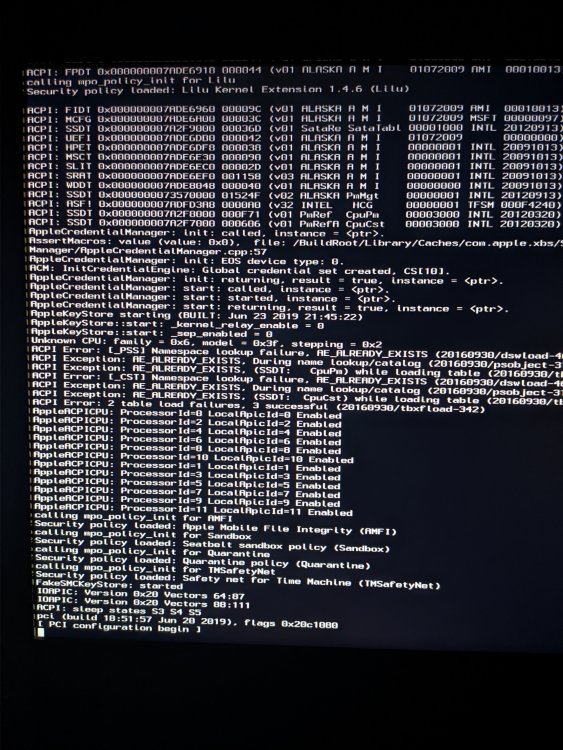

When I try to install, I get an error "Failed to start CPU 02, rebooting... CPU halted" and "bsd process name corresponding to current thread

This is solved by argument: cpus=1

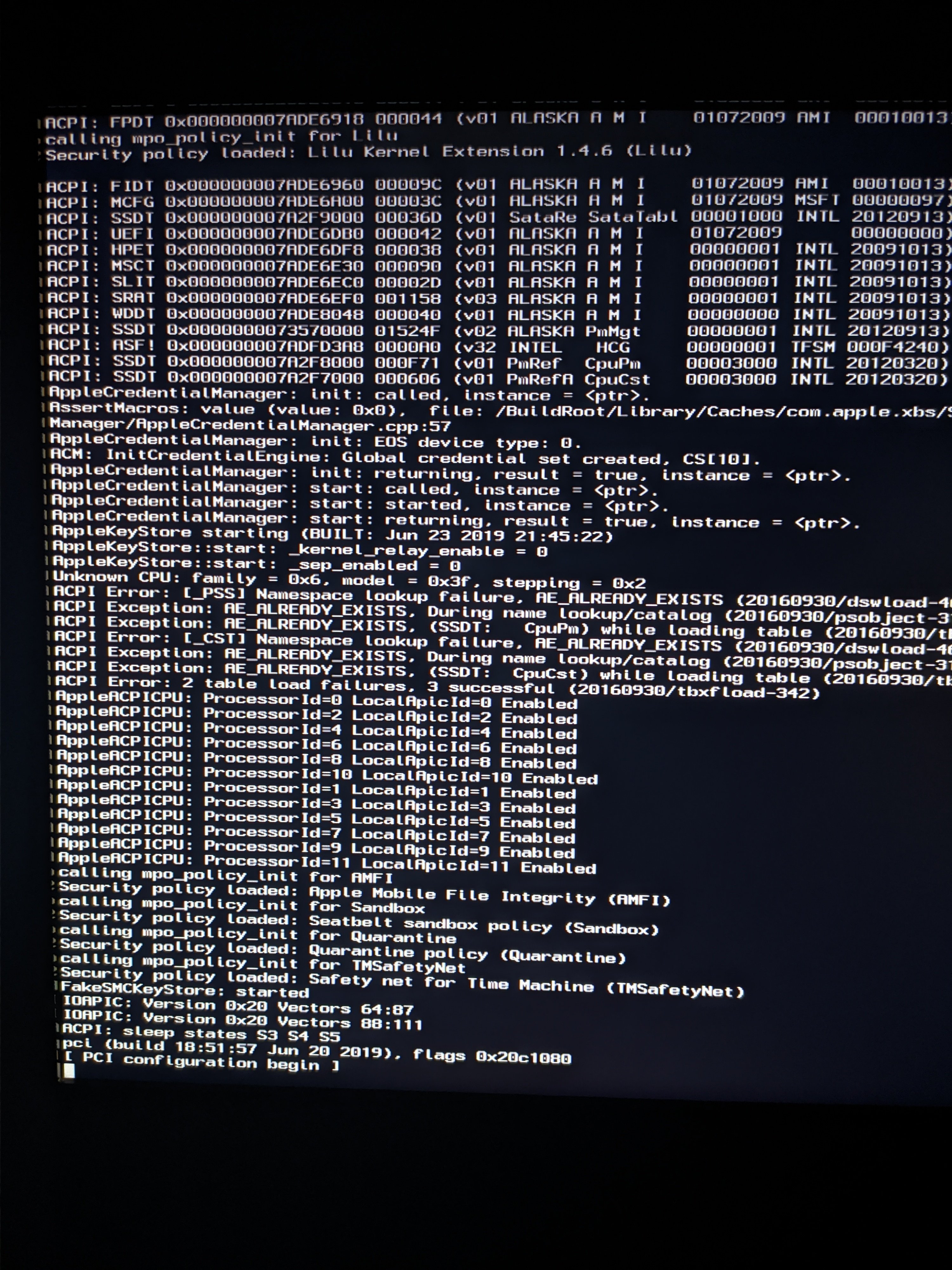

But after that I have the next eror: "PCI configuration begin". Any arguments doesnt work.








My clover:

EFI.rar

Edited by Singa
  • 4 weeks later...

Really glad I found this thread



just ordered a HUANANZHI X99 F8 X99 package



comes with 64g of 2133 rec ecc ddr4 and a e5-2690 v3



going to pair it with a MSI GeForce GTX 1660 SUPER GAMING X



I am interested in modding the bios to oc the processor.  Not sure if you can oc the memory.



I've got 4 weeks, so any advice would be appreciated.





  • 2 weeks later...
  • 2 weeks later...
On 9/1/2020 at 1:42 AM, paul o said:

Really glad I found this thread



just ordered a HUANANZHI X99 F8 X99 package



comes with 64g of 2133 rec ecc ddr4 and a e5-2690 v3



going to pair it with a MSI GeForce GTX 1660 SUPER GAMING X



I am interested in modding the bios to oc the processor.  Not sure if you can oc the memory.



I've got 4 weeks, so any advice would be appreciated.







That gpu will never work with macOs , so why are you here :D ?

  • 2 weeks later...



I've got one problem i had to use cpufriend.kext in order to get hibernation/wake on a chinese x99 board with a 2678 v3 xeon processor but once it resumes from wake up, the processor wont reach the turbo frecuency

  • Like 2
  • 2 weeks later...
  • 2 weeks later...

Hi,

I'm trying to boot an existing High Sierra system on my new JINGSHA X99 D8 motherboard with an E5 2678 v3 using Open Core with no succes for the moment. I'm stuck on IOCConsoleUsers.



I'm wonder if I can boot with your Mojave EFI using Clover this time ? Are the patches specific to each macos ?

  • 2 months later...
On 12/31/2020 at 4:43 PM, geticus said:

Hi,

I'm trying to boot an existing High Sierra system on my new JINGSHA X99 D8 motherboard with an E5 2678 v3 using Open Core with no succes for the moment. I'm stuck on IOCConsoleUsers.



I'm wonder if I can boot with your Mojave EFI using Clover this time ? Are the patches specific to each macos ?



It should mostly work. A few changes to patches for CPU. Look at High Sierra build patches.

  • Like 1
×
×
