dracoflar

OpenCore Vanilla Desktop Guide

20 posts in this topic

Recommended Posts

So you've been reading the forum on this brand new boot loader called OpenCore hoping to try it out but you take one look at the configurations PDF and take a step back in shock at the complexity! Well if you've been feeling a bit intimidated by the DOCS well you've come to the right place:



OpenCore Install Guide



If you have any issues or suggestions please feel free to comment

Edited by dracoflar

Share this post


Link to post
Share on other sites

@ekwiptSo regarding Broadwell E support, more specifically the X79, X99, X299, C612 platforms, within the guide posses quite a few issues. Specifically that there is no real "one size fits all" guide that can be used as there's quite a bit of variation between each system and even the firmware on it. I personally have yet to find a guide that encompasses the HEDT platform properly but if you have a guide in mind I would gladly look into this as I want to have OpenCore be available to more users. There's also a simple "Converting Clover to OpenCore" section in the works that would allow users to migrate their current installs to OpenCore.

Share this post


Link to post
Share on other sites
On 7/22/2019 at 10:25 AM, ekwipt said:

Looking forward to the converting from clover.



I am interested too, especially regarding iTunes/Mac App Store.



I am trying converting from Clover, reusing previous MLB and SystemUUID.

iCloud and iTunes are OK, but I cannot connect to Mac App Store. Back to Clover for the time being.

Share this post


Link to post
Share on other sites

@barijaona likely an issues with your ethernet, verify that your en0 device is still built-in. Noticed this with a couple users on the AMD OS X discord when they swapped over to OpenCore, Siri was also broken as well. I mention it here: https://khronokernel-2.gitbook.io/opencore-vanilla-desktop-guide/extras/troubleshooting#imessage-and-siri-broken

Share this post


Link to post
Share on other sites

I've followed the guide for two very different systems and have very different levels of success.

 - System 1:  Ryzen 5 3600 / Asus X570 Tuf Gaming / RX 580 - working fine other than sleep issue

 - System 2:  I3-2125 / MSI Z68MA-ED55 / HD Graphics 3000 - Can't even get MacOS installer to show up in OC boot menu



Same method was used to create installation USB in both cases - as is the OpenCore version.

System 1 is on Catalina, while System 2 will be using High Sierra.



Any ideas where I've gone wrong?

Share this post


Link to post
Share on other sites
On 7/11/2019 at 4:03 AM, dracoflar said:

If you have any issues or suggestions please feel free to comment







Can you help me for dual boot  OC with windows

what is the structure for the Efi folder and where to put Windows boot folder

thank you

Share this post


Link to post
Share on other sites

Hi. Thank you for an amazing guide! I got Catalina on mine to work fully with an important issue.



this is my spec:



MB: MSI x399 Meg creation

CPU: AMD 2990WX

RAM: 64GB cosair veangeance

GPU: Radeon7



All these works perfectly. Except I have an Intel 550T2 10GBps pci card that I need working for my projects.



so far I got the internal Intel I211 working using Smalltree kext.



for 550 T2 I tried smalltree8259x.kext. And tried it with FakePCIID and FakePCIID_intel_GbX in kext folder.



I read that I should move these 3 kexts into L/E S/L/E. But with catalina, it seems there is no proper way to do this.



can someone enlighten me?


Share this post


Link to post
Share on other sites
42 minutes ago, dasca.thea said:

Hi. Thank you for an amazing guide! I got Catalina on mine to work fully with an important issue.



this is my spec:



MB: MSI x399 Meg creation

CPU: AMD 2990WX

RAM: 64GB cosair veangeance

GPU: Radeon7



All these works perfectly. Except I have an Intel 550T2 10GBps pci card that I need working for my projects.



so far I got the internal Intel I211 working using Smalltree kext.



for 550 T2 I tried smalltree8259x.kext. And tried it with FakePCIID and FakePCIID_intel_GbX in kext folder.



I read that I should move these 3 kexts into L/E S/L/E. But with catalina, it seems there is no proper way to do this.



can someone enlighten me?

Pretty sure that 10Gb ethernet card will not work, only 10Gb ethernet cards that have AQC-107 chipset will work. Also you shouldn't be putting in kext inside L/E or S/L/E they should all go into EFI/OC/Kexts

Share this post


Link to post
Share on other sites
3 hours ago, Pavo said:

Pretty sure that 10Gb ethernet card will not work, only 10Gb ethernet cards that have AQC-107 chipset will work. Also you shouldn't be putting in kext inside L/E or S/L/E they should all go into EFI/OC/Kexts

Just last night I successfully run Catalina on my friend’s machine(clover boot)

Gigabyte x299x designare 10G



this board has the same Intel X550T2 chipset. It was running completely native.That is why I had the courage to try Hackintosh on my machine as well.

Share this post


Link to post
Share on other sites
Posted (edited)
18 minutes ago, dasca.thea said:

Just last night I successfully run Catalina on my friend’s machine(clover boot)

Gigabyte x299x designare 10G



this board has the same Intel X550T2 chipset. It was running completely native.That is why I had the courage to try Hackintosh on my machine as well.

The difference is his is built-in utilizing his chipset, where yours is a PCI card. Because the MSI x399 Meg creation board doesn't have it built-in.

Unless it has one of the device-ids listed below it will not work natively.




Edited by Pavo

Share this post


Link to post
Share on other sites
8 hours ago, Pavo said:

The difference is his is built-in utilizing his chipset, where yours is a PCI card. Because the MSI x399 Meg creation board doesn't have it built-in.

Unless it has one of the device-ids listed below it will not work natively.




Would you suggest I flash my NIC with a compatible device ID?

Share this post


Link to post
Share on other sites

My PC configuration is

  • motherboard : Gigabyte Z390 Gaming SLI
  • Processor: Intel i7 8700K
  • GPU: Built in Graphics Intel UHD 630
  • Ram: 16GB 3300MHz
  • SSD: Samsung NVMe 970 EVO Plus 256GB

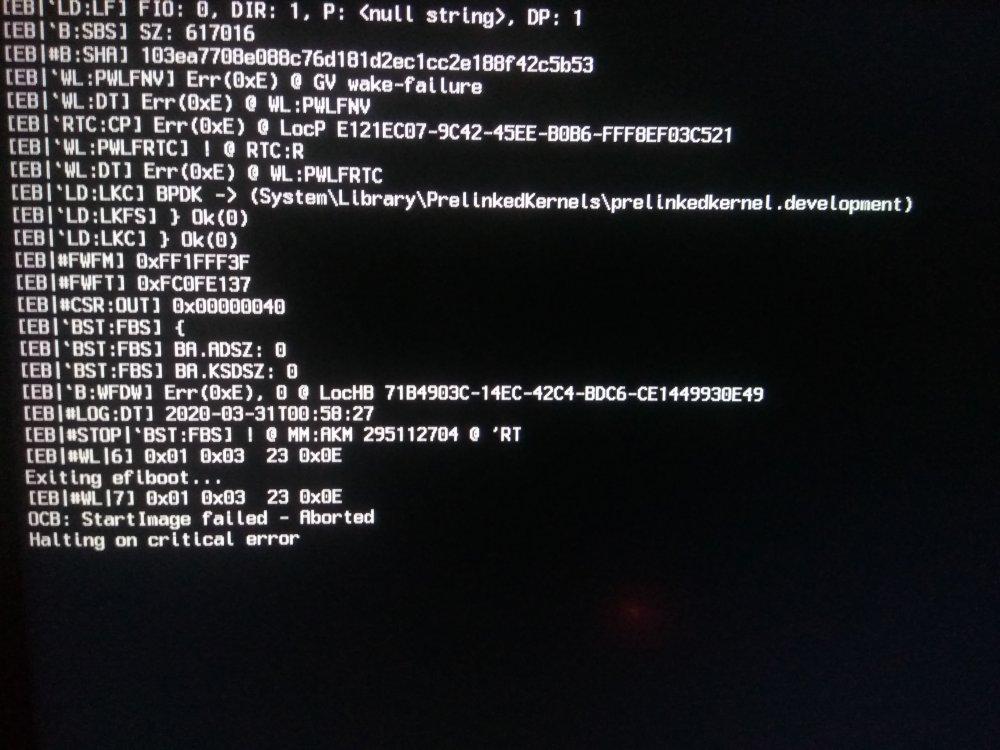

I want to install Mac os catalina in my pc. But when booting from installation media it's stuck at some point and I don't know what it means. I attached some photos of this problem...

opencore-2020-03-31-114310.txt


Share this post


Link to post
Share on other sites

Hi!



I have just installed Opencore 0.6 Catalina OSX on a Lenovo Tiny M910q Skylake i5. I used the Dortania Guide. Everything is running fine, until the system is completely installed, and I restart the system. If I have the USB with the "Install Catalina OSX" inserted, I access without problem the Boot Menu, and then (even removing the USB) the OS boots up properly, and it's fully working.



But if I remove the USB, Opencore doesn't go to the Boot Menu, but instead opens up a black screen that reads:



>>Checking Media Presence......

>>Media Present.....

>>Start PXE over IPv4



If I disable IPv4 in the BIOS, the black screen tells me "1962: no operating system found"



I know that catalina was installed correctly, because If I use the USB to get the Boot Menu, and then choose to boot Mac OS Catalina, I can remove the USB, and the OS will load from the HD without flaws.



I have gone through the Opencore guide, ensuring all the quirks are correct in the config.plist.



I have carefully taken the EFI folder from the USB and replaced the Mac HD EFI folder with it. But it is still not working. Any help?



Thanks in advance,



Ed





Share this post


Link to post
Share on other sites

Hi,



I just tried installing catalina with open core and it worked. thank you very much for the guide!

how ever i don't see any guide to do check if my hackintosh is working ok / stable.



can you point out for me thank you





Share this post


Link to post
Share on other sites
