Cobie1990

Hackintosh Mojave Help!!

8 posts in this topic

Recommended Posts

Hey everyone,



I have a brand new build every part is brand new specs are:



Motherboard: Gigabyte Z390 Designare

CPU: I7-9700k(Coffee Lake)

GPU: Sapphire Pulse Rx 580 4gb

Ram: 32gb Trident 3000mhz

PSU: 750W bronze

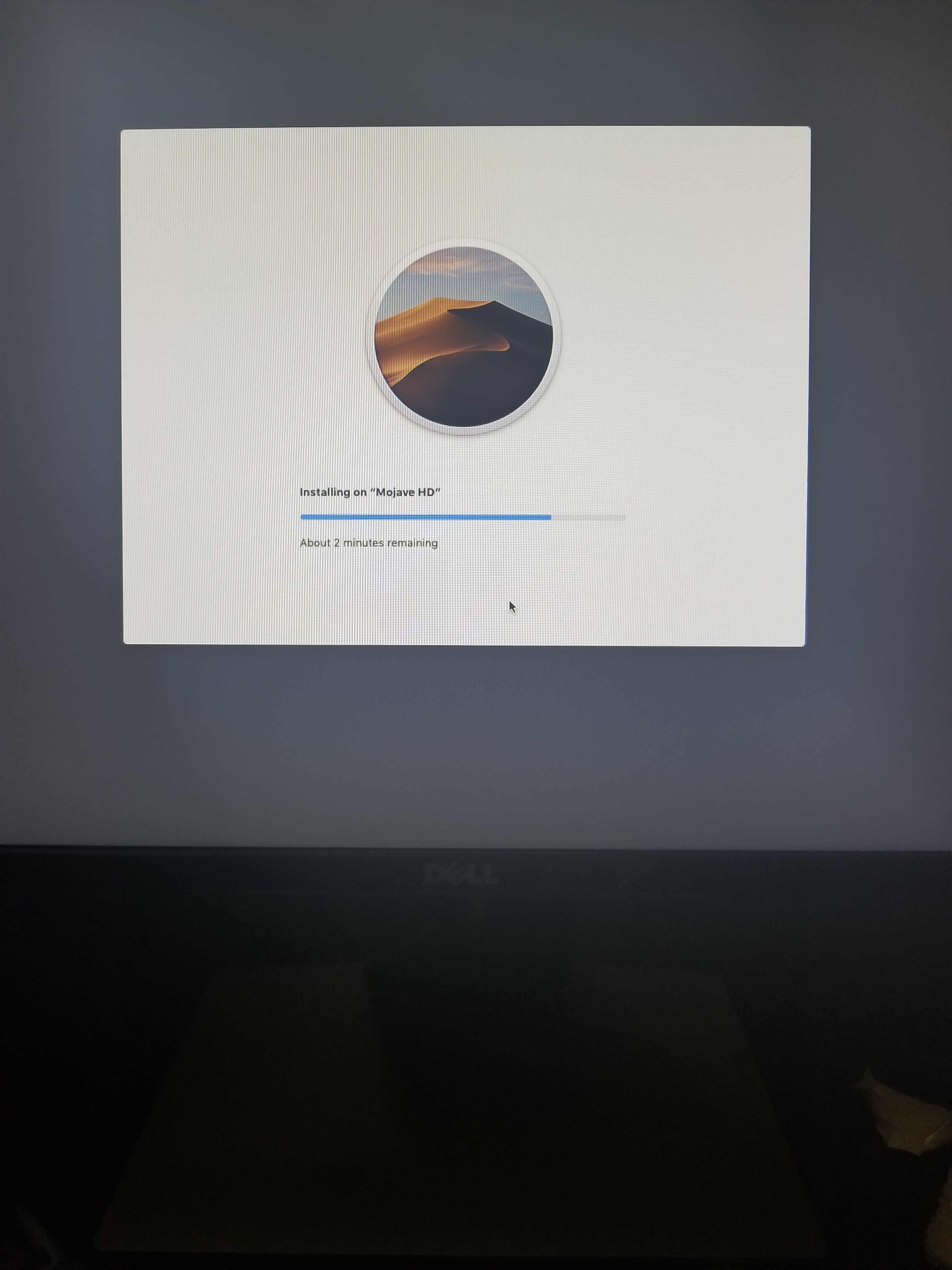

All parts were checked on QVL list. So they are compatiable. I can install Mojave 10.14.3 without a problem on my 1tb ssd.

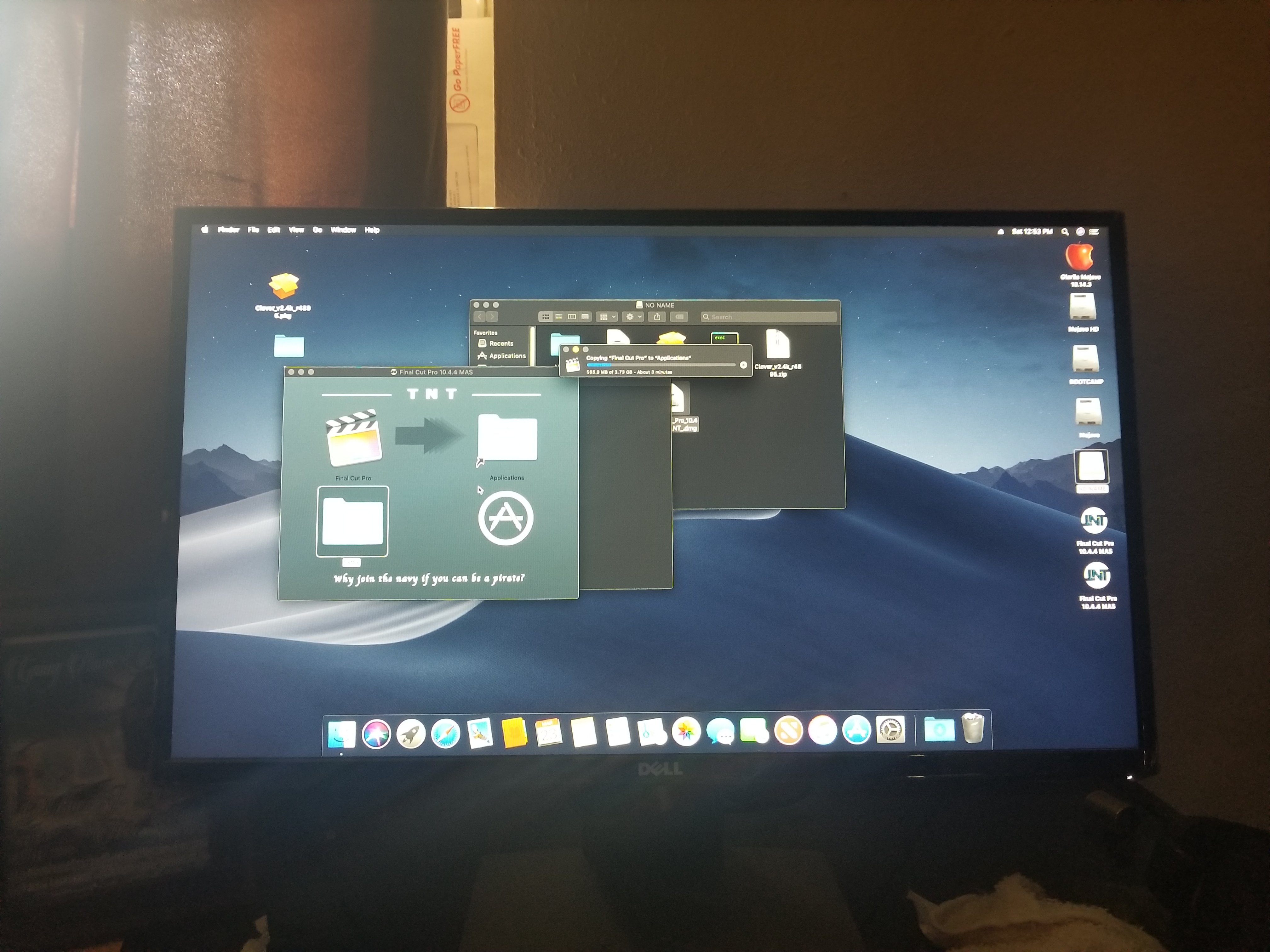

Now the problem is once i boot up after install and log into mac os Mojave system. After like 5 mins it freezes up and just get stuck and i cant do anything. I have to reset my hackintosh and try again but still after 2-5 mins upon boot up it freezes!(Also bios is set correctly)20190323_124907.thumb.jpg.5182bb0acfc2f4e340c177fc68372835.jpg



If anyone has a fix for this, can yall help me out i need Mac os for video production machine but cant get it to stop freezing!



Help plz thanks for all problems in advance!!

:help:






Edited by Cobie1990
Upload picture

Share this post


Link to post
Share on other sites
Advertisement

Hi and welcome to InsanelyMac.



Don't change anything in your UEFI/Bios, only change a field if needed.



Run this app, and upload the file result here.
RunMe



Share this post


Link to post
Share on other sites

@steve3d @Cobie1990

Do you dual boot with Windows, and does it freeze in Windows or at (BIOS screen after some time has passed ) ? If no dual boot you could try testing PC with Linux Live USB distro to see if system freeze persists. You could also try removing some of the memory modules and see if problem persists, and check CPU cooler / heatsink is seated correctly.















Edited by glasgood

Share this post


Link to post
Share on other sites
