Fully optimizing DSDT & SSDT for OS X Sierra POST INSTALL on a Dell345MT with a i7 - 920(first gen)



I know how this forum feels about 3rd party software, but that was just a crutch, I'm 100% vanilla now which is why I'm now posting for help because I eliminated the possibility having to do with 3rd party. Anyways, with that said I just have a couple things I want to be sure of.



I used a n---bistro to get a App Store copy of Sierra, as I didn't know there were other ways of getting it now from a windows10 machine. anyways, I was able to build a vanilla usb. I couldn't figure the EFI out on my vanilla Sierra-usb, but the EFI on the usb-ni---bistro I had would boot my pre-install and post-install. so I was able to install Sierra. After a few days of figuring out how to remake a EFI and config, I broke my EFI.

So back to my windows10 SSD and I found BootDiskUtility, and that made a EFI usb with the newest version of clover(r4895). So then swapped SSDs back to my OS X, plugged in the BDU-usb, after trial and error I got back into my Sierra. Now with the newest version of clover and no traces of ni---bistro anymore. Then copied the BDU-usb to my SSD EFI and was able to boot without a usb again!! YAY.



Then starting working on fixing my web drivers for my gtx 1050 2gb. Installed the os update so i'm at 10.12.6, pulled my hair out figuring out the web drivers, eventually got them installed and the cuda fixed.



Now all 3 of my screens work, yet windows can't sit 'between' screens, I just simply haven't looked for that fix yet as I want the sys itself running like a top first.

My screen saver works, I don't get stuck in screensaver, I did once before, I believe lilu.kext and whatevergreen.kext fixed that.

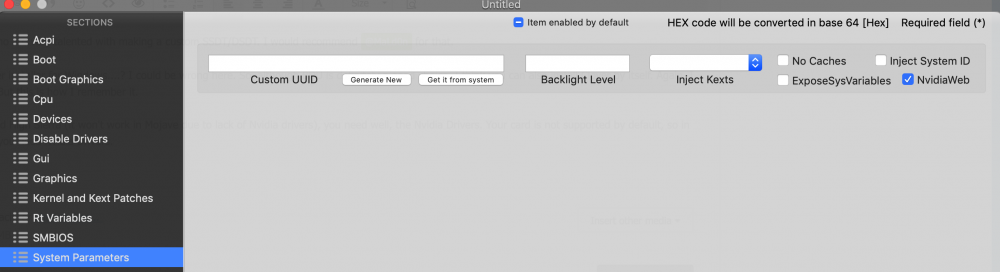

Now with all that I felt it was time to give my config.plist a diet cos it was bloated, I generated a config copied the clover settings check for check instead of coping text cos I'm trying to shrink it.

Config.plist boots my system with DSDT-1FE7B5D7



So after the above, This is now where I'm stuck

 a 100% correct DSDT and SSDT, from my understanding with a patched DSDT I wouldn't need any options selected in clover on the ACPI page?



So with the patching part that I think I understand how to do it now, but when I extract with F4 every file has RSDT in front of it, I have one that says RSDP.aml and RSDT.aml

so would I just erase the RSDT from the beginning of each file then go from their, which would then leave me with a DSDT.aml and 17 SSDTs?

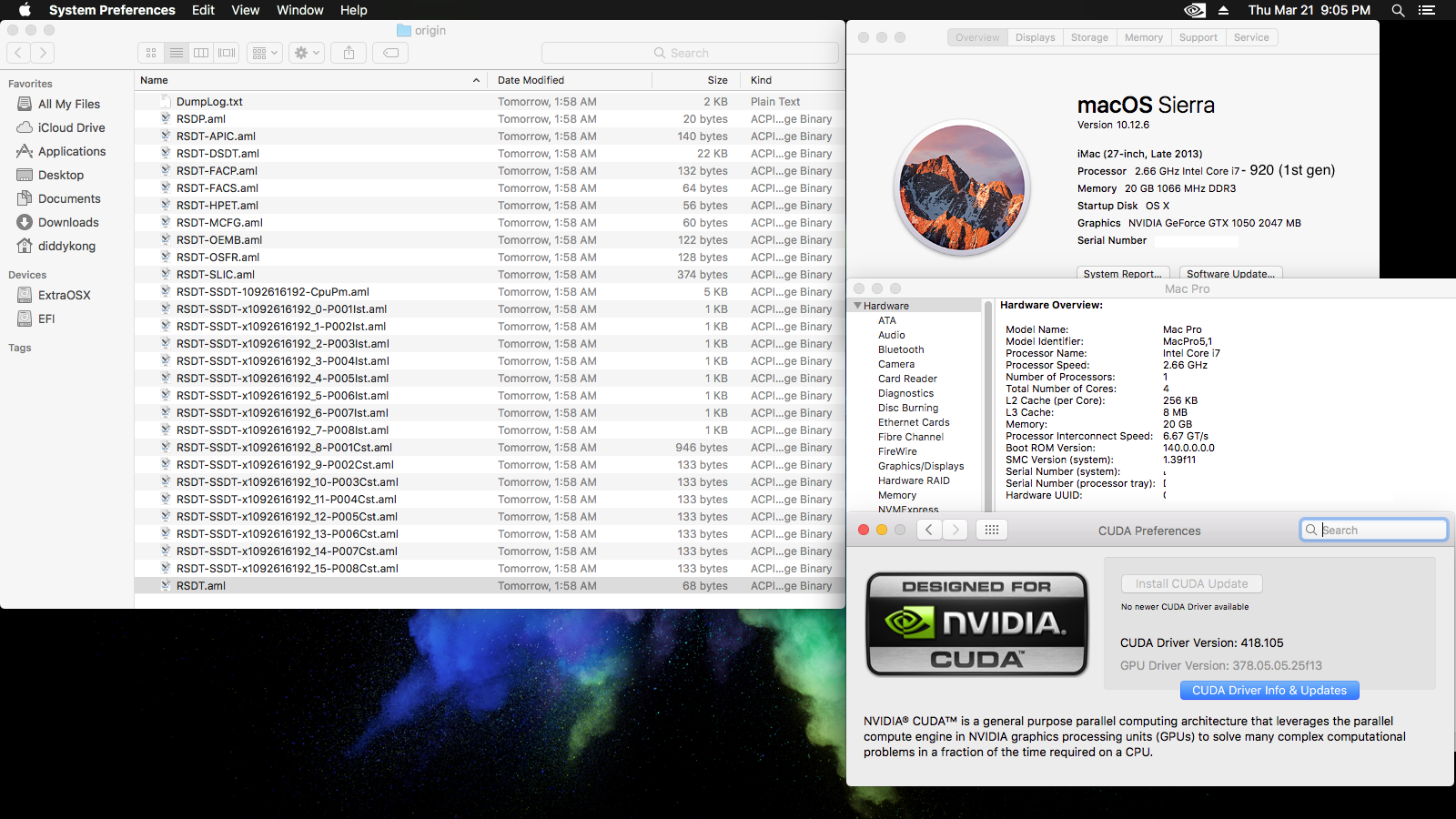

I know I have to decompile and patch them, but with my file names[DSDT table extract] not matching tutorials online I'm having a difficult time understanding which files I need.

IS the RDST-DSDT.aml my DSDT? it is the biggest file.

which ones that have SSDT in the filename is the SSDT(s) I need to patch?



also how do I know if everything is patched correctly? like if my CPU is fully working and not just sorta working that way when I start running software like photoshop, unity, 10 chrome tabs, my hackintosh doesn't crash



System details

i7 920 (first gen) very similar to nehelam

GeForce 1050 2Gb (3 monitors connected all work, one acer on HD connection, two HP s2031 on HD, using adapters to change all ports on GPU card to HD for screens)

    display port, HDMI, and HD

4x 1Gg + 2x 8Gb RAM running at 1066 after injecting smbios with ram info macOS sees all my ram correctly

Samsung SSD 860 EVO 500Gb



Thanks to anyone that can help me out, I've been working on my system for about two weeks and this is basically the wall I finally can't seem to figure out how to pass

I can post another info also if it helps



Boot.log

Spoiler

0:100  0:100  MemLog inited, TSC freq: 2659999875
0:100  0:000  CPU was calibrated with ACPI PM Timer
0:100  0:000  LegacyRegion2: Chipset/proc: 0x34008086
0:100  0:000   Core i7 processors (PAM 0x40-0x47)
0:100  0:000   Test PAM1=(0x41=11, 0x5a=00, 0x81=0B, 0x91=53) at chipset 34008086
0:100  0:000  , Install = Success
0:112  0:012  BiosVideoDriverBindingStart!
0:112  0:000  BiosVideoCheckForVbe
0:112  0:000  EdidOverride not found
0:156  0:043   Edid1-
0:200  0:043   Edid0+
0:200  0:000   found Detail Timing 1600x900
0:288  0:088     0 640x480 attr=3BF - ok, edid+, 640x480, working, highest, pref=0
0:296  0:007     1 800x600 attr=3BF - ok, edid+, 800x600, working, highest, pref=1
0:304  0:007     2 1024x768 attr=3BF - ok, edid+, 1024x768, working, highest, pref=2
0:315  0:011     3 1600x900 attr=3BF - ok, edid+, working, highest, pref=3
0:319  0:003     4 1360x768 attr=3BF - ok, edid-
0:319  0:000  BV new mode: 3 1600x900
1:512  1:192   SetMode pref 3 (3) = Success
5:323  3:810
5:323  0:000  Now is 24.3.2019,  0:19:56 (GMT)
5:323  0:000  Starting Clover revision: 4895 on CLOVER EFI
5:323  0:000  Build with: [Args: -nb -mc --no-usb -D NO_GRUB_DRIVERS_EMBEDDED | -D DISABLE_USB_SUPPORT -D NO_GRUB_DRIVERS_EMBEDDED -D USE_BIOS_BLOCKIO -D USE_LOW_EBDA -D HAVE_LEGACY_EMURUNTIMEDXE -a X64 -b RELEASE -t XCODE8 -n 5 | OS: 10.13.6 | XCODE: 10.1]
5:323  0:000  SelfDevicePath=PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(1,GPT,2749C16B-A1AD-4A5A-BFCB-E2A019B7A130,0x28,0x64000) @BDDC7818
5:323  0:000  SelfDirPath = \EFI\CLOVER
5:324  0:000  === [ Get Smbios ] ========================================
5:324  0:000  Type 16 Index = 0
5:324  0:000  Total Memory Slots Count = 6
5:324  0:000  Type 17 Index = 0
5:324  0:000  SmbiosTable.Type17->Speed = 1066MHz
5:324  0:000  SmbiosTable.Type17->Size = 1024MB
5:324  0:000  SmbiosTable.Type17->Bank/Device =  DIMM1
5:324  0:000  SmbiosTable.Type17->Vendor = Nanya
5:324  0:000  SmbiosTable.Type17->SerialNumber = 641007AD
5:324  0:000  SmbiosTable.Type17->PartNumber = NT1GC64B88A0NF-BE
5:324  0:000  Type 17 Index = 1
5:324  0:000  SmbiosTable.Type17->Speed = 1066MHz
5:324  0:000  SmbiosTable.Type17->Size = 1024MB
5:324  0:000  SmbiosTable.Type17->Bank/Device =  DIMM2
5:324  0:000  SmbiosTable.Type17->Vendor = Nanya
5:324  0:000  SmbiosTable.Type17->SerialNumber = 6210079E
5:324  0:000  SmbiosTable.Type17->PartNumber = NT1GC64B88A0NF-BE
5:324  0:000  Type 17 Index = 2
5:324  0:000  Ignoring insane frequency value 0MHz
5:324  0:000  SmbiosTable.Type17->Speed = 0MHz
5:324  0:000  SmbiosTable.Type17->Size = 8192MB
5:324  0:000  SmbiosTable.Type17->Bank/Device =  DIMM3
5:324  0:000  SmbiosTable.Type17->Vendor =
5:324  0:000  SmbiosTable.Type17->SerialNumber = 00000002
5:324  0:000  SmbiosTable.Type17->PartNumber = 8GBH2X04F1AA28-15
5:324  0:000  Type 17 Index = 3
5:324  0:000  SmbiosTable.Type17->Speed = 1066MHz
5:324  0:000  SmbiosTable.Type17->Size = 1024MB
5:324  0:000  SmbiosTable.Type17->Bank/Device =  DIMM4
5:324  0:000  SmbiosTable.Type17->Vendor = Nanya
5:324  0:000  SmbiosTable.Type17->SerialNumber = 651006A0
5:324  0:000  SmbiosTable.Type17->PartNumber = NT1GC64B88A0NF-BE
5:324  0:000  Type 17 Index = 4
5:324  0:000  SmbiosTable.Type17->Speed = 1066MHz
5:324  0:000  SmbiosTable.Type17->Size = 1024MB
5:324  0:000  SmbiosTable.Type17->Bank/Device =  DIMM5
5:324  0:000  SmbiosTable.Type17->Vendor = Nanya
5:324  0:000  SmbiosTable.Type17->SerialNumber = 65100791
5:324  0:000  SmbiosTable.Type17->PartNumber = NT1GC64B88A0NF-BE
5:324  0:000  Type 17 Index = 5
5:324  0:000  Ignoring insane frequency value 0MHz
5:324  0:000  SmbiosTable.Type17->Speed = 0MHz
5:324  0:000  SmbiosTable.Type17->Size = 8192MB
5:324  0:000  SmbiosTable.Type17->Bank/Device =  DIMM6
5:324  0:000  SmbiosTable.Type17->Vendor =
5:324  0:000  SmbiosTable.Type17->SerialNumber = 00000002
5:324  0:000  SmbiosTable.Type17->PartNumber = 8GBH2X04F1AA28-15
5:324  0:000  Boot status=0
5:324  0:000  Running on: 'Studio XPS 435MT' with board '0R849J'
5:324  0:000  === [ GetCPUProperties ] ==================================
5:324  0:000  CPU Vendor = 756E6547 Model=106A4
5:324  0:000   The CPU supported SSE4.1
5:324  0:000  BrandString = Intel(R) Core(TM) i7 CPU         920  @ 2.67GHz
5:324  0:000   The CPU supported turbo
5:324  0:000  MSR 0x35               40008
5:324  0:000  FSBFrequency = 134 MHz, DMI FSBFrequency = 133 MHz, Corrected FSBFrequency = 133 MHz
5:324  0:000  Found QCLK_RATIO at bus 0xFF dev=3 funs=4
5:324  0:000  qpi read from PCI 19
5:324  0:000  qpimult 25
5:324  0:000  qpibusspeed 6666500kHz
5:324  0:000  MaxDiv/MinDiv: 20.0/12
5:324  0:000  Turbo: 21/21/21/22
5:324  0:000  Features: 0xBFEBFBFF
5:324  0:000  Threads: 8
5:324  0:000  Cores: 4
5:324  0:000  FSB: 133 MHz
5:324  0:000  CPU: 2666 MHz
5:324  0:000  TSC: 2666 MHz
5:324  0:000  PIS: 6666 MHz
5:324  0:000  ExternalClock: 133 MHz
5:324  0:000  === [ GetDevices ] ========================================
5:324  0:000  PCI (00|00:00.00) : 8086 3400 class=060000
5:324  0:000  PCI (00|00:01.00) : 8086 3408 class=060400
5:324  0:000  PCI (00|00:03.00) : 8086 340A class=060400
5:324  0:000  PCI (00|00:07.00) : 8086 340E class=060400
5:324  0:000  PCI (00|03:00.00) : 10DE 1C81 class=030000
5:324  0:000   - GFX: Model=PNY GeForce GTX 1050 family 137 (Nvidia)
5:324  0:000  PCI (00|03:00.01) : 10DE 0FB9 class=040300
5:324  0:000   - HDMI Audio:
5:324  0:000  PCI (00|00:14.00) : 8086 342E class=080000
5:324  0:000  PCI (00|00:14.01) : 8086 3422 class=080000
5:324  0:000  PCI (00|00:14.02) : 8086 3423 class=080000
5:324  0:000  PCI (00|00:14.03) : 8086 3438 class=080000
5:324  0:000  PCI (00|00:19.00) : 8086 10CD class=020000
5:324  0:000   - LAN: 0 Vendor=Intel
5:324  0:000  PCI (00|00:1A.00) : 8086 3A37 class=0C0300
5:324  0:000  PCI (00|00:1A.01) : 8086 3A38 class=0C0300
5:324  0:000  PCI (00|00:1A.02) : 8086 3A39 class=0C0300
5:324  0:000  PCI (00|00:1A.07) : 8086 3A3C class=0C0320
5:324  0:000  PCI (00|00:1B.00) : 8086 3A3E class=040300
5:324  0:000  PCI (00|00:1C.00) : 8086 3A40 class=060400
5:324  0:000  PCI (00|00:1D.00) : 8086 3A34 class=0C0300
5:324  0:000  PCI (00|00:1D.01) : 8086 3A35 class=0C0300
5:324  0:000  PCI (00|00:1D.02) : 8086 3A36 class=0C0300
5:324  0:000  PCI (00|00:1D.07) : 8086 3A3A class=0C0320
5:324  0:000  PCI (00|00:1E.00) : 8086 244E class=060401
5:324  0:000  PCI (00|00:1F.00) : 8086 3A16 class=060100
5:324  0:000  PCI (00|00:1F.02) : 8086 3A20 class=01018F
5:324  0:000  PCI (00|00:1F.03) : 8086 3A30 class=0C0500
5:324  0:000  PCI (00|00:1F.05) : 8086 3A26 class=010185
5:324  0:000  PCI (00|FF:00.00) : 8086 2C41 class=060000
5:324  0:000  PCI (00|FF:00.01) : 8086 2C01 class=060000
5:324  0:000  PCI (00|FF:02.00) : 8086 2C10 class=060000
5:324  0:000  PCI (00|FF:02.01) : 8086 2C11 class=060000
5:324  0:000  PCI (00|FF:03.00) : 8086 2C18 class=060000
5:324  0:000  PCI (00|FF:03.01) : 8086 2C19 class=060000
5:324  0:000  PCI (00|FF:03.04) : 8086 2C1C class=060000
5:324  0:000  PCI (00|FF:04.00) : 8086 2C20 class=060000
5:324  0:000  PCI (00|FF:04.01) : 8086 2C21 class=060000
5:324  0:000  PCI (00|FF:04.02) : 8086 2C22 class=060000
5:324  0:000  PCI (00|FF:04.03) : 8086 2C23 class=060000
5:324  0:000  PCI (00|FF:05.00) : 8086 2C28 class=060000
5:324  0:000  PCI (00|FF:05.01) : 8086 2C29 class=060000
5:324  0:000  PCI (00|FF:05.02) : 8086 2C2A class=060000
5:324  0:000  PCI (00|FF:05.03) : 8086 2C2B class=060000
5:324  0:000  PCI (00|FF:06.00) : 8086 2C30 class=060000
5:324  0:000  PCI (00|FF:06.01) : 8086 2C31 class=060000
5:324  0:000  PCI (00|FF:06.02) : 8086 2C32 class=060000
5:324  0:000  PCI (00|FF:06.03) : 8086 2C33 class=060000
5:324  0:000  === [ GetDefaultSettings ] ================================
5:324  0:000  Clover load options size = 0 bytes
5:327  0:002  EFI\CLOVER\config.plist loaded: Success
5:327  0:000  === [ GetListOfThemes ] ===================================
5:328  0:000  - [00]: Clovy
5:331  0:002  === [ Found config plists ] ===============================
5:331  0:000  - config.plist
5:331  0:000  - configOG.plist
5:331  0:000  === [ GetEarlyUserSettings ] ==============================
5:331  0:000  timeout set to 5
5:331  0:000  Custom boot CUSTOM_BOOT_APPLE (0x0)
5:332  0:000  Default theme: Clovy
5:332  0:000  === [ LoadDrivers ] =======================================
5:332  0:000  Loading AudioDxe-64.efi  status=Success
5:333  0:000   - driver needs connecting
5:333  0:000  Loading FSInject-64.efi  status=Success
5:333  0:000  Loading Ps2MouseDxe-64.efi  status=Success
5:333  0:000   - driver needs connecting
5:333  0:000  Loading SMCHelper-64.efi  status=Success
5:333  0:000  Loading UsbMouseDxe-64.efi  status=Success
5:333  0:000   - driver needs connecting
5:333  0:000  Loading XhciDxe-64.efi  status=Success
5:333  0:000   - driver needs connecting
5:333  0:000  4 drivers needs connecting ...
5:333  0:000  PlatformDriverOverrideProtocol->GetDriver overriden
10:382  5:048  === [ InitScreen ] ========================================
10:382  0:000  Console modes reported: 4, available modes:
10:382  0:000   - [01]: 80x25
10:382  0:000   - [03]: 100x31
10:382  0:000   - [04]: 200x47 (current mode)
10:382  0:000  SetScreenResolution: 1280x1024 - not found!
10:382  0:000  SetScreenResolution: 1600x900 - already set
10:382  0:000  reinit: self device path=PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(1,GPT,2749C16B-A1AD-4A5A-BFCB-E2A019B7A130,0x28,0x64000)
10:382  0:000  Using embedded font: Success
10:384  0:002  === [ GetMacAddress ] =====================================
10:384  0:000  === [ ScanSPD ] ===========================================
10:385  0:000  Scanning SMBus [8086:3A30], mmio: 0xF9FFFC04, ioport: 0x400, hostc: 0x1
10:404  0:019  Slot: 0 Type 24 1024MB 1066MHz Vendor=Nanya Technology PartNo=NT1GC64B88A0NF-BE SerialNo=0A0D000701000604
10:424  0:019  Slot: 1 Type 24 1024MB 1066MHz Vendor=Nanya Technology PartNo=NT1GC64B88A0NF-BE SerialNo=0A00000601000605
10:443  0:019  Slot: 2 Type 24 1024MB 1066MHz Vendor=Nanya Technology PartNo=NT1GC64B88A0NF-BE SerialNo=090E000701000602
10:463  0:019  Slot: 3 Type 24 1024MB 1066MHz Vendor=Nanya Technology PartNo=NT1GC64B88A0NF-BE SerialNo=0901000701000605
10:482  0:019  Slot: 4 Type 24 8192MB 1600MHz Vendor=NoName PartNo=8GBH2X04F1AA28-15 SerialNo=0002000000000000
10:501  0:019  Slot: 5 Type 24 8192MB 1600MHz Vendor=NoName PartNo=8GBH2X04F1AA28-15 SerialNo=0002000000000000
10:502  0:000  === [ GetAcpiTablesList ] =================================
10:502  0:000  Get Acpi Tables List from RSDT:
10:502  0:000   - [00]: FACP  FX09    len=132
10:502  0:000   - [01]: APIC  FX09    len=140
10:502  0:000   - [02]: MCFG  OEMMCFG  len=60
10:502  0:000   - [03]: SLIC  FX09    len=374
10:502  0:000   - [04]: OSFR  FX09    len=128
10:502  0:000   - [05]: OEMB  FX09    len=122
10:502  0:000   - [06]: HPET  OEMHPET  len=56
10:502  0:000   - [07]: SSDT  CpuPm len=4760
10:502  0:000  Calibrated TSC Frequency = 2659999875 = 2659MHz
10:502  0:000  === [ GetUserSettings ] ===================================
10:502  0:000  USB FixOwnership: yes
10:502  0:000  Dropping 2 tables:
10:502  0:000   - [00]: Drop table  signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043)
10:502  0:000           - set table: 54445353,       6D50757043 to drop: yes
10:502  0:000   - [01]: Drop table  signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043)
10:502  0:000           - set table: 54445353,   74734930757043 to drop: no
10:502  0:000   - final DSDT Fix mask=1FE7B5D7
10:502  0:000  PatchesDSDT: 4 requested
10:502  0:000   - [00]: (change HDAS to HDEF) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
10:502  0:000   - [01]: (change GFX0 to IGPU) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
10:502  0:000   - [02]: (change HECI to IMEI) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
10:502  0:000   - [03]: (change _DSM to XDSM) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
10:502  0:000  ResetAddr: 0x64
10:502  0:000  Calc ResetVal: 0xFE
10:502  0:000  ResetVal: 0xFE
10:502  0:000  smartUPS: present
10:502  0:000  Devices to rename 1
10:502  0:000  PXSX:RP01:PCI0:#_SB:->will be renamed to ARPT
10:502  0:000  Using ProductName from config: MacPro5,1
10:502  0:000  Using latest BiosVersion from clover
10:503  0:000  BiosVersion: MP51.88Z.F000.B00.1812191621
10:503  0:000  BiosReleaseDate: 12/19/18
10:503  0:000  Using EfiVersion from config: 140.0.0.0.0
10:503  0:000  Using FirmwareFeatures from config: 0xE80FE137
10:503  0:000  Using FirmwareFeaturesMask from config: 0xFF1FFF3F
10:503  0:000  Board-ID set from config as Mac-F221BEC8
10:503  0:000  BoardType: 0xB
10:503  0:000  ChassisType: 0x7
10:503  0:000  Converted CustomUUID E16BFE5B-CD01-5762-98AD-BA6CA808A4A1
10:506  0:003  === [ Found DSDT tables ] =================================
10:506  0:000  - DSDT.aml
10:623  0:116  === [ ScanVolumes ] =======================================
10:623  0:000  Found 7 volumes with blockIO
10:623  0:000  - [00]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)
10:751  0:128  - [01]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)
10:751  0:000          Result of bootcode detection: bootable unknown (legacy)
10:751  0:000  - [02]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(1,MBR,0x0FE7FDF9,0x800,0x3A385800)
10:752  0:000          Result of bootcode detection: bootable unknown (legacy)
10:752  0:000  - [03]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(1,GPT,2749C16B-A1AD-4A5A-BFCB-E2A019B7A130,0x28,0x64000)
10:752  0:000          Result of bootcode detection: bootable unknown (legacy)
10:753  0:000          This is SelfVolume !!
10:753  0:000  - [04]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(2,GPT,276B8E10-592A-45D9-8C8E-7890EE36B4A8,0x64028,0x1D190FF0)
10:753  0:000  - [05]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(3,GPT,62DAD5EB-3BBC-453A-8577-C19C589791D4,0x1D1F5018,0x135F20)
10:753  0:000  - [06]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(4,GPT,6C416A1C-D58C-481F-8016-C2AE7D3578F5,0x1D32AF38,0x1D01B0D0)
10:755  0:002  Loading nvram.plist from Vol 'EFI' - loaded, size=2405
10:757  0:002  === [ PutNvramPlistToRtVars ] =============================
10:757  0:000   Adding Key: ActualDensity: Size = 2, Data: E1 00
10:757  0:000   Adding Key: Clover.SoundDevice: Size = 46, Data: 02 01 0C 00 D0 41 08 0A 00 00 00 00 01 01 06 00 00 1B 03 0A 18 00 EB 3F 00 A9 06 D8 DB 41 A4 91 54 05 FE EF 46 C3 02 00 00 00 7F FF 04 00
10:757  0:000   Adding Key: Clover.SoundIndex: Size = 1, Data: 05
10:757  0:000   Adding Key: DensityThreshold: Size = 2, Data: 96 00
10:757  0:000   Adding Key: EFILoginHiDPI: Size = 4, Data: 01 00 00 00
10:757  0:000   Adding Key: SystemAudioVolume: Size = 1, Data: 1A
10:757  0:000   Adding Key: SystemAudioVolumeDB: Size = 1, Data: F9
10:757  0:000   Adding Key: csr-active-config: Size = 4, Data: E7 03 00 00
10:757  0:000   Adding Key: efi-boot-device: Size = 216, Data: 3C 61 72 72 61 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 50 72 6F 76 69 64 65 72 43 6C 61 73 73 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 49 4F 4D 65 64 69 61 3C 2F 73 74 72 69 6E 67 3E 3C 6B 65 79 3E 49 4F 50 72 6F 70 65 72 74 79 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 55 55 49 44 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 32 37 36 42 38 45 31 30 2D 35 39 32 41 2D 34 35 44 39 2D 38 43 38 45 2D 37 38 39 30 45 45 33 36 42 34 41 38 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 2F 64 69 63 74 3E 3C 2F 64 69 63 74 3E 3C 2F 61 72 72 61 79 3E
10:757  0:000   Adding Key: efi-boot-device-data: Size = 72, Data: 02 01 0C 00 D0 41 08 0A 00 00 00 00 01 01 06 00 02 1F 03 01 08 00 01 00 00 00 04 01 2A 00 02 00 00 00 28 40 06 00 00 00 00 00 F0 0F 19 1D 00 00 00 00 10 8E 6B 27 2A 59 D9 45 8C 8E 78 90 EE 36 B4 A8 02 02 7F FF 04 00
10:757  0:000   Adding Key: fakesmc-key-#KEY-ui32: Size = 4, Data: 00 00 00 10
10:757  0:000   Adding Key: fakesmc-key-$Adr-ui32: Size = 4, Data: 00 00 03 00
10:757  0:000   Adding Key: fakesmc-key-$Num-ui8: Size = 1, Data: 01
10:757  0:000   Adding Key: fakesmc-key-BATP-flag: Size = 1, Data: 00
10:757  0:000   Adding Key: fakesmc-key-BEMB-flag: Size = 1, Data: 00
10:757  0:000   Adding Key: fakesmc-key-BNum-ui8: Size = 1, Data: 00
10:757  0:000   Adding Key: fakesmc-key-EPCI-ui32: Size = 4, Data: 02 C0 07 00
10:757  0:000   Adding Key: fakesmc-key-MSAc-ui16: Size = 2, Data: 00 00
10:757  0:000   Adding Key: fakesmc-key-MSFW-ui8: Size = 2, Data: 01 00
10:757  0:000   Adding Key: fakesmc-key-MSPS-ui16: Size = 2, Data: 00 03
10:757  0:000   Adding Key: fakesmc-key-MSTc-ui8: Size = 1, Data: 00
10:758  0:000   Adding Key: fakesmc-key-MSWr-ui8: Size = 1, Data: 00
10:758  0:000   Adding Key: fakesmc-key-RBr -ch8*: Size = 8, Data: 6B 35 00 66 00 00 00 00
10:758  0:000   Adding Key: fakesmc-key-REV -ch8*: Size = 6, Data: 01 39 0F 00 00 11
10:758  0:000   Adding Key: fakesmc-key-RMde-char: Size = 1, Data: 41
10:758  0:000   Adding Key: fakesmc-key-RPlt-ch8*: Size = 8, Data: 6B 35 00 66 00 00 00 00
10:758  0:000   Adding Key: flagstate: Size = 32, Data: 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
10:758  0:000   Adding Key: fmm-computer-name: Size = 18, Data: 41 6E 74 68 6F 6E 79 E2 80 99 73 20 4D 61 63 50 72 6F
10:758  0:000   Adding Key: myvar: Size = 9, Data: 74 65 73 74 76 61 6C 75 65
10:758  0:000   Adding Key: nvda_drv: Size = 2, Data: 31 00
10:758  0:000   Adding Key: security-mode: String: Size = 4, Val = 'none'
10:758  0:000  found 2 handles with audio
10:758  0:000  got index=5
10:758  0:000  got volume 70
10:758  0:000  === [ InitTheme ] =========================================
10:758  0:000  use night theme
10:787  0:029  Theme view-bounds: w=1366 h=768 units=px
10:787  0:000  using scale  1.171875
10:787  0:000  theme contains font-family=RobotoCondensed-Regular
10:940  0:152  Banner position at parse [0,0]
10:940  0:000  Banner position at parse [737,114]
10:942  0:001  parsed banner->width=150
10:945  0:003   icon 9 not parsed take common icons\tool_part
10:945  0:000   icon 10 not parsed take common icons\tool_rescue
10:954  0:008   icon 15 not parsed take common icons\vol_firewire
10:970  0:016  main entry size = 168
10:971  0:000  icon main size=[169,169]
10:972  0:000  OSicon os_tiger not parsed
10:972  0:000  OSicon os_leo not parsed
10:972  0:000  OSicon os_snow not parsed
10:976  0:003  OSicon os_cougar not parsed
10:976  0:000  OSicon os_yos not parsed
10:982  0:005  OSicon os_freebsd not parsed
10:985  0:003  parsing theme finish
10:985  0:000  Using vector theme 'Clovy' (EFI\CLOVER\themes\Clovy)
10:985  0:000  file sound read: sound_night.wav Not Found
10:986  0:000    Channels: 2  Sample rate: 8000 Hz  Bits: 16
10:986  0:000  output to channel 5 with volume 70, len=126400
10:986  0:000   sound channels=2 bits=16 freq=8000
10:987  0:001  sound converted to 48kHz
15:417  4:430  free sound
15:417  0:000  sound play end with status=BF4E8730
15:417  0:000  theme inited
15:417  0:000  Chosen theme Clovy
15:417  0:000  after NVRAM boot-args=-v kext-dev-mode=1
15:417  0:000  === [ Dump SMC keys from NVRAM ] ==========================
15:417  0:000  found AppleSMC protocol
15:418  0:000  Registered 16 SMC keys
15:418  0:000  === [ ScanLoader ] ========================================
15:418  0:000  - [03]: 'EFI'
15:425  0:007          AddLoaderEntry for Volume Name=EFI
15:425  0:000          skipped because entry is hidden
15:425  0:000  - [04]: 'OS X'
15:430  0:004          AddLoaderEntry for Volume Name=OS X
15:432  0:002      Check if volume Is Hibernated:
15:432  0:000      Check sleep image 'by signature':
15:436  0:004      read prefs \Library\Preferences\com.apple.PowerManagement.plist status=Success
15:436  0:000      using default sleep image name = \private\var\vm\sleepimage
15:438  0:001      sleepimage not found -> Not Found
15:438  0:000      hibernated: no - sign
15:439  0:001  - [05]: 'Recovery HD'
15:439  0:000          AddLoaderEntry for Volume Name=Recovery HD
15:441  0:001  - [06]: 'ExtraOSX'
15:441  0:000  Scanning legacy ...
15:441  0:000  === [ AddCustomTool ] =====================================
15:441  0:000  found tool \EFI\CLOVER\tools\Shell64U.efi
15:441  0:000  Checking EFI partition Volume 3 for Clover
15:441  0:000   Found Clover
15:444  0:003  === [ GetEfiBootDeviceFromNvram ] =========================
15:444  0:000   - efi-boot-device-data: PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(2,GPT,276B8E10-592A-45D9-8C8E-7890EE36B4A8,0x64028,0x1D190FF0)
15:444  0:000    - Volume: 'PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(2,GPT,276B8E10-592A-45D9-8C8E-7890EE36B4A8,0x64028,0x1D190FF0)'
15:444  0:000    - LoaderPath: '<null string>'
15:444  0:000    - Guid = 276B8E10-592A-45D9-8C8E-7890EE36B4A8
15:444  0:000  === [ FindStartupDiskVolume ] =============================
15:444  0:000    - Volume: partition = PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(2,GPT,276B8E10-592A-45D9-8C8E-7890EE36B4A8,0x64028,0x1D190FF0)
15:444  0:000     - searching for that partition
15:444  0:000      - found entry 0. 'Boot macOS from OS X', Volume 'OS X'
15:444  0:000  Boot redirected to Entry 0. 'Boot macOS from OS X'
15:444  0:000  DefaultIndex=0 and MainMenu.EntryCount=8
15:444  0:000  Use anime=<null string> frames=0
15:708  0:263  GUI ready
33:656  17:947  EDITED:
37:546  3:889  BootVariable of the entry is empty
37:546  0:000  === [ StartLoader ] =======================================
37:546  0:000  Finally: ExternalClock=133MHz BusSpeed=133000kHz CPUFreq=2660MHz QPI: hw.busfrequency=6666000000Hz
37:547  0:001  Loading boot.efi  status=Success
37:778  0:231  GetOSVersion: 10.12.6 (16G1815)
37:778  0:000  CSR_CFG: CSR_ALLOW_UNTRUSTED_KEXTS | CSR_ALLOW_UNRESTRICTED_FS | CSR_ALLOW_TASK_FOR_PID | CSR_ALLOW_UNRESTRICTED_DTRACE | CSR_ALLOW_UNRESTRICTED_NVRAM | CSR_ALLOW_DEVICE_CONFIGURATION | CSR_ALLOW_ANY_RECOVERY_OS | CSR_ALLOW_UNAPPROVED_KEXTS
37:778  0:000  Will not patch boot.efi
37:778  0:000  === [ PatchSmbios ] =======================================
37:778  0:000  insert table 9 for dev 0:0
37:778  0:000  insert table 9 for dev 0:1
37:778  0:000  insert table 9 for dev 19:0
37:779  0:000  Injecting user memory modules to SMBIOS
37:779  0:000  Channels: 3
37:779  0:000  Interleave: 0 2 4 1 3 5 6 8 10 7 9 11 12 14 16 13 15 17 18 20 22 19 21 23
37:779  0:000   DIMM1 1066MHz 1024MB
37:779  0:000   DIMM2 1600MHz 8192MB
37:779  0:000   DIMM3 1066MHz 1024MB
37:779  0:000   DIMM4 1066MHz 1024MB
37:779  0:000   DIMM5 1066MHz 1024MB
37:779  0:000   DIMM6 1600MHz 8192MB
37:779  0:000  mTotalSystemMemory = 20480
37:779  0:000  NumberOfMemoryDevices = 6
37:779  0:000  Type20[0]->End = 0x0, Type17[0] = 0x400
37:779  0:000  Type20[1]->End = 0x0, Type17[1] = 0x2800
37:779  0:000  Type20[2]->End = 0x0, Type17[2] = 0x5000
37:779  0:000  Type20[3]->End = 0x0, Type17[3] = 0x7C00
37:779  0:000  === [ PatchACPI ] =========================================
37:779  0:000  Xsdt is not found! Creating new one
37:780  0:000  RsdPointer is Acpi 1.0 - creating new one Acpi 2.0
37:780  0:000  RsdPointer Acpi 2.0 installed
37:780  0:000  RSDT entries = 8
37:780  0:000  Xsdt reallocation done
37:780  0:000  old FADT length=84
37:780  0:000   SignatureFixup: 0x0 -> 0x0
37:780  0:000  Found OperationRegion(BIOS, SystemMemory, BF79E064, ...)
37:781  0:001  Apply DsdtFixMask=0x1FE7B5D7
37:781  0:000     drop _DSM mask=0xFFFF
37:781  0:000  === [ FixBiosDsdt ] =======================================
37:781  0:000  Patching DSDT:
37:781  0:000   - [change HDAS to HDEF]: pattern 48444153, bin not found / already patched!
37:781  0:000   - [change GFX0 to IGPU]: pattern 47465830, bin not found / already patched!
37:781  0:000   - [change HECI to IMEI]: pattern 48454349, bin not found / already patched!
37:782  0:000   - [change _DSM to XDSM]: pattern 5F44534D, bin not found / already patched!
37:782  0:000  Name: PXSX, Bridge: RP01, Replace: ARPT
37:782  0:000    0 replacements
37:782  0:000  found RTC had IRQNoFlag will move -3 bytes
37:782  0:000  found PIC had IRQNoFlag will move -3 bytes
37:782  0:000  Start HPET Fix
37:782  0:000  Start Display0 Fix
37:782  0:000  add device GFX0
37:782  0:000  Creating Method(_DSM) for 10DE card
37:782  0:000  patch Display #0 of Vendor=0x10DE
37:783  0:000  Start Add Device HDEF
37:785  0:001   deleting device CRT_
37:785  0:000   deleting device DVI_
37:785  0:000   deleting device SPKR
37:785  0:000   deleting device ECP_
37:785  0:000   deleting device LPT_
37:786  0:000   deleting device FDC0
37:786  0:000   deleting device ECP1
37:786  0:000   deleting device LPT1
37:787  0:001  no device(AC) exists
37:787  0:000  Name _OSI present at 0x47D, renaming to OOSI
37:787  0:000  Name _OSI present at 0x484, renaming to OOSI
37:787  0:000  Name _OSI present at 0x49C, renaming to OOSI
37:787  0:000  Name _OSI present at 0x4B4, renaming to OOSI
37:787  0:000  Name _OSI present at 0x4D0, renaming to OOSI
37:787  0:000  Name _OSI present at 0x4EC, renaming to OOSI
37:787  0:000  Name _OSI present at 0x506, renaming to OOSI
37:787  0:000  Name _OSI present at 0x524, renaming to OOSI
37:787  0:000  PreCleanup XSDT: count=8, length=100
37:787  0:000  PreCleanup XSDT, corrected XSDT: count=8, length=100
37:787  0:000  === [ ACPIDropTables ] ====================================
37:787  0:000  Drop tables from XSDT, SIGN=SSDT TableID=CpuPm Length=4760
37:787  0:000   Table[7]: SSDT  CpuPm  4760 dropped
37:787  0:000  CPUBase=1 and ApicCPUBase=1 ApicCPUNum=8
37:787  0:000  Maximum control=0x14
37:787  0:000  Turbo control=0x16
37:787  0:000  P-States: min 0xC, max 0x16
37:787  0:000  SSDT with CPU P-States generated successfully
37:787  0:000  SSDT with CPU C-States generated successfully
37:787  0:000  Cleanup XSDT: count=10, length=116
37:787  0:000  corrected XSDT count=9, length=108
37:787  0:000  === [ RestSetup macOS ] ===================================
37:787  0:000  EdidDiscovered size=128
37:787  0:000  --- Discovered EDID Table size:128
37:787  0:000  000  |  00  FF  FF  FF  FF  FF  FF  00  22  F0
37:787  0:000  010  |  03  29  01  01  01  01  2C  15  01  03
37:787  0:000  020  |  80  2C  19  78  2E  06  25  A6  56  4B
37:787  0:000  030  |  9B  25  10  50  54  A1  08  00  81  C0
37:787  0:000  040  |  81  80  95  00  A9  C0  01  01  01  01
37:787  0:000  050  |  01  01  01  01  30  2A  40  C8  60  84
37:787  0:000  060  |  64  30  18  50  13  00  BB  F9  10  00
37:787  0:000  070  |  00  1E  00  00  00  FD  00  32  4C  18
37:787  0:000  080  |  53  11  00  0A  20  20  20  20  20  20
37:788  0:000  090  |  00  00  00  FC  00  48  50  20  53  32
37:788  0:000  100  |  30  33  31  0A  20  20  20  20  00  00
37:788  0:000  110  |  00  FF  00  33  43  51  31  34  34  4E
37:788  0:000  120  |  35  31  35  0A  20  20  00  5C
37:788  0:000  read_nVidia_ROM
37:788  0:000  Using PRAMIN fixups
37:921  0:133  PROM
38:147  0:225  version 86.07.39.80.21
38:147  0:000  nVidia PNY GeForce GTX 1050  2048MB NV137 [10DE:1C81] :: PcieRoot(0x0)\Pci(0x7,0x0)\Pci(0x0,0x0) => device #1
38:147  0:000  Nvidia: VideoPorts: user defined from config.plist: 3
38:147  0:000  NVidia: FakeID 10DE:0
38:147  0:000  set NVCAP: 04000000-00000300-0C000000-00000007-00000000
38:147  0:000   setting specified layout-id=11 (0xB)
38:147  0:000  stringlength = 2532
38:147  0:000  CurrentMode: Width=1600 Height=900
38:147  0:000  Beginning FSInjection
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: BDDC7518
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: BDDC7518
38:148  0:000  Use origin smbios table type 1 guid.
38:148  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
38:148  0:000  Extra kext: EFI\CLOVER\kexts\Other\IntelGraphicsFixup.kext (v.1.2.0)
38:152  0:004  Extra kext: EFI\CLOVER\kexts\Other\WhateverGreen.kext.dSYM (v.1.2.6)
38:153  0:000  Extra kext: EFI\CLOVER\kexts\Other\SuperVIAATA.kext (v.1.0.3)
38:155  0:002  Extra kext: EFI\CLOVER\kexts\Other\IOAHCIBlockStorageInjector.kext (v.1.1.1)
38:156  0:000  Extra kext: EFI\CLOVER\kexts\Other\AppleALC.kext (v.1.3.5)
38:204  0:048  Extra kext: EFI\CLOVER\kexts\Other\SMCProcessor.kext (v.1.0.2)
38:206  0:002  Extra kext: EFI\CLOVER\kexts\Other\ATAPortInjector.kext (v.1.0.0)
38:214  0:007  Extra kext: EFI\CLOVER\kexts\Other\ApplePCIIDE.kext (v.1)
38:218  0:003  Extra kext: EFI\CLOVER\kexts\Other\IntelMausiEthernet.kext (v.2.4.1d1)
38:220  0:002  Extra kext: EFI\CLOVER\kexts\Other\AppleIntelE1000e.kext (v.3.3.5)
38:223  0:003  Extra kext: EFI\CLOVER\kexts\Other\DirectHW.kext (v.1.4)
38:225  0:001  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC_GPUSensors.kext (v.1800)
38:227  0:002  Extra kext: EFI\CLOVER\kexts\Other\WhateverGreen.kext (v.1.2.6)
38:237  0:009  Extra kext: EFI\CLOVER\kexts\Other\Lilu.kext (v.1.3.4)
38:239  0:002  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC.kext (v.1800)
38:244  0:004  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC_SMMSensors.kext (v.1800)
38:247  0:002  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC_LPCSensors.kext (v.1800)
38:322  0:075  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC_CPUSensors.kext (v.1800)
38:324  0:001  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC_ACPISensors.kext (v.1800)
38:329  0:005  Extra kext: EFI\CLOVER\kexts\Other\Lilu.kext.dSYM (v.1.3.4)
38:329  0:000  Extra kext: EFI\CLOVER\kexts\Other\USBInjectAll.kext (v.0.6.7)
38:497  0:167  Extra kext: EFI\CLOVER\kexts\Other\NullCPUPowerManagement.kext (v.1.0.0d2)
38:499  0:002  Extra kext: EFI\CLOVER\kexts\Other\AppleAHCIPort.kext (v.999.1.1)
38:514  0:014  SetStartupDiskVolume:
38:514  0:000    * Volume: 'OS X'
38:514  0:000    * LoaderPath: '<null string>'
38:514  0:000    * DevPath: OS X
38:514  0:000    * GUID = 276B8E10-592A-45D9-8C8E-7890EE36B4A8
38:514  0:000    * efi-boot-device: <array><dict><key>IOMatch</key><dict><key>IOProviderClass</key><string>IOMedia</string><key>IOPropertyMatch</key><dict><key>UUID</key><string>276B8E10-592A-45D9-8C8E-7890EE36B4A8</string></dict></dict></dict></array>
38:514  0:000  Custom boot screen not used because entry has unset use graphics

DSDTdump.Log

Spoiler

20:745  0:286  Found BIOS RSDP at F9C80
20:745  0:000  Saving ACPI tables from RSDP F9C80 to EFI\CLOVER\ACPI\origin ...
20:745  0:000   F9C80: 'RSD PTR ', Rev: 0 (Acpi 1.0), Len: 20
20:745  0:000    (Rsdt: BF790000)
20:745  0:000    BF790000: 'RSDT', 'FX09', Rev: 1, Len: 68
20:745  0:000    Tables in Rsdt: 8
20:745  0:000    0. BF790200: 'FACP', 'FX09', Rev: 1, Len: 132
20:745  0:000        (Dsdt: BF790660, Facs: BF79E000)
20:745  0:000        BF790660: 'DSDT', '1AAAA000', Rev: 1, Len: 22213
20:745  0:000        BF79E000: 'FACS', Ver: 1, Len: 64
20:745  0:000    1. BF790390: 'APIC', 'FX09', Rev: 1, Len: 140
20:745  0:000    2. BF790420: 'MCFG', 'OEMMCFG', Rev: 1, Len: 60
20:745  0:000    3. BF790460: 'SLIC', 'FX09', Rev: 1, Len: 374
20:745  0:000    4. BF7905E0: 'OSFR', 'FX09', Rev: 1, Len: 128
20:745  0:000    5. BF79E040: 'OEMB', 'FX09', Rev: 1, Len: 122
20:745  0:000    6. BF798660: 'HPET', 'OEMHPET', Rev: 1, Len: 56
20:745  0:000    7. BF7A08F0: 'SSDT', 'CpuPm', Rev: 1, Len: 4760
20:745  0:000  Found UEFI Acpi 2.0 RSDP at BF3C0000
20:745  0:000  Printing ACPI tables from RSDP BF3C0000 ...
20:745  0:000   BF3C0000: 'RSD PTR ', Rev: 0 (Acpi 1.0), Len: 20
20:745  0:000    (Rsdt: BF790000)
20:745  0:000    BF790000: 'RSDT', 'FX09', Rev: 1, Len: 68
20:745  0:000    Tables in Rsdt: 8
20:745  0:000    0. BF790200: 'FACP', 'FX09', Rev: 1, Len: 132
20:745  0:000        (Dsdt: BF790660, Facs: BF79E000)
20:745  0:000        BF790660: 'DSDT', '1AAAA000', Rev: 1, Len: 22213
20:746  0:000        BF79E000: 'FACS', Ver: 1, Len: 64
20:746  0:000    1. BF790390: 'APIC', 'FX09', Rev: 1, Len: 140
20:746  0:000    2. BF790420: 'MCFG', 'OEMMCFG', Rev: 1, Len: 60
20:746  0:000    3. BF790460: 'SLIC', 'FX09', Rev: 1, Len: 374
20:746  0:000    4. BF7905E0: 'OSFR', 'FX09', Rev: 1, Len: 128
20:746  0:000    5. BF79E040: 'OEMB', 'FX09', Rev: 1, Len: 122
20:746  0:000    6. BF798660: 'HPET', 'OEMHPET', Rev: 1, Len: 56
20:746  0:000    7. BF7A08F0: 'SSDT', 'CpuPm', Rev: 1, Len: 4760



Edited by DiddyKong
clarification

Share this post


Link to post
Share on other sites
Advertisement

I just have one question: why? Why do you want to complicate things that are really simple to begin with?



Clover already has a bunch of options for patching ACPI. Why would you want to deal with custom SSDT/DSDT files? it's complicated (at least, I found it really complicated), and risky. Because, if you can't boot, you don't have access to your ACPI/Patched folder so you can revert the changes. Whereas with the config patches, you can boot off of a backup config and voilà! You're back in your system in no time.



The most optimisations are probably the least amount of fixes in Clover ACPI. If you can boot with none of those fixes applied, I'd say that's pretty damn optimised. I also don't need any of those fixes, and my computer runs perfectly fine.



For CPU monitoring, you can use either Intel Power Widget app, or FakeSMC.kext + all the sensors kexts + HW Monitor app to monitor your CPU under load. You can find a fork of that on RehabMan's BitBucket page here. I'd say, if you were able to boot with no issues, your CPU is probably working just fine, so there is no need for patching anything in that aspect. If your CPU and GPU work fine, including sleep/wake, then just enjoy.



My advice: if it ain't broke, don't fix it. Cause you might break it instead.

Share this post


Link to post
Share on other sites

I've defiantly broke it and was stuck out for a couple days, pondering how to make a bootable EFI from windows, decided to do a simple google search and found Bootdiskutility which made a bootable usb with the newest clover. Then I was back in my system. I have noticed if I have clover make me a patched DSDT it works and boots me in. But I thought a SSDT was needed but I'm understanding there just extra to provide a lil bit more stability if needed. but yeah for the most part the only thing that crashed my system was a hot plugin of a HDD, I wanted to see what would happen, I do it all the time in windows then mount the drive.



I do have those SMC kexts, most recent too. But I'm defiantly have trouble I think with NVRAM I think cos I can't get QE/CI enabled. But my card seems to be fully recognized, is there a bootflag or something for lilu or whatever green that has to be done to enable full acceleration? it worked at one point when I was running a bistro and fixing it enough to trust to make me a vanilla installer, so point being, I know full acceleration can work I just refuse to use 3rd party stuff.



I want to make a DSDT with no errors cos my system always hangs upon starting, and I thought maybe a better patched DSDT would benefit way more than just going with the one clover makes

Spoiler

ALWAYS HAPPENS BEFORE BOOT

busy timeout[0], (60s), kextd wait(0): ‘CHN0’, ‘CHN1’

busy timeout[1], (60s), kextd wait(0): ‘CHN0’, ‘CHN1’

IOConsoleUsers: time(0) 0->0, lin 0, lik1,

IOConsoleUsers: gIOScreenLockState 3, hs 0, bs 0, now 0, sm 0x0



i notice i have this now at end before booting with macpro

AppleTyMCEDriver::start coreVIDPID = 0xffffffff Number of packages = 1 Number of cpus = 8 memory monitor trough MCA

ACPI_SMC_PlatformPlugin::start - waitForService(resourceMatching(AppleIntelCPUPowerManagement) timed out



OTHER ISSUES BEING FIXED/ADDRESSED

SSDT TABLES

ACPI: dynamic OEM table load

ACPI: SSDT 0xFFFFFF8047E98810 000403 (V01 DpgPmm P000Ist 00000012 INTL 20051117)

ACPI error: [_PPC] Namespace lookup failure, AE_ALREADY_EXISTS (20140020/dswload-1c5



otherwise it always starts up even with all the DSDT editing I'm doing, plus I had 5 1 GB flash drives sitting around that I keep updated with whichever clover I had running last good, so I have that piece of mind now.



but I thought maybe a 100% patched DSDT would make full acceleration work, which I can not figure out

I have booted with

emuvariableuefi

and each osxaptiofix

and I can't figure out what I'm doing wrong, besides spending too much time on DSDT, When clover can make me a patched one that works.



IDK maybe its cos its the idea of a hackintosh, trying to fix {censored} that don't exactly need fixed, I just want to understand it better so when I update my dinosaur of a system ill know exactly what to do even more than I do now I guess

Edited by DiddyKong
added extra details

Share this post


Link to post
Share on other sites

Alright. There are people who are very talented with making a custom SSDT/DSDT. I would recommend @MaLd0n for that.



Personally, I won't go the custom DSDT/SSDT route myself, but if you wanna do it, you definitely have that option, as well.



I think we also have a Clover installer for Windows....? I could be wrong here. So, although BDU is definitely a good choice, I think you can also install Clover by itself. Again, I could be talking nonsense. But this is how I remember it.



For acceleration in Sierra and High Sierra (it won't work in Mojave due to the lack of Nvidia drivers), you need, well, the Nvidia Drivers. Your card is not supported by default, so in order to have acceleration, you need Nvidia Drivers.



Also, in config.plist, you need NvidiaWeb checked and InjectKext set to YES.



640458737_Screenshot2019-03-25at09_16_58.thumb.png.d391f05f531162de18a504610aab3b23.png



If your motherboard has native NVRAM, which it probably does, you don't really need to emulate it via EmuVariable. And, although I would recommend using AptioMemoryFix instead of OSxAptioFixDrv...on old systems, I found the last one to actually work better. So...although you could give AptioMemoryFix a go, it might not work for your specific case.



What I would recommend, is to remove al private information from config->SMBIOS and upload it here for analysis. Also, would be very helpful if you could add your hardware information (especially regarding the motherboard) to your signature.

Share this post


Link to post
Share on other sites
13 hours ago, arsradu said:

Alright. There are people who are very talented with making a custom SSDT/DSDT. I would recommend @MaLd0n for that.



Personally, I won't go the custom DSDT/SSDT route myself, but if you wanna do it, you definitely have that option, as well.



I think we also have a Clover installer for Windows....? I could be wrong here. So, although BDU is definitely a good choice, I think you can also install Clover by itself. Again, I could be talking nonsense. But this is how I remember it.



For acceleration in Sierra and High Sierra (it won't work in Mojave due to the lack of Nvidia drivers), you need, well, the Nvidia Drivers. Your card is not supported by default, so in order to have acceleration, you need Nvidia Drivers.



Also, in config.plist, you need NvidiaWeb checked and InjectKext set to YES.



640458737_Screenshot2019-03-25at09_16_58.thumb.png.d391f05f531162de18a504610aab3b23.png



If your motherboard has native NVRAM, which it probably does, you don't really need to emulate it via EmuVariable. And, although I would recommend using AptioMemoryFix instead of OSxAptioFixDrv...on old systems, I found the last one to actually work better. So...although you could give AptioMemoryFix a go, it might not work for your specific case.



 What I would recommend, is to remove al private information from config->SMBIOS and upload it here for analysis. Also, would be very helpful if you could add your hardware information (especially regarding the motherboard) to your signature.

Thanks for the help, for the most part I believe I know what I'm doing, I did get the web drivers installed and got all three screens working but I didn't have inject set to yes, it was set to detect for some reason. But I broke my setup with a kext, booted into recovery to remove it, then finally got back into OS X. So imma make sure my system can boot normally again and ill reply with my EFI and other info so the community can better help me.

Share this post


Link to post
Share on other sites

Ok I got my system booting fine again, slow, but it boots and all 3 screens work, but my dock isn't see thru. I'm going to attach a few things here so we can figure out what I might be doing wrong or whats interfering with full acceleration.



Boot log - new boot log in EFI link

Spoiler

0:100  0:100  MemLog inited, TSC freq: 2659999835
0:100  0:000  CPU was calibrated with ACPI PM Timer
0:100  0:000  LegacyRegion2: Chipset/proc: 0x34008086
0:100  0:000   Core i7 processors (PAM 0x40-0x47)
0:100  0:000   Test PAM1=(0x41=11, 0x5a=00, 0x81=0B, 0x91=53) at chipset 34008086
0:100  0:000  , Install = Success
0:112  0:012  BiosVideoDriverBindingStart!
0:112  0:000  BiosVideoCheckForVbe
0:112  0:000  EdidOverride not found
0:156  0:043   Edid1-
0:199  0:043   Edid0+
0:199  0:000   found Detail Timing 1600x900
0:288  0:088     0 640x480 attr=3BF - ok, edid+, 640x480, working, highest, pref=0
0:295  0:007     1 800x600 attr=3BF - ok, edid+, 800x600, working, highest, pref=1
0:303  0:007     2 1024x768 attr=3BF - ok, edid+, 1024x768, working, highest, pref=2
0:314  0:011     3 1600x900 attr=3BF - ok, edid+, working, highest, pref=3
0:318  0:003     4 1360x768 attr=3BF - ok, edid-
0:318  0:000  BV new mode: 3 1600x900
1:514  1:195   SetMode pref 3 (3) = Success
5:536  4:022
5:536  0:000  Now is 25.3.2019,  23:35:1 (GMT)
5:536  0:000  Starting Clover revision: 4895 on CLOVER EFI
5:536  0:000  Build with: [Args: -nb -mc --no-usb -D NO_GRUB_DRIVERS_EMBEDDED | -D DISABLE_USB_SUPPORT -D NO_GRUB_DRIVERS_EMBEDDED -D USE_BIOS_BLOCKIO -D USE_LOW_EBDA -D HAVE_LEGACY_EMURUNTIMEDXE -a X64 -b RELEASE -t XCODE8 -n 5 | OS: 10.13.6 | XCODE: 10.1]
5:536  0:000  SelfDevicePath=PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(1,GPT,2749C16B-A1AD-4A5A-BFCB-E2A019B7A130,0x28,0x64000) @BDDD6318
5:536  0:000  SelfDirPath = \EFI\CLOVER
5:537  0:000  === [ Get Smbios ] ========================================
5:537  0:000  Type 16 Index = 0
5:537  0:000  Total Memory Slots Count = 6
5:537  0:000  Type 17 Index = 0
5:537  0:000  SmbiosTable.Type17->Speed = 1066MHz
5:537  0:000  SmbiosTable.Type17->Size = 1024MB
5:537  0:000  SmbiosTable.Type17->Bank/Device =  DIMM1
5:537  0:000  SmbiosTable.Type17->Vendor = Nanya
5:537  0:000  SmbiosTable.Type17->SerialNumber = 641007AD
5:537  0:000  SmbiosTable.Type17->PartNumber = NT1GC64B88A0NF-BE
5:537  0:000  Type 17 Index = 1
5:537  0:000  SmbiosTable.Type17->Speed = 1066MHz
5:537  0:000  SmbiosTable.Type17->Size = 1024MB
5:537  0:000  SmbiosTable.Type17->Bank/Device =  DIMM2
5:537  0:000  SmbiosTable.Type17->Vendor = Nanya
5:537  0:000  SmbiosTable.Type17->SerialNumber = 6210079E
5:537  0:000  SmbiosTable.Type17->PartNumber = NT1GC64B88A0NF-BE
5:537  0:000  Type 17 Index = 2
5:537  0:000  Ignoring insane frequency value 0MHz
5:537  0:000  SmbiosTable.Type17->Speed = 0MHz
5:537  0:000  SmbiosTable.Type17->Size = 8192MB
5:537  0:000  SmbiosTable.Type17->Bank/Device =  DIMM3
5:537  0:000  SmbiosTable.Type17->Vendor =
5:537  0:000  SmbiosTable.Type17->SerialNumber = 00000002
5:537  0:000  SmbiosTable.Type17->PartNumber = 8GBH2X04F1AA28-15
5:537  0:000  Type 17 Index = 3
5:537  0:000  SmbiosTable.Type17->Speed = 1066MHz
5:537  0:000  SmbiosTable.Type17->Size = 1024MB
5:537  0:000  SmbiosTable.Type17->Bank/Device =  DIMM4
5:537  0:000  SmbiosTable.Type17->Vendor = Nanya
5:537  0:000  SmbiosTable.Type17->SerialNumber = 651006A0
5:537  0:000  SmbiosTable.Type17->PartNumber = NT1GC64B88A0NF-BE
5:537  0:000  Type 17 Index = 4
5:537  0:000  SmbiosTable.Type17->Speed = 1066MHz
5:537  0:000  SmbiosTable.Type17->Size = 1024MB
5:537  0:000  SmbiosTable.Type17->Bank/Device =  DIMM5
5:537  0:000  SmbiosTable.Type17->Vendor = Nanya
5:537  0:000  SmbiosTable.Type17->SerialNumber = 65100791
5:537  0:000  SmbiosTable.Type17->PartNumber = NT1GC64B88A0NF-BE
5:537  0:000  Type 17 Index = 5
5:537  0:000  Ignoring insane frequency value 0MHz
5:537  0:000  SmbiosTable.Type17->Speed = 0MHz
5:537  0:000  SmbiosTable.Type17->Size = 8192MB
5:537  0:000  SmbiosTable.Type17->Bank/Device =  DIMM6
5:537  0:000  SmbiosTable.Type17->Vendor =
5:537  0:000  SmbiosTable.Type17->SerialNumber = 00000002
5:537  0:000  SmbiosTable.Type17->PartNumber = 8GBH2X04F1AA28-15
5:537  0:000  Boot status=0
5:537  0:000  Running on: 'Studio XPS 435MT' with board '0R849J'
5:537  0:000  === [ GetCPUProperties ] ==================================
5:537  0:000  CPU Vendor = 756E6547 Model=106A4
5:537  0:000   The CPU supported SSE4.1
5:537  0:000  BrandString = Intel(R) Core(TM) i7 CPU         920  @ 2.67GHz
5:537  0:000   The CPU supported turbo
5:537  0:000  MSR 0x35               40008
5:537  0:000  FSBFrequency = 134 MHz, DMI FSBFrequency = 133 MHz, Corrected FSBFrequency = 133 MHz
5:537  0:000  Found QCLK_RATIO at bus 0xFF dev=3 funs=4
5:537  0:000  qpi read from PCI 19
5:537  0:000  qpimult 25
5:537  0:000  qpibusspeed 6666500kHz
5:537  0:000  MaxDiv/MinDiv: 20.0/12
5:537  0:000  Turbo: 21/21/21/22
5:537  0:000  Features: 0xBFEBFBFF
5:537  0:000  Threads: 8
5:537  0:000  Cores: 4
5:537  0:000  FSB: 133 MHz
5:537  0:000  CPU: 2666 MHz
5:537  0:000  TSC: 2666 MHz
5:537  0:000  PIS: 6666 MHz
5:537  0:000  ExternalClock: 133 MHz
5:537  0:000  === [ GetDevices ] ========================================
5:537  0:000  PCI (00|00:00.00) : 8086 3400 class=060000
5:537  0:000  PCI (00|00:01.00) : 8086 3408 class=060400
5:537  0:000  PCI (00|00:03.00) : 8086 340A class=060400
5:537  0:000  PCI (00|00:07.00) : 8086 340E class=060400
5:537  0:000  PCI (00|03:00.00) : 10DE 1C81 class=030000
5:537  0:000   - GFX: Model=PNY GeForce GTX 1050 family 137 (Nvidia)
5:537  0:000  PCI (00|03:00.01) : 10DE 0FB9 class=040300
5:537  0:000   - HDMI Audio:
5:537  0:000  PCI (00|00:14.00) : 8086 342E class=080000
5:537  0:000  PCI (00|00:14.01) : 8086 3422 class=080000
5:537  0:000  PCI (00|00:14.02) : 8086 3423 class=080000
5:537  0:000  PCI (00|00:14.03) : 8086 3438 class=080000
5:537  0:000  PCI (00|00:19.00) : 8086 10CD class=020000
5:537  0:000   - LAN: 0 Vendor=Intel
5:537  0:000  PCI (00|00:1A.00) : 8086 3A37 class=0C0300
5:537  0:000  PCI (00|00:1A.01) : 8086 3A38 class=0C0300
5:537  0:000  PCI (00|00:1A.02) : 8086 3A39 class=0C0300
5:537  0:000  PCI (00|00:1A.07) : 8086 3A3C class=0C0320
5:538  0:000  PCI (00|00:1B.00) : 8086 3A3E class=040300
5:538  0:000  PCI (00|00:1C.00) : 8086 3A40 class=060400
5:538  0:000  PCI (00|00:1D.00) : 8086 3A34 class=0C0300
5:538  0:000  PCI (00|00:1D.01) : 8086 3A35 class=0C0300
5:538  0:000  PCI (00|00:1D.02) : 8086 3A36 class=0C0300
5:538  0:000  PCI (00|00:1D.07) : 8086 3A3A class=0C0320
5:538  0:000  PCI (00|00:1E.00) : 8086 244E class=060401
5:538  0:000  PCI (00|00:1F.00) : 8086 3A16 class=060100
5:538  0:000  PCI (00|00:1F.02) : 8086 3A20 class=01018F
5:538  0:000  PCI (00|00:1F.03) : 8086 3A30 class=0C0500
5:538  0:000  PCI (00|00:1F.05) : 8086 3A26 class=010185
5:538  0:000  PCI (00|FF:00.00) : 8086 2C41 class=060000
5:538  0:000  PCI (00|FF:00.01) : 8086 2C01 class=060000
5:538  0:000  PCI (00|FF:02.00) : 8086 2C10 class=060000
5:538  0:000  PCI (00|FF:02.01) : 8086 2C11 class=060000
5:538  0:000  PCI (00|FF:03.00) : 8086 2C18 class=060000
5:538  0:000  PCI (00|FF:03.01) : 8086 2C19 class=060000
5:538  0:000  PCI (00|FF:03.04) : 8086 2C1C class=060000
5:538  0:000  PCI (00|FF:04.00) : 8086 2C20 class=060000
5:538  0:000  PCI (00|FF:04.01) : 8086 2C21 class=060000
5:538  0:000  PCI (00|FF:04.02) : 8086 2C22 class=060000
5:538  0:000  PCI (00|FF:04.03) : 8086 2C23 class=060000
5:538  0:000  PCI (00|FF:05.00) : 8086 2C28 class=060000
5:538  0:000  PCI (00|FF:05.01) : 8086 2C29 class=060000
5:538  0:000  PCI (00|FF:05.02) : 8086 2C2A class=060000
5:538  0:000  PCI (00|FF:05.03) : 8086 2C2B class=060000
5:538  0:000  PCI (00|FF:06.00) : 8086 2C30 class=060000
5:538  0:000  PCI (00|FF:06.01) : 8086 2C31 class=060000
5:538  0:000  PCI (00|FF:06.02) : 8086 2C32 class=060000
5:538  0:000  PCI (00|FF:06.03) : 8086 2C33 class=060000
5:538  0:000  === [ GetDefaultSettings ] ================================
5:538  0:000  Clover load options size = 0 bytes
5:541  0:002  EFI\CLOVER\config.plist loaded: Success
5:541  0:000  === [ GetListOfThemes ] ===================================
5:541  0:000  - [00]: Clovy
5:544  0:002  === [ Found config plists ] ===============================
5:544  0:000  - config.plist
5:545  0:000  - configOG.plist
5:545  0:000  === [ GetEarlyUserSettings ] ==============================
5:545  0:000  timeout set to 5
5:545  0:000  Custom boot CUSTOM_BOOT_APPLE (0x0)
5:545  0:000  Default theme: Clovy
5:545  0:000  === [ LoadDrivers ] =======================================
5:546  0:000  Loading AudioDxe-64.efi  status=Success
5:546  0:000   - driver needs connecting
5:546  0:000  Loading FSInject-64.efi  status=Success
5:546  0:000  Loading Ps2MouseDxe-64.efi  status=Success
5:546  0:000   - driver needs connecting
5:546  0:000  Loading UsbMouseDxe-64.efi  status=Success
5:546  0:000   - driver needs connecting
5:546  0:000  Loading XhciDxe-64.efi  status=Success
5:547  0:000   - driver needs connecting
5:547  0:000  4 drivers needs connecting ...
5:547  0:000  PlatformDriverOverrideProtocol->GetDriver overriden
10:495  4:948  === [ InitScreen ] ========================================
10:495  0:000  Console modes reported: 4, available modes:
10:495  0:000   - [01]: 80x25
10:495  0:000   - [03]: 100x31
10:495  0:000   - [04]: 200x47 (current mode)
10:495  0:000  SetScreenResolution: 1280x1024 - not found!
10:495  0:000  SetScreenResolution: 1600x900 - already set
10:495  0:000  reinit: self device path=PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(1,GPT,2749C16B-A1AD-4A5A-BFCB-E2A019B7A130,0x28,0x64000)
10:496  0:000  Using embedded font: Success
10:498  0:002  === [ GetMacAddress ] =====================================
10:498  0:000  === [ ScanSPD ] ===========================================
10:499  0:000  Scanning SMBus [8086:3A30], mmio: 0xF9FFFC04, ioport: 0x400, hostc: 0x1
10:518  0:019  Slot: 0 Type 24 1024MB 1066MHz Vendor=Nanya Technology PartNo=NT1GC64B88A0NF-BE SerialNo=0A0D000701000604
10:538  0:019  Slot: 1 Type 24 1024MB 1066MHz Vendor=Nanya Technology PartNo=NT1GC64B88A0NF-BE SerialNo=0A00000601000605
10:557  0:019  Slot: 2 Type 24 1024MB 1066MHz Vendor=Nanya Technology PartNo=NT1GC64B88A0NF-BE SerialNo=090E000701000602
10:577  0:019  Slot: 3 Type 24 1024MB 1066MHz Vendor=Nanya Technology PartNo=NT1GC64B88A0NF-BE SerialNo=0901000701000605
10:596  0:019  Slot: 4 Type 24 8192MB 1600MHz Vendor=NoName PartNo=8GBH2X04F1AA28-15 SerialNo=0002000000000000
10:615  0:019  Slot: 5 Type 24 8192MB 1600MHz Vendor=NoName PartNo=8GBH2X04F1AA28-15 SerialNo=0002000000000000
10:615  0:000  === [ GetAcpiTablesList ] =================================
10:615  0:000  Get Acpi Tables List from RSDT:
10:615  0:000   - [00]: FACP  FX09    len=132
10:615  0:000   - [01]: APIC  FX09    len=140
10:615  0:000   - [02]: MCFG  OEMMCFG  len=60
10:615  0:000   - [03]: SLIC  FX09    len=374
10:615  0:000   - [04]: OSFR  FX09    len=128
10:615  0:000   - [05]: OEMB  FX09    len=122
10:615  0:000   - [06]: HPET  OEMHPET  len=56
10:615  0:000   - [07]: SSDT  CpuPm len=4760
10:615  0:000  Calibrated TSC Frequency = 2659999835 = 2659MHz
10:616  0:000  === [ GetUserSettings ] ===================================
10:616  0:000  USB FixOwnership: yes
10:616  0:000  Dropping 2 tables:
10:616  0:000   - [00]: Drop table  signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043)
10:616  0:000           - set table: 54445353,       6D50757043 to drop: yes
10:616  0:000   - [01]: Drop table  signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043)
10:616  0:000           - set table: 54445353,   74734930757043 to drop: no
10:616  0:000   - final DSDT Fix mask=00000000
10:616  0:000  PatchesDSDT: 4 requested
10:616  0:000   - [00]: (change HDAS to HDEF) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
10:616  0:000   - [01]: (change GFX0 to IGPU) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
10:616  0:000   - [02]: (change HECI to IMEI) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
10:616  0:000   - [03]: (change _DSM to XDSM) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
10:616  0:000  ResetAddr: 0x64
10:616  0:000  Calc ResetVal: 0xFE
10:616  0:000  ResetVal: 0xFE
10:616  0:000  smartUPS: present
10:616  0:000  Devices to rename 1
10:616  0:000  PXSX:RP01:PCI0:#_SB:->will be renamed to ARPT
10:616  0:000  Using ProductName from config: MacPro5,1
10:616  0:000  Using latest BiosVersion from clover
10:616  0:000  BiosVersion: MP51.88Z.F000.B00.1812191621
10:616  0:000  BiosReleaseDate: 12/19/18
10:616  0:000  Using EfiVersion from config: 140.0.0.0.0
10:616  0:000  Using FirmwareFeatures from config: 0xE80FE137
10:616  0:000  Using FirmwareFeaturesMask from config: 0xFF1FFF3F
10:616  0:000  Board-ID set from config as Mac-F221BEC8
10:616  0:000  BoardType: 0xB
10:616  0:000  ChassisType: 0x7
10:616  0:000  Converted CustomUUID E16BFE5B-CD01-5762-98AD-BA6CA808A4A1
10:620  0:003  === [ Found DSDT tables ] =================================
10:620  0:000  - DSDT.aml
10:739  0:118  === [ ScanVolumes ] =======================================
10:739  0:000  Found 5 volumes with blockIO
10:739  0:000  - [00]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)
10:739  0:000          Result of bootcode detection: bootable unknown (legacy)
10:739  0:000  - [01]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(1,GPT,2749C16B-A1AD-4A5A-BFCB-E2A019B7A130,0x28,0x64000)
10:739  0:000          Result of bootcode detection: bootable unknown (legacy)
10:740  0:000          This is SelfVolume !!
10:740  0:000  - [02]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(2,GPT,276B8E10-592A-45D9-8C8E-7890EE36B4A8,0x64028,0x1D190FF0)
10:740  0:000  - [03]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(3,GPT,62DAD5EB-3BBC-453A-8577-C19C589791D4,0x1D1F5018,0x135F20)
10:740  0:000  - [04]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(4,GPT,6C416A1C-D58C-481F-8016-C2AE7D3578F5,0x1D32AF38,0x1D01B0D0)
10:743  0:002  Loading nvram.plist from Vol 'EFI' - loaded, size=2189
10:745  0:002  === [ PutNvramPlistToRtVars ] =============================
10:745  0:000   Adding Key: ActualDensity: Size = 2, Data: E1 00
10:745  0:000   Adding Key: DensityThreshold: Size = 2, Data: 96 00
10:745  0:000   Adding Key: EFILoginHiDPI: Size = 4, Data: 01 00 00 00
10:745  0:000   Adding Key: SystemAudioVolume: Size = 1, Data: 1A
10:745  0:000   Adding Key: SystemAudioVolumeDB: Size = 1, Data: F9
10:745  0:000   Adding Key: csr-active-config: Size = 4, Data: E7 03 00 00
10:745  0:000   Adding Key: efi-boot-device: Size = 216, Data: 3C 61 72 72 61 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 50 72 6F 76 69 64 65 72 43 6C 61 73 73 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 49 4F 4D 65 64 69 61 3C 2F 73 74 72 69 6E 67 3E 3C 6B 65 79 3E 49 4F 50 72 6F 70 65 72 74 79 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 55 55 49 44 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 32 37 36 42 38 45 31 30 2D 35 39 32 41 2D 34 35 44 39 2D 38 43 38 45 2D 37 38 39 30 45 45 33 36 42 34 41 38 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 2F 64 69 63 74 3E 3C 2F 64 69 63 74 3E 3C 2F 61 72 72 61 79 3E
10:745  0:000   Adding Key: efi-boot-device-data: Size = 72, Data: 02 01 0C 00 D0 41 08 0A 00 00 00 00 01 01 06 00 02 1F 03 01 08 00 01 00 00 00 04 01 2A 00 02 00 00 00 28 40 06 00 00 00 00 00 F0 0F 19 1D 00 00 00 00 10 8E 6B 27 2A 59 D9 45 8C 8E 78 90 EE 36 B4 A8 02 02 7F FF 04 00
10:745  0:000   Adding Key: fakesmc-key-#KEY-ui32: Size = 4, Data: 00 00 00 00
10:745  0:000   Adding Key: fakesmc-key-$Adr-ui32: Size = 4, Data: 00 00 03 00
10:745  0:000   Adding Key: fakesmc-key-$Num-ui8: Size = 1, Data: 01
10:745  0:000   Adding Key: fakesmc-key-BATP-flag: Size = 1, Data: 00
10:745  0:000   Adding Key: fakesmc-key-BEMB-flag: Size = 1, Data: 00
10:745  0:000   Adding Key: fakesmc-key-BNum-ui8: Size = 1, Data: 00
10:745  0:000   Adding Key: fakesmc-key-EPCI-ui32: Size = 4, Data: 02 C0 07 00
10:745  0:000   Adding Key: fakesmc-key-MSAc-ui16: Size = 2, Data: 00 00
10:745  0:000   Adding Key: fakesmc-key-MSFW-ui8: Size = 2, Data: 01 00
10:745  0:000   Adding Key: fakesmc-key-MSPS-ui16: Size = 2, Data: 00 03
10:745  0:000   Adding Key: fakesmc-key-MSTc-ui8: Size = 1, Data: 00
10:745  0:000   Adding Key: fakesmc-key-MSWr-ui8: Size = 1, Data: 00
10:745  0:000   Adding Key: fakesmc-key-RBr -ch8*: Size = 8, Data: 6B 35 00 66 00 00 00 00
10:745  0:000   Adding Key: fakesmc-key-REV -ch8*: Size = 6, Data: 01 39 0F 00 00 11
10:745  0:000   Adding Key: fakesmc-key-RMde-char: Size = 1, Data: 41
10:745  0:000   Adding Key: fakesmc-key-RPlt-ch8*: Size = 8, Data: 6B 35 00 66 00 00 00 00
10:745  0:000   Adding Key: flagstate: Size = 32, Data: 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
10:745  0:000   Adding Key: fmm-computer-name: Size = 18, Data: 41 6E 74 68 6F 6E 79 E2 80 99 73 20 4D 61 63 50 72 6F
10:745  0:000   Adding Key: nvda_drv: Size = 2, Data: 31 00
10:745  0:000   Adding Key: security-mode: String: Size = 4, Val = 'none'
10:745  0:000  found 2 handles with audio
10:745  0:000  No AudioIoDevice stored
10:745  0:000  no stored audio parameters
10:745  0:000  === [ InitTheme ] =========================================
10:745  0:000  use night theme
10:775  0:029  Theme view-bounds: w=1366 h=768 units=px
10:775  0:000  using scale  1.171875
10:775  0:000  theme contains font-family=RobotoCondensed-Regular
10:928  0:152  Banner position at parse [0,0]
10:928  0:000  Banner position at parse [737,114]
10:930  0:001  parsed banner->width=150
10:933  0:003   icon 9 not parsed take common icons\tool_part
10:933  0:000   icon 10 not parsed take common icons\tool_rescue
10:942  0:008   icon 15 not parsed take common icons\vol_firewire
10:958  0:016  main entry size = 168
10:959  0:000  icon main size=[169,169]
10:959  0:000  OSicon os_tiger not parsed
10:960  0:000  OSicon os_leo not parsed
10:960  0:000  OSicon os_snow not parsed
10:963  0:003  OSicon os_cougar not parsed
10:964  0:000  OSicon os_yos not parsed
10:970  0:005  OSicon os_freebsd not parsed
10:973  0:003  parsing theme finish
10:973  0:000  Using vector theme 'Clovy' (EFI\CLOVER\themes\Clovy)
10:973  0:000  file sound read: sound_night.wav Not Found
10:973  0:000    Channels: 2  Sample rate: 8000 Hz  Bits: 16
10:973  0:000  output to channel 0 with volume 70, len=126400
10:973  0:000   sound channels=2 bits=16 freq=8000
10:975  0:001  sound converted to 48kHz
10:975  0:000  not found AudioIo to play
10:975  0:000  free sound
10:975  0:000  sound play end with status=BF4E8730
10:975  0:000  theme inited
10:975  0:000  Chosen theme Clovy
10:975  0:000  after NVRAM boot-args=-v kext-dev-mode=1
10:975  0:000  === [ Dump SMC keys from NVRAM ] ==========================
10:975  0:000  no AppleSMC protocol
10:975  0:000  === [ ScanLoader ] ========================================
10:975  0:000  - [01]: 'EFI'
10:981  0:005          AddLoaderEntry for Volume Name=EFI
10:981  0:000          skipped because entry is hidden
10:981  0:000  - [02]: 'OS X'
10:985  0:004          AddLoaderEntry for Volume Name=OS X
10:988  0:002      Check if volume Is Hibernated:
10:988  0:000      Check sleep image 'by signature':
10:993  0:005      read prefs \Library\Preferences\com.apple.PowerManagement.plist status=Success
10:993  0:000      using default sleep image name = \private\var\vm\sleepimage
10:994  0:001      sleepimage not found -> Not Found
10:994  0:000      hibernated: no - sign
10:996  0:001  - [03]: 'Recovery HD'
10:996  0:000          AddLoaderEntry for Volume Name=Recovery HD
10:997  0:001  - [04]: 'ExtraOSX'
10:997  0:000  Scanning legacy ...
10:997  0:000  === [ AddCustomTool ] =====================================
10:997  0:000  found tool \EFI\CLOVER\tools\Shell64U.efi
10:997  0:000  Checking EFI partition Volume 1 for Clover
10:997  0:000   Found Clover
11:001  0:003  === [ GetEfiBootDeviceFromNvram ] =========================
11:001  0:000   - efi-boot-device-data: PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(2,GPT,276B8E10-592A-45D9-8C8E-7890EE36B4A8,0x64028,0x1D190FF0)
11:001  0:000    - Volume: 'PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(2,GPT,276B8E10-592A-45D9-8C8E-7890EE36B4A8,0x64028,0x1D190FF0)'
11:001  0:000    - LoaderPath: '<null string>'
11:001  0:000    - Guid = 276B8E10-592A-45D9-8C8E-7890EE36B4A8
11:001  0:000  === [ FindStartupDiskVolume ] =============================
11:001  0:000    - Volume: partition = PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(2,GPT,276B8E10-592A-45D9-8C8E-7890EE36B4A8,0x64028,0x1D190FF0)
11:001  0:000     - searching for that partition
11:001  0:000      - found entry 0. 'Boot macOS from OS X', Volume 'OS X'
11:001  0:000  Boot redirected to Entry 0. 'Boot macOS from OS X'
11:001  0:000  DefaultIndex=0 and MainMenu.EntryCount=8
11:001  0:000  Use anime=<null string> frames=0
11:264  0:263  GUI ready
17:687  6:423  === [ StartLoader ] =======================================
17:687  0:000  Finally: ExternalClock=133MHz BusSpeed=133000kHz CPUFreq=2660MHz QPI: hw.busfrequency=6666000000Hz
17:688  0:000  Loading boot.efi  status=Success
17:920  0:231  GetOSVersion: 10.12.6 (16G1815)
17:920  0:000  CSR_CFG: CSR_ALLOW_UNTRUSTED_KEXTS | CSR_ALLOW_UNRESTRICTED_FS | CSR_ALLOW_TASK_FOR_PID | CSR_ALLOW_UNRESTRICTED_DTRACE | CSR_ALLOW_UNRESTRICTED_NVRAM | CSR_ALLOW_DEVICE_CONFIGURATION | CSR_ALLOW_ANY_RECOVERY_OS | CSR_ALLOW_UNAPPROVED_KEXTS
17:920  0:000  Will not patch boot.efi
17:920  0:000  === [ PatchSmbios ] =======================================
17:920  0:000  insert table 9 for dev 0:0
17:920  0:000  insert table 9 for dev 0:1
17:920  0:000  insert table 9 for dev 19:0
17:921  0:000  Injecting user memory modules to SMBIOS
17:921  0:000  Channels: 3
17:921  0:000  Interleave: 0 2 4 1 3 5 6 8 10 7 9 11 12 14 16 13 15 17 18 20 22 19 21 23
17:921  0:000   DIMM1 1066MHz 1024MB
17:921  0:000   DIMM2 1600MHz 8192MB
17:921  0:000   DIMM3 1066MHz 1024MB
17:921  0:000   DIMM4 1066MHz 1024MB
17:921  0:000   DIMM5 1066MHz 1024MB
17:921  0:000   DIMM6 1600MHz 8192MB
17:921  0:000  mTotalSystemMemory = 20480
17:921  0:000  NumberOfMemoryDevices = 6
17:921  0:000  Type20[0]->End = 0x0, Type17[0] = 0x400
17:921  0:000  Type20[1]->End = 0x0, Type17[1] = 0x2800
17:921  0:000  Type20[2]->End = 0x0, Type17[2] = 0x5000
17:921  0:000  Type20[3]->End = 0x0, Type17[3] = 0x7C00
17:921  0:000  === [ PatchACPI ] =========================================
17:921  0:000  Xsdt is not found! Creating new one
17:921  0:000  RsdPointer is Acpi 1.0 - creating new one Acpi 2.0
17:921  0:000  RsdPointer Acpi 2.0 installed
17:921  0:000  RSDT entries = 8
17:921  0:000  Xsdt reallocation done
17:921  0:000  old FADT length=84
17:921  0:000   SignatureFixup: 0x0 -> 0x0
17:921  0:000  DSDT found in Clover volume OEM folder: EFI\CLOVER\ACPI\patched\DSDT.aml
17:921  0:000  Apply DsdtFixMask=0x00000000
17:921  0:000     drop _DSM mask=0xFFFF
17:921  0:000  === [ FixBiosDsdt ] =======================================
17:922  0:000  Patching DSDT:
17:922  0:000   - [change HDAS to HDEF]: pattern 48444153, bin not found / already patched!
17:922  0:000   - [change GFX0 to IGPU]: pattern 47465830, patched at: [ (4CA2) ]
17:922  0:000   - [change HECI to IMEI]: pattern 48454349, bin not found / already patched!
17:922  0:000   - [change _DSM to XDSM]: pattern 5F44534D, patched at: [ (4300) (D5) (D5) (F7) (126) (D5) (D5) (84) (39A) (6B) (12F) (D7) (20) (8A) ]
17:922  0:000  Name: PXSX, Bridge: RP01, Replace: ARPT
17:922  0:000    0 replacements
17:922  0:000  PreCleanup XSDT: count=8, length=100
17:922  0:000  PreCleanup XSDT, corrected XSDT: count=8, length=100
17:922  0:000  === [ ACPIDropTables ] ====================================
17:922  0:000  Drop tables from XSDT, SIGN=SSDT TableID=CpuPm Length=4760
17:922  0:000   Table[7]: SSDT  CpuPm  4760 dropped
17:922  0:000  CPUBase=1 and ApicCPUBase=1 ApicCPUNum=8
17:922  0:000  Maximum control=0x14
17:922  0:000  Turbo control=0x16
17:922  0:000  P-States: min 0xC, max 0x16
17:922  0:000  SSDT with CPU P-States generated successfully
17:922  0:000  SSDT with CPU C-States generated successfully
17:922  0:000  Cleanup XSDT: count=10, length=116
17:922  0:000  corrected XSDT count=9, length=108
17:922  0:000  === [ RestSetup macOS ] ===================================
17:922  0:000  EdidDiscovered size=128
17:922  0:000  --- Discovered EDID Table size:128
17:922  0:000  000  |  00  FF  FF  FF  FF  FF  FF  00  22  F0
17:922  0:000  010  |  03  29  01  01  01  01  2C  15  01  03
17:922  0:000  020  |  80  2C  19  78  2E  06  25  A6  56  4B
17:922  0:000  030  |  9B  25  10  50  54  A1  08  00  81  C0
17:922  0:000  040  |  81  80  95  00  A9  C0  01  01  01  01
17:922  0:000  050  |  01  01  01  01  30  2A  40  C8  60  84
17:922  0:000  060  |  64  30  18  50  13  00  BB  F9  10  00
17:922  0:000  070  |  00  1E  00  00  00  FD  00  32  4C  18
17:922  0:000  080  |  53  11  00  0A  20  20  20  20  20  20
17:922  0:000  090  |  00  00  00  FC  00  48  50  20  53  32
17:922  0:000  100  |  30  33  31  0A  20  20  20  20  00  00
17:922  0:000  110  |  00  FF  00  33  43  51  31  34  34  4E
17:922  0:000  120  |  35  31  35  0A  20  20  00  5C
17:922  0:000  NVidia GFX injection not set
17:923  0:000   setting specified layout-id=11 (0xB)
17:923  0:000  stringlength = 508
17:923  0:000  CurrentMode: Width=1600 Height=900
17:923  0:000  Beginning FSInjection
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: BDDD6018
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: BDDD6018
17:923  0:000  Use origin smbios table type 1 guid.
17:924  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
17:924  0:000  Extra kext: EFI\CLOVER\kexts\Other\IntelGraphicsFixup.kext (v.1.2.0)
17:926  0:002  Extra kext: EFI\CLOVER\kexts\Other\AppleIntelCPUPowerManagementInfo.kext (v.1)
17:929  0:002  Extra kext: EFI\CLOVER\kexts\Other\WhateverGreen.kext.dSYM (v.1.2.6)
17:929  0:000  Extra kext: EFI\CLOVER\kexts\Other\SuperVIAATA.kext (v.1.0.3)
17:931  0:002  Extra kext: EFI\CLOVER\kexts\Other\IOAHCIBlockStorageInjector.kext (v.1.1.1)
17:932  0:000  Extra kext: EFI\CLOVER\kexts\Other\AppleALC.kext (v.1.3.5)
17:980  0:048  Extra kext: EFI\CLOVER\kexts\Other\SMCProcessor.kext (v.1.0.2)
17:983  0:002  Extra kext: EFI\CLOVER\kexts\Other\ATAPortInjector.kext (v.1.0.0)
17:990  0:007  Extra kext: EFI\CLOVER\kexts\Other\ApplePCIIDE.kext (v.1)
17:994  0:003  Extra kext: EFI\CLOVER\kexts\Other\IntelMausiEthernet.kext (v.2.4.1d1)
17:997  0:002  Extra kext: EFI\CLOVER\kexts\Other\AppleIntelE1000e.kext (v.3.3.5)
17:999  0:002  Extra kext: EFI\CLOVER\kexts\Other\DirectHW.kext (v.1.4)
18:001  0:001  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC_GPUSensors.kext (v.1800)
18:004  0:002  Extra kext: EFI\CLOVER\kexts\Other\WhateverGreen.kext (v.1.2.6)
18:014  0:010  Extra kext: EFI\CLOVER\kexts\Other\Lilu.kext (v.1.3.4)
18:017  0:002  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC.kext (v.1800)
18:021  0:004  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC_SMMSensors.kext (v.1800)
18:024  0:002  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC_LPCSensors.kext (v.1800)
18:097  0:073  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC_CPUSensors.kext (v.1800)
18:099  0:001  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC_ACPISensors.kext (v.1800)
18:104  0:005  Extra kext: EFI\CLOVER\kexts\Other\Lilu.kext.dSYM (v.1.3.4)
18:105  0:000  Extra kext: EFI\CLOVER\kexts\Other\USBInjectAll.kext (v.0.6.7)
18:271  0:165  Extra kext: EFI\CLOVER\kexts\Other\NullCPUPowerManagement.kext (v.1.0.0d2)
18:273  0:002  Extra kext: EFI\CLOVER\kexts\Other\AppleAHCIPort.kext (v.999.1.1)
18:288  0:015  SetStartupDiskVolume:
18:288  0:000    * Volume: 'OS X'
18:288  0:000    * LoaderPath: '<null string>'
18:288  0:000    * DevPath: OS X
18:288  0:000    * GUID = 276B8E10-592A-45D9-8C8E-7890EE36B4A8
18:289  0:000    * efi-boot-device: <array><dict><key>IOMatch</key><dict><key>IOProviderClass</key><string>IOMedia</string><key>IOPropertyMatch</key><dict><key>UUID</key><string>276B8E10-592A-45D9-8C8E-7890EE36B4A8</string></dict></dict></dict></array>
18:289  0:000  Custom boot screen not used because entry has unset use graphics



EFI contents

config.plist cleaned up and a few different flags



Spoiler

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
    <key>#DisableDrivers</key>
    <array>
        <string>_NOT_SHOWN_</string>
    </array>
    <key>ACPI</key>
    <dict>
        <key>#Sorted ACPI tables Count</key>
        <integer>3171223704</integer>
        <key>#SortedOrder</key>
        <array>
            <string>SSDT-1.aml</string>
        </array>
        <key>AutoMerge</key>
        <false/>
        <key>DSDT</key>
        <dict>
            <key>#Patches count</key>
            <integer>0</integer>
            <key>Debug</key>
            <false/>
            <key>DropOEM_DSM</key>
            <true/>
            <key>Fixes</key>
            <dict>
                <key>AddDTGP</key>
                <false/>
                <key>AddHDMI</key>
                <false/>
                <key>AddIMEI</key>
                <false/>
                <key>AddMCHC</key>
                <false/>
                <key>AddPNLF</key>
                <false/>
                <key>DeleteUnused</key>
                <false/>
                <key>FakeLPC</key>
                <false/>
                <key>FixACST</key>
                <false/>
                <key>FixADP1</key>
                <false/>
                <key>FixAirport</key>
                <false/>
                <key>FixDarwin</key>
                <false/>
                <key>FixDarwin7</key>
                <false/>
                <key>FixDisplay</key>
                <false/>
                <key>FixFirewire</key>
                <false/>
                <key>FixHDA</key>
                <false/>
                <key>FixHPET</key>
                <false/>
                <key>FixIDE</key>
                <false/>
                <key>FixIPIC</key>
                <false/>
                <key>FixIntelGfx</key>
                <false/>
                <key>FixLAN</key>
                <false/>
                <key>FixRTC</key>
                <false/>
                <key>FixRegions</key>
                <false/>
                <key>FixS3D</key>
                <false/>
                <key>FixSATA</key>
                <false/>
                <key>FixSBUS</key>
                <false/>
                <key>FixShutdown</key>
                <false/>
                <key>FixTMR</key>
                <false/>
                <key>FixUSB</key>
                <false/>
                <key>FixWAK</key>
                <false/>
            </dict>
            <key>Name</key>
            <string>DSDT.aml</string>
            <key>Patches</key>
            <array>
                <dict>
                    <key>Comment</key>
                    <string>change HDAS to HDEF</string>
                    <key>Disabled</key>
                    <false/>
                    <key>Find</key>
                    <data>
                    SERBUw==
                    </data>
                    <key>Replace</key>
                    <data>
                    SERFRg==
                    </data>
                </dict>
                <dict>
                    <key>Comment</key>
                    <string>change GFX0 to IGPU</string>
                    <key>Disabled</key>
                    <false/>
                    <key>Find</key>
                    <data>
                    R0ZYMA==
                    </data>
                    <key>Replace</key>
                    <data>
                    SUdQVQ==
                    </data>
                </dict>
                <dict>
                    <key>Comment</key>
                    <string>change HECI to IMEI</string>
                    <key>Disabled</key>
                    <false/>
                    <key>Find</key>
                    <data>
                    SEVDSQ==
                    </data>
                    <key>Replace</key>
                    <data>
                    SU1FSQ==
                    </data>
                </dict>
                <dict>
                    <key>Comment</key>
                    <string>change _DSM to XDSM</string>
                    <key>Disabled</key>
                    <false/>
                    <key>Find</key>
                    <data>
                    X0RTTQ==
                    </data>
                    <key>Replace</key>
                    <data>
                    WERTTQ==
                    </data>
                </dict>
            </array>
            <key>ReuseFFFF</key>
            <false/>
            <key>Rtc8Allowed</key>
            <false/>
            <key>SuspendOverride</key>
            <false/>
        </dict>
        <key>DisableASPM</key>
        <false/>
        <key>DropTables</key>
        <array>
            <dict>
                <key>Signature</key>
                <string>SSDT</string>
                <key>TableId</key>
                <string>CpuPm</string>
            </dict>
            <dict>
                <key>Signature</key>
                <string>SSDT</string>
                <key>TableId</key>
                <string>Cpu0Ist</string>
            </dict>
        </array>
        <key>FixHeaders</key>
        <true/>
        <key>FixMCFG</key>
        <true/>
        <key>HaltEnabler</key>
        <true/>
        <key>PatchAPIC</key>
        <false/>
        <key>RenameDevices</key>
        <dict>
            <key>#_SB.PCI0.RP01.PXSX</key>
            <string>ARPT</string>
        </dict>
        <key>ResetAddress</key>
        <string>0x64</string>
        <key>ResetValue</key>
        <string>0xFE</string>
        <key>SSDT</key>
        <dict>
            <key>#C3Latency</key>
            <integer>0</integer>
            <key>#DoubleFirstState</key>
            <false/>
            <key>#EnableC2</key>
            <false/>
            <key>#EnableC4</key>
            <false/>
            <key>#EnableC6</key>
            <false/>
            <key>#EnableC7</key>
            <false/>
            <key>#MaxMultiplier</key>
            <integer>0</integer>
            <key>#MinMultiplier</key>
            <integer>0</integer>
            <key>#PLimitDict</key>
            <integer>0</integer>
            <key>#PluginType</key>
            <integer>0</integer>
            <key>#UnderVoltStep</key>
            <integer>0</integer>
            <key>#UseSystemIO</key>
            <false/>
            <key>DropOem</key>
            <false/>
            <key>Generate</key>
            <dict>
                <key>APLF</key>
                <false/>
                <key>APSN</key>
                <false/>
                <key>CStates</key>
                <true/>
                <key>PStates</key>
                <true/>
                <key>PluginType</key>
                <false/>
            </dict>
            <key>NoDynamicExtract</key>
            <false/>
        </dict>
        <key>smartUPS</key>
        <false/>
    </dict>
    <key>Boot</key>
    <dict>
        <key>#CustomLogo</key>
        <string>_NOT_SHOWN_</string>
        <key>#LegacyBiosDefaultEntry</key>
        <integer>256</integer>
        <key>#NeverHibernate</key>
        <false/>
        <key>#StrictHibernate</key>
        <false/>
        <key>#Timeout</key>
        <string>_NOT_SHOWN_</string>
        <key>Arguments</key>
        <string>-v kext-dev-mode=1</string>
        <key>CustomLogo</key>
        <string>Apple</string>
        <key>Debug</key>
        <false/>
        <key>DefaultLoader</key>
        <string></string>
        <key>DefaultVolume</key>
        <string>LastBootedVolume</string>
        <key>DisableCloverHotkeys</key>
        <false/>
        <key>Legacy</key>
        <string></string>
        <key>NeverDoRecovery</key>
        <true/>
        <key>SkipHibernateTimeout</key>
        <false/>
        <key>Timeout</key>
        <integer>5</integer>
        <key>XMPDetection</key>
        <false/>
    </dict>
    <key>BootGraphics</key>
    <dict>
        <key>DefaultBackgroundColor</key>
        <string>0xF0F0F0</string>
        <key>EFILoginHiDPI</key>
        <integer>1</integer>
        <key>UIScale</key>
        <integer>1</integer>
        <key>flagstate</key>
        <integer>1</integer>
    </dict>
    <key>CPU</key>
    <dict>
        <key>#BusSpeedkHz</key>
        <integer>1970028845</integer>
        <key>#HWPEnable</key>
        <true/>
        <key>#HWPValue</key>
        <integer>0</integer>
        <key>#QEMU</key>
        <true/>
        <key>#TDP</key>
        <false/>
        <key>#TurboDisable</key>
        <false/>
        <key>#UseARTFrequency</key>
        <false/>
        <key>EnabledCores</key>
        <integer>105</integer>
        <key>QEMU</key>
        <false/>
    </dict>
    <key>ConfigName</key>
    <string></string>
    <key>Devices</key>
    <dict>
        <key>#AddProperties</key>
        <array>
            <dict>
                <key>#Device</key>
                <string>XXX</string>
                <key>#Key</key>
                <string>AAPL,XXX</string>
                <key>#Value</key>
                <string>0xffff</string>
            </dict>
        </array>
        <key>#Inject</key>
        <true/>
        <key>#IntelMaxValue</key>
        <integer>0</integer>
        <key>#NoDefaultProperties</key>
        <false/>
        <key>#Properties</key>
        <string>_NOT_SHOWN_</string>
        <key>#SetIntelBacklight</key>
        <false/>
        <key>#SetIntelMaxBacklight</key>
        <false/>
        <key>Audio</key>
        <dict>
            <key>#Inject</key>
            <false/>
            <key>#ResetHDA</key>
            <false/>
            <key>AFGLowPowerState</key>
            <true/>
            <key>Inject</key>
            <integer>11</integer>
            <key>ResetHDA</key>
            <true/>
        </dict>
        <key>FakeID</key>
        <dict>
            <key>ATI</key>
            <string>0x1002</string>
            <key>IMEI</key>
            <string>0x8086</string>
            <key>IntelGFX</key>
            <string>0x8086</string>
            <key>LAN</key>
            <string>0x8086</string>
            <key>NVidia</key>
            <string>0x10DE</string>
            <key>SATA</key>
            <string>0x8086</string>
            <key>WIFI</key>
            <string>0x14E4</string>
            <key>XHCI</key>
            <string>0x8086</string>
        </dict>
        <key>ForceHPET</key>
        <false/>
        <key>LANInjection</key>
        <false/>
        <key>USB</key>
        <dict>
            <key>AddClockID</key>
            <true/>
            <key>FixOwnership</key>
            <true/>
            <key>HighCurrent</key>
            <false/>
            <key>Inject</key>
            <false/>
        </dict>
        <key>UseIntelHDMI</key>
        <false/>
    </dict>
    <key>GUI</key>
    <dict>
        <key>#Hide</key>
        <array>
            <string>VolumeName_NOT_SHOWN</string>
            <string>VolumeUUID_NOT_SHOWN</string>
            <string>EntryPath_NOT_SHOWN</string>
        </array>
        <key>#Language</key>
        <string></string>
        <key>#Theme</key>
        <string>embedded</string>
        <key>Custom</key>
        <dict>
            <key>Comment</key>
            <string>These values wrong, they present for sample</string>
        </dict>
        <key>CustomIcons</key>
        <false/>
        <key>EmbeddedThemeType</key>
        <string>Dark</string>
        <key>Language</key>
        <string>en:0</string>
        <key>Mouse</key>
        <dict>
            <key>Mirror</key>
            <false/>
            <key>Speed</key>
            <integer>8</integer>
        </dict>
        <key>Scan</key>
        <dict>
            <key>#Entries</key>
            <true/>
            <key>#Legacy</key>
            <true/>
            <key>#Tool</key>
            <true/>
            <key>Comment</key>
            <string>These values wrong, they present for sample</string>
        </dict>
        <key>ScreenResolution</key>
        <string>1280x1024</string>
        <key>TextOnly</key>
        <false/>
        <key>Theme</key>
        <string>Clovy</string>
        <key>Timezone</key>
        <integer>3</integer>
    </dict>
    <key>Graphics</key>
    <dict>
        <key>#PatchVBiosBytes</key>
        <array>
            <dict>
                <key>#Find</key>
                <string>_NOT_SHOWN_</string>
                <key>#Replace</key>
                <string>_NOT_SHOWN_</string>
            </dict>
        </array>
        <key>#PatchVBiosBytes Count</key>
        <integer>4311744512</integer>
        <key>DualLink</key>
        <integer>0</integer>
        <key>EDID</key>
        <dict>
            <key>#Custom</key>
            <string>_NOT_SHOWN_</string>
            <key>#ProductID</key>
            <string>0x0000</string>
            <key>#VendorID</key>
            <string>0x0000</string>
            <key>Inject</key>
            <false/>
        </dict>
        <key>FBName</key>
        <string></string>
        <key>Inject</key>
        <dict>
            <key>ATI</key>
            <false/>
            <key>Intel</key>
            <false/>
            <key>NVidia</key>
            <false/>
        </dict>
        <key>LoadVBios</key>
        <true/>
        <key>NvidiaGeneric</key>
        <false/>
        <key>NvidiaNoEFI</key>
        <false/>
        <key>NvidiaSingle</key>
        <false/>
        <key>PatchVBios</key>
        <false/>
        <key>RadeonDeInit</key>
        <false/>
        <key>VRAM</key>
        <integer>2048</integer>
        <key>VideoPorts</key>
        <integer>3</integer>
        <key>ig-platform-id</key>
        <string>0x0000</string>
    </dict>
    <key>KernelAndKextPatches</key>
    <dict>
        <key>#Debug</key>
        <false/>
        <key>#FakeCPUID</key>
        <string>0x0000</string>
        <key>#KextsToPatch</key>
        <array>
            <dict>
                <key>#Find</key>
                <string>_NOT_SHOWN_</string>
                <key>#MatchBuild</key>
                <string>16D1111</string>
                <key>#MatchOS</key>
                <string>10.11.6,10.12.x</string>
                <key>#Name</key>
                <string>AppleUSBXHCIPCI</string>
                <key>#Replace</key>
                <string>_NOT_SHOWN_</string>
                <key>Comment</key>
                <string>this is a sample</string>
                <key>Disabled</key>
                <true/>
            </dict>
        </array>
        <key>#Number of KextsToPatch</key>
        <integer>0</integer>
        <key>#Number of Patchs To Kernel</key>
        <integer>0</integer>
        <key>AppleIntelCPUPM</key>
        <false/>
        <key>AppleRTC</key>
        <false/>
        <key>DellSMBIOSPatch</key>
        <false/>
        <key>KernelCpu</key>
        <false/>
        <key>KernelLapic</key>
        <false/>
        <key>KernelPm</key>
        <false/>
        <key>KernelXCPM</key>
        <false/>
    </dict>
    <key>RtVariables</key>
    <dict>
        <key>#MLB</key>
        <string>Apple Inc.</string>
        <key>#ROM</key>
        <string>UseMacAddr0</string>
        <key>BooterConfig</key>
        <string>0x28</string>
        <key>CsrActiveConfig</key>
        <string>0x3E7</string>
        <key>MLB</key>
        <string>***************</string>
        <key>ROM</key>
        <data>
        213ID4Ff
        </data>
    </dict>
    <key>SMBIOS</key>
    <dict>
        <key>#Slots</key>
        <array>
            <dict>
                <key>Comment</key>
                <string>there is a sample</string>
                <key>Device</key>
                <string>WIFI</string>
                <key>ID</key>
                <integer>5</integer>
                <key>Name</key>
                <string>Airport</string>
                <key>Type</key>
                <integer>1</integer>
            </dict>
        </array>
        <key>BiosReleaseDate</key>
        <string>09/19/18</string>
        <key>BiosVendor</key>
        <string>Apple Inc.</string>
        <key>BiosVersion</key>
        <string>MP51.88Z.F000.B00.1809191555</string>
        <key>Board-ID</key>
        <string>Mac-F221BEC8</string>
        <key>BoardManufacturer</key>
        <string>Apple Inc.</string>
        <key>BoardSerialNumber</key>
        <string>***************</string>
        <key>BoardType</key>
        <integer>11</integer>
        <key>BoardVersion</key>
        <string>1.2</string>
        <key>ChassisAssetTag</key>
        <string>Pro-Enclosure</string>
        <key>ChassisManufacturer</key>
        <string>Apple Inc.</string>
        <key>ChassisType</key>
        <string>0x07</string>
        <key>EfiVersion</key>
        <string>140.0.0.0.0</string>
        <key>Family</key>
        <string>MacPro</string>
        <key>FirmwareFeatures</key>
        <string>0xE80FE137</string>
        <key>FirmwareFeaturesMask</key>
        <string>0xFF1FFF3F</string>
        <key>LocationInChassis</key>
        <string>Part Component</string>
        <key>Manufacturer</key>
        <string>Apple Inc.</string>
        <key>Memory</key>
        <dict>
            <key>Channels</key>
            <integer>3</integer>
            <key>Modules</key>
            <array>
                <dict>
                    <key>Frequency</key>
                    <integer>1066</integer>
                    <key>Part</key>
                    <string>NT1GC64B88A0NF-BE</string>
                    <key>Serial</key>
                    <string>641007AD</string>
                    <key>Size</key>
                    <integer>1024</integer>
                    <key>Slot</key>
                    <integer>0</integer>
                    <key>Type</key>
                    <string>DDR3</string>
                    <key>Vendor</key>
                    <string>Nanya</string>
                </dict>
                <dict>
                    <key>Frequency</key>
                    <integer>1066</integer>
                    <key>Part</key>
                    <string>NT1GC64B88A0NF-BE</string>
                    <key>Serial</key>
                    <string>6210079E</string>
                    <key>Size</key>
                    <integer>1024</integer>
                    <key>Slot</key>
                    <integer>1</integer>
                    <key>Type</key>
                    <string>DDR3</string>
                    <key>Vendor</key>
                    <string>Nanya</string>
                </dict>
                <dict>
                    <key>Frequency</key>
                    <integer>1600</integer>
                    <key>Part</key>
                    <string>8GBH2X04F1AA28-15</string>
                    <key>Serial</key>
                    <string>00000002</string>
                    <key>Size</key>
                    <integer>8192</integer>
                    <key>Slot</key>
                    <integer>2</integer>
                    <key>Type</key>
                    <string>DDR3</string>
                    <key>Vendor</key>
                    <string>Anarchy</string>
                </dict>
                <dict>
                    <key>Frequency</key>
                    <integer>1066</integer>
                    <key>Part</key>
                    <string>NT1GC64B88A0NF-BE</string>
                    <key>Serial</key>
                    <string>651006A0</string>
                    <key>Size</key>
                    <integer>1024</integer>
                    <key>Slot</key>
                    <integer>3</integer>
                    <key>Type</key>
                    <string>DDR3</string>
                    <key>Vendor</key>
                    <string>Nanya</string>
                </dict>
                <dict>
                    <key>Frequency</key>
                    <integer>1066</integer>
                    <key>Part</key>
                    <string>NT1GC64B88A0NF-BE</string>
                    <key>Serial</key>
                    <string>65100791</string>
                    <key>Size</key>
                    <integer>1024</integer>
                    <key>Slot</key>
                    <integer>4</integer>
                    <key>Type</key>
                    <string>DDR3</string>
                    <key>Vendor</key>
                    <string>Nanya</string>
                </dict>
                <dict>
                    <key>Frequency</key>
                    <integer>1600</integer>
                    <key>Part</key>
                    <string>8GBH2X04F1AA28-15</string>
                    <key>Serial</key>
                    <string>00000003</string>
                    <key>Size</key>
                    <integer>8192</integer>
                    <key>Slot</key>
                    <integer>5</integer>
                    <key>Type</key>
                    <string>DDR3</string>
                    <key>Vendor</key>
                    <string>Anarchy</string>
                </dict>
            </array>
            <key>SlotCount</key>
            <integer>6</integer>
        </dict>
        <key>Mobile</key>
        <false/>
        <key>OEMBoard</key>
        <string>1.0</string>
        <key>OEMProduct</key>
        <string>iMac</string>
        <key>OEMVendor</key>
        <string>Studio XPS 435MT</string>
        <key>PlatformFeature</key>
        <string>0xFFFF</string>
        <key>ProductName</key>
        <string>MacPro5,1</string>
        <key>SerialNumber</key>
        <string>***************</string>
        <key>SmUUID</key>
        <string>***************</string>
        <key>Trust</key>
        <true/>
        <key>Version</key>
        <string>1.2</string>
    </dict>
    <key>SystemParameters</key>
    <dict>
        <key>#InjectKexts</key>
        <string>Detect</string>
        <key>CustomUUID</key>
        <string>***************</string>
        <key>InjectKexts</key>
        <string>Yes</string>
        <key>InjectSystemID</key>
        <true/>
        <key>NvidiaWeb</key>
        <true/>
    </dict>
</dict>
</plist>





EFI.zip - newest revision of my BOOTER



So I did a NVRAM test and it passed so that means I don't need EmuVariableUEFI-64.efi correct?

also read that AptioMemoryFix-64.efi is the newest and should prolly use since I'm using the latest (r4895)clover

Also have my Original DSDT origin file, Clover patched DSDT, then the one I'm using is the one Clover patched then I decompiled and repatched or I guess you could just say optimized.. but I would like to know how to or which DSDT and SSDT to decompile together that way I can create my patched DSDT and SSDT correctly.



Also still haven't figured out why I can't get full acceleration, I read I had to have inject intel in graphics in clover to fully enable but that still didn't work? NOPE :(





Edited by DiddyKong
posted my actual EFI, and cleaned up my config.plist noticed it had a lot of items with #infront anyways, this is what boots, nothing really changed.

Share this post


Link to post
Share on other sites
59 minutes ago, DiddyKong said:

EFI contents

config.plist



post ur full clover folder with ioreg and original dsdt

Share this post


Link to post
Share on other sites
6 hours ago, DiddyKong said:

Ok I got my system booting fine again, slow, but it boots and all 3 screens work, but my dock isn't see thru. I'm going to attach a few things here so we can figure out what I might be doing wrong or whats interfering with full acceleration.



Boot log - new boot log in EFI link

  Reveal hidden contents

0:100  0:100  MemLog inited, TSC freq: 2659999835
0:100  0:000  CPU was calibrated with ACPI PM Timer
0:100  0:000  LegacyRegion2: Chipset/proc: 0x34008086
0:100  0:000   Core i7 processors (PAM 0x40-0x47)
0:100  0:000   Test PAM1=(0x41=11, 0x5a=00, 0x81=0B, 0x91=53) at chipset 34008086
0:100  0:000  , Install = Success
0:112  0:012  BiosVideoDriverBindingStart!
0:112  0:000  BiosVideoCheckForVbe
0:112  0:000  EdidOverride not found
0:156  0:043   Edid1-
0:199  0:043   Edid0+
0:199  0:000   found Detail Timing 1600x900
0:288  0:088     0 640x480 attr=3BF - ok, edid+, 640x480, working, highest, pref=0
0:295  0:007     1 800x600 attr=3BF - ok, edid+, 800x600, working, highest, pref=1
0:303  0:007     2 1024x768 attr=3BF - ok, edid+, 1024x768, working, highest, pref=2
0:314  0:011     3 1600x900 attr=3BF - ok, edid+, working, highest, pref=3
0:318  0:003     4 1360x768 attr=3BF - ok, edid-
0:318  0:000  BV new mode: 3 1600x900
1:514  1:195   SetMode pref 3 (3) = Success
5:536  4:022
5:536  0:000  Now is 25.3.2019,  23:35:1 (GMT)
5:536  0:000  Starting Clover revision: 4895 on CLOVER EFI
5:536  0:000  Build with: [Args: -nb -mc --no-usb -D NO_GRUB_DRIVERS_EMBEDDED | -D DISABLE_USB_SUPPORT -D NO_GRUB_DRIVERS_EMBEDDED -D USE_BIOS_BLOCKIO -D USE_LOW_EBDA -D HAVE_LEGACY_EMURUNTIMEDXE -a X64 -b RELEASE -t XCODE8 -n 5 | OS: 10.13.6 | XCODE: 10.1]
5:536  0:000  SelfDevicePath=PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(1,GPT,2749C16B-A1AD-4A5A-BFCB-E2A019B7A130,0x28,0x64000) @BDDD6318
5:536  0:000  SelfDirPath = \EFI\CLOVER
5:537  0:000  === [ Get Smbios ] ========================================
5:537  0:000  Type 16 Index = 0
5:537  0:000  Total Memory Slots Count = 6
5:537  0:000  Type 17 Index = 0
5:537  0:000  SmbiosTable.Type17->Speed = 1066MHz
5:537  0:000  SmbiosTable.Type17->Size = 1024MB
5:537  0:000  SmbiosTable.Type17->Bank/Device =  DIMM1
5:537  0:000  SmbiosTable.Type17->Vendor = Nanya
5:537  0:000  SmbiosTable.Type17->SerialNumber = 641007AD
5:537  0:000  SmbiosTable.Type17->PartNumber = NT1GC64B88A0NF-BE
5:537  0:000  Type 17 Index = 1
5:537  0:000  SmbiosTable.Type17->Speed = 1066MHz
5:537  0:000  SmbiosTable.Type17->Size = 1024MB
5:537  0:000  SmbiosTable.Type17->Bank/Device =  DIMM2
5:537  0:000  SmbiosTable.Type17->Vendor = Nanya
5:537  0:000  SmbiosTable.Type17->SerialNumber = 6210079E
5:537  0:000  SmbiosTable.Type17->PartNumber = NT1GC64B88A0NF-BE
5:537  0:000  Type 17 Index = 2
5:537  0:000  Ignoring insane frequency value 0MHz
5:537  0:000  SmbiosTable.Type17->Speed = 0MHz
5:537  0:000  SmbiosTable.Type17->Size = 8192MB
5:537  0:000  SmbiosTable.Type17->Bank/Device =  DIMM3
5:537  0:000  SmbiosTable.Type17->Vendor =
5:537  0:000  SmbiosTable.Type17->SerialNumber = 00000002
5:537  0:000  SmbiosTable.Type17->PartNumber = 8GBH2X04F1AA28-15
5:537  0:000  Type 17 Index = 3
5:537  0:000  SmbiosTable.Type17->Speed = 1066MHz
5:537  0:000  SmbiosTable.Type17->Size = 1024MB
5:537  0:000  SmbiosTable.Type17->Bank/Device =  DIMM4
5:537  0:000  SmbiosTable.Type17->Vendor = Nanya
5:537  0:000  SmbiosTable.Type17->SerialNumber = 651006A0
5:537  0:000  SmbiosTable.Type17->PartNumber = NT1GC64B88A0NF-BE
5:537  0:000  Type 17 Index = 4
5:537  0:000  SmbiosTable.Type17->Speed = 1066MHz
5:537  0:000  SmbiosTable.Type17->Size = 1024MB
5:537  0:000  SmbiosTable.Type17->Bank/Device =  DIMM5
5:537  0:000  SmbiosTable.Type17->Vendor = Nanya
5:537  0:000  SmbiosTable.Type17->SerialNumber = 65100791
5:537  0:000  SmbiosTable.Type17->PartNumber = NT1GC64B88A0NF-BE
5:537  0:000  Type 17 Index = 5
5:537  0:000  Ignoring insane frequency value 0MHz
5:537  0:000  SmbiosTable.Type17->Speed = 0MHz
5:537  0:000  SmbiosTable.Type17->Size = 8192MB
5:537  0:000  SmbiosTable.Type17->Bank/Device =  DIMM6
5:537  0:000  SmbiosTable.Type17->Vendor =
5:537  0:000  SmbiosTable.Type17->SerialNumber = 00000002
5:537  0:000  SmbiosTable.Type17->PartNumber = 8GBH2X04F1AA28-15
5:537  0:000  Boot status=0
5:537  0:000  Running on: 'Studio XPS 435MT' with board '0R849J'
5:537  0:000  === [ GetCPUProperties ] ==================================
5:537  0:000  CPU Vendor = 756E6547 Model=106A4
5:537  0:000   The CPU supported SSE4.1
5:537  0:000  BrandString = Intel(R) Core(TM) i7 CPU         920  @ 2.67GHz
5:537  0:000   The CPU supported turbo
5:537  0:000  MSR 0x35               40008
5:537  0:000  FSBFrequency = 134 MHz, DMI FSBFrequency = 133 MHz, Corrected FSBFrequency = 133 MHz
5:537  0:000  Found QCLK_RATIO at bus 0xFF dev=3 funs=4
5:537  0:000  qpi read from PCI 19
5:537  0:000  qpimult 25
5:537  0:000  qpibusspeed 6666500kHz
5:537  0:000  MaxDiv/MinDiv: 20.0/12
5:537  0:000  Turbo: 21/21/21/22
5:537  0:000  Features: 0xBFEBFBFF
5:537  0:000  Threads: 8
5:537  0:000  Cores: 4
5:537  0:000  FSB: 133 MHz
5:537  0:000  CPU: 2666 MHz
5:537  0:000  TSC: 2666 MHz
5:537  0:000  PIS: 6666 MHz
5:537  0:000  ExternalClock: 133 MHz
5:537  0:000  === [ GetDevices ] ========================================
5:537  0:000  PCI (00|00:00.00) : 8086 3400 class=060000
5:537  0:000  PCI (00|00:01.00) : 8086 3408 class=060400
5:537  0:000  PCI (00|00:03.00) : 8086 340A class=060400
5:537  0:000  PCI (00|00:07.00) : 8086 340E class=060400
5:537  0:000  PCI (00|03:00.00) : 10DE 1C81 class=030000
5:537  0:000   - GFX: Model=PNY GeForce GTX 1050 family 137 (Nvidia)
5:537  0:000  PCI (00|03:00.01) : 10DE 0FB9 class=040300
5:537  0:000   - HDMI Audio:
5:537  0:000  PCI (00|00:14.00) : 8086 342E class=080000
5:537  0:000  PCI (00|00:14.01) : 8086 3422 class=080000
5:537  0:000  PCI (00|00:14.02) : 8086 3423 class=080000
5:537  0:000  PCI (00|00:14.03) : 8086 3438 class=080000
5:537  0:000  PCI (00|00:19.00) : 8086 10CD class=020000
5:537  0:000   - LAN: 0 Vendor=Intel
5:537  0:000  PCI (00|00:1A.00) : 8086 3A37 class=0C0300
5:537  0:000  PCI (00|00:1A.01) : 8086 3A38 class=0C0300
5:537  0:000  PCI (00|00:1A.02) : 8086 3A39 class=0C0300
5:537  0:000  PCI (00|00:1A.07) : 8086 3A3C class=0C0320
5:538  0:000  PCI (00|00:1B.00) : 8086 3A3E class=040300
5:538  0:000  PCI (00|00:1C.00) : 8086 3A40 class=060400
5:538  0:000  PCI (00|00:1D.00) : 8086 3A34 class=0C0300
5:538  0:000  PCI (00|00:1D.01) : 8086 3A35 class=0C0300
5:538  0:000  PCI (00|00:1D.02) : 8086 3A36 class=0C0300
5:538  0:000  PCI (00|00:1D.07) : 8086 3A3A class=0C0320
5:538  0:000  PCI (00|00:1E.00) : 8086 244E class=060401
5:538  0:000  PCI (00|00:1F.00) : 8086 3A16 class=060100
5:538  0:000  PCI (00|00:1F.02) : 8086 3A20 class=01018F
5:538  0:000  PCI (00|00:1F.03) : 8086 3A30 class=0C0500
5:538  0:000  PCI (00|00:1F.05) : 8086 3A26 class=010185
5:538  0:000  PCI (00|FF:00.00) : 8086 2C41 class=060000
5:538  0:000  PCI (00|FF:00.01) : 8086 2C01 class=060000
5:538  0:000  PCI (00|FF:02.00) : 8086 2C10 class=060000
5:538  0:000  PCI (00|FF:02.01) : 8086 2C11 class=060000
5:538  0:000  PCI (00|FF:03.00) : 8086 2C18 class=060000
5:538  0:000  PCI (00|FF:03.01) : 8086 2C19 class=060000
5:538  0:000  PCI (00|FF:03.04) : 8086 2C1C class=060000
5:538  0:000  PCI (00|FF:04.00) : 8086 2C20 class=060000
5:538  0:000  PCI (00|FF:04.01) : 8086 2C21 class=060000
5:538  0:000  PCI (00|FF:04.02) : 8086 2C22 class=060000
5:538  0:000  PCI (00|FF:04.03) : 8086 2C23 class=060000
5:538  0:000  PCI (00|FF:05.00) : 8086 2C28 class=060000
5:538  0:000  PCI (00|FF:05.01) : 8086 2C29 class=060000
5:538  0:000  PCI (00|FF:05.02) : 8086 2C2A class=060000
5:538  0:000  PCI (00|FF:05.03) : 8086 2C2B class=060000
5:538  0:000  PCI (00|FF:06.00) : 8086 2C30 class=060000
5:538  0:000  PCI (00|FF:06.01) : 8086 2C31 class=060000
5:538  0:000  PCI (00|FF:06.02) : 8086 2C32 class=060000
5:538  0:000  PCI (00|FF:06.03) : 8086 2C33 class=060000
5:538  0:000  === [ GetDefaultSettings ] ================================
5:538  0:000  Clover load options size = 0 bytes
5:541  0:002  EFI\CLOVER\config.plist loaded: Success
5:541  0:000  === [ GetListOfThemes ] ===================================
5:541  0:000  - [00]: Clovy
5:544  0:002  === [ Found config plists ] ===============================
5:544  0:000  - config.plist
5:545  0:000  - configOG.plist
5:545  0:000  === [ GetEarlyUserSettings ] ==============================
5:545  0:000  timeout set to 5
5:545  0:000  Custom boot CUSTOM_BOOT_APPLE (0x0)
5:545  0:000  Default theme: Clovy
5:545  0:000  === [ LoadDrivers ] =======================================
5:546  0:000  Loading AudioDxe-64.efi  status=Success
5:546  0:000   - driver needs connecting
5:546  0:000  Loading FSInject-64.efi  status=Success
5:546  0:000  Loading Ps2MouseDxe-64.efi  status=Success
5:546  0:000   - driver needs connecting
5:546  0:000  Loading UsbMouseDxe-64.efi  status=Success
5:546  0:000   - driver needs connecting
5:546  0:000  Loading XhciDxe-64.efi  status=Success
5:547  0:000   - driver needs connecting
5:547  0:000  4 drivers needs connecting ...
5:547  0:000  PlatformDriverOverrideProtocol->GetDriver overriden
10:495  4:948  === [ InitScreen ] ========================================
10:495  0:000  Console modes reported: 4, available modes:
10:495  0:000   - [01]: 80x25
10:495  0:000   - [03]: 100x31
10:495  0:000   - [04]: 200x47 (current mode)
10:495  0:000  SetScreenResolution: 1280x1024 - not found!
10:495  0:000  SetScreenResolution: 1600x900 - already set
10:495  0:000  reinit: self device path=PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(1,GPT,2749C16B-A1AD-4A5A-BFCB-E2A019B7A130,0x28,0x64000)
10:496  0:000  Using embedded font: Success
10:498  0:002  === [ GetMacAddress ] =====================================
10:498  0:000  === [ ScanSPD ] ===========================================
10:499  0:000  Scanning SMBus [8086:3A30], mmio: 0xF9FFFC04, ioport: 0x400, hostc: 0x1
10:518  0:019  Slot: 0 Type 24 1024MB 1066MHz Vendor=Nanya Technology PartNo=NT1GC64B88A0NF-BE SerialNo=0A0D000701000604
10:538  0:019  Slot: 1 Type 24 1024MB 1066MHz Vendor=Nanya Technology PartNo=NT1GC64B88A0NF-BE SerialNo=0A00000601000605
10:557  0:019  Slot: 2 Type 24 1024MB 1066MHz Vendor=Nanya Technology PartNo=NT1GC64B88A0NF-BE SerialNo=090E000701000602
10:577  0:019  Slot: 3 Type 24 1024MB 1066MHz Vendor=Nanya Technology PartNo=NT1GC64B88A0NF-BE SerialNo=0901000701000605
10:596  0:019  Slot: 4 Type 24 8192MB 1600MHz Vendor=NoName PartNo=8GBH2X04F1AA28-15 SerialNo=0002000000000000
10:615  0:019  Slot: 5 Type 24 8192MB 1600MHz Vendor=NoName PartNo=8GBH2X04F1AA28-15 SerialNo=0002000000000000
10:615  0:000  === [ GetAcpiTablesList ] =================================
10:615  0:000  Get Acpi Tables List from RSDT:
10:615  0:000   - [00]: FACP  FX09    len=132
10:615  0:000   - [01]: APIC  FX09    len=140
10:615  0:000   - [02]: MCFG  OEMMCFG  len=60
10:615  0:000   - [03]: SLIC  FX09    len=374
10:615  0:000   - [04]: OSFR  FX09    len=128
10:615  0:000   - [05]: OEMB  FX09    len=122
10:615  0:000   - [06]: HPET  OEMHPET  len=56
10:615  0:000   - [07]: SSDT  CpuPm len=4760
10:615  0:000  Calibrated TSC Frequency = 2659999835 = 2659MHz
10:616  0:000  === [ GetUserSettings ] ===================================
10:616  0:000  USB FixOwnership: yes
10:616  0:000  Dropping 2 tables:
10:616  0:000   - [00]: Drop table  signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043)
10:616  0:000           - set table: 54445353,       6D50757043 to drop: yes
10:616  0:000   - [01]: Drop table  signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043)
10:616  0:000           - set table: 54445353,   74734930757043 to drop: no
10:616  0:000   - final DSDT Fix mask=00000000
10:616  0:000  PatchesDSDT: 4 requested
10:616  0:000   - [00]: (change HDAS to HDEF) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
10:616  0:000   - [01]: (change GFX0 to IGPU) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
10:616  0:000   - [02]: (change HECI to IMEI) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
10:616  0:000   - [03]: (change _DSM to XDSM) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
10:616  0:000  ResetAddr: 0x64
10:616  0:000  Calc ResetVal: 0xFE
10:616  0:000  ResetVal: 0xFE
10:616  0:000  smartUPS: present
10:616  0:000  Devices to rename 1
10:616  0:000  PXSX:RP01:PCI0:#_SB:->will be renamed to ARPT
10:616  0:000  Using ProductName from config: MacPro5,1
10:616  0:000  Using latest BiosVersion from clover
10:616  0:000  BiosVersion: MP51.88Z.F000.B00.1812191621
10:616  0:000  BiosReleaseDate: 12/19/18
10:616  0:000  Using EfiVersion from config: 140.0.0.0.0
10:616  0:000  Using FirmwareFeatures from config: 0xE80FE137
10:616  0:000  Using FirmwareFeaturesMask from config: 0xFF1FFF3F
10:616  0:000  Board-ID set from config as Mac-F221BEC8
10:616  0:000  BoardType: 0xB
10:616  0:000  ChassisType: 0x7
10:616  0:000  Converted CustomUUID E16BFE5B-CD01-5762-98AD-BA6CA808A4A1
10:620  0:003  === [ Found DSDT tables ] =================================
10:620  0:000  - DSDT.aml
10:739  0:118  === [ ScanVolumes ] =======================================
10:739  0:000  Found 5 volumes with blockIO
10:739  0:000  - [00]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)
10:739  0:000          Result of bootcode detection: bootable unknown (legacy)
10:739  0:000  - [01]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(1,GPT,2749C16B-A1AD-4A5A-BFCB-E2A019B7A130,0x28,0x64000)
10:739  0:000          Result of bootcode detection: bootable unknown (legacy)
10:740  0:000          This is SelfVolume !!
10:740  0:000  - [02]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(2,GPT,276B8E10-592A-45D9-8C8E-7890EE36B4A8,0x64028,0x1D190FF0)
10:740  0:000  - [03]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(3,GPT,62DAD5EB-3BBC-453A-8577-C19C589791D4,0x1D1F5018,0x135F20)
10:740  0:000  - [04]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(4,GPT,6C416A1C-D58C-481F-8016-C2AE7D3578F5,0x1D32AF38,0x1D01B0D0)
10:743  0:002  Loading nvram.plist from Vol 'EFI' - loaded, size=2189
10:745  0:002  === [ PutNvramPlistToRtVars ] =============================
10:745  0:000   Adding Key: ActualDensity: Size = 2, Data: E1 00
10:745  0:000   Adding Key: DensityThreshold: Size = 2, Data: 96 00
10:745  0:000   Adding Key: EFILoginHiDPI: Size = 4, Data: 01 00 00 00
10:745  0:000   Adding Key: SystemAudioVolume: Size = 1, Data: 1A
10:745  0:000   Adding Key: SystemAudioVolumeDB: Size = 1, Data: F9
10:745  0:000   Adding Key: csr-active-config: Size = 4, Data: E7 03 00 00
10:745  0:000   Adding Key: efi-boot-device: Size = 216, Data: 3C 61 72 72 61 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 49 4F 50 72 6F 76 69 64 65 72 43 6C 61 73 73 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 49 4F 4D 65 64 69 61 3C 2F 73 74 72 69 6E 67 3E 3C 6B 65 79 3E 49 4F 50 72 6F 70 65 72 74 79 4D 61 74 63 68 3C 2F 6B 65 79 3E 3C 64 69 63 74 3E 3C 6B 65 79 3E 55 55 49 44 3C 2F 6B 65 79 3E 3C 73 74 72 69 6E 67 3E 32 37 36 42 38 45 31 30 2D 35 39 32 41 2D 34 35 44 39 2D 38 43 38 45 2D 37 38 39 30 45 45 33 36 42 34 41 38 3C 2F 73 74 72 69 6E 67 3E 3C 2F 64 69 63 74 3E 3C 2F 64 69 63 74 3E 3C 2F 64 69 63 74 3E 3C 2F 61 72 72 61 79 3E
10:745  0:000   Adding Key: efi-boot-device-data: Size = 72, Data: 02 01 0C 00 D0 41 08 0A 00 00 00 00 01 01 06 00 02 1F 03 01 08 00 01 00 00 00 04 01 2A 00 02 00 00 00 28 40 06 00 00 00 00 00 F0 0F 19 1D 00 00 00 00 10 8E 6B 27 2A 59 D9 45 8C 8E 78 90 EE 36 B4 A8 02 02 7F FF 04 00
10:745  0:000   Adding Key: fakesmc-key-#KEY-ui32: Size = 4, Data: 00 00 00 00
10:745  0:000   Adding Key: fakesmc-key-$Adr-ui32: Size = 4, Data: 00 00 03 00
10:745  0:000   Adding Key: fakesmc-key-$Num-ui8: Size = 1, Data: 01
10:745  0:000   Adding Key: fakesmc-key-BATP-flag: Size = 1, Data: 00
10:745  0:000   Adding Key: fakesmc-key-BEMB-flag: Size = 1, Data: 00
10:745  0:000   Adding Key: fakesmc-key-BNum-ui8: Size = 1, Data: 00
10:745  0:000   Adding Key: fakesmc-key-EPCI-ui32: Size = 4, Data: 02 C0 07 00
10:745  0:000   Adding Key: fakesmc-key-MSAc-ui16: Size = 2, Data: 00 00
10:745  0:000   Adding Key: fakesmc-key-MSFW-ui8: Size = 2, Data: 01 00
10:745  0:000   Adding Key: fakesmc-key-MSPS-ui16: Size = 2, Data: 00 03
10:745  0:000   Adding Key: fakesmc-key-MSTc-ui8: Size = 1, Data: 00
10:745  0:000   Adding Key: fakesmc-key-MSWr-ui8: Size = 1, Data: 00
10:745  0:000   Adding Key: fakesmc-key-RBr -ch8*: Size = 8, Data: 6B 35 00 66 00 00 00 00
10:745  0:000   Adding Key: fakesmc-key-REV -ch8*: Size = 6, Data: 01 39 0F 00 00 11
10:745  0:000   Adding Key: fakesmc-key-RMde-char: Size = 1, Data: 41
10:745  0:000   Adding Key: fakesmc-key-RPlt-ch8*: Size = 8, Data: 6B 35 00 66 00 00 00 00
10:745  0:000   Adding Key: flagstate: Size = 32, Data: 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
10:745  0:000   Adding Key: fmm-computer-name: Size = 18, Data: 41 6E 74 68 6F 6E 79 E2 80 99 73 20 4D 61 63 50 72 6F
10:745  0:000   Adding Key: nvda_drv: Size = 2, Data: 31 00
10:745  0:000   Adding Key: security-mode: String: Size = 4, Val = 'none'
10:745  0:000  found 2 handles with audio
10:745  0:000  No AudioIoDevice stored
10:745  0:000  no stored audio parameters
10:745  0:000  === [ InitTheme ] =========================================
10:745  0:000  use night theme
10:775  0:029  Theme view-bounds: w=1366 h=768 units=px
10:775  0:000  using scale  1.171875
10:775  0:000  theme contains font-family=RobotoCondensed-Regular
10:928  0:152  Banner position at parse [0,0]
10:928  0:000  Banner position at parse [737,114]
10:930  0:001  parsed banner->width=150
10:933  0:003   icon 9 not parsed take common icons\tool_part
10:933  0:000   icon 10 not parsed take common icons\tool_rescue
10:942  0:008   icon 15 not parsed take common icons\vol_firewire
10:958  0:016  main entry size = 168
10:959  0:000  icon main size=[169,169]
10:959  0:000  OSicon os_tiger not parsed
10:960  0:000  OSicon os_leo not parsed
10:960  0:000  OSicon os_snow not parsed
10:963  0:003  OSicon os_cougar not parsed
10:964  0:000  OSicon os_yos not parsed
10:970  0:005  OSicon os_freebsd not parsed
10:973  0:003  parsing theme finish
10:973  0:000  Using vector theme 'Clovy' (EFI\CLOVER\themes\Clovy)
10:973  0:000  file sound read: sound_night.wav Not Found
10:973  0:000    Channels: 2  Sample rate: 8000 Hz  Bits: 16
10:973  0:000  output to channel 0 with volume 70, len=126400
10:973  0:000   sound channels=2 bits=16 freq=8000
10:975  0:001  sound converted to 48kHz
10:975  0:000  not found AudioIo to play
10:975  0:000  free sound
10:975  0:000  sound play end with status=BF4E8730
10:975  0:000  theme inited
10:975  0:000  Chosen theme Clovy
10:975  0:000  after NVRAM boot-args=-v kext-dev-mode=1
10:975  0:000  === [ Dump SMC keys from NVRAM ] ==========================
10:975  0:000  no AppleSMC protocol
10:975  0:000  === [ ScanLoader ] ========================================
10:975  0:000  - [01]: 'EFI'
10:981  0:005          AddLoaderEntry for Volume Name=EFI
10:981  0:000          skipped because entry is hidden
10:981  0:000  - [02]: 'OS X'
10:985  0:004          AddLoaderEntry for Volume Name=OS X
10:988  0:002      Check if volume Is Hibernated:
10:988  0:000      Check sleep image 'by signature':
10:993  0:005      read prefs \Library\Preferences\com.apple.PowerManagement.plist status=Success
10:993  0:000      using default sleep image name = \private\var\vm\sleepimage
10:994  0:001      sleepimage not found -> Not Found
10:994  0:000      hibernated: no - sign
10:996  0:001  - [03]: 'Recovery HD'
10:996  0:000          AddLoaderEntry for Volume Name=Recovery HD
10:997  0:001  - [04]: 'ExtraOSX'
10:997  0:000  Scanning legacy ...
10:997  0:000  === [ AddCustomTool ] =====================================
10:997  0:000  found tool \EFI\CLOVER\tools\Shell64U.efi
10:997  0:000  Checking EFI partition Volume 1 for Clover
10:997  0:000   Found Clover
11:001  0:003  === [ GetEfiBootDeviceFromNvram ] =========================
11:001  0:000   - efi-boot-device-data: PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(2,GPT,276B8E10-592A-45D9-8C8E-7890EE36B4A8,0x64028,0x1D190FF0)
11:001  0:000    - Volume: 'PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(2,GPT,276B8E10-592A-45D9-8C8E-7890EE36B4A8,0x64028,0x1D190FF0)'
11:001  0:000    - LoaderPath: '<null string>'
11:001  0:000    - Guid = 276B8E10-592A-45D9-8C8E-7890EE36B4A8
11:001  0:000  === [ FindStartupDiskVolume ] =============================
11:001  0:000    - Volume: partition = PcieRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(2,GPT,276B8E10-592A-45D9-8C8E-7890EE36B4A8,0x64028,0x1D190FF0)
11:001  0:000     - searching for that partition
11:001  0:000      - found entry 0. 'Boot macOS from OS X', Volume 'OS X'
11:001  0:000  Boot redirected to Entry 0. 'Boot macOS from OS X'
11:001  0:000  DefaultIndex=0 and MainMenu.EntryCount=8
11:001  0:000  Use anime=<null string> frames=0
11:264  0:263  GUI ready
17:687  6:423  === [ StartLoader ] =======================================
17:687  0:000  Finally: ExternalClock=133MHz BusSpeed=133000kHz CPUFreq=2660MHz QPI: hw.busfrequency=6666000000Hz
17:688  0:000  Loading boot.efi  status=Success
17:920  0:231  GetOSVersion: 10.12.6 (16G1815)
17:920  0:000  CSR_CFG: CSR_ALLOW_UNTRUSTED_KEXTS | CSR_ALLOW_UNRESTRICTED_FS | CSR_ALLOW_TASK_FOR_PID | CSR_ALLOW_UNRESTRICTED_DTRACE | CSR_ALLOW_UNRESTRICTED_NVRAM | CSR_ALLOW_DEVICE_CONFIGURATION | CSR_ALLOW_ANY_RECOVERY_OS | CSR_ALLOW_UNAPPROVED_KEXTS
17:920  0:000  Will not patch boot.efi
17:920  0:000  === [ PatchSmbios ] =======================================
17:920  0:000  insert table 9 for dev 0:0
17:920  0:000  insert table 9 for dev 0:1
17:920  0:000  insert table 9 for dev 19:0
17:921  0:000  Injecting user memory modules to SMBIOS
17:921  0:000  Channels: 3
17:921  0:000  Interleave: 0 2 4 1 3 5 6 8 10 7 9 11 12 14 16 13 15 17 18 20 22 19 21 23
17:921  0:000   DIMM1 1066MHz 1024MB
17:921  0:000   DIMM2 1600MHz 8192MB
17:921  0:000   DIMM3 1066MHz 1024MB
17:921  0:000   DIMM4 1066MHz 1024MB
17:921  0:000   DIMM5 1066MHz 1024MB
17:921  0:000   DIMM6 1600MHz 8192MB
17:921  0:000  mTotalSystemMemory = 20480
17:921  0:000  NumberOfMemoryDevices = 6
17:921  0:000  Type20[0]->End = 0x0, Type17[0] = 0x400
17:921  0:000  Type20[1]->End = 0x0, Type17[1] = 0x2800
17:921  0:000  Type20[2]->End = 0x0, Type17[2] = 0x5000
17:921  0:000  Type20[3]->End = 0x0, Type17[3] = 0x7C00
17:921  0:000  === [ PatchACPI ] =========================================
17:921  0:000  Xsdt is not found! Creating new one
17:921  0:000  RsdPointer is Acpi 1.0 - creating new one Acpi 2.0
17:921  0:000  RsdPointer Acpi 2.0 installed
17:921  0:000  RSDT entries = 8
17:921  0:000  Xsdt reallocation done
17:921  0:000  old FADT length=84
17:921  0:000   SignatureFixup: 0x0 -> 0x0
17:921  0:000  DSDT found in Clover volume OEM folder: EFI\CLOVER\ACPI\patched\DSDT.aml
17:921  0:000  Apply DsdtFixMask=0x00000000
17:921  0:000     drop _DSM mask=0xFFFF
17:921  0:000  === [ FixBiosDsdt ] =======================================
17:922  0:000  Patching DSDT:
17:922  0:000   - [change HDAS to HDEF]: pattern 48444153, bin not found / already patched!
17:922  0:000   - [change GFX0 to IGPU]: pattern 47465830, patched at: [ (4CA2) ]
17:922  0:000   - [change HECI to IMEI]: pattern 48454349, bin not found / already patched!
17:922  0:000   - [change _DSM to XDSM]: pattern 5F44534D, patched at: [ (4300) (D5) (D5) (F7) (126) (D5) (D5) (84) (39A) (6B) (12F) (D7) (20) (8A) ]
17:922  0:000  Name: PXSX, Bridge: RP01, Replace: ARPT
17:922  0:000    0 replacements
17:922  0:000  PreCleanup XSDT: count=8, length=100
17:922  0:000  PreCleanup XSDT, corrected XSDT: count=8, length=100
17:922  0:000  === [ ACPIDropTables ] ====================================
17:922  0:000  Drop tables from XSDT, SIGN=SSDT TableID=CpuPm Length=4760
17:922  0:000   Table[7]: SSDT  CpuPm  4760 dropped
17:922  0:000  CPUBase=1 and ApicCPUBase=1 ApicCPUNum=8
17:922  0:000  Maximum control=0x14
17:922  0:000  Turbo control=0x16
17:922  0:000  P-States: min 0xC, max 0x16
17:922  0:000  SSDT with CPU P-States generated successfully
17:922  0:000  SSDT with CPU C-States generated successfully
17:922  0:000  Cleanup XSDT: count=10, length=116
17:922  0:000  corrected XSDT count=9, length=108
17:922  0:000  === [ RestSetup macOS ] ===================================
17:922  0:000  EdidDiscovered size=128
17:922  0:000  --- Discovered EDID Table size:128
17:922  0:000  000  |  00  FF  FF  FF  FF  FF  FF  00  22  F0
17:922  0:000  010  |  03  29  01  01  01  01  2C  15  01  03
17:922  0:000  020  |  80  2C  19  78  2E  06  25  A6  56  4B
17:922  0:000  030  |  9B  25  10  50  54  A1  08  00  81  C0
17:922  0:000  040  |  81  80  95  00  A9  C0  01  01  01  01
17:922  0:000  050  |  01  01  01  01  30  2A  40  C8  60  84
17:922  0:000  060  |  64  30  18  50  13  00  BB  F9  10  00
17:922  0:000  070  |  00  1E  00  00  00  FD  00  32  4C  18
17:922  0:000  080  |  53  11  00  0A  20  20  20  20  20  20
17:922  0:000  090  |  00  00  00  FC  00  48  50  20  53  32
17:922  0:000  100  |  30  33  31  0A  20  20  20  20  00  00
17:922  0:000  110  |  00  FF  00  33  43  51  31  34  34  4E
17:922  0:000  120  |  35  31  35  0A  20  20  00  5C
17:922  0:000  NVidia GFX injection not set
17:923  0:000   setting specified layout-id=11 (0xB)
17:923  0:000  stringlength = 508
17:923  0:000  CurrentMode: Width=1600 Height=900
17:923  0:000  Beginning FSInjection
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: BDDD6018
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: BDDD6018
17:923  0:000  Use origin smbios table type 1 guid.
17:924  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
17:924  0:000  Extra kext: EFI\CLOVER\kexts\Other\IntelGraphicsFixup.kext (v.1.2.0)
17:926  0:002  Extra kext: EFI\CLOVER\kexts\Other\AppleIntelCPUPowerManagementInfo.kext (v.1)
17:929  0:002  Extra kext: EFI\CLOVER\kexts\Other\WhateverGreen.kext.dSYM (v.1.2.6)
17:929  0:000  Extra kext: EFI\CLOVER\kexts\Other\SuperVIAATA.kext (v.1.0.3)
17:931  0:002  Extra kext: EFI\CLOVER\kexts\Other\IOAHCIBlockStorageInjector.kext (v.1.1.1)
17:932  0:000  Extra kext: EFI\CLOVER\kexts\Other\AppleALC.kext (v.1.3.5)
17:980  0:048  Extra kext: EFI\CLOVER\kexts\Other\SMCProcessor.kext (v.1.0.2)
17:983  0:002  Extra kext: EFI\CLOVER\kexts\Other\ATAPortInjector.kext (v.1.0.0)
17:990  0:007  Extra kext: EFI\CLOVER\kexts\Other\ApplePCIIDE.kext (v.1)
17:994  0:003  Extra kext: EFI\CLOVER\kexts\Other\IntelMausiEthernet.kext (v.2.4.1d1)
17:997  0:002  Extra kext: EFI\CLOVER\kexts\Other\AppleIntelE1000e.kext (v.3.3.5)
17:999  0:002  Extra kext: EFI\CLOVER\kexts\Other\DirectHW.kext (v.1.4)
18:001  0:001  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC_GPUSensors.kext (v.1800)
18:004  0:002  Extra kext: EFI\CLOVER\kexts\Other\WhateverGreen.kext (v.1.2.6)
18:014  0:010  Extra kext: EFI\CLOVER\kexts\Other\Lilu.kext (v.1.3.4)
18:017  0:002  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC.kext (v.1800)
18:021  0:004  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC_SMMSensors.kext (v.1800)
18:024  0:002  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC_LPCSensors.kext (v.1800)
18:097  0:073  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC_CPUSensors.kext (v.1800)
18:099  0:001  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC_ACPISensors.kext (v.1800)
18:104  0:005  Extra kext: EFI\CLOVER\kexts\Other\Lilu.kext.dSYM (v.1.3.4)
18:105  0:000  Extra kext: EFI\CLOVER\kexts\Other\USBInjectAll.kext (v.0.6.7)
18:271  0:165  Extra kext: EFI\CLOVER\kexts\Other\NullCPUPowerManagement.kext (v.1.0.0d2)
18:273  0:002  Extra kext: EFI\CLOVER\kexts\Other\AppleAHCIPort.kext (v.999.1.1)
18:288  0:015  SetStartupDiskVolume:
18:288  0:000    * Volume: 'OS X'
18:288  0:000    * LoaderPath: '<null string>'
18:288  0:000    * DevPath: OS X
18:288  0:000    * GUID = 276B8E10-592A-45D9-8C8E-7890EE36B4A8
18:289  0:000    * efi-boot-device: <array><dict><key>IOMatch</key><dict><key>IOProviderClass</key><string>IOMedia</string><key>IOPropertyMatch</key><dict><key>UUID</key><string>276B8E10-592A-45D9-8C8E-7890EE36B4A8</string></dict></dict></dict></array>
18:289  0:000  Custom boot screen not used because entry has unset use graphics



EFI contents

config.plist cleaned up and a few different flags



  Reveal hidden contents

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
    <key>#DisableDrivers</key>
    <array>
        <string>_NOT_SHOWN_</string>
    </array>
    <key>ACPI</key>
    <dict>
        <key>#Sorted ACPI tables Count</key>
        <integer>3171223704</integer>
        <key>#SortedOrder</key>
        <array>
            <string>SSDT-1.aml</string>
        </array>
        <key>AutoMerge</key>
        <false/>
        <key>DSDT</key>
        <dict>
            <key>#Patches count</key>
            <integer>0</integer>
            <key>Debug</key>
            <false/>
            <key>DropOEM_DSM</key>
            <true/>
            <key>Fixes</key>
            <dict>
                <key>AddDTGP</key>
                <false/>
                <key>AddHDMI</key>
                <false/>
                <key>AddIMEI</key>
                <false/>
                <key>AddMCHC</key>
                <false/>
                <key>AddPNLF</key>
                <false/>
                <key>DeleteUnused</key>
                <false/>
                <key>FakeLPC</key>
                <false/>
                <key>FixACST</key>
                <false/>
                <key>FixADP1</key>
                <false/>
                <key>FixAirport</key>
                <false/>
                <key>FixDarwin</key>
                <false/>
                <key>FixDarwin7</key>
                <false/>
                <key>FixDisplay</key>
                <false/>
                <key>FixFirewire</key>
                <false/>
                <key>FixHDA</key>
                <false/>
                <key>FixHPET</key>
                <false/>
                <key>FixIDE</key>
                <false/>
                <key>FixIPIC</key>
                <false/>
                <key>FixIntelGfx</key>
                <false/>
                <key>FixLAN</key>
                <false/>
                <key>FixRTC</key>
                <false/>
                <key>FixRegions</key>
                <false/>
                <key>FixS3D</key>
                <false/>
                <key>FixSATA</key>
                <false/>
                <key>FixSBUS</key>
                <false/>
                <key>FixShutdown</key>
                <false/>
                <key>FixTMR</key>
                <false/>
                <key>FixUSB</key>
                <false/>
                <key>FixWAK</key>
                <false/>
            </dict>
            <key>Name</key>
            <string>DSDT.aml</string>
            <key>Patches</key>
            <array>
                <dict>
                    <key>Comment</key>
                    <string>change HDAS to HDEF</string>
                    <key>Disabled</key>
                    <false/>
                    <key>Find</key>
                    <data>
                    SERBUw==
                    </data>
                    <key>Replace</key>
                    <data>
                    SERFRg==
                    </data>
                </dict>
                <dict>
                    <key>Comment</key>
                    <string>change GFX0 to IGPU</string>
                    <key>Disabled</key>
                    <false/>
                    <key>Find</key>
                    <data>
                    R0ZYMA==
                    </data>
                    <key>Replace</key>
                    <data>
                    SUdQVQ==
                    </data>
                </dict>
                <dict>
                    <key>Comment</key>
                    <string>change HECI to IMEI</string>
                    <key>Disabled</key>
                    <false/>
                    <key>Find</key>
                    <data>
                    SEVDSQ==
                    </data>
                    <key>Replace</key>
                    <data>
                    SU1FSQ==
                    </data>
                </dict>
                <dict>
                    <key>Comment</key>
                    <string>change _DSM to XDSM</string>
                    <key>Disabled</key>
                    <false/>
                    <key>Find</key>
                    <data>
                    X0RTTQ==
                    </data>
                    <key>Replace</key>
                    <data>
                    WERTTQ==
                    </data>
                </dict>
            </array>
            <key>ReuseFFFF</key>
            <false/>
            <key>Rtc8Allowed</key>
            <false/>
            <key>SuspendOverride</key>
            <false/>
        </dict>
        <key>DisableASPM</key>
        <false/>
        <key>DropTables</key>
        <array>
            <dict>
                <key>Signature</key>
                <string>SSDT</string>
                <key>TableId</key>
                <string>CpuPm</string>
            </dict>
            <dict>
                <key>Signature</key>
                <string>SSDT</string>
                <key>TableId</key>
                <string>Cpu0Ist</string>
            </dict>
        </array>
        <key>FixHeaders</key>
        <true/>
        <key>FixMCFG</key>
        <true/>
        <key>HaltEnabler</key>
        <true/>
        <key>PatchAPIC</key>
        <false/>
        <key>RenameDevices</key>
        <dict>
            <key>#_SB.PCI0.RP01.PXSX</key>
            <string>ARPT</string>
        </dict>
        <key>ResetAddress</key>
        <string>0x64</string>
        <key>ResetValue</key>
        <string>0xFE</string>
        <key>SSDT</key>
        <dict>
            <key>#C3Latency</key>
            <integer>0</integer>
            <key>#DoubleFirstState</key>
            <false/>
            <key>#EnableC2</key>
            <false/>
            <key>#EnableC4</key>
            <false/>
            <key>#EnableC6</key>
            <false/>
            <key>#EnableC7</key>
            <false/>
            <key>#MaxMultiplier</key>
            <integer>0</integer>
            <key>#MinMultiplier</key>
            <integer>0</integer>
            <key>#PLimitDict</key>
            <integer>0</integer>
            <key>#PluginType</key>
            <integer>0</integer>
            <key>#UnderVoltStep</key>
            <integer>0</integer>
            <key>#UseSystemIO</key>
            <false/>
            <key>DropOem</key>
            <false/>
            <key>Generate</key>
            <dict>
                <key>APLF</key>
                <false/>
                <key>APSN</key>
                <false/>
                <key>CStates</key>
                <true/>
                <key>PStates</key>
                <true/>
                <key>PluginType</key>
                <false/>
            </dict>
            <key>NoDynamicExtract</key>
            <false/>
        </dict>
        <key>smartUPS</key>
        <false/>
    </dict>
    <key>Boot</key>
    <dict>
        <key>#CustomLogo</key>
        <string>_NOT_SHOWN_</string>
        <key>#LegacyBiosDefaultEntry</key>
        <integer>256</integer>
        <key>#NeverHibernate</key>
        <false/>
        <key>#StrictHibernate</key>
        <false/>
        <key>#Timeout</key>
        <string>_NOT_SHOWN_</string>
        <key>Arguments</key>
        <string>-v kext-dev-mode=1</string>
        <key>CustomLogo</key>
        <string>Apple</string>
        <key>Debug</key>
        <false/>
        <key>DefaultLoader</key>
        <string></string>
        <key>DefaultVolume</key>
        <string>LastBootedVolume</string>
        <key>DisableCloverHotkeys</key>
        <false/>
        <key>Legacy</key>
        <string></string>
        <key>NeverDoRecovery</key>
        <true/>
        <key>SkipHibernateTimeout</key>
        <false/>
        <key>Timeout</key>
        <integer>5</integer>
        <key>XMPDetection</key>
        <false/>
    </dict>
    <key>BootGraphics</key>
    <dict>
        <key>DefaultBackgroundColor</key>
        <string>0xF0F0F0</string>
        <key>EFILoginHiDPI</key>
        <integer>1</integer>
        <key>UIScale</key>
        <integer>1</integer>
        <key>flagstate</key>
        <integer>1</integer>
    </dict>
    <key>CPU</key>
    <dict>
        <key>#BusSpeedkHz</key>
        <integer>1970028845</integer>
        <key>#HWPEnable</key>
        <true/>
        <key>#HWPValue</key>
        <integer>0</integer>
        <key>#QEMU</key>
        <true/>
        <key>#TDP</key>
        <false/>
        <key>#TurboDisable</key>
        <false/>
        <key>#UseARTFrequency</key>
        <false/>
        <key>EnabledCores</key>
        <integer>105</integer>
        <key>QEMU</key>
        <false/>
    </dict>
    <key>ConfigName</key>
    <string></string>
    <key>Devices</key>
    <dict>
        <key>#AddProperties</key>
        <array>
            <dict>
                <key>#Device</key>
                <string>XXX</string>
                <key>#Key</key>
                <string>AAPL,XXX</string>
                <key>#Value</key>
                <string>0xffff</string>
            </dict>
        </array>
        <key>#Inject</key>
        <true/>
        <key>#IntelMaxValue</key>
        <integer>0</integer>
        <key>#NoDefaultProperties</key>
        <false/>
        <key>#Properties</key>
        <string>_NOT_SHOWN_</string>
        <key>#SetIntelBacklight</key>
        <false/>
        <key>#SetIntelMaxBacklight</key>
        <false/>
        <key>Audio</key>
        <dict>
            <key>#Inject</key>
            <false/>
            <key>#ResetHDA</key>
            <false/>
            <key>AFGLowPowerState</key>
            <true/>
            <key>Inject</key>
            <integer>11</integer>
            <key>ResetHDA</key>
            <true/>
        </dict>
        <key>FakeID</key>
        <dict>
            <key>ATI</key>
            <string>0x1002</string>
            <key>IMEI</key>
            <string>0x8086</string>
            <key>IntelGFX</key>
            <string>0x8086</string>
            <key>LAN</key>
            <string>0x8086</string>
            <key>NVidia</key>
            <string>0x10DE</string>
            <key>SATA</key>
            <string>0x8086</string>
            <key>WIFI</key>
            <string>0x14E4</string>
            <key>XHCI</key>
            <string>0x8086</string>
        </dict>
        <key>ForceHPET</key>
        <false/>
        <key>LANInjection</key>
        <false/>
        <key>USB</key>
        <dict>
            <key>AddClockID</key>
            <true/>
            <key>FixOwnership</key>
            <true/>
            <key>HighCurrent</key>
            <false/>
            <key>Inject</key>
            <false/>
        </dict>
        <key>UseIntelHDMI</key>
        <false/>
    </dict>
    <key>GUI</key>
    <dict>
        <key>#Hide</key>
        <array>
            <string>VolumeName_NOT_SHOWN</string>
            <string>VolumeUUID_NOT_SHOWN</string>
            <string>EntryPath_NOT_SHOWN</string>
        </array>
        <key>#Language</key>
        <string></string>
        <key>#Theme</key>
        <string>embedded</string>
        <key>Custom</key>
        <dict>
            <key>Comment</key>
            <string>These values wrong, they present for sample</string>
        </dict>
        <key>CustomIcons</key>
        <false/>
        <key>EmbeddedThemeType</key>
        <string>Dark</string>
        <key>Language</key>
        <string>en:0</string>
        <key>Mouse</key>
        <dict>
            <key>Mirror</key>
            <false/>
            <key>Speed</key>
            <integer>8</integer>
        </dict>
        <key>Scan</key>
        <dict>
            <key>#Entries</key>
            <true/>
            <key>#Legacy</key>
            <true/>
            <key>#Tool</key>
            <true/>
            <key>Comment</key>
            <string>These values wrong, they present for sample</string>
        </dict>
        <key>ScreenResolution</key>
        <string>1280x1024</string>
        <key>TextOnly</key>
        <false/>
        <key>Theme</key>
        <string>Clovy</string>
        <key>Timezone</key>
        <integer>3</integer>
    </dict>
    <key>Graphics</key>
    <dict>
        <key>#PatchVBiosBytes</key>
        <array>
            <dict>
                <key>#Find</key>
                <string>_NOT_SHOWN_</string>
                <key>#Replace</key>
                <string>_NOT_SHOWN_</string>
            </dict>
        </array>
        <key>#PatchVBiosBytes Count</key>
        <integer>4311744512</integer>
        <key>DualLink</key>
        <integer>0</integer>
        <key>EDID</key>
        <dict>
            <key>#Custom</key>
            <string>_NOT_SHOWN_</string>
            <key>#ProductID</key>
            <string>0x0000</string>
            <key>#VendorID</key>
            <string>0x0000</string>
            <key>Inject</key>
            <false/>
        </dict>
        <key>FBName</key>
        <string></string>
        <key>Inject</key>
        <dict>
            <key>ATI</key>
            <false/>
            <key>Intel</key>
            <false/>
            <key>NVidia</key>
            <false/>
        </dict>
        <key>LoadVBios</key>
        <true/>
        <key>NvidiaGeneric</key>
        <false/>
        <key>NvidiaNoEFI</key>
        <false/>
        <key>NvidiaSingle</key>
        <false/>
        <key>PatchVBios</key>
        <false/>
        <key>RadeonDeInit</key>
        <false/>
        <key>VRAM</key>
        <integer>2048</integer>
        <key>VideoPorts</key>
        <integer>3</integer>
        <key>ig-platform-id</key>
        <string>0x0000</string>
    </dict>
    <key>KernelAndKextPatches</key>
    <dict>
        <key>#Debug</key>
        <false/>
        <key>#FakeCPUID</key>
        <string>0x0000</string>
        <key>#KextsToPatch</key>
        <array>
            <dict>
                <key>#Find</key>
                <string>_NOT_SHOWN_</string>
                <key>#MatchBuild</key>
                <string>16D1111</string>
                <key>#MatchOS</key>
                <string>10.11.6,10.12.x</string>
                <key>#Name</key>
                <string>AppleUSBXHCIPCI</string>
                <key>#Replace</key>
                <string>_NOT_SHOWN_</string>
                <key>Comment</key>
                <string>this is a sample</string>
                <key>Disabled</key>
                <true/>
            </dict>
        </array>
        <key>#Number of KextsToPatch</key>
        <integer>0</integer>
        <key>#Number of Patchs To Kernel</key>
        <integer>0</integer>
        <key>AppleIntelCPUPM</key>
        <false/>
        <key>AppleRTC</key>
        <false/>
        <key>DellSMBIOSPatch</key>
        <false/>
        <key>KernelCpu</key>
        <false/>
        <key>KernelLapic</key>
        <false/>
        <key>KernelPm</key>
        <false/>
        <key>KernelXCPM</key>
        <false/>
    </dict>
    <key>RtVariables</key>
    <dict>
        <key>#MLB</key>
        <string>Apple Inc.</string>
        <key>#ROM</key>
        <string>UseMacAddr0</string>
        <key>BooterConfig</key>
        <string>0x28</string>
        <key>CsrActiveConfig</key>
        <string>0x3E7</string>
        <key>MLB</key>
        <string>***************</string>
        <key>ROM</key>
        <data>
        213ID4Ff
        </data>
    </dict>
    <key>SMBIOS</key>
    <dict>
        <key>#Slots</key>
        <array>
            <dict>
                <key>Comment</key>
                <string>there is a sample</string>
                <key>Device</key>
                <string>WIFI</string>
                <key>ID</key>
                <integer>5</integer>
                <key>Name</key>
                <string>Airport</string>
                <key>Type</key>
                <integer>1</integer>
            </dict>
        </array>
        <key>BiosReleaseDate</key>
        <string>09/19/18</string>
        <key>BiosVendor</key>
        <string>Apple Inc.</string>
        <key>BiosVersion</key>
        <string>MP51.88Z.F000.B00.1809191555</string>
        <key>Board-ID</key>
        <string>Mac-F221BEC8</string>
        <key>BoardManufacturer</key>
        <string>Apple Inc.</string>
        <key>BoardSerialNumber</key>
        <string>***************</string>
        <key>BoardType</key>
        <integer>11</integer>
        <key>BoardVersion</key>
        <string>1.2</string>
        <key>ChassisAssetTag</key>
        <string>Pro-Enclosure</string>
        <key>ChassisManufacturer</key>
        <string>Apple Inc.</string>
        <key>ChassisType</key>
        <string>0x07</string>
        <key>EfiVersion</key>
        <string>140.0.0.0.0</string>
        <key>Family</key>
        <string>MacPro</string>
        <key>FirmwareFeatures</key>
        <string>0xE80FE137</string>
        <key>FirmwareFeaturesMask</key>
        <string>0xFF1FFF3F</string>
        <key>LocationInChassis</key>
        <string>Part Component</string>
        <key>Manufacturer</key>
        <string>Apple Inc.</string>
        <key>Memory</key>
        <dict>
            <key>Channels</key>
            <integer>3</integer>
            <key>Modules</key>
            <array>
                <dict>
                    <key>Frequency</key>
                    <integer>1066</integer>
                    <key>Part</key>
                    <string>NT1GC64B88A0NF-BE</string>
                    <key>Serial</key>
                    <string>641007AD</string>
                    <key>Size</key>
                    <integer>1024</integer>
                    <key>Slot</key>
                    <integer>0</integer>
                    <key>Type</key>
                    <string>DDR3</string>
                    <key>Vendor</key>
                    <string>Nanya</string>
                </dict>
                <dict>
                    <key>Frequency</key>
                    <integer>1066</integer>
                    <key>Part</key>
                    <string>NT1GC64B88A0NF-BE</string>
                    <key>Serial</key>
                    <string>6210079E</string>
                    <key>Size</key>
                    <integer>1024</integer>
                    <key>Slot</key>
                    <integer>1</integer>
                    <key>Type</key>
                    <string>DDR3</string>
                    <key>Vendor</key>
                    <string>Nanya</string>
                </dict>
                <dict>
                    <key>Frequency</key>
                    <integer>1600</integer>
                    <key>Part</key>
                    <string>8GBH2X04F1AA28-15</string>
                    <key>Serial</key>
                    <string>00000002</string>
                    <key>Size</key>
                    <integer>8192</integer>
                    <key>Slot</key>
                    <integer>2</integer>
                    <key>Type</key>
                    <string>DDR3</string>
                    <key>Vendor</key>
                    <string>Anarchy</string>
                </dict>
                <dict>
                    <key>Frequency</key>
                    <integer>1066</integer>
                    <key>Part</key>
                    <string>NT1GC64B88A0NF-BE</string>
                    <key>Serial</key>
                    <string>651006A0</string>
                    <key>Size</key>
                    <integer>1024</integer>
                    <key>Slot</key>
                    <integer>3</integer>
                    <key>Type</key>
                    <string>DDR3</string>
                    <key>Vendor</key>
                    <string>Nanya</string>
                </dict>
                <dict>
                    <key>Frequency</key>
                    <integer>1066</integer>
                    <key>Part</key>
                    <string>NT1GC64B88A0NF-BE</string>
                    <key>Serial</key>
                    <string>65100791</string>
                    <key>Size</key>
                    <integer>1024</integer>
                    <key>Slot</key>
                    <integer>4</integer>
                    <key>Type</key>
                    <string>DDR3</string>
                    <key>Vendor</key>
                    <string>Nanya</string>
                </dict>
                <dict>
                    <key>Frequency</key>
                    <integer>1600</integer>
                    <key>Part</key>
                    <string>8GBH2X04F1AA28-15</string>
                    <key>Serial</key>
                    <string>00000003</string>
                    <key>Size</key>
                    <integer>8192</integer>
                    <key>Slot</key>
                    <integer>5</integer>
                    <key>Type</key>
                    <string>DDR3</string>
                    <key>Vendor</key>
                    <string>Anarchy</string>
                </dict>
            </array>
            <key>SlotCount</key>
            <integer>6</integer>
        </dict>
        <key>Mobile</key>
        <false/>
        <key>OEMBoard</key>
        <string>1.0</string>
        <key>OEMProduct</key>
        <string>iMac</string>
        <key>OEMVendor</key>
        <string>Studio XPS 435MT</string>
        <key>PlatformFeature</key>
        <string>0xFFFF</string>
        <key>ProductName</key>
        <string>MacPro5,1</string>
        <key>SerialNumber</key>
        <string>***************</string>
        <key>SmUUID</key>
        <string>***************</string>
        <key>Trust</key>
        <true/>
        <key>Version</key>
        <string>1.2</string>
    </dict>
    <key>SystemParameters</key>
    <dict>
        <key>#InjectKexts</key>
        <string>Detect</string>
        <key>CustomUUID</key>
        <string>***************</string>
        <key>InjectKexts</key>
        <string>Yes</string>
        <key>InjectSystemID</key>
        <true/>
        <key>NvidiaWeb</key>
        <true/>
    </dict>
</dict>
</plist>





EFI.zip - newest revision of my BOOTER



So I did a NVRAM test and it passed so that means I don't need EmuVariableUEFI-64.efi correct?

also read that AptioMemoryFix-64.efi is the newest and should prolly use since I'm using the latest (r4895)clover

Also have my Original DSDT origin file, Clover patched DSDT, then the one I'm using is the one Clover patched then I decompiled and repatched or I guess you could just say optimized.. but I would like to know how to or which DSDT and SSDT to decompile together that way I can create my patched DSDT and SSDT correctly.



Also still haven't figured out why I can't get full acceleration, I read I had to have inject intel in graphics in clover to fully enable but that still didn't work? NOPE :(





Updated Post

Share this post


Link to post
Share on other sites

Ok so I Believe I was wrong about NVRAM, I don't have it correct, some things are remembered like where my volume was, but I like to use optical out and it never remembers that on a reboot. I Finally figured out my chipset and Found this huge post RUNNING OS X (10.5.7) ON THE GIGABYTE GA-EX58-UD5 (Core i7) MOTHERBOARD. So I'm sure theres tons of similarities.

I do plan on making this post a running "progress report" on getting my system running 1000% or at least as best as it can. So hopefully it can maybe help someone in the future trying to hack a old system. and once I do figure it out the best it can be I want to do more of like a detailed guide perhaps on how I got to there, because my methods could help others that aren't very inclined, to use a bistro as a crutch and then wipe it out after your running and make a bootable Vanilla. I plan on doing all of that with this machine also to prove its ability even being a decade old running Sierra, eventually High Sierra, then if I upgrade this systems GPU again, AMD so I can get into Mojave, with a decade old computer. like the macPro's.



the link above might be the key to a lot of my problems, a lot of the questions might pertain even with it being such a old post, it did get me into learning what the EFI strings inject does cos it helped at one point while trying different drivers. I still don't understand what it does But the MOBO, its very much like my Dell R849J DX58M01, just 2 more PCI lanes.



Trying to figure out the best setup with aptiomemoryfix with emuvariable or emuvariable with osxaptiofixdrv or osxaptiofix3..

otherwise they all seem to work so trying to determine which is the best



With using emuvariable and osxLowMemFixDrv-64 I couldn't boot, selected inject Nvidia and was able to boot. why? so I suppose that eliminates osxLowMemFixDrv-64? as one of the memory fix drivers I should use?

emuvariable and osxLowMemFixDrv-64 I need to have Graphics>inject nividia selected in clover booter



I believe I only used AptioMemoryFix-64 without emuvariable and was able to boot with the way my EFI is setup, in my config I don't have have inject Nvidia selected, so that means that I can boot with just AptioMemoryFix-64 but when I do I don't have full acceleration with graphics. I understand that from what I've read, that I have to have Inject Intel selected for QE/CI but when I did it didn't work, maybe cos I don't have the correct memory fix driver?

AptioMemoryFix-64 without emuvariable Boots with no extra injecting/fixes/options/etc(not sure if screen saver worked)



Update: so since I was using a EFI made by a BDU(bootdiskutility) I thought maybe installing a fresh copy from source forge would be a recommended idea. so I'm still using R4895. But this time I decided to see how booting with a different memory fix, what would happen. Turns out booting with only AptioMemoryFix-64 didn't work. I read something about EFI strings and not sure what it meant but thought id give it a go and I was able to Boot back into Sierra with EFI strings selected.

AptioMemoryFix-64 Needs Devices>EFI strings selected at boot (ScreenSaver working)

AptioMemoryFix-64 + emuvariable Needs Devices>EFI strings selected at boot (ScreenSaver working) NVRAM same



final update for this post on memory drivers

So apparently I can boot without the EFI strings inject on and without any memoryFix or emuvariableFix

Im not a expert, please someone that knows please let me know if I'm wrong and/or why

But I'm going to say that issue is optimized? don't need any memoryFix or emuvariableFix and NVRAM -p tables stayed the same.

ScreenSaver works

on to figuring out why I don't have full QE/CI


Edited by DiddyKong
I will most likely re Edit this post till I'm satisfied with my memory fix driver choices

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By tonyx86
      *** I have started another thread for installing Catalina on the Dell Latitude E6410.  If you were thinking of installing Mojave, but would prefer to skip right to Catalina, click here. ***

      I was inspired by @duduclx post here for installing El Capitan on a Dell Latitude E6410, so I decided to install Mojave 10.14.5 and subsequently 10.14.6.  Everything works perfectly (including sleep).  I'm starting this thread hoping to help others install Mojave on their E6410s.  A brief installation guide is provided later in this first post.  The interested reader is encouraged to read the other posts in this thread to see how this solution evolved and to learn additional tips/details not provided in this first post (including dual-booting with macOS and Windows).

      My system is as follows:
      Dell Latitude E6410 (I7-620m, Nvidia 3100M, 8GB DDR3, 512GB SSD, 1440x900 display, BIOS: A17) MacOS: Mojave 10.14.6 (APFS) (Patched with DosDude Mojave Patcher 1.3.3) MacModel: MacBookPro 6,2 (LPCB._DSM.Name "pci8086,3b09") Kexts: Lilu 1.3.6, VoodooHDA 2.9.2, AirportBrcmFixup 2.0.0, IntelMausiEthernet 2.4.1d1, ACPIBatteryManager 1.90.1, BrcmPatchRam2.kext, BrcmFirmwareRepo.kext, VoodooPS2Controller (the "Refined ALPS Touchpad" version - release 6 developed by @Dr. Hurt and compiled by @bronxteck), not the original version), USBInjectAll (with custom SSDT-UIAC), VoodooSDHC.kext (configured as shown here). Wi-Fi: Broadcom BCM 94352HMB (with AirportBrcmFixup.kext) CLOVER (Legacy): R4961
      Configuration items that may be different from what you have seen in other E6410 configurations
      Addition of _OFF and _ON methods to _PTS and _WAK methods respectively (to control discrete graphics in order to enable sleep/wake) LPCB._DSM patched with device-id "3b09" AND "name", "pci8086,3b09" for native Nehalem power management with MacBookPro 6,2 ECDV renamed to EC so that AppleBusPowerController loads AGP.VID._DSM patched with device-id "0a29" so that AppleGraphicsPowerManagement loads No CLOVER Generate P or Generate C States (with the correct LPCB._DSM and MacBookPro 6,2, these CLOVER options are unnecessary for this architecture and only limit max multiplier and reduce number of P states) DSDT patched to include HDAU device (device-id 0x0be3)
      What is NOT working:
      Display brightness can be controlled with keyboard keys, but cannot be controlled with slider in Display settings. Graphics Power Management - AGPM loads (because 10de,0a29 device is injected), but there's no evidence that 3100m frequency and voltage is changing.
        What is NOT tested:
      Smartcard Reader eSata (I have this disabled in my BIOS) Firewire Port (it does appear in the Network settings, just haven't tried it) Microphone Jack PC Card Slot (I have this disabled in my BIOS)
      What IS working:
      SLEEP IS WORKING! Everything else not mentioned above.   Speedstep/CPUPowerManagement is perfect, system temps are low, CPU multiplier operates as expected, battery life is long Shutdown is fast Display/graphics acceleration is perfect (thanks to DosDude's Mojave patcher) Brightness (adjusted with brightness keys on keyboard) works perfectly Battery Manager works (battery status is displayed in menu bar) simply by installing ACPIBatterManager.kext. Wi-Fi (after changing to Broadcom BCM94352HMB and installing AirportBrcmFixup.kext) Audio (volume adjustable, volume indicator appears in menu bar).  Switched to VoodooHDA from AppleALC after AppleALC caused slow boot due to "IOHDACodecFunction timeout." Ethernet port (with IntelMausiEthernet.kext) Broadcom BCM20702A0 Bluetooth (with BrcmPatchRam2.kext and BrcmFirmwareRepo.kext) Optical Drive External VGA (with corrected NVCAP.  Need NVCAP 04000000 00000100 0E000000 00000007 00000000 (credit: here) for working external VGA display. Headphone jack Display Port (tested using DP > HDMI adapter) Camera SD Card Reader
      Known issues and their solutions (These issues have all been resolved, with the solutions incorporated into the attached config files.  The issues are listed here for historical purposes and no further work is needed unless stated otherwise).
      Laptop does not sleep on lid close.  Solution is to add Notify (LID0) code to Method (BTNV) in the DSDT.  This is solved in the Catalina thread. Copy the DSDT from Post #1 in the Catalina thread if you want to remain on Mojave and want your laptop to sleep when closing the lid. Leaving this for historical purposes, but the CLOVER USBFix is no longer necessary after finding that I had incorrectly applied the DSDT _DSM patch for Device (EHC1).  The CLOVER USBFix is not needed after fixing the DSDT..  AAPL,clock-id and device_type do not appear in IORegistry for EHC1.  Solution is to use CLOVER on-the-fly patching/fixing/renaming for EHC1 and EHC2.  Thank you, @feartech, for this tip. ALPS trackpad performance is not good with the "standard" VoodooPS2Controller.kext that I initially used.  Switching to the "Refined ALPS TouchPad driver" is a big improvement.  I've implemented and tested this on my system.  The ALPS version of VoodooPS2Controller.kext mixes up a few keys.  Need to switch the Command and Option keys (System Preferences > Keyboard > Modifier Keys) and change keyboard type to ISO European. This configuration (captured in the attached config files) uses an injected device-id (10de,0a29) for NVidia 3100m to get AGPM to load.  While I haven't observed any performance differences, a better approach may be to inject AGPM properties for device 10de,0a6c (the actual device-id for the 3100m).  This AGPM method is discussed later in this thread.  I have briefly tested this "FakeSMC.kext method" for injecting AGPM attributes without any noticeable changes in laptop/graphics behavior. IOHWControl is not loaded under AGPM (Should be AGP > VID > NVDA,Display-A@0 > NVDATesla > AGPM > gpu-control > IOHWControl as viewed in IORegistryExplorer).  It is loaded on a real MacBookPro6,2 running Mojave and is loaded on this Dell Latitude E6410 running High Sierra.  If I "Inject NVidia" via CLOVER, IOHWControl loads properly. The Dell Latitude DSDT (BIOS A17) has a bug in Method (GNOT).  In the method, the expression  If (LOr (LGreater (OSYS, 0x07D0), LLess (OSYS, 0x07D6))) always evaluates to TRUE, so the patched DSDT has no dependency on the value of OSYS.  I suspect that LOr should be replaced with LAnd, so that this expression is TRUE for variants of Windows 2001 and False for any other OS.  While this may have no affect on MacOS, it makes one wonder how such an obvious bug made it through Dell QA and is still present in BIOS A17.  Also makes one wonder whether the sleep problem (which no one has solved) was fixed in Windows to address another DSDT bug. The assigned value of ACOS and OSYS in the DSDT are conditional on the operating system.  There is no condition for "Darwin."  The solution is to add a condition for "Darwin" (making it equivalent to one of the defined operating systems (e.g. Linux, Win7, etc).  The attached config hard-codes ACOS and OSYS values equivalent to those for Linux.  Another way to handle this (different from the method employed in the attached config files) might be to override _OSI with XOSI (defined in a custom SSDT). The portType of the Internal Bluetooth device is portType=0 which, according to Rehabman's comments in SSDT-UIAC-All.dsl, is an external USB 2 port.  This should be an internal USB port (portType=2).  I learned through trial and error that the HUB1 and HUB2 definitions in Rehabman's SSDT-UIAC-ALL.dsl apply to the ports on the EHCx USB hubs.  The solution is to include the HUB1 definition in SSDT-UIAC.dsl and change portType to 2 for HP15.  This change doesn't appear to affect/fix sleep, but it may prevent instant wake if we get sleep working. There are minor differences between a real MacBookPro6,2 IORegistry dump and this HackBookPro6,2 IORegistry dump that can be resolved with simple DSDT edits.  I am now running with these changes, but haven't found these changes to make any difference in operational behavior.
      Rename Device (AC) -> Device (ADP1) Remove UID from Device (HPET) Add compatible ID "PNP0C01" to Device (HPET) Change ADP1:_STA from 0x0F to 0xFFFFFFFF Enable Ambient Light Sensor and renamed to Device (ALS0) from Device (ALS) Add compatible ID "smc-als" to ALS0 Rename LID -> LID0 Change "name" definitions to Buffers in _DSM methods Rename Device (PBTN) to PWRB Rename Device (SBTN) to (SLPB) Change HDAU.hda-gfx from "onboard-1" to "onboard-2" Change GFX0.hda-gfx from "onboard-1" to "onboard-2" Sleep / Wake does not work with the basic DSDT edits.  I have discovered that Sleep / Wake can be made to work by adding discrete graphics _OFF and _ON methods to _PTS and _WAK methods respectively (borrowed the concept and code from a working E6430 DSDT: Credit here: https://osxlatitude.com/forums/topic/9248-working-sleep-on-intel-hd-and-nvidia-nvs-on-dell-latitude-e6430-optimus-enabled-or-disabled/page/6/. The Clover boot arg should be changed to "darkwake=0" for reasons explained by @holyfield in this thread.  Leaving this for historical purposes: LCD screen is blank when waking laptop by opening lid (screen is not blank when waking with power button).  Solution is to add darkwake=8 to CLOVER boot args.  Thank you @Hervé for this tip.
      Brief Installation Guide:
      Configure BIOS (version A17) as follows (leave default unless listed here): Boot Sequence: USB, Internal HDD, CD/DVD, Modular Bay HDD; Boot List Option: Legacy; Integrated NIC: Enabled; Parallel Port: Disabled; Serial Port: Disabled; SATA Operation: AHCI; Misc Devices: Enable Modular Bay, Camera, External USB, Microphone, Media Card and 1394; Latitude ON Reader: Disabled; Keyboard Illumination: Auto ALS and Input; Ambient Light Sensor: Enabled; OROM Keyboard Access: Disable; TPM Security: Disable; Computrace: Deactivate; CPU XD Support: Enable; Performance: Enable all options; Power Management: Disable Wake on AC, Disable Wake on LAN/WAN, Express Charge: Standard, Charge Behavior: Enabled; Keypad: Fn Key Only; Mouse/Touchpad: Touchpad/PS-2 Mouse; USB Emulation: Enable Legacy; Fn Key Emulation: Disabled; Fastboot: Thorough; Virtualization: Enable Intel Virtualization, Disable VT for Direct I/O, Disable Trusted Execution; Wireless Switch: Bluetooth and WLAN; Wireless Device Enable: Bluetooth and WLAN;  Create your MacOS installer USB (Use DosDude's Mojave Patcher for Mojave) (start with High Sierra and not Mojave if you're new to hackintosh). Install CLOVER (Legacy) on installer USB using attached EFI as your guide for patched ACPI, kexts and config.plist Install MacOS to your SSD.  When you run DosDude's Mojave Patcher, DO NOT install LegacyUSBInjector.kext - you're going to use Rehabman's USBInjectAll.kext.  Also, do not install the DosDude SIP kext (you're using CLOVER to manage SIP). Install the following kexts in /Library/Extensions:  ACPIBatteryManager.kext, AirportBrcmFixup.kext, BrcmFirmwareRepo.kext, BrcmPatchRAM2.kext, FakeSMC.kext, FakeSMC_ACPISensors.kext, FakeSMC_CPUSensors.kext, FakeSMC_GPUSensors.kext, FakeSMC_LPCSensors.kext, IntelMausiEthernet.kext, Lilu.kext, USBInjectAll.kext, VoodooPS2Controller.kext (the "Refined ALPS Touchpad driver," not the original), VoodooSDHC.kext (configured as shown here). Switch Command and Option keys to compensate for Refined ALPS driver issue (System Preferences > Keyboard > Modifier Keys).  Also change keyboard type to ISO European to fix the [ ` ~ ] key (to the left of the "1" (one) key. Install VoodooHDA Install HWMonitor application
      Tips for Improved Performance (on this and other older systems)
      System Preferences > Spotlight > Search Results: Uncheck all options System Preferences > Spotlight > Privacy: Add all Volumes System Preferences > Accessibility > Display: Check "Reduce motion" System Preferences > Accessibility > Display: Check "Reduce transparency"
      Other tips
      If your fan is always running and temps are good, try pressing Fn + z After applying Mojave updates, HWMonitor may not display discrete graphics attributes.  On systems with multiple displays, a second (or third display) may not be active after applying the Mojave update.  The solution to this is to run "sudo kextcache -i /" (in a terminal window) and reboot.  This will usually fix the issue.  If the issue is not fixed, run DosDude's Post Install Utility, apply the Legacy Graphics Patch, reboot and then run "sudo kextcache -i /" if necessary.
      Credits
      In addition to those mentioned in this first post and in subsequent posts in this thread, much of this solution for the Latitude E6410 was made possible by the numerous contributions of @RehabMan.  I hope he's doing well, wherever he is.  Hopefully he has long since forgotten what a PIA I was (and still am) as I was (and still am) learning hackOS.




      E6410-Mojave-6v2.zip
    • By tonyx86
      This thread for installing Catalina on the Dell Latitude E6410 WITH NVIDIA GRAPHICS (BIOS A17, NVidia 3100m) will help you install a fresh installation of Catalina on your Dell Latitude E6410, it will help you upgrade from 10.15.2 to 10.15.3 (if you originally installed Catalina from this thread) and it will also help you upgrade from Mojave 10.14.6 if you have already installed Mojave by following the instructions here.  The instructions in this first post assume that you are installing Catalina in an APFS container.  If you are curious about the evolution of this solution and how sleep/wake was solved, review the Mojave installation thread.

      Important: This Thread is NOT intended to help you install macOS on a Latitude E6410 with Intel HD Graphics (without Nvidia graphics).  The DSDT attached to this first post (in E6410-Catalina.zip) is VERY SPECIFIC to the Nvidia graphics implementation and has not been edited for HD Graphics - there are elements required for HD Graphics that are missing from the attached DSDT and there are DSDT mods that have not been tested with HD Graphics.  Also, the kexts attached to this first post are specific to a Broadcom Wi-Fi card which must replace the original Intel Wi-Fi card.

      This first post will be modified to reflect lessons learned and to reflect the most current working state of my Latitude E6410 (with NVidia 3100m discrete graphics) running Catalina.  Issues, observations and performance tips are recorded toward the bottom of this first post.  My recommended CLOVER configuration is specified toward the bottom of this first post.

      *** If you want help with your installation, please post your issue along with problem reporting files generated using @black.dragon74's problem reporting tool.  Google 'GENERATE PROPER PROBLEM REPORTING FILES black.dragon74' to find it. ***.  If Catalina's Read-Only protections block your installation of black.dragon74's gen_debug script, please copy the attached gen_debug script to your Desktop, change script properties with the terminal command 'chmod a+x ~/Desktop/gen_debug' and run the script from your Desktop.

      My system is as follows:
      Dell Latitude E6410 (I7-620m, Nvidia 3100M, 8GB DDR3, 512GB SSD, 1440x900 display, BIOS: A17) Wi-Fi: Broadcom BCM 94352HMB (replaced original Wi-Fi card) BIOS (version A17) configured as follows (leave default unless listed here): Boot Sequence: USB, Internal HDD, CD/DVD, Modular Bay HDD; Boot List Option: Legacy; Integrated NIC:Enabled; Parallel Port: Disabled; Serial Port: Disabled; SATA Operation: AHCI; Misc Devices: Enable Modular Bay, Camera, External USB, Microphone, Media Card and 1394; Latitude ON Reader: Disabled; Keyboard Illumination: Auto ALS and Input; Ambient Light Sensor: Enabled; OROM Keyboard Access: Disable; TPM Security: Disable; Computrace:Deactivate; CPU XD Support: Enable; Performance: Enable all options; Power Management: Disable Wake on AC, Disable Wake on LAN/WAN, Express Charge: Standard, Charge Behavior: Enabled; Keypad: Fn Key Only; Mouse/Touchpad: Touchpad/PS-2 Mouse; USB Emulation: Enable Legacy; Fn Key Emulation: Disabled; Fastboot: Thorough; Virtualization: Enable Intel Virtualization, Disable VT for Direct I/O, Disable Trusted Execution; Wireless Switch: Bluetooth and WLAN; Wireless Device Enable: Bluetooth and WLAN;
      Versions of the software used in this installation are listed below the installation steps.  EFI and kexts for Catalina are attached to this first post in E6410-Catalina.zip.  CLOVER configuration is specified below the installation steps.

      Wi-Fi connection to an Access Point is delayed when using AppleALC for sound.  Do not use Apple ALC.  Use VoodooHDA pkg 2.9.2 v14 for sound.

      Steps to install Catalina on a Dell Latitude E6410 (BIOS A17, NVidia 3100m)
      Make sure that your system matches my system description above (including BIOS version, Wi-Fi card, BIOS settings) If performing an upgrade from Mojave or a previous version of Catalina, backup your Mojave or Catalina partition! (Carbon Copy or similar) Download Catalina Installer Download DosDude Catalina Patcher Use DosDude Patcher to create Catalina USB Installer Delete LegacyUSBInjector.kext (we're using @RehabMan's USBInjectAll.kext with custom SSDT) and delete SIPManager.kext (CLOVER is managing SIP) from Catalina USB Installer's /Library/Extensions folder Copy all but the FakeSMC sensor kexts in E6410-Catalina.zip (attached) LE folder to the Catalina USB Installer /Library/Extensions (copy all kexts (including FakeSMC.kext) but not the FakeSMC sensor kexts) Install CLOVER Bootloader (Legacy) on USB Installer using the EFI in the E6410-Catalina.zip (attached).  Use the CLOVER configuration specified below.  Be sure to replace the XX-MASKED-XX parameters in the attached config.plist with your own values. Reset your Latitude E6410 NVRAM by doing the following (this may be important if you're making changes to your existing EFI and won't hurt anything if you're not making any changes) turn-off your laptop remove A/C power and main battery press and hold the power button for 30 seconds restore A/C power and battery Boot your Latitude E6410 from the Catalina USB Installer that you created in steps 5-8. Select "Reinstall macOS" (note that I have existing installations of Mojave and High Sierra on my Latitude E6410, so it's possible that this menu item changes to "Install macOS" if you don't have any previous macOS installations). Select your Catalina destination partition (which will be your Mojave or previous Catalina partition if you are upgrading) After the Catalina Installer reboots the first time, boot from the "macOS Installer" partition on the disk that you selected as your Catalina destination (not the macOS installer on the USB) After the Catalina Installer reboots the second time, boot the Catalina macOS Installer on the USB Select the Post Install Patcher utility Select only the following Post Install Patches (no other patches / options) Install Patch Updater Legacy Video After the Post Install Patcher reboots,  boot from the newly installed (or upgraded) Catalina partition and complete the macOS configuration Remove these kexts (if they exist) from /Library/Extensions: LegacyUSBInjector.kext, LegacyUSBVideoSupport.kext and SIPManager.kext If you are performing a fresh installation of Catalina: Install CLOVER on your boot disk and configure EFI using files in the attached E6410-Catalina.zip.  Use the CLOVER configuration below.  Your EFI Clover/kexts/Other folder needs only FakeSMC.kext, IntelMausiEthernet.kext, USBInjectAll.kext and VoodooPS2.kext.  Be sure to replace the XX-MASKED-XX parameters in the attached config.plist with your own values. Install all kexts in the attached E6410-Catalina.zip LE folder to your /Library/Extensions folder.  NOTE: These instructions assume installation of Brcm kexts in /Library/Extensions.  Read the Brcm install instructions if you're installing kexts in EFI/Clover/kexts/Other, since your installation and at least one kext WILL BE DIFFERENT. Copy HWMonitor from the application folder in the attached E6410-Catalina.zip to your Applications folder. Install VoodooHDA (I installed using the Classic method) Skip to Step 21 If you are upgrading from a previous version of Catalina using the instructions from this thread or from Mojave that you installed using the instructions here: Update Lilu.kext and replace BrcmFirmwareRepo.kext and BrcmPatchRAM2.kext (in /Library/Extensions) with latest BrcmBluetoothInjector.kext, BrcmFirmwareRepo.kext and BrcmPatchRAM3.kext. NOTE: These instructions assume installation of Brcm kexts in /Library/Extensions.  Read the Brcm install instructions if you're installing kexts in EFI/Clover/kexts/Other, since your installation and at least one kext WILL BE DIFFERENT. Update IntelMausiEthernet.kext Remove VoodooSDHC.kext from /Library/Extensions Re-install VoodooHDA if necessary (I installed using the Classic method) Ensure PROPER kext installation: If you're manually installing kexts in /Library/Extensions, make sure that you execute the following (in terminal) cd /Library/Extensions sudo chown -R root:wheel *.kext sudo chmod -R 755 *.kext sudo kextcache -i / After you execute 'sudo kextcache -i /' you should observe that ALL kexts are allowed.  If not, your kext directory attributes are probably incorrect.  Repeat kext installation and try again. Reboot from your new/upgraded Catalina partition Welcome to macOS Catalina! Change the keyboard type to ISO (System Preferences > Keyboard > Change Keyboard Type) Swap the Command and Option keys (System Preferences > Keyboard > Modifier Keys) Set hibernatemode: In terminal, execute sudo pmset -a hibernatemode 0 sudo rm -f /var/vm/sleepimage sudo touch /var/vm/sleepimage sudo chflags schg /var/vm/sleepimage
      Version Info at the time of this writing:
      Catalina Installer 10.15.3 CLOVER v2.5k r5103 DosDude Catalina Patcher: v1.3.0 Lilu.kext 1.4.1 AirportBrcmFixup.kext 2.0.6 BrcmFirmwareRepo.kext 2.5.1 BrcmBluetoothInjector.kext 2.5.1 BrcmPatchRAM3.kext 2.5.1 IntelMausiEthernet.kext 2.5.0
      VoodooHDA.kext 2.9.2 v14 (NOT AppleALC)

      What is not working (that was working in Mojave)
      SD Card Slot (had to remove VoodooSDHC.kext which caused system freeze on wake)
      Known Issues and Their Solutions
      (No solution yet) Brightness slider does not work in System Preferences > Displays.  Brightness is easily controlled with Dell brightness keys.  There is some work on this later in this thread, but I will not be solving this as I'm content with the Dell brightness keys (and Ambient Light Sensor works to auto-adjust brightness). I continue to refine the DSDT and CLOVER config.plist to optimize my Latitude E6410 for multi-booting between various macOS versions (High Sierra, Mojave and Catalina at the time of this writing). If you upgrade your Latitude E6410 EFI using my attached EFI, you may find that your Latitude E6410 is stuck in a boot-loop that ends in a white screen and reboots.  Clear your system by doing the following: turn off your laptop, remove A/C power, remove the main battery, press and hold the power button for 30 seconds, restore A/C power and battery, boot normally.  I have only found this to be necessary (very rarely) after making an EFI change, but you may find it helpful if making kext changes in /Library/Extensions as well. (Work-around - no permanent solution yet) Cannot turn on Bluetooth after shutting-down with Bluetooth off.  Work-around is to leave Bluetooth on.  I don't use Bluetooth and don't mind, so this will likely be solved by someone else.  If you experience this issue and can't turn-on Bluetooth, I have found that putting the laptop to sleep (Fn-F1) and then waking the laptop restores proper operation of Bluetooth.  I have posted a problem description, logs and problem reporting files in this thread for help with this problem. (Solved - no further work required) Laptop does not sleep when closing lid.  Solution is to add a Notify (LID0) code to Method (BTNV) in the DSDT.  No surprise that the Latitude E6410 has yet another incomplete ACPI implementation.  I am using the same EFI for High Sierra 10.13.6, Mojave 10.14.6 and Catalina 10.15.3 and it works in all three macOSes. (No solution yet) No SD Card Slot (had to remove VoodooSDHC.kext) - I read somewhere that there is a solution that does not require any kexts (just a DSDT edit).  Haven't yet implemented this fix. (Not a problem that needs to be solved - leaving for historical purposes.  I am running Catalina without this.) - IOHWControl does not load under GFX0 (as observed in IORegistryExplorer).  Solution (if it needs to be solved) is to install AppleHWSensor.kext from a DosDude-patched Mojave /S/L/E in Catalina's /L/E.  Copy and install your own or use the kext attached to this post. (Solved - no further work required) Wi-Fi connection is delayed until a minute or so after boot - Use VoodooHDA and NOT AppleALC (Solved - no further work required) External USB ports do not work after waking from sleep (S3) - Upgrade Lilu.kext and replace BrcmFirmwareRepo.kext and BrcmPatchRAM2.kext (in /L/E) with latest BrcmBluetoothInjector.kext, BrcmFirmwareRepo.kext and BrcmPatchRAM3.kext. (Solved - no further work required) Boot and shut-down time of Catalina is slower than Mojave - Upgrade Lilu.kext and replace BrcmFirmwareRepo.kext and BrcmPatchRAM2.kext (in /L/E) with latest BrcmBluetoothInjector.kext, BrcmFirmwareRepo.kext and BrcmPatchRAM3.kext. (Solved - no further work required) Wi-Fi is not immediately available at OS startup - Upgrade Lilu.kext and replace BrcmFirmwareRepo.kext and BrcmPatchRAM2.kext (in /L/E) with latest BrcmBluetoothInjector.kext, BrcmFirmwareRepo.kext and BrcmPatchRAM3.kext. (Solved - no further work required) Laptop freezes on wake - Remove VoodooSDHC.kext from /Library/Extensions
      Tips for Improved Performance (on this and other older systems)
      System Preferences > Spotlight > Search Results: Uncheck all options System Preferences > Spotlight > Privacy: Add all Volumes System Preferences > Accessibility > Display: Check "Reduce motion" System Preferences > Accessibility > Display: Check "Reduce transparency"
      Other tips
      If your fan is always running and temps are good, try pressing Fn + z (I haven't noticed this issue for a while since I completed DSDT edits for Mojave, but keeping this here for historical purposes)
      CLOVER Installation: Use these configuration options
      Install Clover in the ESP Boot Sectors Install boot0af in MBR Clover for BIOS (legacy) booting Clover EFI 64-bits SATA BIOS Drivers, 64-bit Recommended drivers FSInject File System drivers ApfsDriverLoader Install RC scripts on target volume Themes Choose your desired theme Install Clover Preference Pane After clicking "Continue", if prompted with "This Clover package is incompatible with this version of macOS," install anyway
      After CLOVER installation is complete Copy the following from the attached E6410-Catalina.zip ACPI patched contents config.plist (change XX-MASKED-XX values to your own) kexts/Other (remove all other kext folders) Remove christmas and new year folders from themes (if present)
      Credits
      Thanks to those who contributed to my Mojave solution and to the DosDude team (for the incredible macOS patchers), I think this Catalina installation was the easiest macOS installation that I have experienced (so far).  Many thanks to @Slice and his team for the incredible work on CLOVER and for continuing to support old legacy systems like this.  Also, thanks to @Mieze and @headkaze and others I'm sure for maintaining the Brcm kexts.  And finally, I still prefer to manually apply patches to the DSDTs in my systems.  CLOVER offers extensive patching functionality, but I'm old-school and like to have an error-free, fully-patched DSDT with a simple CLOVER config.plist.  I think that this manual DSDT patching approach (which required an extensive review and debugging of the original unpatched DSDT in this thread) is the reason that this Latitude E6410 is such a perfect MacBookPro6,2.  Thank you @RehabMan for being a great teacher and for always insisting on problem reporting files .




      AppleHWSensor.kext.zip

      gen_debug
      E6410-Catalina-3v5.zip
    • By MaLd0n
      --Donations via PayPal--
      https://tinyurl.com/r2bvzm7

      --Original Topic--
      https://www.olarila.com/topic/6874-olarila-hackbook-lenovo-ideapad-s145-mojave-catalina-full-dsdt-patches/



      -Perfect HackBook, HDMI Audio/Video, Bluetooth, AirPlay, Sleep, Lid Sleep, Auto Sleep, Audio, etc!
      -Wifi card has been replaced with Dell DW1560!
      -I'm using a S145-15IWL Model with Intel Core i5 8265u / Intel UHD Graphics 620
      -Update bios/uefi to last version

      --Installation--
      https://www.olarila.com/topic/5794-guide-install-macos-with-olarila-image-step-by-step-install-and-post-install-windows-or-mac/

      --Clover Folder--
      Just paste EFI folder inside EFI partition
      https://www.olarila.com/files/Clover.Folder/Lenovo IdeaPad S145.zip
      Notebooks with ELAN trackpad use it with my folder above
      IdeaPad S145 ELAN.zip

      Bluetooth Broadcom
      Bluetooth Broadcom.zip

      CPUFriend for i5-8265U
      CPUFriend i5-8265U.zip

      --Full DSDT Patches--
      -My DSDT
      DSDT Lenovo IdeaPad S145.zip

      This DSDT work on S145-14IWL, S145-15IWL, V14-IWL, V15-IWL models
      -Patches
      -FIX ERRORS AND WARNINGS -REMOVE UNUSED SCOPES / DEVICES -HIGH PRECISION EVENT TIMER -SATA SERIE 11 ID -DMAC -REMOVE LINES, PROBLEMATIC and UNUSED -SLPB -DARWIN / WINDOWS 2015 -XHCI -PLUGIN TYPE -HDAS to HDEF -HDEF -REAL TIME CLOCK -ARTC -IRQs -SBUS -BUS1 -MCHC -ALS0 -SHUTDOWN -FWHD -USBX -PMCR -PPMC -XSPI -GMM -IMEI -EC -PRWs -_DSMs -PNLF -BRIGHTNESS KEYS -I2C -NATIVE USB -ARPT -GFX0 -DTGP -kUSBCompanionIndex -io-device-location -FULL RENAMED DEVICES   --IGPU Patch--
      Video solution with HDMI Audio and Video
      <key>PciRoot(0x0)/Pci(0x2,0x0)</key> <dict> <key>AAPL,GfxYTile</key> <data> AQAAAA== </data> <key>AAPL,ig-platform-id</key> <data> CQClPg== </data> <key>device-id</key> <data> pT4AAA== </data> <key>enable-hdmi20</key> <data> AQAAAA== </data> <key>framebuffer-con0-alldata</key> <data> AAAIAAIAAACYAAAA </data> <key>framebuffer-con0-enable</key> <integer>1</integer> <key>framebuffer-con1-alldata</key> <data> AQEJAAAIAADHAQAA </data> <key>framebuffer-con1-enable</key> <integer>1</integer> <key>framebuffer-con2-alldata</key> <data> AgYKAAAEAADHAQAA </data> <key>framebuffer-con2-enable</key> <integer>1</integer> <key>framebuffer-fbmem</key> <data> AACQAA== </data> <key>framebuffer-patch-enable</key> <data> AQAAAA== </data> <key>framebuffer-stolenmem</key> <data> AAAwAQ== </data> <key>framebuffer-unifiedmem</key> <data> AAAAgA== </data> <key>hda-gfx</key> <string>onboard-1</string> <key>model</key> <string>Intel Corporation, Cannon Point-LP Iris Plus Graphics 655</string> </dict>   --Native USB Fix for Notebooks - No Injector/Kext Required--
      https://www.olarila.com/topic/6878-guide-native-usb-fix-for-notebooks-no-injectorkext-required/
      https://www.olarila.com/topic/6181-guide-native-usb-fix-for-desktops-no-injectorkext-required-skylake/


      -ScreenShots

































      -Links


      Clover https://github.com/CloverHackyColor/CloverBootloader
      AirportBrcmFixup.kext https://github.com/acidanthera/AirportBrcmFixup
      AppleALC.kext https://github.com/acidanthera/AppleALC
      Brcm Bluetooth https://github.com/acidanthera/BrcmPatchRAM
      Lilu.kext https://github.com/acidanthera/Lilu
      SystemProfilerMemoryFixup.kext https://github.com/Goldfish64/SystemProfilerMemoryFixup
      VirtualSMC.kext https://github.com/acidanthera/VirtualSMC
      VoodooI2C.kext https://github.com/alexandred/VoodooI2C
      VoodooPS2Controller.kext https://github.com/acidanthera/VoodooPS2
      WhateverGreen.kext https://github.com/acidanthera/WhateverGreen
      MaciASL - https://github.com/acidanthera/MaciASL
      acpica - https://github.com/acpica/acpica
      AptioMemoryFix.efi https://github.com/acidanthera/AptioFixPkg
      ApfsDriverLoader.efi https://github.com/acidanthera/AppleSupportPkg
      HFSPlus.efi https://github.com/JrCs/CloverGrowerPro/blob/master/Files/HFSPlus/X64/HFSPlus.efi?raw=true
      Hackintool https://github.com/headkaze/Hackintool

      -Credits and thanks to the old and new people in the community who developed patches, kexts and bootloaders!

      Slice, Kabyl, usr-sse2, jadran, Blackosx, dmazar, STLVNUB, pcj, apianti, JrCs, pene, FrodoKenny, skoczy, ycr.ru, Oscar09, xsmile, SoThOr, RehabMan, Download-Fritz, Zenit432, cecekpawon, Intel, Apple, Oracle, Chameleon Team, crazybirdy, Mieze, Mirone, Oldnapalm, netkas, Elconiglio, artut-pt, ErmaC, Pavo, Toleda, Master Chief and family, bcc9, The King, PMheart, Sherlocks, Micky1979, vit9696, vandroiy2013, Voodoo Team, Pike R. Alpha, lvs1974, Austere.J, CVad, Sampath007, onemanosx, erroruser, Jenny David, Olarila Facebook Community, Hackintosh Facebook Community and many others!

      We're all here to have fun and learn from each other!
    • By ricardos7
      Boa tarde a todos, estou fazendo um hack em um notebook Dell 5557, as configurações estão abaixo.
      Preciso de ajuda para terminar alguns detalhes que nÃo consegui, alguém poderia ajudar?

      bem com a minha pasta EFI que pode ser baixada nesse post vc poderá fazer o seu hack mais facilmente nesse modelo,
      pois quase tudo ja esta configurado e pronto pra uso.

      ESPECIFICAÇÕES TÉCNICAS
      Processador Intel Core i7 - 6ª Geração Intel Core i7-6500U
      Velocidade: 2.5 GHz até 3.1 GHz com Max Turbo Cache: 4Mb
      Memória RAM Quantidade: 16GB DDR3L 1600MHz (2X8).
      Armazenamento Capacidade: 240 GB SSD
      Tela Tamanho:15.6” Resolução: FULL HD 1920x1080p Touch
      Webcam integrada de alta definição (720p) com microfone digital
      Gráfico Integrado Intel HD 520
      NVIDIA® GeForce 930M com 4GB DDR3 Dedicada
      Áudio Realteck ALC255

      Dell Wireless 1707 WiFi, chip ar9565
      1x  HDMI 1.4ª
      2x USB 3.0
      1x USB 2.0
      1x Ethernet 10/100 RJ-45
      1x Entrada de Cartão 5 em 1 (SD, SD 3.0, SDHC, MS e MS PRO)
      Leitor de Cartão
      Tipo: SD, SDHC, SD3.0, MS, MS Pro
      Alimentação Bivolt 3 células 43Wh


      O QUE NÃO FUNCIONA?
      BRILHO DA TELA
      BLUETOOTH
      SONO (Hibernação)
      HDMI (audio) video funciona mais a tela do note fica preta ao conectar o cabo HDMI
      GRAFICOS DEDICADOS NVIDEA 930M (DESATIVADO)

      O QUE FUNCIONA?

      GRAFICOS INTEL
      WI-FI - a intel original foi substituída pela DELL dw1707 ar9565
      AUDIO
      TECLADO
      TRACKPAD (com gestos)
      TOUCHSCREEN (com alguns gestos)
      TECLAS  DE ATALHO
      PLACA DE REDE RJ45
      GERENCIAMENTO DE ENERGIA

      OBS. PARA DESATIVAR OS GRÁFICOS FOI USANDO UMA SSDT EM CONJUNTO COM A DSDT-5 E 7, DEPOIS DE APLICADO ALGUNS PACHES.

      A DSDT E AS SSDT
      PACHS BASICOS APLICADOS.
      Aparentemente o gerenciamento de energia está funcionando bem, pelo menos o processador parece esta bem estável.



      PASTA OTHER CLOVER (DEPOIS DESSA IMAGEM FOI ADICIONADO MAIS DUAS KEXT QUE NAO ESTAO PRESENTES NA IMAGEM, PARA FUNCIONAR
      O TOUCH E PARA O WIFI CONSEGUIR ENCONTRAR AS REDES.



      EFI






      ESTAREI DEIXANDO UM LINK PARA DOWNLOAD DA MINHA PASTA EFI, CASO ALGUEM ESTEJA FAZENDO ESSE MESMO HACK ESSA PASTA PODERÁ AJUDAR.

      ATENÇÃO

      LEMBRANDO QUE OS ARQUIVOS DSDT E SSDT, SSDT DE 5 A 8 SÃO DO MEU NOTEBOOK, QUEM FOR USAR DEVER EXTRAIR E CONSTRUIR SEUS PRÓPRIOS DSDT E SSDT.
      O SSDT-EC E O SSDT-PNLF PODEM SER USADOS POIS SÃO GENERICOS.

      LINK DE DOWNLOAD EFI DELL 5557-P39F PARA COLOCAR NO PENDRIVER DE INSTALAÇÃO.
      https://drive.google.com/open?id=1nPM2CNgpr7cwOkjwj7UReziqrh9xjtf1
      SE NAO SUBIR COM A Config.plist INICIAL SELECIONE A Config2.plist

      LINK DE DOWNLOAD EFI DELL 5557-P39F (EM USO) 14/02/2020
      https://drive.google.com/open?id=1US7j-YlufrFTasLihmUZwElyV4jBfHDg

      LINK DE DOWNLOAD EFI DELL 5557-P39F (ANTIGA)
      https://drive.google.com/open?id=1Q2tnoqQZ9K44Bv6k2k1yauaHCAop_ZyW

      QUEM PUDER AJUDAR A CORRIGIR OS PROBLEMAS RESTANTE EU AGRADEÇO, OBRIGADO.



×
