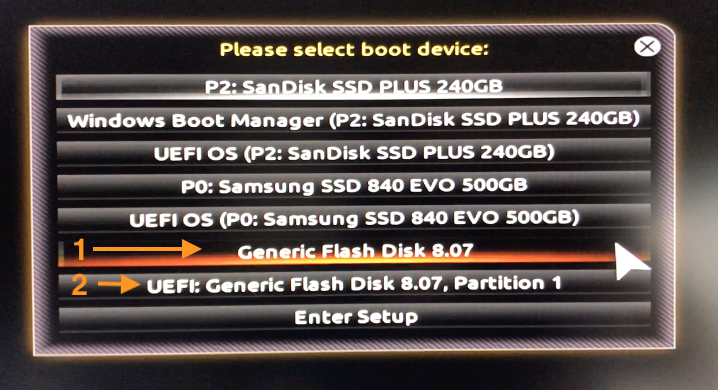

bleedingstar Posted June 20, 2019 Share Posted June 20, 2019 12 hours ago, glasgood said: Hi, On the USB installer there are two partitions, one partition with macOS Majave installer and second with Clover EFI boot image, you want to ensure you choose the partition on USB that starts with UEFI: (No 2 in screen shot below ) for instance, choosing the wrong partition, example Generic Flash Disk 8.07 on the USB installer will result in the Aorus logo appearing: followed by a redirect back to boot menu, as per below. Selecting UEFI: partition you would arrive at Clover boot Screen: USB 3.0 installer should work, did you try alternative USB ports. Please ensure you create USB installer as per this guide and it will work, double check that you placed the EFI folder inside the EFI partition. Thank you for the speedy reply. I tried both the usb as the efi of the usb, both got me back in to the boot select screen. The first fix that got me closer was changing my smbios to iMac 19.1, I assumed that would fit my system better as I have an i9900k and a Vega-56. The result then was that selecting the efi got me a strange green 3/D clover screen but every option there led me to the no parking sign. The next thing I tried was add a Vega 56 kext from a different build guide, switched virtualsmc with fakesmc and tried again. Its booting now, and although I haven't had the time to test everything at least the ssd speeds are finally as they should be! Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/27/#findComment-2678409 Share on other sites More sharing options...
glasgood Posted June 20, 2019 Author Share Posted June 20, 2019 31 minutes ago, bleedingstar said: Thank you for the speedy reply. I tried both the usb as the efi of the usb, both got me back in to the boot select screen. The first fix that got me closer was changing my smbios to iMac 19.1, I assumed that would fit my system better as I have an i9900k and a Vega-56. The result then was that selecting the efi got me a strange green 3/D clover screen but every option there led me to the no parking sign. The next thing I tried was add a Vega 56 kext from a different build guide, switched virtualsmc with fakesmc and tried again. Its booting now, and although I haven't had the time to test everything at least the ssd speeds are finally as they should be! Can you attach your EFI folder. Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/27/#findComment-2678414 Share on other sites More sharing options...
bleedingstar Posted June 20, 2019 Share Posted June 20, 2019 (edited) 2 hours ago, glasgood said: Can you attach your EFI folder. This is my EFI folder before doing any post-install changes. (deleted the APPLE folder because of upload size limit) I'm now going to try to replace this folder with your post folder, and I'll add the VegaTab_56.kext and replace virtualsmc with fakesmc. I was comparing the config.plist of the pre and post EFI folders and I'm noticing a lot of changes. I would be curious to know the motivation behind them, do you have some info on this? Or maybe a good source where I can read some more about it? EDIT: I replaced my EFI Folder (the one attached) with the post install EFI from the guide, and added the vegetab_56 and the fakesmc as mentioned above. The system booted but after a minute or two it went into sleep mode, and on restart gave me a kernel panic. I then tried to just use the Post Install EFI without my additions, same story. I reverted back to the EFI Folder from before and its not booting again. Strangely every time I startup I get asked to login to ICLOUD again. EFI - backup 20-06.zip Edited June 20, 2019 by bleedingstar Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/27/#findComment-2678423 Share on other sites More sharing options...
glasgood Posted June 20, 2019 Author Share Posted June 20, 2019 19 minutes ago, bleedingstar said: This is my EFI folder before doing any post-install changes. (deleted the APPLE folder because of upload size limit) I'm now going to try to replace this folder with your post folder, and I'll add the VegaTab_56.kext and replace virtualsmc with fakesmc. I was comparing the config.plist of the pre and post EFI folders and I'm noticing a lot of changes. I would be curious to know the motivation behind them, do you have some info on this? Or maybe a good source where I can read some more about it? EFI - backup 20-06.zip Try using this EFI as your post install ==> POST-INSTALL Aorus Pro Z390 EFI - AMD.zip Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/27/#findComment-2678430 Share on other sites More sharing options...
bleedingstar Posted June 20, 2019 Share Posted June 20, 2019 (edited) 9 minutes ago, glasgood said: Try using this EFI as your post install ==> POST-INSTALL Aorus Pro Z390 EFI - AMD.zip Nope, doesn't work. It starts again as soon as I revert the EFI to the pre-install version. Edited June 20, 2019 by bleedingstar Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/27/#findComment-2678433 Share on other sites More sharing options...

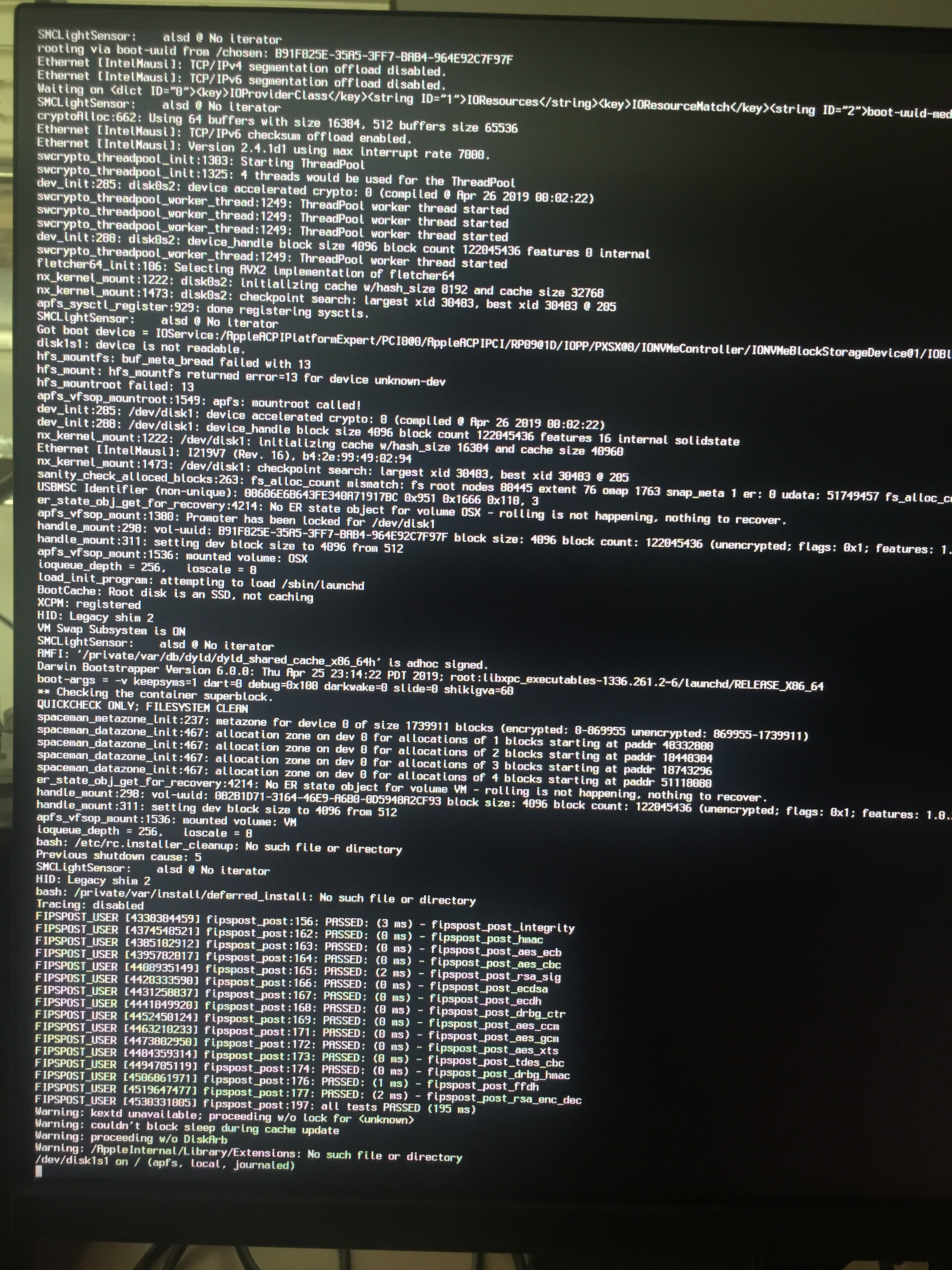

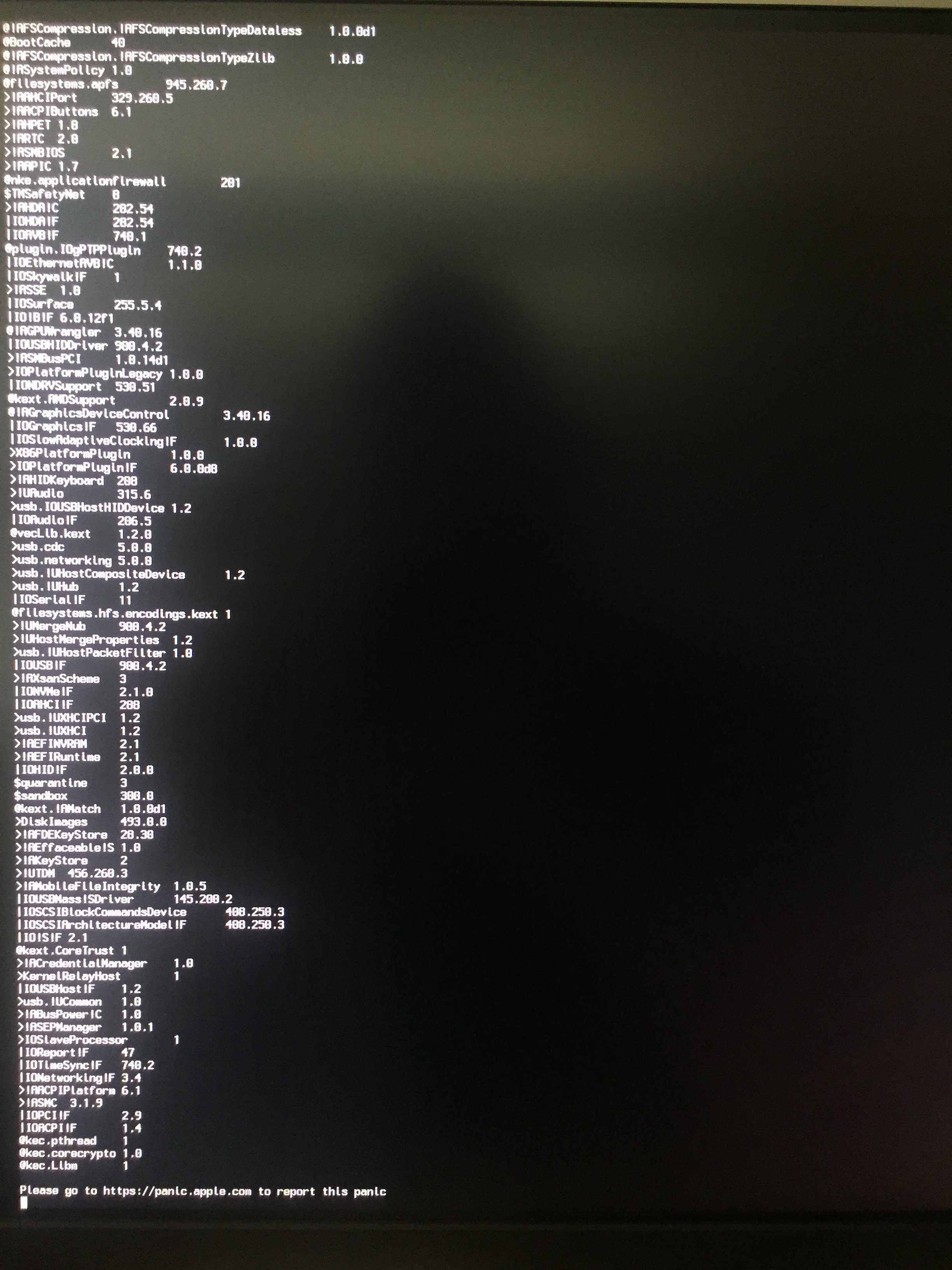

glasgood Posted June 20, 2019 Author Share Posted June 20, 2019 6 minutes ago, bleedingstar said: Nope, doesn't work. It starts again as soon as I revert the EFI to the pre-install version. When you arrived at the kernel panic below: Did you attempt a second boot ? Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/27/#findComment-2678434 Share on other sites More sharing options...
bleedingstar Posted June 20, 2019 Share Posted June 20, 2019 (edited) 15 minutes ago, glasgood said: When you arrived at the kernel panic below: Did you attempt a second boot ? I didn't remember so I reverted back to your AMD Post-efi and rebooted. Worked on the first boot. Restarted to see if it would work the second time and I got the panic again. Tried a third time and It worked again. Very strange EDIT: Chose restart (don't reopen windows) panic again.. EDIT2: After the last reboot it refuses to boot even after restarting several times. Reverted back to pre-install EFI: boots fine Do you have a suspicion why this would be? Edited June 20, 2019 by bleedingstar Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/27/#findComment-2678436 Share on other sites More sharing options...
glasgood Posted June 20, 2019 Author Share Posted June 20, 2019 (edited) 30 minutes ago, bleedingstar said: I didn't remember so I reverted back to your AMD Post-efi and rebooted. Worked on the first boot. Restarted to see if it would work the second time and I got the panic again. Tried a third time and It worked again. Very strange EDIT: Chose restart (don't reopen windows) panic again.. Do you have a suspicion why this would be? I tested last EFI on my Hack test drive, and it works. Though sometimes, when making large configuration changes it seems that something triggers firmware to cause a panic, but subsequent boots thereafter are normal. Have a look at my latest ==> BIOS settings Edited June 20, 2019 by glasgood Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/27/#findComment-2678439 Share on other sites More sharing options...
bleedingstar Posted June 20, 2019 Share Posted June 20, 2019 24 minutes ago, glasgood said: I tested last EFI on my Hack test drive, and it works. Though sometimes, when making large configuration changes it seems that something triggers firmware to cause a panic, but subsequent boots thereafter are normal. Have a look at my latest ==> BIOS settings Thank you very much. I used your screen dump to change my bios settings ( I was surprised many settings had to be changed) and now it boots consistently. I have a question about the post install EFI. What are the major differences between these two configurations? I'd like to understand it a little better. Thank you again for your help, truly a sage! Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/27/#findComment-2678443 Share on other sites More sharing options...
glasgood Posted June 20, 2019 Author Share Posted June 20, 2019 2 minutes ago, bleedingstar said: Thank you very much. I used your screen dump to change my bios settings ( I was surprised many settings had to be changed) and now it boots consistently. I have a question about the post install EFI. What are the major differences between these two configurations? I'd like to understand it a little better. Thank you again for your help, truly a sage! The pre-install EFI has port limit patches enabled, and different SMBIOS. I suppose it could be cleaned up a little, but would require more of my time and I know it is good for installing macOS Mojave on Aorus Pro Z390, so I don't bother with it as is serves a purpose. My post-install EFI has ports limit patch removed, and properties injected via devices in config.plist. Glad to see you are sorted! Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/27/#findComment-2678445 Share on other sites More sharing options...
bleedingstar Posted June 20, 2019 Share Posted June 20, 2019 (edited) 8 minutes ago, glasgood said: The pre-install EFI has port limit patches enabled, and different SMBIOS. I suppose it could be cleaned up a little, but would require more of my time and I know it is good for installing macOS Mojave on Aorus Pro Z390, so I don't bother with it as is serves a purpose. My post-install EFI has ports limit patch removed, and properties injected via devices in config.plist. Glad to see you are sorted! I see. Thank you again! I'm now trying to repair the eject after sleep issue. but it seems that the link you provided might not be up to date: git clone https://github.com/syscl/Fix-usb-sleep I managed to manually download the folder from GitHub. And tried to place it in the user folder (it looked to me as if the second command was looking for the .sh there.) But I keep getting "no such file or directory" edit: Never mind, I believe there was a space behind the command.. Edited June 20, 2019 by bleedingstar Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/27/#findComment-2678448 Share on other sites More sharing options...
glasgood Posted June 20, 2019 Author Share Posted June 20, 2019 (edited) 16 minutes ago, bleedingstar said: I see. Thank you again! I'm now trying to repair the eject after sleep issue. but it seems that the link you provided might not be up to date: git clone https://github.com/syscl/Fix-usb-sleep I managed to manually download the folder from GitHub. And tried to place it in the user folder (it looked to me as if the second command was looking for the .sh there.) But I keep getting "no such file or directory" edit: Never mind, I believe there was a space behind the command.. Yeah, seems not to be working, was working few days ago. Script can be installed using: curl -o ./fixUSB.sh https://raw.githubusercontent.com/syscl/Fix-usb-sleep/master/fixUSB.sh chmod +x ./fixUSB.sh ./fixusb.sh Edited June 20, 2019 by glasgood Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/27/#findComment-2678453 Share on other sites More sharing options...
glasgood Posted June 20, 2019 Author Share Posted June 20, 2019 @bleedingstar Thanks, I updated the guide. 1 Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/27/#findComment-2678454 Share on other sites More sharing options...
BSouza Posted June 20, 2019 Share Posted June 20, 2019 I've followed the tutorial and installed mac os, but I'm having problems with the usb. the 2.0 are running normal, but the 3.0 only 2 ports are working (the ones on the front of the case). How can I fix this? thank you Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/27/#findComment-2678501 Share on other sites More sharing options...
glasgood Posted June 20, 2019 Author Share Posted June 20, 2019 (edited) @BSouza What are your full system specifications ? Edited June 20, 2019 by glasgood Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/27/#findComment-2678503 Share on other sites More sharing options...
BSouza Posted June 20, 2019 Share Posted June 20, 2019 4 minutes ago, glasgood said: @BSouza What are your full system specifications ? Z390 aorus pro I7 9700k (using uhd 630 until my rx580 arrives) 32gb 2400mhz Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/27/#findComment-2678506 Share on other sites More sharing options...
glasgood Posted June 20, 2019 Author Share Posted June 20, 2019 9 minutes ago, BSouza said: Z390 aorus pro I7 9700k (using uhd 630 until my rx580 arrives) 32gb 2400mhz @BSouza try this updated intel EFI ===> POST-INSTALL Aorus Pro Z390 EFI - Intel UHD630.zip Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/27/#findComment-2678508 Share on other sites More sharing options...
BSouza Posted June 20, 2019 Share Posted June 20, 2019 7 minutes ago, glasgood said: @BSouza try this updated intel EFI ===> POST-INSTALL Aorus Pro Z390 EFI - Intel UHD630.zip Ok @glasgood, thanks... Is this EFI different from the one at the beginning of the post? because I used the EFI that I downloaded yesterday at the beginning of the guide. Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/27/#findComment-2678512 Share on other sites More sharing options...
glasgood Posted June 20, 2019 Author Share Posted June 20, 2019 1 minute ago, BSouza said: Ok @glasgood, thanks... Is this EFI different from the one at the beginning of the post? because I used the EFI that I downloaded yesterday at the beginning of the guide. Yes, it's different. Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/27/#findComment-2678513 Share on other sites More sharing options...
BSouza Posted June 20, 2019 Share Posted June 20, 2019 Just now, glasgood said: Yes, it's different. ahhhh ok, i will try NOW! thanks Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/27/#findComment-2678514 Share on other sites More sharing options...
glasgood Posted June 20, 2019 Author Share Posted June 20, 2019 Just now, BSouza said: ahhhh ok, i will try NOW! thanks Replace config.plist in the last EFI folder that I just attached with this one ==> config.plist ( I removed two device properties that are not needed ) 1 Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/27/#findComment-2678515 Share on other sites More sharing options...
glasgood Posted June 20, 2019 Author Share Posted June 20, 2019 @BSouza Ensure you are using latest BIOS settings == > BIOS SreenDumps Z390 Aorus Pro.zip ( but keep your BIOS settings required for Intel Graphics only) Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/27/#findComment-2678517 Share on other sites More sharing options...
BSouza Posted June 20, 2019 Share Posted June 20, 2019 2 minutes ago, glasgood said: @BSouza Ensure you are using latest BIOS settings == > BIOS SreenDumps Z390 Aorus Pro.zip ( but keep your BIOS settings required for Intel Graphics only) Ok, i will replace the config plist into the last folder that you send me, and restart and check all the screens on the boot. Thanks Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/27/#findComment-2678518 Share on other sites More sharing options...
glasgood Posted June 20, 2019 Author Share Posted June 20, 2019 (edited) 29 minutes ago, BSouza said: Ok, i will replace the config plist into the last folder that you send me, and restart and check all the screens on the boot. Thanks @BSouza If you encounter a kernel panic at boot, then reboot. Sometimes switching EFI folders that's had many changes can trigger panic. But subsequent boots are then normal. Edited June 20, 2019 by glasgood Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/27/#findComment-2678525 Share on other sites More sharing options...
BSouza Posted June 20, 2019 Share Posted June 20, 2019 15 minutes ago, glasgood said: @BSouza If you encounter a kernel panic at boot, then reboot. Sometimes changing EFI folder that's had many changes can trigger panic. But subsequent boots are then normal. I had some problems while doing the process: 1 - my external hd apparently worked on USB 3.0 ports 2 - sleep is not working, after I click on sleep, the screen goes black and the pc is still on, after a period it turned the screen back on its own, but the mouse click did not work nor the keyboard keys 3 - After locking in sleep I was forced to manually turn off the pc, and the motherboard lights do not turn off after the forced shutdown. PS. I did not have a kernel panic. Link to comment https://www.insanelymac.com/forum/topic/337837-glasgoods-macos-mojave-successguide-for-aorus-z390-pro/page/27/#findComment-2678534 Share on other sites More sharing options...
