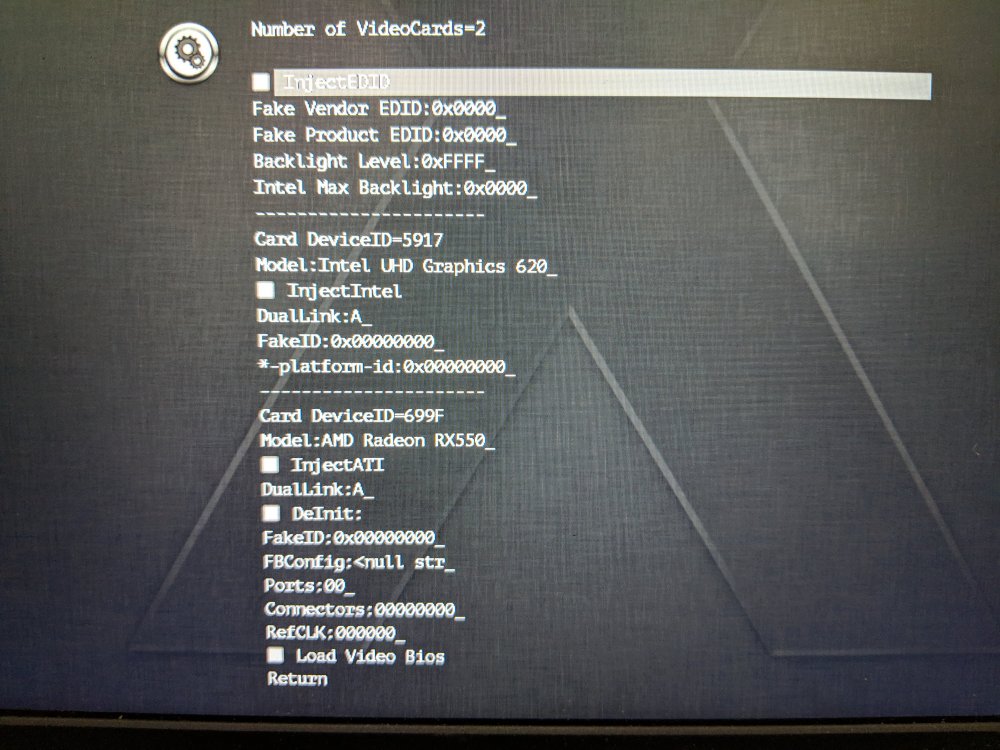

Ranjith Varatharajan Posted December 27, 2018 Share Posted December 27, 2018 Hi, I have installed a Hackintosh. I can see the AMD Graphics card in the clover boot option. but Its not showing in the system information. My System info -> Lenovo 330s 8th Gen Intel® Quad Core i5-8250U 8 GB Ram AMD Radeon 550 4GB I'm a noob in hackintoshing. Any leads would be appreciated. Thanks. Link to comment https://www.insanelymac.com/forum/topic/337037-amd-radeon-rx-550-not-working/ Share on other sites More sharing options...
C.Frio Posted December 27, 2018 Share Posted December 27, 2018 hi... there is some talk here.. c.frio Link to comment https://www.insanelymac.com/forum/topic/337037-amd-radeon-rx-550-not-working/#findComment-2655950 Share on other sites More sharing options...
foskvs Posted December 27, 2018 Share Posted December 27, 2018 You have a laptop (with wrong SMBIOS). RX 550 is very likely switched (similar to Nvidia Optimus). Link to comment https://www.insanelymac.com/forum/topic/337037-amd-radeon-rx-550-not-working/#findComment-2655977 Share on other sites More sharing options...
Ranjith Varatharajan Posted December 28, 2018 Author Share Posted December 28, 2018 (edited) Ok, So I have formatted the laptop again to windows and checked with CPU-Z and My Graphic card is actually Radeon 540 4GB not Radeon RX 550. I still don't know how clover is recognizing the GPU as RX 550. Please let me know how to solve it. I'll try to install hackintosh again this evening. Edited December 28, 2018 by Ranjith Varatharajan Link to comment https://www.insanelymac.com/forum/topic/337037-amd-radeon-rx-550-not-working/#findComment-2656035 Share on other sites More sharing options...

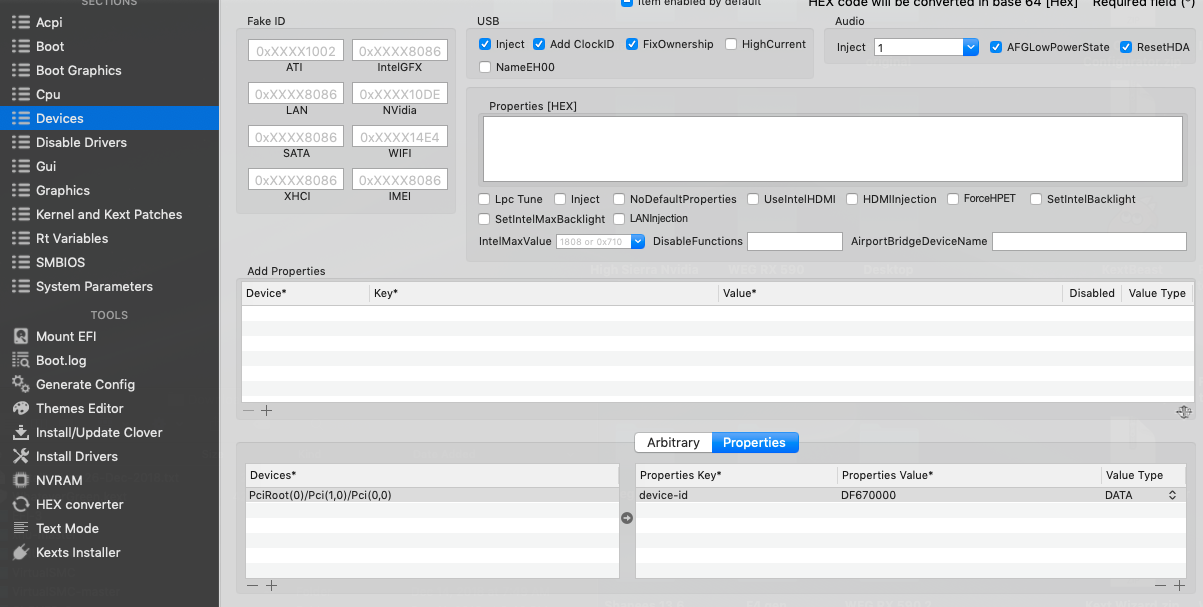

Gigamaxx Posted December 28, 2018 Share Posted December 28, 2018 RX 550, 540 is actually Lexa architecture, not Polaris. However, the Hades Canyon NUC with Vega graphics has a similar setup but it has HBM2 and it has been somewhat supported/splved. The fix is in Clover/Devices/Properties using injection. Set Inject ATi=false, no fake ID just use this Clover configuration for testing. 1 Link to comment https://www.insanelymac.com/forum/topic/337037-amd-radeon-rx-550-not-working/#findComment-2656037 Share on other sites More sharing options...

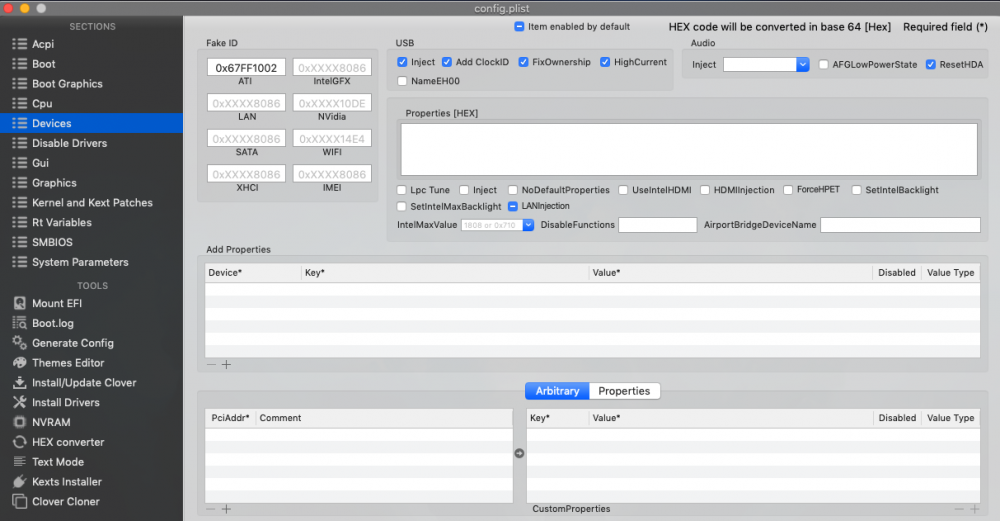

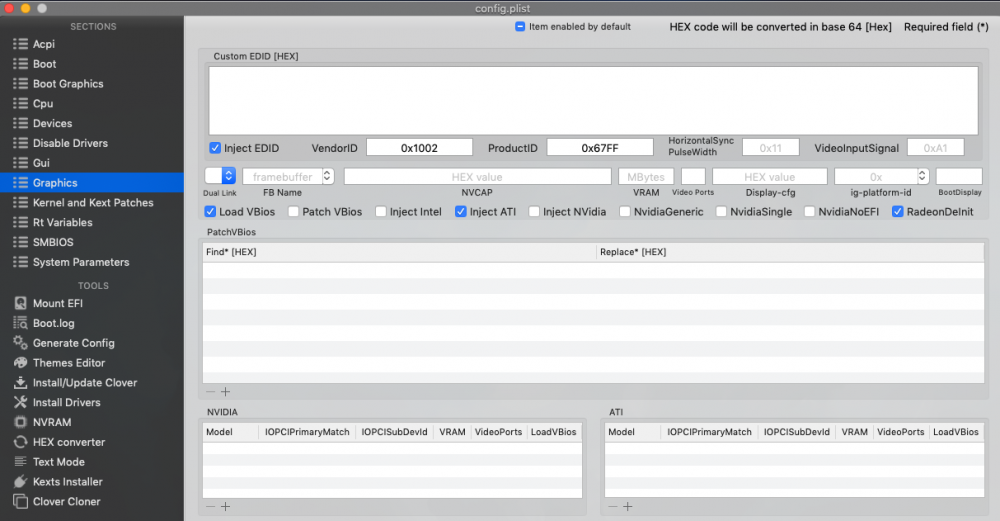

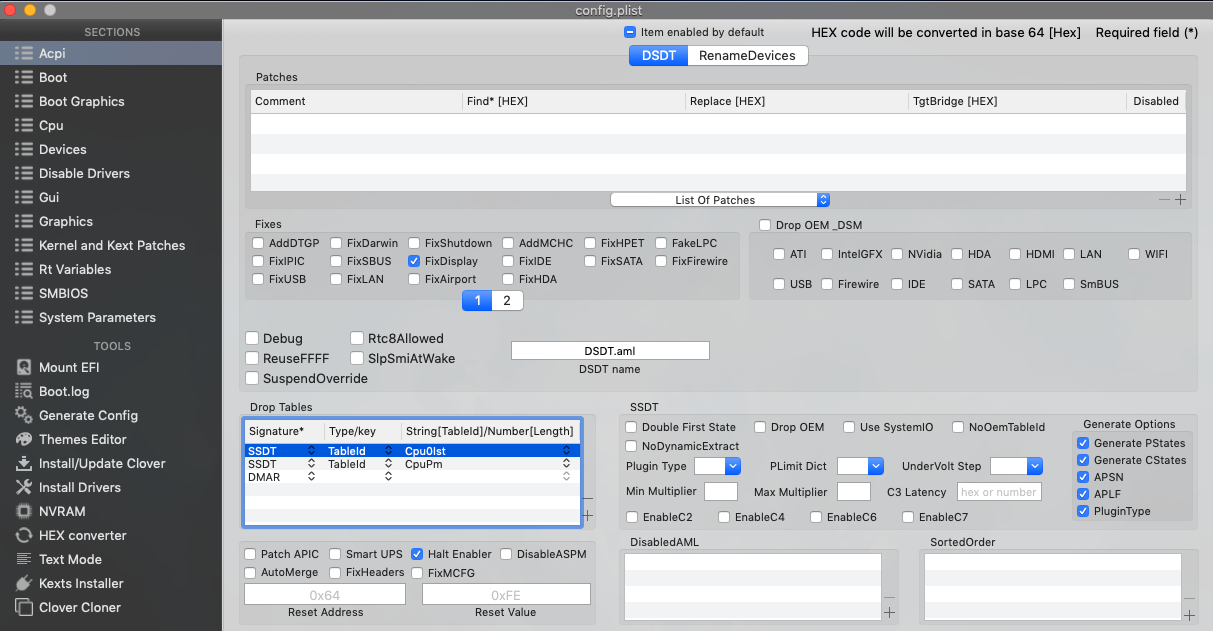

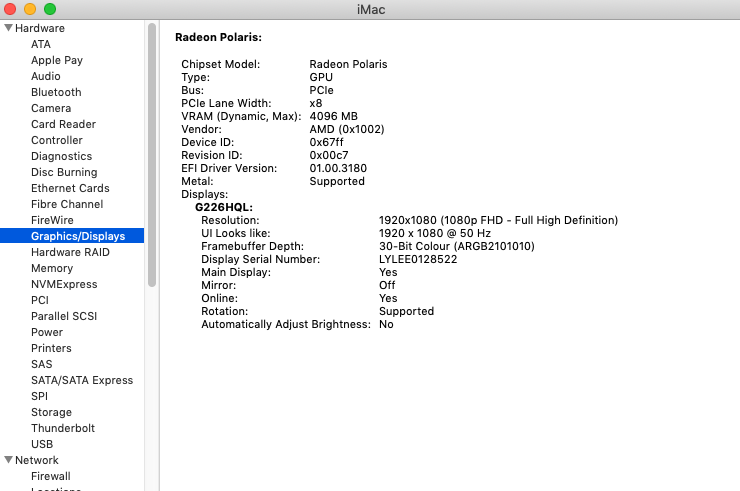

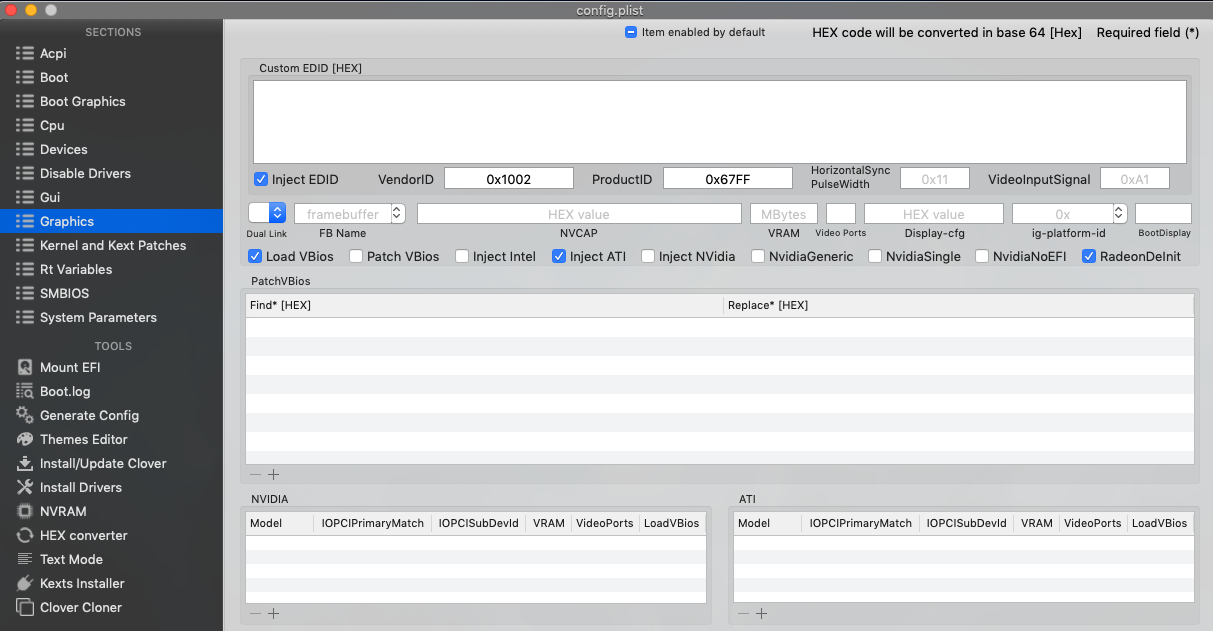

noserider Posted March 9, 2019 Share Posted March 9, 2019 My RX 550 works. Full acceleration QE. Metal enabled. Card is original device id 0x699f See attached images for config.plist configuration. Above : 10.14.3 Mojave ATI RX 550 2 Link to comment https://www.insanelymac.com/forum/topic/337037-amd-radeon-rx-550-not-working/#findComment-2666423 Share on other sites More sharing options...
Gigamaxx Posted March 10, 2019 Share Posted March 10, 2019 What brand is it? sapphire? Link to comment https://www.insanelymac.com/forum/topic/337037-amd-radeon-rx-550-not-working/#findComment-2666450 Share on other sites More sharing options...
ITzTravelInTime Posted March 11, 2019 Share Posted March 11, 2019 (edited) On 3/10/2019 at 3:15 AM, Gigamaxx said: What brand is it? sapphire? @RehabMan did get the saphyre pulse to work, the problem is that the metal driver does not pick up the graphics card Edited March 12, 2019 by ITzTravelInTime Link to comment https://www.insanelymac.com/forum/topic/337037-amd-radeon-rx-550-not-working/#findComment-2666645 Share on other sites More sharing options...
noserider Posted March 17, 2019 Share Posted March 17, 2019 On 3/10/2019 at 3:15 AM, Gigamaxx said: What brand is it? sapphire? It's an MSI. This one exactly: https://www.amazon.com/MSI-RX-550-4GT-LP/dp/B07DLTH1YT/ref=sr_1_fkmrnull_1?keywords=rx+550+msi+4gb&qid=1552843841&s=gateway&sr=8-1-fkmrnull Link to comment https://www.insanelymac.com/forum/topic/337037-amd-radeon-rx-550-not-working/#findComment-2667279 Share on other sites More sharing options...
noserider Posted March 17, 2019 Share Posted March 17, 2019 On 3/11/2019 at 9:42 PM, ITzTravelInTime said: @RehabMan did get the saphyre pulse to work, the problem is that the metal driver does not pick up the graphics card It picked up mine perfectly with the config.plist as described above (FixDisplay, Fake ID, Inject EDID, LoadVBIOS, RadeonDeInit, InjectATI to the values given) and worked well for a couple of weeks booting perfectly. Now, for some reason that I don't know, the display port is not recognized. Haven't upgraded anything. Happened from one day to the next. My card has two display ports, a HDMI and a DVI. I need to manually switch to the HDMI port, then I get a perfect picture. System boots perfect, but goes blank a little before finishing the boot and won't present an image on the monitor, whatever port is connected. If I boot with DVI, I need to manually switch cables to the HDMI port of the card and the display is perfect again. If I boot with HDMI cable connected, I have to manually switch to the DVI port of the card, display gives me a perfect resolution but purple screen. When I switch back to the card's HDMI port again, monitor is having a perfect display (resolution, metal, QE, all well) Again, it worked really well for some weeks. Had booted right into the correct screen resolution without purple color or need to switch cables. Anybody an idea ? Link to comment https://www.insanelymac.com/forum/topic/337037-amd-radeon-rx-550-not-working/#findComment-2667283 Share on other sites More sharing options...
Gigamaxx Posted March 17, 2019 Share Posted March 17, 2019 1 minute ago, noserider said: It picked up mine perfectly with the config.plist as described above (FixDisplay, Fake ID, Inject EDID, LoadVBIOS, RadeonDeInit, InjectATI to the values given) and worked well for a couple of weeks booting perfectly. Now, for some reason that I don't know, the display port is not recognized. Haven't upgraded anything. Happened from one day to the next. My card has two display ports, a HDMI and a DVI. I need to manually switch to the HDMI port, then I get a perfect picture. System boots perfect, but goes blank a little before finishing the boot and won't present an image on the monitor, whatever port is connected. If I boot with DVI, I need to manually switch cables to the HDMI port of the card and the display is perfect again. If I boot with HDMI cable connected, I have to manually switch to the DVI port of the card, display gives me a perfect resolution but purple screen. When I switch back to the card's HDMI port again, monitor is having a perfect display (resolution, metal, QE, all well) Again, it worked really well for some weeks. Had booted right into the correct screen resolution without purple color or need to switch cables. Anybody an idea ? Have you tried framebuffers like Acre? Or others, there is a tab in Clover Configurator that should give you some options. Link to comment https://www.insanelymac.com/forum/topic/337037-amd-radeon-rx-550-not-working/#findComment-2667284 Share on other sites More sharing options...
noserider Posted March 17, 2019 Share Posted March 17, 2019 Will try. I am using these kexts. Link to comment https://www.insanelymac.com/forum/topic/337037-amd-radeon-rx-550-not-working/#findComment-2667285 Share on other sites More sharing options...
noserider Posted March 17, 2019 Share Posted March 17, 2019 51 minutes ago, Gigamaxx said: Have you tried framebuffers like Acre? Or others, there is a tab in Clover Configurator that should give you some options. Have tried the 'Acre' framebuffer and a couple of others (like 'Radeon'). None worked. Actually, when using these framebuffers, I won't get a screen at all, even after switching cables. Boots well, but no screen at all with the framebuffers I had selected so far. Any hint ? Link to comment https://www.insanelymac.com/forum/topic/337037-amd-radeon-rx-550-not-working/#findComment-2667286 Share on other sites More sharing options...
Gigamaxx Posted March 17, 2019 Share Posted March 17, 2019 2 hours ago, noserider said: Have tried the 'Acre' framebuffer and a couple of others (like 'Radeon'). None worked. Actually, when using these framebuffers, I won't get a screen at all, even after switching cables. Boots well, but no screen at all with the framebuffers I had selected so far. Any hint ? WEG sets fame buffer automatically, test without lilu and WEG. Link to comment https://www.insanelymac.com/forum/topic/337037-amd-radeon-rx-550-not-working/#findComment-2667301 Share on other sites More sharing options...
wondy Posted March 19, 2019 Share Posted March 19, 2019 Hi, I have the same msi rx550 graphic board, but the qe/ci doesn't work fine, all 3d games doesn't starts. Where is the problems ?? Maybe due to a my motherboard ? (asrock h67m-itx) ?? Link to comment https://www.insanelymac.com/forum/topic/337037-amd-radeon-rx-550-not-working/#findComment-2667407 Share on other sites More sharing options...
wondy Posted March 19, 2019 Share Posted March 19, 2019 On 3/17/2019 at 6:31 PM, noserider said: It's an MSI. This one exactly: https://www.amazon.com/MSI-RX-550-4GT-LP/dp/B07DLTH1YT/ref=sr_1_fkmrnull_1?keywords=rx+550+msi+4gb&qid=1552843841&s=gateway&sr=8-1-fkmrnull Which mother board you got ? Please can you share your efi folder ? Link to comment https://www.insanelymac.com/forum/topic/337037-amd-radeon-rx-550-not-working/#findComment-2667409 Share on other sites More sharing options...
antimidas2007 Posted April 8, 2019 Share Posted April 8, 2019 this worked for my saphire pulse rx 550 4gb. occasional hiccups, but gonna keep messing with it Link to comment https://www.insanelymac.com/forum/topic/337037-amd-radeon-rx-550-not-working/#findComment-2669462 Share on other sites More sharing options...
josephkarl Posted April 10, 2019 Share Posted April 10, 2019 (edited) I have tried many ways to get it fixed but the main thing is that nothing had happened and by the post, I can understand the main process of getting it fixed. the Radeon Rx 550 issue has to be fixed. I have gone through outlook 0x8004010f while accessing the module by connecting the email. Edited April 10, 2019 by josephkarl abcd Link to comment https://www.insanelymac.com/forum/topic/337037-amd-radeon-rx-550-not-working/#findComment-2669663 Share on other sites More sharing options...
//Zztony Posted May 11, 2019 Share Posted May 11, 2019 Hi, any progress solving the RX550 issue? I would also like to have my AMD Radeon RX 550 4GB LP to work with Mojave. I also tried the Clover-Mod way, with no success . I am not experienced using DSDT modding, can someone guide me? Thanks//Zztony Link to comment https://www.insanelymac.com/forum/topic/337037-amd-radeon-rx-550-not-working/#findComment-2673343 Share on other sites More sharing options...

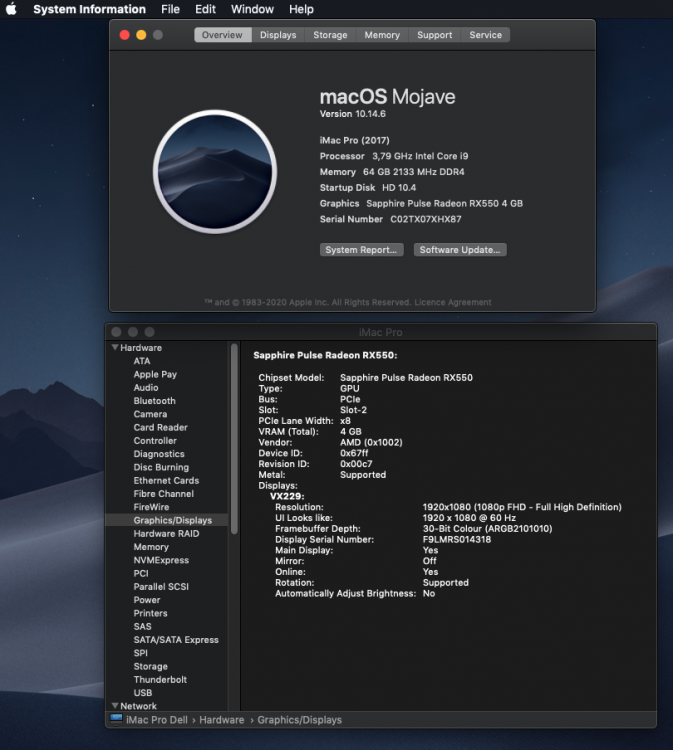

kahiser Posted April 23, 2020 Share Posted April 23, 2020 (edited) HI friends, I leave you with another method that I perform through DDTS, for a Radeon RX550, in my case 4gb in MOJABE, is valid for both GPUs and HDMI audio, simply change the ACPI values in your table. Data to be modified: PC_youdata BR_youdata SL_youdata There are NO extra settings to be made in CLOVER SSDT-DELL-5820-X299-RX550.aml.zip I hope you enjoy Edited April 23, 2020 by kahiser Link to comment https://www.insanelymac.com/forum/topic/337037-amd-radeon-rx-550-not-working/#findComment-2718883 Share on other sites More sharing options...
luketto Posted April 26, 2020 Share Posted April 26, 2020 Hi , i have Rx550 4gb LP with i3 2120, How can put this SSDT in my clover? have i Rename it and put in patch folder? I've tryed, but it dont' work, i attach my efi folder in this post, Please help me, it's a month that i can't resolve the problem. Catalina starts, but HDMI don't work immediatelly, it work only after stop and Wake, but DVI Port Work . Thank you for support. On 4/23/2020 at 10:39 AM, kahiser said: HI friends, I leave you with another method that I perform through DDTS, for a Radeon RX550, in my case 4gb in MOJABE, is valid for both GPUs and HDMI audio, simply change the ACPI values in your table. Data to be modified: PC_youdata BR_youdata SL_youdata There are NO extra settings to be made in CLOVER SSDT-DELL-5820-X299-RX550.aml.zip I hope you enjoy EFI.zip Link to comment https://www.insanelymac.com/forum/topic/337037-amd-radeon-rx-550-not-working/#findComment-2719372 Share on other sites More sharing options...
jeffer1312 Posted May 18, 2020 Share Posted May 18, 2020 On 4/23/2020 at 5:39 AM, kahiser said: HI friends, I leave you with another method that I perform through DDTS, for a Radeon RX550, in my case 4gb in MOJABE, is valid for both GPUs and HDMI audio, simply change the ACPI values in your table. Data to be modified: PC_youdata BR_youdata SL_youdata There are NO extra settings to be made in CLOVER SSDT-DELL-5820-X299-RX550.aml.zip I hope you enjoy you can explain how i do that? Link to comment https://www.insanelymac.com/forum/topic/337037-amd-radeon-rx-550-not-working/#findComment-2722887 Share on other sites More sharing options...
iGeatTech Posted August 15, 2020 Share Posted August 15, 2020 On 4/23/2020 at 3:39 PM, kahiser said: HI friends, I leave you with another method that I perform through DDTS, for a Radeon RX550, in my case 4gb in MOJABE, is valid for both GPUs and HDMI audio, simply change the ACPI values in your table. Data to be modified: PC_youdata BR_youdata SL_youdata There are NO extra settings to be made in CLOVER SSDT-DELL-5820-X299-RX550.aml.zip I hope you enjoy hi can you show setting for this ssd in clover configuration. many thanks. Link to comment https://www.insanelymac.com/forum/topic/337037-amd-radeon-rx-550-not-working/#findComment-2734256 Share on other sites More sharing options...
