Shogun212 Posted November 10, 2018 Share Posted November 10, 2018 I'm currently running Mac OS Mojave 10.14.1 Here's what i need help with: 1. Wifi (already tried AirPortAtheros40.kext) 2. Bluetooth 3. Sleep 4. Battery percentage Note: I can't do DSDT patching, tried it many times, and i failed. That's just beyond my capabilities. I really hope someone can help me, i've been busting my head for days. My RunMe app file: https://drive.google.com/file/d/1UiINerfHqKFzZYvV9hb0hzdyLqA48rOV/view?usp=sharing My specs: https://drive.google.com/file/d/1d47b7YXOAitKSYvA9Z6Ojv57ThqXzZxJ/view?usp=sharing Link to comment Share on other sites More sharing options...
SavageAUS Posted November 11, 2018 Share Posted November 11, 2018 17 hours ago, Shogun212 said: I'm currently running Mac OS Mojave 10.14.1 Here's what i need help with: 1. Wifi (already tried AirPortAtheros40.kext) 2. Bluetooth 3. Sleep 4. Battery percentage Note: I can't do DSDT patching, tried it many times, and i failed. That's just beyond my capabilities. I really hope someone can help me, i've been busting my head for days. My RunMe app file: https://drive.google.com/file/d/1UiINerfHqKFzZYvV9hb0hzdyLqA48rOV/view?usp=sharing My specs: https://drive.google.com/file/d/1d47b7YXOAitKSYvA9Z6Ojv57ThqXzZxJ/view?usp=sharing System specs should be in your signature. I have never seen that many kexts in one folder. I am not downloading a .rar folder to see system specs WiFi? Depends on the card, if its intel it will never work. Bluetooth? Depends on above. Sleep? Lid sleep or apple menu sleep? Battery percentage requires a DSDT patch, the right one depends on make and model of laptop. You have that many kexts its hard to work out your hardware but your cpu info shows a i5 5200u? Which makes these kexts not needed: XHCI-200-series-injector.kext, XHCI-300-series-injector.kext, XHCI-x99-injector.kext WhateverGreen.kext replaces IntelGraphicsDVMTFixup.kext, IntelGraphicsFixup.kext. Touchpad: Which is it? Pick one, ApplePS2SmartTouchPad.kext, VoodooPS2Controller.kext. Audio: again pick one method not all. AppleALC.kext + Lilu.kext or VoodooHDA.kext NullCPUPowerManagement.kext is that needed with clover anymore? Backlight: Again pick one, AppleBacklightFixup.kext or AppleBacklightInjector.kext Please find trimmed down kexts attached and modified config. NOTE: Battery will still not work Do you use a patched DSDT already? Kexts.zip config.plist Link to comment Share on other sites More sharing options...
Shogun212 Posted November 11, 2018 Author Share Posted November 11, 2018 @SavageAUS Okay, let me fill you in with the specs first so we can work from there. Motherboard: Asus X555LJ CPU: i5 5200u (Broadwell) Ethernet: RTL8168/8111 Wireless Network Adapter: Qualcomm Atheros 9565 / AR9565 GPU: Intel HD 5500 Audio: Realtek High Definition Audio I meant lid sleep. About the patched dsdt, i used only the ones that came with kexts that i downloaded. If you need any more info, please let me know. Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted November 11, 2018 Share Posted November 11, 2018 [mention=1083558]SavageAUS[/mention] Okay, let me fill you in with the specs first so we can work from there. Motherboard: Asus X555LJ CPU: i5 5200u (Broadwell) Ethernet: RTL8168/8111 Wireless Network Adapter: Qualcomm Atheros 9565 / AR9565 GPU: Intel HD 5500 Audio: Realtek High Definition Audio I meant lid sleep. About the patched dsdt, i used only the ones that came with kexts that i downloaded. If you need any more info, please let me know. First, put all kext to efi/clover/kexts/others. Then run "runme.app". And upload the file.Don't forget to press F4 at GUI CloverSent from my Mi Note 2 using Tapatalk Link to comment Share on other sites More sharing options...
SavageAUS Posted November 12, 2018 Share Posted November 12, 2018 On 11/11/2018 at 11:02 PM, Shogun212 said: @SavageAUS Okay, let me fill you in with the specs first so we can work from there. Motherboard: Asus X555LJ CPU: i5 5200u (Broadwell) Ethernet: RTL8168/8111 Wireless Network Adapter: Qualcomm Atheros 9565 / AR9565 GPU: Intel HD 5500 Audio: Realtek High Definition Audio I meant lid sleep. About the patched dsdt, i used only the ones that came with kexts that i downloaded. If you need any more info, please let me know. Your best bet for WiFi and BT is to get a different card. Like THIS. Try this clover folder, back up yours to a USB then replace with mine. Post results. CLOVER.zip Link to comment Share on other sites More sharing options...
Shogun212 Posted November 19, 2018 Author Share Posted November 19, 2018 On 11/12/2018 at 2:08 PM, SavageAUS said: Your best bet for WiFi and BT is to get a different card. Like THIS. Try this clover folder, back up yours to a USB then replace with mine. Post results. CLOVER.zip Still the same, with the addition of transparency effects being gone. Link to comment Share on other sites More sharing options...
SavageAUS Posted November 21, 2018 Share Posted November 21, 2018 (edited) On 11/19/2018 at 9:05 PM, Shogun212 said: Still the same, with the addition of transparency effects being gone. Sorry for delay. It's not the same as i can see your battery. Just missing transparency yeah? Are you still using my clover folder? If so re run the runme.aspp and upload zip. Edited November 21, 2018 by SavageAUS Link to comment Share on other sites More sharing options...
Shogun212 Posted November 21, 2018 Author Share Posted November 21, 2018 (edited) 4 hours ago, SavageAUS said: Sorry for delay. It's not the same as i can see your battery. Just missing transparency yeah? Are you still using my clover folder? If so re run the runme.aspp and upload zip. Hey, no problem, i appreciate you taking the time. You're right about the battery, it works! I used your Clover folder, but it had some issues, so i had to revert back. (I ran the RunMe app before i reverted, no worries) Here's what i noticed right off the bat: 1. Resolution was 1024x768 instead of 1366x768 2. The amount of vram (3mb instead of 1536) made the os well.. unusable and full of graphical glitches, i couldn't even reply to this thread. 3. Audio was non existent, now don't quote me on this because i'm not 100% sure, i think that with your previous Clover folder, audio had way more options, i'm talking about HDMI audio, headphone jack, Line in, etc. 4. Same can be said about the Bluetooth as well, at one point it worked, I was successfully able to pair it with my bluetooth speaker. But after i restarted the os, the Bluetooth didn't want to pair anymore. Audio jack (3.5mm) and bluetooth are very important to me, because i'm planning on using GarageBand (or even Logic Pro for that matter) with a midi keyboard, so you can see why i would need those audio outputs, because that would be one of my main use cases. Besides that, i also plan on using my mac for school work, programming, and web development. That's why i would like it to be as stable as possible. Here's my RunMe app file: https://ufile.io/y434q Edited November 21, 2018 by Shogun212 Link to comment Share on other sites More sharing options...

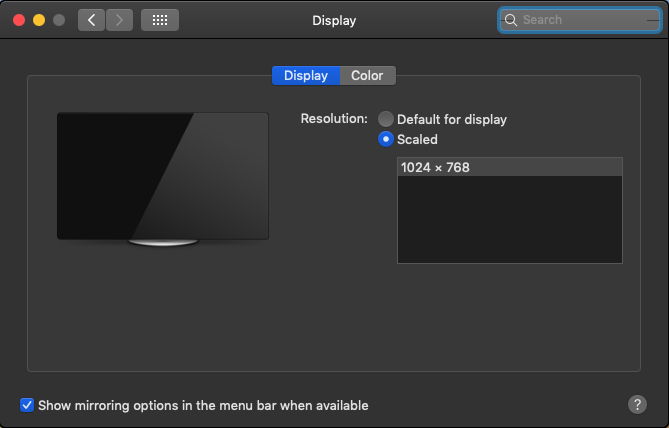

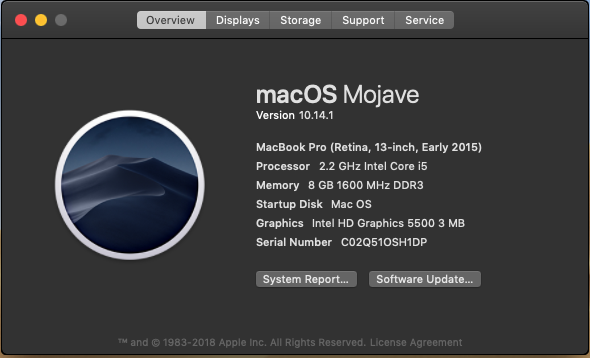

Andres ZeroCross Posted November 21, 2018 Share Posted November 21, 2018 40 minutes ago, Shogun212 said: Hey, no problem, i appreciate you taking the time. You're right about the battery, it works! I used your Clover folder, but it had some issues, so i had to revert back. (I ran the RunMe app before i reverted, no worries) Here's what i noticed right off the bat: 1. Resolution was 1024x768 instead of 1366x768 2. The amount of vram (3mb instead of 1536) made the os well.. unusable and full of graphical glitches, i couldn't even reply to this thread. 3. Audio was non existent, now don't quote me on this because i'm not 100% sure, i think that with your previous Clover folder, audio had way more options, i'm talking about HDMI audio, headphone jack, Line in, etc. 4. Same can be said about the Bluetooth as well, at one point it worked, I was successfully able to pair it with my bluetooth speaker. But after i restarted the os, the Bluetooth didn't want to pair anymore. Audio jack and bluetooth are very important to me, because i'm planning on using GarageBand (or even Logic Pro for that matter) with a midi keyboard, so you can see why i would need those audio outputs, because that would be one of my main use cases. Besides that, i also plan on using my mac for school work, programming, and web development. That's why i would like it to be as stable as possible. Here's my RunMe app file: https://ufile.io/y434q What do you mean by this? "I used your Clover folder, but it had some issues, so i had to revert back. (I ran the RunMe app before i reverted, no worries) " What's issue?? Link to comment Share on other sites More sharing options...
Shogun212 Posted November 21, 2018 Author Share Posted November 21, 2018 2 minutes ago, Andres ZeroCross said: What do you mean by this? "I used your Clover folder, but it had some issues, so i had to revert back. (I ran the RunMe app before i reverted, no worries) " What's issue?? Did you read the whole post? I listed all the issues i had with that Clover folder, you can see it in the screenshots as well. I also posted a link to my RunME app file. If you need any more info than the one i mentioned, i'll be more than happy to help. Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted November 21, 2018 Share Posted November 21, 2018 (edited) Just wait 10 minutes,, i will make full configuration for your device. And make sure you test it right now. Make sure there is no 3rd party kext at Library/Extensions and System/Library/Extensions. Edited November 21, 2018 by Andres ZeroCross Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted November 21, 2018 Share Posted November 21, 2018 Use this,,, remove and delete your CLOVER Folder,, and paste mines. It's full configuration for your system. Include Fn + Brigntnes button up / down and many things. Just try and post the result soon CLOVER.zip Link to comment Share on other sites More sharing options...
Shogun212 Posted November 21, 2018 Author Share Posted November 21, 2018 32 minutes ago, Andres ZeroCross said: Use this,,, remove and delete your CLOVER Folder,, and paste mines. It's full configuration for your system. Include Fn + Brigntnes button up / down and many things. Just try and post the result soon CLOVER.zip Wow! It's snappy! That's the first thing i noticed. Gpu and the battery have been fixed. But i have a few questions... 1. Is it possible to enable more audio options? I mean Hdmi audio and 3.5mm jack 2. Will your Clover folder work with High Sierra? 3. Can i turn off verbose mode without any issues? 4. Is there anything i can do about Bluetooth? Because i saw it working few days ago. Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted November 21, 2018 Share Posted November 21, 2018 1 minute ago, Shogun212 said: Wow! It's snappy! That's the first thing i noticed. Gpu and the battery have been fixed. But i have a few questions... 1. Is it possible to enable more audio options? I mean Hdmi audio and 3.5mm jack 2. Will your Clover folder work with High Sierra? 3. Can i turn off verbose mode without any issues? 4. Is there anything i can do about Bluetooth? Because i saw it working few days ago. 1. Say thank you first 2. There is no IOREG attachment,, upload the IOREG 3. Open DPCIManage.app and take screenshot and upload here. I want to see your CodecAudio name 4. It will work with High Sierra too 5. Bluetooth is about firmware data,, sometimes need to shutdown and boot, and some case need to boot into windows first then reboot to macOS. The development for Atheros bluetooth is not continue again by developer. You must replace your Wifi Card module if you need best bluetooth and wifi support Link to comment Share on other sites More sharing options...

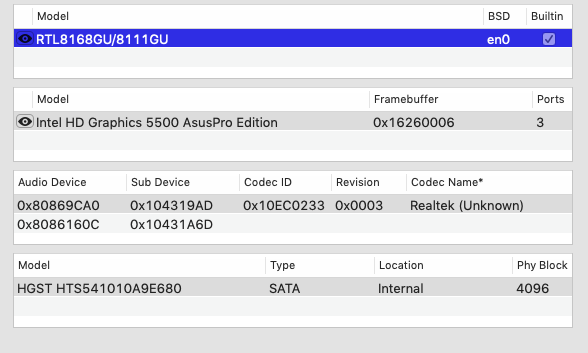

Shogun212 Posted November 21, 2018 Author Share Posted November 21, 2018 7 minutes ago, Andres ZeroCross said: 1. Say thank you first 2. There is no IOREG attachment,, upload the IOREG 3. Open DPCIManage.app and take screenshot and upload here. I want to see your CodecAudio name 4. It will work with High Sierra too 5. Bluetooth is about firmware data,, sometimes need to shutdown and boot, and some case need to boot into windows first then reboot to macOS. The development for Atheros bluetooth is not continue again by developer. You must replace your Wifi Card module if you need best bluetooth and wifi support Sorry about that. I would like to thank @Andres ZeroCross and @SavageAUS , i really couldn't have done it without you guys, again, thank you so so much! I attached all the files you need. Hope everything's fine. Filip’s MacBook Pro.ioreg Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted November 21, 2018 Share Posted November 21, 2018 Use this,, CLOVER.zip Change log 1. Fix Sleep for your device 2. Change layout Audio to 32 3. Remove Verbose boot Try and post the result,, remember to DELETE Old CLOVER ones, and replace with this 1 Link to comment Share on other sites More sharing options...
Shogun212 Posted November 21, 2018 Author Share Posted November 21, 2018 11 minutes ago, Andres ZeroCross said: Use this,, CLOVER.zip Change log 1. Fix Sleep for your device 2. Change layout Audio to 32 3. Remove Verbose boot Try and post the result,, remember to DELETE Old CLOVER ones, and replace with this Still the same unfortunately. Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted November 21, 2018 Share Posted November 21, 2018 1 minute ago, Shogun212 said: Still the same unfortunately. What do you mean by still same???? Link to comment Share on other sites More sharing options...

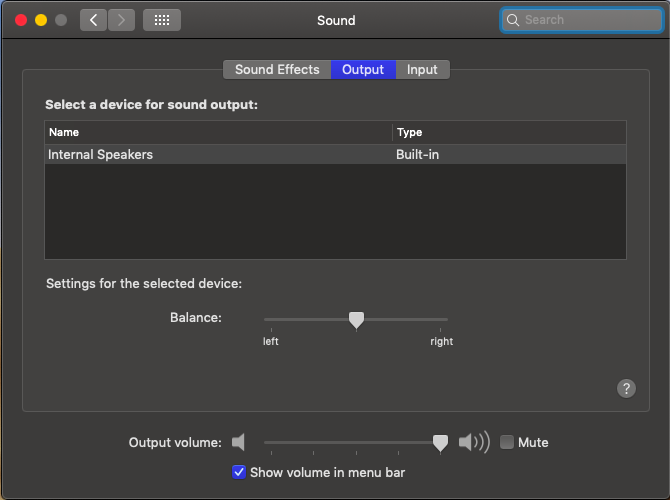

Shogun212 Posted November 21, 2018 Author Share Posted November 21, 2018 11 minutes ago, Andres ZeroCross said: What do you mean by still same???? Sorry about that! My mistake. I thought that it would list all of the available outputs, so i could switch between them. That's not the case, just plugged in my headphones and it works! Thank you so much. Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted November 21, 2018 Share Posted November 21, 2018 I check your IOREG, i saw rehabman ACPIBatterymanager.kext. Why did you still use this. I already said to remove 3rd party kext from System/Library/Extensions or Library/Extensions Open terminal and type "sudo kextcache -i /" And paste the output of terminal here. I am waiting Link to comment Share on other sites More sharing options...

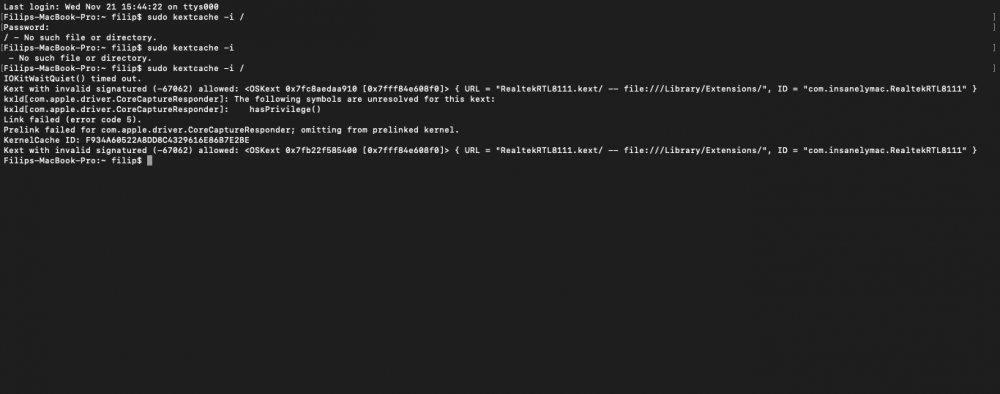

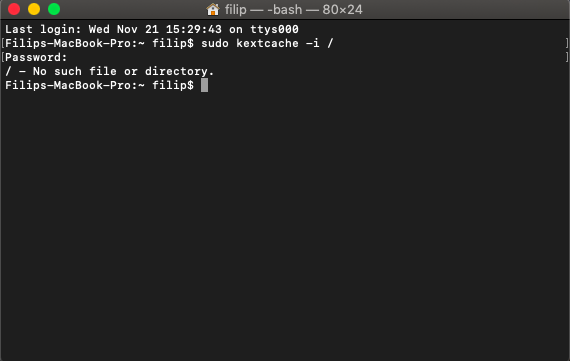

Shogun212 Posted November 21, 2018 Author Share Posted November 21, 2018 9 minutes ago, Andres ZeroCross said: I check your IOREG, i saw rehabman ACPIBatterymanager.kext. Why did you still use this. I already said to remove 3rd party kext from System/Library/Extensions or Library/Extensions Open terminal and type "sudo kextcache -i /" And paste the output of terminal here. I am waiting I've deleted it now. To be honest, not really sure which kexts i can safely remove from there. About the terminal, i'm pretty sure i'm doing something wrong. I know i need to point it to the right direction, but where? You can see it in the screenshot. Link to comment Share on other sites More sharing options...

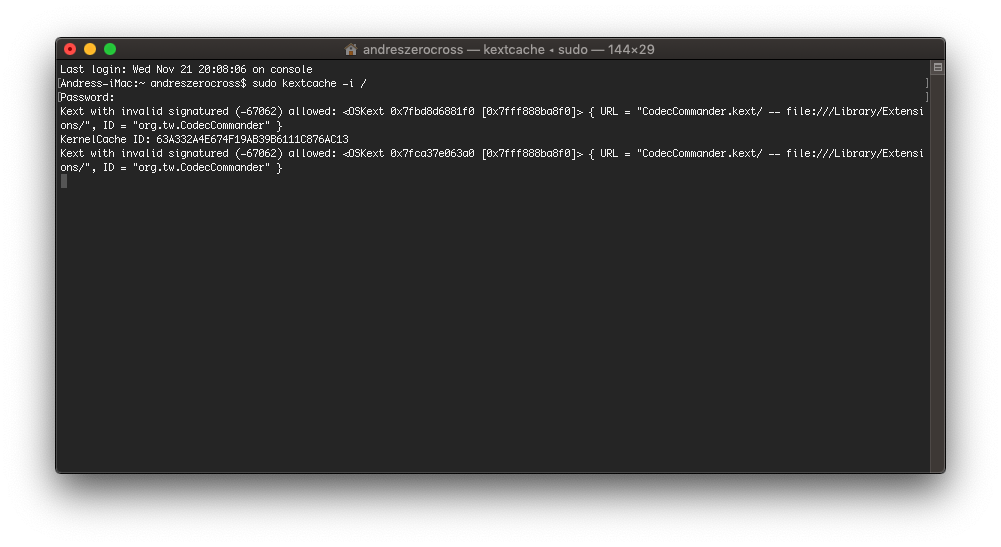

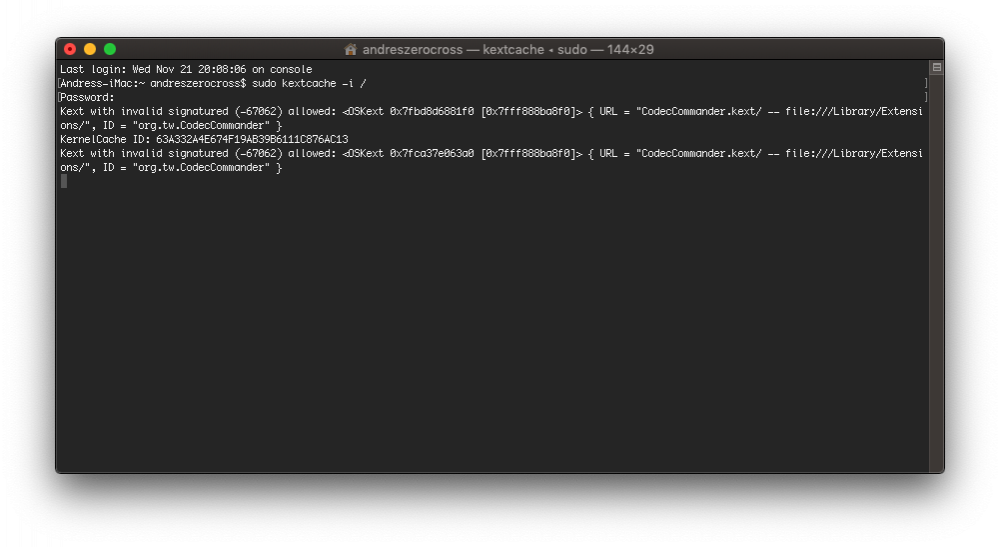

Andres ZeroCross Posted November 21, 2018 Share Posted November 21, 2018 1 minute ago, Shogun212 said: I've deleted it now. To be honest, not really sure which kexts i can safely remove from there. About the terminal, i'm pretty sure i'm doing something wrong. I know i need to point it to the right direction, but where? You can see it in the screenshot. Wrong command, it should be like below. Check your command again... Link to comment Share on other sites More sharing options...

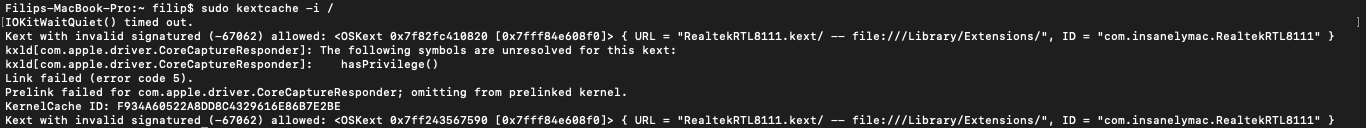

Shogun212 Posted November 21, 2018 Author Share Posted November 21, 2018 (edited) 7 minutes ago, Andres ZeroCross said: Wrong command, it should be like below. Check your command again... Like this? Edited November 21, 2018 by Shogun212 Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted November 21, 2018 Share Posted November 21, 2018 Just now, Shogun212 said: Like this? Yes,, send the full log, not crop like that. Just copy the log and paste it here Link to comment Share on other sites More sharing options...

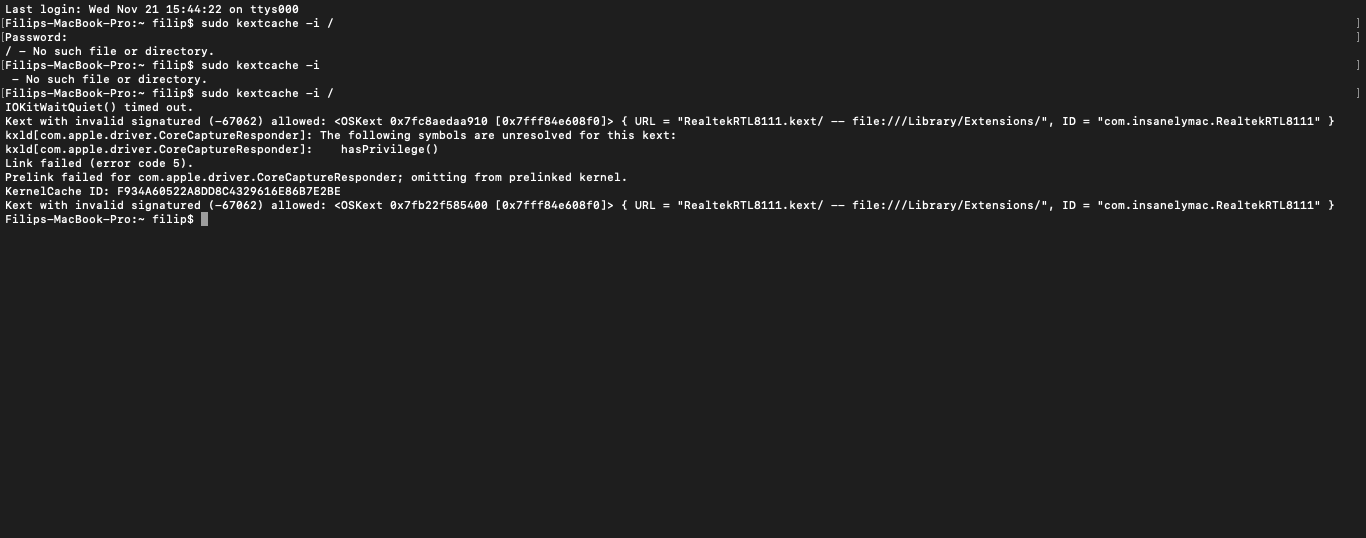

Shogun212 Posted November 21, 2018 Author Share Posted November 21, 2018 (edited) 5 minutes ago, Andres ZeroCross said: Yes,, send the full log, not crop like that. Just copy the log and paste it here That is the full log. Here's the full screenshot Edited November 21, 2018 by Shogun212 Link to comment Share on other sites More sharing options...
