JijiTheFox Posted July 31, 2018 Share Posted July 31, 2018 (edited) Hi All, I've recently bought a Fujitsu Ah512 (please move this thread if it's in the wrong place, apologies if so!) I've fitted an Intel I5 2450m SandyBridge (HM75 7 series chipset) to the board, It has internal GPU of HD 3000 (1368 x 768). The Motherboard is FJNBB29. I've been trying for a week to get this to run the Sierra Installer, but sadly it hits an unresponsive, black screen when I select it. There's nothing outputting to the HDMI port, (I haven't checked VGA, but being VGA I'd assume not.) I cannot boot verbose either so I cannot log what's going on. FakeSMC is present in the kext/other folder. I've tried to boot with intel injection disabled and still that hasn't helped. Please let me know if you've any suggestions, I was really hoping to get this sorted as my macbook pro is getting on and I'd like to use this one to carry some of the macbook's work. Many Thanks Jiji CLOVER.zip Edited August 23, 2018 by JijiTheFox Corrected wrong information Link to comment Share on other sites More sharing options...
JijiTheFox Posted July 31, 2018 Author Share Posted July 31, 2018 24 minutes ago, Hervé said: Any reason why you're injecting some nVidia + ATI graphics properties in Clover? Hi Hervé I'll be honest I have no idea. I have been trying many things across the forums and sites. The config plist was generic/prebuilt for HD3000 at my resolution, it was one of the the last thing I tried. Will happily try disabling all those if it could help Link to comment Share on other sites More sharing options...
JijiTheFox Posted July 31, 2018 Author Share Posted July 31, 2018 Just gave it a try, still black screen sadly. Would it be just a display issue or something more? The LEDs on the USB hard drive just stop flashing the moment I select the installer. Link to comment Share on other sites More sharing options...

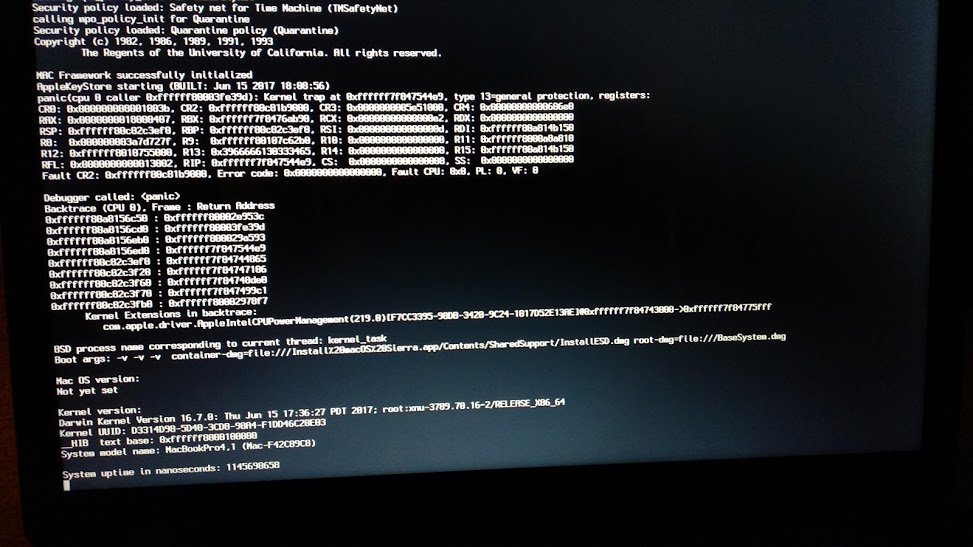

JijiTheFox Posted August 1, 2018 Author Share Posted August 1, 2018 I had 5 minutes free this morning, so I made an Enoch USB Bootloader. This gets me further into the installer with a verbose screen! I've used Clover for what seems like forever now as it's been on my desktop, so I'm getting rusty. I've hit the AppleCPUPowerManagement kernel panic intsantly.. should this be resolved with a NULLCPUPower kext? Also with Enoch.. being that it is a branch of Chameleon, should this be Extra/Extensions? I had to manually make that folder and add FakeSMC and NULLCPU but I hit that panic again (I know this is a basic issue I've fixed it in the past, it's just been a long time.) Link to comment Share on other sites More sharing options...

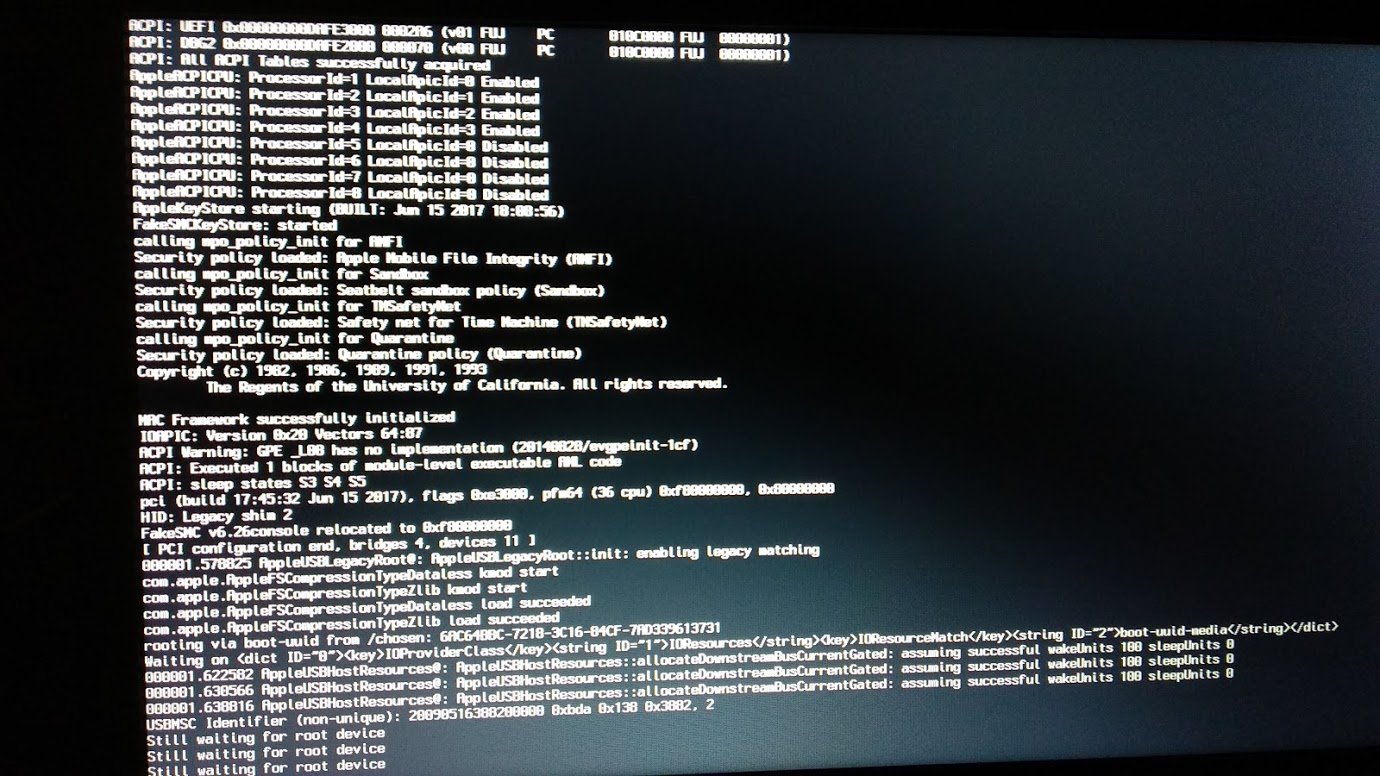

JijiTheFox Posted August 1, 2018 Author Share Posted August 1, 2018 (edited) Hervé, thank you so much for your help so far that could not have been more helpful. I've gotten much further in and I'm now stuck at USBMC Identifier (non-unique): 20090516388200000 0xbda 0x138 0x3882, 2 I've looked around on Google but there's no specific root cause found on any thread. Would you happen to know about this? Many Thanks again Edited August 1, 2018 by Jiji The Fox Link to comment Share on other sites More sharing options...
JijiTheFox Posted August 3, 2018 Author Share Posted August 3, 2018 Quick question for anyone who may see this: Would Clover Legacy be more recommended than Enoch? This USBSMC error doesn't seem to be very positive in terms of fixing, i've not found much information on it online. I've not been home much lately due to work commitments but I'll try to make a legacy Clover boot if that'd be a preferable option. Link to comment Share on other sites More sharing options...

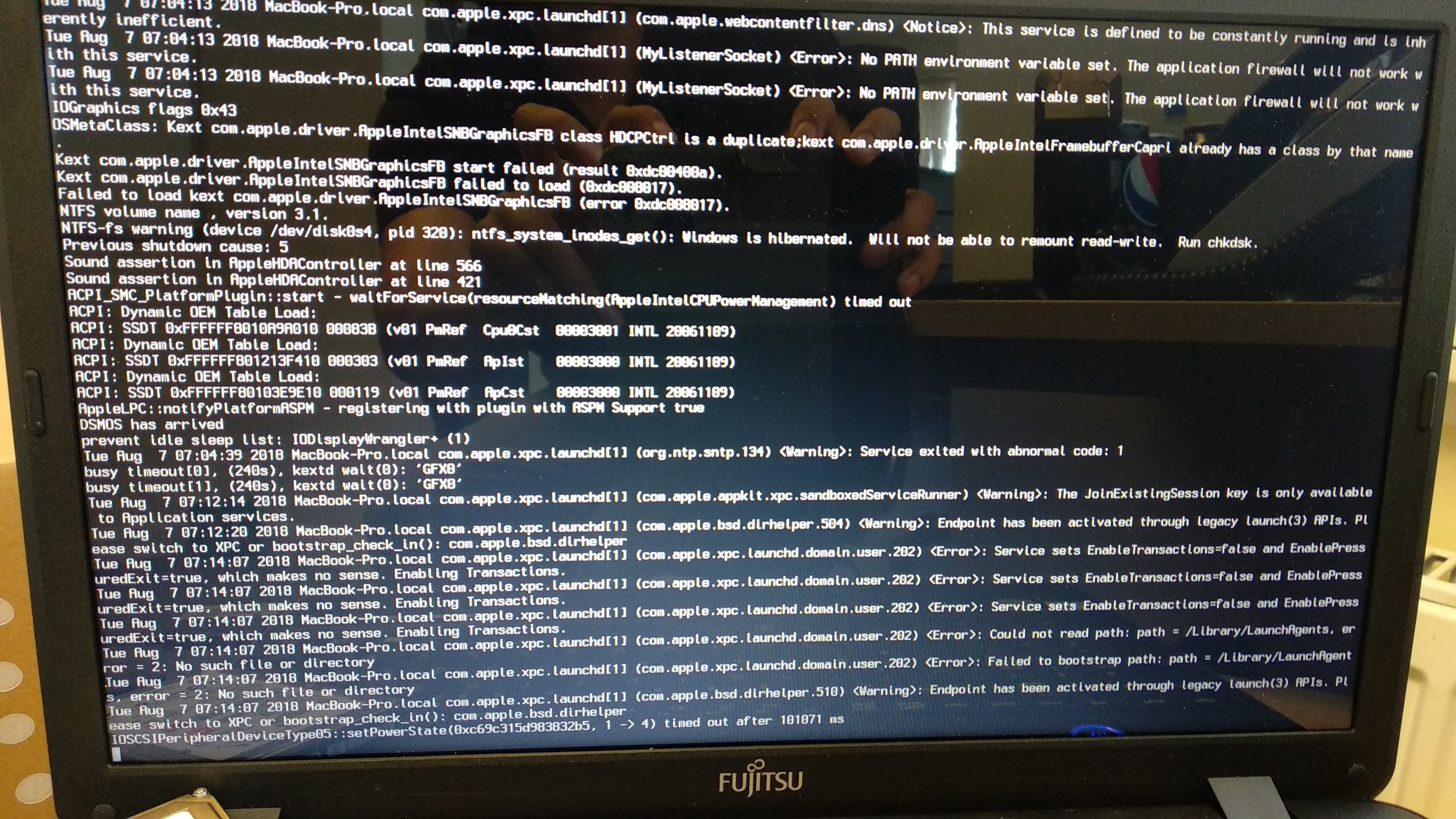

JijiTheFox Posted August 7, 2018 Author Share Posted August 7, 2018 Update: Neither Clover Legacy or EFI works, so I've stuck with enoch. I've bought a USB 3.0 express card, which when booted through gets me past any USB SMC hangs. I'm now stuck at a different line.. IOSCSIPeripheralDeviceType05... Link to comment Share on other sites More sharing options...
chris1111 Posted August 8, 2018 Share Posted August 8, 2018 (edited) Try this config.plist attaching also put the DSDT.aml attaching, This is your ORIGIN DSDT.aml from your EFI folder patching for Intel HD 3000 Low Screen 1366X768 put it on / EFI / CLOVER / ACPI / patched /DSDT.aml Credit patch dsdt rehabman Also SSDT.aml I5 2540m for your CPU, you have to put it on / EFI / CLOVER / ACPI / patched /SSDT.aml Reboot to USB Installer and let me know, hope that help config.plist.zip DSDT.aml.zip SSDT.aml.zip Edited August 8, 2018 by chris1111 new SSDT.aml attaching Link to comment Share on other sites More sharing options...
JijiTheFox Posted August 8, 2018 Author Share Posted August 8, 2018 Hi Chris1111 Thank you for your time on this, Once I'm home I'll get onto this and test it out. One worrying revelation I've had is I've been a bit stupid, and mixed up the CPU model that I have. I have a 2450m CPU, not a 2540m. Should I still try your fixes? I've googled they are both HD3000 and very similar. Apologies for the mix-up. Link to comment Share on other sites More sharing options...
chris1111 Posted August 8, 2018 Share Posted August 8, 2018 (edited) 5 minutes ago, Jiji The Fox said: Hi Chris1111 Thank you for your time on this, Once I'm home I'll get onto this and test it out. One worrying revelation I've had is I've been a bit stupid, and mixed up the CPU model that I have. I have a 2450m CPU, not a 2540m. Should I still try your fixes? I've googled they are both HD3000 and very similar. Apologies for the mix-up. SSDT 2450m attaching SSDT.aml.zip I have change also SSDT in my previous post Edited August 8, 2018 by chris1111 I have change also SSDT in my previous post Link to comment Share on other sites More sharing options...
JijiTheFox Posted August 8, 2018 Author Share Posted August 8, 2018 7 hours ago, chris1111 said: SSDT 2450m attaching SSDT.aml.zip I have change also SSDT in my previous post Hi Chris, I've just tested this, sadly it's still black screen no verbose with Clover Link to comment Share on other sites More sharing options...
chris1111 Posted August 8, 2018 Share Posted August 8, 2018 (edited) What is the clover revision? strange this is suppose to work because I have a freind with almost same specs of you and no issue at all use only FackeSMC.kext and voodoops2controller in Clover kexts folder Edited August 8, 2018 by chris1111 Link to comment Share on other sites More sharing options...
JijiTheFox Posted August 9, 2018 Author Share Posted August 9, 2018 Hi Chris1111 Still the same sadly, stripped all kexts out but FakeSMC (testing on my lunch break, I don't have VoodooPS2 kext available until I'm hone. My Work PC is locked down I have internet but no useable USB ports, my laptop doesn't have internet.) I've attached all my Clover files (without themes folder,) just in case I'm missing any instruction out. CLOVER r4617.zip Link to comment Share on other sites More sharing options...
chris1111 Posted August 9, 2018 Share Posted August 9, 2018 (edited) 36 minutes ago, Jiji The Fox said: Hi Chris1111 Still the same sadly, stripped all kexts out but FakeSMC (testing on my lunch break, I don't have VoodooPS2 kext available until I'm hone. My Work PC is locked down I have internet but no useable USB ports, my laptop doesn't have internet.) I've attached all my Clover files (without themes folder,) just in case I'm missing any instruction out. CLOVER r4617.zip You have put SSDT and DSDT on origin folder, I told you to put in EFI/CLOVER/ACPI/ patched You need also VoodooPS2Controller in kexts folder attaching here VoodooPS2Controller.kext.zip I have attach correct CLOVER folder CLOVER.zip Edited August 9, 2018 by chris1111 attaching you CLOVER correction by me Link to comment Share on other sites More sharing options...
JijiTheFox Posted August 9, 2018 Author Share Posted August 9, 2018 Apologies Chris, I tried consciously to ensure it was not in the Origin folder last night.I'm a bit confused how it got in there and not the Patched Folder, and also where that WINDOWS folder came from. (I was rather sleep deprived at midnight last night.) I'll be on this in the next few hours when I'm home and will update you as soon as possible. Link to comment Share on other sites More sharing options...
chris1111 Posted August 9, 2018 Share Posted August 9, 2018 4 minutes ago, Jiji The Fox said: Apologies Chris, I tried consciously to ensure it was not in the Origin folder last night.I'm a bit confused how it got in there and not the Patched Folder, and also where that WINDOWS folder came from. (I was rather sleep deprived at midnight last night.) I'll be on this in the next few hours when I'm home and will update you as soon as possible. just make sure SSDT.aml and DSDT.aml is in patched folder Link to comment Share on other sites More sharing options...
JijiTheFox Posted August 9, 2018 Author Share Posted August 9, 2018 (edited) On 8/9/2018 at 2:37 PM, chris1111 said: just make sure SSDT.aml and DSDT.aml is in patched folder Haha I made sure I didn't make the same mistake twice Unfortunately, still the same. I don't think it leaves Clover to boot, as I can press Ctrl + Alt + Delete and reset to BIOS. As I haven't specified it, I'm going to mention I have a Phoenix BIOS. Config: Fast Boot : Disabled CSM : Enabled Legacy USB Support : Enabled Anytime USB Charge: Disabled Serial ATA Controller : Enabled AHCI Configuration : Enabled Virtualisation Technology : Enabled Wake Up On LAN : Disabled FAN Control : Silent Intel(R) at Suspend Mode : Disabled Secure Boot : Disabled Also, both Clover EFI and Legacy lead to the same end. UPDATE: I've been researching my BIOS.. I've Phoenix Secure Core Tiano 1.12. I believe it's EFI 32bit only.. not 64. I'm assuming this could be the issue. Apparently I can build clover manually with 32? Update II : Clover doesn't work, at all. Working with Enoch currently. Edited August 13, 2018 by Jiji The Fox Update Link to comment Share on other sites More sharing options...

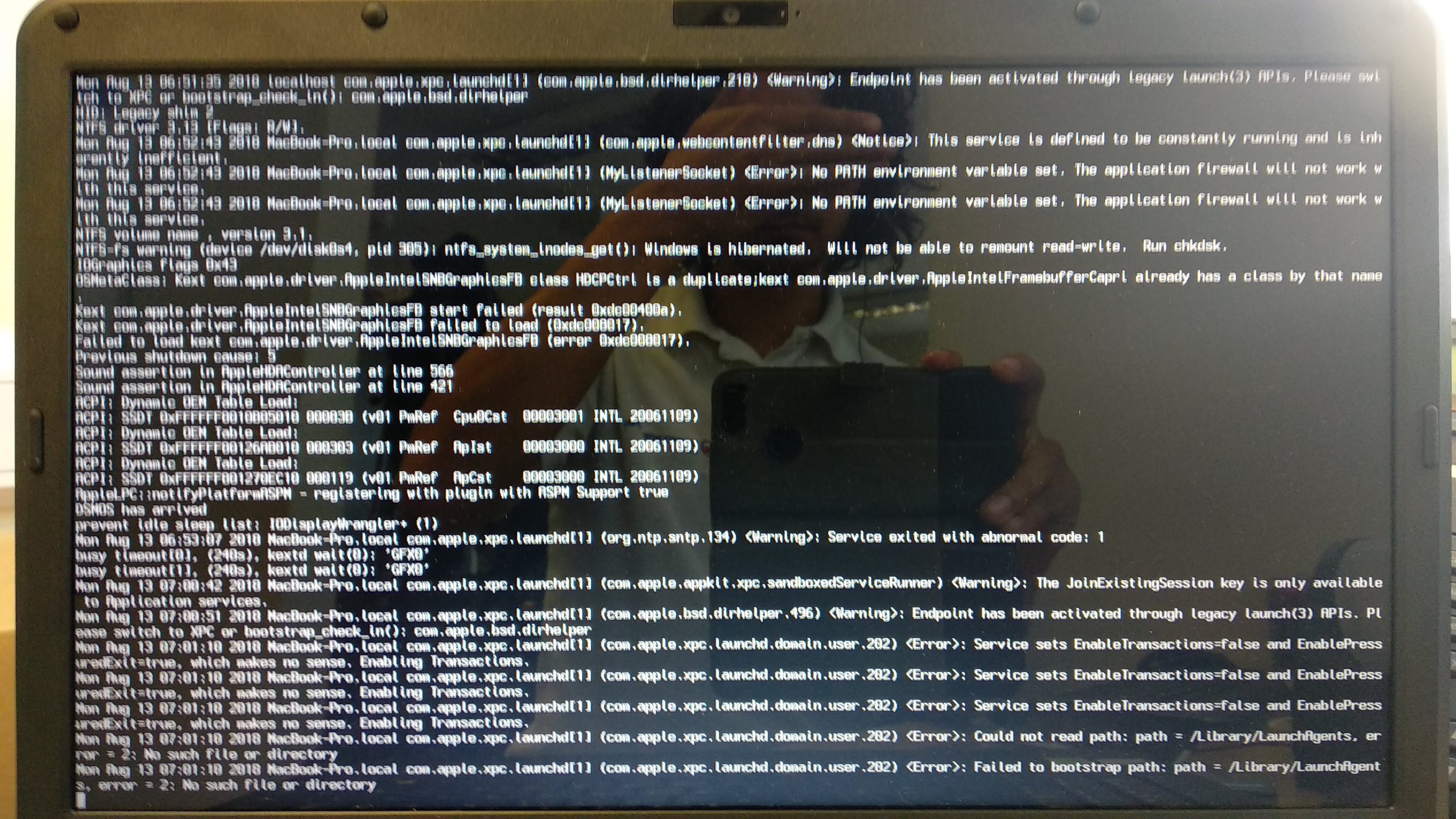

JijiTheFox Posted August 13, 2018 Author Share Posted August 13, 2018 Gotten further with Enoch Bootloader. I'm stuck here and the scouring the internet isn't helping me. Anyone have any ideas? Thank you in advance Link to comment Share on other sites More sharing options...
Baio77 Posted August 13, 2018 Share Posted August 13, 2018 Rename GFX0 to IGPU Link to comment Share on other sites More sharing options...
JijiTheFox Posted August 13, 2018 Author Share Posted August 13, 2018 1 hour ago, Baio77 said: Rename GFX0 to IGPU Hi Baio77, Is this on the DSDT I need to do the rename? Link to comment Share on other sites More sharing options...
Baio77 Posted August 13, 2018 Share Posted August 13, 2018 you can try patching on DSDT or Fix in Bootloader google traslate Link to comment Share on other sites More sharing options...

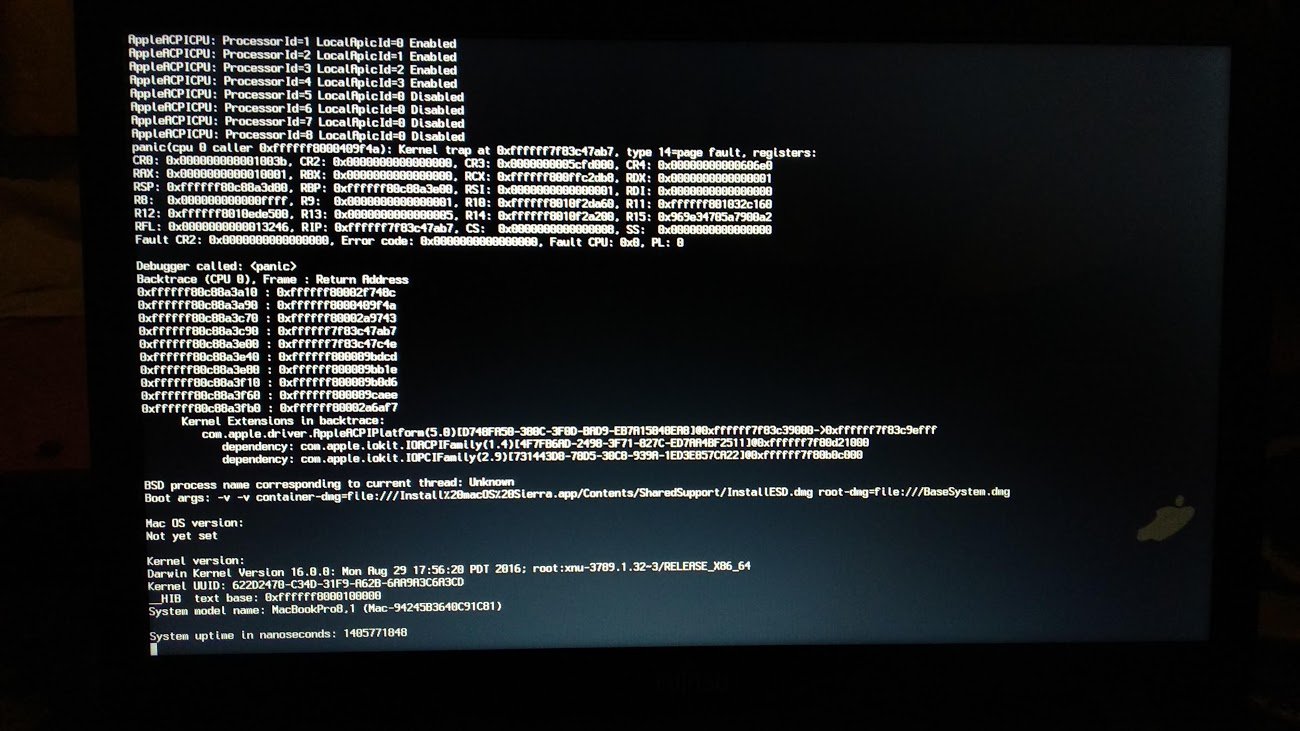

JijiTheFox Posted August 13, 2018 Author Share Posted August 13, 2018 I tried to patch the DSDT via the method here https://github.com/Ramalama2/Clover-DSDT/blob/master/DSDT Patches/[ALL] 3. Rename GFX0 IGPU.txt But I'm getting a kernel panic Link to comment Share on other sites More sharing options...
fusion71au Posted August 14, 2018 Share Posted August 14, 2018 (edited) 12 hours ago, Jiji The Fox said: Gotten further with Enoch Bootloader. I'm stuck here and the scouring the internet isn't helping me. Anyone have any ideas? Thank you in advance Your boot log shows "Kext com.apple.driver.AppleIntelSNBGraphicsFB failed to load" ---> will need graphics_MEI_sandy dsdt fix or use FakeID with Clover. Google for @RehabMan guide for running Sandy Bridge CPU (with HD3000) on 7 series board. He has a GIT hub with some sample Clover configs eg https://github.com/RehabMan/OS-X-Clover-Laptop-Config/blob/master/config_HD3000_1366x768_7series.plist. Edited August 14, 2018 by fusion71au Link to comment Share on other sites More sharing options...
JijiTheFox Posted August 14, 2018 Author Share Posted August 14, 2018 20 hours ago, fusion71au said: Your boot log shows "Kext com.apple.driver.AppleIntelSNBGraphicsFB failed to load" ---> will need graphics_MEI_sandy dsdt fix or use FakeID with Clover. Google for @RehabMan guide for running Sandy Bridge CPU (with HD3000) on 7 series board. He has a GIT hub with some sample Clover configs eg https://github.com/RehabMan/OS-X-Clover-Laptop-Config/blob/master/config_HD3000_1366x768_7series.plist. I've tried the above DSDT fix but sadly it hasn't worked, oddly enough still the same error. I can't use the config plists as Clover is a dead end for me, I'm only getting a Verbose with Enoch/Chameleon, would there be any equivalence in bootflags, or entry to add to the org.chameleon.boot.plist? Link to comment Share on other sites More sharing options...
fusion71au Posted August 14, 2018 Share Posted August 14, 2018 Which Clover revision did you try and how did you install Clover? Versions r4541 to r4639 had a bug that caused failure to install boot0 to the MBR ---> boot failure in legacy mode. Release 4644 has fixed this. If your system supports UEFI booting, did you try disabling CSM in BIOS and make sure you have an aptio fix driver eg AptioMemoryFix-64.efi in /EFI/CLOVER/drivers64UEFI? Failing this, there is a guide in Voldemort's forum on how to edit plist files inside AppleIntelSNBGraphicsFB.kext and AppleIntelFramebufferCapri.kext. Google "Enabling HD 3000 graphics on 7-series motherboards". You will need to prepare an installer USB using the old "restore BaseSystem.dmg" method, not createinstallmedia. 2 Link to comment Share on other sites More sharing options...
