Hackintosh Broken After 2 Years - Is High Sierra Compatible?

13 posts in this topic

Recommended Posts

Howdy!



My name is Joshua Bedford, and I'm brand new to this community. It appears as though I have been missing out! I started over at hewhoshallnotbenamed's (from what I understand) website. I need some help!

I built my first (and only so far) hackintosh a little over 2 years ago (I think. haven't looked at exact dates). It has worked phenomenally, and was running my dual 27" displays perfectly for web development and video editing. The problem now is USB3.0, audio, and iMessage no longer work. iMessage was always spotty, but I need audio and USB3.0! It recognizes USB2.0 devices plugged into 3.0 ports, but not 3.0 devices (such as my 3TB external drive and usb hub).

My question is this: Based on the hardware below, would it be a good idea / compatible to wipe it and start over with high sierra and the newest bootloader powering it? The only data on the drive is the OS and a few programs. Nothing irreplaceable or difficult to replace. My main question is one of compatibility (I'm not very knowledgeable about this process).

Build:

GPU:
GTX960
CPU: i7-4790k
MB: UD5H-Bk
RAM: Gigabyte 16GB
WNA: TP-Link WDN4800

PCPARTPICKER link: https://pcpartpicker.com/user/JrBedford/saved/#view=vpMLrH

Everything except the monitor (I moved to 2 curved 27") is still true. Please view that for any specific part numbers!

Let me know if more information is needed. I am willing to be helped in debugging the current system, but i wonder if installing high sierra would be easier.

P.S. I bent a few of the pins in the USB3.0 header that connects the front panel of my case. That wouldn't cause the entire system to reject USB3.0 right? I'm plugging directly into the motherboard not through that plug.

Share this post


Link to post
Share on other sites
Advertisement

Install the latest USBInjectAll from Rehabman's Bitbucket page for it, and then use Clover kext to patch to lift the USB port restriction. The patch depends upon your exact OS version (which you don't state in your OP!), but easily searchable on insanelymac.



There are a variety of methods to enable audio, but I use AppleALC+Lilu.kext. Google and download the latest version of each and put them in your Clover/kexts/other folder.



Google for iMessage guides--basically you need a legitimate appearing serial number and board serial number, plus working NVRAM (such as from EmuVariable via Clover).

Share this post


Link to post
Share on other sites

Thank you, maleorderbride!



How do I determine if my components are supported in the newer versions of macOS, or is it always the case where if it works in older versions it will work in newer versions? I know very little about this.



P.S. I can provide specifics about the current OS when I get home from work tonight.

Share this post


Link to post
Share on other sites

All of your stuff is supported in 10.13. No problem there, it just might be easier to "fix" your current select issues. Oh, you should update your BIOS to the latest version as well, if it is not already.

BTW, that WiFi card is terrible because of its unknown locale issue (easily googleable), with the fix either being firmware editing via linux, or tracking down the proper clover KextToPatch fixes.

Share this post


Link to post
Share on other sites

All of your stuff is supported in 10.13. No problem there, it just might be easier to "fix" your current select issues. Oh, you should update your BIOS to the latest version as well, if it is not already.

BTW, that WiFi card is terrible because of its unknown locale issue (easily googleable), with the fix either being firmware editing via linux, or tracking down the proper clover KextToPatch fixes.



So overall, would you recommend 'fixing' my current issues (usb3, audio, iMessage, strange background on login screen) rather than get a fully working copy (with fixing whatever breaks on that install) of the newest OS? Or once I fix the current OS, could I use the normal updater to update to High Sierra?



Is there a wifi card that would 'work out of the box' so to speak? If its relatively inexpensive, it might be worth me not spending a few hours trying to figure out how to fix the current one.

Share this post


Link to post
Share on other sites

Thank you for picking this up MaLd0n! I will attach the zip file (I ignored my training to "never download and run things as root if you dont fully understand them"! haha) from your script.



New Information



I found out my roommate took some liberties and decided to mess around with it to try to get things working fully for me. I'm not sure what he did. New info below and attached.

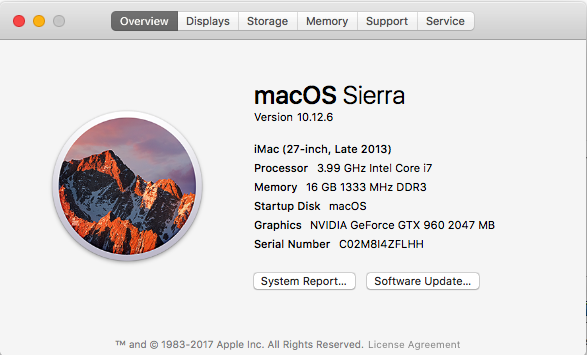

I am on the same hardware, but I am currently running macOS Sierra 10.12.6 (screenshot attached) with a iMac Late 2013 profile thing (as you'll see in the zip attached, I believe I saw your script grab it). Other than this, my build linked in my signature is current (i switched out the monitor but thats irrelevant).



Thank you for your assistance, and I'm here to do whatever I can!



P.S. I'm currently trying to figure out how to upload a file to 'My Media' I'll update this post soon with attachments!



P.S.S. Found it! It's a little hidden. You think I would be better at this considering I'm a web developer!  :blush:

Send me Joshuas-iMac.at.net.zip


Share this post


Link to post
Share on other sites

strange background login, go to Library/caches and delete com.apple.desktop.admin.png, reboot



A perfect fix btw! Thank you for that.

Share this post


Link to post
Share on other sites

Thank you for picking this up MaLd0n! I will attach the zip file (I ignored my training to "never download and run things as root if you dont fully understand them"! haha) from your script.



New Information



I found out my roommate took some liberties and decided to mess around with it to try to get things working fully for me. I'm not sure what he did. New info below and attached.



I am on the same hardware, but I am currently running macOS Sierra 10.12.6 (screenshot attached) with a iMac Late 2013 profile thing (as you'll see in the zip attached, I believe I saw your script grab it). Other than this, my build linked in my signature is current (i switched out the monitor but thats irrelevant).



Thank you for your assistance, and I'm here to do whatever I can!



P.S. I'm currently trying to figure out how to upload a file to 'My Media' I'll update this post soon with attachments!



P.S.S. Found it! It's a little hidden. You think I would be better at this considering I'm a web developer!  :blush:

Check

CLOVER.zip

u use all kexts in S/L/E, check clover/kexts/others in my folder above, all kexts and files u need is there

Share this post


Link to post
Share on other sites

Check

attachicon.gifCLOVER.zip

u use all kexts in S/L/E, check clover/kexts/others in my folder above, all kexts and files u need is there



Are you saying in kexts/others of your zip every file is needed, or i should be picking certain files out of that folder?

Share this post


Link to post
Share on other sites

if u use kets in library/extenions or system/library/extensions, remove and use kexts in clover/kexts/other

Share this post


Link to post
Share on other sites
if u use kets in library/extenions or system/library/extensions, remove and use kexts in clover/kexts/other

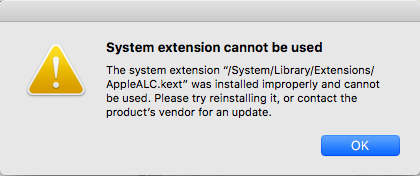

I copied the ones in clover/kexts/other into /system/library/extensions and it didn't load properly. Is there a certain process for this? Error screenshot below (repeated for every file).


Share this post


Link to post
Share on other sites

I copied the ones in clover/kexts/other into /system/library/extensions and it didn't load properly. Is there a certain process for this? Error screenshot below (repeated for every file).

just run kextutility

Kext Utility.app.zip



in clover/kext/other just reboot solve it, in l/e or s/l/e u need rebuild

Share this post


Link to post
Share on other sites
