claudius139 Posted November 4, 2006 Share Posted November 4, 2006 I installed the 10.4.8 without support for ATI checked... everything is fine. Then i installed Boris Latest 3.5 Package Installer... My card is PCIe Sapphire X1600 PRO 512 ID = 0x71c2 Reboot... after the grey loading screen, black screen, nothing! Try in safe mode, same thing...cannot boot at all iin GUI mode. Uninstall, everything come back to normal. Ok, said to myself, do it manually...don't have the lines you talk about in my ATINDRV.kext??? Can somebody help please! Also, i tried Boris with AGP option checked just to see... well it boot, now i have QE and everything enabled but no Resolution change and i have mouse artifacts. HELP!!!! Link to comment Share on other sites More sharing options...
claudius139 Posted November 4, 2006 Author Share Posted November 4, 2006 I bought this card because i thougth that a X1600 would be perfect! ..i guess i have the one X1600 card that is not working right out of the box!!! Anybody else had my problem i found a solution?? Link to comment Share on other sites More sharing options...

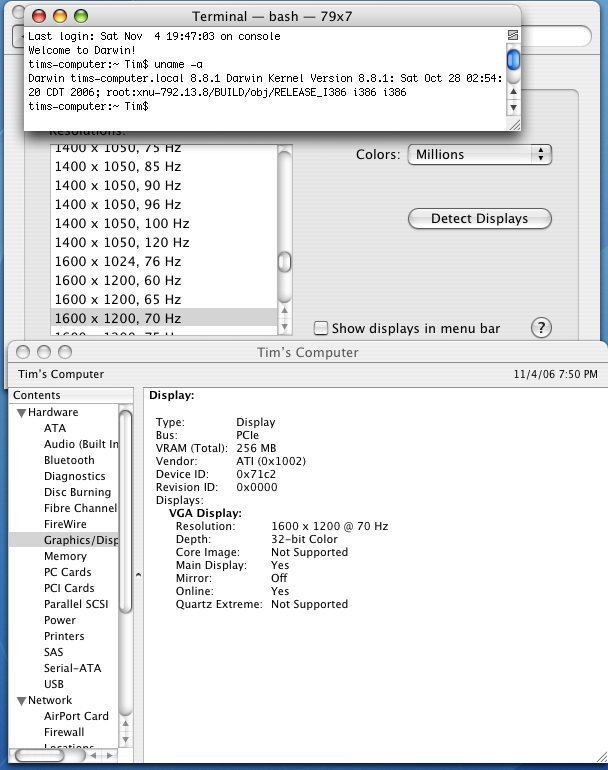

greenman100 Posted November 5, 2006 Share Posted November 5, 2006 I bought this card because i thougth that a X1600 would be perfect! ..i guess i have the one X1600 card that is not working right out of the box!!! Anybody else had my problem i found a solution?? I have a Sapphire x1600 PCI-E as seen below, 256MB Ram. 10.4.6 works with Neopheus 3.3 10.4.8 with 3.5 gives me a all blue screen on boot, with no mouse. Link to comment Share on other sites More sharing options...
cyclonefr Posted November 5, 2006 Share Posted November 5, 2006 I have a Sapphire x1600 PCI-E as seen below, 256MB Ram. 10.4.6 works with Neopheus 3.3 10.4.8 with 3.5 gives me a all blue screen on boot, with no mouse. Try to install the AGP fix, even though yours is PCIe. Link to comment Share on other sites More sharing options...
greenman100 Posted November 5, 2006 Share Posted November 5, 2006 Try to install the AGP fix, even though yours is PCIe. Below is the result of booting with 10.4.8 mifki kernel, and 3.5 installer, in SAFE MODE. trying AGP fix now. With AGP fix, it hangs on loginwindow Below is the result of booting with 10.4.8 mifki kernel, and 3.5 installer, in SAFE MODE. trying AGP fix now. With AGP fix, it hangs on loginwindow I believe this was from a safe mode boot with AGP fix. Nov 4 08:52:17 localhost kernel[0]: BSD root: disk0s1, major 14, minor 1 Nov 4 08:52:17 localhost kernel[0]: HFS: created HFBT on OSX Nov 4 08:52:17 localhost kernel[0]: Jettisoning kernel linker. Nov 4 08:52:17 localhost kernel[0]: Resetting IOCatalogue. Nov 4 08:52:17 localhost kernel[0]: display: family specific matching fails Nov 4 08:52:17 localhost kernel[0]: display: family specific matching fails Nov 4 08:52:17 localhost kernel[0]: Matching service count = 0 Nov 4 08:52:17 localhost kernel[0]: Matching service count = 2 Nov 4 08:52:17 localhost kernel[0]: Matching service count = 2 Nov 4 08:52:17 localhost kernel[0]: Matching service count = 2 Nov 4 08:52:17 localhost kernel[0]: Matching service count = 2 Nov 4 08:52:17 localhost kernel[0]: Matching service count = 3 Nov 4 08:52:17 localhost kernel[0]: display: family specific matching fails Nov 4 08:52:17 localhost kernel[0]: display: family specific matching fails Nov 4 08:52:17 localhost kernel[0]: display: family specific matching fails Nov 4 08:52:17 localhost kernel[0]: display: family specific matching fails Nov 4 08:52:17 localhost kernel[0]: Apple16X50ACPI1: Identified Serial Port on ACPI Device=UAR1 Nov 4 08:52:17 localhost kernel[0]: Apple16X50UARTSync1: Detected 16550AF/C/CF FIFO=16 MaxBaud=115200 Nov 4 08:52:17 localhost kernel[0]: AppleHDA.kext failed to load: unable to locate 'layout-id' property. Nov 4 08:52:17 localhost memberd[56]: memberd starting up Nov 4 08:52:17 localhost mDNSResponder-108.2 (Aug 25 2006 14: 50:48)[48]: starting Nov 4 08:52:25 localhost lookupd[62]: lookupd (version 369.6) starting - Sat Nov 4 08:52:25 2006 Nov 4 08:52:26 localhost DirectoryService[63]: Launched version 2.1 (v353.5) Nov 4 08:52:29 localhost kernel[0]: display: Not usable Nov 4 08:52:29 localhost kextd[27]: kextd_watch_volumes: couldn't set up diskarb sessions Nov 4 08:52:29 localhost diskarbitrationd[55]: disk0s1 hfs 266300CC-E79A-3ACE-A613-B9FA972B0503 OSX / Nov 4 08:52:30 localhost mDNSResponder: Couldn't read user-specified Computer Name; using default “Macintosh-000000000000” instead Nov 4 08:52:31 localhost mDNSResponder: Couldn't read user-specified local hostname; using default “Macintosh-000000000000.local” instead Nov 4 08:52:32 localhost mDNSResponder: Adding browse domain local. Nov 4 08:52:33 localhost configd[52]: No AirPort Driver found. Nov 4 08:52:35 localhost lookupd[78]: lookupd (version 369.6) starting - Sat Nov 4 08:52:35 2006 Nov 4 08:52:37 localhost mDNSResponder: Couldn't read user-specified Computer Name; using default “Macintosh-000000000000” instead Nov 4 08:52:37 localhost mDNSResponder: Couldn't read user-specified local hostname; using default “Macintosh-000000000000.local” instead Nov 4 08:52:41 localhost KernelEventAgent[47]: tid 00000000 received unknown event (256) Nov 4 08:53:00 localhost /System/Library/CoreServices/loginwindow.app/Contents/MacOS/loginwindow: Login Window Application Started Nov 4 08:53:07 localhost /System/Library/CoreServices/mcxd.app/Contents/MacOS/mcxd: MCXD.initializeDirectoryServices: Unable to get the ethernet address Nov 4 08:53:11 localhost /System/Library/PrivateFrameworks/Admin.framework/Resources/UpdateSettingsTool: UpdateSettings Error: makequeues -u returned 256 Nov 4 08:55:05 tims-computer configd[52]: setting hostname to "tims-computer.local" Nov 4 11:55:28 tims-computer /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/LangAnalysis.framework/Versions/A/Support/LAServer.app/Contents/MacOS/LAServer: kCGErrorInvalidConnection : CGSGetNextEventRecord: Invalid connection Nov 4 11:55:29 tims-computer /System/Library/CoreServices/loginwindow.app/Contents/MacOS/loginwindow: Login Window Application Started Nov 4 11:55:33 tims-computer loginwindow[276]: Login Window Started Security Agent Link to comment Share on other sites More sharing options...
Baliw Posted November 5, 2006 Share Posted November 5, 2006 Try Neo's 3.4 installer works fine for me. Link to comment Share on other sites More sharing options...
wondergod Posted November 5, 2006 Share Posted November 5, 2006 I have a sapphire x1600pro Crossfire edition and I've been having the same problem with the jas 10.4.8 dvd...I install with x1600 support and if I boot with -v i can get to a blue screen with no mouse...if i boot without the -v I get the "you must restart your pc" screen...i just figured it was my card because I pulled it out and I tried with my onboard gma950 and its working fine....damn...this card was working great in 10.4.7 I might just have to go back to the old kernel for the sake of my card.... Link to comment Share on other sites More sharing options...
greenman100 Posted November 5, 2006 Share Posted November 5, 2006 I have a sapphire x1600pro Crossfire edition and I've been having the same problem with the jas 10.4.8 dvd...I install with x1600 support and if I boot with -v i can get to a blue screen with no mouse...if i boot without the -v I get the "you must restart your pc" screen...i just figured it was my card because I pulled it out and I tried with my onboard gma950 and its working fine....damn...this card was working great in 10.4.7 I might just have to go back to the old kernel for the sake of my card.... Finally someone else! I have the exact same problem. Link to comment Share on other sites More sharing options...
gecko Posted November 14, 2006 Share Posted November 14, 2006 same problem and same card with 10.4.8 Any solutions yet? Link to comment Share on other sites More sharing options...
bottleNeckKiller Posted November 15, 2006 Share Posted November 15, 2006 I have Sapphire X1600 pro. I have been getting similar problems with this card. I tried close to everything but it just would not work. It did work before with CI/QE/Rotation on 10.4.4 kernel I just want my widescreen back. Link to comment Share on other sites More sharing options...
wondergod Posted November 15, 2006 Share Posted November 15, 2006 I got my card to work exactly the way it worked with the 10.4.4 kernel using the AtiInject Kext, I suggest you guys check it out... I got my widescreen 1440x900 back! Link to comment Share on other sites More sharing options...
department27 Posted November 15, 2006 Share Posted November 15, 2006 I had a similar problem. But I installed the ATI PCIe drivers from the DVD. My original sapphire x1600xt (PCIe) died and I bought a new one. This just gave me garbage on the screen. After some investigation I discovered that the new card had a newer bios on it. I then re-flashed it with the older bios and it started to work. The new bios is p/n 11x5c8801SA-009 What you need on the x1600xt PCIe is this one p/n 11x5c8801SA-008 P.S. You may have to flash in dos mode as I found it would not use the windows utility, plus you need to force it to flash the card, cannot remmeber the exact commands but I remember -amtel as one of the parameters. Hope this helps. Link to comment Share on other sites More sharing options...
bottleNeckKiller Posted November 16, 2006 Share Posted November 16, 2006 yahoo i have finally got my x1600pro working with ci, qe, rotation and widescreen! i had followed VasH instructions in here. Now everything is perfect. Link to comment Share on other sites More sharing options...
pion Posted November 16, 2006 Share Posted November 16, 2006 try the 2nd port guys. if your monitor is connected to primary port then try secondary port to see if is works. my old x1600xt has dvi port and vga secondary port. osx doesnt want to go past the apple grey screen with monitor connected to dvi primary port. after i change to vga port, osx load prefectly. Link to comment Share on other sites More sharing options...
