none20 Posted September 28, 2016 Share Posted September 28, 2016 Hi, I am having two problems with Sierra. (Final official release from AppStore). 1. My onboard desktop Intel HD 4600 is not working anymore by clover's injection method (it was working perfectly on previous systems like Mavericks, Yosemite and El Capitan). For some reasons with same kexts and config.plist with latest clover I am having reboots soon after I reach DSMOS HAS ARRIVED. I noticed that giving lg-platform-id: 0x04128086 stops the rebooting. But my video card is recognized as Intel HD 4600 with 7mb vram. No acceleration. Before I reinstalled OSX I checked what is my ID on working El Capitan by DPCIManager, and it also said it is 0x04128086. I tried few different ID's found on the web, but nothing seems to help. I even tried solution with FakeID kexts. Problem remains the same. 2. My audio card is not working by the same injection method as it was working on El Capitan and Yosemite. I always installed my audio in post process using this app "Clover OS X El Capitan-V7". I know its novice solution, but previously was working perfectly for me with minimal effort. My specs are: MB: MSI B85-G43 Sc CPU: i5-4570 Mem: 16GB Corsair Vengeance Pro GPU: Intel HD 4600 (I'm connecting Monitor to PC via DVI-HDMI cable) Audio: ALC892 (previously was working on ID 1 after patching AppleHDA with given app) I used latest clover, and I am of course installing everything using UEFI (EFI Partition). I will attach everything I have in my EFI. Any suggestions guys? Thanks My EFI Stuff.zip Link to comment https://www.insanelymac.com/forum/topic/316116-1012-sierra-and-intel-hd-4600-alc892-problem/ Share on other sites More sharing options...
chriz74 Posted September 29, 2016 Share Posted September 29, 2016 You have to inject the card id. check yours under Linux lspci . That is not the ig-platform-id . It should be for example 0x0a260006. The one you put is the device-id. google hd4600 laptop patches. For audio try Toleda command 120 2 Link to comment https://www.insanelymac.com/forum/topic/316116-1012-sierra-and-intel-hd-4600-alc892-problem/#findComment-2289040 Share on other sites More sharing options...
FredWst Posted September 30, 2016 Share Posted September 30, 2016 Hi, I have Ga-h97wifi : ALC892 - i5 4590 -> HD4600 hd4600 ig-platform-id 0x0D220003 works fine For audio try AppleALC also works fine. i use layout 1. Remove all patch in clover config related to HDMI, AppleALC will do it. Fred 1 Link to comment https://www.insanelymac.com/forum/topic/316116-1012-sierra-and-intel-hd-4600-alc892-problem/#findComment-2289513 Share on other sites More sharing options...
none20 Posted September 30, 2016 Author Share Posted September 30, 2016 Thanks guys, I will check this in a moment. But: @Chriz74 I'm not using laptop, my intel hd 4600 is a desktop one. For audio, I already tried the Toleda's command 120 with native appleHDA, but that doesn't work on any device id. @Fred - I will check that in Linux, I got some linux on dvd, I will give it a try. Once again thanks, I will speak to You soon with results. Link to comment https://www.insanelymac.com/forum/topic/316116-1012-sierra-and-intel-hd-4600-alc892-problem/#findComment-2289789 Share on other sites More sharing options...
chriz74 Posted September 30, 2016 Share Posted September 30, 2016 Nethertheless you have to inject proper ig-platform-id Link to comment https://www.insanelymac.com/forum/topic/316116-1012-sierra-and-intel-hd-4600-alc892-problem/#findComment-2290036 Share on other sites More sharing options...
none20 Posted October 1, 2016 Author Share Posted October 1, 2016 Nethertheless you have to inject proper ig-platform-id Chriz, Thank You for advices, good to know that I can use linux with lspci to get my correct ig-platform. I thought that the thing that I am trying to inject is this id, but I was wrong. I will keep in mind Your advice for future. It will be really helpfull. Thanks again !!! Hi, I have Ga-h97wifi : ALC892 - i5 4590 -> HD4600 hd4600 ig-platform-id 0x0D220003 works fine For audio try AppleALC also works fine. i use layout 1. Remove all patch in clover config related to HDMI, AppleALC will do it. Fred Fred, thank You, Your ID and solution with AppleALC works perfectly !!! I'm happy to hear sound again. And also on given ig-platform-id my video card works great. I mean I have acceleration with no problems. Link to comment https://www.insanelymac.com/forum/topic/316116-1012-sierra-and-intel-hd-4600-alc892-problem/#findComment-2290642 Share on other sites More sharing options...
Mikethebike Posted December 18, 2016 Share Posted December 18, 2016 how/where to inject this? hd4600 ig-platform-id 0x0D220003 sierra with clover but new to this. Many thanks Link to comment https://www.insanelymac.com/forum/topic/316116-1012-sierra-and-intel-hd-4600-alc892-problem/#findComment-2336487 Share on other sites More sharing options...
pinarek Posted December 18, 2016 Share Posted December 18, 2016 Hello Friends none20 and Mikethebike... try this: <key>ig-platform-id</key> <string>0x0a160000</string> see my signature PC-1 MB !! this works without Problem Link to comment https://www.insanelymac.com/forum/topic/316116-1012-sierra-and-intel-hd-4600-alc892-problem/#findComment-2336492 Share on other sites More sharing options...
Mikethebike Posted December 18, 2016 Share Posted December 18, 2016 Thanks but I have no idea where to put this. Link to comment https://www.insanelymac.com/forum/topic/316116-1012-sierra-and-intel-hd-4600-alc892-problem/#findComment-2336511 Share on other sites More sharing options...

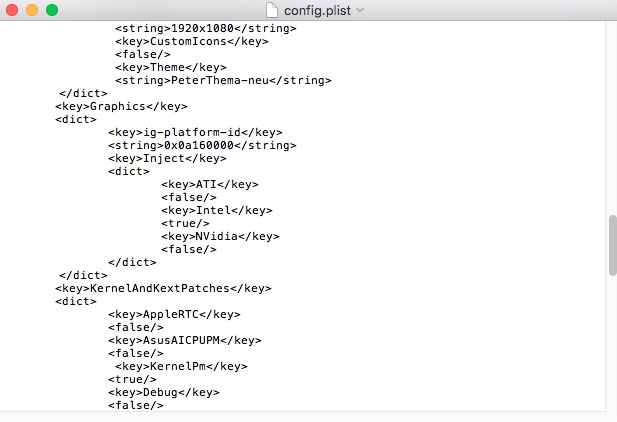

pinarek Posted December 18, 2016 Share Posted December 18, 2016 You must change this entry in the config.plist in Clover. In the section Graphic see my screenshot. Link to comment https://www.insanelymac.com/forum/topic/316116-1012-sierra-and-intel-hd-4600-alc892-problem/#findComment-2336690 Share on other sites More sharing options...
Mikethebike Posted December 19, 2016 Share Posted December 19, 2016 Thanks but I still cannot find this file. Where exactly is this? Couldn't find it in / nor the boot usb. Link to comment https://www.insanelymac.com/forum/topic/316116-1012-sierra-and-intel-hd-4600-alc892-problem/#findComment-2336793 Share on other sites More sharing options...
Mikethebike Posted December 19, 2016 Share Posted December 19, 2016 is this also when booting with usb? Link to comment https://www.insanelymac.com/forum/topic/316116-1012-sierra-and-intel-hd-4600-alc892-problem/#findComment-2336879 Share on other sites More sharing options...
pinarek Posted December 19, 2016 Share Posted December 19, 2016 the config.plist is in Folder in you MacHDD or SSD in Folder EFI, or inside when you have a EFI Partition (is invisible). Link to comment https://www.insanelymac.com/forum/topic/316116-1012-sierra-and-intel-hd-4600-alc892-problem/#findComment-2336928 Share on other sites More sharing options...
Mikethebike Posted December 19, 2016 Share Posted December 19, 2016 Thanks graphcis work now but still no sound. installed applealc.kext but didn't work. Thanks Link to comment https://www.insanelymac.com/forum/topic/316116-1012-sierra-and-intel-hd-4600-alc892-problem/#findComment-2336961 Share on other sites More sharing options...
