ekwipt Posted September 13, 2016 Share Posted September 13, 2016 So i am having some problems with my install Sierra PB7, I've managed to get the xcpm patches working (Credit © pikeralpha © okrasit) only by using fakeCPUID 0x040674, I've read a lot of people being able to get the patches working without having a fakeCPUID, so i'm at a bit of a loss here. I'm also not having to use the kexts:NullCPUPowerManagement.kextVoodooTSCSync.kextRunning the following patches in clover: xcpm_bootstrap Sierra © Pike R. Alpha Find 83C3C483FB22 Replace 83C3C183FB22 xcpm_core_scope_msrs © Pike R. Alpha Find BE0200000031D2E86CFCFFFF Replace BE0200000031D29090909090 xcpm_pkg_scope_msr © Pike R. Alpha find BE0700000031D2E894FCFFFF replace BE0700000031D29090909090 I've generated a ssdt.aml and placed in ACPI/patched folder using ssdtPRGen.shAlso ran freqVectorsEdit.shThen ran AppleIntelInfo and get the following output: AppleIntelInfo.kext v1.6 Copyright © 2012-2016 Pike R. Alpha. All rights reserved Settings: ------------------------------------ logMSRs............................: 1 logIGPU............................: 0 logCStates.........................: 1 logIPGStyle........................: 1 InitialTSC.........................: 0x7f18d438849 (256 MHz) MWAIT C-States.....................: 8480 Model Specific Registers (MSRs) --------------------------------------- MSR_CORE_THREAD_COUNT..........(0x35) : 0x6000C ---------------------------------------- - Core Count......................... : 6 - Thread Count....................... : 12 MSR_PLATFORM_INFO..............(0xCE) : 0x20080C3BF3812200 ---------------------------------------- - Maximum Non-Turbo Ratio............ : 34 - Ratio Limit for Turbo Mode......... : 1 (programmable) - TDP Limit for Turbo Mode........... : 1 (programmable) - Low Power Mode Support............. : 1 (LPM supported) - Number of ConfigTDP Levels......... : 1 (additional TDP level(s) available) - Maximum Efficiency Ratio........... : 12 - Minimum Operating Ratio............ : 8 MSR_PMG_CST_CONFIG_CONTROL.....(0xE2) : 0x3 ---------------------------------------- - I/O MWAIT Redirection Enable....... : 0 (not enabled) - CFG Lock........................... : 0 (MSR not locked) - C3 State Auto Demotion............. : 0 (disabled/unsupported) - C1 State Auto Demotion............. : 0 (disabled/unsupported) - C3 State Undemotion................ : 0 (disabled/unsupported) - C1 State Undemotion................ : 0 (disabled/unsupported) - Package C-State Auto Demotion...... : 0 (disabled/unsupported) - Package C-State Undemotion......... : 0 (disabled/unsupported) MSR_PMG_IO_CAPTURE_BASE........(0xE4) : 0x0 ---------------------------------------- - LVL_2 Base Address................. : 0x0 - C-state Range...................... : 0 (C-States not included, I/O MWAIT redirection not enabled) IA32_MPERF.....................(0xE7) : 0x6F86AA83BA2 IA32_APERF.....................(0xE8) : 0x7AAD2641271 MSR_0x150......................(0x150) : 0x0 MSR_FLEX_RATIO.................(0x194) : 0xE0000 ---------------------------------------- MSR_IA32_PERF_STATUS...........(0x198) : 0x24E500002600 ---------------------------------------- - Current Performance State Value.... : 0x2600 MSR_IA32_PERF_CONTROL..........(0x199) : 0x2600 ---------------------------------------- - Target performance State Value..... : 0x2600 - Intel Dynamic Acceleration......... : 0 (IDA engaged) IA32_CLOCK_MODULATION..........(0x19A) : 0x0 IA32_THERM_STATUS..............(0x19C) : 0x883E0000 IA32_MISC_ENABLES..............(0x1A0) : 0x810089 ---------------------------------------- - Fast-Strings....................... : 1 (enabled) - Automatic Thermal Control Circuit.. : 1 (enabled) - Performance Monitoring............. : 1 (available) - Enhanced Intel SpeedStep Technology : 1 (enabled) MSR_MISC_PWR_MGMT..............(0x1AA) : 0x402000 ---------------------------------------- - EIST Hardware Coordination......... : 0 (enabled) MSR_TURBO_RATIO_LIMIT..........(0x1AD) : 0x2323262626262626 ---------------------------------------- - Maximum Ratio Limit for C01........ : 38 - Maximum Ratio Limit for C02........ : 38 - Maximum Ratio Limit for C03........ : 38 - Maximum Ratio Limit for C04........ : 38 - Maximum Ratio Limit for C05........ : 38 - Maximum Ratio Limit for C06........ : 38 IA32_ENERGY_PERF_BIAS..........(0x1B0) : 0x0 ---------------------------------------- - Power Policy Preference.............: 0 (highest performance) MSR_POWER_CTL..................(0x1FC) : 0x2104005B MSR_RAPL_POWER_UNIT............(0x606) : 0xA0E03 MSR_PKG_POWER_LIMIT............(0x610) : 0x7FFD00014EA82 MSR_PKG_ENERGY_STATUS..........(0x611) : 0x8C2989DA MSR_PKG_POWER_INFO.............(0x614) : 0x1700460 MSR_PP0_POWER_LIMIT............(0x638) : 0x14FFD0 MSR_PP0_ENERGY_STATUS..........(0x639) : 0x0 MSR_TURBO_ACTIVATION_RATIO.....(0x64C) : 0x0 MSR_PKGC3_IRTL.................(0x60a) : 0x0 MSR_PKGC6_IRTL.................(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY...........(0x60d) : 0x0 MSR_PKG_C3_RESIDENCY...........(0x3f8) : 0x0 MSR_PKG_C2_RESIDENCY...........(0x60d) : 0x0 MSR_PKG_C6_RESIDENCY...........(0x3f9) : 0x0 IA32_TSC_DEADLINE..............(0x6E0) : 0x7F190854989 CPU Ratio Info: ---------------------------------------- CPU Maximum Efficiency Ratio...........: 1200 MHz CPU Maximum non-Turbo Frequency........: 3400 MHz CPU Maximum Turbo Frequency............: 3800 MHz CPU P-States [ (38) ] CPU P-States [ 37 (38) ] Kexts used: 10.12 Folder BrcmBluetoothInjector.kext FakeSMC.kext IntelMausiEthernet.kext VoodooHDA.kext X99_Injector USB 3.kext drivers64UEFI folder EmuVariableUefi-64.efi FSInject-64.efi HFSPlus.efi OsxAptioFix2Drv-free2000.efi OsxFatBinaryDrv-64.efi Config.plist and current ssdt.aml attached sysctl -n machdep.xcpm.mode = 0 sysctl -n machdep.xcpm.vectors_loaded_count = 0 From Pikeralphas blog: Tips: 1.) The X86PlatformPlugin.kext will only load with the plugin-type property is set on the first logical CPU. This however is not enough to enable XCPM mode. No. You may still use AppleIntelCPUPowerManagement.kext Even when X86PlatformShim.kext is loaded. 2.) The FrequencyVectors data in the plist is used to configure power management, and is not the same for all models/board-ids. Please use one that works for your setup. 3.) If sysctl -n machdep.xcpm.vectors_loaded_count returns 0 then the FrequencyVectors data is not being used. Backup the plist for your board-id and replace it with a different plist. 4.) If you use ssdtPRGen.sh to generate your ssdt_pr.aml then make sure to use the -turbo [top-turbo-frequency] argument for overclocked setups. 5.) Check for XCPM related errors at boot time. Like this: X86PlatformShim::start – Failed to send stepper. You got to fix errors or things may not work properly. I was pretty sure I patched the Frequency Vectors correctly using freqVectorsEdit.sh , but apparently not, i've tried manually copy the plist from different imacs to the macpro 6,1 manually and with the freqVectorsEdit.sh but to no avail. any help at this point would be GREATLY appreciated would someone be able to verify, make me a patch for 10.12 for the patch below, not sure if then i would be able t0 delete the FakeCPUID from clover then (cpuid_set_info (OS X 10.11.6) find 5D7F288D48BB83F902 replace 5D7F288D48B883F902 config.plist.zip ssdt.aml.zip Link to comment Share on other sites More sharing options...
ekwipt Posted September 13, 2016 Author Share Posted September 13, 2016 Kextstat Output: Index Refs Address Size Wired Name (Version) UUID <Linked Against> 1 75 0xffffff7f80a46000 0x9d30 0x9d30 com.apple.kpi.bsd (16.0.0) E4FCD46F-29E4-48E0-AC80-09112759B74B 2 8 0xffffff7f80dfe000 0x3940 0x3940 com.apple.kpi.dsep (16.0.0) 6E61102E-6F4C-427C-A260-752315F0D326 3 96 0xffffff7f80a04000 0x21040 0x21040 com.apple.kpi.iokit (16.0.0) 4C73A787-459C-4202-ADC0-618E2AB040A1 4 102 0xffffff7f80a26000 0xd200 0xd200 com.apple.kpi.libkern (16.0.0) 80845F3D-B38B-4D27-A667-09E01F9823B9 5 88 0xffffff7f80a00000 0x3dd0 0x3dd0 com.apple.kpi.mach (16.0.0) ADCD3C1E-B06C-4671-BB6C-D0F2B1ED30F5 6 50 0xffffff7f80a34000 0xb9c0 0xb9c0 com.apple.kpi.private (16.0.0) 9A8B0F6F-7DB0-4B11-AC22-7764DA290EC0 7 67 0xffffff7f80a40000 0x5890 0x5890 com.apple.kpi.unsupported (16.0.0) 7963BC6B-45C1-448C-A4A1-F62DD7A32A0D 8 6 0xffffff7f80e05000 0xa9000 0xa9000 com.apple.kec.corecrypto (1.0) 700E1192-8CD6-3F61-ABE9-D27C2CC1F164 <7 6 5 4 3 1> 9 0 0xffffff7f80ef2000 0xf000 0xf000 com.apple.kec.pthread (1) 53A94F98-6C94-3094-93D1-30493115364E <7 6 5 4 1> 10 1 0xffffff7f80f01000 0xb000 0xb000 com.apple.kec.Libm (1) 1441A2E9-3C13-3554-8028-F69175A80A5A <4> 11 18 0xffffff7f80fef000 0x9000 0x9000 com.apple.iokit.IOACPIFamily (1.4) 4F7FB6AD-2498-3F71-827C-ED7AA4BF2511 <7 6 4 3> 12 23 0xffffff7f80b32000 0x3a000 0x3a000 com.apple.iokit.IOPCIFamily (2.9) F6A129F7-5190-316B-9189-64CB2202D738 <7 6 5 4 3> 13 1 0xffffff7f81dc6000 0x66000 0x66000 com.apple.driver.AppleACPIPlatform (5.0) D748FA50-380C-3F0D-BAD9-EB7A15848EA8 <12 11 7 6 5 4 3 1> 14 1 0xffffff7f81168000 0xb000 0xb000 com.apple.driver.AppleFDEKeyStore (28.30) B9C62BFE-2AF9-33FF-85AD-B2BCEEF35E57 <8 7 6 5 4 3 1> 15 3 0xffffff7f8152f000 0x7000 0x7000 com.apple.iokit.IOReportFamily (31) 3CAF0CDE-3EB5-32C8-91EF-EC5C7CAFBA22 <5 4 3> 16 5 0xffffff7f80a50000 0x2f000 0x2f000 com.apple.iokit.IOStorageFamily (2.1) 1D78106B-791E-303B-9D12-FF31A942EB75 <7 6 5 4 3 1> 17 0 0xffffff7f815b2000 0x1e000 0x1e000 com.apple.driver.DiskImages (444) 80D7E3BB-4F87-342C-B79E-77D9FDC33F2C <16 7 6 5 4 3 1> 18 1 0xffffff7f81c36000 0x21000 0x21000 com.apple.driver.AppleCredentialManager (1.0) 74348615-A50D-3A32-B837-034444FDCBF6 <8 7 6 5 4 3 1> 19 3 0xffffff7f80eae000 0x16000 0x16000 com.apple.driver.AppleMobileFileIntegrity (1.0.5) 9EF1435C-49FC-3B1D-8E32-605881F77C92 <8 7 6 5 4 3 2 1> 20 0 0xffffff7f81c57000 0x3e000 0x3e000 com.apple.driver.AppleKeyStore (2) FDC7CCF4-944D-3CAB-A8C3-128FFBB16E5B <19 18 8 7 6 5 4 3 1> 21 0 0xffffff7f81cf1000 0x2b000 0x2b000 com.apple.driver.AppleIntelCPUPowerManagement (219.0.0) 29E6C60B-0C1A-30B3-9982-3761305C188C <7 6 5 4 3 1> 22 0 0xffffff7f81ec4000 0x11000 0x11000 org.netkas.driver.FakeSMC (1707) 72772B6B-84BC-3EC7-A053-FD8B95505F76 <11 7 5 4 3 1> 23 0 0xffffff7f80e02000 0x2000 0x2000 com.apple.security.TMSafetyNet (8) 1CB512A3-24BD-344A-BFB4-44A61F27AB03 <7 6 5 4 2 1> 24 2 0xffffff7f80ec4000 0x5000 0x5000 com.apple.kext.AppleMatch (1.0.0d1) 3B280DAB-903F-33DC-8110-525A1154B11E <4 1> 25 1 0xffffff7f80ec9000 0x1f000 0x1f000 com.apple.security.sandbox (300.0) 0DB843E1-989D-35FB-8EED-722AAD25D8A4 <24 19 16 7 6 5 4 3 2 1> 26 0 0xffffff7f80ee8000 0x9000 0x9000 com.apple.security.quarantine (3) 37B046F5-3150-34B0-A5FB-8DC85FC09589 <25 24 7 6 5 4 2 1> 27 0 0xffffff7f81eba000 0x8000 0x8000 com.apple.nke.applicationfirewall (171) ED81F5E1-B4BC-3FC9-9335-C155DB430435 <7 6 5 4 3 1> 28 0 0xffffff7f81cec000 0x3000 0x3000 com.apple.driver.AppleIntelCPUPowerManagementClient (219.0.0) B802638B-251C-3602-BA8C-001F87228765 <7 6 5 4 3 1> 29 0 0xffffff7f81d94000 0x3000 0x3000 com.apple.driver.AppleAPIC (1.7) BC2E6D01-BCBB-3525-BF38-BF99C3F1EC46 <4 3> 30 0 0xffffff7f81b89000 0x4000 0x4000 com.apple.driver.AppleSMBIOS (2.1) 9BB02681-4B47-3592-AD62-71FB0BF56965 <7 4 3> 31 0 0xffffff7f81d58000 0x3000 0x3000 com.apple.driver.AppleHPET (1.8) 2CFB49B8-4CC2-320B-9C6E-99646DFD8571 <11 7 5 4 3> 32 1 0xffffff7f81536000 0x5000 0x5000 com.apple.driver.AppleEFIRuntime (2.0) 6B7A5B9A-C313-3F7F-B6E2-60EE54593BC8 <7 6 5 4 3> 33 0 0xffffff7f81bb6000 0x8000 0x8000 com.apple.driver.AppleRTC (2.0) 3FD1BCF4-8AFC-3CE6-A36E-26410544AD14 <11 5 4 3 1> 34 3 0xffffff7f81173000 0x8d000 0x8d000 com.apple.iokit.IOHIDFamily (2.0.0) AE9ED6A0-B8C8-388A-9E5F-768B2B94CED5 <14 7 6 5 4 3 2 1> 35 0 0xffffff7f81e36000 0x4000 0x4000 com.apple.driver.AppleACPIButtons (5.0) B40BC4E6-0A6A-3D4A-B534-84CEE779302B <34 15 13 11 7 6 5 4 3 1> 36 1 0xffffff7f8153b000 0xb000 0xb000 com.apple.driver.AppleEFINVRAM (2.1) 6F4404D6-8625-35CA-AEB6-6ECD7B64FA52 <32 7 6 5 4 3 2 1> 37 1 0xffffff7f80ff8000 0xd000 0xd000 com.apple.driver.AppleBusPowerController (1.0) 6A42D63F-510B-3A68-AB61-A6E6A2E34DB6 <11 5 4 3> 38 11 0xffffff7f81005000 0x70000 0x70000 com.apple.iokit.IOUSBHostFamily (1.1) F46D940D-94E9-3B2F-BFC5-482D393178D5 <37 7 6 5 4 3 1> 39 2 0xffffff7f810a9000 0xab000 0xab000 com.apple.iokit.IOUSBFamily (900.4.1) 8F6207EC-608D-373A-B35E-E6578202F58D <38 12 7 5 4 3 1> 40 0 0xffffff7f81349000 0x5000 0x5000 com.apple.driver.usb.AppleUSBHostPacketFilter (1.0) 5B89B761-52AB-3592-8A02-FAA35F1BCC6B <38 7 6 5 4 3 1> 41 3 0xffffff7f8157e000 0x34000 0x34000 com.apple.iokit.IONetworkingFamily (3.2) A75F754A-CFC1-381B-B99C-363B0FEAD5B5 <7 6 5 4 3 1> 42 1 0xffffff7f816ea000 0x7000 0x7000 com.apple.filesystems.hfs.encodings.kext (1) 868F3029-68F7-38B3-BE10-2770ACAEB5D0 <7 6 5 4 3 1> 43 0 0xffffff7f816f1000 0x69000 0x69000 com.apple.filesystems.hfs.kext (366) 33C570C6-7D79-31B6-A40C-4A3D81064EDE <42 7 6 5 4 3 1> 44 0 0xffffff7f8185d000 0xa000 0xa000 com.apple.BootCache (39) 7F9AAFD7-4871-36F1-80CA-107A763017F1 <7 6 5 4 3 1> 45 0 0xffffff7f81d72000 0x6000 0x6000 com.apple.AppleFSCompression.AppleFSCompressionTypeZlib (1.0.0) 9B32DDE9-151F-31A1-90E9-3CEB2C7BE27C <6 4 3 2 1> 46 0 0xffffff7f81d7a000 0x3000 0x3000 com.apple.AppleFSCompression.AppleFSCompressionTypeDataless (1.0.0d1) C6F882D7-C35C-3963-A2FA-10033FF40107 <7 6 4 3 2 1> 48 1 0xffffff7f8120b000 0x46000 0x46000 com.apple.driver.usb.AppleUSBXHCI (1.1) 6FA20ACA-149D-3D25-88E8-8A18BC3EDAEE <38 11 7 5 4 3 1> 49 0 0xffffff7f81251000 0x2e000 0x2e000 com.apple.driver.usb.AppleUSBXHCIPCI (1.1) 486596CC-A5F0-39E7-BE14-782249E76C10 <48 38 12 11 7 5 4 3 1> 50 0 0xffffff7f81ed5000 0x14000 0x14000 com.insanelymac.IntelMausiEthernet (2.1.0) D65691B8-4EB1-3B22-B1B5-5CA5C566935E <41 12 5 4 3 1> 51 1 0xffffff7f8127f000 0x41000 0x41000 com.apple.driver.usb.AppleUSBEHCI (1.1) 1BB86D5F-65B2-3786-B8B7-FA48DD7817E8 <38 11 7 5 4 3 1> 52 0 0xffffff7f8135e000 0x11000 0x11000 com.apple.driver.usb.AppleUSBEHCIPCI (1.1) BEBCB3AF-8A95-3F08-B694-44A3720BD56E <51 38 12 11 7 5 4 3 1> 53 2 0xffffff7f81697000 0x1d000 0x1d000 com.apple.iokit.IOAHCIFamily (288) 5C275B66-A173-3D92-853A-44FC35D45FFC <5 4 3 1> 54 0 0xffffff7f81d99000 0x1e000 0x1e000 com.apple.driver.AppleAHCIPort (326) F91BC44F-48CB-3348-AED0-9CAA6A9D7ECD <53 12 5 4 3 1> 55 0 0xffffff7f81d6f000 0x2000 0x2000 net.osrom.kext.Disabler (1.0.1) 7D158CD9-D1C2-6ADC-D896-2FD8E29CD4AD <4 3> 56 1 0xffffff7f8134e000 0x4000 0x4000 com.apple.driver.AppleUSBHostMergeProperties (1.1) F412AF0D-97E7-364A-A211-FF14F3972014 <4 3 1> 57 0 0xffffff7f81396000 0x3000 0x3000 com.apple.driver.AppleUSBMergeNub (900.4.1) 1E7AC271-FB6C-33C6-9415-8007DA193D51 <56 39 4 3 1> 58 0 0xffffff7f81546000 0x38000 0x38000 com.apple.iokit.IONVMeFamily (992.1.0) B460E2CE-D16E-3C0F-B41F-0E2A84FEB291 <36 19 16 15 12 7 6 5 4 3 1> 59 2 0xffffff7f80f2f000 0x84000 0x84000 com.apple.iokit.IOFireWireFamily (4.6.4) 79AA2788-FEC3-3345-BC29-5BB4FF4F5814 <5 4 3 1> 60 0 0xffffff7f81605000 0x26000 0x26000 com.apple.driver.AppleFWOHCI (5.5.5) 6EF0BC66-3AF8-3272-AE3A-E588FFB07BF7 <59 12 7 6 5 4 3 1> 61 1 0xffffff7f813c4000 0x108000 0x108000 com.apple.iokit.IOThunderboltFamily (6.2.1) C6721C3B-DD22-3C13-98CC-1362A2DD761C <5 4 3 1> 62 0 0xffffff7f81ac4000 0x22000 0x22000 com.apple.driver.AppleThunderboltNHI (4.1.3) FF1AD9A2-43B1-353B-B420-E7F7969DA742 <61 12 11 5 4 3 1> 64 0 0xffffff7f816c1000 0x1c000 0x1c000 com.apple.iokit.IOAHCIBlockStorage (295.1.1) 08375C5A-FF97-32B5-8146-98192272C923 <53 16 6 5 4 3 1> 65 0 0xffffff7f81313000 0x36000 0x36000 com.apple.driver.usb.AppleUSBHub (1.1) E9A2F12D-FE24-3838-85D7-8D665F3F61EF <38 11 5 4 3 1> 66 0 0xffffff7f81352000 0x8000 0x8000 com.apple.driver.usb.AppleUSBHostCompositeDevice (1.1) 3465A4B1-B7B1-360A-B101-ECE555AFBE48 <38 5 4 3 1> 67 0 0xffffff7f818ac000 0x8000 0x8000 com.apple.driver.usb.networking (5.0.0) BD6EEE30-3331-376B-A9F8-FA10A8F28731 <38 5 4 3 1> 69 0 0xffffff7f80aef000 0x31000 0x31000 com.apple.iokit.IOSCSIArchitectureModelFamily (394) 0E35A335-5605-36FB-991C-D0D38F4FA4E7 <6 5 4 3 1> 70 0 0xffffff7f81200000 0xb000 0xb000 com.apple.driver.usb.IOUSBHostHIDDevice (1.1) 302A8C57-3513-362E-BB6D-C17F7E93D7D7 <38 34 5 4 3 1> 71 0 0xffffff7f8195d000 0xa000 0xa000 com.apple.driver.AppleHIDKeyboard (197) E03366C7-2F55-3D98-917A-39A349F4DAAA <34 5 4 3> 72 1 0xffffff7f81ee9000 0x95000 0x95000 com.apple.vecLib.kext (1.2.0) 6ADA5F0B-10EF-360A-BF1E-E142D2074E4E <10 6 5 4 3> 73 1 0xffffff7f81f7e000 0x30000 0x30000 com.apple.iokit.IOAudioFamily (205.11) BB1375FC-983D-3923-927F-88C0186414C8 <72 5 4 3 1> 74 0 0xffffff7f81fae000 0x21000 0x21000 org.voodoo.driver.VoodooHDA (2.8.8) 394A3B95-68A8-326D-8980-BEC2B1C95048 <73 12 7 5 4 3> 75 3 0xffffff7f81fcf000 0x8000 0x8000 com.apple.driver.IOPlatformPluginFamily (6.0.0d8) D211B7A8-7DC0-36DA-A6EE-BADF1F60162C <11 7 6 5 4 3> 76 5 0xffffff7f81fd7000 0x19000 0x19000 com.apple.driver.AppleSMC (3.1.9) FA8E2E8A-FA5B-3949-AA1D-946DE5F5217B <11 7 5 4 3 1> 77 1 0xffffff7f81ff0000 0x17000 0x17000 com.apple.driver.X86PlatformPlugin (1.0.0) F80CF40D-4ADE-3F20-AB94-B5EAB9B898E6 <76 75 39 38 11 7 6 5 4 3 1> 78 0 0xffffff7f82007000 0x8000 0x8000 com.apple.driver.AppleIntelMCEReporter (107) 30B0E402-294F-332A-8386-F05E3EE170D9 <7 6 5 4 3> 79 1 0xffffff7f814d0000 0x5000 0x5000 com.apple.iokit.IOSlowAdaptiveClockingFamily (1.0.0) F026208D-CC0C-3599-B303-9196904A584E <7 6 5 4 3 1> 80 0 0xffffff7f8200f000 0x2000 0x2000 com.apple.driver.AppleIntelSlowAdaptiveClocking (4.0.0) 6FE984DD-A1FE-309E-83CF-B346989A6F17 <79 4 3> 82 9 0xffffff7f82014000 0x3b000 0x3b000 com.apple.iokit.IOGraphicsFamily (2.4.1) 377FAA09-C02F-3FF4-A5DE-C0F2E711C8B0 <12 7 5 4 3 1> 83 1 0xffffff7f814cc000 0x4000 0x4000 com.apple.iokit.IOSMBusFamily (1.1) 185F0EBF-0262-3370-BD47-8FE4C8AA726E <5 4 3> 84 1 0xffffff7f8204f000 0xe000 0xe000 com.apple.driver.AppleSMBusController (1.0.14d1) 4DAA381E-3690-3E94-8025-DFB34F714094 <83 12 11 5 4 3> 85 0 0xffffff7f8205d000 0xe000 0xe000 com.apple.driver.AppleMCCSControl (1.2.13) 102DD5D9-2DD5-3BCB-B5C0-BE08E1049CD6 <84 82 76 12 11 7 5 4 3 1> 86 0 0xffffff7f8206b000 0xd000 0xd000 com.apple.iokit.IOFireWireIP (2.2.7) F30C2597-CAFD-386B-90E6-7A4007D8A6D5 <59 41 5 4 3 1> 92 0 0xffffff7f820a5000 0x4000 0x4000 com.intel.driver.EnergyDriver (2.0) 4E0262A2-B79C-3386-8824-C106A5DFAF94 <7 5 4 3> 94 5 0xffffff7f820ac000 0xe000 0xe000 com.apple.iokit.IONDRVSupport (2.4.1) C1544DFB-9066-340F-AD0A-9302DC3E6841 <82 12 7 5 4 3> 95 1 0xffffff7f820ba000 0x5000 0x5000 com.apple.driver.AppleBacklightExpert (1.1.0) 7D89A61E-ED4E-32C7-8CC2-1D5B7E76E498 <94 82 76 12 5 4 3> 96 0 0xffffff7f820bf000 0x5000 0x5000 com.apple.driver.AppleBacklight (170.9.10) 72AEF122-7C00-3F7A-AE4E-34495299E323 <95 94 82 12 5 4 3> 97 0 0xffffff7f820c4000 0x4000 0x4000 com.apple.driver.AppleOSXWatchdog (1) 757A8B72-2A1A-32BA-99EC-6D802DE6E91F <12 7 6 5 4 3 1> 98 0 0xffffff7f820c8000 0xa000 0xa000 com.apple.driver.AppleHV (1) 39AC9B9B-7B20-322F-82F0-044B3CC08D43 <7 6 5 4 3 1> 101 1 0xffffff7f820e9000 0x7000 0x7000 com.apple.driver.X86PlatformShim (1.0.0) 4AAFC86D-5E06-31C5-A6C5-4F00C3A04F34 <77 76 75 7 4 3> 102 2 0xffffff7f820f0000 0x9000 0x9000 com.apple.AppleGraphicsDeviceControl (3.13.60) FDEAB5E1-3BFF-34DF-92AB-6AE26C8405F7 <7 6 5 4 3 1> 103 0 0xffffff7f820f9000 0x18000 0x18000 com.apple.driver.AGPM (110.23.7) E6276A25-70A0-366A-A935-2328CFA9226D <102 94 82 75 12 6 5 4 3> 104 0 0xffffff7f82111000 0x4000 0x4000 com.apple.driver.ApplePlatformEnabler (2.7.0d0) 4B32012C-98E9-339A-A681-2A87EB353373 <7 5 4 3> 105 0 0xffffff7f82115000 0x5000 0x5000 com.apple.Dont_Steal_Mac_OS_X (7.0.0) B97F871A-44FD-3EA4-BC46-8FD682118C79 <76 8 7 4 3 1> 106 0 0xffffff7f8197c000 0xf3000 0xf3000 com.apple.iokit.IOBluetoothFamily (5.0.0f15) BBF19726-F609-3E2C-9FD3-A122539451C6 <15 7 5 4 3 1> 107 2 0xffffff7f8211a000 0x326000 0x326000 com.nvidia.web.NVDAResmanWeb (10.1.3) 3EC6A9AA-1C98-3332-A7C8-6ED8383933FA <102 94 82 12 7 5 4 3 1> 108 0 0xffffff7f82440000 0x1bd000 0x1bd000 com.nvidia.web.NVDAGK100HalWeb (10.1.3) 33C18CDB-ED78-304C-9841-E38CDA020F93 <107 12 4 3> 109 1 0xffffff7f825fd000 0x90000 0x90000 com.apple.iokit.IOAcceleratorFamily2 (288.13) 27E0AFCE-E36A-35F5-A008-BB1EB3A2C7B9 <82 12 7 6 5 4 3 1> 110 0 0xffffff7f8268d000 0x9a000 0x9a000 com.nvidia.web.GeForceWeb (10.1.3) 3081315F-E5BF-3CBF-862F-6E6F68D85615 <109 107 94 82 12 7 5 4 3 1> 111 1 0xffffff7f82727000 0xe000 0xe000 com.apple.iokit.IOSerialFamily (11) B36990F3-B873-31BB-8A1B-5615A3277382 <7 6 5 4 3 1> 112 0 0xffffff7f82735000 0xa000 0xa000 com.apple.iokit.IOBluetoothSerialManager (5.0.0f15) 85DBFB3F-95AE-39E9-AC65-16CFF31FE808 <111 7 5 4 3 1> 113 0 0xffffff7f8273f000 0x5000 0x5000 com.apple.driver.AppleUpstreamUserClient (3.6.4) 761DD71A-0746-3515-A557-B702BBDD664A <82 12 11 7 5 4 3 1> 114 0 0xffffff7f82744000 0x17000 0x17000 com.apple.iokit.IOSurface (152) CD2E7A07-1BD9-3298-A038-E6F8098F0C2A <7 6 5 4 3 1> 115 0 0xffffff7f8275b000 0x6000 0x6000 com.apple.iokit.IOUserEthernet (1.0.1) 5EE448BD-95EC-35AD-B7FC-A1237E4BB346 <41 6 5 4 3 1> 116 0 0xffffff7f82761000 0xd000 0xd000 com.apple.driver.pmtelemetry (1) E6E68296-809B-3884-ADEF-E85831F4B106 <7 6 5 4 3> 117 2 0xffffff7f8276e000 0x5000 0x5000 com.apple.kext.triggers (1.0) 4E564246-8804-3673-B440-606AD360A3BB <7 6 5 4 3 1> 118 0 0xffffff7f82773000 0x9000 0x9000 com.apple.filesystems.autofs (3.0) AA36D92F-D92B-3102-BAE3-F86A0A298143 <117 7 6 5 4 3 1> 121 0 0xffffff7f8277c000 0x61000 0x61000 com.apple.filesystems.smbfs (3.1) 2D18A430-2FEB-31EB-9462-9CD093806F8B <117 8 7 6 5 4 3 1> 122 1 0xffffff7f82078000 0xf000 0xf000 com.apple.filesystems.msdosfs (1.10) F8B8D309-C01A-32AD-B769-8822D9B4593B <7 5 4 1> 123 0 0xffffff7f82087000 0x8000 0x8000 com.apple.driver.AppleXsanScheme (3) CE9B9375-DE2D-396A-9AB5-088FF26F081B <16 5 4 3 1> Looks like applecpuintelpowermanagement is being used. Maybe we have to find only a new reboot fix kernel patch for Broadwell E/EP cpu and Sierra (GM?) Yes please!!! Link to comment Share on other sites More sharing options...

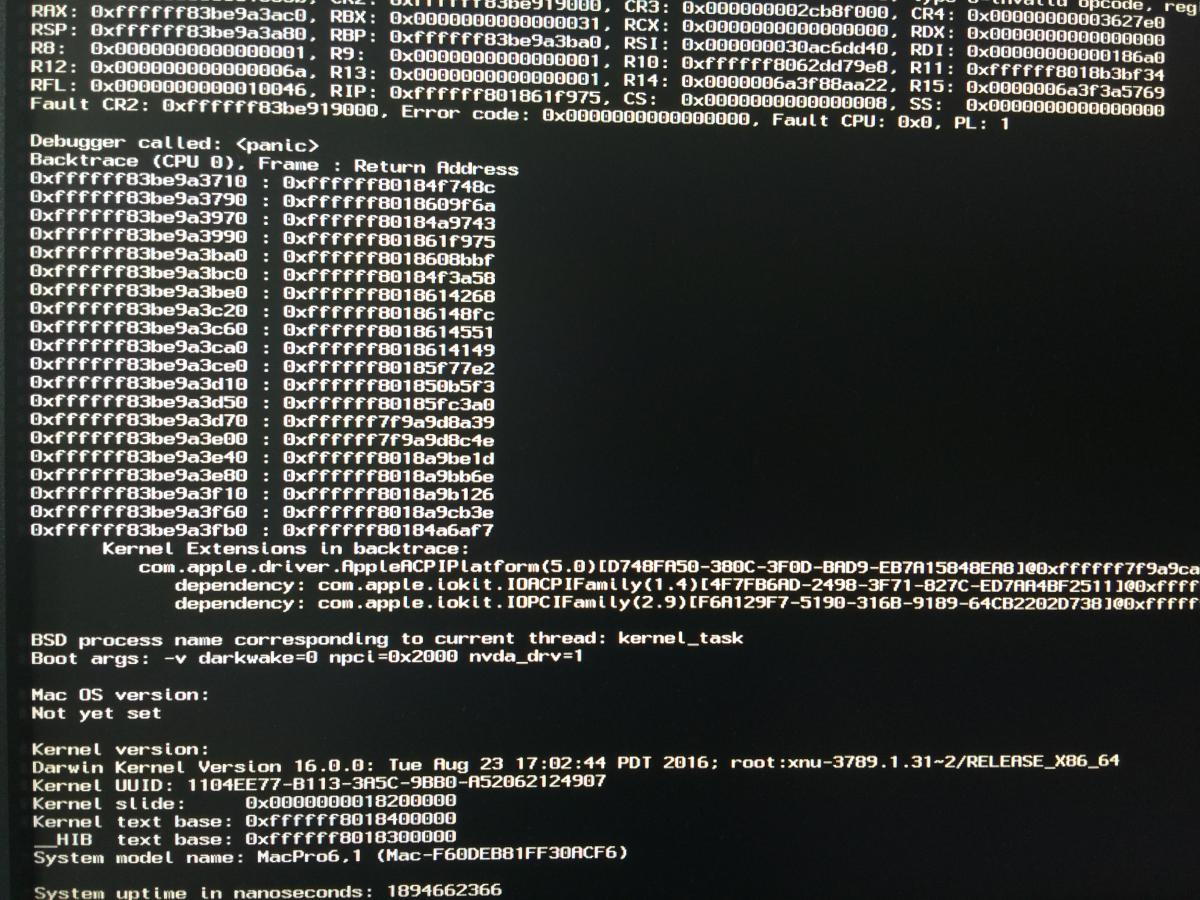

ekwipt Posted September 14, 2016 Author Share Posted September 14, 2016 Kernel panic here Link to comment Share on other sites More sharing options...
ekwipt Posted September 18, 2016 Author Share Posted September 18, 2016 New Clover version has fixed my issues with XCPM, thanks to all involved with Clover and PikerAlpha for many fixes to get XCPM working on everyones machines : AppleIntelInfo.kext v1.8 Copyright © 2012-2016 Pike R. Alpha. All rights reserved Settings: ------------------------------------------ logMSRs..................................: 1 logIGPU..................................: 0 logCStates...............................: 1 logIPGStyle..............................: 1 InitialTSC...............................: 0x285838719d8 (81 MHz) MWAIT C-States...........................: 8480 Processor Brandstring....................: Intel® Core i7-6800K CPU @ 3.40GHz Processor Signature..................... : 0x406F1 ------------------------------------------ - Family............................... : 6 - Stepping............................. : 1 - Model................................ : 0x4F (79) Model Specific Registers (MSRs) ------------------------------------------ MSR_CORE_THREAD_COUNT............(0x35) : 0x6000C ------------------------------------------ - Core Count........................... : 6 - Thread Count......................... : 12 MSR_PLATFORM_INFO................(0xCE) : 0x20080C3BF3812200 ------------------------------------------ - Maximum Non-Turbo Ratio.............. : 0x22 (3400 MHz) - Ratio Limit for Turbo Mode........... : 1 (programmable) - TDP Limit for Turbo Mode............. : 1 (programmable) - Low Power Mode Support............... : 1 (LPM supported) - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available) - Maximum Efficiency Ratio............. : 12 - Minimum Operating Ratio.............. : 8 MSR_PMG_CST_CONFIG_CONTROL.......(0xE2) : 0x403 ------------------------------------------ - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT) - CFG Lock............................. : 0 (MSR not locked) - C3 State Auto Demotion............... : 0 (disabled/unsupported) - C1 State Auto Demotion............... : 0 (disabled/unsupported) - C3 State Undemotion.................. : 0 (disabled/unsupported) - C1 State Undemotion.................. : 0 (disabled/unsupported) - Package C-State Auto Demotion........ : 0 (disabled/unsupported) - Package C-State Undemotion........... : 0 (disabled/unsupported) MSR_PMG_IO_CAPTURE_BASE..........(0xE4) : 0x10414 ------------------------------------------ - LVL_2 Base Address................... : 0x414 - C-state Range........................ : 1 (C6 is the max C-State to include) IA32_MPERF.......................(0xE7) : 0x11F721F962 IA32_APERF.......................(0xE8) : 0x1094F7A244 MSR_0x150........................(0x150) : 0x52424 MSR_FLEX_RATIO...................(0x194) : 0xE0000 ------------------------------------------ MSR_IA32_PERF_STATUS.............(0x198) : 0x226900002300 ------------------------------------------ - Current Performance State Value...... : 0x2300 (3500 MHz) MSR_IA32_PERF_CONTROL............(0x199) : 0x2600 ------------------------------------------ - Target performance State Value....... : 0x2600 (3800 MHz) - Intel Dynamic Acceleration........... : 0 (IDA engaged) IA32_CLOCK_MODULATION............(0x19A) : 0x0 IA32_THERM_STATUS................(0x19C) : 0x884E0000 IA32_MISC_ENABLES................(0x1A0) : 0x850089 ------------------------------------------ - Fast-Strings......................... : 1 (enabled) - Automatic Thermal Control Circuit.... : 1 (enabled) - Performance Monitoring............... : 1 (available) - Enhanced Intel SpeedStep Technology.. : 1 (enabled) MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x640A00 ------------------------------------------ - Turbo Attenuation Units.............. : 0 - Temperature Target................... : 100 - TCC Activation Offset................ : 0 MSR_MISC_PWR_MGMT................(0x1AA) : 0x402000 ------------------------------------------ - EIST Hardware Coordination........... : 0 (enabled) MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2323232323232626 ------------------------------------------ - Maximum Ratio Limit for C01.......... : 26 (3800 MHz) - Maximum Ratio Limit for C02.......... : 26 (3800 MHz) - Maximum Ratio Limit for C03.......... : 23 (3500 MHz) - Maximum Ratio Limit for C04.......... : 23 (3500 MHz) - Maximum Ratio Limit for C05.......... : 23 (3500 MHz) - Maximum Ratio Limit for C06.......... : 23 (3500 MHz) IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x0 MSR_POWER_CTL....................(0x1FC) : 0x2104005B ------------------------------------------ - C1E Enable............................: 1 MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03 ------------------------------------------ - Power Units.......................... : 3 (1/8 Watt) - Energy Status Units.................. : 14 (61 micro-Joules) - Time Units .......................... : 10 (976.6 micro-Seconds) MSR_PKG_POWER_LIMIT..............(0x610) : 0x7FFD00014EA82 ------------------------------------------ - Package Power Limit #1............... : 3408 Watt - Enable Power Limit #1................ : 1 (enabled) - Package Clamping Limitation #1....... : 0 (disabled) - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds) - Package Power Limit #2............... : 4090 Watt - Enable Power Limit #2................ : 1 (enabled) - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2) - Time Window for Power Limit #2....... : 3 (20 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PKG_ENERGY_STATUS............(0x611) : 0x3AC7B4E ------------------------------------------ - Total Energy Consumed................ : 3761 Joules (Watt = Joules / seconds) MSR_PKG_POWER_INFO...............(0x614) : 0x1700460 ------------------------------------------ - Thermal Spec Power................... : 140 Watt - Minimum Power........................ : 0 - Maximum Power........................ : 0 - Maximum Time Window.................. : 0 MSR_PP0_POWER_LIMIT..............(0x638) : 0x14FFD0 ------------------------------------------ - Power Limit.......................... : 4090 Watt - Enable Power Limit................... : 1 (enabled) - Clamping Limitation.................. : 0 (disabled) - Time Window for Power Limit.......... : 10 (10240 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PP0_ENERGY_STATUS............(0x639) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0 MSR_PKGC3_IRTL...................(0x60a) : 0x0 MSR_PKGC6_IRTL...................(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x60FA75686 MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x0 MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x60FA75686 MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x1580ECC93C IA32_TSC_DEADLINE................(0x6E0) : 0x28587BD735C CPU Ratio Info: ------------------------------------------ Base Clock Frequency (BLCK)............. : 100 MHz Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz) Maximum non-Turbo Ratio/Frequency........: 34 (3400 MHz) Maximum Turbo Ratio/Frequency............: 38 (3800 MHz) P-State ratio * 100 = Frequency in MHz ------------------------------------------ CPU P-States [ (12) 30 35 ] CPU C6-Cores [ 1 3 5 7 9 11 ] CPU P-States [ 12 30 32 (34) 35 ] CPU C6-Cores [ 0 1 2 3 4 5 7 8 9 11 ] CPU P-States [ 12 22 30 32 (34) 35 ] CPU P-States [ 12 22 30 31 32 34 (35) ] CPU P-States [ (12) 22 28 30 31 32 34 35 ] CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 11 ] CPU P-States [ (12) 22 27 28 30 31 32 34 35 ] CPU P-States [ 12 22 23 27 28 30 31 32 34 35 (36) ] CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ] CPU P-States [ (12) 20 22 23 27 28 30 31 32 34 35 36 ] CPU P-States [ (12) 20 22 23 24 27 28 30 31 32 34 35 36 ] CPU P-States [ 12 20 22 23 24 26 27 28 30 31 32 (34) 35 36 ] CPU P-States [ (12) 20 22 23 24 26 27 28 29 30 31 32 34 35 36 ] CPU P-States [ 12 20 22 23 24 25 26 27 28 29 30 31 32 (34) 35 36 ] CPU P-States [ 12 20 22 23 24 25 26 27 28 29 30 31 32 33 (34) 35 36 ] CPU P-States [ (12) 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 ] 2 Link to comment Share on other sites More sharing options...
Picasso Posted September 21, 2016 Share Posted September 21, 2016 Skylake and Haswell don't need SSDT. Link to comment Share on other sites More sharing options...
maleorderbride Posted September 22, 2016 Share Posted September 22, 2016 @ekwipt, can you post your working config.plist for 10.12.0 and Broadwell-EP with XCPM? Link to comment Share on other sites More sharing options...
nmano Posted September 22, 2016 Share Posted September 22, 2016 Last login: Wed Sep 21 11:40:41 on console manoranjans-Pro:~ manoranjan$ sudo chown -R root:wheel /Users/manoranjan/Desktop/AppleIntelInfo.kext Password: manoranjans-Pro:~ manoranjan$ sudo chmod -R 755 /Users/manoranjan/Desktop/AppleIntelInfo.kext manoranjans-Pro:~ manoranjan$ sudo kextload /Users/manoranjan/Desktop/AppleIntelInfo.kext manoranjans-Pro:~ manoranjan$ sudo cat /tmp/AppleIntelInfo.dat AppleIntelInfo.kext v1.7 Copyright © 2012-2016 Pike R. Alpha. All rights reserved Settings: ------------------------------------ logMSRs............................: 1 logIGPU............................: 0 logCStates.........................: 1 logIPGStyle........................: 1 InitialTSC.........................: 0x5c28d6b62c (13 MHz) MWAIT C-States.....................: 8480 Processor Brandstring..................: Intel(R) Core(TM) i7-5960X CPU @ 3.00GHz Processor Signature................... : 0x306F2 ---------------------------------------- - Family............................. : 6 - Stepping........................... : 2 - Model.............................. : 0x3F (63) Model Specific Registers (MSRs) --------------------------------------- MSR_CORE_THREAD_COUNT..........(0x35) : 0x80010 ---------------------------------------- - Core Count......................... : 8 - Thread Count....................... : 16 MSR_PLATFORM_INFO..............(0xCE) : 0x80C3BF3811E00 ---------------------------------------- - Maximum Non-Turbo Ratio............ : 30 - Ratio Limit for Turbo Mode......... : 1 (programmable) - TDP Limit for Turbo Mode........... : 1 (programmable) - Low Power Mode Support............. : 1 (LPM supported) - Number of ConfigTDP Levels......... : 1 (additional TDP level(s) available) - Maximum Efficiency Ratio........... : 12 - Minimum Operating Ratio............ : 8 MSR_PMG_CST_CONFIG_CONTROL.....(0xE2) : 0x3 ---------------------------------------- - I/O MWAIT Redirection Enable....... : 0 (not enabled) - CFG Lock........................... : 0 (MSR not locked) - C3 State Auto Demotion............. : 0 (disabled/unsupported) - C1 State Auto Demotion............. : 0 (disabled/unsupported) - C3 State Undemotion................ : 0 (disabled/unsupported) - C1 State Undemotion................ : 0 (disabled/unsupported) - Package C-State Auto Demotion...... : 0 (disabled/unsupported) - Package C-State Undemotion......... : 0 (disabled/unsupported) MSR_PMG_IO_CAPTURE_BASE........(0xE4) : 0x0 ---------------------------------------- - LVL_2 Base Address................. : 0x0 - C-state Range...................... : 0 (C-States not included, I/O MWAIT redirection not enabled) IA32_MPERF.....................(0xE7) : 0xCDAE075BF IA32_APERF.....................(0xE8) : 0x11B424D226 MSR_FLEX_RATIO.................(0x194) : 0xE0000 ---------------------------------------- MSR_IA32_PERF_STATUS...........(0x198) : 0x280400002B00 ---------------------------------------- - Current Performance State Value.... : 0x2B00 (4300 MHz) MSR_IA32_PERF_CONTROL..........(0x199) : 0xFF00 ---------------------------------------- - Target performance State Value..... : 0xFF00 (25500 MHz) - Intel Dynamic Acceleration......... : 0 (IDA engaged) IA32_CLOCK_MODULATION..........(0x19A) : 0x0 IA32_THERM_STATUS..............(0x19C) : 0x883E0000 IA32_MISC_ENABLES..............(0x1A0) : 0x850081 ---------------------------------------- - Fast-Strings....................... : 1 (enabled) - Automatic Thermal Control Circuit.. : 0 (disabled) - Performance Monitoring............. : 1 (available) - Enhanced Intel SpeedStep Technology : 1 (enabled) MSR_MISC_PWR_MGMT..............(0x1AA) : 0x0 ---------------------------------------- - EIST Hardware Coordination......... : 0 (enabled) MSR_TURBO_RATIO_LIMIT..........(0x1AD) : 0x2B2B2B2B2B2B2B2B ---------------------------------------- - Maximum Ratio Limit for C01........ : 2B (4300 MHz) - Maximum Ratio Limit for C02........ : 2B (4300 MHz) - Maximum Ratio Limit for C03........ : 2B (4300 MHz) - Maximum Ratio Limit for C04........ : 2B (4300 MHz) - Maximum Ratio Limit for C05........ : 2B (4300 MHz) - Maximum Ratio Limit for C06........ : 2B (4300 MHz) - Maximum Ratio Limit for C07........ : 2B (4300 MHz) - Maximum Ratio Limit for C08........ : 2B (4300 MHz) IA32_ENERGY_PERF_BIAS..........(0x1B0) : 0x5 ---------------------------------------- - Power Policy Preference.............: 5 (balanced performance and energy saving) MSR_POWER_CTL..................(0x1FC) : 0x21040059 ---------------------------------------- MSR_RAPL_POWER_UNIT............(0x606) : 0xA0E03 ---------------------------------------- - Power Units........................ : 3 (1/8 Watt) - Energy Status Units................ : 14 (61 micro-Joules) - Time Units ........................ : 10 (976.6 micro-Seconds) MSR_PKG_POWER_LIMIT............(0x610) : 0x7FFD00014EA82 ---------------------------------------- - Package Power Limit #1............. : 3408 Watt - Enable Power Limit #1.............. : 1 (enabled) - Package Clamping Limitation #1..... : 0 (disabled) - Time Window for Power Limit #1..... : 10 (2560 milli-Seconds) - Package Power Limit #2............. : 4090 Watt - Enable Power Limit #2.............. : 1 (enabled) - Package Clamping Limitation #2..... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2) - Time Window for Power Limit #2..... : 3 (20 milli-Seconds) - Lock............................... : 0 (MSR not locked) MSR_PKG_ENERGY_STATUS..........(0x611) : 0x286E6DE ---------------------------------------- - Total Energy Consumed.............. : 2587 Joules (Watt = Joules / seconds) MSR_PKG_POWER_INFO.............(0x614) : 0x1280460 ---------------------------------------- - Thermal Spec Power................. : 140 Watt - Minimum Power...................... : 0 - Maximum Power...................... : 0 - Maximum Time Window................ : 0 MSR_PP0_POWER_LIMIT............(0x638) : 0x14FFD0 ---------------------------------------- - Power Limit........................ : 4090 Watt - Enable Power Limit................. : 1 (enabled) - Clamping Limitation................ : 0 (disabled) - Time Window for Power Limit........ : 10 (10240 milli-Seconds) - Lock............................... : 0 (MSR not locked) MSR_PP0_ENERGY_STATUS..........(0x639) : 0x0 ---------------------------------------- - Total Energy Consumed.............. : 0 Joules (Watt = Joules / seconds) MSR_TURBO_ACTIVATION_RATIO.....(0x64C) : 0x0 MSR_CONFIG_TDP_NOMINAL.........(0x648) : 0x1E MSR_CONFIG_TDP_LEVEL1..........(0x649) : 0x940000001B0460 MSR_CONFIG_TDP_LEVEL2..........(0x64a) : 0x94000000000000 MSR_CONFIG_TDP_CONTROL.........(0x64b) : 0x0 MSR_TURBO_ACTIVATION_RATIO.....(0x64c) : 0x0 MSR_PKGC6_IRTL.................(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY...........(0x60d) : 0x15863BFDEE MSR_PKG_C6_RESIDENCY...........(0x3f9) : 0x1434E9AB5E IA32_TSC_DEADLINE..............(0x6E0) : 0x5C2BD7D543 CPU Ratio Info: ---------------------------------------- CPU Maximum Efficiency Ratio...........: 1200 MHz CPU Maximum non-Turbo Frequency........: 3000 MHz CPU Maximum Turbo Frequency............: 4300 MHz CPU P-States [ 35 (43) ] CPU C6-Cores [ 0 2 4 6 8 10 12 14 ] CPU P-States [ 34 35 (43) ] CPU P-States [ 34 35 41 (43) ] CPU C6-Cores [ 0 2 4 5 6 8 10 12 14 ] CPU C6-Cores [ 0 2 3 4 5 6 8 10 12 14 ] CPU P-States [ 34 35 37 41 (43) ] CPU C6-Cores [ 0 2 3 4 5 6 8 10 12 13 14 ] CPU P-States [ 29 34 35 37 41 (43) ] CPU P-States [ 28 29 34 35 37 41 (43) ] CPU P-States [ 28 29 32 34 35 37 41 (43) ] CPU P-States [ 28 29 31 32 34 35 37 41 (43) ] CPU P-States [ (12) 28 29 31 32 33 34 35 37 41 43 ] CPU P-States [ 12 28 29 30 31 32 33 34 35 37 41 (43) ] CPU C6-Cores [ 0 2 3 4 5 6 8 9 10 12 13 14 ] CPU P-States [ 12 23 28 29 30 31 32 33 34 35 37 41 (43) ] CPU C6-Cores [ 0 2 3 4 5 6 7 8 9 10 12 13 14 ] CPU P-States [ 12 23 25 28 29 30 31 32 33 34 35 37 41 (43) ] CPU P-States [ (12) 23 24 25 28 29 30 31 32 33 34 35 37 41 43 ] manoranjans-Pro:~ manoranjan$ New Clover version has fixed my issues with XCPM, thanks to all involved with Clover and PikerAlpha for many fixes to get XCPM working on everyones machines : AppleIntelInfo.kext v1.8 Copyright © 2012-2016 Pike R. Alpha. All rights reserved Settings: ------------------------------------------ logMSRs..................................: 1 logIGPU..................................: 0 logCStates...............................: 1 logIPGStyle..............................: 1 InitialTSC...............................: 0x285838719d8 (81 MHz) MWAIT C-States...........................: 8480 Processor Brandstring....................: Intel® Core i7-6800K CPU @ 3.40GHz Processor Signature..................... : 0x406F1 ------------------------------------------ - Family............................... : 6 - Stepping............................. : 1 - Model................................ : 0x4F (79) Model Specific Registers (MSRs) ------------------------------------------ IF you try this FakeCPUID 0x0406F1 Link to comment Share on other sites More sharing options...
ekwipt Posted September 29, 2016 Author Share Posted September 29, 2016 Last login: Wed Sep 21 11:40:41 on console manoranjans-Pro:~ manoranjan$ sudo chown -R root:wheel /Users/manoranjan/Desktop/AppleIntelInfo.kext Password: manoranjans-Pro:~ manoranjan$ sudo chmod -R 755 /Users/manoranjan/Desktop/AppleIntelInfo.kext manoranjans-Pro:~ manoranjan$ sudo kextload /Users/manoranjan/Desktop/AppleIntelInfo.kext manoranjans-Pro:~ manoranjan$ sudo cat /tmp/AppleIntelInfo.dat AppleIntelInfo.kext v1.7 Copyright © 2012-2016 Pike R. Alpha. All rights reserved Settings: ------------------------------------ logMSRs............................: 1 logIGPU............................: 0 logCStates.........................: 1 logIPGStyle........................: 1 InitialTSC.........................: 0x5c28d6b62c (13 MHz) MWAIT C-States.....................: 8480 Processor Brandstring..................: Intel(R) Core(TM) i7-5960X CPU @ 3.00GHz Processor Signature................... : 0x306F2 ---------------------------------------- - Family............................. : 6 - Stepping........................... : 2 - Model.............................. : 0x3F (63) Model Specific Registers (MSRs) --------------------------------------- MSR_CORE_THREAD_COUNT..........(0x35) : 0x80010 ---------------------------------------- - Core Count......................... : 8 - Thread Count....................... : 16 MSR_PLATFORM_INFO..............(0xCE) : 0x80C3BF3811E00 ---------------------------------------- - Maximum Non-Turbo Ratio............ : 30 - Ratio Limit for Turbo Mode......... : 1 (programmable) - TDP Limit for Turbo Mode........... : 1 (programmable) - Low Power Mode Support............. : 1 (LPM supported) - Number of ConfigTDP Levels......... : 1 (additional TDP level(s) available) - Maximum Efficiency Ratio........... : 12 - Minimum Operating Ratio............ : 8 MSR_PMG_CST_CONFIG_CONTROL.....(0xE2) : 0x3 ---------------------------------------- - I/O MWAIT Redirection Enable....... : 0 (not enabled) - CFG Lock........................... : 0 (MSR not locked) - C3 State Auto Demotion............. : 0 (disabled/unsupported) - C1 State Auto Demotion............. : 0 (disabled/unsupported) - C3 State Undemotion................ : 0 (disabled/unsupported) - C1 State Undemotion................ : 0 (disabled/unsupported) - Package C-State Auto Demotion...... : 0 (disabled/unsupported) - Package C-State Undemotion......... : 0 (disabled/unsupported) MSR_PMG_IO_CAPTURE_BASE........(0xE4) : 0x0 ---------------------------------------- - LVL_2 Base Address................. : 0x0 - C-state Range...................... : 0 (C-States not included, I/O MWAIT redirection not enabled) IA32_MPERF.....................(0xE7) : 0xCDAE075BF IA32_APERF.....................(0xE8) : 0x11B424D226 MSR_FLEX_RATIO.................(0x194) : 0xE0000 ---------------------------------------- MSR_IA32_PERF_STATUS...........(0x198) : 0x280400002B00 ---------------------------------------- - Current Performance State Value.... : 0x2B00 (4300 MHz) MSR_IA32_PERF_CONTROL..........(0x199) : 0xFF00 ---------------------------------------- - Target performance State Value..... : 0xFF00 (25500 MHz) - Intel Dynamic Acceleration......... : 0 (IDA engaged) IA32_CLOCK_MODULATION..........(0x19A) : 0x0 IA32_THERM_STATUS..............(0x19C) : 0x883E0000 IA32_MISC_ENABLES..............(0x1A0) : 0x850081 ---------------------------------------- - Fast-Strings....................... : 1 (enabled) - Automatic Thermal Control Circuit.. : 0 (disabled) - Performance Monitoring............. : 1 (available) - Enhanced Intel SpeedStep Technology : 1 (enabled) MSR_MISC_PWR_MGMT..............(0x1AA) : 0x0 ---------------------------------------- - EIST Hardware Coordination......... : 0 (enabled) MSR_TURBO_RATIO_LIMIT..........(0x1AD) : 0x2B2B2B2B2B2B2B2B ---------------------------------------- - Maximum Ratio Limit for C01........ : 2B (4300 MHz) - Maximum Ratio Limit for C02........ : 2B (4300 MHz) - Maximum Ratio Limit for C03........ : 2B (4300 MHz) - Maximum Ratio Limit for C04........ : 2B (4300 MHz) - Maximum Ratio Limit for C05........ : 2B (4300 MHz) - Maximum Ratio Limit for C06........ : 2B (4300 MHz) - Maximum Ratio Limit for C07........ : 2B (4300 MHz) - Maximum Ratio Limit for C08........ : 2B (4300 MHz) IA32_ENERGY_PERF_BIAS..........(0x1B0) : 0x5 ---------------------------------------- - Power Policy Preference.............: 5 (balanced performance and energy saving) MSR_POWER_CTL..................(0x1FC) : 0x21040059 ---------------------------------------- MSR_RAPL_POWER_UNIT............(0x606) : 0xA0E03 ---------------------------------------- - Power Units........................ : 3 (1/8 Watt) - Energy Status Units................ : 14 (61 micro-Joules) - Time Units ........................ : 10 (976.6 micro-Seconds) MSR_PKG_POWER_LIMIT............(0x610) : 0x7FFD00014EA82 ---------------------------------------- - Package Power Limit #1............. : 3408 Watt - Enable Power Limit #1.............. : 1 (enabled) - Package Clamping Limitation #1..... : 0 (disabled) - Time Window for Power Limit #1..... : 10 (2560 milli-Seconds) - Package Power Limit #2............. : 4090 Watt - Enable Power Limit #2.............. : 1 (enabled) - Package Clamping Limitation #2..... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2) - Time Window for Power Limit #2..... : 3 (20 milli-Seconds) - Lock............................... : 0 (MSR not locked) MSR_PKG_ENERGY_STATUS..........(0x611) : 0x286E6DE ---------------------------------------- - Total Energy Consumed.............. : 2587 Joules (Watt = Joules / seconds) MSR_PKG_POWER_INFO.............(0x614) : 0x1280460 ---------------------------------------- - Thermal Spec Power................. : 140 Watt - Minimum Power...................... : 0 - Maximum Power...................... : 0 - Maximum Time Window................ : 0 MSR_PP0_POWER_LIMIT............(0x638) : 0x14FFD0 ---------------------------------------- - Power Limit........................ : 4090 Watt - Enable Power Limit................. : 1 (enabled) - Clamping Limitation................ : 0 (disabled) - Time Window for Power Limit........ : 10 (10240 milli-Seconds) - Lock............................... : 0 (MSR not locked) MSR_PP0_ENERGY_STATUS..........(0x639) : 0x0 ---------------------------------------- - Total Energy Consumed.............. : 0 Joules (Watt = Joules / seconds) MSR_TURBO_ACTIVATION_RATIO.....(0x64C) : 0x0 MSR_CONFIG_TDP_NOMINAL.........(0x648) : 0x1E MSR_CONFIG_TDP_LEVEL1..........(0x649) : 0x940000001B0460 MSR_CONFIG_TDP_LEVEL2..........(0x64a) : 0x94000000000000 MSR_CONFIG_TDP_CONTROL.........(0x64b) : 0x0 MSR_TURBO_ACTIVATION_RATIO.....(0x64c) : 0x0 MSR_PKGC6_IRTL.................(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY...........(0x60d) : 0x15863BFDEE MSR_PKG_C6_RESIDENCY...........(0x3f9) : 0x1434E9AB5E IA32_TSC_DEADLINE..............(0x6E0) : 0x5C2BD7D543 CPU Ratio Info: ---------------------------------------- CPU Maximum Efficiency Ratio...........: 1200 MHz CPU Maximum non-Turbo Frequency........: 3000 MHz CPU Maximum Turbo Frequency............: 4300 MHz CPU P-States [ 35 (43) ] CPU C6-Cores [ 0 2 4 6 8 10 12 14 ] CPU P-States [ 34 35 (43) ] CPU P-States [ 34 35 41 (43) ] CPU C6-Cores [ 0 2 4 5 6 8 10 12 14 ] CPU C6-Cores [ 0 2 3 4 5 6 8 10 12 14 ] CPU P-States [ 34 35 37 41 (43) ] CPU C6-Cores [ 0 2 3 4 5 6 8 10 12 13 14 ] CPU P-States [ 29 34 35 37 41 (43) ] CPU P-States [ 28 29 34 35 37 41 (43) ] CPU P-States [ 28 29 32 34 35 37 41 (43) ] CPU P-States [ 28 29 31 32 34 35 37 41 (43) ] CPU P-States [ (12) 28 29 31 32 33 34 35 37 41 43 ] CPU P-States [ 12 28 29 30 31 32 33 34 35 37 41 (43) ] CPU C6-Cores [ 0 2 3 4 5 6 8 9 10 12 13 14 ] CPU P-States [ 12 23 28 29 30 31 32 33 34 35 37 41 (43) ] CPU C6-Cores [ 0 2 3 4 5 6 7 8 9 10 12 13 14 ] CPU P-States [ 12 23 25 28 29 30 31 32 33 34 35 37 41 (43) ] CPU P-States [ (12) 23 24 25 28 29 30 31 32 33 34 35 37 41 43 ] manoranjans-Pro:~ manoranjan$ IF you try this FakeCPUID 0x0406F1 Weird didnt work have to use 0x040671 to get it to boot Link to comment Share on other sites More sharing options...
ekwipt Posted September 29, 2016 Author Share Posted September 29, 2016 @ekwipt, can you post your working config.plist for 10.12.0 and Broadwell-EP with XCPM? yes this is my latest one: config.plist.zip Link to comment Share on other sites More sharing options...
SammlerG Posted September 29, 2016 Share Posted September 29, 2016 We all people with Broadwell E/ or xeon EP Cpu have all the same AppleIntelCpu output if xcpm is loaded and registered, and this is a fact also in ElCpaitan or in Sierra Partial XCPM functionality Low steps are not presents in Cpu P States from 13 to 17/18 and this behaviour is also evident with IPG (Intel Power Graphics) So XCPM is under investigation and it is not fully working at this moment for unsupported CPU this is a known issue, (i think all x99 booted with clover??) won´t stay at min. multiplier when CPU is idle. Pike R. Alpha showed some pictures from Intel Power Gadget, running Broadwell-E. With this test system, X99 booted with Revoboot, the CPU seems to throttle correct. I have done a lot of tests, but there is no solution to solve this problem. CPU jumps from min. to max. in idle. And some interesting facts: you can boot with or without SSDT - i have always the same results. With patched and loaded Apple Intel CPU Powermanagement kext nothing changed. I think something is wrong with the correct detection/setup for X99 CPUs with clover oder the fakesmc. C-States and P-States are not correct in use. But where to start investigation? 1 Link to comment Share on other sites More sharing options...
SammlerG Posted September 29, 2016 Share Posted September 29, 2016 Same here. Enable EIST = bad performance, but lower P-States. When i look at the output from appleintelinfo.kext, i can see some strange settings: EIST disabled in Bios, msr 0x1AA set to 400001 MSR_IA32_PERF_CONTROL............(0x199) : 0x7F00 ------------------------------------------ - Target performance State Value....... : 0x7F00 (12700 MHz) - Intel Dynamic Acceleration........... : 0 (IDA engaged) IA32_CLOCK_MODULATION............(0x19A) : 0x0 IA32_THERM_STATUS................(0x19C) : 0x884D0000 IA32_MISC_ENABLES................(0x1A0) : 0x840089 ------------------------------------------ - Fast-Strings......................... : 1 (enabled) - Automatic Thermal Control Circuit.... : 1 (enabled) - Performance Monitoring............... : 1 (available) - Enhanced Intel SpeedStep Technology.. : 0 (disabled) MSR_MISC_PWR_MGMT................(0x1AA) : 0x400001 ------------------------------------------ - EIST Hardware Coordination........... : 1 (disabled) EIST disabled in Bios, and msr 0x1AA is set to 400000 i´m getting Target performance state values (msr0x199) from 1000 to 4800 MHz. It changes every boot. When i enable EIST (msr 0x1A0 set to 850089), the performance is very bad. CPU don´t use the higher P-States and won´t stay at max. multi. But then, the lower P-States are used. Maybe… there is an error when xcpm/AICPM calculates and programs the msr/CPU frequencies. But the same happens when i disable xcpm and use nullCpuPm kext. The CPU is jumping from min. multiplier to max. multiplier in idle mode, permanent from min to max. Same results, tested with 2 motherboards (ASUS X-99 Deluxe and Gigabyte UD 5 WiFi). 2 Link to comment Share on other sites More sharing options...
ekwipt Posted September 29, 2016 Author Share Posted September 29, 2016 this is my latest output from AppleIntelInfo.kext 1.8c: AppleIntelInfo.kext v1.8c Copyright © 2012-2016 Pike R. Alpha. All rights reserved Settings: ------------------------------------------ logMSRs..................................: 1 logIGPU..................................: 0 logCStates...............................: 1 logIPGStyle..............................: 1 InitialTSC...............................: 0x295fc19d766 (83 MHz) MWAIT C-States...........................: 8480 Processor Brandstring....................: Intel® Core i7-6800K CPU @ 3.40GHz Processor Signature..................... : 0x406F1 ------------------------------------------ - Family............................... : 6 - Stepping............................. : 1 - Model................................ : 0x4F (79) Model Specific Registers (MSRs) ------------------------------------------ MSR_CORE_THREAD_COUNT............(0x35) : 0xFFFFFF8070BE4D00 ------------------------------------------ - Core Count........................... : 6 - Thread Count......................... : 12 MSR_PLATFORM_INFO................(0xCE) : 0x20080C3BF3812200 ------------------------------------------ - Maximum Non-Turbo Ratio.............. : 0x22 (3400 MHz) - Ratio Limit for Turbo Mode........... : 1 (programmable) - TDP Limit for Turbo Mode............. : 1 (programmable) - Low Power Mode Support............... : 1 (LPM supported) - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available) - Maximum Efficiency Ratio............. : 12 - Minimum Operating Ratio.............. : 8 MSR_PMG_CST_CONFIG_CONTROL.......(0xE2) : 0x403 ------------------------------------------ - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT) - CFG Lock............................. : 0 (MSR not locked) - C3 State Auto Demotion............... : 0 (disabled/unsupported) - C1 State Auto Demotion............... : 0 (disabled/unsupported) - C3 State Undemotion.................. : 0 (disabled/unsupported) - C1 State Undemotion.................. : 0 (disabled/unsupported) - Package C-State Auto Demotion........ : 0 (disabled/unsupported) - Package C-State Undemotion........... : 0 (disabled/unsupported) MSR_PMG_IO_CAPTURE_BASE..........(0xE4) : 0x10414 ------------------------------------------ - LVL_2 Base Address................... : 0x414 - C-state Range........................ : 1 (C6 is the max C-State to include) IA32_MPERF.......................(0xE7) : 0x17D47033AF IA32_APERF.......................(0xE8) : 0x1497B0455D MSR_0x150........................(0x150) : 0x0 MSR_FLEX_RATIO...................(0x194) : 0xE0000 ------------------------------------------ MSR_IA32_PERF_STATUS.............(0x198) : 0x212D00002200 ------------------------------------------ - Current Performance State Value...... : 0x2200 (3400 MHz) MSR_IA32_PERF_CONTROL............(0x199) : 0xC00 ------------------------------------------ - Target performance State Value....... : 0xC00 (1200 MHz) - Intel Dynamic Acceleration........... : 0 (IDA engaged) IA32_CLOCK_MODULATION............(0x19A) : 0x0 IA32_THERM_STATUS................(0x19C) : 0x884E0000 IA32_MISC_ENABLES................(0x1A0) : 0x850089 ------------------------------------------ - Fast-Strings......................... : 1 (enabled) - Automatic Thermal Control Circuit.... : 1 (enabled) - Performance Monitoring............... : 1 (available) - Enhanced Intel SpeedStep Technology.. : 1 (enabled) MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x640A00 ------------------------------------------ - Turbo Attenuation Units.............. : 0 - Temperature Target................... : 100 - TCC Activation Offset................ : 0 MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000 ------------------------------------------ - EIST Hardware Coordination........... : 0 (enabled) MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2323232323232626 ------------------------------------------ IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x0 MSR_POWER_CTL....................(0x1FC) : 0x2104005B ------------------------------------------ - C1E Enable............................: 1 MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03 ------------------------------------------ - Power Units.......................... : 3 (1/8 Watt) - Energy Status Units.................. : 14 (61 micro-Joules) - Time Units .......................... : 10 (976.6 micro-Seconds) MSR_PKG_POWER_LIMIT..............(0x610) : 0x7FFD00014EA82 ------------------------------------------ - Package Power Limit #1............... : 3408 Watt - Enable Power Limit #1................ : 1 (enabled) - Package Clamping Limitation #1....... : 0 (disabled) - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds) - Package Power Limit #2............... : 4090 Watt - Enable Power Limit #2................ : 1 (enabled) - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2) - Time Window for Power Limit #2....... : 3 (20 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PKG_ENERGY_STATUS............(0x611) : 0x16914218 ------------------------------------------ - Total Energy Consumed................ : 23109 Joules (Watt = Joules / seconds) MSR_PKG_POWER_INFO...............(0x614) : 0x1700460 ------------------------------------------ - Thermal Spec Power................... : 140 Watt - Minimum Power........................ : 0 - Maximum Power........................ : 0 - Maximum Time Window.................. : 0 MSR_PP0_POWER_LIMIT..............(0x638) : 0x14FFD0 ------------------------------------------ - Power Limit.......................... : 4090 Watt - Enable Power Limit................... : 1 (enabled) - Clamping Limitation.................. : 0 (disabled) - Time Window for Power Limit.......... : 10 (10240 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PP0_ENERGY_STATUS............(0x639) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0 MSR_PKGC3_IRTL...................(0x60a) : 0x0 MSR_PKGC6_IRTL...................(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0 MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x0 MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0 MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0 IA32_TSC_DEADLINE................(0x6E0) : 0x29600C48DAB CPU Ratio Info: ------------------------------------------ Base Clock Frequency (BLCK)............. : 100 MHz Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz) Maximum non-Turbo Ratio/Frequency........: 34 (3400 MHz) Maximum Turbo Ratio/Frequency............: 38 (3800 MHz) P-State ratio * 100 = Frequency in MHz ------------------------------------------ CPU P-States [ 30 34 (36) ] CPU C6-Cores [ 2 5 6 8 11 ] CPU P-States [ 30 34 35 (36) ] CPU C6-Cores [ 2 4 5 6 8 9 10 11 ] CPU C6-Cores [ 2 3 4 5 6 8 9 10 11 ] CPU P-States [ 26 30 (34) 35 36 ] CPU P-States [ 26 29 30 34 (35) 36 ] CPU P-States [ (12) 26 29 30 34 35 36 ] CPU C6-Cores [ 2 3 4 5 6 7 8 9 10 11 ] CPU P-States [ 12 26 28 29 30 (34) 35 36 ] CPU P-States [ 12 26 28 29 30 34 35 36 (38) ] Link to comment Share on other sites More sharing options...
ekwipt Posted September 29, 2016 Author Share Posted September 29, 2016 @ekwipt you have to stay more in idle and relaunch Appleintleinfo.kext And if you can launch Geekbench test and then stay in idle From your output seems that your cpu1 does not reach C6 states and this should not be good.. Maybe you have to stay more and relaunch the kext again ok so it does make a big difference: AppleIntelInfo.kext v1.8c Copyright © 2012-2016 Pike R. Alpha. All rights reserved Settings: ------------------------------------------ logMSRs..................................: 1 logIGPU..................................: 0 logCStates...............................: 1 logIPGStyle..............................: 1 InitialTSC...............................: 0x295fc19d766 (83 MHz) MWAIT C-States...........................: 8480 Processor Brandstring....................: Intel® Core i7-6800K CPU @ 3.40GHz Processor Signature..................... : 0x406F1 ------------------------------------------ - Family............................... : 6 - Stepping............................. : 1 - Model................................ : 0x4F (79) Model Specific Registers (MSRs) ------------------------------------------ MSR_CORE_THREAD_COUNT............(0x35) : 0xFFFFFF8070BE4D00 ------------------------------------------ - Core Count........................... : 6 - Thread Count......................... : 12 MSR_PLATFORM_INFO................(0xCE) : 0x20080C3BF3812200 ------------------------------------------ - Maximum Non-Turbo Ratio.............. : 0x22 (3400 MHz) - Ratio Limit for Turbo Mode........... : 1 (programmable) - TDP Limit for Turbo Mode............. : 1 (programmable) - Low Power Mode Support............... : 1 (LPM supported) - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available) - Maximum Efficiency Ratio............. : 12 - Minimum Operating Ratio.............. : 8 MSR_PMG_CST_CONFIG_CONTROL.......(0xE2) : 0x403 ------------------------------------------ - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT) - CFG Lock............................. : 0 (MSR not locked) - C3 State Auto Demotion............... : 0 (disabled/unsupported) - C1 State Auto Demotion............... : 0 (disabled/unsupported) - C3 State Undemotion.................. : 0 (disabled/unsupported) - C1 State Undemotion.................. : 0 (disabled/unsupported) - Package C-State Auto Demotion........ : 0 (disabled/unsupported) - Package C-State Undemotion........... : 0 (disabled/unsupported) MSR_PMG_IO_CAPTURE_BASE..........(0xE4) : 0x10414 ------------------------------------------ - LVL_2 Base Address................... : 0x414 - C-state Range........................ : 1 (C6 is the max C-State to include) IA32_MPERF.......................(0xE7) : 0x17D47033AF IA32_APERF.......................(0xE8) : 0x1497B0455D MSR_0x150........................(0x150) : 0x0 MSR_FLEX_RATIO...................(0x194) : 0xE0000 ------------------------------------------ MSR_IA32_PERF_STATUS.............(0x198) : 0x212D00002200 ------------------------------------------ - Current Performance State Value...... : 0x2200 (3400 MHz) MSR_IA32_PERF_CONTROL............(0x199) : 0xC00 ------------------------------------------ - Target performance State Value....... : 0xC00 (1200 MHz) - Intel Dynamic Acceleration........... : 0 (IDA engaged) IA32_CLOCK_MODULATION............(0x19A) : 0x0 IA32_THERM_STATUS................(0x19C) : 0x884E0000 IA32_MISC_ENABLES................(0x1A0) : 0x850089 ------------------------------------------ - Fast-Strings......................... : 1 (enabled) - Automatic Thermal Control Circuit.... : 1 (enabled) - Performance Monitoring............... : 1 (available) - Enhanced Intel SpeedStep Technology.. : 1 (enabled) MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x640A00 ------------------------------------------ - Turbo Attenuation Units.............. : 0 - Temperature Target................... : 100 - TCC Activation Offset................ : 0 MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000 ------------------------------------------ - EIST Hardware Coordination........... : 0 (enabled) MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2323232323232626 ------------------------------------------ IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x0 MSR_POWER_CTL....................(0x1FC) : 0x2104005B ------------------------------------------ - C1E Enable............................: 1 MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03 ------------------------------------------ - Power Units.......................... : 3 (1/8 Watt) - Energy Status Units.................. : 14 (61 micro-Joules) - Time Units .......................... : 10 (976.6 micro-Seconds) MSR_PKG_POWER_LIMIT..............(0x610) : 0x7FFD00014EA82 ------------------------------------------ - Package Power Limit #1............... : 3408 Watt - Enable Power Limit #1................ : 1 (enabled) - Package Clamping Limitation #1....... : 0 (disabled) - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds) - Package Power Limit #2............... : 4090 Watt - Enable Power Limit #2................ : 1 (enabled) - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2) - Time Window for Power Limit #2....... : 3 (20 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PKG_ENERGY_STATUS............(0x611) : 0x16914218 ------------------------------------------ - Total Energy Consumed................ : 23109 Joules (Watt = Joules / seconds) MSR_PKG_POWER_INFO...............(0x614) : 0x1700460 ------------------------------------------ - Thermal Spec Power................... : 140 Watt - Minimum Power........................ : 0 - Maximum Power........................ : 0 - Maximum Time Window.................. : 0 MSR_PP0_POWER_LIMIT..............(0x638) : 0x14FFD0 ------------------------------------------ - Power Limit.......................... : 4090 Watt - Enable Power Limit................... : 1 (enabled) - Clamping Limitation.................. : 0 (disabled) - Time Window for Power Limit.......... : 10 (10240 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PP0_ENERGY_STATUS............(0x639) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0 MSR_PKGC3_IRTL...................(0x60a) : 0x0 MSR_PKGC6_IRTL...................(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0 MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x0 MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0 MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0 IA32_TSC_DEADLINE................(0x6E0) : 0x29600C48DAB CPU Ratio Info: ------------------------------------------ Base Clock Frequency (BLCK)............. : 100 MHz Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz) Maximum non-Turbo Ratio/Frequency........: 34 (3400 MHz) Maximum Turbo Ratio/Frequency............: 38 (3800 MHz) P-State ratio * 100 = Frequency in MHz ------------------------------------------ CPU P-States [ 30 34 (36) ] CPU C6-Cores [ 2 5 6 8 11 ] CPU P-States [ 30 34 35 (36) ] CPU C6-Cores [ 2 4 5 6 8 9 10 11 ] CPU C6-Cores [ 2 3 4 5 6 8 9 10 11 ] CPU P-States [ 26 30 (34) 35 36 ] CPU P-States [ 26 29 30 34 (35) 36 ] CPU P-States [ (12) 26 29 30 34 35 36 ] CPU C6-Cores [ 2 3 4 5 6 7 8 9 10 11 ] CPU P-States [ 12 26 28 29 30 (34) 35 36 ] CPU P-States [ 12 26 28 29 30 34 35 36 (38) ] CPU P-States [ 12 26 28 29 30 32 34 35 36 (38) ] CPU P-States [ 12 26 28 29 30 31 32 34 35 36 (38) ] CPU P-States [ (12) 26 27 28 29 30 31 32 34 35 36 38 ] CPU P-States [ 12 25 26 27 28 29 30 31 32 34 35 (36) 38 ] CPU P-States [ 12 21 25 26 27 28 29 30 31 32 (34) 35 36 38 ] CPU P-States [ (12) 21 22 25 26 27 28 29 30 31 32 34 35 36 38 ] CPU P-States [ (12) 19 21 22 25 26 27 28 29 30 31 32 34 35 36 38 ] CPU P-States [ (12) 19 21 22 23 25 26 27 28 29 30 31 32 34 35 36 38 ] CPU P-States [ 12 17 19 21 22 23 25 26 27 28 29 30 31 32 34 (35) 36 38 ] CPU P-States [ 12 17 19 21 22 23 24 25 26 27 28 29 30 31 32 (34) 35 36 38 ] CPU P-States [ 12 17 19 21 22 23 24 25 26 27 28 29 30 31 32 33 34 (35) 36 38 ] CPU P-States [ 12 17 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 (36) 38 ] CPU P-States [ 12 16 17 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 (35) 36 38 ] CPU P-States [ (12) 14 16 17 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 38 ] CPU P-States [ (12) 14 15 16 17 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 38 ] CPU P-States [ (12) 13 14 15 16 17 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 38 ] CPU P-States [ 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 (35) 36 38 ] Link to comment Share on other sites More sharing options...

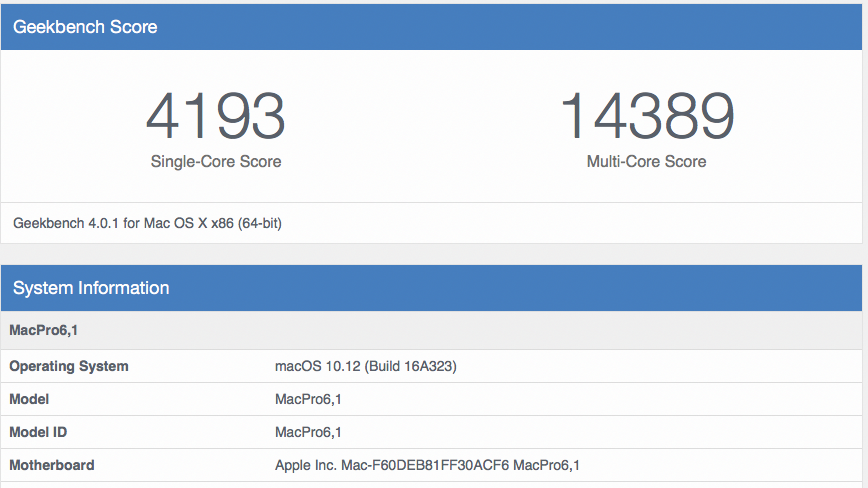

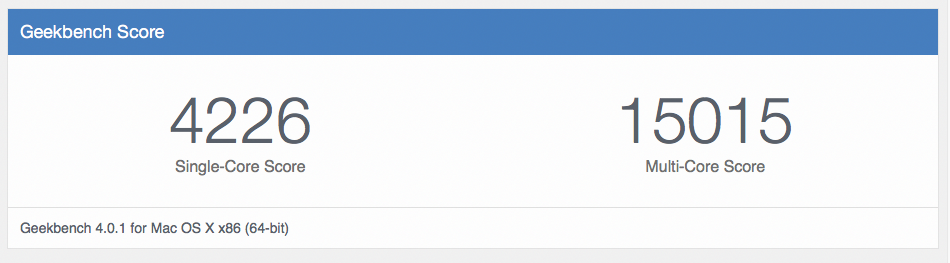

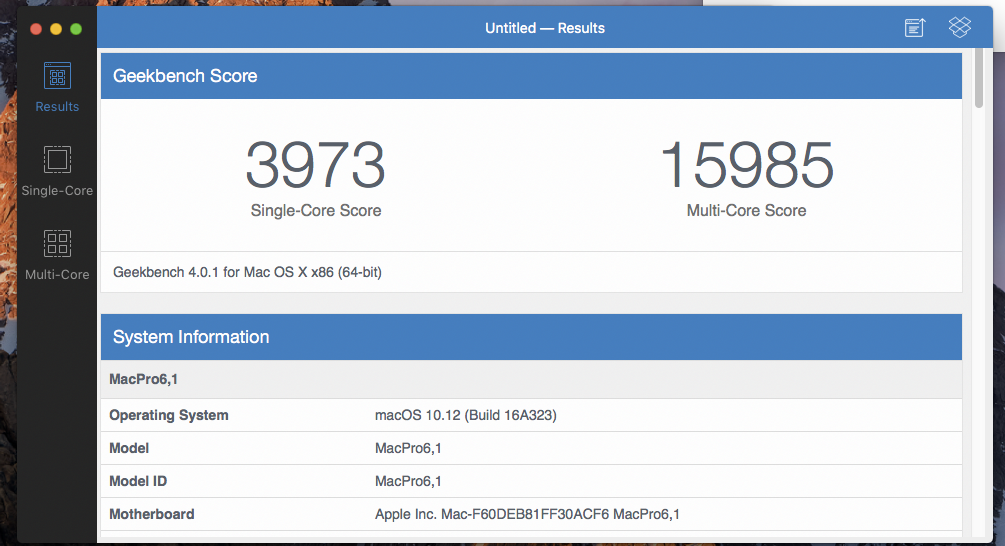

ekwipt Posted September 29, 2016 Author Share Posted September 29, 2016 on c6 states seems to be it a problem but P-States are perfect if you have good performance and eist disabled on bios I don't really understand what i'm seeing Fabiosun, but thanks for looking, my geekbench scores are all over the place, i use to have over 20000 multicore scores, anyway... Link to comment Share on other sites More sharing options...
ekwipt Posted September 29, 2016 Author Share Posted September 29, 2016 Do any of you gys have drop tables in your config, i really don't know what they are used for? <key>ACPI</key> <dict> <key>DSDT</key> <dict> <key>Debug</key> <false/> <key>DropOEM_DSM</key> <false/> <key>Name</key> <string>DSDT.aml</string> <key>ReuseFFFF</key> <false/> </dict> <key>DropTables</key> <array> <dict> <key>Signature</key> <string>DMAR</string> </dict> <dict> <key>Signature</key> <string>SSDT</string> <key>TableId</key> <string>Cpu0Ist</string> </dict> <dict> <key>Signature</key> <string>SSDT</string> <key>TableId</key> <string>CpuPm</string> </dict> </array> <key>SSDT</key> <dict> <key>DropOem</key> <false/> <key>Generate</key> <false/> </dict> <key>smartUPS</key> <true/> </dict> Look here from your output - Enhanced Intel SpeedStep Technology.. : 1 (enabled) you have speedstep in your bios enabled so you have same problem we all have try to disable and you should see best multi cpu core score and you will see to disappear all lower state when you check with Pike's appleintelinfo kext ok thanks Fabiosum, do you think this will help me in "real world situation"? I'm mainly using the rig for Audio DAW work with Ableton Live and doing some editing in Premiere and FX work in After Effetc?? Link to comment Share on other sites More sharing options...
ekwipt Posted September 29, 2016 Author Share Posted September 29, 2016 oh well, i feel like we have gotten fairly far already, hopefully we can find a better solution Link to comment Share on other sites More sharing options...
bkdwt Posted October 4, 2016 Share Posted October 4, 2016 Skylake and Haswell don't need SSDT. Say what? Link to comment Share on other sites More sharing options...
thenightflyer Posted October 7, 2016 Share Posted October 7, 2016 @ekwipt I see you have my same problem with MSR PKG POWER LIMIT....value is high...and as suggested by Piker we should try to set not in AUTO some bios parameters.... MSR_PKG_POWER_LIMIT..............(0x610) : 0x7FFD00014EA82 ------------------------------------------ - Package Power Limit #1............... : 3408 Watt - Enable Power Limit #1................ : 1 (enabled) - Package Clamping Limitation #1....... : 0 (disabled) - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds) - Package Power Limit #2............... : 4090 Watt Link to comment Share on other sites More sharing options...
r2tincan Posted February 12, 2017 Share Posted February 12, 2017 We all people with Broadwell E/ or xeon EP Cpu have all the same AppleIntelCpu output if xcpm is loaded and registered, and this is a fact also in ElCpaitan or in Sierra Partial XCPM functionality Low steps are not presents in Cpu P States from 13 to 17/18 and this behaviour is also evident with IPG (Intel Power Gadget) So XCPM is under investigation and it is not fully working at this moment for unsupported CPU @ekwipt with your cpu you can try to use fakecpuid that you are using or use 2,3,4 for last digit (one of those digits) But not xcpm difference at all in my case Is this still an issue with Haswell-E chips? I have Xeon E5-2630v3 and I'm having tons of problems getting XCPM to work. To my knowledge I'm using all the pike patches in clover for Haswell-E and have the xcpm bootflag enabled and did freq vectors for a 14,2 (I believe.) This is my kext output: AppleIntelInfo.kext v2.0 Copyright © 2012-2016 Pike R. Alpha. All rights reserved enableHWP................................: 0 Settings: ------------------------------------------ logMSRs..................................: 1 logIGPU..................................: 0 logCStates...............................: 1 logIPGStyle..............................: 1 InitialTSC...............................: 0x2f863eba990 (136 MHz) MWAIT C-States...........................: 8480 Processor Brandstring....................: Intel(R) Xeon(R) CPU E5-2630 v3 @ 2.40GHz Processor Signature..................... : 0x306F2 ------------------------------------------ - Family............................... : 6 - Stepping............................. : 2 - Model................................ : 0x3F (63) Model Specific Registers (MSRs) ------------------------------------------ MSR_CORE_THREAD_COUNT............(0x35) : 0xFFFFFF806BBFC400 ------------------------------------------ - Core Count........................... : 8 - Thread Count......................... : 16 MSR_PLATFORM_INFO................(0xCE) : 0x80C33F3811800 ------------------------------------------ - Maximum Non-Turbo Ratio.............. : 0x18 (2400 MHz) - Ratio Limit for Turbo Mode........... : 1 (programmable) - TDP Limit for Turbo Mode............. : 1 (programmable) - Low Power Mode Support............... : 1 (LPM supported) - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available) - Maximum Efficiency Ratio............. : 12 - Minimum Operating Ratio.............. : 8 MSR_PMG_CST_CONFIG_CONTROL.......(0xE2) : 0x8400 ------------------------------------------ - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT) - CFG Lock............................. : 1 (MSR locked until next reset) - C3 State Auto Demotion............... : 0 (disabled/unsupported) - C1 State Auto Demotion............... : 0 (disabled/unsupported) - C3 State Undemotion.................. : 0 (disabled/unsupported) - C1 State Undemotion.................. : 0 (disabled/unsupported) - Package C-State Auto Demotion........ : 0 (disabled/unsupported) - Package C-State Undemotion........... : 0 (disabled/unsupported) MSR_PMG_IO_CAPTURE_BASE..........(0xE4) : 0x10414 ------------------------------------------ - LVL_2 Base Address................... : 0x414 - C-state Range........................ : 1 (C6 is the max C-State to include) IA32_MPERF.......................(0xE7) : 0x94290EC077 IA32_APERF.......................(0xE8) : 0x3C757B3C6E MSR_FLEX_RATIO...................(0x194) : 0x0 ------------------------------------------ MSR_IA32_PERF_STATUS.............(0x198) : 0x1A7700001800 ------------------------------------------ - Current Performance State Value...... : 0x1800 (2400 MHz) MSR_IA32_PERF_CONTROL............(0x199) : 0xC00 ------------------------------------------ - Target performance State Value....... : 0xC00 (1200 MHz) - Intel Dynamic Acceleration........... : 0 (IDA engaged) IA32_CLOCK_MODULATION............(0x19A) : 0x0 IA32_THERM_INTERRUPT.............(0x19B) : 0x0 IA32_THERM_STATUS................(0x19C) : 0x88350000 ------------------------------------------ - Thermal Status....................... : 0 - Thermal Log.......................... : 0 - PROCHOT # or FORCEPR# event.......... : 0 - PROCHOT # or FORCEPR# log............ : 0 - Critical Temperature Status.......... : 0 - Critical Temperature log............. : 0 - Thermal Threshold #1 Status.......... : 0 - Thermal Threshold #1 log............. : 0 - Thermal Threshold #2 Status.......... : 0 - Thermal Threshold #2 log............. : 0 - Power Limitation Status.............. : 0 - Power Limitation log................. : 0 - Current Limit Status................. : 0 - Current Limit log.................... : 0 - Cross Domain Limit Status............ : 0 - Cross Domain Limit log............... : 0 - Digital Readout...................... : 53 - Resolution in Degrees Celsius........ : 1 - Reading Valid........................ : 1 (valid) MSR_THERM2_CTL...................(0x19D) : 0x0 IA32_MISC_ENABLES................(0x1A0) : 0x850089 ------------------------------------------ - Fast-Strings......................... : 1 (enabled) - FOPCODE compatibility mode Enable.... : 0 - Automatic Thermal Control Circuit.... : 1 (enabled) - Split-lock Disable................... : 0 - Performance Monitoring............... : 1 (available) - Bus Lock On Cache Line Splits Disable : 0 - Hardware prefetch Disable............ : 0 - Processor Event Based Sampling....... : 0 (PEBS supported) - GV1/2 legacy Enable.................. : 0 - Enhanced Intel SpeedStep Technology.. : 1 (enabled) - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported) - Adjacent sector prefetch Disable..... : 0 - CFG Lock............................. : 0 (MSR not locked) - xTPR Message Disable................. : 1 (disabled) MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x570A00 ------------------------------------------ - Turbo Attenuation Units.............. : 0 - Temperature Target................... : 87 - TCC Activation Offset................ : 0 MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000 ------------------------------------------ - EIST Hardware Coordination........... : 0 (hardware coordination enabled) - Energy/Performance Bias support...... : 1 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software) - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores) MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x1A1A1B1C1D1E2020 ------------------------------------------ - Maximum Ratio Limit for C01.......... : 20 (3200 MHz) - Maximum Ratio Limit for C02.......... : 20 (3200 MHz) - Maximum Ratio Limit for C03.......... : 1E (3000 MHz) - Maximum Ratio Limit for C04.......... : 1D (2900 MHz) - Maximum Ratio Limit for C05.......... : 1C (2800 MHz) - Maximum Ratio Limit for C06.......... : 1B (2700 MHz) - Maximum Ratio Limit for C07.......... : 1A (2600 MHz) - Maximum Ratio Limit for C08.......... : 1A (2600 MHz) IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1 ------------------------------------------ - Power Policy Preference...............: 1 (highest performance) MSR_POWER_CTL....................(0x1FC) : 0x2904005B ------------------------------------------ - Bi-Directional Processor Hot..........: 1 (enabled) - C1E Enable............................: 1 (enabled) MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03 ------------------------------------------ - Power Units.......................... : 3 (1/8 Watt) - Energy Status Units.................. : 14 (61 micro-Joules) - Time Units .......................... : 10 (976.6 micro-Seconds) MSR_PKG_POWER_LIMIT..............(0x610) : 0x78330001582A8 ------------------------------------------ - Package Power Limit #1............... : 85 Watt - Enable Power Limit #1................ : 1 (enabled) - Package Clamping Limitation #1....... : 1 (allow going below OS-requested P/T state during Time Window for Power Limit #1) - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds) - Package Power Limit #2............... : 102 Watt - Enable Power Limit #2................ : 1 (enabled) - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2) - Time Window for Power Limit #2....... : 3 (20 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PKG_ENERGY_STATUS............(0x611) : 0x15972FCE ------------------------------------------ - Total Energy Consumed................ : 22108 Joules (Watt = Joules / seconds) MSR_PKG_POWER_INFO...............(0x614) : 0x2F0550014002A8 ------------------------------------------ - Thermal Spec Power................... : 85 Watt - Minimum Power........................ : 0 - Maximum Power........................ : 170 - Maximum Time Window.................. : 0 MSR_PP0_POWER_LIMIT..............(0x638) : 0x0 MSR_PP0_ENERGY_STATUS............(0x639) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0 MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x18 MSR_CONFIG_TDP_LEVEL1............(0x649) : 0xA00550001502A8 MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0xA0055000000000 MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0 MSR_PKGC6_IRTL...................(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0 MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0 IA32_TSC_DEADLINE................(0x6E0) : 0x2F867CA02C8 CPU Ratio Info: ------------------------------------------ Base Clock Frequency (BLCK)............. : 100 MHz Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz) Maximum non-Turbo Ratio/Frequency........: 24 (2400 MHz) Maximum Turbo Ratio/Frequency............: 32 (3200 MHz) P-State ratio * 100 = Frequency in MHz ------------------------------------------ CPU P-States [ (12) 23 ] CPU C6-Cores [ 0 2 4 6 8 10 12 14 ] CPU P-States [ (12) 16 23 ] CPU C6-Cores [ 0 2 3 4 6 8 9 10 12 14 15 ] CPU P-States [ (12) 16 18 23 ] CPU C6-Cores [ 0 1 2 3 4 6 7 8 9 10 12 14 15 ] CPU P-States [ (12) 16 17 18 23 ] CPU C6-Cores [ 0 1 2 3 4 6 7 8 9 10 12 13 14 15 ] CPU P-States [ 12 16 17 18 19 23 (24) ] CPU P-States [ (12) 16 17 18 19 20 23 24 ] CPU C6-Cores [ 0 1 2 3 4 6 7 8 9 10 11 12 13 14 15 ] CPU P-States [ (12) 16 17 18 19 20 22 23 24 ] CPU P-States [ (12) 14 16 17 18 19 20 22 23 24 ] CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 ] CPU P-States [ (12) 14 16 17 18 19 20 21 22 23 24 ] CPU P-States [ (12) 14 15 16 17 18 19 20 21 22 23 24 ] CPU P-States [ 12 14 15 16 17 18 19 20 21 22 23 24 (32) ] any ideas what could be wrong, anyone? 10.12.2. Thanks Link to comment Share on other sites More sharing options...
r2tincan Posted February 15, 2017 Share Posted February 15, 2017 Is this still an issue with Haswell-E chips? I have Xeon E5-2630v3 and I'm having tons of problems getting XCPM to work. To my knowledge I'm using all the pike patches in clover for Haswell-E and have the xcpm bootflag enabled and did freq vectors for a 14,2 (I believe.) This is my kext output: AppleIntelInfo.kext v2.0 Copyright © 2012-2016 Pike R. Alpha. All rights reserved enableHWP................................: 0 Settings: ------------------------------------------ logMSRs..................................: 1 logIGPU..................................: 0 logCStates...............................: 1 logIPGStyle..............................: 1 InitialTSC...............................: 0x2f863eba990 (136 MHz) MWAIT C-States...........................: 8480 Processor Brandstring....................: Intel(R) Xeon(R) CPU E5-2630 v3 @ 2.40GHz Processor Signature..................... : 0x306F2 ------------------------------------------ - Family............................... : 6 - Stepping............................. : 2 - Model................................ : 0x3F (63) Model Specific Registers (MSRs) ------------------------------------------ MSR_CORE_THREAD_COUNT............(0x35) : 0xFFFFFF806BBFC400 ------------------------------------------ - Core Count........................... : 8 - Thread Count......................... : 16 MSR_PLATFORM_INFO................(0xCE) : 0x80C33F3811800 ------------------------------------------ - Maximum Non-Turbo Ratio.............. : 0x18 (2400 MHz) - Ratio Limit for Turbo Mode........... : 1 (programmable) - TDP Limit for Turbo Mode............. : 1 (programmable) - Low Power Mode Support............... : 1 (LPM supported) - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available) - Maximum Efficiency Ratio............. : 12 - Minimum Operating Ratio.............. : 8 MSR_PMG_CST_CONFIG_CONTROL.......(0xE2) : 0x8400 ------------------------------------------ - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT) - CFG Lock............................. : 1 (MSR locked until next reset) - C3 State Auto Demotion............... : 0 (disabled/unsupported) - C1 State Auto Demotion............... : 0 (disabled/unsupported) - C3 State Undemotion.................. : 0 (disabled/unsupported) - C1 State Undemotion.................. : 0 (disabled/unsupported) - Package C-State Auto Demotion........ : 0 (disabled/unsupported) - Package C-State Undemotion........... : 0 (disabled/unsupported) MSR_PMG_IO_CAPTURE_BASE..........(0xE4) : 0x10414 ------------------------------------------ - LVL_2 Base Address................... : 0x414 - C-state Range........................ : 1 (C6 is the max C-State to include) IA32_MPERF.......................(0xE7) : 0x94290EC077 IA32_APERF.......................(0xE8) : 0x3C757B3C6E MSR_FLEX_RATIO...................(0x194) : 0x0 ------------------------------------------ MSR_IA32_PERF_STATUS.............(0x198) : 0x1A7700001800 ------------------------------------------ - Current Performance State Value...... : 0x1800 (2400 MHz) MSR_IA32_PERF_CONTROL............(0x199) : 0xC00 ------------------------------------------ - Target performance State Value....... : 0xC00 (1200 MHz) - Intel Dynamic Acceleration........... : 0 (IDA engaged) IA32_CLOCK_MODULATION............(0x19A) : 0x0 IA32_THERM_INTERRUPT.............(0x19B) : 0x0 IA32_THERM_STATUS................(0x19C) : 0x88350000 ------------------------------------------ - Thermal Status....................... : 0 - Thermal Log.......................... : 0 - PROCHOT # or FORCEPR# event.......... : 0 - PROCHOT # or FORCEPR# log............ : 0 - Critical Temperature Status.......... : 0 - Critical Temperature log............. : 0 - Thermal Threshold #1 Status.......... : 0 - Thermal Threshold #1 log............. : 0 - Thermal Threshold #2 Status.......... : 0 - Thermal Threshold #2 log............. : 0 - Power Limitation Status.............. : 0 - Power Limitation log................. : 0 - Current Limit Status................. : 0 - Current Limit log.................... : 0 - Cross Domain Limit Status............ : 0 - Cross Domain Limit log............... : 0 - Digital Readout...................... : 53 - Resolution in Degrees Celsius........ : 1 - Reading Valid........................ : 1 (valid) MSR_THERM2_CTL...................(0x19D) : 0x0 IA32_MISC_ENABLES................(0x1A0) : 0x850089 ------------------------------------------ - Fast-Strings......................... : 1 (enabled) - FOPCODE compatibility mode Enable.... : 0 - Automatic Thermal Control Circuit.... : 1 (enabled) - Split-lock Disable................... : 0 - Performance Monitoring............... : 1 (available) - Bus Lock On Cache Line Splits Disable : 0 - Hardware prefetch Disable............ : 0 - Processor Event Based Sampling....... : 0 (PEBS supported) - GV1/2 legacy Enable.................. : 0 - Enhanced Intel SpeedStep Technology.. : 1 (enabled) - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported) - Adjacent sector prefetch Disable..... : 0 - CFG Lock............................. : 0 (MSR not locked) - xTPR Message Disable................. : 1 (disabled) MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x570A00 ------------------------------------------ - Turbo Attenuation Units.............. : 0 - Temperature Target................... : 87 - TCC Activation Offset................ : 0 MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000 ------------------------------------------ - EIST Hardware Coordination........... : 0 (hardware coordination enabled) - Energy/Performance Bias support...... : 1 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software) - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores) MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x1A1A1B1C1D1E2020 ------------------------------------------ - Maximum Ratio Limit for C01.......... : 20 (3200 MHz) - Maximum Ratio Limit for C02.......... : 20 (3200 MHz) - Maximum Ratio Limit for C03.......... : 1E (3000 MHz) - Maximum Ratio Limit for C04.......... : 1D (2900 MHz) - Maximum Ratio Limit for C05.......... : 1C (2800 MHz) - Maximum Ratio Limit for C06.......... : 1B (2700 MHz) - Maximum Ratio Limit for C07.......... : 1A (2600 MHz) - Maximum Ratio Limit for C08.......... : 1A (2600 MHz) IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1 ------------------------------------------ - Power Policy Preference...............: 1 (highest performance) MSR_POWER_CTL....................(0x1FC) : 0x2904005B ------------------------------------------ - Bi-Directional Processor Hot..........: 1 (enabled) - C1E Enable............................: 1 (enabled) MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03 ------------------------------------------ - Power Units.......................... : 3 (1/8 Watt) - Energy Status Units.................. : 14 (61 micro-Joules) - Time Units .......................... : 10 (976.6 micro-Seconds) MSR_PKG_POWER_LIMIT..............(0x610) : 0x78330001582A8 ------------------------------------------ - Package Power Limit #1............... : 85 Watt - Enable Power Limit #1................ : 1 (enabled) - Package Clamping Limitation #1....... : 1 (allow going below OS-requested P/T state during Time Window for Power Limit #1) - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds) - Package Power Limit #2............... : 102 Watt - Enable Power Limit #2................ : 1 (enabled) - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2) - Time Window for Power Limit #2....... : 3 (20 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PKG_ENERGY_STATUS............(0x611) : 0x15972FCE ------------------------------------------ - Total Energy Consumed................ : 22108 Joules (Watt = Joules / seconds) MSR_PKG_POWER_INFO...............(0x614) : 0x2F0550014002A8 ------------------------------------------ - Thermal Spec Power................... : 85 Watt - Minimum Power........................ : 0 - Maximum Power........................ : 170 - Maximum Time Window.................. : 0 MSR_PP0_POWER_LIMIT..............(0x638) : 0x0 MSR_PP0_ENERGY_STATUS............(0x639) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0 MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x18 MSR_CONFIG_TDP_LEVEL1............(0x649) : 0xA00550001502A8 MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0xA0055000000000 MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0 MSR_PKGC6_IRTL...................(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0 MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0 IA32_TSC_DEADLINE................(0x6E0) : 0x2F867CA02C8 CPU Ratio Info: ------------------------------------------ Base Clock Frequency (BLCK)............. : 100 MHz Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz) Maximum non-Turbo Ratio/Frequency........: 24 (2400 MHz) Maximum Turbo Ratio/Frequency............: 32 (3200 MHz) P-State ratio * 100 = Frequency in MHz ------------------------------------------ CPU P-States [ (12) 23 ] CPU C6-Cores [ 0 2 4 6 8 10 12 14 ] CPU P-States [ (12) 16 23 ] CPU C6-Cores [ 0 2 3 4 6 8 9 10 12 14 15 ] CPU P-States [ (12) 16 18 23 ] CPU C6-Cores [ 0 1 2 3 4 6 7 8 9 10 12 14 15 ] CPU P-States [ (12) 16 17 18 23 ] CPU C6-Cores [ 0 1 2 3 4 6 7 8 9 10 12 13 14 15 ] CPU P-States [ 12 16 17 18 19 23 (24) ] CPU P-States [ (12) 16 17 18 19 20 23 24 ] CPU C6-Cores [ 0 1 2 3 4 6 7 8 9 10 11 12 13 14 15 ] CPU P-States [ (12) 16 17 18 19 20 22 23 24 ] CPU P-States [ (12) 14 16 17 18 19 20 22 23 24 ] CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 ] CPU P-States [ (12) 14 16 17 18 19 20 21 22 23 24 ] CPU P-States [ (12) 14 15 16 17 18 19 20 21 22 23 24 ] CPU P-States [ 12 14 15 16 17 18 19 20 21 22 23 24 (32) ] any ideas what could be wrong, anyone? 10.12.2. Thanks Looks like the states are showing up but I am not getting turbo speeds. Link to comment Share on other sites More sharing options...
