Allan Posted September 3, 2016 Share Posted September 3, 2016 Congratulations, it's perfect now! Look: Have you tried put your Hack to sleep now? Link to comment https://www.insanelymac.com/forum/topic/314850-maximus-vii-ranger-sleep-wake-issue/page/2/#findComment-2273238 Share on other sites More sharing options...
Thogg Niatiz Posted September 3, 2016 Author Share Posted September 3, 2016 Ok great, I'm kinda proud of me Unfortunately it still doesn't wake up properly. Can I find more debug informations somewhere? Link to comment https://www.insanelymac.com/forum/topic/314850-maximus-vii-ranger-sleep-wake-issue/page/2/#findComment-2273241 Share on other sites More sharing options...
Allan Posted September 3, 2016 Share Posted September 3, 2016 Remove the current 'sleepimage', reboot and try again. sudo rm -rf /private/var/vm/sleepimage Link to comment https://www.insanelymac.com/forum/topic/314850-maximus-vii-ranger-sleep-wake-issue/page/2/#findComment-2273248 Share on other sites More sharing options...
Thogg Niatiz Posted September 3, 2016 Author Share Posted September 3, 2016 Sorry, but no change... Link to comment https://www.insanelymac.com/forum/topic/314850-maximus-vii-ranger-sleep-wake-issue/page/2/#findComment-2273253 Share on other sites More sharing options...

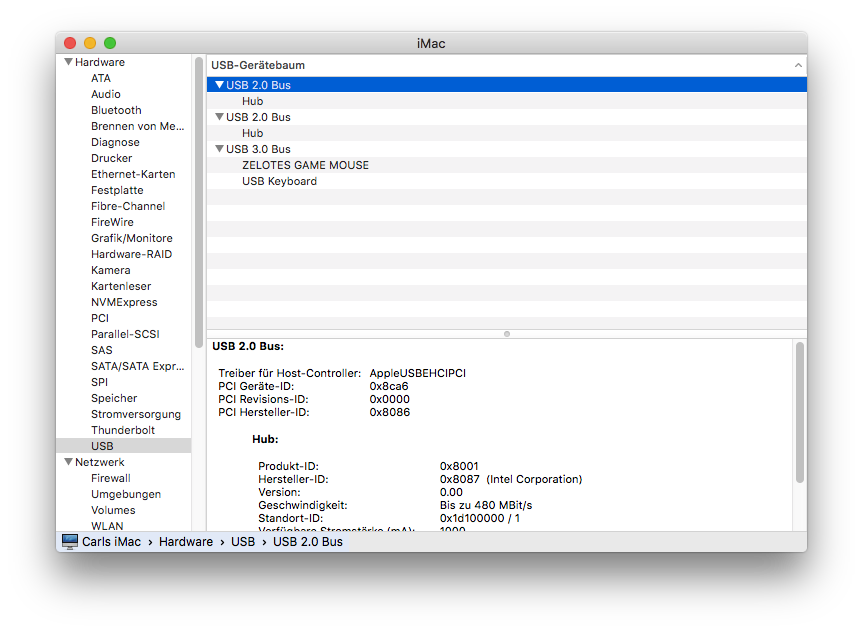

Allan Posted September 3, 2016 Share Posted September 3, 2016 Set this in your UEFI/BIOS: Advanced\USB Configuration Legacy USB Support > Enabled Intel xHCI Mode > Auto EHCI Hand-off > Enabled Do you have any USB devices other than keyboard/mouse? Do you have any PCI devices or add-in cards other than your video card? You have the shutdown function working properly? Link to comment https://www.insanelymac.com/forum/topic/314850-maximus-vii-ranger-sleep-wake-issue/page/2/#findComment-2273259 Share on other sites More sharing options...
Thogg Niatiz Posted September 3, 2016 Author Share Posted September 3, 2016 Check, everything set. Still no success... I had a Microsoft Webcam connected, but for now I'm just running my peripherals: I have no PCI extensions, not even a dedicated GPU, just the iGPU of my 4790K. How do I check if it works properly? Seems ok to me... Link to comment https://www.insanelymac.com/forum/topic/314850-maximus-vii-ranger-sleep-wake-issue/page/2/#findComment-2273403 Share on other sites More sharing options...
Allan Posted September 3, 2016 Share Posted September 3, 2016 How do I check if it works properly? Seems ok to me... When you shut down your Hack, all coolers are off, motherboard leds off, video etc... Link to comment https://www.insanelymac.com/forum/topic/314850-maximus-vii-ranger-sleep-wake-issue/page/2/#findComment-2273527 Share on other sites More sharing options...
Thogg Niatiz Posted September 3, 2016 Author Share Posted September 3, 2016 Yeah, that works alright... Link to comment https://www.insanelymac.com/forum/topic/314850-maximus-vii-ranger-sleep-wake-issue/page/2/#findComment-2273529 Share on other sites More sharing options...
Thogg Niatiz Posted September 4, 2016 Author Share Posted September 4, 2016 On wake the Q-Code on MB Display gets stuck at 30 - "Reserved for ASL" The Code seems to belong to the ASL Checkpoint 0x30 - "System is waking up from the S3 sleep state" according to the manual. Is this useful? I have no idea... Link to comment https://www.insanelymac.com/forum/topic/314850-maximus-vii-ranger-sleep-wake-issue/page/2/#findComment-2273976 Share on other sites More sharing options...

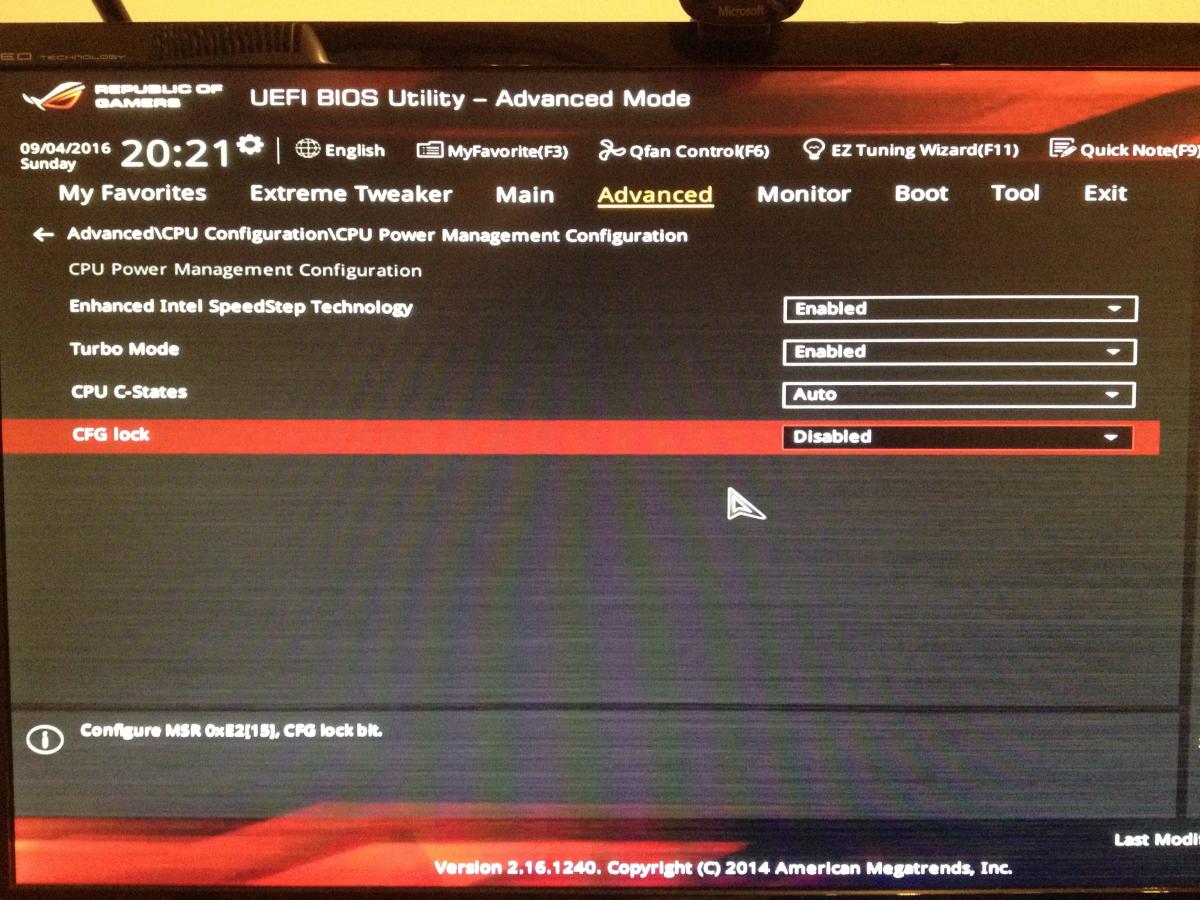

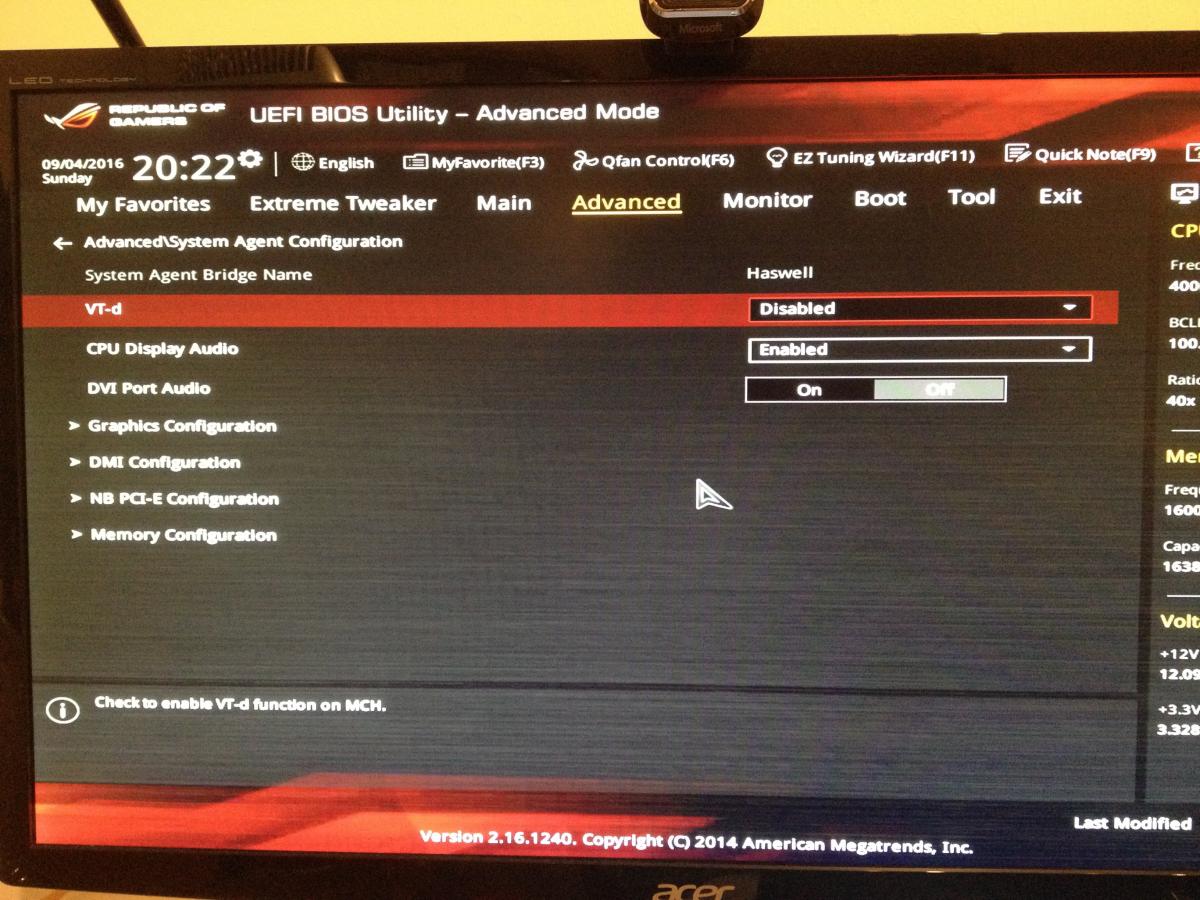

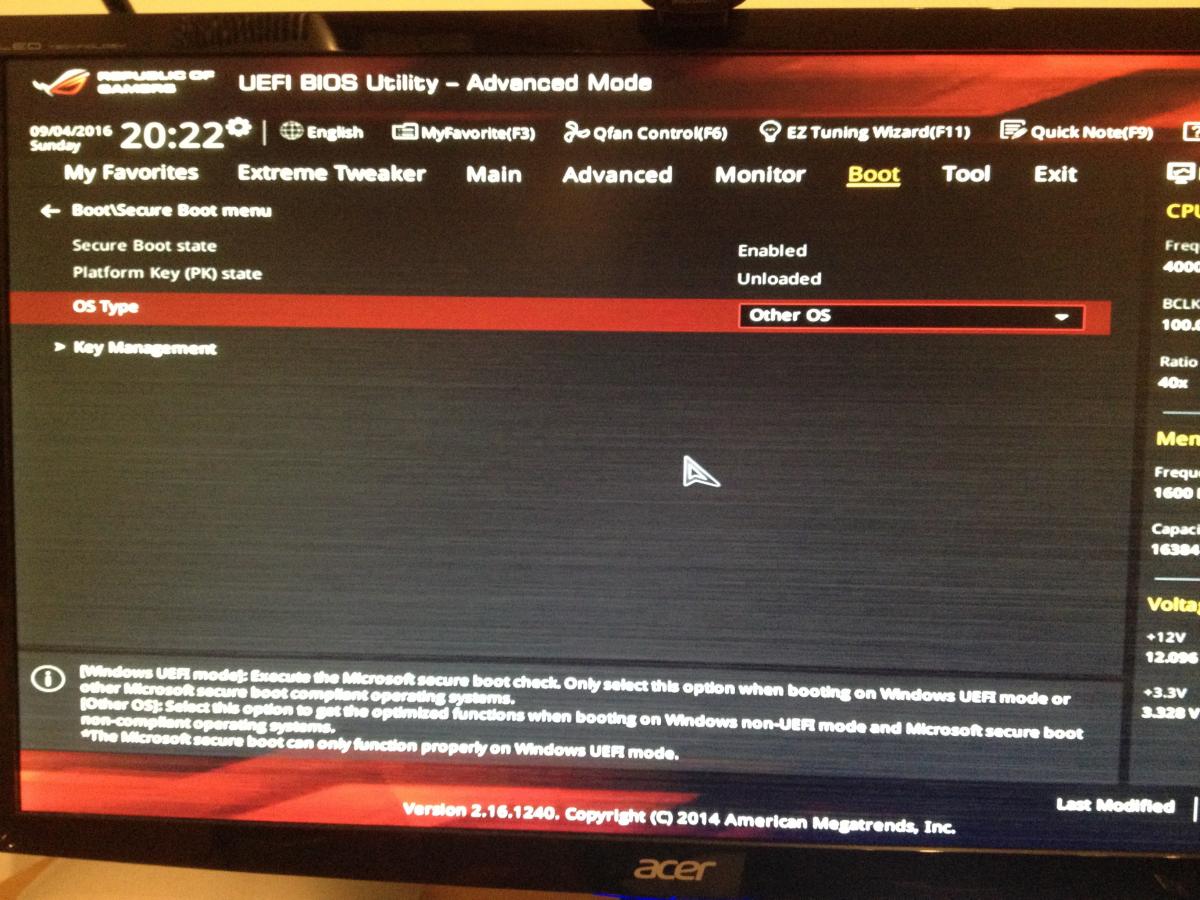

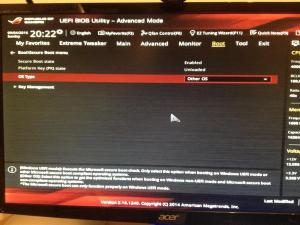

Allan Posted September 4, 2016 Share Posted September 4, 2016 Hmm, I don't have these problems with Sleep, this Q-Code is like Windows blue screen In BIOS/UEFI did you disable VT-d, and set SecureBoot as OtherOS? Look with you have this option too: Advanced -> CPU Configuration -> CPU Power Management Configuration -> CFG-Lock: Disabled Link to comment https://www.insanelymac.com/forum/topic/314850-maximus-vii-ranger-sleep-wake-issue/page/2/#findComment-2273983 Share on other sites More sharing options...
Thogg Niatiz Posted September 4, 2016 Author Share Posted September 4, 2016 Interesting, that's really bad... All set, system wouldn't boot Clover if not. I also checked my RAM, sometimes S3 errors are connected to RAM failure. But no, RAM is fine in both single and dual channel Link to comment https://www.insanelymac.com/forum/topic/314850-maximus-vii-ranger-sleep-wake-issue/page/2/#findComment-2273994 Share on other sites More sharing options...
Allan Posted September 5, 2016 Share Posted September 5, 2016 Try use some value for 'slide=0' boot-arg. Some time ago Slice told to me that this value + OsxAptioFix2Drv-64.efi can help in Hibernation, but as your case is Sleep, we can try. E.g: slide=100, or 33, etc... Link to comment https://www.insanelymac.com/forum/topic/314850-maximus-vii-ranger-sleep-wake-issue/page/2/#findComment-2274205 Share on other sites More sharing options...
Thogg Niatiz Posted September 5, 2016 Author Share Posted September 5, 2016 I tried slide= for 0, 33 and 100, but it didn't solve the problem. Still gets stuck at Q30. Are there any other common slide values that could do the trick? SSDT DropOEM Option in Clover makes the system stop booting with a sensor initialization error. Could that be a sign that my generated SSDT isn't loaded correctly? I know DropOEM isn't necessary, but why is that an issue with my system? Link to comment https://www.insanelymac.com/forum/topic/314850-maximus-vii-ranger-sleep-wake-issue/page/2/#findComment-2274216 Share on other sites More sharing options...
Allan Posted September 5, 2016 Share Posted September 5, 2016 I tried slide= for 0, 33 and 100, but it didn't solve the problem. Still gets stuck at Q30. Are there any other common slide values that could do the trick? These values are just an examples, you can put any other value. SSDT DropOEM Option in Clover makes the system stop booting with a sensor initialization error. Could that be a sign that my generated SSDT isn't loaded correctly? I know DropOEM isn't necessary, but why is that an issue with my system? I have this problem too, just set DropOEM as "false", and Clover will just load your patched DSDT and SSDT. Link to comment https://www.insanelymac.com/forum/topic/314850-maximus-vii-ranger-sleep-wake-issue/page/2/#findComment-2274243 Share on other sites More sharing options...
Thogg Niatiz Posted September 5, 2016 Author Share Posted September 5, 2016 Progress! I have two displays connected to the board. The first by HDMI, the second by DVI. Removing the HDMI one fixes the wake issues. Is there a way to use the HDMI display again, softwarewise? I will go to get a DVI adaptor, just in case, but I would be happier if there is a DSDT fix or something. Link to comment https://www.insanelymac.com/forum/topic/314850-maximus-vii-ranger-sleep-wake-issue/page/2/#findComment-2274274 Share on other sites More sharing options...
Allan Posted September 5, 2016 Share Posted September 5, 2016 Nice! Congrats bro! Maybe you can find something about HDMI patches, searching in Toleda's topics. Link to comment https://www.insanelymac.com/forum/topic/314850-maximus-vii-ranger-sleep-wake-issue/page/2/#findComment-2274279 Share on other sites More sharing options...
Thogg Niatiz Posted September 5, 2016 Author Share Posted September 5, 2016 Hopefully... I will reply with a software solution if I find one. Thank you so much for your time and advice! 1 Link to comment https://www.insanelymac.com/forum/topic/314850-maximus-vii-ranger-sleep-wake-issue/page/2/#findComment-2274285 Share on other sites More sharing options...
Allan Posted September 5, 2016 Share Posted September 5, 2016 If I find something, I'll post here for you. Try this: DSDT.aml.zip And this: FakePCIID_Intel_HD_Graphics.kext.zip Rebuild the caches, and reboot. 1 Link to comment https://www.insanelymac.com/forum/topic/314850-maximus-vii-ranger-sleep-wake-issue/page/2/#findComment-2274286 Share on other sites More sharing options...
Thogg Niatiz Posted September 5, 2016 Author Share Posted September 5, 2016 Didn't work. Do I need FakePCIID.kext, too? Link to comment https://www.insanelymac.com/forum/topic/314850-maximus-vii-ranger-sleep-wake-issue/page/2/#findComment-2274294 Share on other sites More sharing options...
Allan Posted September 6, 2016 Share Posted September 6, 2016 Yes, I already had put the right kexts in Clover folder. It's just a test for Sleep. Link to comment https://www.insanelymac.com/forum/topic/314850-maximus-vii-ranger-sleep-wake-issue/page/2/#findComment-2274346 Share on other sites More sharing options...
Thogg Niatiz Posted September 6, 2016 Author Share Posted September 6, 2016 What did you change in DSDT? All USB Ports are disabled using your DSDT, and with mine wake still doesn't work. DSDT.aml.zip Link to comment https://www.insanelymac.com/forum/topic/314850-maximus-vii-ranger-sleep-wake-issue/page/2/#findComment-2274349 Share on other sites More sharing options...
Allan Posted September 6, 2016 Share Posted September 6, 2016 Strange, In your DSDT I deleted the _DSM method in IGPU. Use the other version that I've sent you, and delete the FakePCIID_Intel_HD_Graphics.kext Link to comment https://www.insanelymac.com/forum/topic/314850-maximus-vii-ranger-sleep-wake-issue/page/2/#findComment-2274460 Share on other sites More sharing options...
Allan Posted September 6, 2016 Share Posted September 6, 2016 Try this DSDT: DSDT.aml.zip Link to comment https://www.insanelymac.com/forum/topic/314850-maximus-vii-ranger-sleep-wake-issue/page/2/#findComment-2274475 Share on other sites More sharing options...
Thogg Niatiz Posted September 6, 2016 Author Share Posted September 6, 2016 This time it gets stuck on boot. What did you change this time? Please apply the patch to this DSDT again DSDT.aml.zip Link to comment https://www.insanelymac.com/forum/topic/314850-maximus-vii-ranger-sleep-wake-issue/page/2/#findComment-2274483 Share on other sites More sharing options...
Allan Posted September 6, 2016 Share Posted September 6, 2016 Stuck in what point? Boot up using -v, and if get stuck again, take a photo. Repair the caches, clean NVRam and try again. sudo nvram -c Link to comment https://www.insanelymac.com/forum/topic/314850-maximus-vii-ranger-sleep-wake-issue/page/2/#findComment-2274484 Share on other sites More sharing options...
