[Guide] Mac OSX 10.12 and 10.13 with X99 Broadwell-E family and Haswell-E family

[jacoweb]

Will hackintosh work in hardware Raid 0 m.2 ssd ?



Yes!

[nmano]

This IRQ patch support Start up automatically after power failure in Energy Saver.

All in One SSDT.

please update your new patches.

Thank you.

Enjoy.





SSDT-X99-2018.aml.zip



X99_SSDT-IRQ.aml.zip

[maxx7650]

@maldon I just unlocked the bios on my asus mobo,my question is which options i should choose in my config file under -ATI connectors patch - and also with an ssdt for cpu do i drop oem and plugin type 0-1 I don t know which are the correct settings.

Can you help me out please?

[MaLd0n]

GPU

just use WhateverGreen last version

WhateverGreen.kext.zip



PM

use correct patches in Kernel to Patches and PluginType =1

[maxx7650]

GPU

just use WhateverGreen last version

WhateverGreen.kext.zip



PM

use correct patches in Kernel to Patches and PluginType =1

I was refering to PM before not the graphics card.

So plugin type 1 ok....DROP OEM checked or unchecked in ACPI-SSDT?

And also APPLE RTC-and the others should be checked or unchecked>?

Thanks for the help much apreciated

config.plist.zip

[MaLd0n]



GPU

just use WhateverGreen last version

WhateverGreen.kext.zip



PM

use correct patches in Kernel to Patches and PluginType =1

I was refering to PM before not the graphics card.

So plugin type 1 ok....DROP OEM checked or unchecked in ACPI-SSDT?

And also APPLE RTC-and the others should be checked or unchecked>?

Thanks for the help much apreciated



i dont have ur processor u need a tests



x99 u can drop all SSDTs, work only with dsdt, no dependencies



RTC, etc, have all in DSDT

[pitrysha]

Hello.

I changed the video card, and dsdt Maldon is now disabled.

I'm doing a new one, check and correct my mistakes.

Thank you.



Архив.zip

[MaLd0n]



Hello.

I changed the video card, and dsdt Maldon is now disabled.

I'm doing a new one, check and correct my mistakes.

Thank you.



check

CLOVER.zip

run new run_me after reboot

RunMe.app.zip

[pitrysha]

MaLd0n.

Thanks for the help.

Here is the result.

iPro.zip

[MaLd0n]

MaLd0n.

Thanks for the help.

Here is the result.

looks good

test sleep, etc

[pitrysha]

MaLdon.



This is a complete replacement.



iPro2.zip

[MaLd0n]



MaLdon.



This is a complete replacement.



test all usbs, sleep, etc

let me know

[pitrysha]

MaLdon.

The sleep mode is working.

USB all work.

HDMI no.

Thanks.



Архив.zip

[MaLd0n]



MaLdon.

The sleep mode is working.

USB all work.

HDMI no.

Thanks.



use it for usb

10.13

<dict>
				<key>Comment</key>
				<string>Change 15 port limit</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				g32MEA==
				</data>
				<key>InfoPlistPatch</key>
				<false/>
				<key>MatchOS</key>
				<string>10.13.x</string>
				<key>Name</key>
				<string>com.apple.driver.usb.AppleUSBXHCIPCI</string>
				<key>Replace</key>
				<data>
				g32Mfw==
				</data>
			</dict>

10.13.4+

<dict>
				<key>Comment</key>
				<string>USB 10.13.4+ by PMHeart</string>
				<key>Disabled</key>
				<true/>
				<key>Find</key>
				<data>
				g32UDw+DlwQAAA==
				</data>
				<key>InfoPlistPatch</key>
				<false/>
				<key>MatchOS</key>
				<string>10.13.x</string>
				<key>Name</key>
				<string>com.apple.driver.usb.AppleUSBXHCI</string>
				<key>Replace</key>
				<data>
				g32UD5CQkJCQkA==
				</data>
			</dict>

HDMI

use it, voodoohda mod, work only with ur HDMI Audio

VoodooHDA.kext.zip

[pitrysha]

MaLd0n.

Thank you, you're a genius.

Everything is working.

Thank you very much.



[MaLd0n]



MaLd0n.

Thank you, you're a genius.

Everything is working.

Thank you very much.



Enjoy!

[pitrysha]

test all usbs, sleep, etc

let me know

MaLd0n.

Hello.

The last time I was in a hurry to work and badly checked the USB ports.

Not all work. No EH01 , EH02.

Please look.

Архив.zip

[MaLd0n]

All ports need work inside BUS USB3(XHCI), USB2(EHCI) is nothing, i kill it

if one or two ports don't work, i think need other patch limit port or create ur personal injector

exclude unused ports



Don't need SSDTs, just flag uia_exclude=XXXX



EXAMPLE



Unused Ports, uxcluded with flag

uia_exclude=HS01;HS02;HS03;HS04;HS05;HS06;HS10;HS11;SSP1;SSP2;SSP6



Used Ports

HS07, HS08, HS09, HS12, HS13, HS14, SSP3, SSP4, SSP5



use usb stick one by one ports, and check in ioreg every test

[pitrysha]

Thanks for the help.

It seems to have happened.

[ACIDSky]

5930K GeekBench 4

10.13.3 - 26k score

10.14.4 - 18k score



need a new patch for XCPM ?

[Fergarth]

5 hours ago, ACIDSky said:

5930K GeekBench 4

10.13.3 - 26k score

10.14.4 - 18k score



need a new patch for XCPM ?



[nmano]

I test with AppleHDA

NVIDIA HDMI for GTX970 10.13.4+

Comment NVIDIA HDMI for GTX970 10.13.4+test by mano

Find        DE100B0E

Name      AppleHDAController

Replace  DE10BB0F  -worked

Replace  DE10EF10   -not worked



This ID not work 10.13.4

DE10EF10

[maleorderbride]

11 hours ago, nmano said:

I test with AppleHDA

NVIDIA HDMI for GTX970 10.13.4+

Comment NVIDIA HDMI for GTX970 10.13.4+test by mano

Find        DE100B0E

Name      AppleHDAController

Replace  DE10BB0F  -worked

Replace  DE10EF10   -not worked



This ID not work 10.13.4

DE10EF10

I am helping a friend with a 6950X on a Gigabyte X99 board in 10.13.4 with the latest Clover. However, the CPU won't go any higher than 3.5GHz (no turbo) despite being overclocked to 4.0GHz and EIST disabled.

What are the minimum kernel patches needed for 10.13.4 and a 6950X? Thanks!

[nmano]

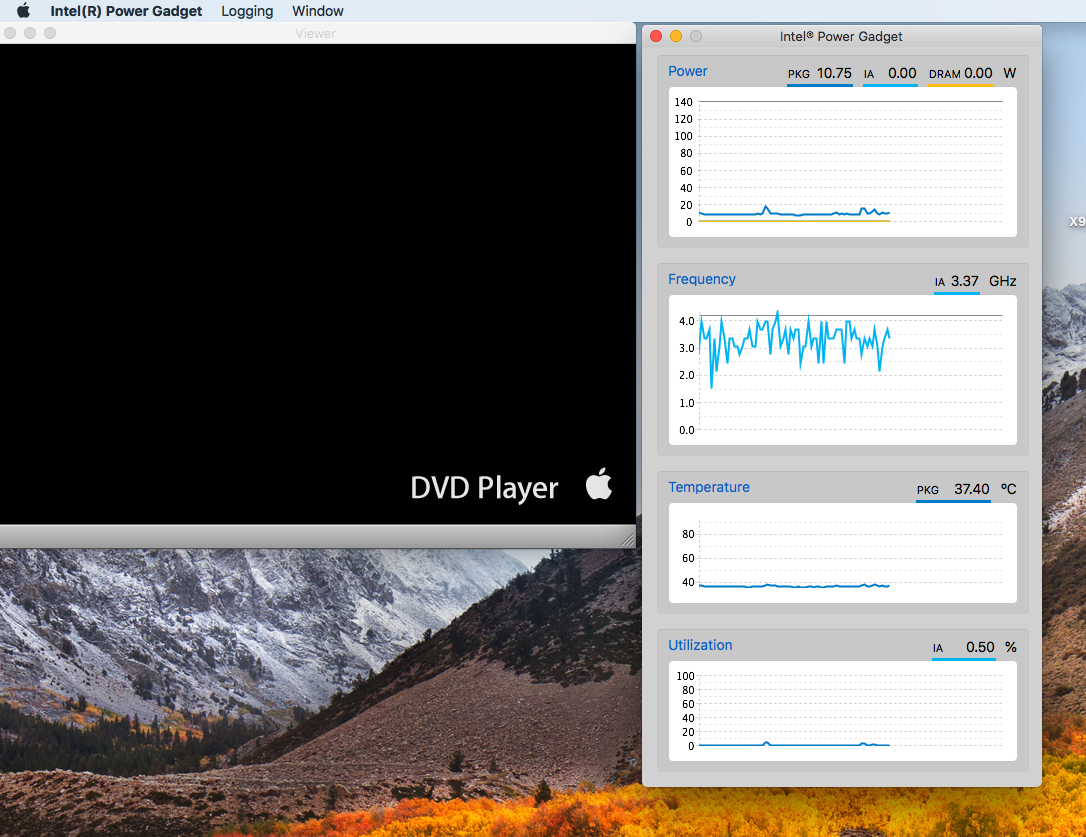

there was an initialization error 70014-Fixed

I'd love to have my 4.3 overclock, but I'll setting in clover config  CPU FrequencyMHz is 4200 If I enter over 4200 is not work DVD player.

FrequencyMHz 4200

IOAHCIBlockStorageInjector.kext.zip

Edited April 8, 2018 by nmano

[nmano]

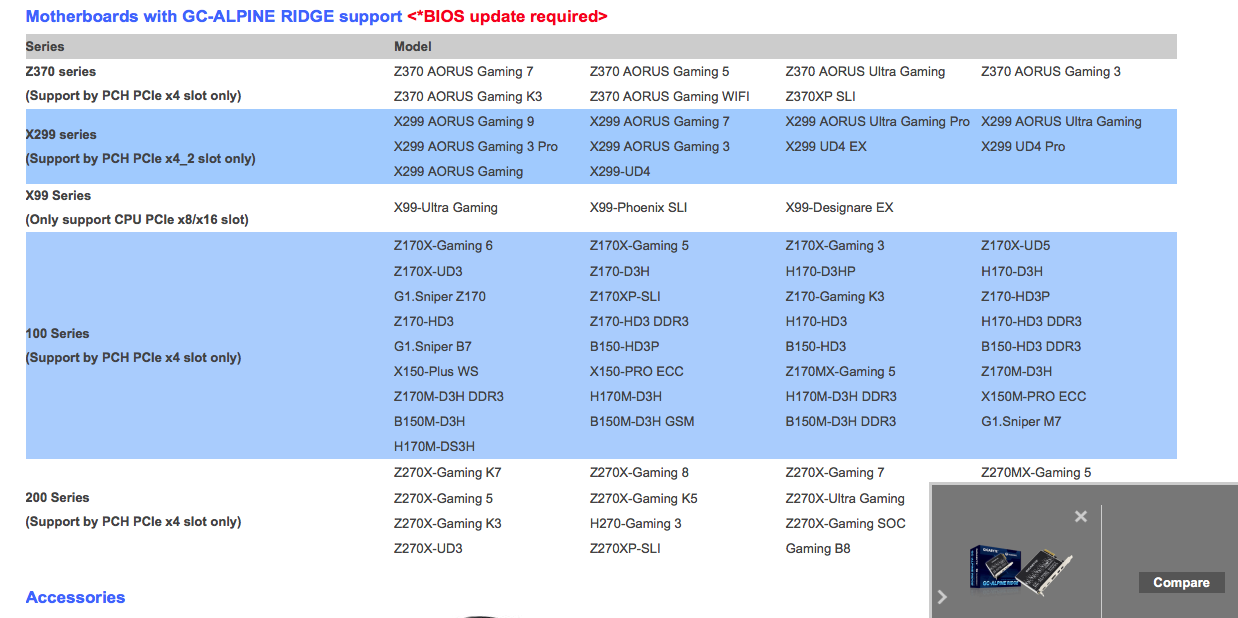

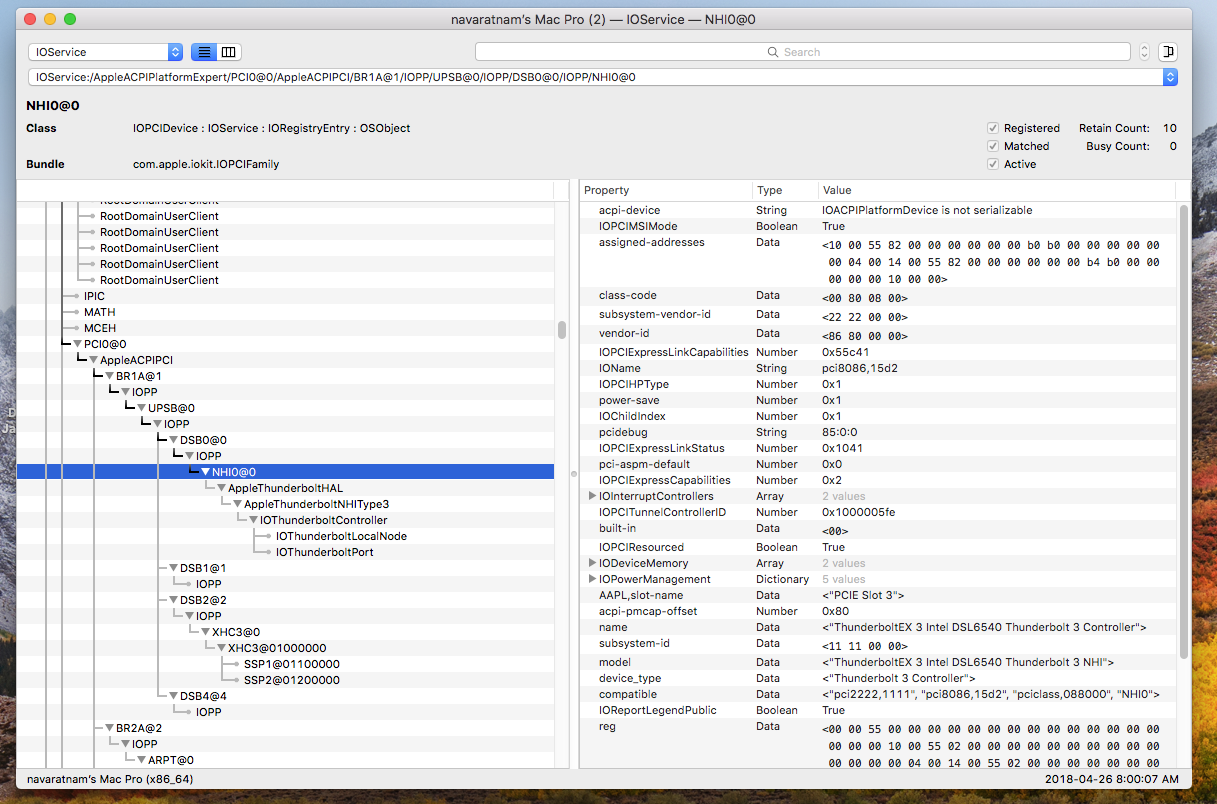

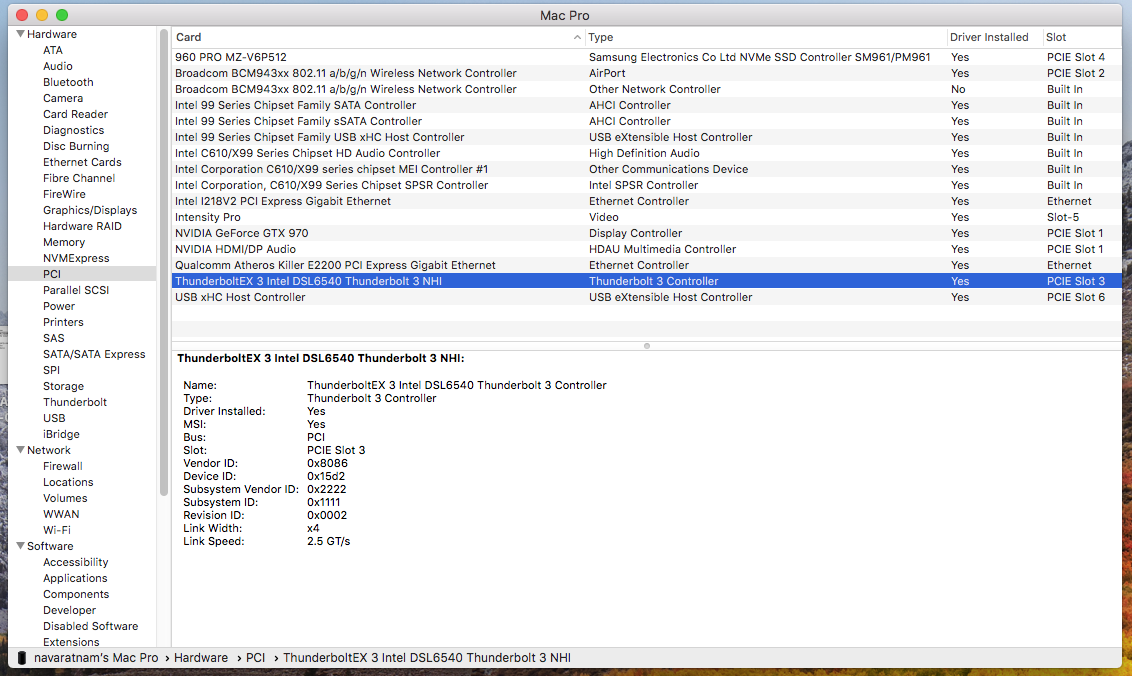

X99 Series with GC-ALPINE RIDGE rev 2.0



My motherboard is not in this list.(X99 Gaming G1) but Its worked.I thing Mac driver its supported.

I just install SSDT.



https://www.insanelymac.com/applications/core/interface/file/attachment.php?id=297769
