[Guide] Mac OSX 10.12 and 10.13 with X99 Broadwell-E family and Haswell-E family

[adam_leve]

With your patched SSDT by removing (_PRW) method, sleep works absolutely except when headphones are pluggedin, it instantly wakes up from sleep.



And the wake reason is shown as

2018-01-27 09:47:14.369054+0530  localhost kernel[0]: (AppleACPIPlatform) Wake reason: D082
2018-01-27 09:47:14.369054+0530  localhost kernel[0]: (AppleACPIPlatform) Wake reason: D082

D082 refers to Asmedia USB controller in my board but there is no USB attached to my Asmedia in my board, nor does it cause any sleep issue.

[MaLd0n]

ur mobo dont have asmedia usb?

DSDT.aml.zip

[adam_leve]

ur mobo dont have asmedia usb?

DSDT.aml.zip



I have it, what I meant is even when there is no USB attached to Asmedia USB controller, Wake reason shows D082 responsible for waking up.

[MaLd0n]

TEST IT

DSDT.D082.zip

[adam_leve]

Just asking, can we use multiple DSDT as the origin folder has only one DSDT(ACPI) to test and experiments ?

TEST IT

DSDT.D082.zip



Suceess !!



@Mald0n, why don't you write a guide starting from base to how to apply readymade patches , developing your own patches but it should be technical in detail.

[maxx7650]

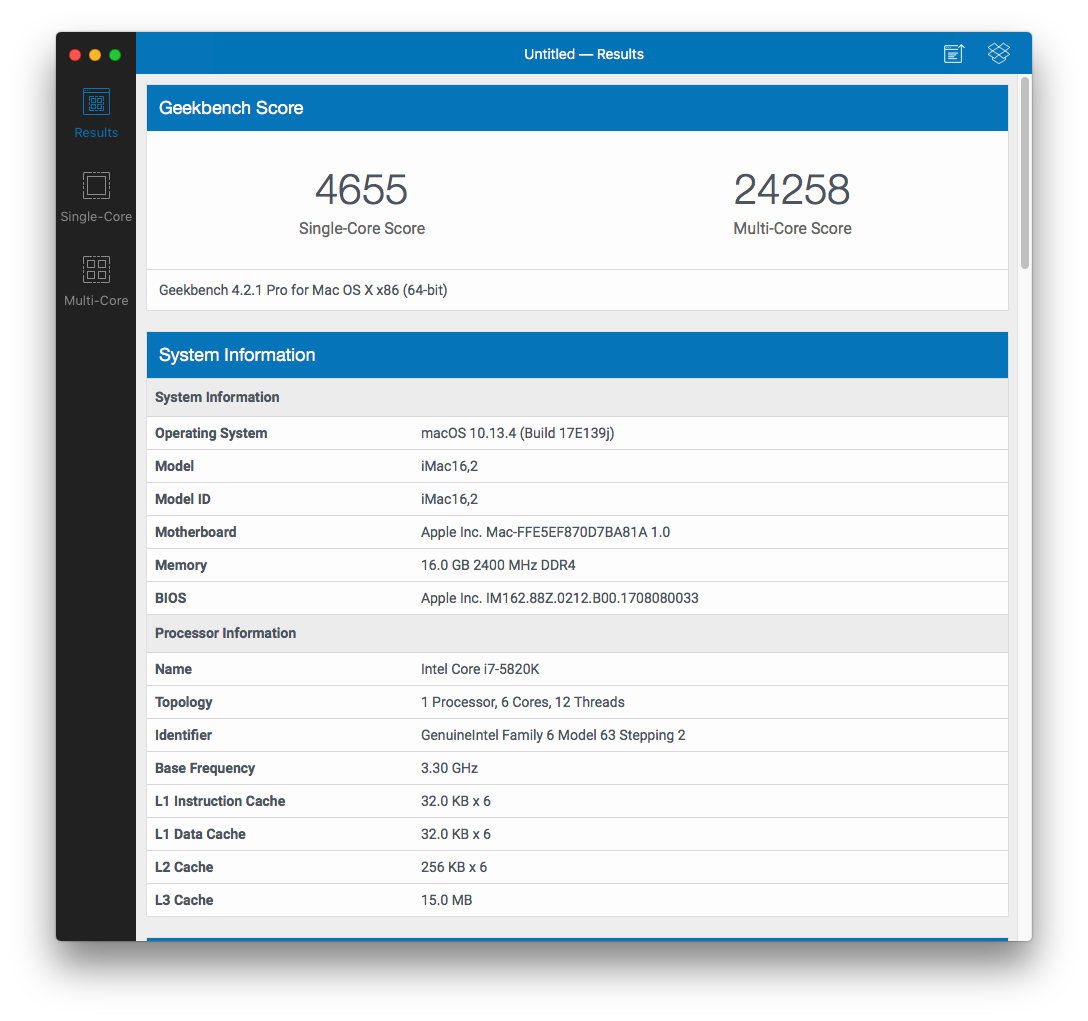

Following your thread about the geekbench score guys here I also get 36000 GB while I saw others with 41000 with same cpu xeons can t be overclocked that much so mine shold be there too.

For XCPM loaded via cpu SSDT which option of frequency should i use of freqVectorsedit.sh? the cpu goes up to 3.8 but i never saw it hitting more then 3.6

[adam_leve]

Yes, I am facing the same issue. 5820k's base clock is 3.3 and boost clock to 3.6 but it never reaches 3.6 even stress testing with Prime95. I may remind you that I am not using generated cpu SSDT. Is this the cause ?



But, using the generated SSDt results in AE_not found, failing to load table found in Clover log.

[MaLd0n]

try with SSDT Piker and check if solve problem

[adam_leve]

try with SSDT Piker and check if solve problem



It results in AE_not found in ACPI table in boot log. Is it because of SSDT and DSDT conflict each other ?

[MaLd0n]

use it for generate

SSDT_Automator.zip

[adam_leve]

use it for generate

SSDT_Automator.zip



With the generated SSDT above, I still can't reach turbo frequency.



Here is the log error which says

2018-01-27 22:33:42.812482+0530  localhost kernel[0]: (AppleACPIPlatform) ACPI Error:
2018-01-27 22:33:42.812483+0530  localhost kernel[0]: (AppleACPIPlatform) ACPI Error:
2018-01-27 22:33:42.812485+0530  localhost kernel[0]: (AppleACPIPlatform) [_DSM]
2018-01-27 22:33:42.812485+0530  localhost kernel[0]: (AppleACPIPlatform) [_DSM]
2018-01-27 22:33:42.812487+0530  localhost kernel[0]: (AppleACPIPlatform)  Namespace lookup failure, AE_ALREADY_EXISTS
2018-01-27 22:33:42.812487+0530  localhost kernel[0]: (AppleACPIPlatform)  Namespace lookup failure, AE_ALREADY_EXISTS
2018-01-27 22:33:42.812490+0530  localhost kernel[0]: (AppleACPIPlatform)  (20160930/dswload-462)
2018-01-27 22:33:42.812490+0530  localhost kernel[0]: (AppleACPIPlatform)  (20160930/dswload-462)
2018-01-27 22:33:42.812492+0530  localhost kernel[0]: (AppleACPIPlatform) ACPI Exception: AE_ALREADY_EXISTS,
2018-01-27 22:33:42.812493+0530  localhost kernel[0]: (AppleACPIPlatform) ACPI Exception: AE_ALREADY_EXISTS,
2018-01-27 22:33:42.812494+0530  localhost kernel[0]: (AppleACPIPlatform) During name lookup/catalog
2018-01-27 22:33:42.812495+0530  localhost kernel[0]: (AppleACPIPlatform) During name lookup/catalog
2018-01-27 22:33:42.812496+0530  localhost kernel[0]: (AppleACPIPlatform)  (20160930/psobject-310)
2018-01-27 22:33:42.812497+0530  localhost kernel[0]: (AppleACPIPlatform)  (20160930/psobject-310)
2018-01-27 22:33:42.812573+0530  localhost kernel[0]: (AppleACPIPlatform) ACPI Exception: AE_ALREADY_EXISTS,
2018-01-27 22:33:42.812574+0530  localhost kernel[0]: (AppleACPIPlatform) ACPI Exception: AE_ALREADY_EXISTS,
2018-01-27 22:33:42.812577+0530  localhost kernel[0]: (AppleACPIPlatform) (SSDT:   CpuPm) while loading table
2018-01-27 22:33:42.812578+0530  localhost kernel[0]: (AppleACPIPlatform) (SSDT:   CpuPm) while loading table
2018-01-27 22:33:42.812580+0530  localhost kernel[0]: (AppleACPIPlatform)  (20160930/tbxfload-319)
2018-01-27 22:33:42.812580+0530  localhost kernel[0]: (AppleACPIPlatform)  (20160930/tbxfload-319)
2018-01-27 22:33:42.813974+0530  localhost kernel[0]: (AppleACPIPlatform) ACPI Error:
2018-01-27 22:33:42.813975+0530  localhost kernel[0]: (AppleACPIPlatform) ACPI Error:
2018-01-27 22:33:42.813976+0530  localhost kernel[0]: (AppleACPIPlatform) 1 table load failures, 4 successful
2018-01-27 22:33:42.813977+0530  localhost kernel[0]: (AppleACPIPlatform) 1 table load failures, 4 successful

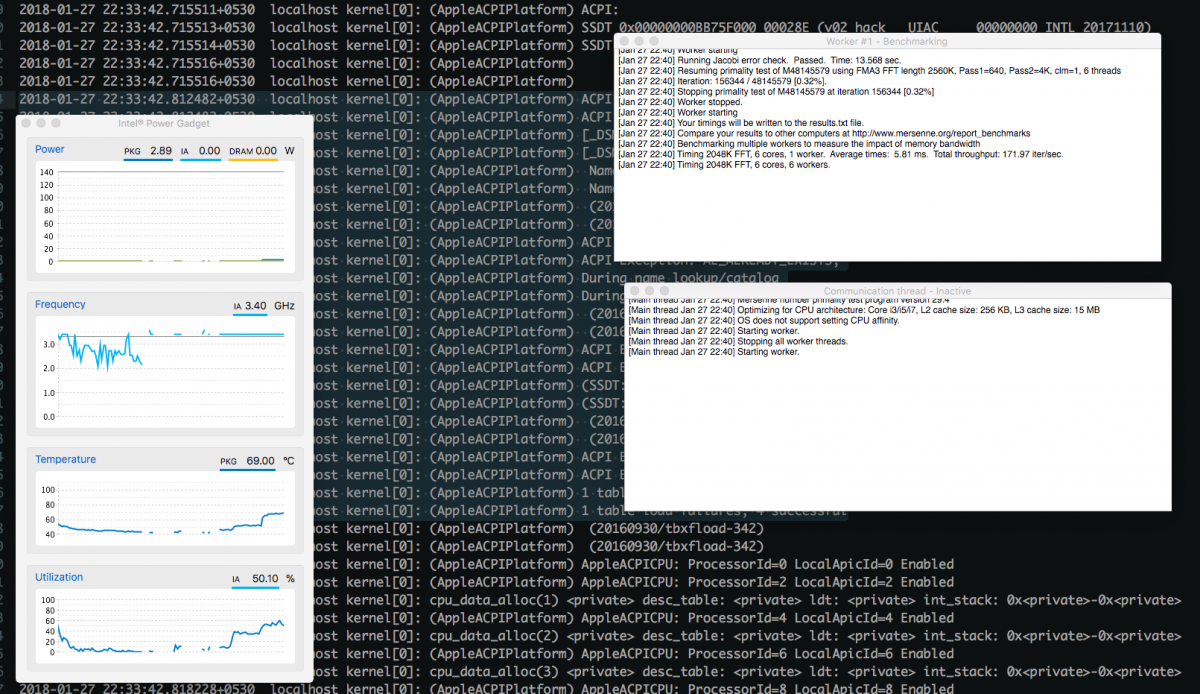

And the screenshot running Prime95 torture test.

[MaLd0n]

send me DSDT, i'll remove plugin type and u try

[adam_leve]

Here you go brother !

DSDT.aml.zip

[MaLd0n]

Here you go brother !

DSDT.aml.zip

[adam_leve]

DSDT.aml.zip



Should I remove the SSDT and the plugin type option in config.plist ?

DSDT.aml.zip



Booted with the above DSDT, still the frequency doesn't reach 3.6 and results in the same error in boot.

2018-01-27 22:52:23.837254+0530  localhost kernel[0]: (AppleACPIPlatform) ACPI Exception: AE_ALREADY_EXISTS,
2018-01-27 22:52:23.837254+0530  localhost kernel[0]: (AppleACPIPlatform) ACPI Exception: AE_ALREADY_EXISTS,
2018-01-27 22:52:23.837257+0530  localhost kernel[0]: (AppleACPIPlatform) (SSDT:   CpuPm) while loading table
2018-01-27 22:52:23.837258+0530  localhost kernel[0]: (AppleACPIPlatform) (SSDT:   CpuPm) while loading table
2018-01-27 22:52:23.837260+0530  localhost kernel[0]: (AppleACPIPlatform)  (20160930/tbxfload-319)
2018-01-27 22:52:23.837261+0530  localhost kernel[0]: (AppleACPIPlatform)  (20160930/tbxfload-319)
2018-01-27 22:52:23.838652+0530  localhost kernel[0]: (AppleACPIPlatform) ACPI Error:
2018-01-27 22:52:23.838653+0530  localhost kernel[0]: (AppleACPIPlatform) ACPI Error:
2018-01-27 22:52:23.838654+0530  localhost kernel[0]: (AppleACPIPlatform) 1 table load failures, 4 successful
2018-01-27 22:52:23.838655+0530  localhost kernel[0]: (AppleACPIPlatform) 1 table load failures, 4 successful

[MaLd0n]

u drop all oem tables?

u need check if ur mobo have MSR locked

about errors, u can ignore

[adam_leve]

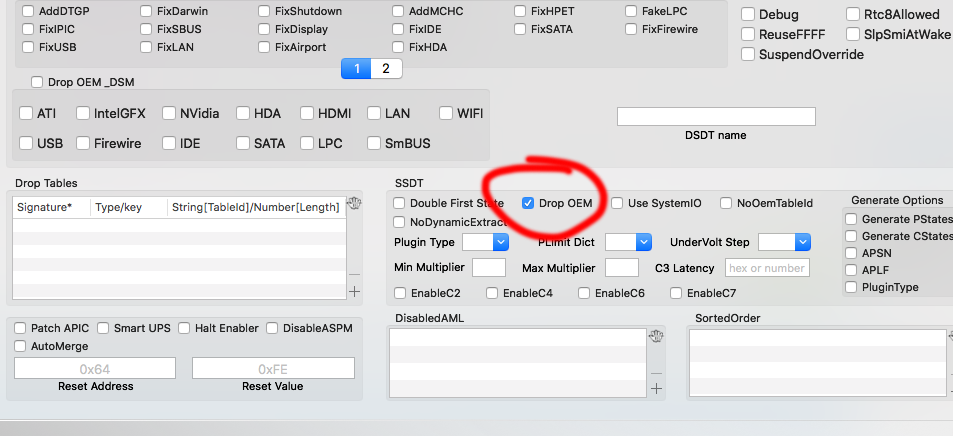

u drop all oem tables?

MaLd0n 2018-01-27 às 15.29.31.png

u need check if ur mobo have MSR locked

about errors, u can ignore



Why drop all OEM tables if I am not patching all the SSDT of OEM ?



I have flashed a modded firmware to unlock the MSR, but how to verify that ?

[MaLd0n]

x99 u can use only DSDT, dont have and dependency from other OEM table

[adam_leve]

K, how to verify that MSR is unlocked. I can't find anything in bootlog.

[MaLd0n]

i think with AppleIntelInfo u see it

[adam_leve]

K, yes MSR is not unlocked.

 - Lock................................. : 0 (MSR not locked)

Well, still stuck at 3.4 !!



This is what I have in the ACPI folder-> SSDT(patched for CPU), DSDT



Drop Oem =True

Plugn type=1

[MaLd0n]

need check bios config, in config.plist is ok

[adam_leve]

need check bios config, in config.plist is ok



BIOS is ok ! Do I need to disable IEST ?

[MaLd0n]

my bios is default, only put oc to 4.0GHZ

[adam_leve]

Will hackintosh work in hardware Raid 0 m.2 ssd ?
