velix Posted May 12, 2016 Share Posted May 12, 2016 I'm on Yosemite zone. Can someone help me generating DSDT? I have gfx0 problem. Usb 2.0, brightness control won't work. I'm on Yosemite zone. Legacy Chameleon HP dv6 6c80el i7 2670 HD3000 ATI HD 7690m (how to disable?) 2x USB 3.0 (working) 2x USB 2.0 (not working) wifi not working (I know it's not compatible, I'll use an adapter later on) Here are my acpi info generated from ubuntu: acpiinfo.zip Link to comment https://www.insanelymac.com/forum/topic/312180-hp-dv6-6c80el-yosemite-dsdt/ Share on other sites More sharing options...
mnfesq Posted May 12, 2016 Share Posted May 12, 2016 Use DPCI Manager to extract your DSDT. https://sourceforge.net/projects/dpcimanager/ 2 Link to comment https://www.insanelymac.com/forum/topic/312180-hp-dv6-6c80el-yosemite-dsdt/#findComment-2237657 Share on other sites More sharing options...
velix Posted May 13, 2016 Author Share Posted May 13, 2016 This is my unotuched DSDT DSDT.zip Can someone provide me at least HD3000 patch? Link to comment https://www.insanelymac.com/forum/topic/312180-hp-dv6-6c80el-yosemite-dsdt/#findComment-2237861 Share on other sites More sharing options...
artur_pt Posted May 13, 2016 Share Posted May 13, 2016 hello at least u try to open that file with a dsdt editor (like maciasl ?) good hack 1 Link to comment https://www.insanelymac.com/forum/topic/312180-hp-dv6-6c80el-yosemite-dsdt/#findComment-2237871 Share on other sites More sharing options...
mnfesq Posted May 13, 2016 Share Posted May 13, 2016 This is my unotuched DSDT DSDT.zip Can someone provide me at least HD3000 patch? Can't open it. Did you use DPCI Manager to extract it? It doesn't matter. I see your DSDT.dat in the ACPIinfo file you uploaded previously. Sorry about that. Try this. I patched it to get rid of the TNOT error known to occur in HP laptops and patched it for low resolution HD3000. If you need other patches, try downloading them from RehabMan's repository and applying them with MacIASL. dsdt.aml.zip 1 Link to comment https://www.insanelymac.com/forum/topic/312180-hp-dv6-6c80el-yosemite-dsdt/#findComment-2237890 Share on other sites More sharing options...
gengik84 Posted May 13, 2016 Share Posted May 13, 2016 It was extracted using maciasl with ACPI 6.1 1 Link to comment https://www.insanelymac.com/forum/topic/312180-hp-dv6-6c80el-yosemite-dsdt/#findComment-2237899 Share on other sites More sharing options...
velix Posted May 14, 2016 Author Share Posted May 14, 2016 Thanks to all for helping me. I've then applied Brightness and USB patch. Is there a way to disable the ati card through dsdt? I don't want to disable it by bios because I use it on Linux Link to comment https://www.insanelymac.com/forum/topic/312180-hp-dv6-6c80el-yosemite-dsdt/#findComment-2237968 Share on other sites More sharing options...
artur_pt Posted May 14, 2016 Share Posted May 14, 2016 hello see with this ati is disabled HP.zip good hack 1 Link to comment https://www.insanelymac.com/forum/topic/312180-hp-dv6-6c80el-yosemite-dsdt/#findComment-2237982 Share on other sites More sharing options...
velix Posted May 14, 2016 Author Share Posted May 14, 2016 Thank you very much, I'll try it soon. Any hint for the battery? Another question: Have I to place all the ssdt from first post in /Extra? Link to comment https://www.insanelymac.com/forum/topic/312180-hp-dv6-6c80el-yosemite-dsdt/#findComment-2237999 Share on other sites More sharing options...
artur_pt Posted May 14, 2016 Share Posted May 14, 2016 hello is already patched for the bat .. drop ssdt and load only that ones .. the patched ones good hack 1 Link to comment https://www.insanelymac.com/forum/topic/312180-hp-dv6-6c80el-yosemite-dsdt/#findComment-2238029 Share on other sites More sharing options...
velix Posted May 19, 2016 Author Share Posted May 19, 2016 hello see with this ati is disabled HP.zip good hack I can still see the ATI card on System Info. I don't think it has been disabled. Thanks again for you time. Link to comment https://www.insanelymac.com/forum/topic/312180-hp-dv6-6c80el-yosemite-dsdt/#findComment-2239080 Share on other sites More sharing options...
artur_pt Posted May 19, 2016 Share Posted May 19, 2016 hello post ur ioregisterexplorer with that files load good hack 1 Link to comment https://www.insanelymac.com/forum/topic/312180-hp-dv6-6c80el-yosemite-dsdt/#findComment-2239085 Share on other sites More sharing options...

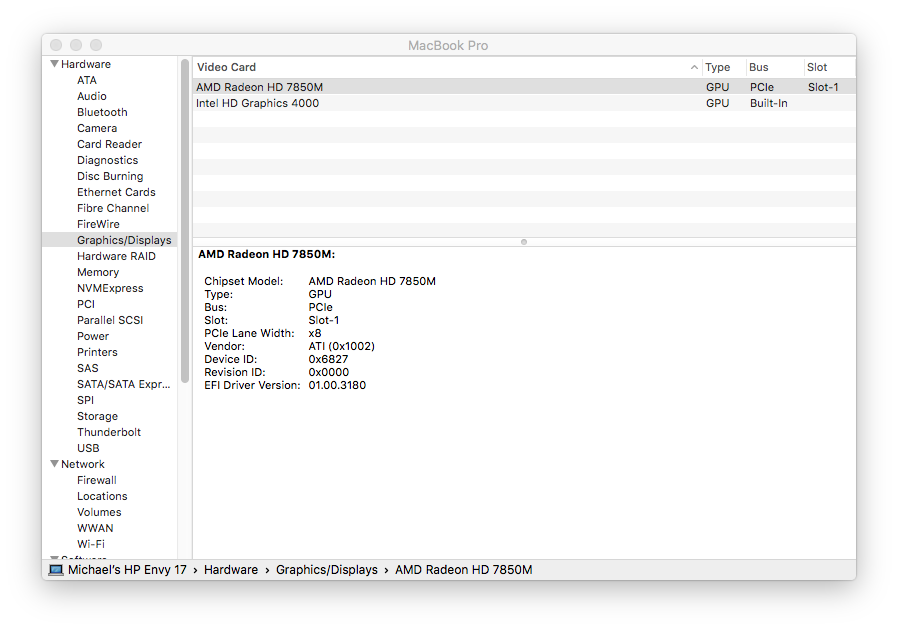

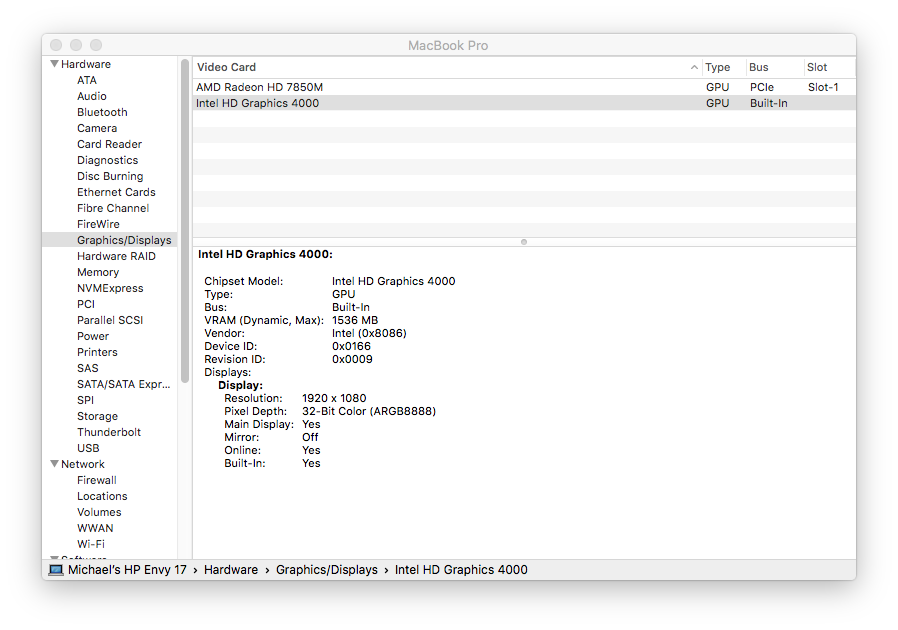

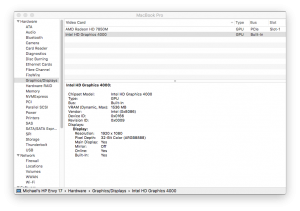

mnfesq Posted May 19, 2016 Share Posted May 19, 2016 I can still see the ATI card on System Info. I don't think it has been disabled. Thanks again for you time. Your AMD Radeon GPU is disabled by the BIOS, just like mine. You can only use it with Windows because video switching is software-based for most HP laptops in recent years. Here's some photos of my system information. It shows the AMD GPU but it does not have a display associated with it like the Intel GPU does. You'll be stuck with the HD3000 using OS X. All attempts to modify the BIOS to enable graphics switching have proven unsuccessful. 1 Link to comment https://www.insanelymac.com/forum/topic/312180-hp-dv6-6c80el-yosemite-dsdt/#findComment-2239167 Share on other sites More sharing options...
velix Posted May 20, 2016 Author Share Posted May 20, 2016 hello post ur ioregisterexplorer with that files load good hack It should be the right file: log.ioreg.zip Your AMD Radeon GPU is disabled by the BIOS, just like mine. You can only use it with Windows because video switching is software-based for most HP laptops in recent years. Here's some photos of my system information. It shows the AMD GPU but it does not have a display associated with it like the Intel GPU does. You'll be stuck with the HD3000 using OS X. All attempts to modify the BIOS to enable graphics switching have proven unsuccessful. AMD.png Intel.png Whot do you mean with "Your AMD Radeon GPU is disabled by the BIOS"? My GPU is fully working on windows and ubuntu. Link to comment https://www.insanelymac.com/forum/topic/312180-hp-dv6-6c80el-yosemite-dsdt/#findComment-2239393 Share on other sites More sharing options...
artur_pt Posted May 20, 2016 Share Posted May 20, 2016 hello why u aren't using this for the bat ? https://bitbucket.org/RehabMan/os-x-acpi-battery-driver about ur graphics ati i don't see any kext load .. only amdsupport good hack 1 Link to comment https://www.insanelymac.com/forum/topic/312180-hp-dv6-6c80el-yosemite-dsdt/#findComment-2239396 Share on other sites More sharing options...
velix Posted May 20, 2016 Author Share Posted May 20, 2016 hello why u aren't using this for the bat ? https://bitbucket.org/RehabMan/os-x-acpi-battery-driver about ur graphics ati i don't see any kext load .. only amdsupport good hack Thank you very much, battery is now working. I can see on kextwizard that AMDSupport, AMD6000Controller and AMDRadeonX3000 are loaded. Can I remove them? PS. Is there a way to make the vga work? Link to comment https://www.insanelymac.com/forum/topic/312180-hp-dv6-6c80el-yosemite-dsdt/#findComment-2239419 Share on other sites More sharing options...
artur_pt Posted May 21, 2016 Share Posted May 21, 2016 hello no , the ati will never work .. dual graphics in notebooks don't work .. only primary card .. in ur case is intel hd .. will work if u can disable it in bios . good hack 1 Link to comment https://www.insanelymac.com/forum/topic/312180-hp-dv6-6c80el-yosemite-dsdt/#findComment-2239465 Share on other sites More sharing options...
velix Posted May 21, 2016 Author Share Posted May 21, 2016 hello no , the ati will never work .. dual graphics in notebooks don't work .. only primary card .. in ur case is intel hd .. will work if u can disable it in bios . good hack I know about that. I meant the vga out. I can't see any monitor in setting panel when I connect one through the vga connector. I even tried to patch manually the AppleIntelSNBGraphicsFb.kext following a guide on this forum but nothing changes. Regarding the kext: can I disable it? Thanks again Link to comment https://www.insanelymac.com/forum/topic/312180-hp-dv6-6c80el-yosemite-dsdt/#findComment-2239517 Share on other sites More sharing options...
artur_pt Posted May 21, 2016 Share Posted May 21, 2016 hello about the vga port .. some ppl report have it working .. others no .. mac don't use vga.. rename the kexts .kext.old .. rebuild the cache . to not have it in the cache and test.. good hack Link to comment https://www.insanelymac.com/forum/topic/312180-hp-dv6-6c80el-yosemite-dsdt/#findComment-2239523 Share on other sites More sharing options...
velix Posted May 21, 2016 Author Share Posted May 21, 2016 I've disabled the kext and now my vga port seems working. I don't know if it was a fluke. However thank you all for helping me Link to comment https://www.insanelymac.com/forum/topic/312180-hp-dv6-6c80el-yosemite-dsdt/#findComment-2239563 Share on other sites More sharing options...
