Andres ZeroCross Posted February 8, 2019 Share Posted February 8, 2019 5 hours ago, tmbt said: My laptop is : Huawei Matebook D 2018 Intel i5. Attached you will find my dump. Thanks Mattia codec-dump.txt Use this,, use layoutID = 22 AppleALC.kext.zip Link to comment https://www.insanelymac.com/forum/topic/311293-applealc-%E2%80%94-dynamic-applehda-patching/page/161/#findComment-2663160 Share on other sites More sharing options...
Andres ZeroCross Posted February 8, 2019 Share Posted February 8, 2019 15 hours ago, zerobokoo said: Here it is. TIA p40yoga.zip Use this config.plist then reboot, check your AUDIO and upload your IOREG output again config.plist Link to comment https://www.insanelymac.com/forum/topic/311293-applealc-%E2%80%94-dynamic-applehda-patching/page/161/#findComment-2663161 Share on other sites More sharing options...
tmbt Posted February 8, 2019 Share Posted February 8, 2019 9 minutes ago, Andres ZeroCross said: Use this,, use layoutID = 22 AppleALC.kext.zip Thanks ! It works now! Could you please explain to me what's the difference between your AppleALC and the official one ? There is also a really minor glitch. When i boot the OS without headphone connected and i click on the sound icon in the bar i can see there are two Output devices: Internal Speakers. If i select the first one i got the same audio problem than before. If i select the second one audio is working ok. When i connect the headphones and click again on the sound icon the first Internal Speakers is called now Headphone and it works perfectly. If i disconnect the headphones and click on the sound icon again i have again 2 internal Speakers. It seems like the Headphone line is recognize only when the headphones are physically connected to the laptop. Is this normal? Anyway a BIG thanks ZeroCross Mattia Link to comment https://www.insanelymac.com/forum/topic/311293-applealc-%E2%80%94-dynamic-applehda-patching/page/161/#findComment-2663162 Share on other sites More sharing options...
Andres ZeroCross Posted February 8, 2019 Share Posted February 8, 2019 2 minutes ago, tmbt said: Thanks ! It works now! Could you please explain to me what's the difference between your AppleALC and the official one ? There is also a really minor glitch. When i boot the OS without headphone connected and i click on the sound icon in the bar i can see there are two Output devices: Internal Speakers. If i select the first one i got the same audio problem than before. If i select the second one audio is working ok. When i connect the headphones and click again on the sound icon the first Internal Speakers is called now Headphone and it works perfectly. If i disconnect the headphones and click on the sound icon again i have again 2 internal Speakers. It seems like the Headphone line is recognize only when the headphones are physically connected to the laptop. Is this normal? Anyway a BIG thanks ZeroCross Mattia You have 2 internal Speaker. Tweter speaker is designed to switch with HEadphone. Tweeter Speaker and Another Speaker are set as "Internal Speaker". I hope you understand,, i didn't upload the resource yet. maybe later Link to comment https://www.insanelymac.com/forum/topic/311293-applealc-%E2%80%94-dynamic-applehda-patching/page/161/#findComment-2663163 Share on other sites More sharing options...
tmbt Posted February 8, 2019 Share Posted February 8, 2019 1 minute ago, Andres ZeroCross said: You have 2 internal Speaker. Tweter speaker is designed to switch with HEadphone. Tweeter Speaker and Another Speaker are set as "Internal Speaker". I hope you understand,, i didn't upload the resource yet. maybe later Honestly i don't .. but it's ok. Just the most important question : Can i in the future update AppleALC if a new version come out or should i stick with the one you gave me ? Thanks again for your time Mattia Link to comment https://www.insanelymac.com/forum/topic/311293-applealc-%E2%80%94-dynamic-applehda-patching/page/161/#findComment-2663164 Share on other sites More sharing options...
Andres ZeroCross Posted February 8, 2019 Share Posted February 8, 2019 Just now, tmbt said: Honestly i don't .. but it's ok. Just the most important question : Can i in the future update AppleALC if a new version come out or should i stick with the one you gave me ? Thanks again for your time Mattia Yes,, i will upload the resource soon. You can use layout=22 in next release AppleALC.kext Link to comment https://www.insanelymac.com/forum/topic/311293-applealc-%E2%80%94-dynamic-applehda-patching/page/161/#findComment-2663165 Share on other sites More sharing options...
tmbt Posted February 8, 2019 Share Posted February 8, 2019 1 minute ago, Andres ZeroCross said: Yes,, i will upload the resource soon. You can use layout=22 in next release AppleALC.kext Thank you !!! You saved my day. I was stuck with this audio issue and you've solved it ! Mattia Link to comment https://www.insanelymac.com/forum/topic/311293-applealc-%E2%80%94-dynamic-applehda-patching/page/161/#findComment-2663166 Share on other sites More sharing options...
matgeo Posted February 8, 2019 Share Posted February 8, 2019 On 1/21/2019 at 6:37 PM, Andres ZeroCross said: Revert back to your previous ones,, your codec and AlexAMD is same ALC256 but different layoutID. Both of you make me confuse. Take another day,,, Alex make fast response,, so i will help him first AppleALC.kext.zip @Andres ZeroCross, can we fix it now ? Link to comment https://www.insanelymac.com/forum/topic/311293-applealc-%E2%80%94-dynamic-applehda-patching/page/161/#findComment-2663168 Share on other sites More sharing options...
Andres ZeroCross Posted February 8, 2019 Share Posted February 8, 2019 58 minutes ago, matgeo said: @Andres ZeroCross, can we fix it now ? No,, i don't have a time and you're slow reponse. And i don't understand what's exactly your problem Link to comment https://www.insanelymac.com/forum/topic/311293-applealc-%E2%80%94-dynamic-applehda-patching/page/161/#findComment-2663170 Share on other sites More sharing options...
AlexAMD Posted February 8, 2019 Share Posted February 8, 2019 2 hours ago, Andres ZeroCross said: Usa questo, usa layoutID = 22 AppleALC.kext.zip Hello and thanks for what you do, with the codec ALC256 layoutID 22 on Huawei matebook D, I have very good sound but in the headphones I hear only teets the audio is empty .... thanks Link to comment https://www.insanelymac.com/forum/topic/311293-applealc-%E2%80%94-dynamic-applehda-patching/page/161/#findComment-2663172 Share on other sites More sharing options...
matgeo Posted February 8, 2019 Share Posted February 8, 2019 35 minutes ago, Andres ZeroCross said: No,, i don't have a time and you're slow reponse. And i don't understand what's exactly your problem I'm not a slow responser. Site is slow free weekends now on refresh. Problem is that rendomly there is a high pitch noise from speakers and then cpu goes high up to 30-40%. Only way to top this is to reboot. Maybe second line in option is the problem , i'm not sure. Link to comment https://www.insanelymac.com/forum/topic/311293-applealc-%E2%80%94-dynamic-applehda-patching/page/161/#findComment-2663173 Share on other sites More sharing options...
sweet Posted February 8, 2019 Share Posted February 8, 2019 (edited) Hello! I have a HP Probook 440 G5. I followed an3k-s thread, because I have the same CX8200 Chipset. My Jack audio is not working, but the built in microphone to the headphones are working. (It's a standard headphone what I got with my phone) I tried placing the kexts generated by you, in the EFI/CLOVER/kexts/Other folder, then restarting my laptop. But No change in the output devices. Currently I have working Internal Speakers/HDMI audio, Internal Microphone/Headphones microphone. Following this command, I got the following output.: log show --predicate 'process == "kernel" AND (eventMessage CONTAINS "AppleALC" OR eventMessage CONTAINS "Lilu")' --style syslog --source Security policy loaded: Lilu Kernel Extension 1.3.1 (Lilu) (kernel) AppleALC: alc @ alc-layout-id was not provided by controller at HDEF (kernel) AppleALC: alc @ alc-layout-id was not provided by controller at HDEF Following this: https://github.com/acidanthera/AppleALC/wiki/Supported-codecs It also has my chipset listed. Edit: https://github.com/acidanthera/AppleALC/releases I replaced Lilu.kext and AppleALC.kext with the newest version available. But I still have no audio on my headphones. When I plug it in it does not recognise it. I have also Linux system installed, it works there. What did I miss or how can I solve the issue? Thank you in advance. Edited February 8, 2019 by sweet Added some more explanation. Link to comment https://www.insanelymac.com/forum/topic/311293-applealc-%E2%80%94-dynamic-applehda-patching/page/161/#findComment-2663177 Share on other sites More sharing options...
Andres ZeroCross Posted February 8, 2019 Share Posted February 8, 2019 3 hours ago, sweet said: Hello! I have a HP Probook 440 G5. I followed an3k-s thread, because I have the same CX8200 Chipset. My Jack audio is not working, but the built in microphone to the headphones are working. (It's a standard headphone what I got with my phone) I tried placing the kexts generated by you, in the EFI/CLOVER/kexts/Other folder, then restarting my laptop. But No change in the output devices. Currently I have working Internal Speakers/HDMI audio, Internal Microphone/Headphones microphone. Following this command, I got the following output.: log show --predicate 'process == "kernel" AND (eventMessage CONTAINS "AppleALC" OR eventMessage CONTAINS "Lilu")' --style syslog --source Security policy loaded: Lilu Kernel Extension 1.3.1 (Lilu) (kernel) AppleALC: alc @ alc-layout-id was not provided by controller at HDEF (kernel) AppleALC: alc @ alc-layout-id was not provided by controller at HDEF Following this: https://github.com/acidanthera/AppleALC/wiki/Supported-codecs It also has my chipset listed. Edit: https://github.com/acidanthera/AppleALC/releases I replaced Lilu.kext and AppleALC.kext with the newest version available. But I still have no audio on my headphones. When I plug it in it does not recognise it. I have also Linux system installed, it works there. What did I miss or how can I solve the issue? Thank you in advance. You need CodecCommander.kext in Library/Extensions and use SSDT.aml or custom info.plist of codeccommander to set Pin Widget of your External Mic Link to comment https://www.insanelymac.com/forum/topic/311293-applealc-%E2%80%94-dynamic-applehda-patching/page/161/#findComment-2663194 Share on other sites More sharing options...
rottenpants Posted February 8, 2019 Share Posted February 8, 2019 18 hours ago, Andres ZeroCross said: Bad configuration dsdt/ssdt + config.plist. I can help, 1. Press f4 in GUI CLOVER (to dump oem acpi) 2. Zip your clover folder 3. Move all additional kexts from Library/extensions to Clover/extra/others 4. Write detail of your specifications 5. Zip all files and upload here Sent from my Mi Note 2 using Tapatalk Sorry for the delay yesterday I received my wifi/bt card to install on my laptop got at least wifi working. So my full specs are: Laptop Toshiba Kira 107 CPU: intel i7 5500u GPU: intel hd5500 Ram: 8GB Sound: Conexant CX 20751_2 My clover file is below with all the files you requested Thank you for taking your time to help me CLOVER.zip IORegistry.ioreg.zip Link to comment https://www.insanelymac.com/forum/topic/311293-applealc-%E2%80%94-dynamic-applehda-patching/page/161/#findComment-2663202 Share on other sites More sharing options...
sweet Posted February 8, 2019 Share Posted February 8, 2019 1 hour ago, Andres ZeroCross said: You need CodecCommander.kext in Library/Extensions and use SSDT.aml or custom info.plist of codeccommander to set Pin Widget of your External Mic My external mic is working, just external audio out (headphones) is not. Is there any guide to CodeCommander? Thank you in advance Link to comment https://www.insanelymac.com/forum/topic/311293-applealc-%E2%80%94-dynamic-applehda-patching/page/161/#findComment-2663203 Share on other sites More sharing options...
zerobokoo Posted February 8, 2019 Share Posted February 8, 2019 8 hours ago, Andres ZeroCross said: Use this config.plist then reboot, check your AUDIO and upload your IOREG output again config.plist Here it is. The audio device is still missing. Thank you for looking into it, Andres. p40yoga_feb8.ioreg.zip Link to comment https://www.insanelymac.com/forum/topic/311293-applealc-%E2%80%94-dynamic-applehda-patching/page/161/#findComment-2663204 Share on other sites More sharing options...
Andres ZeroCross Posted February 8, 2019 Share Posted February 8, 2019 5 minutes ago, zerobokoo said: Here it is. The audio device is still missing. Thank you for looking into it, Andres. p40yoga_feb8.ioreg.zip You're using Lilu.kext version 1.2.8 First, try to use Latest lilu.kext and AppleALC.kext Put all additional kext in "EFI/CLOVEr/Kexts/Others" Reboot and upload your IOREG again And use this config.plist. config.plist Link to comment https://www.insanelymac.com/forum/topic/311293-applealc-%E2%80%94-dynamic-applehda-patching/page/161/#findComment-2663206 Share on other sites More sharing options...
zerobokoo Posted February 8, 2019 Share Posted February 8, 2019 (edited) 8 minutes ago, Andres ZeroCross said: You're using Lilu.kext version 1.2.8 First, try to use Latest lilu.kext and AppleALC.kext No, I'm using Lilu.kext 1.3.3 and AppleALC.kext 1.3.5 from GitHub releases (RELEASE zip file) I just downloaded them again to compare with diff -qr and yes, they are the latest versions. Edit: wait, there's an older Lilu.kext in /Library/Extensions! Who put it there??? Wait a minute, let me try again. Edited February 8, 2019 by zerobokoo Link to comment https://www.insanelymac.com/forum/topic/311293-applealc-%E2%80%94-dynamic-applehda-patching/page/161/#findComment-2663207 Share on other sites More sharing options...

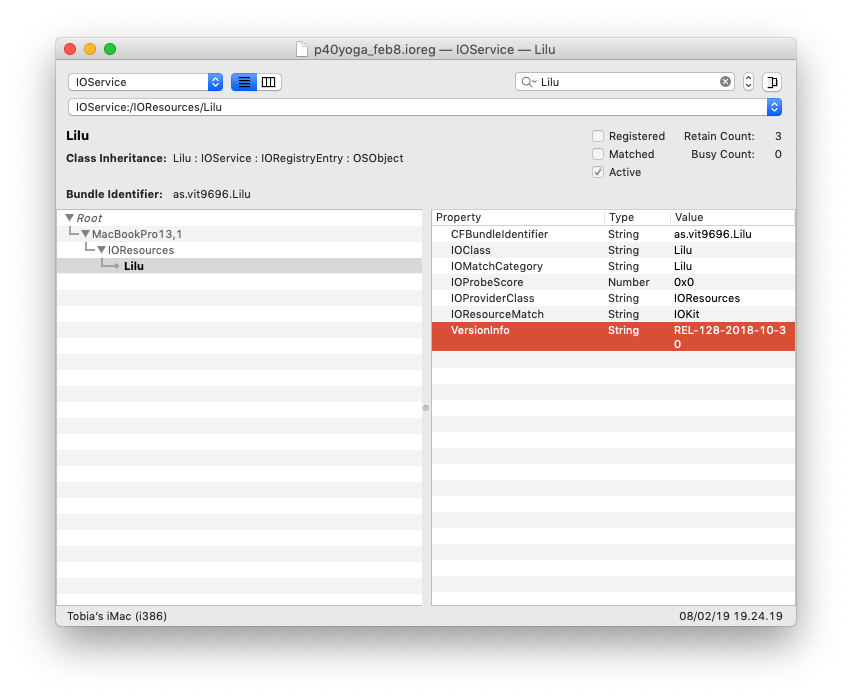

Andres ZeroCross Posted February 8, 2019 Share Posted February 8, 2019 1 minute ago, zerobokoo said: No, I'm using Lilu.kext 1.3.3 and AppleALC.kext 1.3.5 from GitHub releases (RELEASE zip file) I just downloaded them again to compare with diff -qr and yes, they are the latest versions. Your IOREG show that you used Lilu 1.2.8 Link to comment https://www.insanelymac.com/forum/topic/311293-applealc-%E2%80%94-dynamic-applehda-patching/page/161/#findComment-2663209 Share on other sites More sharing options...
zerobokoo Posted February 8, 2019 Share Posted February 8, 2019 (edited) 7 minutes ago, Andres ZeroCross said: Your IOREG show that you used Lilu 1.2.8 Yes, I'm sorry. There was an older Lilu.kext in /Library/Extensions. I didn't put it there, probably some other utility I used did it. Now I've removed it and done the dump again. p40yoga_feb8_B.ioreg.zip Edited February 8, 2019 by zerobokoo Link to comment https://www.insanelymac.com/forum/topic/311293-applealc-%E2%80%94-dynamic-applehda-patching/page/161/#findComment-2663210 Share on other sites More sharing options...
Andres ZeroCross Posted February 8, 2019 Share Posted February 8, 2019 1 minute ago, zerobokoo said: Yes, I'm sorry. There was an older Lilu.kext in /Library/Extensions. I didn't put it there, probably an utility like ##### did it. Now I've removed it and done the dump again. p40yoga_feb8_B.ioreg.zip I upload new config.plist above,, use it. And upload your IOREG again Link to comment https://www.insanelymac.com/forum/topic/311293-applealc-%E2%80%94-dynamic-applehda-patching/page/161/#findComment-2663211 Share on other sites More sharing options...
zerobokoo Posted February 8, 2019 Share Posted February 8, 2019 3 minutes ago, Andres ZeroCross said: I upload new config.plist above,, use it. And upload your IOREG again OMG you're right, I didn't use the new config.plist. I feel so dumb! Now I've done it and I have audio output! Thank you sooo much! Here's the IOREG. Is there anything else you want me to try on this hardware? p40yoga_feb8_C.ioreg.zip Link to comment https://www.insanelymac.com/forum/topic/311293-applealc-%E2%80%94-dynamic-applehda-patching/page/161/#findComment-2663213 Share on other sites More sharing options...
Andres ZeroCross Posted February 8, 2019 Share Posted February 8, 2019 (edited) 3 minutes ago, zerobokoo said: OMG you're right, I didn't use the new config.plist. I feel so dumb! Now I've done it and I have audio output! Thank you sooo much! Here's the IOREG. Is there anything else you want me to try on this hardware? p40yoga_feb8_C.ioreg.zip Config plist before is using layoutID = 21,, it's my work for LG Gram series. SO i change it to 3 (Mirone works) Edited February 8, 2019 by Andres ZeroCross Link to comment https://www.insanelymac.com/forum/topic/311293-applealc-%E2%80%94-dynamic-applehda-patching/page/161/#findComment-2663214 Share on other sites More sharing options...

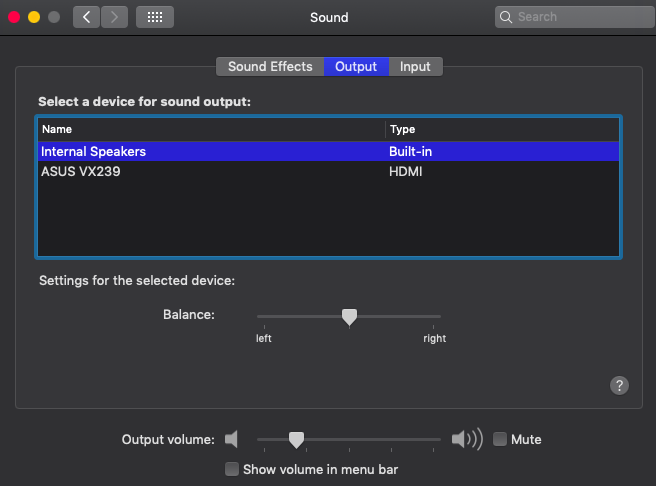

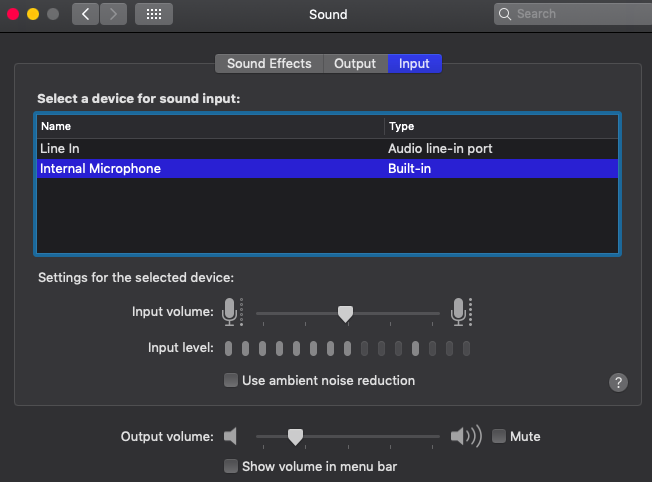

zerobokoo Posted February 8, 2019 Share Posted February 8, 2019 2 minutes ago, Andres ZeroCross said: Config plist before is use layoutID = 21,, it's my work for LG Gram series. SO i change it to 3 (Mirone works) Thank you. To be complete, I see 1 Output device: "Internal Speakers" (which becomes "Headphones" when the headphones are connected) and 2 Input devices: "Internal Microphone" and "Line In". The internal microphone does not work (for me it's ok, because I don't need it, but I wanted to mention it for completeness. Some other people might need it, for Skype or such.) The Line-in I have no idea where it is, because there is no line-in port on my laptop. Maybe it's integrated in the headphone jack, with TRRS pins, but I don't have a headphone like that so I cannot try right now. Link to comment https://www.insanelymac.com/forum/topic/311293-applealc-%E2%80%94-dynamic-applehda-patching/page/161/#findComment-2663216 Share on other sites More sharing options...
Andres ZeroCross Posted February 8, 2019 Share Posted February 8, 2019 3 minutes ago, zerobokoo said: Thank you. To be complete, I see 1 Output device: "Internal Speakers" (which becomes "Headphones" when the headphones are connected) and 2 Input devices: "Internal Microphone" and "Line In". The internal microphone does not work (for me it's ok, because I don't need it, but I wanted to mention it for completeness. Some other people might need it, for Skype or such.) The Line-in I have no idea where it is, because there is no line-in port on my laptop. Maybe it's integrated in the headphone jack, with TRRS pins, but I don't have a headphone like that so I cannot try right now. I don't know, it's mirone's work for LayoutID =3. Can you upload your Codec_dump.txt again??? I will check it later And can you write your Notebook model? Link to comment https://www.insanelymac.com/forum/topic/311293-applealc-%E2%80%94-dynamic-applehda-patching/page/161/#findComment-2663217 Share on other sites More sharing options...
