insanelyDeepak
insanelyDeepak
Posted
Posted (edited)

@vit9696

i have been trying from many days not no luck with no-controller-inject tried either DSDT or clover properties ,

Clover result :

device properties : PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0) as per gfxutil and darwin dumper lead me to crash :

device-properties.plist

Deepak’s iMac.ioreg



 Kernel Extensions in backtrace:
         com.apple.iokit.IOGraphicsFamily(519.20)[0E507098-E375-39B7-9AE2-AFF2C7A5D961]@0xffffff7faeca4000->0xffffff7faececfff
            dependency: com.apple.iokit.IOPCIFamily(2.9)[AEA4C7F5-CCB0-338B-B471-CF28A9792522]@0xffffff7fae134000
         com.apple.nvidia.classic.NVDAResmanTesla(10.0.4)[F8258F0F-61AD-30F4-BDD5-B18CCAAE535A]@0xffffff7faed0a000->0xffffff7faef72fff
            dependency: com.apple.iokit.IOPCIFamily(2.9)[AEA4C7F5-CCB0-338B-B471-CF28A9792522]@0xffffff7fae134000
            dependency: com.apple.iokit.IONDRVSupport(519.20)[64AB0898-0DF1-32DF-850A-8840C3478439]@0xffffff7faecfa000
            dependency: com.apple.iokit.IOGraphicsFamily(519.20)[0E507098-E375-39B7-9AE2-AFF2C7A5D961]@0xffffff7faeca4000
         com.apple.nvidia.classic.NVDANV50HalTesla(10.0.4)[5DCF031B-F81F-32A3-ADCD-18E16EAC7CF0]@0xffffff7faef7e000->0xffffff7faf226fff
            dependency: com.apple.nvidia.classic.NVDAResmanTesla(10.0.4)[F8258F0F-61AD-30F4-BDD5-B18CCAAE535A]@0xffffff7faed0a000
            dependency: com.apple.iokit.IOPCIFamily(2.9)[AEA4C7F5-CCB0-338B-B471-CF28A9792522]@0xffffff7fae134000

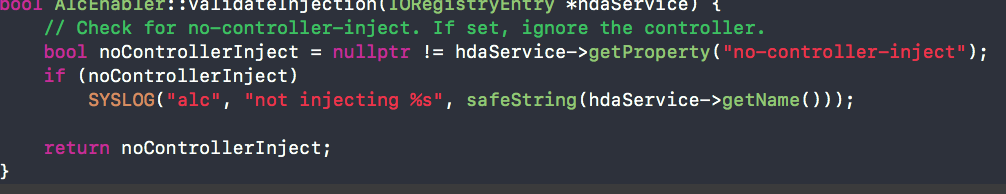

so i change it here and it works but i need permanent solution



910077458_ScreenShot2018-11-26at11_35_43PM.thumb.png.0f0b0d426b256fa8b0789f7d0213c37d.png



im a noob here never used clover device properties



Edited by insanelyDeepak
Andres ZeroCross
Andres ZeroCross
Posted
Posted (edited)
9 minutes ago, insanelyDeepak said:

@vit9696

i have been trying from many days not no luck with no-controller-patch tried either DSDT or clover properties

no-controller-patch properties for what devices??? maybe use no-alc-controller instead no-controller-patch.

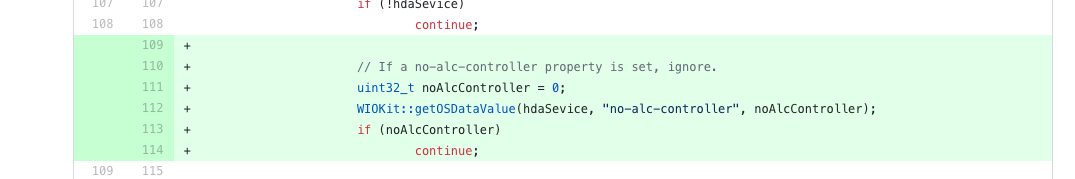

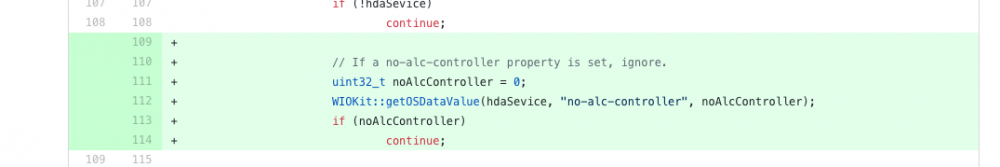

I check this commit https://github.com/acidanthera/AppleALC/commit/3619a4cd201d922322d2cd69d62c788022448bdf


Edited by Andres ZeroCross
insanelyDeepak
insanelyDeepak
Posted
Posted
6 minutes ago, Andres ZeroCross said:

no-controller-patch properties for what devices??? maybe use no-alc-controller instead no-controller-patch.


I check this commit https://github.com/acidanthera/AppleALC/commit/3619a4cd201d922322d2cd69d62c788022448bdf


no it actually merge and named as no-controller-inject (i misspelled)



Quote

what devices??

GPU

Andres ZeroCross
Andres ZeroCross
Posted
Posted
2 minutes ago, insanelyDeepak said:

no it actually merge and named as no-controller-inject (i misspelled)



GPU



IGPU or EGPU???? HDMI audio of both device use different path and address in DSDT

Andres ZeroCross
Andres ZeroCross
Posted
Posted (edited)
Just now, insanelyDeepak said:

yes tried but crash


Can you upload your IOREG and your patched folder,, maybe i can give some help. Ah, config.plist too,, i wonder about Hot patch ACPI Renaming. I will check now

Edited by Andres ZeroCross
insanelyDeepak
insanelyDeepak
Posted
Posted
3 minutes ago, Andres ZeroCross said:


Can you upload your IOREG and your patched folder,, maybe i can give some help.

here you go https://drive.google.com/file/d/1F0L46NrbhqKx4HJGe7IprBO56eLEIJIb/view?usp=sharing

7 minutes ago, Andres ZeroCross said:

 i wonder about Hot patch ACPI Renaming

it's petty old system these terms are not in used

Andres ZeroCross
Andres ZeroCross
Posted
Posted (edited)
4 minutes ago, insanelyDeepak said:

here you go https://drive.google.com/file/d/1F0L46NrbhqKx4HJGe7IprBO56eLEIJIb/view?usp=sharing

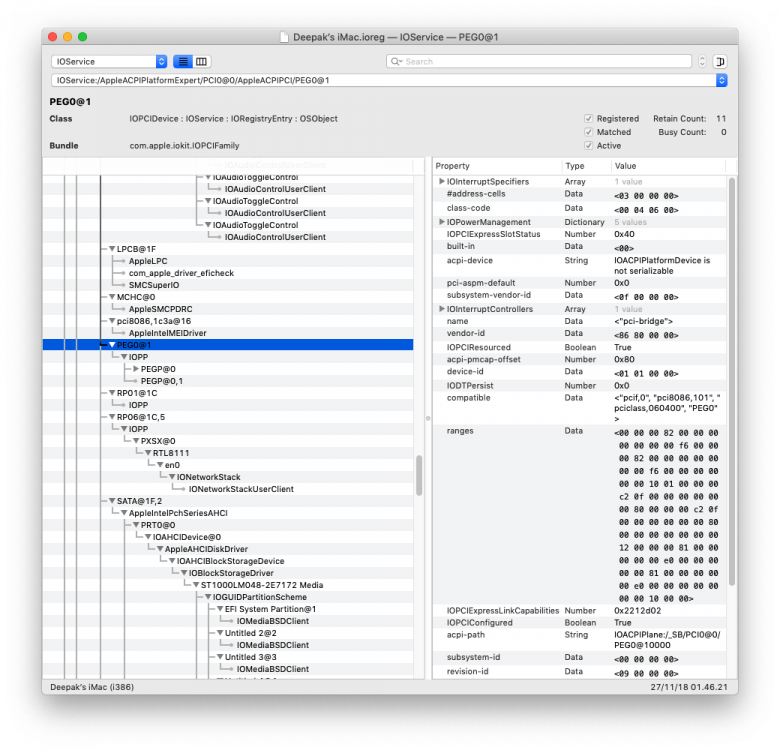

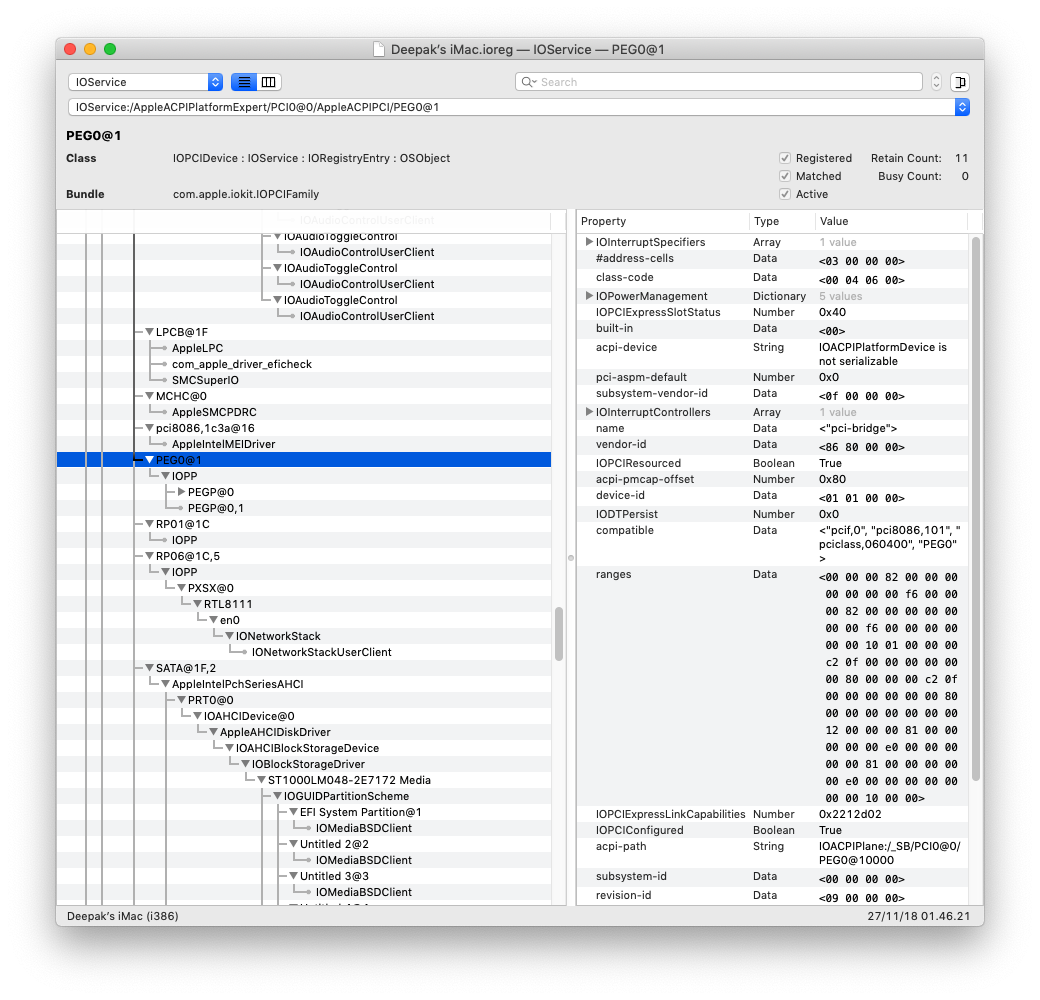

It should PEG0 instead PEGP. We can see in your DSDT address of 0x00010000 is PEG0 not PEGP,, but in IOREG your PEG0 is PEGP. It's strange. Can you upload your Config.plist., it's look about ACPI Rename. I need your config.list





Edited by Andres ZeroCross
insanelyDeepak
insanelyDeepak
Posted
Posted
2 minutes ago, Andres ZeroCross said:



It should PEG0 instead PEGP. We can see in your DSDT address of 0x000010000 is PEG0 not PEGP,, but in IOREG your PEG0 is PEGP. It's strange. Can you upload your Config.plist., it's look about ACPI Rename. I need your config.list

https://drive.google.com/file/d/1sgZP0_Mpo9hg1dwM80lOkLXDu9lKraRN/view?usp=sharing



do you need IORegistery without AppleALC ? bcoz apple ALC inject graphics properties ?

Andres ZeroCross
Andres ZeroCross
Posted
Posted (edited)
6 minutes ago, insanelyDeepak said:

https://drive.google.com/file/d/1sgZP0_Mpo9hg1dwM80lOkLXDu9lKraRN/view?usp=sharing



do you need IORegistery without AppleALC ? bcoz apple ALC inject graphics properties ?


it's strange,, your config.plist doesn't use patch ACPI about rename of PEG0 to PEGP,, and AppleALC or Whatevergreen only change PEGP to GFX0 not PEG0 to PEGP. I use eGPU too

Edited by Andres ZeroCross
insanelyDeepak
insanelyDeepak
Posted
Posted
1 minute ago, Andres ZeroCross said:


it's strange,, your config.plist doesn't use patch ACPI about rename of PEG0 to PEGP,, and AppleALC or Whatevergreen only change PEGP to GFX0 not PEG0 to PEGP. I use eGPU too

may be thats why it's not working for me

Andres ZeroCross
Andres ZeroCross
Posted
Posted
1 minute ago, insanelyDeepak said:

may be thats why it's not working for me


There is something here,, it's not accidental rename i think.

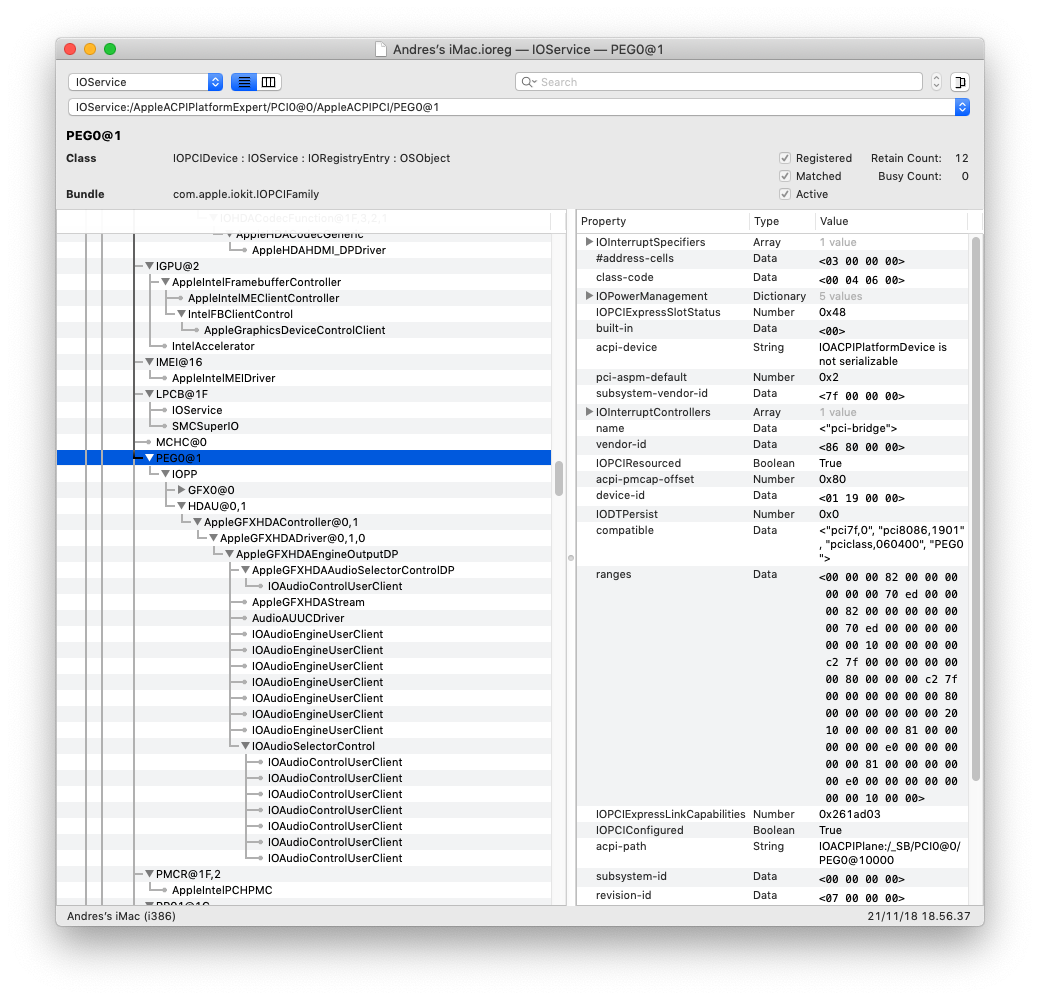

Take a look at my IOREG,, PEG0 is still PEG0. I use AppleALC too and WhateverGreen,, did you miss something maybe..



insanelyDeepak
insanelyDeepak
Posted
Posted
4 minutes ago, Andres ZeroCross said:


There is something here,, it's not accidental rename i think.

Take a look at my IOREG,, PEG0 is still PEG0. I use AppleALC too and WhateverGreen,, did you miss something maybe..

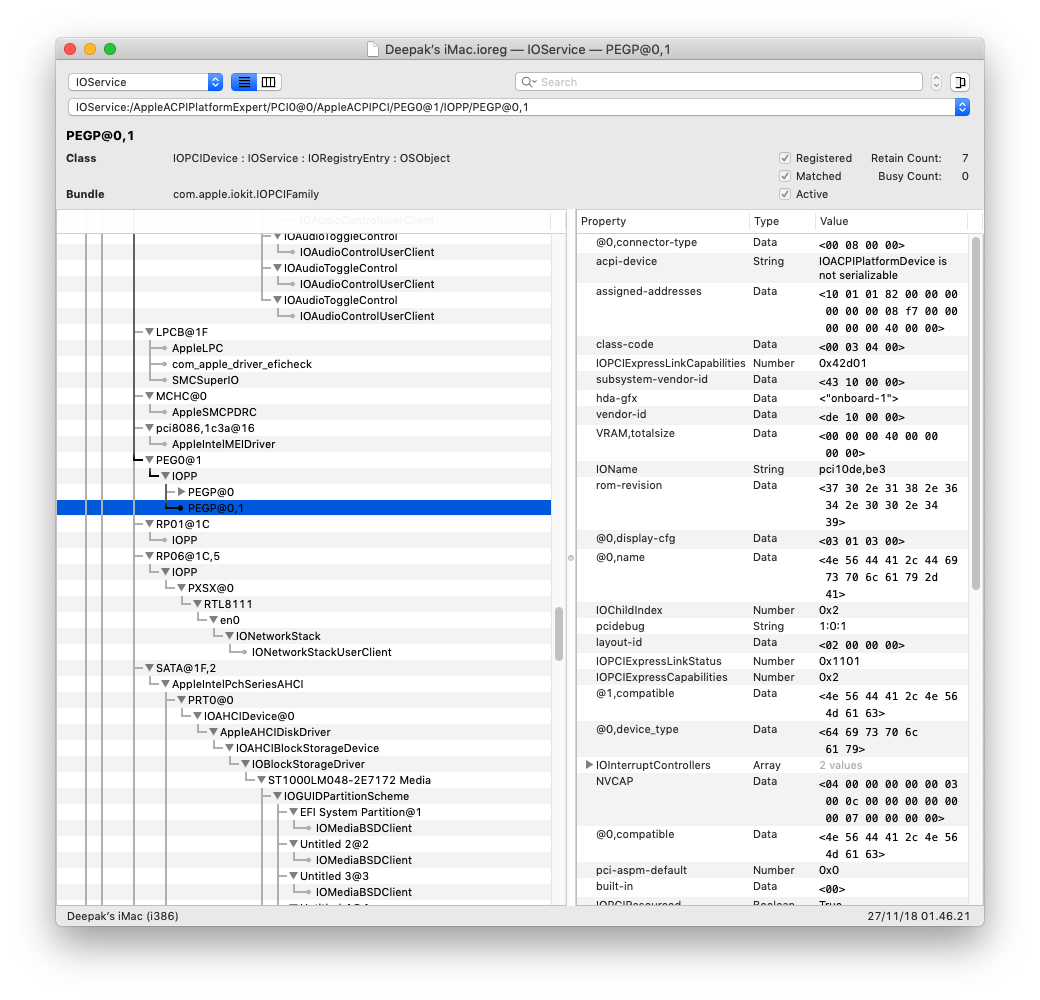

check this one

Deepak’s iMac.ioreg

Andres ZeroCross
Andres ZeroCross
Posted
Posted
1 minute ago, insanelyDeepak said:

check this one

Deepak’s iMac.ioreg

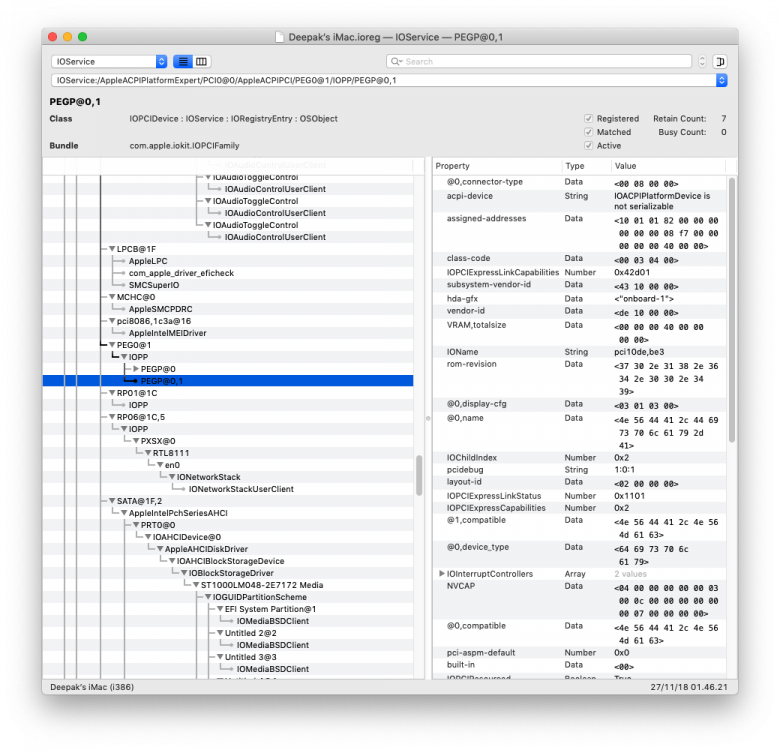

This is good, now send me your SSDT or DSDT that contain patch of "PEGP with address One" inside PEG0 that you used now. Sorry for bad english
, image.thumb.png.032d6874dcbc51bb765381a5c3a870b8.png

insanelyDeepak
insanelyDeepak
Posted
Posted
Just now, Andres ZeroCross said:

now send me your SSDT or DSDT that contain patch of "PEGP with address One" inside PEG0 that you used now.

i dont use any patch it works OOB , SSDT and DSDT are same above

Andres ZeroCross
Andres ZeroCross
Posted
Posted
Just now, insanelyDeepak said:

i dont use any patch it works OOB , SSDT and DSDT are same above



No, it's look you add new device inside PEG0. Like this
======
Device (PEGP)
                {
                    Name (_ADR, One)  // _ADR: Address
                }
======

We can see there is new device with name PEGP but with addres One.

insanelyDeepak
insanelyDeepak
Posted
Posted
3 minutes ago, Andres ZeroCross said:



No, it's look you add new device inside PEG0. Like this
======
Device (PEGP)
                {
                    Name (_ADR, One)  // _ADR: Address
                }
======

We can see there is new device with name PEGP but with addres One.


see this raw and patched both are there

https://drive.google.com/file/d/1-REKykyMFAa8C8Ai82LaXCSCvzjDnCXn/view?usp=sharing

Andres ZeroCross
Andres ZeroCross
Posted
Posted
2 minutes ago, insanelyDeepak said:

see this raw and patched both are there

https://drive.google.com/file/d/1-REKykyMFAa8C8Ai82LaXCSCvzjDnCXn/view?usp=sharing


Please use this DSDT. Then reboot, after that upload the IOREG output.

DSDT.aml

Andres ZeroCross
Andres ZeroCross
Posted
Posted
4 minutes ago, insanelyDeepak said:

here it is Deepak’s iMac.ioreg


Now boot with this again,,, i inject "no-controller-inject" to HDAU. Upload the IOREG after boot

DSDT.aml

Andres ZeroCross
Andres ZeroCross
Posted
Posted
Just now, insanelyDeepak said:

Thanks it helps to understand why i failed for so long

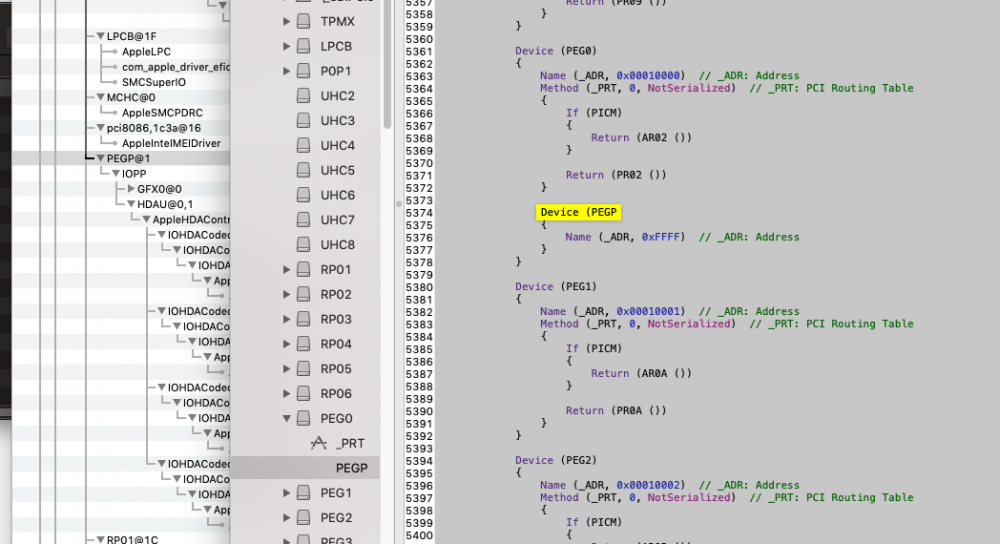

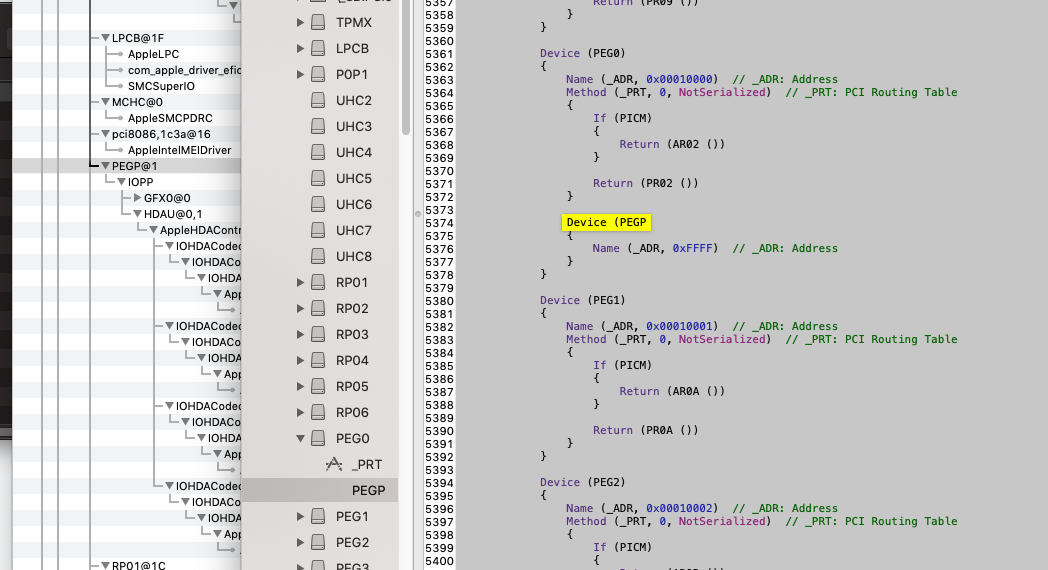

I think the problem is this,,,
===
Device (PEGP)
                {
                    Name (_ADR, 0xFFFF)  // _ADR: Address
                }
=====

0xFFFF is reserved addres,, i changed it manual to ZERO, and make new device HDAU with address one :D

Reserved Address of EGPU can make problem,,
