rain.nguyen Posted December 13, 2015 Share Posted December 13, 2015 hi everyone, I followed "power management" guide to get speedstep for my pc, but I got different results with AppleIntelInfo.kext and DCPImanager, I'm using Yosemite 10.10.5, plz tell me which is right Link to comment https://www.insanelymac.com/forum/topic/309838-right-way-to-check-speedstep/ Share on other sites More sharing options...
rain.nguyen Posted December 20, 2015 Author Share Posted December 20, 2015 have anyone help me? Link to comment https://www.insanelymac.com/forum/topic/309838-right-way-to-check-speedstep/#findComment-2199069 Share on other sites More sharing options...
pinarek Posted December 20, 2015 Share Posted December 20, 2015 .. is very interesting how you do that, that so many steps are displayed? What you entered in the terminal? Link to comment https://www.insanelymac.com/forum/topic/309838-right-way-to-check-speedstep/#findComment-2199140 Share on other sites More sharing options...
rain.nguyen Posted December 21, 2015 Author Share Posted December 21, 2015 .. is very interesting how you do that, that so many steps are displayed? What you entered in the terminal? sudo -s chown -R 0:0 ~/Desktop/AppleIntelInfo.kext chmod -R 755 ~/Desktop/AppleIntelInfo.kext kextload ~/Desktop/AppleIntelInfo.kext cat /tmp/AppleIntelInfo.dat You must download AppleIntelInfo.kext first, and put it on desktop Source : tonymacx86anyone know why have differences between that ? Link to comment https://www.insanelymac.com/forum/topic/309838-right-way-to-check-speedstep/#findComment-2199255 Share on other sites More sharing options...

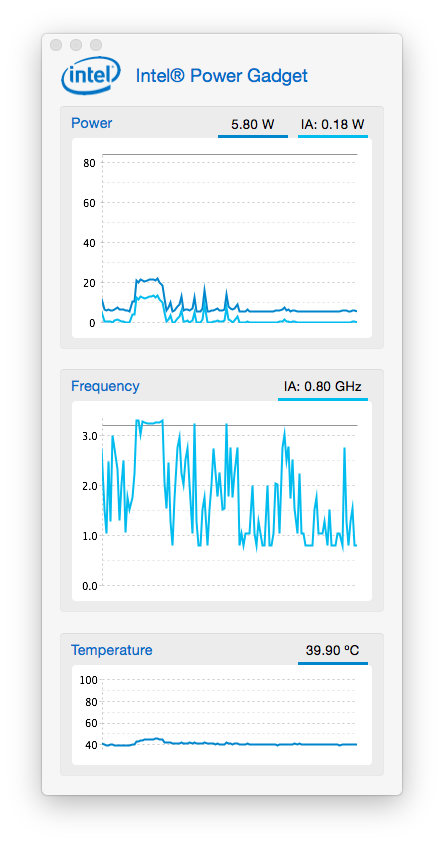

AlainTox714 Posted December 21, 2015 Share Posted December 21, 2015 Try this: https://software.intel.com/en-us/articles/intel-power-gadget-20 Link to comment https://www.insanelymac.com/forum/topic/309838-right-way-to-check-speedstep/#findComment-2199264 Share on other sites More sharing options...
rain.nguyen Posted December 21, 2015 Author Share Posted December 21, 2015 Try this: https://software.intel.com/en-us/articles/intel-power-gadget-20 Is that good enough? I do nothing when checking this, but frequency not stable @@ Link to comment https://www.insanelymac.com/forum/topic/309838-right-way-to-check-speedstep/#findComment-2199282 Share on other sites More sharing options...
AlainTox714 Posted December 22, 2015 Share Posted December 22, 2015 Yes looks good, to check after waiting a while just run an heavy task and you will see the power and frequency reaching the max. I do nothing when checking this, but frequency not stable: that doesn't means the computer do nothing! 1 Link to comment https://www.insanelymac.com/forum/topic/309838-right-way-to-check-speedstep/#findComment-2199474 Share on other sites More sharing options...
WaldMeister Posted December 22, 2015 Share Posted December 22, 2015 Try this: https://software.intel.com/en-us/articles/intel-power-gadget-20 Nice one, thank you. Too bad that if your DSDT is not patched correctly, the utility will not report the right values. For speedstep it does, but not for temperature. Link to comment https://www.insanelymac.com/forum/topic/309838-right-way-to-check-speedstep/#findComment-2199501 Share on other sites More sharing options...
pinarek Posted December 22, 2015 Share Posted December 22, 2015 rain.nguyen.. You can not install this AppleIntelInfo.kext in S / L / E, or does that only when this kext located on the desktop? Link to comment https://www.insanelymac.com/forum/topic/309838-right-way-to-check-speedstep/#findComment-2199618 Share on other sites More sharing options...
WaldMeister Posted December 23, 2015 Share Posted December 23, 2015 rain.nguyen.. You can not install this AppleIntelInfo.kext in S / L / E, or does that only when this kext located on the desktop? Kexts should be installed in S/L/E or L/E (El Capitan), else they will not be loaded. Unless Clover injects them. Link to comment https://www.insanelymac.com/forum/topic/309838-right-way-to-check-speedstep/#findComment-2199662 Share on other sites More sharing options...
rain.nguyen Posted December 23, 2015 Author Share Posted December 23, 2015 rain.nguyen.. You can not install this AppleIntelInfo.kext in S / L / E, or does that only when this kext located on the desktop? I just move it to the desktop :v Link to comment https://www.insanelymac.com/forum/topic/309838-right-way-to-check-speedstep/#findComment-2199712 Share on other sites More sharing options...
pinarek Posted December 23, 2015 Share Posted December 23, 2015 Kexts sollte in S / L / E oder L / E (El Capitan) installiert werden, sonst werden sie nicht geladen werden. Es sei denn, Clover injiziert sie. yes I know this variant well as general .. why I am surprised that it rain.nguyen on desktop sets kext. I have tested it with the version on your desktop, it does not come for many Steps iGPU but CPU. Since I have an Intel i5 3570K (4 Core) with Intel HD4000 are the Steps for iGPU not important. I really wanted to have a finely detailed SpeedStep from 16-38 Steps. There currently appears here: Letzter Login: Mi. 23. Dezember 15.53.12 auf ttys000 Petros-Macmini-Server: ~ $ cat petro /var/log/system.log | grep "AICPUPMI:" 23. Dezember 15.51.40 localhost kernel [0]: AICPUPMI: CPU P-Staaten [34] 23. Dezember 15.51.41 localhost kernel [0]: AICPUPMI: CPU P-Staaten [34 38] 23. Dezember 15.51.51 Petros-Macmini-Server-Kernel [0]: AICPUPMI: CPU P-Staaten [16 34 38] 23. Dezember 15.51.56 Petros-Macmini-Server-Kernel [0]: AICPUPMI: CPU P-Staaten [16 21 34 38] 23. Dezember 15.52.06 Petros-Macmini-Server-Kernel [0]: AICPUPMI: CPU P-Staaten [16 21 28 34 38] 23. Dezember 15.52.14 Petros-Macmini-Server-Kernel [0]: AICPUPMI: CPU P-Staaten [16 21 28 34 37 38] Petros-Macmini-Server: ~ petro why see not more Steps ??? Link to comment https://www.insanelymac.com/forum/topic/309838-right-way-to-check-speedstep/#findComment-2199721 Share on other sites More sharing options...
rain.nguyen Posted December 23, 2015 Author Share Posted December 23, 2015 Did you update the latest version of SSDT yet? Take it from https://github.com/Piker-Alpha/ssdtPRGen.sh Link to comment https://www.insanelymac.com/forum/topic/309838-right-way-to-check-speedstep/#findComment-2199726 Share on other sites More sharing options...
pinarek Posted December 23, 2015 Share Posted December 23, 2015 Did you update the latest version of SSDT yet? Take it from https://github.com/Piker-Alpha/ssdtPRGen.sh yes because I have already done before few days Link to comment https://www.insanelymac.com/forum/topic/309838-right-way-to-check-speedstep/#findComment-2199728 Share on other sites More sharing options...
WaldMeister Posted December 24, 2015 Share Posted December 24, 2015 Schicke mir bitte mal deinen Clover/Chameleon ordner. Besser noch ist es um die dateien hier an zu haengen, dann kann halt jeder mal ein und anderes pruefen. English: Requested bootloader files. Link to comment https://www.insanelymac.com/forum/topic/309838-right-way-to-check-speedstep/#findComment-2199933 Share on other sites More sharing options...
cecekpawon Posted December 24, 2015 Share Posted December 24, 2015 I use this for my i5 3570K ./ssdtPRGen.sh -bclk 100 -c 1 -f 3400 -lfm 1600 -t 77 -turbo 3800 And when overclocked ./ssdtPRGen.sh -bclk 100 -c 1 -f 3400 -lfm 1600 -t 77 -turbo 4100 1 Link to comment https://www.insanelymac.com/forum/topic/309838-right-way-to-check-speedstep/#findComment-2199936 Share on other sites More sharing options...
