d620osx Posted May 28, 2015 Share Posted May 28, 2015 HiI have a vostro 200 running osx 10.10.3 with clover and a hd5450. It all works well apart from waking from sleep using the Magic Mouse or apple keyboard.I am using a kinovo bt300 USB dongle which worked without any additional kext.I had to untick boot option under Bluetooth settings otherwise the hack would go to sleep and boot straight back. On boot this is the reason Wake reason: UHC1. Anyone know If I can get boot working with the kinovo BT dongle and apple keyboard/Magic Mouse.Thank you Link to comment https://www.insanelymac.com/forum/topic/306368-boot-from-sleep-via-bluetooth-keyboard/ Share on other sites More sharing options...
Allan Posted May 30, 2015 Share Posted May 30, 2015 You can fix this, applying a patch in your DSDT. 1 Link to comment https://www.insanelymac.com/forum/topic/306368-boot-from-sleep-via-bluetooth-keyboard/#findComment-2139946 Share on other sites More sharing options...
d620osx Posted May 30, 2015 Author Share Posted May 30, 2015 @Allan, Thank you. I have had a look but not sure what I need to add/amend on the DSDT. Any pointers? The dsdt I am using is saved attached. Thanks dsdt.txt Link to comment https://www.insanelymac.com/forum/topic/306368-boot-from-sleep-via-bluetooth-keyboard/#findComment-2139955 Share on other sites More sharing options...
Allan Posted May 30, 2015 Share Posted May 30, 2015 In .txt?? Send me in .aml Link to comment https://www.insanelymac.com/forum/topic/306368-boot-from-sleep-via-bluetooth-keyboard/#findComment-2139959 Share on other sites More sharing options...
d620osx Posted May 30, 2015 Author Share Posted May 30, 2015 Thanks, sorry could not load the file to the forum. I have saved it hereThank you Link to comment https://www.insanelymac.com/forum/topic/306368-boot-from-sleep-via-bluetooth-keyboard/#findComment-2139971 Share on other sites More sharing options...
Allan Posted May 30, 2015 Share Posted May 30, 2015 Ok, i will take a look in your DSDT when i get home. Link to comment https://www.insanelymac.com/forum/topic/306368-boot-from-sleep-via-bluetooth-keyboard/#findComment-2139976 Share on other sites More sharing options...
d620osx Posted May 30, 2015 Author Share Posted May 30, 2015 No rush. Thank you Sir. Link to comment https://www.insanelymac.com/forum/topic/306368-boot-from-sleep-via-bluetooth-keyboard/#findComment-2140030 Share on other sites More sharing options...
Allan Posted May 30, 2015 Share Posted May 30, 2015 Hello. Can you tell me, what is your Chipset model? Link to comment https://www.insanelymac.com/forum/topic/306368-boot-from-sleep-via-bluetooth-keyboard/#findComment-2140033 Share on other sites More sharing options...
d620osx Posted May 30, 2015 Author Share Posted May 30, 2015 Hi The PC is a standard dell vostro 200 with the following Foxconn G33M02 motherboard Intel G33 chipset Intel C2D E8500 Is this the info you need? Thank you Link to comment https://www.insanelymac.com/forum/topic/306368-boot-from-sleep-via-bluetooth-keyboard/#findComment-2140037 Share on other sites More sharing options...

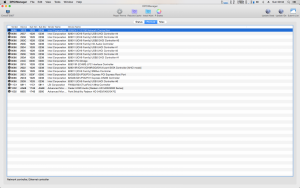

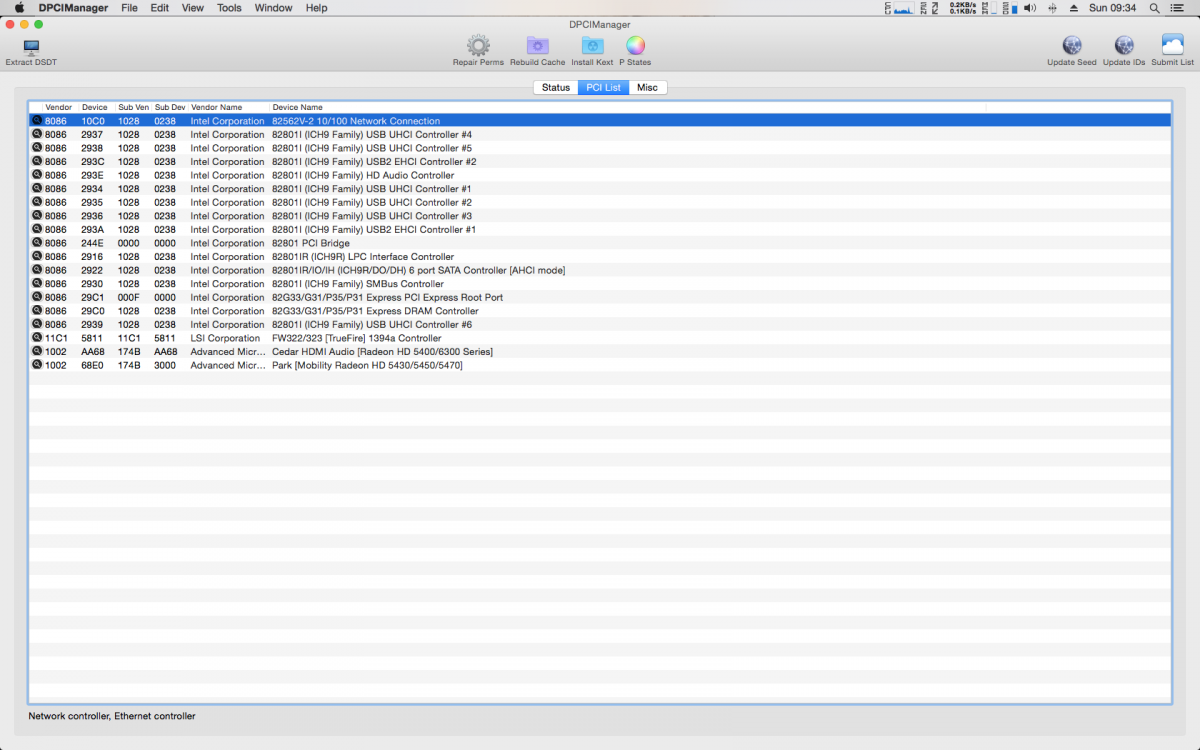

d620osx Posted May 31, 2015 Author Share Posted May 31, 2015 Hi Not sure if the attached will help or not. Thank you Link to comment https://www.insanelymac.com/forum/topic/306368-boot-from-sleep-via-bluetooth-keyboard/#findComment-2140079 Share on other sites More sharing options...
Allan Posted May 31, 2015 Share Posted May 31, 2015 Thanks for the right information. Done, here is your DSDT: DSDT.aml.zip 1 Link to comment https://www.insanelymac.com/forum/topic/306368-boot-from-sleep-via-bluetooth-keyboard/#findComment-2140209 Share on other sites More sharing options...
d620osx Posted May 31, 2015 Author Share Posted May 31, 2015 Hi Allan, Thank you for the amended file. Just saved it to \EFI\CLOVER\ACPI\patched\ rebooted the pc, ticked the "Allow Bluetooth devices to wake this computer" and put the pc to sleep but it woke up straight way. This is what I get with my original DSDT. Wake reason is the same as before Wake reason: UHC1. Have I done something wrong? Thanks Link to comment https://www.insanelymac.com/forum/topic/306368-boot-from-sleep-via-bluetooth-keyboard/#findComment-2140250 Share on other sites More sharing options...
Allan Posted June 1, 2015 Share Posted June 1, 2015 Try this: DSDT.aml.zip Send me your config.plist too Link to comment https://www.insanelymac.com/forum/topic/306368-boot-from-sleep-via-bluetooth-keyboard/#findComment-2140378 Share on other sites More sharing options...
d620osx Posted June 1, 2015 Author Share Posted June 1, 2015 Hi Allan, Sorry no joy with the new file. Same issue and error. Config plist attached. Thank you for your time. Link to comment https://www.insanelymac.com/forum/topic/306368-boot-from-sleep-via-bluetooth-keyboard/#findComment-2140398 Share on other sites More sharing options...
TimeWalker75a Posted June 1, 2015 Share Posted June 1, 2015 You can't fix it, unless you power the 3.3v line on the Bluetooth module externally, the module loses power across sleep on hardware level as there is no standby power, hence you can't wake via Bluetooth tickle. Link to comment https://www.insanelymac.com/forum/topic/306368-boot-from-sleep-via-bluetooth-keyboard/#findComment-2140399 Share on other sites More sharing options...
d620osx Posted June 1, 2015 Author Share Posted June 1, 2015 Thank you, what other options are available to get to wake hack from sleep. Link to comment https://www.insanelymac.com/forum/topic/306368-boot-from-sleep-via-bluetooth-keyboard/#findComment-2140647 Share on other sites More sharing options...
Allan Posted June 1, 2015 Share Posted June 1, 2015 You can use Power Button. 1 Link to comment https://www.insanelymac.com/forum/topic/306368-boot-from-sleep-via-bluetooth-keyboard/#findComment-2140669 Share on other sites More sharing options...
d620osx Posted June 1, 2015 Author Share Posted June 1, 2015 Allan, Thank for trying the fix on the dsdt. For now I will just use the USB keyboard or a USB mouse. Will see if I can pickup a apple Bluetooth module to add to the hack. Thank you for your help and time. 1 Link to comment https://www.insanelymac.com/forum/topic/306368-boot-from-sleep-via-bluetooth-keyboard/#findComment-2140693 Share on other sites More sharing options...
Allan Posted June 1, 2015 Share Posted June 1, 2015 NP bro! We'll be here if you need more help. Link to comment https://www.insanelymac.com/forum/topic/306368-boot-from-sleep-via-bluetooth-keyboard/#findComment-2140694 Share on other sites More sharing options...
TimeWalker75a Posted June 2, 2015 Share Posted June 2, 2015 Apple module won't do you any any good either, as the pin on the mPCI-E that provides power to Bluetooth will power down across sleep, if not while on AC power, then on DC power for sure. Link to comment https://www.insanelymac.com/forum/topic/306368-boot-from-sleep-via-bluetooth-keyboard/#findComment-2140759 Share on other sites More sharing options...
Hangten Posted June 2, 2015 Share Posted June 2, 2015 Can confirm mPCI-E using Genuine Apple wifi/bluetooth can not wake OS X from sleep but the flashing power button sure can. I stopped using the USB keyboard and mouse as they kept being bumped and woke me up at night when the computers fans turned on and monitors blinded me at night while I was trying to sleep. Apple track pad and mouse are always floating on my bed so its not that bad of a deal to use the power button(as wake from sleep). I do have a square computer case sitting at the same hight as my monitors reaching for the button is as easy as reaching for my apple wireless bluetooth keyboard go figure. Link to comment https://www.insanelymac.com/forum/topic/306368-boot-from-sleep-via-bluetooth-keyboard/#findComment-2140761 Share on other sites More sharing options...
d620osx Posted June 2, 2015 Author Share Posted June 2, 2015 Thanks, did not know I could wake it using the power button. Will give that a go. Link to comment https://www.insanelymac.com/forum/topic/306368-boot-from-sleep-via-bluetooth-keyboard/#findComment-2140771 Share on other sites More sharing options...
d620osx Posted June 2, 2015 Author Share Posted June 2, 2015 Thank you all the suggestions and help. I was not aware that I could wake the machine up with the power button. Just tried and it works well. I can now put away the usb keyboard and mouse to make some space. Thank you 1 Link to comment https://www.insanelymac.com/forum/topic/306368-boot-from-sleep-via-bluetooth-keyboard/#findComment-2140963 Share on other sites More sharing options...
Allan Posted June 3, 2015 Share Posted June 3, 2015 Enjoy your Hack 1 Link to comment https://www.insanelymac.com/forum/topic/306368-boot-from-sleep-via-bluetooth-keyboard/#findComment-2141172 Share on other sites More sharing options...
