Ysharma Posted August 18, 2014 Share Posted August 18, 2014 I'm trying to install OS X Mavericks to my comp: Asus Maximus VII Formula i7 4790k GTX 780ti using this method: http://cloverboot.weebly.com/before-you-start.html When I try starting the installer I get this error: I'm totally stuck here because there is so much conflicting information all over the place Link to comment Share on other sites More sharing options...
artur_pt Posted August 18, 2014 Share Posted August 18, 2014 hello u are having usb problems .. maybe with usb 3 are u using any kext for usb 3 ? like this one GenericUSBXHCI USB 3.0 driver for OS X with source make sure u plug the pen in usb 2 port good hack Link to comment Share on other sites More sharing options...
Ysharma Posted August 20, 2014 Author Share Posted August 20, 2014 Thanks for the quick response! Okay here are the kexts I have installed: And this is the latest install message: Link to comment Share on other sites More sharing options...
aww Posted August 20, 2014 Share Posted August 20, 2014 Artur-pt was right on, use USB 2.0 to install OSX 10.9. USB 3.0 is blue in colour, Your MB is powerful and new, you really don't need extra kexts. There are 2 USB port in the back, find the one that will work. USE MINIMUM number of kexts to start, i.e. FAKESMC. NullCpuPower only (use Clover because it patch AppleRTC just in case . You can figure out USB3.0 problem later. Your MB usb 3.0 use ASMedia® USB 3.0 controller Try search 10.8-10.9 kext for it. Link to comment Share on other sites More sharing options...
Ysharma Posted August 20, 2014 Author Share Posted August 20, 2014 Artur-pt was right on, use USB 2.0 to install OSX 10.9. USB 3.0 is blue in colour, Your MB is powerful and new, you really don't need extra kexts. There are 2 USB port in the back, find the one that will work. USE MINIMUM number of kexts to start, i.e. FAKESMC. NullCpuPower only (use Clover because it patch AppleRTC just in case . You can figure out USB3.0 problem later. Your MB usb 3.0 use ASMedia® USB 3.0 controller Try search 10.8-10.9 kext for it. I'm plugged into a front IO USB 2.0 Port connected to the USB 1110 header on my mobo. The installation stops at that point. Currently I have the graphics card unplugged and using hdmi slot on mobo What else could be stopping the installation process at that point? Link to comment Share on other sites More sharing options...
aww Posted August 20, 2014 Share Posted August 20, 2014 most new case has usb 3.0 on front, what make and model is your computer case. your usb3.0 port cannot use generic kext (which is mean for NEC chip), Do need ASMedia® USB 3.0 controller kext. Link to comment Share on other sites More sharing options...
Ysharma Posted August 20, 2014 Author Share Posted August 20, 2014 most new case has usb 3.0 on front, what make and model is your computer case. your usb3.0 port cannot use generic kext (which is mean for NEC chip), Do need ASMedia® USB 3.0 controller kext. I checked just in case by moving the usb to the 2.0 port on the back of my motherboard. It still does not reach the installation screen. Link to comment Share on other sites More sharing options...
aww Posted August 20, 2014 Share Posted August 20, 2014 Try goto installer's extensions folder, show contents of IOUSBFamily, In Plugins Folder, remove AppleUSBEHCI* AppleUSBXHCI.kext Hange on USB 3.0 or something new! USB 2.0 ports on Ur MB is under the keyboard connector. Link to comment Share on other sites More sharing options...
aww Posted August 20, 2014 Share Posted August 20, 2014 Just look inside the installer, you do need pacifist tool to do this Now search for boot flags of Chameleon or Clover to suppress loading of usb 3 Link to comment Share on other sites More sharing options...
aww Posted August 20, 2014 Share Posted August 20, 2014 Flat Package Editor was on Xcode , can be use to edit mpkg. no longer in Xcode 5.looking for it from my old disks. Link to comment Share on other sites More sharing options...
aww Posted August 20, 2014 Share Posted August 20, 2014 Can be done with Pacifist and flat package editor, but a very long process, no worth to try. Best bet to get ASMedia® USB 3.0 controller kext to boot loader Link to comment Share on other sites More sharing options...
aww Posted August 20, 2014 Share Posted August 20, 2014 Just did a quick search for ASMedia® USB 3.0 controller kext, not able to find one for 10.9. Found 1 for 10.8 (but does not seem to work) Link to comment Share on other sites More sharing options...
Ysharma Posted August 20, 2014 Author Share Posted August 20, 2014 Found this in the log: 24:496 0:013 Custom boot screen not used because entry has unset use graphics 24:509 0:013 Failed to initialize custom boot screen: Aborted! 24:522 0:013 Closing log Link to comment Share on other sites More sharing options...
aww Posted August 21, 2014 Share Posted August 21, 2014 Your cpu has build in graphics Intel® HD Graphics 4600 may have problem working without patch kext and/or kernel GTX 780ti may need minor patches. google kext for both kexts. see bios has option to disable 4600 What niresh did in fail safe methods, is to delete all nvidia all intel and all amd kext so that one can OSX at 1024x768 (that may be your option) then you can download patched kexts for intel or nvidia to get it to work fully. My method is alway cloning on a difficult PC. 1. install a fresh osx on a intel pc that is working (can ask a friend, need 2 hr of his time) 2. clone it to a Hard drive, *USB HD also ok. (use CCC carbon copy cloner) 3. install loader on it, 4. remove problematic graphic, usb kexts from it (like niresh did) *then you should be able to boot it on the difficult PC. 5. download the patched kext/kernel to work to get it 100% working. If you don't have a compatible intel PC or a friend's help, Here is the alternative. 1. Install windows 7 or 8 or 8.1 2. install vmware workstion 10 (trial version is free) 3. download or create maverick1094.iso (12 steps from installer app will do) 4, download unlocker (here this site) 5. install unlocker (no need to install tools or svga II) 6. install Maverick1094 VM. 7. Use WS10 menu to clone mavericks VM 8. change setting of the first VM, add a hard drive (but use clone's vm hard drive as source) 9. Disk utility Make A DMG from the clone. (because disk util can not make a dmg from active partition, need to unmount it) 10. restore the DMG to a USB drive (flash or HD-mounted on a caddy) 11 install loader on the USB drive, 12 remove graphic and usb kexts from it's SLE 13. try boot and fix kexts / kernel problem from the usb (you can boot and run osx off a usb drive) 14. once get it working 100%, from USB running osx, install CCC and clone it to the internal HD. 15. Install loader on the internal drive. (no need to change other things) then it should work. Link to comment Share on other sites More sharing options...
Ysharma Posted August 23, 2014 Author Share Posted August 23, 2014 I don't know what I did, but I fixed the original problem, now I get stuck here: EDIT: Played around a little more and got the installer to start Link to comment Share on other sites More sharing options...
aww Posted August 23, 2014 Share Posted August 23, 2014 Looks good! almost there! all you need to try to fix graphic problem! Did look at Ur MB's manul. no option to disable IGP. Do you have Ur GTX installed? Try to install with Intel graphic only, i tkink 10.9.4 is ok with 4600. Then consider your, boot loader option later. Link to comment Share on other sites More sharing options...
Ysharma Posted August 23, 2014 Author Share Posted August 23, 2014 Yeah the gtx is unplugged right now and I'm installing off of IGFX, it just restarted and is looking all good so far. Ill switch over to the gtx post install after installing the drivers nvidia released for mac. thanks for all the help so far! EDIT: How do I get the 780ti, the ethernet, the sound and the wifi working if possible? I'm using no boot flags right now and it starts up in less than 6 seconds Link to comment Share on other sites More sharing options...
aww Posted August 24, 2014 Share Posted August 24, 2014 Are you using SSD drive! I was thinking about buying the same MB, but too expensive for me. intel product guide shows dev id 8086 1559 for 1218v [drver provided for win and linux only] I do'nt know any working kext exist, linux & hackintosh groups were talking about it. (appear linux source code is available) While you wait, pickup an inexpensive Lan Card. Do check that the lan card has kext for it,first. (DLAN 530 cost 12.50 but no kext for 10.9) google HCL 10.9 network (to get some idea what card you should pickup) Z97 should have 6 intel USB3.0 ports, according to my mb vendor only 2 ports are asmedia 3.0. (you may get you usb 3.0 port working OOB, no 3rd party kext required) Asus did not disclose what wifi chip were used, best to try install windows and use system/dev-manager/driver-prop to find dev ID. (and post it, it did have a pic, shows mini-pcie connector. (worst case buy a third party mini-pcie wifi, not very expensive) according to some site (not want to mention name) Quote: However, there are still a few compatibility problems with the 700 and Titan series. NVIDIA's newest "Maxwell" graphics cards (which are based off a newer architecture than other 700-series cards) do not work with Mac OS X: this includes the GTX 750 and GTX 750 Ti. In addition, if you're using the GTX 780, the GTX 780 Ti, or any "Titan" card, you will have to update to version 10.9.3 of Mavericks and install these NVIDIA Mac OS X drivers (version 334.01.01f01) to make OpenCL work. In fact, the GTX 780 Ti actually doesn't work at all unless you install these drivers. If you're installing Mac OS X for the first time on a computer with a 780 Ti, you will have to remove the graphics card and use your computer's integrated graphics for the initial installation. You can only reattach the 780 Ti after you install the drivers. Un-quote. sound, i have to do a little bit googles. Link to comment Share on other sites More sharing options...
aww Posted August 24, 2014 Share Posted August 24, 2014 No Luck on audio, no even in korean or chinese sites. I was stuck on audio, on my first hackintosh, an AMD machine, took a shortcut, i am into hifi, got a DAC (Grant Fidelity DAC-09 on sales for 150.00) connect it at 4800/24 usb, cannot tell any difference vs 19200/24 on optical. It was connected to my 25 years old Carver 2-channel amp with 100w/ch. It is more powerful than my 150w/ch Sony AVR. Link to comment Share on other sites More sharing options...

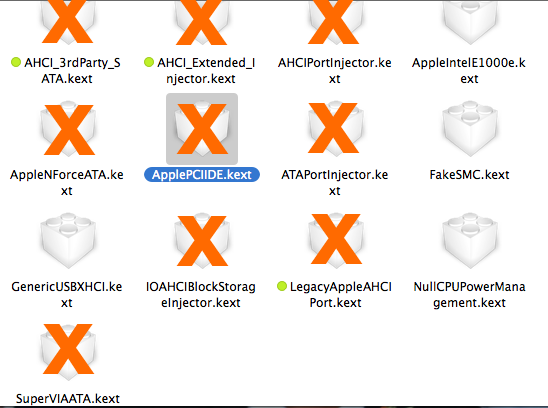

Gringo Vermelho Posted August 24, 2014 Share Posted August 24, 2014 Ysharma: you don't need these: AppleNForceATA.kext is for Nvidia Nforce SATA. Your motherboard doesn't have that, Nvidia don't even make those anymore. etc etc etc 1 Link to comment Share on other sites More sharing options...
aww Posted August 24, 2014 Share Posted August 24, 2014 Two Stooges, need a third one! Read the enitre thread! Link to comment Share on other sites More sharing options...
Gringo Vermelho Posted August 24, 2014 Share Posted August 24, 2014 I think there must be some kind of misunderstanding here. Who are you talking to, and what are you talking about? Link to comment Share on other sites More sharing options...
aww Posted August 24, 2014 Share Posted August 24, 2014 Me and Ysharma were have fun, try to test a pc and make it work. Really Don't need third one to make fun of us, etc etc etc see post: Artur-pt was right on, use USB 2.0 to install OSX 10.9. USB 3.0 is blue in colour, Your MB is powerful and new, you really don't need extra kexts. MR SUPERVISOR! Link to comment Share on other sites More sharing options...
Gringo Vermelho Posted August 25, 2014 Share Posted August 25, 2014 My post was helpful. Did you have a bad day or something? I don't understand why you would think that I was making fun of you. "You really don't need extra kexts" is not very specific. The image that I edited and posted is. Link to comment Share on other sites More sharing options...
aww Posted August 25, 2014 Share Posted August 25, 2014 Artur-pt was right on, use USB 2.0 to install OSX 10.9. USB 3.0 is blue in colour, Your MB is powerful and new, you really don't need extra kexts. There are 2 USB port in the back, find the one that will work. USE MINIMUM number of kexts to start, i.e. FAKESMC. NullCpuPower only (use Clover because it patch AppleRTC just in case . use FakeSmc and NullCpuPower only is that not specific enough? Link to comment Share on other sites More sharing options...
