alex0adsr Posted March 16, 2014 Share Posted March 16, 2014 Hello Describe the hardware Prepare the usb with: http://www.insanelymac.com/forum/topic/289758-pandoras-box-beta-2-testing/ Download : http://www.insanelymac.com/forum/files/file/11-pandoraapp/ Fabio D5400xs / Xeon X5482 / 8G FD-DIMM DRR / Geforce 8600GT. and another pc with snow leopard installed to prepare the installing. now i m dealing with pandora i ll get back if i have any problems Link to comment Share on other sites More sharing options...
Fabio1971 Posted March 16, 2014 Share Posted March 16, 2014 Prova questo dsdt e posta IoReg Dimmi se è tutto ok, proseguiamo Fabio dsdt.aml.zip Link to comment Share on other sites More sharing options...
NeXtor Posted March 16, 2014 Author Share Posted March 16, 2014 non rilevo problemi. IOReg 16-03-2014: IOReg_D5400XS_16-03-2014.zip Link to comment Share on other sites More sharing options...
Fabio1971 Posted March 16, 2014 Share Posted March 16, 2014 Prova questo dsdt posta IoReg Dimmi se è tutto ok Fabio dsdt.aml.zip Link to comment Share on other sites More sharing options...
NeXtor Posted March 16, 2014 Author Share Posted March 16, 2014 Tutto ok a parte i soliti Notice ecc...del verbose. Devo stare attento a qualche cosa in particolare? IOReg 16-03-2014 21,50: IOReg_D5400XS_16-03-2014_21,50.zip Link to comment Share on other sites More sharing options...
Fabio1971 Posted March 17, 2014 Share Posted March 17, 2014 Da Terminale scrivi sudo dmesg e posta il risultato Fabio Link to comment Share on other sites More sharing options...

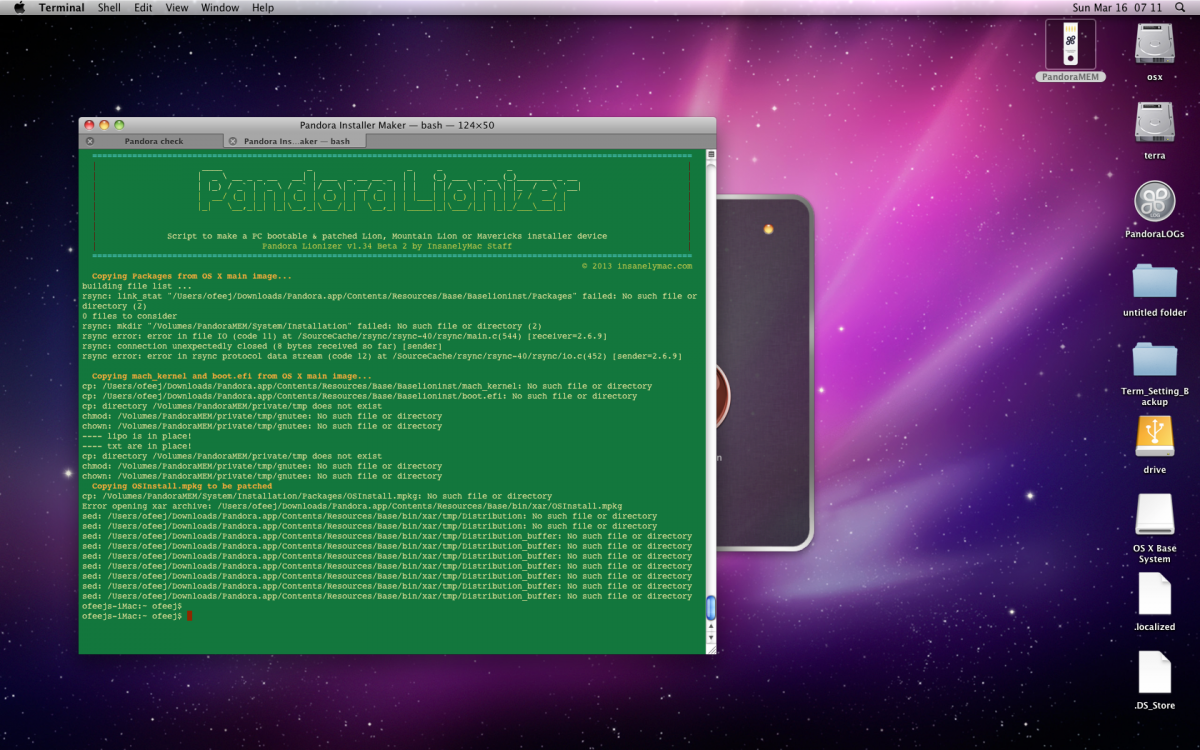

alex0adsr Posted March 17, 2014 Share Posted March 17, 2014 hey again i m trying to make a boot with Pandora and it gives me this message and nothing is copy to my usb another question can i use the dsdt you posted ? Link to comment Share on other sites More sharing options...
Fabio1971 Posted March 17, 2014 Share Posted March 17, 2014 hey again i m trying to make a boot with Pandora and it gives me this message and nothing is copy to my usb another question can i use the dsdt you posted ? Pandora Maverick and put OS X on the desktop and make the procedureYou can take the dsdt Fabio Link to comment Share on other sites More sharing options...
NeXtor Posted March 17, 2014 Author Share Posted March 17, 2014 Da Terminale scrivi sudo dmesg e posta il risultato Fabio Longterm timer threshold: 1000 ms Darwin Kernel Version 13.0.0: Thu Sep 19 22:22:27 PDT 2013; *patched-2422.1.72~6/RELEASE_X86_64 vm_page_bootstrap: 1001566 free pages and 38818 wired pages kext submap [0xffffff7f807a5000 - 0xffffff8000000000], kernel text [0xffffff8000200000 - 0xffffff80007a5000] zone leak detection enabled "vm_compressor_mode" is 4 standard timeslicing quantum is 10000 us standard background quantum is 2500 us mig_table_max_displ = 74 "name" not a kext "Kernel-__SYMTAB" not a kext "DriversPackage-25e2000" not a kext Notice - new kext com.apple.iokit.IOSystemManagementFamily, v13.0 matches prelinked kext but can't determine if executables are the same (no UUIDs). Notice - new kext com.apple.iokit.IONVRAMFamily, v13.0 matches prelinked kext but can't determine if executables are the same (no UUIDs). Notice - new kext com.apple.iokit.ApplePlatformFamily, v13.0 matches prelinked kext but can't determine if executables are the same (no UUIDs). Notice - new kext com.apple.driver.AppleNMI, v13.0 matches prelinked kext but can't determine if executables are the same (no UUIDs). Notice - new kext com.apple.kernel, v13.0 matches prelinked kext but can't determine if executables are the same (no UUIDs). Notice - new kext com.apple.driver.IOUSBHIDDriver, v650.4 matches prelinked kext but can't determine if executables are the same (no UUIDs). Notice - new kext com.apple.iokit.IOHIDUserClient, v2.0 matches prelinked kext but can't determine if executables are the same (no UUIDs). Notice - new kext com.apple.iokit.IOHIDSystem, v2.0 matches prelinked kext but can't determine if executables are the same (no UUIDs). Notice - new kext com.apple.iokit.IOHIDEventDriverSafeBoot, v2.0 matches prelinked kext but can't determine if executables are the same (no UUIDs). Notice - new kext com.apple.iokit.IOHIDEventDriver, v2.0 matches prelinked kext but can't determine if executables are the same (no UUIDs). Notice - new kext com.apple.driver.CellPhoneHelper, v1.3.2 matches prelinked kext but can't determine if executables are the same (no UUIDs). Refusing new kext com.apple.ATIRadeonX2000, v8.1.8: a prelinked copy with a different executable UUID is already present. Notice - new kext com.apple.driver.AppleUSBTopCase, v240.2 matches prelinked kext but can't determine if executables are the same (no UUIDs). Notice - new kext com.apple.driver.AppleTopCase, v10.21 matches prelinked kext but can't determine if executables are the same (no UUIDs). Notice - new kext com.apple.driver.AppleThunderboltPCIAdapters, v1.4 matches prelinked kext but can't determine if executables are the same (no UUIDs). Notice - new kext com.apple.driver.USBStorageDeviceSpecifics, v3.3.5 matches prelinked kext but can't determine if executables are the same (no UUIDs). Notice - new kext com.apple.driver.Sony_XDCAM, v3.3.5 matches prelinked kext but can't determine if executables are the same (no UUIDs). Notice - new kext com.apple.driver.FireWireStorageDeviceSpecifics, v3.3.5 matches prelinked kext but can't determine if executables are the same (no UUIDs). Notice - new kext com.apple.driver.AppleXserveRAID, v3.3.5 matches prelinked kext but can't determine if executables are the same (no UUIDs). Notice - new kext com.apple.driver.AppleATAPIStorage, v3.3.5 matches prelinked kext but can't determine if executables are the same (no UUIDs). Notice - new kext com.apple.driver.AppleMobileDevice, v3.3 matches prelinked kext but can't determine if executables are the same (no UUIDs). Notice - new kext com.apple.driver.KextExcludeList, v1.18 matches prelinked kext but can't determine if executables are the same (no UUIDs). Refusing new kext com.apple.driver.KextExcludeList, v1.18: already have prelinked v1.23. AppleACPICPU: ProcessorId=1 LocalApicId=0 Enabled AppleACPICPU: ProcessorId=5 LocalApicId=4 Enabled AppleACPICPU: ProcessorId=2 LocalApicId=1 Enabled AppleACPICPU: ProcessorId=6 LocalApicId=5 Enabled AppleACPICPU: ProcessorId=3 LocalApicId=2 Enabled AppleACPICPU: ProcessorId=7 LocalApicId=6 Enabled AppleACPICPU: ProcessorId=4 LocalApicId=3 Enabled AppleACPICPU: ProcessorId=8 LocalApicId=7 Enabled calling mpo_policy_init for TMSafetyNet Security policy loaded: Safety net for Time Machine (TMSafetyNet) calling mpo_policy_init for Sandbox Security policy loaded: Seatbelt sandbox policy (Sandbox) calling mpo_policy_init for Quarantine Security policy loaded: Quarantine policy (Quarantine) Copyright (c) 1982, 1986, 1989, 1991, 1993 The Regents of the University of California. All rights reserved. MAC Framework successfully initialized using 16384 buffer headers and 10240 cluster IO buffer headers AppleKeyStore starting (BUILT: Sep 19 2013 22:20:34) IOAPIC: Version 0x20 Vectors 64:87 ACPI: sleep states S3 S4 S5 pci (build 22:16:29 Sep 19 2013), flags 0x63008, pfm64 (38 cpu) 0x3f80000000, 0x80000000 AppleIntelCPUPowerManagement: (built 22:16:38 Sep 19 2013) initialization complete RTC: Only single RAM bank (128 bytes) HWSensors Project Copyright 2013 netkas, slice, usr-sse2, kozlek, navi, THe KiNG, RehabMan. All rights reserved. waitForSystemMapper Backtrace 0xffffff80006b7239 0xffffff80006b6d1d 0xffffff7f81338a59 0xffffff7f81338715 0xffffff8000692180 0xffffff800068e119 0xffffff8000693093 Kernel Extensions in backtrace: org.netkas.driver.FakeSMC(489.0)[ED06D2B1-5774-3369-8C97-3C152578ED19]@0xffffff7f81334000->0xffffff7f81346fff dependency: com.apple.iokit.IOACPIFamily(1.4)[045D5D6F-AD1E-36DB-A249-A346E2B48E54]@0xffffff7f81070000 [ PCI configuration begin ] FakeSMCDevice: 15 preconfigured keys added SMC: successfully initialized CPUSensors: CPU family 0x6, model 0x17, stepping 0x6, cores 4, threads 4, TJmax 100 CPUSensors: setting platform to M82 mcache: 8 CPU(s), 64 bytes CPU cache line size mbinit: done [64 MB total pool size, (42/21) split] Pthread support ABORTS when sync kernel primitives misused rooting via boot-uuid from /chosen: 7B06D1AB-9623-3DCE-88FC-5ED84F29AD07 Waiting on <dict ID="0"><key>IOProviderClass</key><string ID="1">IOResources</string><key>IOResourceMatch</key><string ID="2">boot-uuid-media</string></dict> com.apple.AppleFSCompressionTypeZlib kmod start com.apple.AppleFSCompressionTypeDataless kmod start com.apple.AppleFSCompressionTypeZlib load succeeded com.apple.AppleFSCompressionTypeDataless load succeeded AppleIntelCPUPowerManagementClient: ready console relocated to 0x3f80000000 [ PCI configuration end, bridges 15, devices 28 ] SuperIODevice: [Fatal] found unsupported ship ID=0xf191 AppleIntelPIIXPATA: Secondary PCI IDE channel is disabled FireWire runtime power conservation disabled. (3) RadeonSensors (pci5@0): found ATI Radeon 0x9441 RadeonSensors (pci6@0): found ATI Radeon 0x9441 RadeonSensors (pci6@0): [Error] unable to locate ATY,bin_image RadeonSensors (pci6@0): using device-id to resolve temperature sensor type RadeonSensors (pci6@0): adding rv770 thermal sensor RadeonSensors (pci5@0): [Error] unable to locate ATY,bin_image RadeonSensors (pci5@0): using device-id to resolve temperature sensor type RadeonSensors (pci5@0): adding rv770 thermal sensor FireWire (OHCI) TI ID 8023 PCI now active, GUID 009027000206e961; max speed s400. Got boot device = IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/SAT1@1F,2/AppleAHCI/PRT3@3/IOAHCIDevice@0/AppleAHCIDiskDriver/IOAHCIBlockStorageDevice/IOBlockStorageDriver/Samsung SSD 840 PRO Series Media/IOGUIDPartitionScheme/Mavericks@2 BSD root: disk0s2, major 1, minor 2 hfs: mounted Mavericks on device root_device flow_divert_kctl_disconnect (0): disconnecting group 1 Waiting for DSMOS... Previous Shutdown Cause: 5 SMC::smcInitHelper ERROR: MMIO regMap == NULL - fall back to old SMC mode init probe start DSMOS has arrivedhfs: mounted Macintosh on device disk1s2 [IOBluetoothHCIController][start] -- completed SuperIODevice: [Fatal] found unsupported ship ID=0xf191 ** Device in slot: SLOT--1 ** ** Device in slot: SLOT--1 ** VM Swap Subsystem is ON display: Not usable AppleKeyStore:Sending lock change 0 Ethernet [Intel8254x]: Link up on en0, 10-Megabit, Half-duplex, No flow-control, Debug [796d,ac00,0de1,0e00,c1e1,3800] **** [IOBluetoothHCIController][SearchForTransportEventTimeOutHandler] -- Missing Bluetooth Controller Transport! Link to comment Share on other sites More sharing options...
Fabio1971 Posted March 17, 2014 Share Posted March 17, 2014 Domanda quali kext hai installato Fabio Link to comment Share on other sites More sharing options...
NeXtor Posted March 17, 2014 Author Share Posted March 17, 2014 Fakesmc Exotic patch per la 10.9.2 pur avendo la 10.9 Patch sul kext AppleRTC (ma non sempre sembra funzionare....adesso quando ho avviato il pc, mi ha chiesto se volevo entrare nel bios per rivedere le modifiche effettuate o se volevo partire con la vecchia configurazione) Link to comment Share on other sites More sharing options...
Fabio1971 Posted March 17, 2014 Share Posted March 17, 2014 Sostituisci dsdt e passami IoReg Fabio dsdt.aml.zip Link to comment Share on other sites More sharing options...
NeXtor Posted March 17, 2014 Author Share Posted March 17, 2014 IOReg e Dmesg 17-03-2014 IOReg_Dmesg_17-03-2014.zip Link to comment Share on other sites More sharing options...
Fabio1971 Posted March 17, 2014 Share Posted March 17, 2014 Ok, adesso è meglio Installa questo kext e posta una foto : informazioni di sistema - sata/sata espress I dischi li vedi come interni Fabio AHCIPortInjector.kext.zip Link to comment Share on other sites More sharing options...

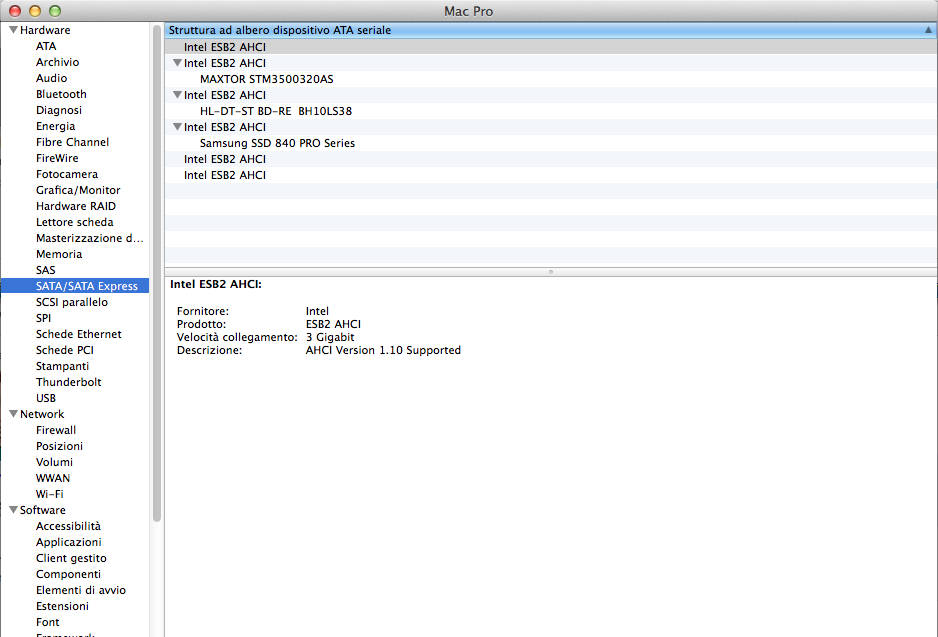

NeXtor Posted March 17, 2014 Author Share Posted March 17, 2014 I dischi gli ha rilevati fin da subito come interni, infatti l'icona non è arancione....era ed è grigia. installato, riavviato e kext non caricato. Ho cancellato Extensions.mkext da /Extra/ e comunque non è stato caricato. Allego lo screenshot Link to comment Share on other sites More sharing options...
Fabio1971 Posted March 17, 2014 Share Posted March 17, 2014 Deve caricarlo, hai riparato permessi e cache. Fabio Link to comment Share on other sites More sharing options...

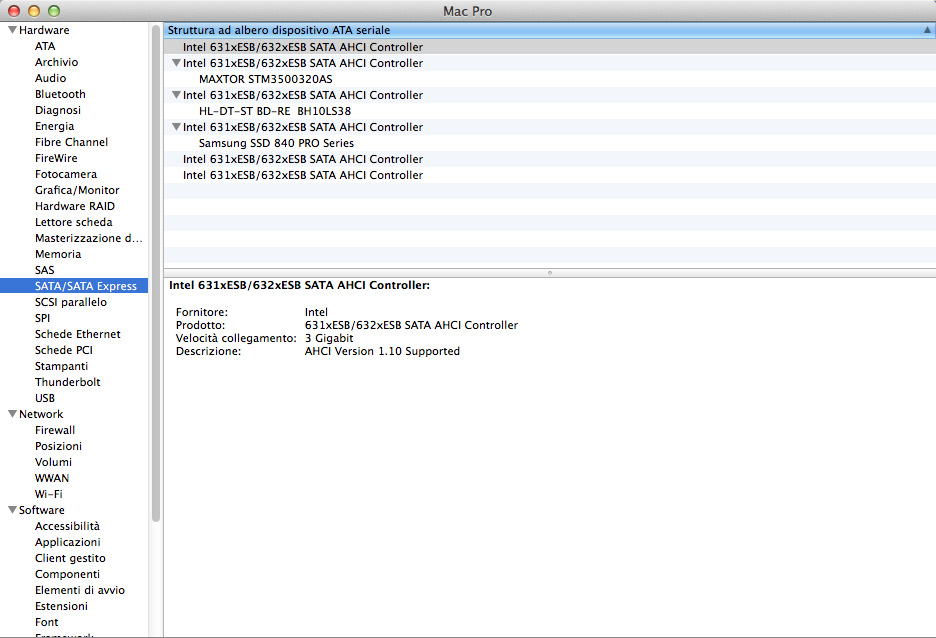

NeXtor Posted March 17, 2014 Author Share Posted March 17, 2014 ha fatto tutto Kext Utility. Edit: Ho riavviato con il flag -f ed ora la schermata Sata/sata Express è cambiata ma in Software-Estensioni mi dice sempre che il kext non è stato caricato. Link to comment Share on other sites More sharing options...

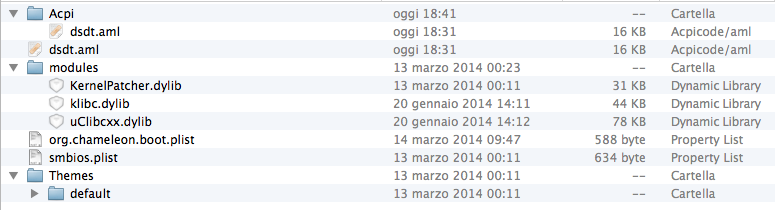

Fabio1971 Posted March 17, 2014 Share Posted March 17, 2014 Puoi postare la cartella Extra Fabio Link to comment Share on other sites More sharing options...
NeXtor Posted March 17, 2014 Author Share Posted March 17, 2014 Puoi postare la cartella Extra Fabio Link to comment Share on other sites More sharing options...
Fabio1971 Posted March 17, 2014 Share Posted March 17, 2014 Il kext è caricato Nella cartella Extra- modules - KernelPatcher.dylib non serve per la tua scheda, ma devi aggiungere come modulo FileVRAM.dylib Fabio Link to comment Share on other sites More sharing options...
NeXtor Posted March 17, 2014 Author Share Posted March 17, 2014 Ho fatto come mi hai detto. Ti allego il Dmesg. Longterm timer threshold: 1000 ms Darwin Kernel Version 13.0.0: Thu Sep 19 22:22:27 PDT 2013; root:xnu-2422.1.72~6/RELEASE_X86_64 vm_page_bootstrap: 1007753 free pages and 32631 wired pages kext submap [0xffffff7f807a5000 - 0xffffff8000000000], kernel text [0xffffff8000200000 - 0xffffff80007a5000] zone leak detection enabled "vm_compressor_mode" is 4 standard timeslicing quantum is 10000 us standard background quantum is 2500 us mig_table_max_displ = 74 "name" not a kext "Kernel-__SYMTAB" not a kext AppleACPICPU: ProcessorId=1 LocalApicId=0 Enabled AppleACPICPU: ProcessorId=5 LocalApicId=4 Enabled AppleACPICPU: ProcessorId=2 LocalApicId=1 Enabled AppleACPICPU: ProcessorId=6 LocalApicId=5 Enabled AppleACPICPU: ProcessorId=3 LocalApicId=2 Enabled AppleACPICPU: ProcessorId=7 LocalApicId=6 Enabled AppleACPICPU: ProcessorId=4 LocalApicId=3 Enabled AppleACPICPU: ProcessorId=8 LocalApicId=7 Enabled calling mpo_policy_init for Sandbox Security policy loaded: Seatbelt sandbox policy (Sandbox) calling mpo_policy_init for Quarantine Security policy loaded: Quarantine policy (Quarantine) calling mpo_policy_init for TMSafetyNet Security policy loaded: Safety net for Time Machine (TMSafetyNet) Copyright (c) 1982, 1986, 1989, 1991, 1993 The Regents of the University of California. All rights reserved. MAC Framework successfully initialized using 16384 buffer headers and 10240 cluster IO buffer headers AppleKeyStore starting (BUILT: Sep 19 2013 22:20:34) IOAPIC: Version 0x20 Vectors 64:87 ACPI: sleep states S3 S4 S5 pci (build 22:16:29 Sep 19 2013), flags 0x63008, pfm64 (38 cpu) 0x3f80000000, 0x80000000 [ PCI configuration begin ] console relocated to 0x3f80000000 [ PCI configuration end, bridges 15, devices 28 ] AppleIntelCPUPowerManagement: (built 22:16:38 Sep 19 2013) initialization complete HWSensors Project Copyright 2013 netkas, slice, usr-sse2, kozlek, navi, THe KiNG, RehabMan. All rights reserved. RTC: Only single RAM bank (128 bytes) FakeSMCDevice: 15 preconfigured keys added SMC: successfully initialized CPUSensors: CPU family 0x6, model 0x17, stepping 0x6, cores 4, threads 4, TJmax 100 CPUSensors: setting platform to M82 AppleIntelPIIXPATA: Secondary PCI IDE channel is disabled mcache: 8 CPU(s), 64 bytes CPU cache line size mbinit: done [64 MB total pool size, (42/21) split] Pthread support ABORTS when sync kernel primitives misused SuperIODevice: [Fatal] found unsupported ship ID=0xf191 com.apple.AppleFSCompressionTypeDataless kmod start rooting via boot-uuid from /chosen: 7B06D1AB-9623-3DCE-88FC-5ED84F29AD07 Waiting on <dict ID="0"><key>IOProviderClass</key><string ID="1">IOResources</string><key>IOResourceMatch</key><string ID="2">boot-uuid-media</string></dict> com.apple.AppleFSCompressionTypeZlib kmod start com.apple.AppleFSCompressionTypeDataless load succeeded com.apple.AppleFSCompressionTypeZlib load succeeded AppleIntelCPUPowerManagementClient: ready FireWire runtime power conservation disabled. (3) Kext org.hwsensors.driver.GPUSensors - library kext com.apple.iokit.IOGraphicsFamily not found. Can't load kext org.hwsensors.driver.GPUSensors - failed to resolve library dependencies. Kext org.hwsensors.driver.GPUSensors failed to load (0xdc00800e). Failed to load kext org.hwsensors.driver.GPUSensors (error 0xdc00800e). Kext org.hwsensors.driver.GPUSensors might not load - kextd is currently unavailable.Couldn't alloc class "RadeonSensors" FireWire (OHCI) TI ID 8023 PCI now active, GUID 009027000206e961; max speed s400. Got boot device = IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/SAT1@1F,2/AppleAHCI/PRT3@3/IOAHCIDevice@0/AppleAHCIDiskDriver/IOAHCIBlockStorageDevice/IOBlockStorageDriver/Samsung SSD 840 PRO Series Media/IOGUIDPartitionScheme/Mavericks@2 BSD root: disk0s2, major 1, minor 2 hfs: mounted Mavericks on device root_device flow_divert_kctl_disconnect (0): disconnecting group 1 Waiting for DSMOS... hfs: mounted Macintosh on device disk1s2 Previous Shutdown Cause: 5 SMC::smcInitHelper ERROR: MMIO regMap == NULL - fall back to old SMC mode init probe start DSMOS has arrived [IOBluetoothHCIController][start] -- completed SuperIODevice: [Fatal] found unsupported ship ID=0xf191 SuperIODevice: [Fatal] found unsupported ship ID=0xf191 Ethernet [Intel8254x]: Link up on en0, 10-Megabit, Half-duplex, No flow-control, Debug [796d,ac40,0de1,0e00,c1e1,3800] ** Device in slot: SLOT--1 ** RadeonSensors (pci6@0): found ATI Radeon 0x9441 RadeonSensors (pci6@0): ATOMBIOS detected RadeonSensors (pci6@0): ATOM BIOS: R700 RadeonSensors (pci6@0): using device-id to resolve temperature sensor type RadeonSensors (pci6@0): adding rv770 thermal sensor ** Device in slot: SLOT--1 ** RadeonSensors (pci5@0): found ATI Radeon 0x9441 RadeonSensors (pci5@0): ATOMBIOS detected RadeonSensors (pci5@0): ATOM BIOS: R700 RadeonSensors (pci5@0): using device-id to resolve temperature sensor type RadeonSensors (pci5@0): adding rv770 thermal sensor VM Swap Subsystem is ON display: Not usable AppleKeyStore:Sending lock change 0 **** [IOBluetoothHCIController][SearchForTransportEventTimeOutHandler] -- Missing Bluetooth Controller Transport! Link to comment Share on other sites More sharing options...
alex0adsr Posted March 17, 2014 Share Posted March 17, 2014 same thing fabio... here is the log maybe is something wrong Restoring BaseSystem.dmg to /Volumes/PandoraMEM... Validating target...done Validating source... Could not get information about "/Users/ofeej/Desktop/Pandora.app/Contents/Resources/Base/Baselioninst/BaseSystem.dmg" or it is not an image file done Note: checksumming turned off due to format argument Could not get source volume name maybe the image is not good? where can i get one that works ? pandora logs.zip Link to comment Share on other sites More sharing options...
carbo178 Posted March 17, 2014 Share Posted March 17, 2014 @alex0adsr You have Mavericks.app AppStore downloaded or .dmg? Link to comment Share on other sites More sharing options...
alex0adsr Posted March 17, 2014 Share Posted March 17, 2014 dmg i try 2 different ones 10.9 and 10.9.2 and the result is the same maybe because i m under snow leopard ? Link to comment Share on other sites More sharing options...
carbo178 Posted March 17, 2014 Share Posted March 17, 2014 Probably... retry with dmg image mounted Link to comment Share on other sites More sharing options...
