toleda Posted July 25, 2013 Share Posted July 25, 2013 OS X Realtek ALC885 through ALC1150 Onboard Audio Realtek ALC AppleHDA Audio Injection enables OS X Realtek ALC onboard audio on Intel based motherboards with a bootable clean install of OS X. Two steps are required; 1. Install Realtek ALC Injection and 2. Edit the native AppleHDA.kext. This guide provides the injection choices and installation details. Update 3/21/2014 - Added Mavericks, ALC1150, fifth Realtek ALC Injection technique, updated Clover injection Update 8/27/2013 - Added a fourth Realtek ALC Injection technique, SSDT.aml. No kext maintenance (permissions, kernel cache, etc.) and no dsdt edits (native dsdt). Realtek ALC AppleHDA Onboard Audio Injection Repo toleda/audio_ALCInjection Realtek ALC AppleHDA Guides 1. [Guide]-Add_HDEF-Clover.pdf 2. [Guide]-Add_HDEF-kext.pdf 3. [Guide]-Add_HDEF-ssdt.pdf 4. [Guide]-Add_or_Edit_HDEF-dsdt.pdf 5. M-Realtek_ALC_AppleHDA_Capabilities.pdf.zip 6. M-Realtek_ALC_AppleHDA_Customization.pdf.zip 7. M-Realtek_ALC_AppleHDA_Screenshots.pdf.zip 8. M-Realtek_ALC_AppleHDA-No_Audio.pdf.zip Supported Realtek audio codecs 1. ALC885 2. ALC887 3. ALC888 4. ALC889 5. ALC892 6. ALC898 7. ALC1150 Supported OS X releases 1. Mavericks: 10.9+ 2. Mountain Lion: 10.8+ Three Realtek ALC AppleHDA.kext Audio_IDs, select one Audio_ID: 1 supports 5 and 6 port ALC8xx onboard and/or AMD/Nvidia HDMI audio Audio_ID: 2 supports 3 port ALC8xx onboard and/or AMD/Nvidia HDMI audio Audio_ID: 3 supports 3, 5 and 6 port ALC8xx onboard HD4K/HD3K HDMI audio with or without AMD/Nvidia HDMI audio Audio_IDs: 1 and 2 support analog 5.1 surround sound, 3 does not Audio_IDs: 1, 2 and 3 require HDMI audio dsdt edits for HDMI audio Note: The native AppleHDA.kext supports HDMI audio (dsdt edits required, no onboard audio) with an unsupported onboard audio codec using Audio ID: 1. Techniques to enable the Realtek ALC AppleHDA.kext, select one and install 1. No dsdt/audio enabler = Audio_ID, toleda/audio_kext_enabler Note: install either enabler (use 1a or 1b, not both) 1a. Audio_ID = 1/HDAEnabler1.kext audio_kext_enabler/HDAEnabler1.kext.zip at master · toleda/audio_kext_enabler 1b. Audio_ID = 2/HDAEnabler2.kext audio_kext_enabler/HDAEnabler2.kext.zip at master · toleda/audio_kext_enabler 2. dsdt/HDEF/layout-id = Audio_ID, see [Guide]-Add_or_Edit_HDEF-dsdt.pdf 2a. Audio_ID = 1/layout-id: 0x01, 0x00, 0x00, 0x00, 0x00 2b. Audio_ID = 2/layout-id: 0x02, 0x00, 0x00, 0x00, 0x00 2c. Audio_ID = 3/layout-id: 0x03, 0x00, 0x00, 0x00, 0x00 3. ssdt/HDEF/layout-id = Audio_ID, ssdt_hdef, see {Guide} Add ssdt/HDEF.pdf 3a. Audio_ID = 1/layout-id: 0x01, 0x00, 0x00, 0x00, 0x00 ssdt_hdef-1-with_ioreg:hdef.zip ssdt_hdef-1-no_ioreg:hdef.zip ssdt_hdef-1-x99_alza.zip 3b. Audio_ID = 2/layout-id: 0x02, 0x00, 0x00, 0x00, 0x00 ssdt_hdef-2-with_ioreg:hdef.zip ssdt_hdef-2-no_ioreg:hdef.zip 3c. Audio_ID = 3, see audio_ssdt-HDMI_audio 4. Clover/Config.plist/Devices/Audio/Inject = Audio_ID, see [Guide]-Add_HDEF-Clover.pdf. 4a. Audio_ID = 1/Audio/Inject=1 4b. Audio_ID = 2/Audio/Inject=2 4c. Audio_ID = 3/Audio/Inject=3 5. Chameleon/Customize/Setting/HDEF Layout//LayoutID = Audio_ID 5a. Audio_ID = 1/LayoutID=1 5b. Audio_ID = 2/LayoutID=2 5c. Audio_ID = 3/NA ALCInjection/Realtek ALC AppleHDA.kext 1. Yosemite/10.10+, see Yosemite: Audio - Realtek ALC AppleHDA - AppleHDA - InsanelyMac Forum 2. Mavericks/10.9+, see Mavericks Realtek ALC AppleHDA Audio - OSx86 10.9 (Mavericks) 3. Mountain Lion 10.8+, see Mountain Lion Realtek ALC AppleHDA Audio - OSx86 10.8 (Mountain Lion) 4. Mountain Lion/10.8.4 AppleHDA.kext_v2.3.7, see Audio - InsanelyMac Forum Troubleshooting 1. toleda/audio_ALCInjection M-Realtek_ALC_AppleHDA-No_Audio.pdf Problem Reporting 1. Description of audio problem 2, OS X version/motherboard model/BIOS version/processor/graphics 3. Procedure/Guide Used 4. Copy of IOReg - IOReg_v2.1/File/Save a Copy As…, verify file (no ioreg.txt) 5. Screen shots: 1. DPCIManager 2. System Information/Hardware/Audio/Intel High Definition Audio (not Devices) 6. System/Library/Extensions/AppleHDA.kext 7. System/Library/extensions/AppleHDAxxx.kext (if installed) 8. Chameleon 1. Extra/org.chameleon.Boot.plist 2. DPCIManager/Misc/Boot Log 3. Extra/dsdt.aml (if installed) 4. Extra/ssdt.aml (if installed) 9. Clover 1. EFI/Clover/config.plist 2. EFI/Clover/misc/debug.log (Set config.plist/Boot/Debug/YES) 3. EFI/Clover/ACPI/Patched/dsdt.aml (if installed) 4. EFI/Clover/ACPI/Patched/ssdt.aml (if installed) Credit THe KiNG [HOW TO] Patch AppleHDA - Knowledge Base - Project OS X Forums VHC888 ALC889A, Gigabyte (Intel): now having a working front mic - InsanelyMac Forum PikeRAlpha Intel HD4600 with full resolution | Pike's Universum bcc9 Intel HD Graphics 4600 (Haswell) working displayport - OSx86 10.9 (Mavericks) - InsanelyMac Forum 13 Link to comment https://www.insanelymac.com/forum/topic/290796-realtek-alc-applehda-audio-injection/ Share on other sites More sharing options...
naiclub Posted July 26, 2013 Share Posted July 26, 2013 Thank you very much toleda Link to comment https://www.insanelymac.com/forum/topic/290796-realtek-alc-applehda-audio-injection/#findComment-1934719 Share on other sites More sharing options...
toleda Posted August 27, 2013 Author Share Posted August 27, 2013 Update 8/27/2013 - Added a fourth Realtek ALC Injection technique, SSDT.aml. No kext maintenance (permissions, kernel cache, etc.) and no dsdt edits (native dsdt). In addition, Audio_ID = 12, injection available. Credit: bcc9 Link to comment https://www.insanelymac.com/forum/topic/290796-realtek-alc-applehda-audio-injection/#findComment-1941720 Share on other sites More sharing options...
Maniac10 Posted August 28, 2013 Share Posted August 28, 2013 Nice alternative with the SSDT technique (bcc9 is unstoppable), and thanks a lot Toleda for sharing your knowledge. Link to comment https://www.insanelymac.com/forum/topic/290796-realtek-alc-applehda-audio-injection/#findComment-1941737 Share on other sites More sharing options...
maleorderbride Posted September 5, 2013 Share Posted September 5, 2013 Great compilation of your audio resources Toleda! I just tried to use the SSDT for ALC898 and did not notice anything injected via System Profiler or IOReg. Should HDEF not be injected and no pinconfigurations info showing up in System Profiler? I am not your intended audience since this is an X79 board and I need to use the Interim AppleHDA, but I just changed your SSDT to inject 382 instead and assumed that would work. When it did not I cobbled together my own (ugly) SSDT and it works as I would expect. Here is what I did, but yours is much more elegant and I would prefer to get it working. What am I missing? I have no DSDT if that matters. External (\_SB_.PCI0, DeviceObj) Scope (\_SB.PCI0) { Device (HDEF) { Name (_ADR, 0x001B0000) Method (_DSM, 4, NotSerialized) { Store (Package (0x06) { "hda-gfx", Buffer (0x0A) { "onboard-3" }, "layout-id", Buffer (0x04) { 0x82, 0x03, 0x00, 0x00 }, "PinConfigurations", Buffer (Zero) {} }, Local0) DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0)) Return (Local0) } } } Method (DTGP, 5, NotSerialized) { If (LEqual (Arg0, Buffer (0x10) { /* 0000 */ 0xC6, 0xB7, 0xB5, 0xA0, 0x18, 0x13, 0x1C, 0x44, /* 0008 */ 0xB0, 0xC9, 0xFE, 0x69, 0x5E, 0xAF, 0x94, 0x9B })) { If (LEqual (Arg1, One)) { If (LEqual (Arg2, Zero)) { Store (Buffer (One) { 0x03 }, Arg4) Return (One) } If (LEqual (Arg2, One)) { Return (One) } } } Store (Buffer (One) { 0x00 }, Arg4) Return (Zero) } } Link to comment https://www.insanelymac.com/forum/topic/290796-realtek-alc-applehda-audio-injection/#findComment-1943439 Share on other sites More sharing options...
toleda Posted September 5, 2013 Author Share Posted September 5, 2013 When it did not I cobbled together my own (ugly) SSDT and it works as I would expect. Here is what I did, but yours is much more elegant and I would prefer to get it working. What am I missing? Method (_DSM, 4, NotSerialized) { Store (Package (0x04) { "layout-id", Buffer (0x04) { 0x82, 0x03, 0x00, 0x00 }, "PinConfigurations", Buffer (Zero) {} There is no functional difference between the two edits. There was likely a permissions/cache problem. Perhaps if you tried the layout-id edit again, it would work. In your solution, hda-gfx injection is not necessary as you don't have HD3K or HD4K HDMI audio. Link to comment https://www.insanelymac.com/forum/topic/290796-realtek-alc-applehda-audio-injection/#findComment-1943503 Share on other sites More sharing options...
maleorderbride Posted September 5, 2013 Share Posted September 5, 2013 Thanks for the rapid reply. I removed the hda-gfx edits from mine and also tried yours again. Still no working audio, HDEF, or system profiler information. I will continue to fiddle and get back to you if I figure out what is going on. Thanks for your help! Link to comment https://www.insanelymac.com/forum/topic/290796-realtek-alc-applehda-audio-injection/#findComment-1943519 Share on other sites More sharing options...
toleda Posted September 6, 2013 Author Share Posted September 6, 2013 I removed the hda-gfx edits from mine and also tried yours again. Still no working audio, HDEF, or system profiler information. What injection technique did you use previously (kext or dsdt)? Link to comment https://www.insanelymac.com/forum/topic/290796-realtek-alc-applehda-audio-injection/#findComment-1943709 Share on other sites More sharing options...
thuvn205 Posted September 17, 2013 Share Posted September 17, 2013 I have Realtek ALC275 with layout ID = 28, can I apple this patch to have HMDI audio for my laptop? Link to comment https://www.insanelymac.com/forum/topic/290796-realtek-alc-applehda-audio-injection/#findComment-1946465 Share on other sites More sharing options...
toleda Posted September 18, 2013 Author Share Posted September 18, 2013 I have Realtek ALC275 with layout ID = 28, can I apple this patch to have HMDI audio for my laptop? See Mountain Lion HDMI Audio - OSx86 10.8 (Mountain Lion) - InsanelyMac Forum Link to comment https://www.insanelymac.com/forum/topic/290796-realtek-alc-applehda-audio-injection/#findComment-1946747 Share on other sites More sharing options...
cwestpha Posted October 9, 2013 Share Posted October 9, 2013 Any estimate on when you will be updating this and the patch system for injection in 10.9 GM HDA? I am pretty sure something has changed since using the 10.8.5 modified kext results in dropped sound and some audio corruption. Using DSDT injection method with patched AppleHDA for the other half of injection. Tried VoodooHDA but never liked that solution, audio levels are strange, sometimes there is popping, and jack detect doesn't get passed. Link to comment https://www.insanelymac.com/forum/topic/290796-realtek-alc-applehda-audio-injection/#findComment-1952932 Share on other sites More sharing options...
toleda Posted October 10, 2013 Author Share Posted October 10, 2013 Any estimate on when you will be updating this and the patch system for injection in 10.9 GM HDA? Within a week or two of the public release of 10.9. If you have problems with 10.8.5 and/or 10.8.5 Supplemental, use 10.8.4; either patch you own or see Audio - InsanelyMac Forum Link to comment https://www.insanelymac.com/forum/topic/290796-realtek-alc-applehda-audio-injection/#findComment-1952959 Share on other sites More sharing options...

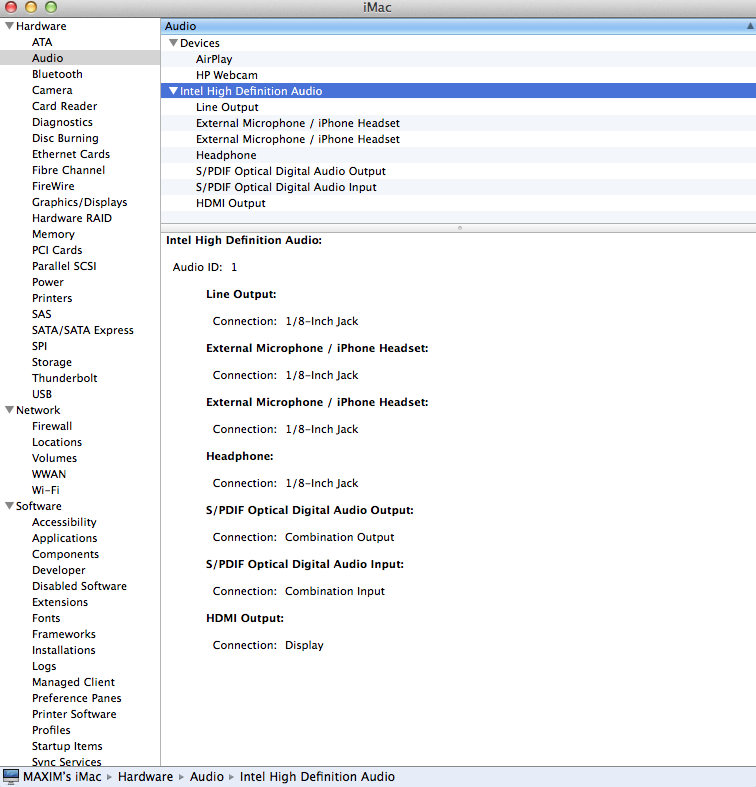

VirusX Posted October 30, 2013 Share Posted October 30, 2013 Hi Toleda, thank you for your awesome work on those tutorials. But sadly I'm still struggling with my Gigabyte EX-58 UD5 with 10ec0885 - ALC885/ALC889a chipset and my old Sapphire HD4870 (DVI, HDMI and VGA outputs) in Mavericks. -Problem: No sound options are showing in system preferences. -I'm using clover r2236: In config.plist/ACPI/DSDT/Fixes/FixHDA_8000 - YES In Devices/Audio/Inject - 1 I let clover apply the fixes on the fly and don't have any DSDT present. I don't drop any SSDT tables. - HDEF, HDAU etc are showing in IOReg correctly (layout-id <10 00 00 00> 30/10/13 11:59:28,000 kernel[0] Sound assertion in AppleHDAController at line 1303 30/10/13 11:59:41,000 kernel[0] Sound assertion in AppleHDADriver at line 1525 30/10/13 11:59:41,000 kernel[0] Sound assertion in AppleHDADriver at line 2193 30/10/13 11:59:41,000 kernel[0] Sound assertion in AppleHDADriver at line 207 30/10/13 11:59:41,000 kernel[0] Sound assertion in AppleHDADriver at line 1084 Link to IOREG: https://www.dropbox.com/s/uar29sqhzgu5glj/MAXIM%E2%80%99s%20iMac.ioreg Attached: - Screenshot of System Information/Hardware/Audio/Intel High Definition Audio (not Devices) Not attached: Screenshot of System Information/Hardware/Graphics/Displays because I'm also struggling to HDMI video to work. As soon as I plug the hdmi cable in, I get video corruptions on the TV (hdmi) and my DVI monitor goes black. Do I have to fix my issues with hdmi video first? If you need more information, I will provide them asap. Thank you for your help! Maxim Link to comment https://www.insanelymac.com/forum/topic/290796-realtek-alc-applehda-audio-injection/#findComment-1960926 Share on other sites More sharing options...
bbddpp Posted October 31, 2013 Share Posted October 31, 2013 Toleda, I also want to thank you for the incredible amount of work you have put into this project. Hoping you might be able to help me out as well if you get a moment. I'm using a fresh install of Mavericks and Clover 2236 to boot EFI on a 2009 era Acer system, motherboard is a G45T-M2. Also similar to the poster above... -I'm using clover r2236: In config.plist/ACPI/DSDT/Fixes/FixHDA_8000 - YES In Devices/Audio/Inject - 1 I let clover apply the fixes on the fly and don't have any DSDT present. I don't drop any SSDT tables. DCPI Manager reports my card as Realtek ALC88S-VD, Audio Device 0x80863A3E, Sub Device 0x10250152, Codec 0x10EC0888, Revision 0x202. I've tried all 3 injections (1-2-3) in Clover to no avail. I also now see a "Null Codec" as well as an NVidia GT21x HDMI Codec (repeating 4 times) since I switched to Clover. Still no devices listed for output other than Airplay. HDEF looks correct in IOReg. What do you need me to attach as evidence or anything that might help troubleshoot? Link to comment https://www.insanelymac.com/forum/topic/290796-realtek-alc-applehda-audio-injection/#findComment-1961229 Share on other sites More sharing options...
toleda Posted October 31, 2013 Author Share Posted October 31, 2013 -Problem: No sound options are showing in system preferences. Injection is working. Looks like the native AppleHDA,kext is loading. See Mavericks Realtek ALC AppleHDA Audio - OSx86 10.9 (Mavericks) - InsanelyMac Forum for the 885 patched AppleHDA.kext. Still no devices listed for output other than Airplay. HDEF looks correct in IOReg. HDEF isn't right but there is no IOReg attached to confirm. Link to comment https://www.insanelymac.com/forum/topic/290796-realtek-alc-applehda-audio-injection/#findComment-1961773 Share on other sites More sharing options...

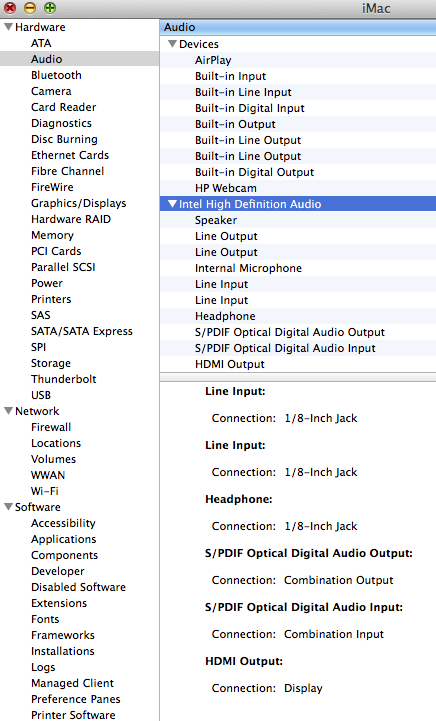

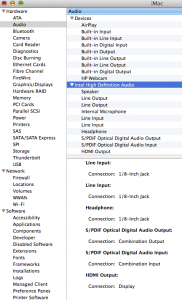

VirusX Posted November 1, 2013 Share Posted November 1, 2013 Thanks for your answer toleda. I ran the provided .command for Mavericks and left both In config.plist/ACPI/DSDT/Fixes/FixHDA_8000 - YES In Devices/Audio/Inject - 1 activated. Now everything works Link to comment https://www.insanelymac.com/forum/topic/290796-realtek-alc-applehda-audio-injection/#findComment-1962182 Share on other sites More sharing options...
TrvHrt Posted November 3, 2013 Share Posted November 3, 2013 Hey could I get some help. Running lion works fine but no sound tried voodoo and different kexts but no luck. VIA VT1708S And I use a hd 5750 gcard Just want the sound to come out of my monitor speakers any help would be great Ty. Link to comment https://www.insanelymac.com/forum/topic/290796-realtek-alc-applehda-audio-injection/#findComment-1963241 Share on other sites More sharing options...
bbddpp Posted November 4, 2013 Share Posted November 4, 2013 HDEF isn't right but there is no IOReg attached to confirm. Toleda, Thanks so much for responding! It's an honor to hear from you. I have no kexts loaded at all as I was reading that Clover doesn't require any, but I could be mistaken. So no AppleHDA or ALC kexts at all anywhere. I've attached my IOReg here: http://www.sendspace.com/file/xa737s Please let me know what else I can supply in the hopes of troubleshooting my ALC888S. Using the latest Clover with the following in the config (I have tried booting with detect set to 1, 2 or 3 with the same results): <key>FixHDA_8000</key> <true/> ... <dict> <key>Inject</key> <false/> <key>Audio</key> <dict> <key>Inject</key> <string>Detect</string> </dict> I'm trying to keep the desktop as Vanilla as possible so the only kext I loaded was FakeSMC.kext, the rest I let Clover load on the fly (did not create my own DSDT). What other things, like screenshots, can I show you that might allow you to help? Thanks so much. Link to comment https://www.insanelymac.com/forum/topic/290796-realtek-alc-applehda-audio-injection/#findComment-1963346 Share on other sites More sharing options...
toleda Posted November 4, 2013 Author Share Posted November 4, 2013 VIA VT1708S And I use a hd 5750 gcard Nothing in this thread can help you with the VIA. Other than USB, the only other option is 5770 HDMI audio which works with the native AppleHDA.kext. See Mavericks AppleHDA HDMI Audio - OSx86 10.9 (Mavericks) - InsanelyMac Forum I have no kexts loaded at all as I was reading that Clover doesn't require any, but I could be mistaken. So no AppleHDA or ALC kexts at all anywhere. Please let me know what else I can supply in the hopes of troubleshooting my ALC888S. Using the latest Clover with the following in the config (I have tried booting with detect set to 1, 2 or 3 with the same results): At this time, there is no way to inject compressed layouts and pathmaps with Clover. If you want Realtek onboard audio, a patched S/L/E/AppleHDA.kext is required. What is your motherboard? Regarding your 888S, you have the null codec which disables AppleHDA.kext audio. Only AppleHDA.kext solution is a different motherboard. Link to comment https://www.insanelymac.com/forum/topic/290796-realtek-alc-applehda-audio-injection/#findComment-1963678 Share on other sites More sharing options...
bbddpp Posted November 5, 2013 Share Posted November 5, 2013 What is your motherboard? Regarding your 888S, you have the null codec which disables AppleHDA.kext audio. Only AppleHDA.kext solution is a different motherboard. motherboard is a G45T-M2. It's a stock Acer desktop era 2009. DCPI manager reported ALC888S. If that's really what I have and you are telling me there is no way to get audio I can stop the pursuit. Is that the case? I did have VoodooHDA working poorly on Lion but never AppleHDA. Was hoping your files might help. Link to comment https://www.insanelymac.com/forum/topic/290796-realtek-alc-applehda-audio-injection/#findComment-1963737 Share on other sites More sharing options...
TrvHrt Posted November 5, 2013 Share Posted November 5, 2013 I'm running lion not mavericks I really don't know where to start with sound Link to comment https://www.insanelymac.com/forum/topic/290796-realtek-alc-applehda-audio-injection/#findComment-1963808 Share on other sites More sharing options...
toleda Posted November 5, 2013 Author Share Posted November 5, 2013 I'm running lion not mavericks I really don't know where to start with sound Lion/AMD?? What version of Lion? Post back in two weeks, may have something Link to comment https://www.insanelymac.com/forum/topic/290796-realtek-alc-applehda-audio-injection/#findComment-1964202 Share on other sites More sharing options...
TrvHrt Posted November 6, 2013 Share Posted November 6, 2013 Yes li Yes lion amd 10.7.5. Link to comment https://www.insanelymac.com/forum/topic/290796-realtek-alc-applehda-audio-injection/#findComment-1964282 Share on other sites More sharing options...
TrvHrt Posted November 11, 2013 Share Posted November 11, 2013 Im running mavericks now and same issue can't get sound to work, i have the same kexts most people seem to have that work but for me nothing =[ Link to comment https://www.insanelymac.com/forum/topic/290796-realtek-alc-applehda-audio-injection/#findComment-1966536 Share on other sites More sharing options...
toleda Posted November 11, 2013 Author Share Posted November 11, 2013 Im running mavericks now and same issue can't get sound to work, i have the same kexts most people seem to have that work but for me nothing =[ See Post #1, reply with requested info. Link to comment https://www.insanelymac.com/forum/topic/290796-realtek-alc-applehda-audio-injection/#findComment-1966564 Share on other sites More sharing options...
