RETIRED MEMBER - PLEASE GO TO HTTPS://GRADIVIS.COM/PROJECTS TO SEE THIS WORK LOG!





The aim of this mod is to shake up the norm of aluminum-silver G5/Mac Pro mods by employing a darker theme for my Mac Pro. I want it to be clean and non-flashy, yet still have the gravitas to make people stop and take a second look.



TO DO LIST

This list is more for my personal benefit than anything, but will give you a good idea of what's to come!

- Install custom front panel with USB 3.0 connectivity (waiting for part)

- Install anodized DVD drive cage (waiting for part)

- Install panel-mount 3.5mm female jacks on the back of the case (waiting for parts)

- Possibly install panel-mount USB 3.0 ports with right-angle adapters (not sure if they will fit...)

- Improve PSU airflow by drilling holes/removing side of enclosure

- Install white LED light strip and inconspicuous power button for lighting (waiting for parts)

- Possibly replace GPU and HDD LEDs with white one (kinda leery of messing around with my only GPU!)





INTRO

Well, despite having Project Gravitas on pause due to hardware issues, I couldn't turn down an eBay auction for a poorly-described Mac Pro chassis, that was listed without pictures and simply titled "Apple Case". On a whim, I decided to take a chance (they had listed one part number for a Mac Pro fan, so I figured it might be a Mac Pro) - $30 and no other bids later, I had a PERFECT Mac Pro show up on my doorstep. Ebay win:








Despite being mostly empty, the case had only one small scratch on it, and the important parts like the front panel and shelf were included, so I had absolutely no reason to complain.



Here's a quick and dirty shot right out of the shipping box:






I knew that I wanted this mod to stand out. I'm always encouraged to see the sheer volume of G5/Mac Pro mods floating around various communities, and after being inspired by the Gunmetal G5 project from ToddFX on G5Modders (and contacting him to find out how much he paid for his anodizing), I decided to make some phone calls around town and see how much the cost of anodizing a Mac Pro would annoy my wife. She would undoubtedly (and not incorrectly) think that it was superfluous. Well, "superfluous" is not in the vocabulary of most modders, and I was delighted to hear back from "Anodizing Specialists" in Ohio that, yes, they would be interested in me coming down to talk things over. Delighted, I took a trip to the shop to talk with the VP of operations. Being an aluminum guy, I would like to think that he appreciated the hunk of his metal of choice almost as much as I do. Sitting in his office he pulled out some color samples, and I chose a dark gray. I had toyed around with black and even white, but this is to be my last computer case for a little while, and dark gray is my favorite color. After going over the case with magnets, he pointed out the parts that needed to be removed and told me to come on back when I had it disassembled. He very kindly gave me permission to photograph and document the process for informational purposes, which will be released in a forthcoming article on G5Modders.com, and of course will be included in this worklog.





DISASSEMBLY

Not having the same experience that I do with the G5, I decided to be overly-organized with my disassembly. Every part/area has its own bag, and in that goes any parts and related screws/fittings. It's annoying, but I'm sure I'll thank myself in the end! (Note: a lot of this full disassembly is applicable to the G5!)






The awesome modular drive bays that I won't be using:






This is perhaps the most intricate and difficult case that I have ever worked with, and that's including old server towers from the 90's! With this more than any other case, TOOLS ARE EVERYTHING. If you don't have the right tools, you're going to have a tough time doing things efficiently, and you'll probably end up cussing.






(6mm socket)

(T8 Kobalt Bit)



Before picking up the tools above, I was close to giving up twice. "It's not worth it", I thought to myself on those occasions, "just do a regular mod". Once I buckled down and bought the tools, things were MUCH easier, if only slightly faster.



Our patient:




I'm going to hazard a guess that there are around 80 screws that you need to remove for full disassembly, although considering everything I had to take out, that could be an underestimate.








The above screws are the biggest pain the neck. Being so close to the bottom of the case, regular screwdriver handles are simply too big to have space for your knuckles to turn, and of course Apple uses that blue loctite stuff on all of their screws, so pliers just don't cut it most of the time.



Once I had removed all the screws (including the hidden ones…sigh) I carefully pulled apart the handles from the shell. Now I'm not sure if I did it correctly, but using some fabric in between the two parts, I pulled the handle assembly away from the shell, and slowly slid up out and over, taking care not to scratch anything! I don't have pictures of this step as it takes both hands, but I'm here to help if anyone needs guiding!



Here's half the beast, looking like a car door in a gangster flick, riddled with bullet holes:









Here's a close up of the pesky screws that I mentioned earlier. Four would be fine, but 8+ on each side is just a pain:






After that, there were more screws to separate the two halves of the shell as well as some rivets that had to be drilled out, but that was relatively easy with much more space to work in! Still, look at these alternating rivets and security screws:






Steve Jobs meant it when he said he didn't want people rooting around inside Apple products. Finally I removed anything that was not made of aluminum, including all I/O plastic and EMI shields, and several screws and a few other bits and bobs here and there. Pics to come of the thing totally apart! Hopefully I'm dropping this case off to be anodized in the next few days, so we won't have to wait too long for a pic update. I'll have some mod plans drawn up soon as well. Thanks for watching!

Share this post


Link to post
Share on other sites
Advertisement

Can't wait to see the progress.

And that has been an awesome deal for that case.



You should have seen me when the eBay listing was ending - sitting there very nervous hoping no one else found it, ready to bid up to $100!!

Share this post


Link to post
Share on other sites

Yeah that is an AMAZING deal. Jealous. So, since you are going for a darker color scheme, you should totally make some backlit apple logos for the side. Similar to apple laptops!

Share this post


Link to post
Share on other sites

So, since you are going for a darker color scheme, you should totally make some backlit apple logos for the side. Similar to apple laptops!



If I knew how to do it well, I would, but honestly the Mac Pro case is in such good condition that I wouldn't dare! Still, I have three G5 cases sitting around so maybe for the next mod... :)

Share this post


Link to post
Share on other sites

probably could take the apple logos from a G4 (they might be smaller) cut out the appropriate size shape (leaving a small lip to glue logo onto) and then backlight with LEDs. Or maybe just cut out the apple logos and make new logos from frosted plexiglass and backlight. Someone on here did something like that but with black plexiglass and not backlit. But yeah that is a very nice condition case...

Share this post


Link to post
Share on other sites

probably could take the apple logos from a G4 (they might be smaller) cut out the appropriate size shape (leaving a small lip to glue logo onto) and then backlight with LEDs. Or maybe just cut out the apple logos and make new logos from frosted plexiglass and backlight. Someone on here did something like that but with black plexiglass and not backlit. But yeah that is a very nice condition case...



I think I will leave that to the more skilled. I'm going to be very honest and say that I HATE cutting metal. I have all the tools, but it's my least favorite part about modding...a little ironic, but the truth :D

Share this post


Link to post
Share on other sites

probably could take the apple logos from a G4 (they might be smaller) cut out the appropriate size shape (leaving a small lip to glue logo onto) and then backlight with LEDs. Or maybe just cut out the apple logos and make new logos from frosted plexiglass and backlight. Someone on here did something like that but with black plexiglass and not backlit. But yeah that is a very nice condition case...



I did it but inside the case, first on a plexiglass and then changed for a G5 case door cut at the shape of the opening and backlight in 3D.

plexiglass unlighted plexiglass lighted (5 leds)




1) unlighted without door 2) lighted with door (7 leds)




Btw, nice job WhatThech, it's a hard work and a lot of patience. Remind me when I separate the inner and outer parts of a MacPro case with feet badly bended and put together the Inner part inside an outer part of a G5 case.

Share this post


Link to post
Share on other sites

Btw, nice job WhatThech, it's a hard work and a lot of patience. Remind me when I separate the inner and outer parts of a MacPro case with feet badly bended and put together the Inner part inside an outer part of a G5 case.



Thanks so much! It is a lot of hard work, but I know it will be worth it. I think I will be doing a video tutorial on a spare G5 that I have, but I may need to recover first from putting it back together first! ;)

Share this post


Link to post
Share on other sites

SO my question is about the motherboard. I am gonna take a wild guess here and say that the MacPro motherboard is just as wacked out as the G5 motherboard and conforms to no standards - correct?



Are you going to remove the binding posts that are there now? If yes, will you relocate them? If so how will you affix them?

Using a MB tray instead? Will you be anodizing that as well? Which tray?



I imagine that this is all in the a fore mentioned "plans" that you are drawing up so if I'm jumping the gun, just tell me to hold my horses! I am always curious how people mount the new stuff in the old and I can usually get some good ideas for future reference from others ideas.



Keep up the posts!

Share this post


Link to post
Share on other sites

SO my question is about the motherboard. I am gonna take a wild guess here and say that the MacPro motherboard is just as wacked out as the G5 motherboard and conforms to no standards - correct?



Are you going to remove the binding posts that are there now? If yes, will you relocate them? If so how will you affix them?

Using a MB tray instead? Will you be anodizing that as well? Which tray?



I imagine that this is all in the a fore mentioned "plans" that you are drawing up so if I'm jumping the gun, just tell me to hold my horses! I am always curious how people mount the new stuff in the old and I can usually get some good ideas for future reference from others ideas.



Keep up the posts!



Great questions!



Motherboard and tray:

You are absolutely right - the Mac Pro is equally as "wacked out" as the G5 in the non-standard layout. Since I had one on hand, I am going to be using the motherboard tray from my LianLi PC-V353 to mount the mobo in the Mac Pro. As you can kind of see from the image below, it's all one piece, but doesn't have any fan mounting:






I think I will cut into the back panel to allow for the original Mac Pro fan and mount to be used, but I'm not entirely sure just yet. It will definitely be anodized - I have already removed the rivets and it's disassembled and ready for the shop to dip it! I probably should cut it before I have it anodized - I forgot I had another dentist appointment tomorrow, so anodizing will have to wait until later in the week. This gives me a little bit more time to measure and cut. As I mentioned earlier, I really don't enjoy cutting metal, but I can't put it off much longer! I guess I'll have a motherboard tray update tomorrow once the anesthetic wears off!



In very rough terms, this is what I'm talking about:




Share this post


Link to post
Share on other sites

*scoffs* just happen to have this lan li tray lying around... right under the three G5s and the two nearly working Porsche 959s that just happen to be in my garage! I kid! I kid!



I actually like the idea of cutting the back of the tray to fit the existing fan hole, rather than the other way around - less cutting of the original case, and keeps the case more original.



So one more question - not gonna try to adapt the original hot swap stuff for your new HDDs? I have no idea about any of that as I have never even seen the inside of a MacPro, so I don't know the logistics of all that - but surely there is some kind of system that can at least reuse the location if nothing else - I always thought that was a good place... all in a row and mostly outta the way.



OK - I lied - one more question - does the MacPro have that clear plastic shield liek the G5 does? If yes, are you goingto reuse it? what is the shape of that?



Sorry for the barrage of questions - this will most likely be my next mod, so I have lots of questions...

Share this post


Link to post
Share on other sites

*scoffs* just happen to have this lan li tray lying around... right under the three G5s and the two nearly working Porsche 959s that just happen to be in my garage! I kid! I kid!



I actually like the idea of cutting the back of the tray to fit the existing fan hole, rather than the other way around - less cutting of the original case, and keeps the case more original.



So one more question - not gonna try to adapt the original hot swap stuff for your new HDDs? I have no idea about any of that as I have never even seen the inside of a MacPro, so I don't know the logistics of all that - but surely there is some kind of system that can at least reuse the location if nothing else - I always thought that was a good place... all in a row and mostly outta the way.



OK - I lied - one more question - does the MacPro have that clear plastic shield liek the G5 does? If yes, are you goingto reuse it? what is the shape of that?



Sorry for the barrage of questions - this will most likely be my next mod, so I have lots of questions...



Questions are always welcome! If you saw the condition of my other two G5s, there would be less scoffing! Their condition means that they're going to be used for a (potential) video tutorial on totally disassembling the case...



I've always liked the stock fan grills, and really want to keep it if I can. I actually just took a look at the Lian Li tray, and the area I would have to cut for the fan is (was) attached via rivets, so actually I'm left with this:






If my measurements are correct, I think I can just about fit it by removing the original PCI brackets and cutting the original I/O area. I may have to include part of the outer aluminum (the part I was going to cut in the image in my other post), simply because the Mac Pro has one more PCI slot than my Lian Li tray. Fingers crossed!



For the HDDs, I would LOVE to use the original system which is very VERY nice, but my case did not come with the HDD sleds (the four trays you see on a stock Mac Pro). They are pretty expensive to get individually (well, multiplied by four anyway), so I just thought "forget it" and decided to go an alternate route. I'm throwing around a few ideas, but the one I like most is using a 2.5" HDD cage (like this) and either putting it under the optical drive (as in where the second DVD drive normally is) or attaching it underneath the top shelf where the hard-drives traditionally go. That's probably not the cage I will go with - it really depends on what looks the best/can be easily modified vs. what I can afford when that time comes. In the mean time, I sold two of my 3.5" hard-drives and purchased a couple of 2.5" storage drives instead to go along with my SSD which will be the OS drive.



Finally, I don't believe that the Mac Pro has a plastic baffle. Instead they opted to have outer shields that direct the air flow in much the same way, albeit with a little more aluminum style.



Enjoying the feedback and questions very much!

Share this post


Link to post
Share on other sites

interesting with the shield (or two shields) at the front and the one over the CPUs. I always liked the G5 method because if you want to have a window on the side of your G5, you just take the side panel off and the clear plastic keeps the airflow going over the important stuff.



That HDD caddy looks pretty sweet - especially if you are going to all 2.5" drives. Since you should have quite a bit of room in there, it'll fit pretty easily. Bummer about not coming with that sled stuff - but for 30 bucks, ya cant beat what ya got eh?



Definitely a lot more aluminum extras in the MacPro. How much of that extra stuff did the rig come with? and if it came with any - I'm gonna take a WAG and say you are anodizing them too?

Share this post


Link to post
Share on other sites

The rosewill 2x2.5" hotswap bays can be fully disassembled leaving just the sata backplane connector.Making your own hd sled is pretty straightforward though knowing how the bays are it would be easier to have the sled below the hd and curving up instead of how apple has it above and curving down.

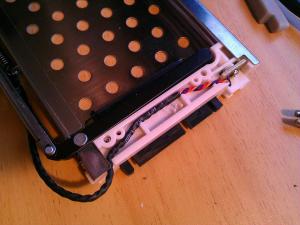

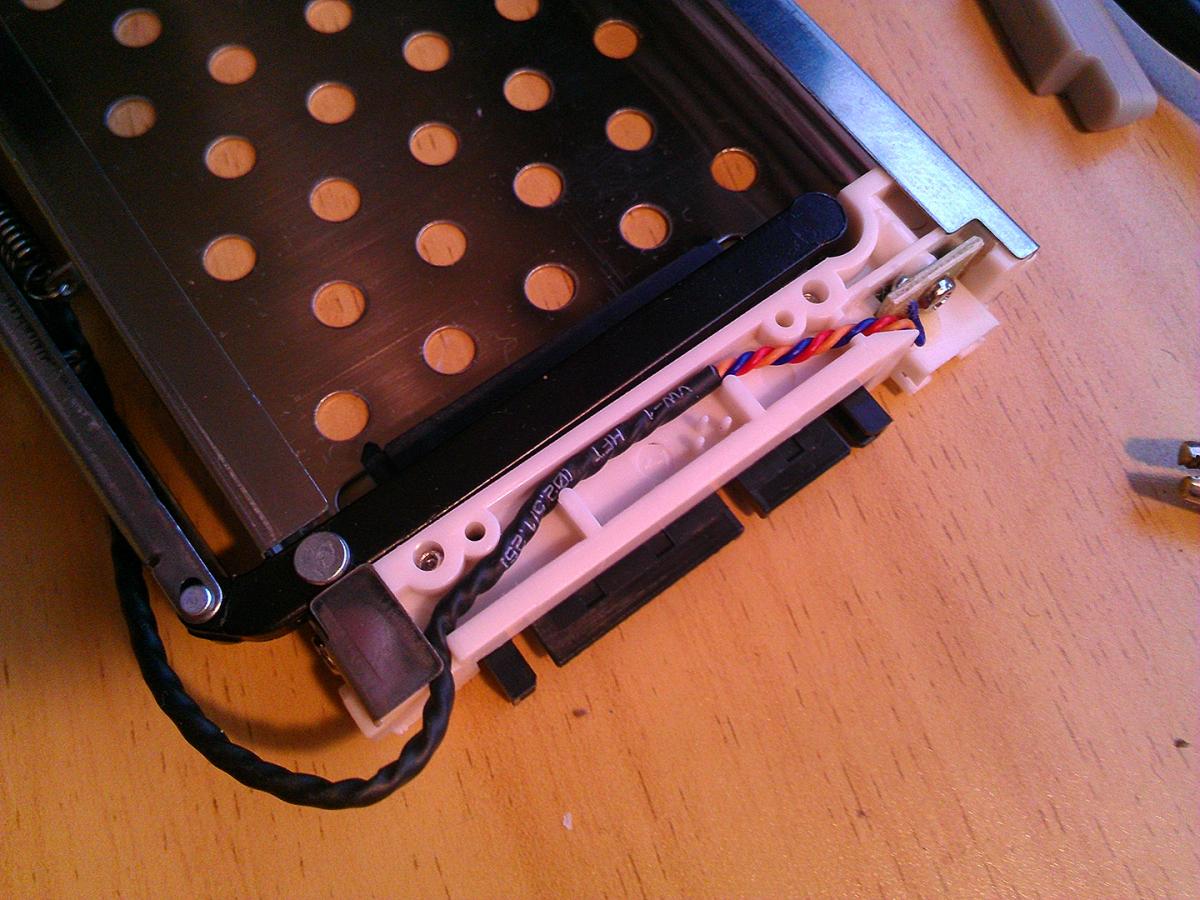

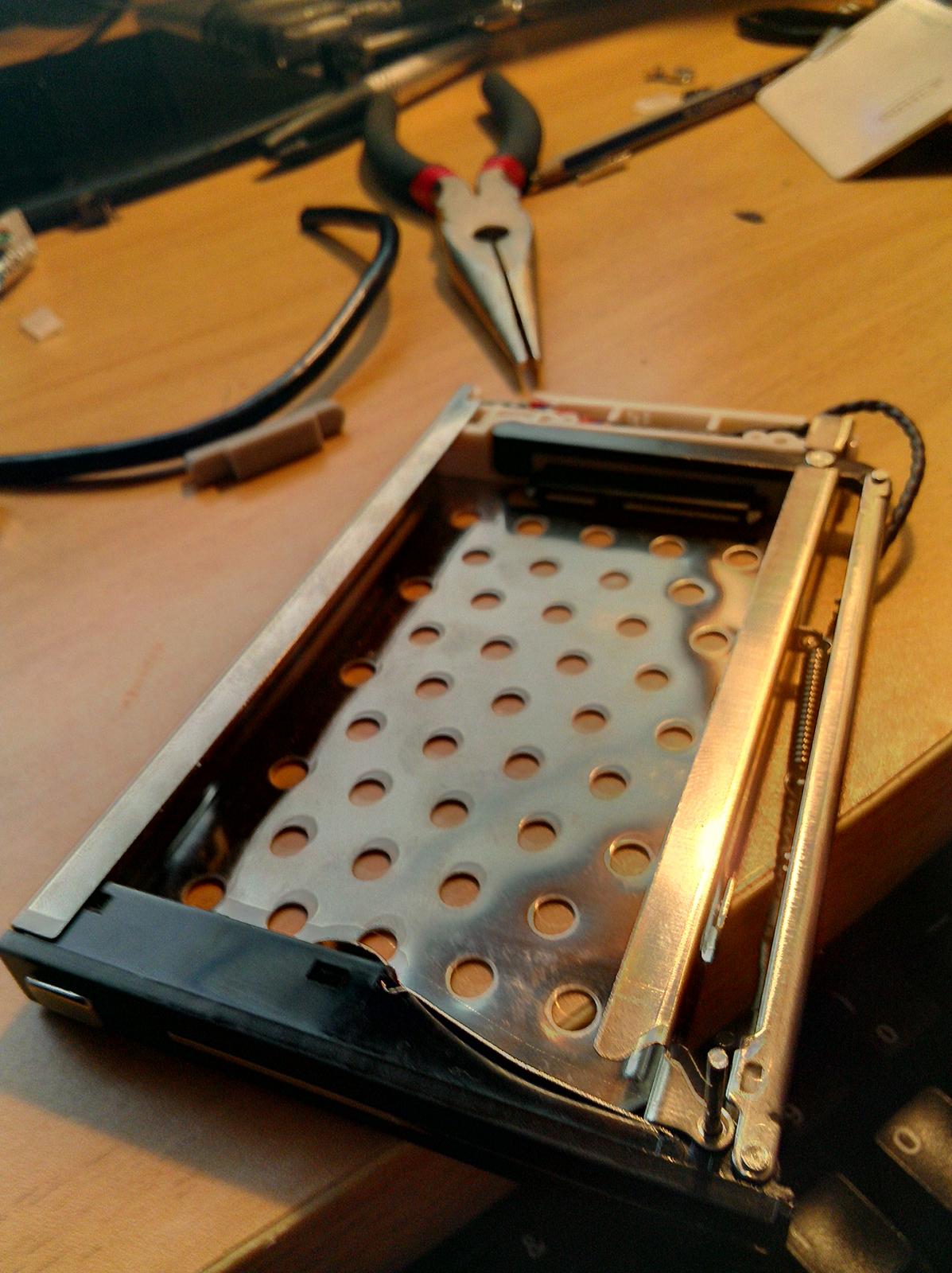

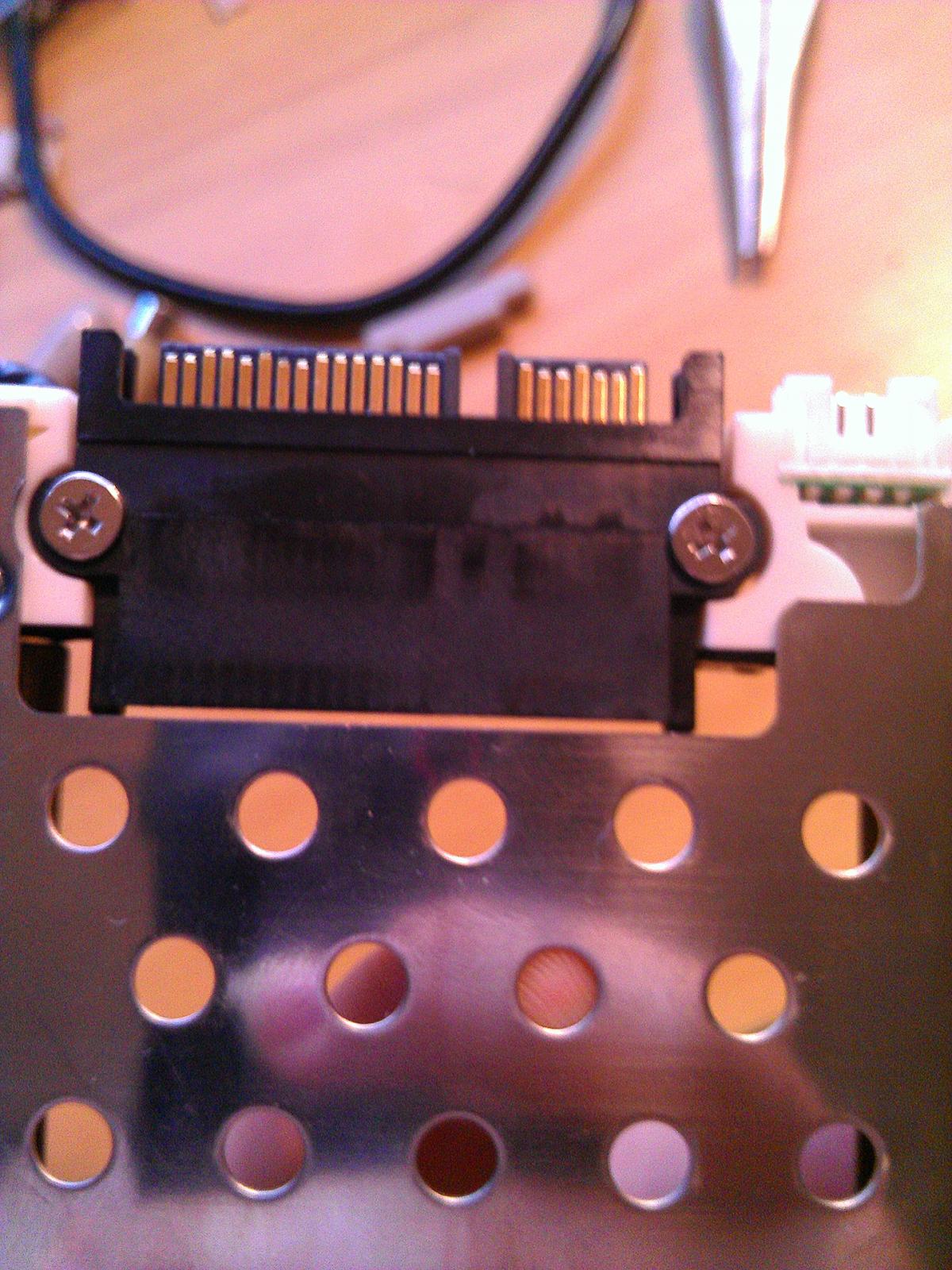

Here are a few photos of the backplane.




Share this post


Link to post
Share on other sites

The rosewill 2x2.5" hotswap bays can be fully disassembled leaving just the sata backplane connector.Making your own hd sled is pretty straightforward though knowing how the bays are it would be easier to have the sled below the hd and curving up instead of how apple has it above and curving down.



Thanks for the link! What I might do, is buy two of those and rather than disassemble them, place them as-is in the HD area under the tray rather than under the optical drive...



I'm not too worried about keeping the stock layout to be honest - the only thing I REALLY want is the PSU cover which is hard to come by seeing as it was part of the PSU itself!

Share this post


Link to post
Share on other sites

The more I look at things, the more I want to cut as little as possible. Below are some plans for the rear cuts. Basically I am doing with my Lian Li tray what The Laser Hive products do; keeping the original PCI brackets. If all works out, this will allow me to keep the stock fan grill and the sturdy PCI brackets...here's to hoping!




Share this post


Link to post
Share on other sites

CUTTING THE TRAY



Well, a small update. I cut the Lian Li motherboard tray which already had space for the PCI brackets so that it would be close enough to the back of the Mac Pro case to use the stock PCI brackets.






If you don't have to make small cuts, the EZ-lock metal cutting discs are by far the easiest way to go.






Le cut:






It only took me about 45 seconds to get here:






Not perfectly straight, but with a little bit of filing it will definitely do!






My only concern with the motherboard tray is that it raises everything up by about 5mm, which I believe is around the height of the original motherboard. This means that if I use regular motherboard standoffs on top of the tray for the mobo, it will be too high to use the PCI brackets comfortably.






Now on my first ever G5 mod, I combatted this by using standoffs on the PCI bracket itself so that my video card was screwed into a standoff, that was in turn screwed in to the PCI bracket, but that was a quick and dirty fix that is far from ideal aesthetically speaking. What I might do this time is cut an insulating sheet of plastic to size, and then screw the motherboard directly to the tray without any standoffs, removing the extra unwanted height. If I use the proper type of plastic does anyone know of any objections to doing this? I saw someone do this with an all-wood custom case, so I'm guessing conductivity (and the resulting shorting out of components) is the only concern here?

Share this post


Link to post
Share on other sites

metal, plastic, whatever... as long as you line it up with the holes, you're fine. Don't forget the original G5, and most other original systems, have metal binding posts... this, in theory, helps to ground the case with the motherboard. Totally not necessary as the ground will be carried thru the 24pin ATX cable back to the PSU. I found a post somewhere (have no idea where now of course) where somebody used the hexagonal clear Bic pen shells as standoffs. I even went so far as to buy a pack and test it out. I came to the conclusion that I would just reuse the original G5 standoffs. This might be a time where you could use that trick since you have height issues using an additional motherboard tray.

Share this post


Link to post
Share on other sites

It seems like only yesterday you started this, and you've already got a pretty good start. I almost went with a Mac Pro case before I found the G5, so this mod is really interesting to me.



Edit: It WAS only yesterday...

Share this post


Link to post
Share on other sites

It seems like only yesterday you started this, and you've already got a pretty good start. I almost went with a Mac Pro case before I found the G5, so this mod is really interesting to me.



Edit: It WAS only yesterday...



LOL. Well, I only started posting yesterday but I worked a few hours here and there over the past few days on dismantling. Just ask SirKeldon - he was encouraging me via Skype to NOT give up :D



The Mac Pro is at the same time very familiar (coming from G5 experience) but also quite a different beast. I'm also learning that a full dismantle is about as involved you can get. Despite hating some of the screw placements, I am really understanding the detail and craftsmanship that went in to this case, and from a more informed position than simply modding the backside. Some might argue that the case is over-engineered, but in my mind it was done with excellence.



Thanks for following! I'm waiting to hear back from David from The Laser Hive for his professional advice regarding the backplate before I make any cuts. More updates soon no doubt!

Share this post


Link to post
Share on other sites

THE REAR FAN



Well, in the hopes that I can save the original fan grill, I decided to get started and hope for the best. The Mac Pro has a processor cage with the fan attached, so the grill doesn't have holes for mounting a standard fan.






So, using my very scientific method of an overly sharpened pencil and a 120mm fan, I made the marks for the mounting holes:






I started at with a small bit to make the pilot holes, assuming that the thing was solid metal. Nope. Plastic underneath! So I pulled out the right sized bit and made four holes:






I wasn't too worried about the size once I found out there was plastic underneath. By keeping it a little small, I figured (correctly) that the fan screw would make their own threads. Here's the final product, with some nifty dark grey screws that I found in my toolbox:






Now, as you can see from the following picture, I drilled the holes off center. There's a not-so-small possibility that I will have to remove part of the inner grill for motherboard clearance, and if that's the case, I don't want to have to drill again!






Now just keep your fingers crossed that I won't have to cut the fan grill! It's so purty the way it is....

Share this post


Link to post
Share on other sites

motherboard clearance being all the stuff in the back I/O area on the MB I'm guessing? This is what is so far preventing me from installing the stock rear fans back into my G5. I don't need them for cooling, but it'd be nice to get those back in for originality sake.

Share this post


Link to post
Share on other sites

motherboard clearance being all the stuff in the back I/O area on the MB I'm guessing? This is what is so far preventing me from installing the stock rear fans back into my G5. I don't need them for cooling, but it'd be nice to get those back in for originality sake.



Yep, that's what I'm concerned about. Best case scenario, there's a mm or two - worst case scenario I shave off some of the interior fan grill and put some plastic to insulate from shorts. I know that SirKeldon kept his (you can find it on his gallery here) so it's definitely possible for the G5!

Share this post


Link to post
