[Guide] ML on Acer Aspire TimelineX 4830TG (3830TG or 5830TG)

110 posts in this topic

Recommended Posts

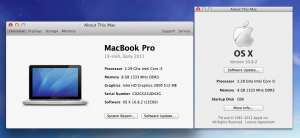

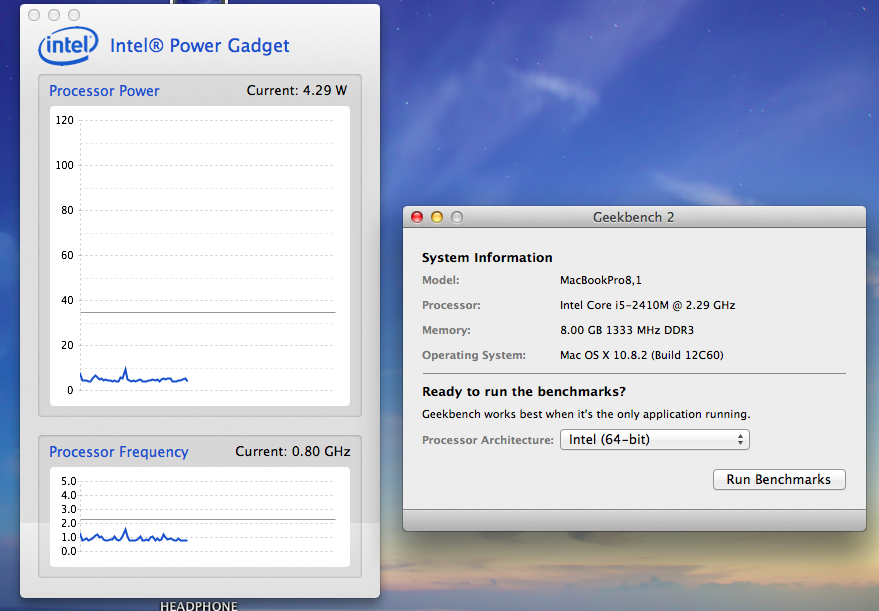

post-909106-0-57157000-1361063733_thumb.pngpost-909106-0-63502600-1361064440_thumb.pngpost-909106-0-25584000-1361063703_thumb.pngpost-909106-0-60142600-1361063698_thumb.pngpost-909106-0-74895700-1361063736_thumb.png
Spec:

  • Intel Core i5-2410M @ 2.30 GHz + TurboBoost Up to 2.90GHz
  • 8.00 GB DDR3 1333 MHz RAM
  • 750 GB HDD
  • Atheros 9287 Wifi/ Gigabyte Ethernet
  • HD 3000 GPU / nVidia Optimus GeForce GT540M 2GB
  • Elantech Multitouch TrackPad

Works:

  • CPU with turboboost (Speedstep)
  • Wifi
  • Ethernet
  • HD 3000 GPU (full)
  • 2 USB 2.0 Ports + USB 3.0 Port (See UPDATE 4 for USB 3.0 kext)
  • Audio (Speaker/Headphone) + volume control
  • Shutdown, Restart, Sleep (Lid and button)
  • Brightness control
  • Battery
  • Keyboard/Mouse
  • Multitouch Enable Trackpad
  • Dual Boot with Windows 8
  • WebCam
  • iMessage (FIXED)
  • Bluetooth (See update 5 for download link)

Does't Work:

  • nVidia Optimus GeForce GT540M

Preparation:

Installation:

  • Boot from iATKOS ML2 USB
  • Disk Utilities > Format your OSX Partition to Mac OS Extended (Journaled)
  • Customize, Select, Install and Restart:

Bootloader
Graphics
EnablerBuilt-in
Ethernet
1366*768*32
Original Apple Boot Logo
FakeSMC
Disabler
EvOreBootRTC
PatchMac Model> 8,1 MacBook Pro
SATA/IDE (leave the default select)
PS/2

Battery*****(select this to get native battery working, without voodoo)
nVidia>Disable nVidia
HD3000
Network
-----
Deselect:
Sound
Kernel Cache

Post-Installation:

  • Unzip 4830TG kext.zip

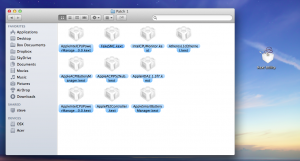

  • Patch all kext Inside Folder [PATCH 1] using Kext Utilities post-909106-0-19508900-1361063708_thumb.png

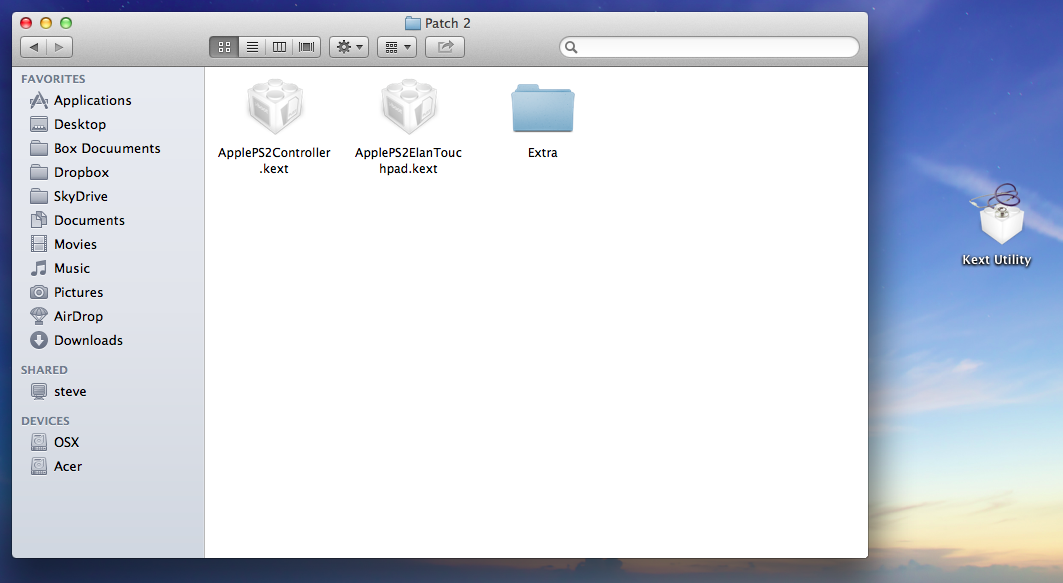

  • Patch all kext Inside Folder [PATCH 2] using Kext Utilities post-909106-0-30114800-1361063712_thumb.png

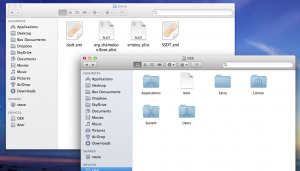

  • Drag all Files inside Extra (in PATCH 2) to ~/Extra and replace all post-909106-0-70237300-1361063812_thumb.png
  • Delete NullCPUPowerManagement.kext inside Extension

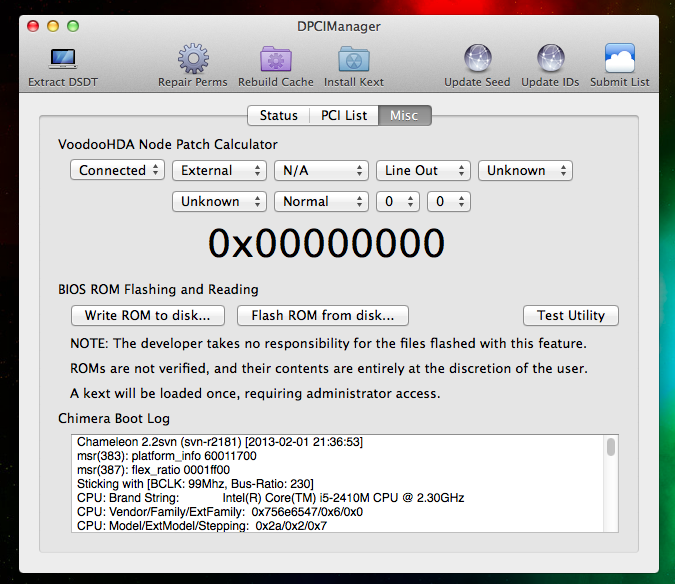

  • Rebuild Cache/Repair Permission post-909106-0-79309900-1361064115_thumb.png
  • Install Pleaseslpeep.dmg
  • Reboot with -f

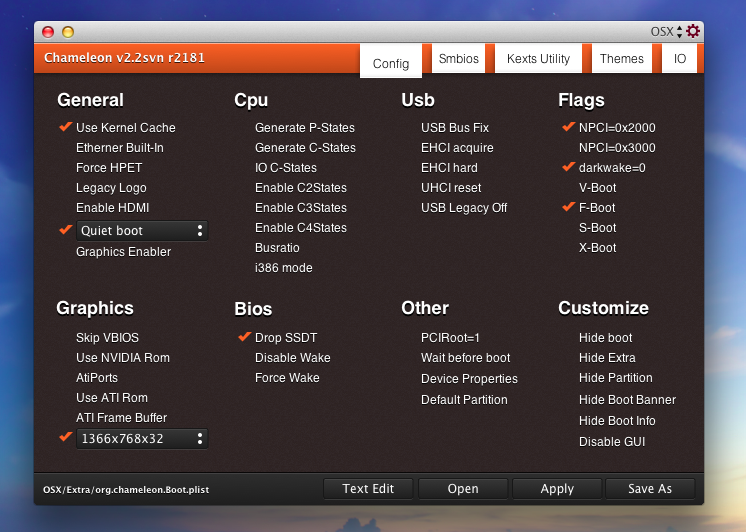

  • After Reboot, Open up Champlist (in your application folder) and select F-boot post-909106-0-75561700-1361063816_thumb.png
  • For iMessage Fix (Patch 3: http://tekwik.com/20...-fix-chameleon/)

EVERYTHING SHOULD BE WORKING AT THIS POINT

Side Notes:

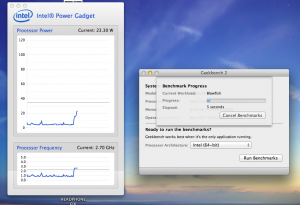

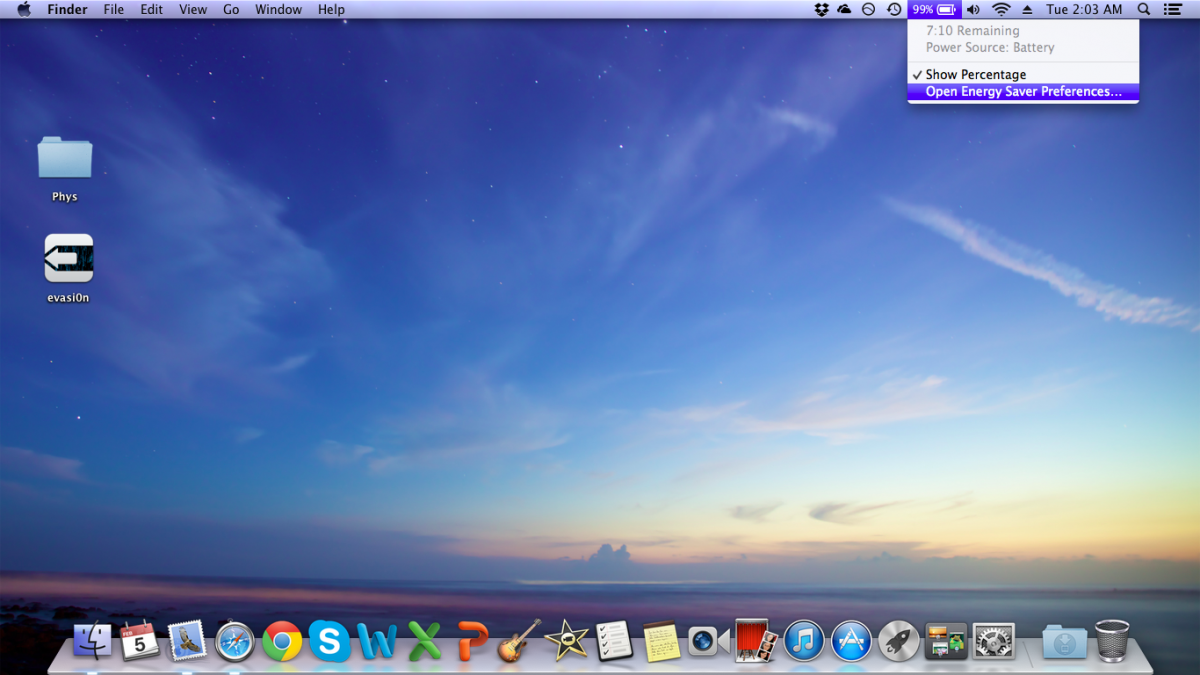

  • Set Graphics to Integrated instead of Switchable if you want to increase battery life (5 - 7 hr Integrated/2-3 hr Switchable)

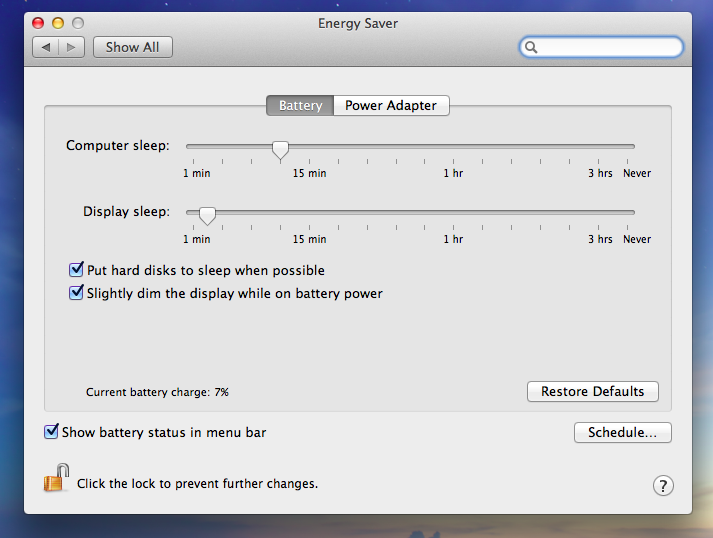

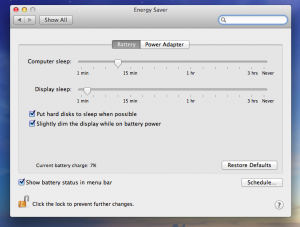

post-909106-0-89189100-1361063782_thumb.pngpost-909106-0-67819600-1361063770_thumb.png

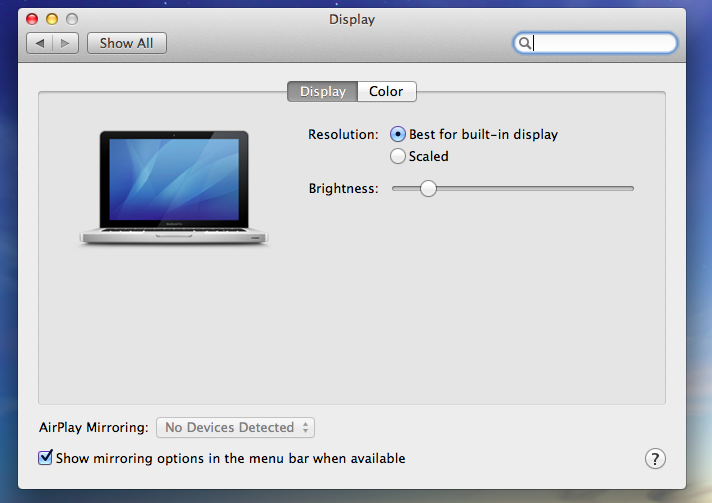

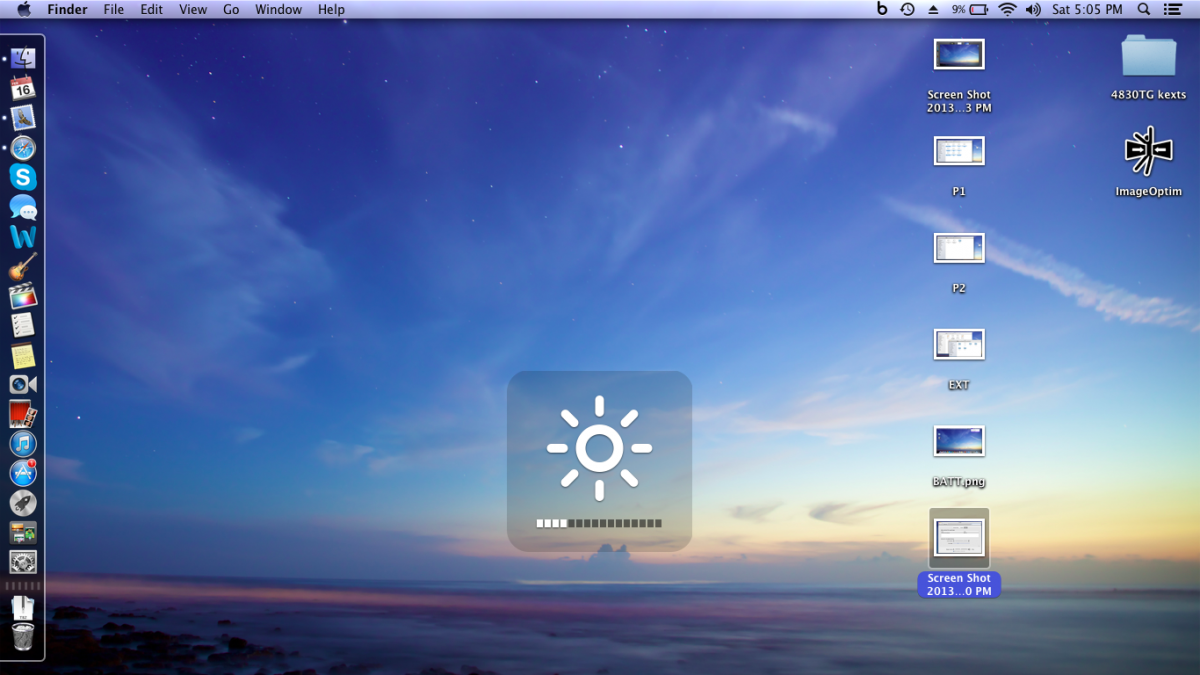

  • Screen Brightness Control: Fn + F12 (down) AND Fn + Pause (Up)

post-909106-0-37844900-1361063808_thumb.pngpost-909106-0-78271300-1361063800_thumb.png

  • Headphone sound may be unstable at times (Open up Settings > sound > Mic and just leave the window open)

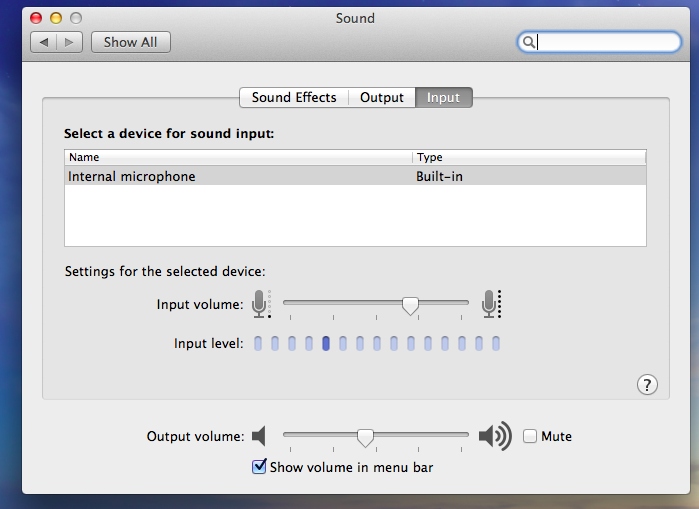

post-909106-0-20741000-1361063693_thumb.pngTwitter: @rwu921

[uPDATE 1*] New ElanTech TouchPad kext is out V2.1.3: https://mega.co.nz/#...ACz66THGRdDLniAYou can add/remove different features in the plist!!(or visit official forum: http://forum.osxlati...driver-mac-osx/)

[uPDATE 2*] Turns out after a couple boots, -f (flag boot) is no longer necessary!!

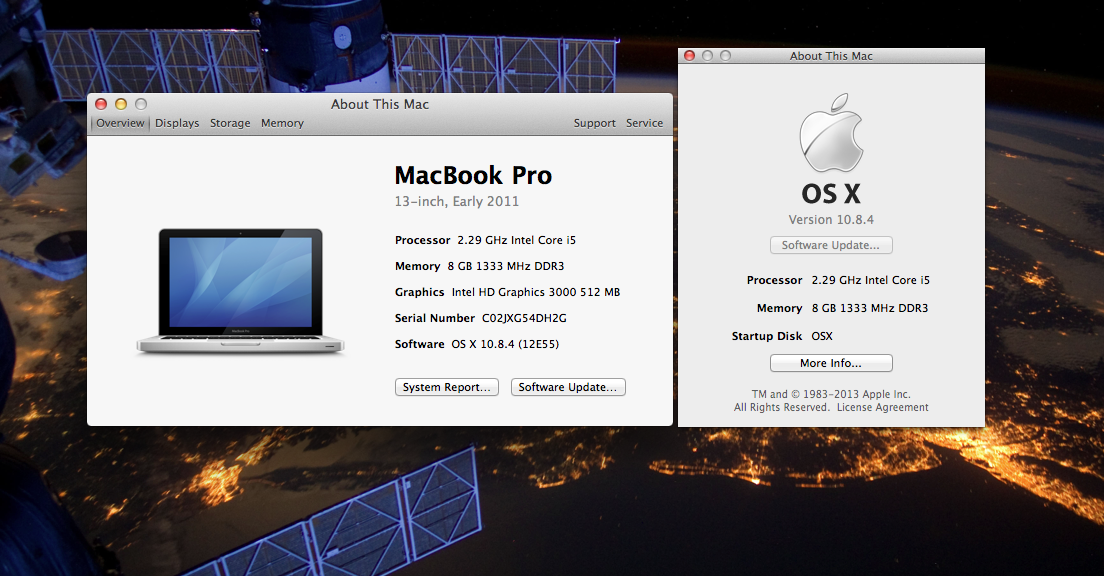

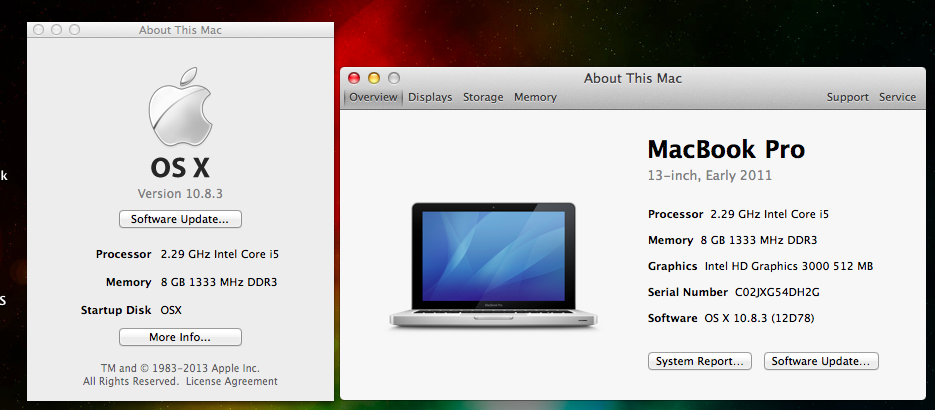

[uPDATE 3*] Feel free to update to 10.8.3 and 10.8.4 via Apps Store. It might show unexpected error, but everything will be fine after restart. post-909106-0-93291600-1363475284_thumb.pngpost-909106-0-76970100-1370551912_thumb.png

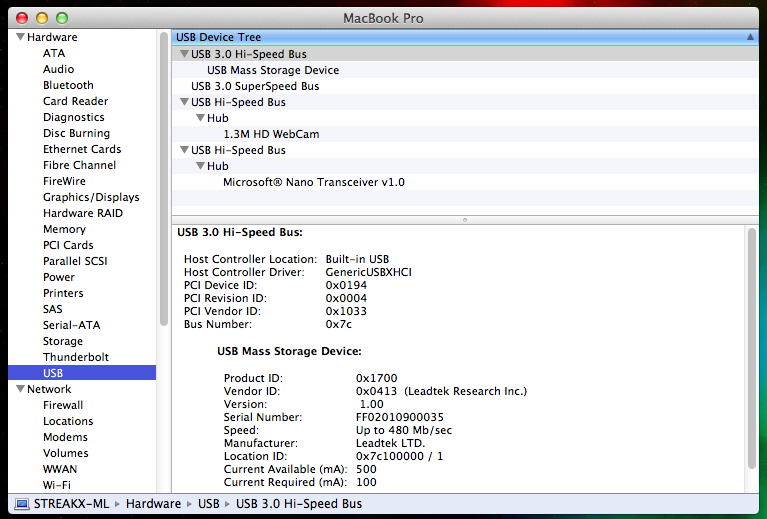

[uPDATE 4*] NO SLEEP FUNCTION IF YOU APPLY THIS KEXT (for now). USB 3.0 kext tested working!!! Here ya go fellows: https://mega.co.nz/#...ScGbwYryLNqYxVI

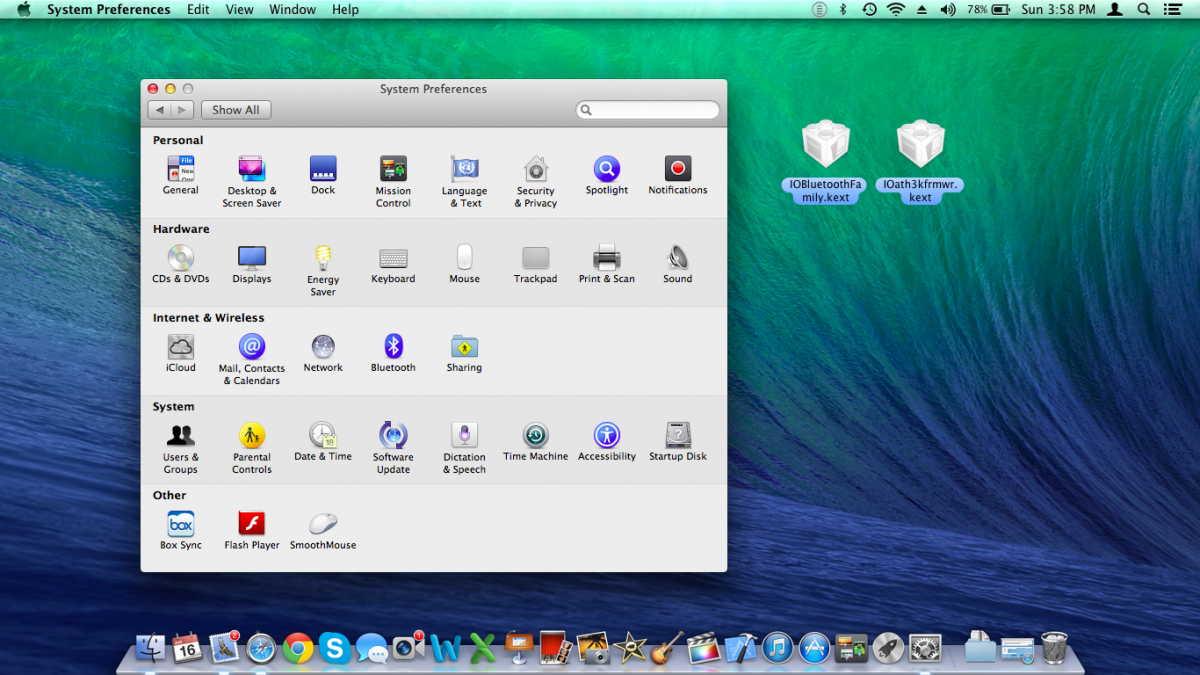

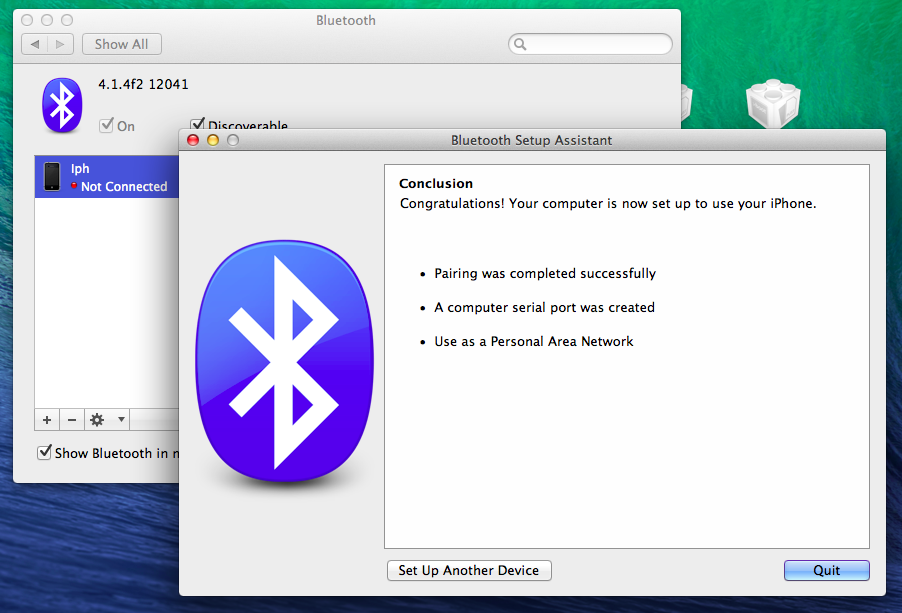

[uPDATE 5*] Bluetooth AR3011 tested working...finally! press Fn+F3 to cycle through wireless settings.

***Some of you might need to edit your VID and PID. I have it on VID0489/PIDE02C

Here ya go: https://mega.co.nz/#!504HQZRK!CFFIFzlt1kQrXd4OllZEWiQFuVk-WAS3EimLMvO16d0

post-909106-0-70357900-1371424041_thumb.pngpost-909106-0-60700700-1371424056_thumb.png

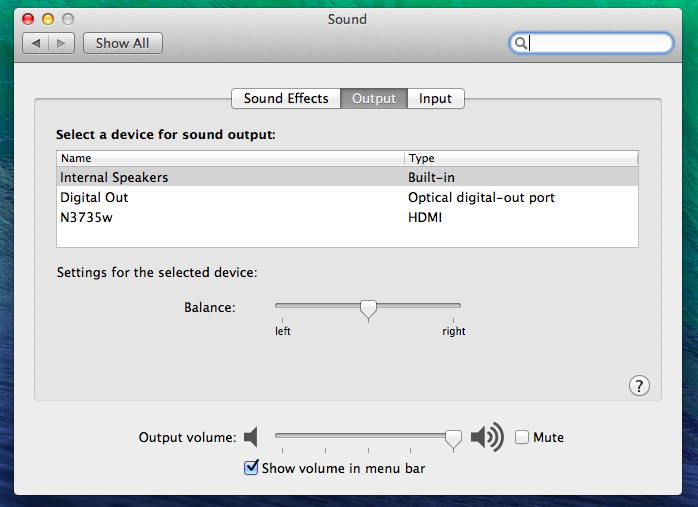

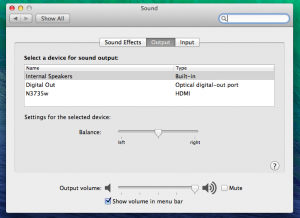

[uPDATE 6*] HDMI Audio kext found!

Link: https://mega.co.nz/#!k04U0ABA!fv_BPzLLSWxGkUzUSVOW8S-0J75FoGJxOsKGD0mGN6I






For risk takers (USE IT AT YOUR OWN RISKS):

------------------------------------------------------------------------------------------------------------

DSDT Tutorial (Step 1): http://www.youtube.com/watch?v=WseMI07G6_A



For Acer 5830TG Mountain Lion Users (Kext Package):

*Fresh install required

Link: https://mega.co.nz/#!x9xlGRoC!D7vk_kb0KrjIhHb9nXyxBS9UU301ujmEyDzZKtzhxtY



Bluetooth kext (not tested/not fully functional): SOLUTION FOUND, SEE UPDATE 5

*Test it on any version beyond 10.8.2

*More files coming soon

*Try to make it recognize by OSX first!

*It goes Wifi + No BT --> Wifi + BT --> No Wifi + BT --> No Wifi + No BT --> Wifi + No BT

Link: https://mega.co.nz/#!khxxgaRa!VQJamwjWSsgc1G4CURHsNgX2INgLhAOSaP8573pLNHQ





HDMI audio (not tested):   SOLUTION FOUND, SEE UPDATE 6

*Test it on 10.8.0 or 10.8.2 first before moving onto higher version

link: https://mega.co.nz/#!1p41nKAQ!RcjNaDzg68I1JEhj4h7pnBa4P2VxzUf4GecWhI9Ua5Q



SSDT Collection:

*use only when the given files (above) doesnt work

*all files are not tested, read readme file first

*Includes:

i3 2310M/2330M/2350M/2370M
i5 2410M/2430M/2450M/2520M/2540M/
i7 2620M/2630QM/2640M/2670QM/2720QM/2760QM/2820QM/2860QM/2920QM/2960QM

Link: https://mega.co.nz/#!1gJTxA5C!Ky9aCwxJC7haIKkLPXVjqzBBBeld5p32VQQUhCLcMU0



TrackPad (for 3830TG user) [some report failure, update coming soon]

*Not tested

*Make sure you dont have VoodooPS2 when using this

Link: https://mega.co.nz/#!EkxFUCLb!AXg9GlFw2i9JPwf7OLhdXTu0BTo0hOVwOA8LaSC4PHc



Wifi Card (5830TG 3830TG users)

*Atheros AR81(31/32/51/52/61/62/71/72)

Link: http://www.insanelymac.com/forum/topic/284119-experimental-atheros-ar813132515261627172-driver-for-107108/



DSDT for 3830TG - WORK IN PROGRESS - By Yuvin

http://www.insanelymac.com/forum/topic/286439-guide-ml-on-acer-aspire-timelinex-4830tg-3830tg-or-5830tg/?p=1934214

Share this post


Link to post
Share on other sites
Advertisement

Great guide but i have problems. I have Acer 5830TG.

After installation OSX works only if i use "-x".

Before boot loading with Apple logo i have :

"ERROR: dcbtable_version is 0x10

ERROR: nVidia ROM Patching Failed!"

And it freeze at boot loading if i dont use "-x".



And i have WIndows 8 on the other partition and when i run notebook without USBstick with iAtkos i see boot0: error.



Sorry about my english, I wasn't talking and writing in that language about a year and a half.



Thanks for any help!

Share this post


Link to post
Share on other sites

Great guide but i have problems. I have Acer 5830TG.

After installation OSX works only if i use "-x".

Before boot loading with Apple logo i have :

"ERROR: dcbtable_version is 0x10

ERROR: nVidia ROM Patching Failed!"

And it freeze at boot loading if i dont use "-x".



And i have WIndows 8 on the other partition and when i run notebook without USBstick with iAtkos i see boot0: error.



Sorry about my english, I wasn't talking and writing in that language about a year and a half.



Thanks for any help!



Did you select nVidia>Disable nVidia when installing iATKOS ML2?

Which version are you on? (10.8.2 or 10.8.3)



1. Try setting your your graphic to "INTEGRATED" instead of "SWITCHABLE" in the BIOS.

2. If the previous step doesnt work, try booting with -f

3. If you can't boot with -f, use -v and post the screenshot.



---

boot0 error is an easy fix, put in a windows 8 DVD or USB

in the menu click more option>command prompt

type bootrec /Scan <---------this step is optional

bootrec /rebuildbcd

There are also many solutions out there on the internet regarding this issue, a quick google search will do.

Share this post


Link to post
Share on other sites

Thanks for the reply!

I've changed grpahic mode to integrated. Now i don't have this error but i still have freeze at boot with Apple logo... with -f too...

I've did -v and here's my photo.



https://dl.dropbox.c...51/DSC04981.JPG



It's 10.8.2



Hmm this is new. Here, try patching it. And make sure rebuild cache and repair permission

https://mega.co.nz/#!l5gyXLIQ!AyZj_w1PV5E1GwyUDt6nhFEJlccNVBqWd8MElGnQCQo

Share this post


Link to post
Share on other sites

Ok, i've installed this fix and everything works good! Except WiFi. Ethernet works. Any ideas how to repair wifi? I'm writing form ML 1.8.2 :) Thanks for help!

Share this post


Link to post
Share on other sites

Ok, i've installed this fix and everything works good! Except WiFi. Ethernet works. Any ideas how to repair wifi? I'm writing form ML 1.8.2 :) Thanks for help!



Good. Does your wifi work before the fix (when in safe mode)?

Normally wifi should work after iATKOS ML2 installation if you selected "Network" during setup.



Here is my kext, BACKUP YOURS FIRST: https://mega.co.nz/#...ZTQx8rrqt2-v2Bc



Also try hitting Fn + F3 a few times, see if you accidentally turn wifi off (wait 30 sec before press again)

It goes Wifi + No BT --> Wifi + BT --> No Wifi + BT --> No Wifi + No BT --> Wifi + No BT .....(similar to Windows)

Share this post


Link to post
Share on other sites

This don't help and i see that my osx dont see my battery (it was before try that kext). And in safe mode wifi wasn't working too.

Share this post


Link to post
Share on other sites

This don't help and i see that my osx dont see my battery (it was before try that kext). And in safe mode wifi wasn't working too.



Then restore your back up. What kind of wifi card do you have?

Share this post


Link to post
Share on other sites

I was gonna say, I had to replace my wifi card to a Atheros AR9285 ($7 on eBay) and now it works without any kexts. This was on a 5830TG

Just wondering, Before I install the Elan touchpad drivers, the os allows flawless tap-to-drag and works all with taps etc (no multi-touch) Then when I install the kext, I get multi-touch but cant tap-to-drag and any taps dont register, and clicks take about 3 secs to register :/ Any ideas?

Share this post


Link to post
Share on other sites

I was gonna say, I had to replace my wifi card to a Atheros AR9285 ($7 on eBay) and now it works without any kexts. This was on a 5830TG

Just wondering, Before I install the Elan touchpad drivers, the os allows flawless tap-to-drag and works all with taps etc (no multi-touch) Then when I install the kext, I get multi-touch but cant tap-to-drag and any taps dont register, and clicks take about 3 secs to register :/ Any ideas?



Yes, it is a trade off really. Personally, I would go for multi touch since it is more useful.

(The developer for this kext set it this way, there might be a value you could change in the plist)

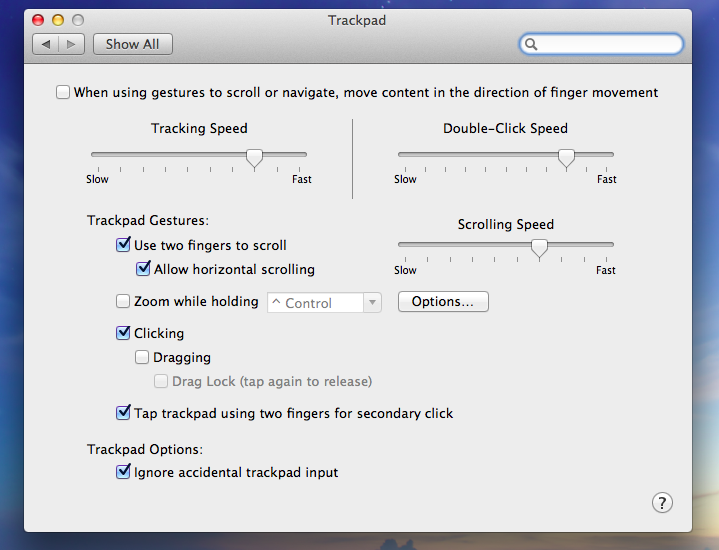

Select everything except "zoom while holding" in the Trackpad under settings.



Suggestions:

Install Mouse acceleration: http://triq.net/articles/mouse-acceleration-download

OR

Smooth Mouse(RECOMMEND): http://smoothmouse.com



Drag and Drop:

- Hold the physical left mouse button for a few sec to enable

- Tap on the trackpad for a few sec with one finger while applying a constant amount of pressure to enable



Troubleshoot:

If the curser is non-responsive, click and hold the RIGHT physical trackpad button for a few sec to reset. (might need to do this twice)



*Keep an eye on the official thread for ElanTech TrackPad Kext for future updates.

Share this post


Link to post
Share on other sites

Alright, I managed to find a fix somewhere in between, The multi-touch works now, And I installed SmootMouse and it helped a lot with the delay, not perfectly but still much better. Thanks for all your help on the guide though! :)

The smoothmouse also gives windows style acceleration and removes all the lag-feel! :D



-For you guys who are having problems with the Wifi, I presume Atheros AR8151 because thats what I had, I spent hours on end trying to fix it and nothing worked. It saves so much time to just change the card (plus its easy as!)

-For the boot problems, 1st I had boot0 error and reinstall fixed that, 2nd time round I had all the graphics errors, again a reinstall fixed that... and about the 5th time now everything works like a charm! :)

+1 Cheers for the kext pack, woulda been lost without it :)

Share this post


Link to post
Share on other sites

Alright, I managed to find a fix somewhere in between, The multi-touch works now, And I installed SmootMouse and it helped a lot with the delay, not perfectly but still much better. Thanks for all your help on the guide though! :)

The smoothmouse also gives windows style acceleration and removes all the lag-feel! :D



-For you guys who are having problems with the Wifi, I presume Atheros AR8151 because thats what I had, I spent hours on end trying to fix it and nothing worked. It saves so much time to just change the card (plus its easy as!)

-For the boot problems, 1st I had boot0 error and reinstall fixed that, 2nd time round I had all the graphics errors, again a reinstall fixed that... and about the 5th time now everything works like a charm! :)

+1 Cheers for the kext pack, woulda been lost without it :)



Glad I can help. Is there any difference between "like in Windows" and "Like in OSX"? I couldnt tell the difference.



For all 5830TG USERS

Yes, it turns out 4830TG and 5830TG have different wifi cards. There might be fixes out there, but purchase a wifi card would be less of a hassle as Negative suggested.

Share this post


Link to post
Share on other sites

So i must just buy another wifi card - thats better solution than no solution ;)

About battery issue, i've downloaded this kext ( http://www.osx86.net/downloads.php?do=file&id=3169) and works nice.

When i was using skype i noticed that my microphone don't works. Any solutions?

And i still have problem with booting without USBstick... I was trying with Win8 CD and by gparted in Ubuntu... and difference is that now i have "boot0: done"...



Except that everything works well and thanks for help.

Share this post


Link to post
Share on other sites

So i must just buy another wifi card - thats better solution than no solution ;)

About battery issue, i've downloaded this kext ( http://www.osx86.net...ile&id=3169) and works nice.

When i was using skype i noticed that my microphone don't works. Any solutions?

And i still have problem with booting without USBstick... I was trying with Win8 CD and by gparted in Ubuntu... and difference is that now i have "boot0: done"...



Except that everything works well and thanks for help.



I have never experienced mic issue on mine.

  • Open up skype>Preference>Audio/Video, you should see microphone settings. There should be only one choice (Built-in Microphone Internal mic).
  • Opening up Settings>Sounds>Input, and just leave the windows open (this fix is mainly for speaker not mic)
  • If still nothing, you need a new kext

Boot Error:

  • Download/Install EasyBCD on Windows: http://neosmart.net/EasyBCD/
  • Click on "Add New Entry" on the sidebar
  • Select "Mac" and change model to "MBR". then click "Add Entry"
  • Click on "Edit Boot Menu" on the sidebar
  • Make sure Windows is selected as default!! Feel free to change the wait time. REBOOT

Share this post


Link to post
Share on other sites

Funny story: I've changed in my router wireless mode in "only b" and wifi works! So at this moment everything works good on 5830TG except microphone.



Thanks for help and i'll write if i'll find solution for mic.

Share this post


Link to post
Share on other sites

Sorry about double post but i have new issue...



Yesterday i've installed fix for iMessage and this kext for USB 3.0. And after that i have problems with wake up after sleep... I've trying to wake up notebook after sleep twice and every time i hear that disk and fan is working but notebook isn't wake...and i must reboot. And when i booting i see "Incorrect image signature". Except that osx run and works good.

Share this post


Link to post
Share on other sites

hi,



my osx don't see battery too. how did you fix your problem? the link given above seems like down.

Share this post


Link to post
Share on other sites

hi,



my osx don't see battery too. how did you fix your problem? the link given above seems like down.



Go to Settings>Energy Saver. Make sure "Show battery status in menu bar" is checked.

Tell me more about your computer and detail of your problems so i can troubleshoot.

All links have been tested working.



Sorry about double post but i have new issue...



Yesterday i've installed fix for iMessage and this kext for USB 3.0. And after that i have problems with wake up after sleep... I've trying to wake up notebook after sleep twice and every time i hear that disk and fan is working but notebook isn't wake...and i must reboot. And when i booting i see "Incorrect image signature". Except that osx run and works good.



Yes, I was able to reproduce the issue. iMessage fix has nothing to do with it, it's all USB 3.0 kext's fault.

I am proactively looking for a fix, but in the mean time:

- Keep the kext, if you choose USB 3.0 function over sleep

- delete the kext, if you choose sleep over USB 3.0 (still able to charge devices)

Share this post


Link to post
Share on other sites

Go to Settings>Energy Saver. Make sure "Show battery status in menu bar" is checked.

Tell me more about your computer and detail of your problems so i can troubleshoot.

All links have been tested working.







Yes, I was able to reproduce the issue. iMessage fix has nothing to do with it, it's all USB 3.0 kext's fault.

I am proactively looking for a fix, but in the mean time:

- Keep the kext, if you choose USB 3.0 function over sleep

- delete the kext, if you choose sleep over USB 3.0 (still able to charge devices)



Hi,



First of all I would like to thank you, if you weren't here I was never get enough courage to install osx.



The link i was mentioning is the one tytbro mentioned before.



About battery issue, i've downloaded this kext ( http://www.osx86.net...ile&id=3169) and works nice.



My system:

ACER 4830TG

INTEL 2450M

NVIDIA GT540M (disabled)

INTEL HD3000

4GB DDR3 1333

640 GB HDD

Share this post


Link to post
Share on other sites

Hi,



First of all I would like to thank you, if you weren't here I was never get enough courage to install osx.



The link i was mentioning is the one tytbro mentioned before.







My system:

ACER 4830TG

INTEL 2450M

NVIDIA GT540M (disabled)

INTEL HD3000

4GB DDR3 1333

640 GB HDD



battery should already be working after all the patches.

Try VoodooBattery kext if it is still not showing up

Share this post


Link to post
Share on other sites

battery should already be working after all the patches.

Try VoodooBattery kext if it is still not showing up



voodoobattery fixed my battery problem thanks.



where can i find intel power gadget. it doesnt show up on the applications.

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By lukascaska
      Hello everyone, I just installed highsierra on my notebook with help by Maldon and Mirone.
      I have almost everything working, missing only a few details:
      - I think I have a lot of kexts i do not use
      - HDMI Audio not working
      - the screen turns black after sleep
      - boot takes more then a minute
      can anybody help me?

      folder with SendMe, Clover and IOREG: https://drive.google.com/drive/folders/1xPTVrHVL4Z_Dh3oeDMpQ7EQKHsigBWC2?usp=sharing

      hardware:
      i5-7200, hd620, 940mx, 8gb ram, 1TB
    • By rtke333
      Hi!

      Could anyone help me installing High Sierra on this system?
      I succesfully installed Sierra before on this system with help of Jake Lo (thanks!!), I just wondering if could High sierra possible to installed on this system?
      Boot stopped at this. I'll attach my Clover folder and a picture from boot.
      UEFI enabled, and for skylake I used IntelGraphicsDVMTfixup and IntelGraphicsFixup kexts. My bios is very limited and does not have any option to change dvmt prealloc or anything else.
      Everything works fine on Sierra.
      Here is my system:




      Acer Aspire V15 V5-591G-55TU

      (Note: Bootpack works fine with another versions of 591G, for example: V5-591G-71K2, -764Z, -59PU, etc.)

      Mobo: Skylake USOPP_SLS
      Bios: Insyde corp latest version
      CPU: Intel Core i5-6300HQ 2.30 GHz (Skylake)
      GPU: Geforce GTX 950M 2 GB (optimus, disabled), Intel HD 530
      Ram: 8 GB DDR4 (4+4 GB)
      Wifi: Qualcomm Atheros QCNFA344A, Replaced to BCM94352Z
      Ethernet: Realtek 8168B/8111B
      Audio: ALC 255 (layout-3 fix)
      Card Reader: Realtek
      HDD: 1 TB
      Dual-boot with Windows 10

      Any help appreciated!

      UPDATE! (2017.10.30)
      UPDATE! (2017.11.09)
      UPDATE! (2018.02.01)

      Successfully installed High Sierra 10.13, 10.13.1, 10.13.3
      SEE THIS POST: #49 IF YOU THINK YOUR CPU IS HOT (60+°C) OR NOT GOING UNDER 1.3GHz FREQUENCY WHEN IDLE
      (Original OSXLatitude post link: http://forum.osxlatitude.com/index.php?/topic/10077-success-acer-aspire-v-15-v5-591g-55tu-high-sierra-dual-boot-windows/)
      Working:
      Wi-Fi and Bluetooth with BCM94352z: (enabled with BrcmFirmwareRepo.kext, BrcmPatchRAM2, FakePCIID.kext, FakePCIID_Broadcom_WiFi.kext, install them with Kext Utility or another kext installer) (Original WiFi is Qualcomm Atheros, unsupported but BT works) Hand-off with BCM94352z Full Graphics enabled on HD 530, HDMI, VGA. ALC 255 Audio: (Internal Speakers, Internal Microphone, Headphone jack (microphone not tested) with layout-3 fix (you can use AppleHDAPatcher) Ethernet Realtek 8168B/8111B App Store, Messages, FaceTime, Siri, iCloud (native) Integrated webcam (native) 3.0 USB (native) Touchpad and Keyboard: Fn keys are good, the weird thing is the Brightness key. On my keyboard it's Pause Break:Br-up, Fn+F12:Br-dwn. (VoodoPS2Controller.kext) Battery info: Install ACPIBatteryManager.kext with kext utility or other installer. Sleep Mode: In High Sierra sleep mode not worked for me natively. Inject custom EDID to fix the blank screen after wake from sleep
      See here for instruction (thanks black.dragon74 and Jake Lo !!) Please add these 2 patches to ACPI\DSDT\Patches in your config.plist in order to avoid not responding applications after sleep: (added in "v5_591g_55tu_updated_CLOVER.zip") HECI to IMEI 48454349 494d4549 EC0 to EC 4543305f 45435f5f Before updating to a new version of High Sierra please update kexts to new versions to avoid kernel panics Note: No need for "IntelGraphicsDVMTFixup.kext" so you should delete it. Not working:
      Original Wi-Fi: Qualcomm Atheros QCNFA344A unsupported, you need switch to BCM94352Z or just use a mini usb wifi dongle. NVIDIA GTX 950M: Optimus not supported. Card Reader: Unsupported For WiFi:
      You can choose an external USB wifi dongle (I used tp-link Archer T1U (5GHz support), Tp-link have official macOS drivers, you just need to install it (OR)Replace your M.2 Qualcomm Card with a compatible BCM94352Z card (you will have hand-off Bluetooth too), just install the kext I wrote above I'll attach my EFI folder for anyone who want to install High Sierra (acer_aspire_v5_591g_55tu_hs.zip).
      *REUPLOADED updated CLOVER folder, attached as "v5_591g_55tu_updated_CLOVER.zip" (uploaded to OSXLatitude forum, can't upload here).

      I'm using High Sierra in Dual-boot with Windows 8.1. To do this in a clean install or with Windows installed first try my little minimal guide:

      Dual-boot clean install (on one drive):
      1. Boot into your Mac installer, Create 2 partitions in GUID table (1 for Win (I used FAT32 but I think it's no matter what), 1 for Mac),
      2. Install Mac, boot with your USB, *mount your EFI partition (use terminal or an EFI mounter app), create an EFI folder, copy the CLOVER folder I attached to the EFI folder, restart,
      3. Boot into your Win installer, Format the partition you created for Win, install.
      4. Now, it's automatically booting into Windows. To use Clover open cmd in administrator, type:
      bcdedit /set {bootmgr} path \EFI\CLOVER\CLOVERX64.efi 5. You're done! It will booting into Clover when you start the system, and you can select Win or Mac (or another OS if installed on a 3rd partition).

      Dual-boot with Windows installed first (on one drive):
      If you already have Windows and you don't want to lose all your data there is a hope:
      You need bootable Mac Installer and a full system restore image (you can search for it).
      (You may see errors if your EFI partition is not 200 MB)
      1. Boot into your Windows, resize your partition or create one for Mac.
      2. Boot into your Mac installer and in Disk Utility format the partition you created.
      3. Restore from image: select your full system restore image.
      4. When it's finished restoring you just need to restart, then boot to the system with your usb.
      5. Do Step 2. from "*" from clean install dual-boot above. but KEEP "Microsoft" FOLDER IN IT!
      6. Do Step 4. from clean install dual-boot above.
      7. You're done! You can select your old Windows and your new macOS!
      (I only tried with Windows 8/8.1/10. I don't know Windows 7,etc.)

      IF YOU GETTING ERRORS DURING MAC RESTORE:
      Make sure you have partitions in GPT The best version for restore method is Windows 8.1. It's using 200 MB EFI. Windows 10 using 100 MB EFI and will annoy the Mac restore. You can use with Windows 10, just ignore the errors IF YOU GETTING ERRORS DURING WINDOWS INSTALLATION (could not be formatted, etc):
      Make sure you have GPT partitions, and GPT installer IF YOU USED RESTORE METHOD THEN CAN'T MOUNT YOUR EFI PARTITION (No EFI partition found)
      It's because your EFI is not 200 MB or not an "Apple" original EFI,  but do not worry, try another EFI mounter, or mount from terminal (I used EFI mounter v3: Getting errors, but you can mount and use without problem) You also could "mount" the EFI from windows, for that open cmd and type: diskpart list vol (Now select the "System" volume,(FAT 32) For example I select 4) sel vol 4 list part (Select System type partition, for example 2) sel part 2 assign letter=b (This will "mount" your EFI partition, to manage files download totalcmd or explorer++ (run as admin)) remove letter=b (This will "unmount" your EFI) Here is a video from dual-boot with Windows installed first (on one drive):
      https://www.youtube.com/watch?v=0_Q8uPkwcWQ
      Here some pictures:




×
