Jief_Machak Posted October 23, 2020 Share Posted October 23, 2020 What's amazing is that you manage, by chance, to have a version that works. Unfortunately, we can't know how you compiled the commit 18038055ab4a089fdc081a30e03c0b7d21e95c00. Seems that your folder was updated. I understand for BS and MatchOS. I'm extremely puzzled that Mojave doesn't start when HS and BS can ! You didn't tell me the result if you "cd" in OpenCorePkg folder and do "git status" 2 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/964/#findComment-2741901 Share on other sites More sharing options...
Jief_Machak Posted October 23, 2020 Share Posted October 23, 2020 (edited) 1 hour ago, iCanaro said: anyway, for information, I've been testing back the Clover herehttps://github.com/jief666/CloverCommits until C-20201016100620-aee426f-5125.efi and no one starts mojaje me, indeed to be honest, I tested some of them also on BS and he does not start too. only by selecting configs with the matchos fields empty starts BS but mojave even so it still doesn't start I'm currently thinking that you compiled 18038055ab4a089fdc081a30e03c0b7d21e95c00, but with a different version of underlying OpenCore. That's why I asked for "git status" in OpenCorePkg. In short, did we introduce something in OC that break Mojave boot ? Seeing the modification we made in OC (almost nothing), it seems very unlikely, but who knows ? The other solution is what I've said : go back in time to find something that works. This one doesn't work either : https://github.com/jief666/CloverCommits/blob/master/C-20201012150600-d2bec9b-5124.efi ? Edited October 23, 2020 by Jief_Machak Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/964/#findComment-2741903 Share on other sites More sharing options...

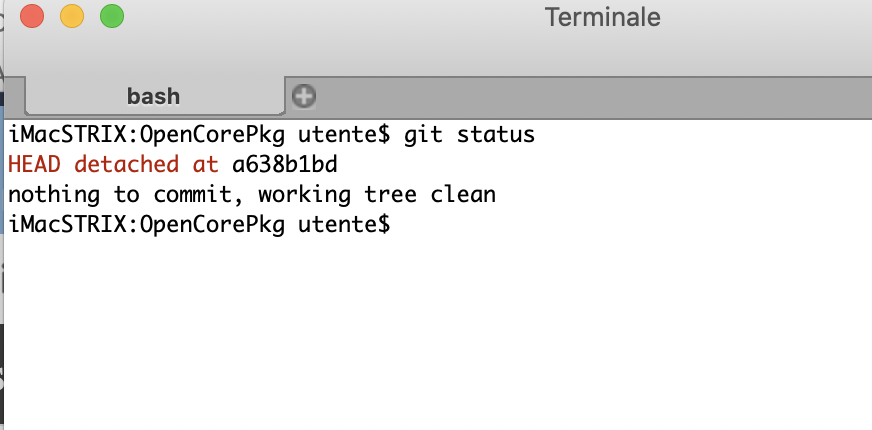

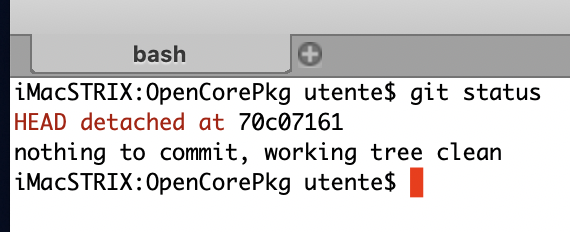

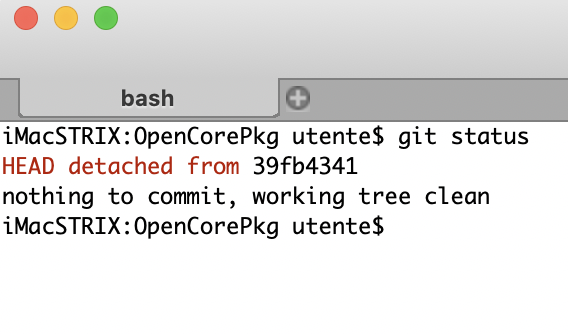

iCanaro Posted October 23, 2020 Share Posted October 23, 2020 1 hour ago, Jief_Machak said: ou didn't tell me the result if you "cd" in OpenCorePkg folder and do "git status" 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/964/#findComment-2741906 Share on other sites More sharing options...
Jief_Machak Posted October 23, 2020 Share Posted October 23, 2020 (edited) 7 minutes ago, mifjpn said: Did you change the buildme for us at the time of writing like this? I've changed it 5 minutes ago ! Looks like you are up to date. Good. Edited October 23, 2020 by Jief_Machak 1 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/964/#findComment-2741907 Share on other sites More sharing options...
Jief_Machak Posted October 23, 2020 Share Posted October 23, 2020 @mifjpn You are up to date. Seems fine. With @iCanaro we are in combination of 2 problems. So, please @iCanaro do not update anything yet. @iCanaro Could you try this : CloverX64-DEBUG_XCODE8-20201021172059-1803805-dirty.zip 1 2 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/964/#findComment-2741909 Share on other sites More sharing options...
iCanaro Posted October 23, 2020 Share Posted October 23, 2020 18 minutes ago, Jief_Machak said: @mifjpn You are up to date. Seems fine. With @iCanaro we are in combination of 2 problems. So, please @iCanaro do not update anything yet. @iCanaro Could you try this : CloverX64-DEBUG_XCODE8-20201021172059-1803805-dirty.zip it seems to me that for the X570 you have exactly understood the situation, now with this commit of Clover I start correctly with the same config, mojave, catalina and big sur Good! CloverX64-DEBUG_XCODE8-20201021172059-1803805-dirty.efi_MOJ_OK_debug.log CloverX64-DEBUG_XCODE8-20201021172059-1803805-dirty.efi_CATA_OK_debug.log CloverX64-DEBUG_XCODE8-20201021172059-1803805-dirty.efi_BS_OK_debug.log 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/964/#findComment-2741910 Share on other sites More sharing options...
Jief_Machak Posted October 23, 2020 Share Posted October 23, 2020 Yes, it was a subtle one. But it's finished (at least for me). Send me your config.plist. I'll need the exact list to find which one is creating the problem. Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/964/#findComment-2741911 Share on other sites More sharing options...
iCanaro Posted October 23, 2020 Share Posted October 23, 2020 5 minutes ago, Jief_Machak said: Yes, it was a subtle one. But it's finished (at least for me). Send me your config.plist. I'll need the exact list to find which one is creating the problem. here it is, just cleaned up by serials config-X570_iCan.plist Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/964/#findComment-2741912 Share on other sites More sharing options...
SavageAUS Posted October 23, 2020 Share Posted October 23, 2020 I’ll try update Clover and my config with matchOS on my X570 tomorrow and post results. Should I use this : CloverX64-DEBUG_XCODE8-20201021172059-1803805-dirty.zip or pull from master? Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/964/#findComment-2741913 Share on other sites More sharing options...
Jief_Machak Posted October 23, 2020 Share Posted October 23, 2020 3 minutes ago, SavageAUS said: I’ll try update Clover and my config with matchOS on my X570 tomorrow and post results. Should I use this : CloverX64-DEBUG_XCODE8-20201021172059-1803805-dirty.zip or pull from master? Just wait. I've where is the "something". No need for more test yet. I'll tell you here. 2 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/964/#findComment-2741914 Share on other sites More sharing options...
Jief_Machak Posted October 23, 2020 Share Posted October 23, 2020 @iCanaro : Could you send me "/System/Library/PrelinkedKernels/prelinkedkernel" from your mojave partition ? 2 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/964/#findComment-2741915 Share on other sites More sharing options...
iCanaro Posted October 23, 2020 Share Posted October 23, 2020 5 minutes ago, Jief_Machak said: @iCanaro : Could you send me "/System/Library/PrelinkedKernels/prelinkedkernel" from your mojave partition ? here https://mega.nz/file/nrwC0QgT#8frmcinmvmaRdmWTEtIcaDutNmAn15mtl7TzKXxdu1I Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/964/#findComment-2741916 Share on other sites More sharing options...
Jief_Machak Posted October 23, 2020 Share Posted October 23, 2020 @iCanaro Could this CloverX64-2020-10-23-21-10-05-e4e57cb-dirty-jief.zip start Mojave ? Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/964/#findComment-2741925 Share on other sites More sharing options...
iCanaro Posted October 23, 2020 Share Posted October 23, 2020 (edited) 30 minutes ago, Jief_Machak said: @iCanaro Could this CloverX64-2020-10-23-21-10-05-e4e57cb-dirty-jief.zip start Mojave ? i didn't try catalina but this build of clover starts bigsur and mojave CloverX64-2020-10-23-21-10-05-e4e57cb-dirty-jief_MOJ_OK_debug.log CloverX64-2020-10-23-21-10-05-e4e57cb-dirty-jief_BS_OK_debug.log PS: CloverX64-2020-10-23-21-10-05-e4e57cb-dirty-jief_CATA_OK_debug.log Edited October 23, 2020 by iCanaro Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/964/#findComment-2741927 Share on other sites More sharing options...
Jief_Machak Posted October 23, 2020 Share Posted October 23, 2020 @iCanaro @SavageAUS last commit is supposed to work. @PG7 I've sent you a PM, few hours ago. We can fix the bug you found, if you'd like. BTW, in this last commit, I've added --recurse-submodules in buildme, so the update should work. Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/964/#findComment-2741934 Share on other sites More sharing options...
iCanaro Posted October 23, 2020 Share Posted October 23, 2020 20 minutes ago, Jief_Machak said: last commit is supposed to work. I compiled Clover with this commit, and tested it on the X570 AMD https://github.com/CloverHackyColor/CloverBootloader/commit/d540f76b5469ed24d4a8a650645854355e166c7f Mojave OK Catalina OK BigSur OK later, crossing my fingers and text also on high sierra and in all my other hacks Jief 1 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/964/#findComment-2741936 Share on other sites More sharing options...
Jief_Machak Posted October 23, 2020 Share Posted October 23, 2020 @iCanaro Thanks for all the tests, and for helping Clover community. It really help that you agree to boot 20 times a day to help me find a bug I can't create on my hardware. So thanks to yan man. 4 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/964/#findComment-2741937 Share on other sites More sharing options...

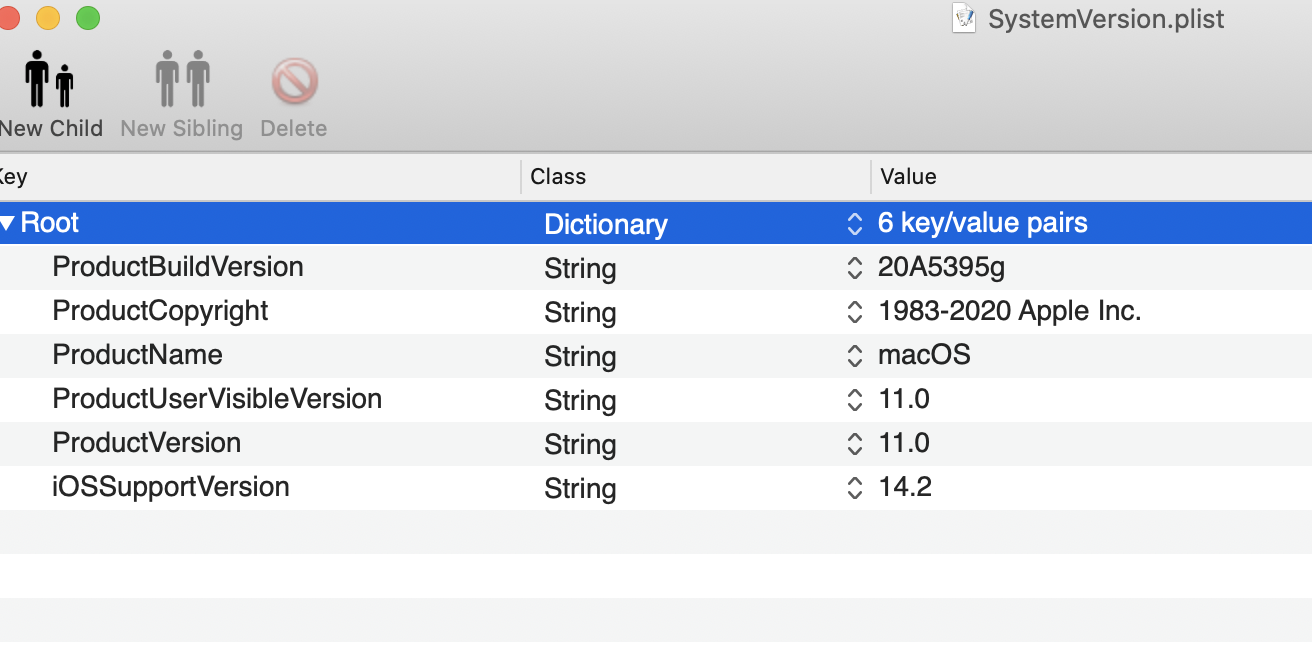

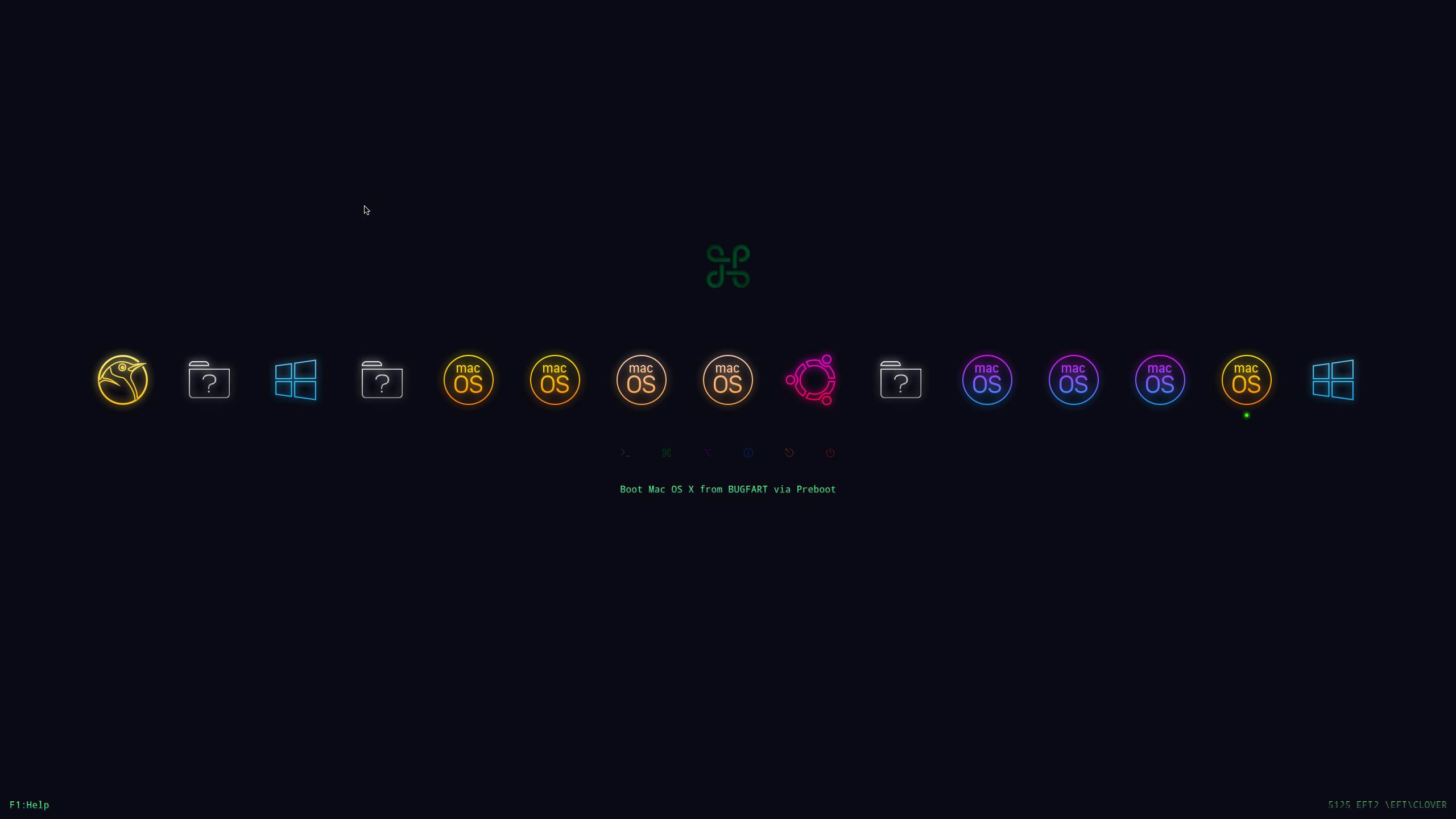

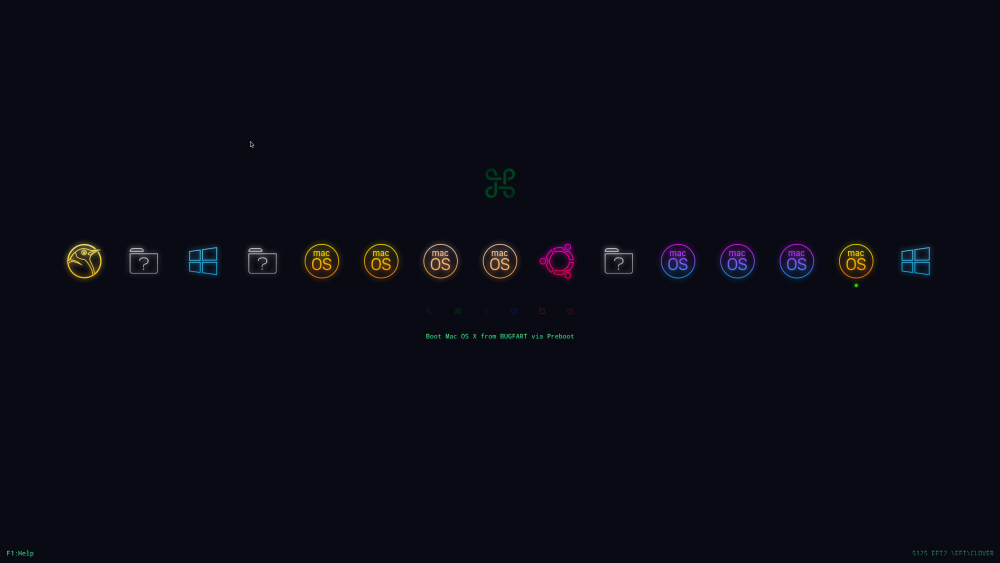

iCanaro Posted October 23, 2020 Share Posted October 23, 2020 (edited) he did it again @Jief_Machak on the Z370 last I tried high sierra and apart from going into kernel panic, on rebooting I found myself in the BigSur GUI with the high sierra icon. Spoiler I started catalina and mounted the BS preboot and in fact in 4EA0011C-1C8B-476D-BD5D-1AE8F7648F64/ System / Library / CoreServices / SystemVersion.plist then inside there were high sierra values i'll leave the log debugging of the attempted high sierra startup Z370_5125 (master, commit d540f76b5) high_sierra_NOK_debug.log the version of clover that I compiled (in case it depends on some compilation error) CLOVERX64_5125_d540f76b5.efi.zip then if you need anything else to understand this strange and annoying problem Edited October 23, 2020 by iCanaro Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/964/#findComment-2741940 Share on other sites More sharing options...
Jief_Machak Posted October 23, 2020 Share Posted October 23, 2020 @iCanaro To fix HS panic, do you have a backup folder with a working Clover ? (always always the same, I want to go back where it was working) The system version.plist you're showing is BS, not HS value (ProductVersion=11.0). So looks good. TIP : you can press space bar to get UUID information about a partition. In case of a preboot, you'll see a line about a target UUID. This will be the name of the folder on Preboot. Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/964/#findComment-2741942 Share on other sites More sharing options...
iCanaro Posted October 23, 2020 Share Posted October 23, 2020 I restored the SystemVersion.plist and BS started working properly again i tried several times to start high sierra with CloverX64-2020-10-23-21-10-05-e4e57cb-dirty-jief but beyond KP, other damage doesn't, so I assume that the problem arises from the version I fill out. What steps do I need to take now to get a compiled version of Clover without any hassle? 13 minutes ago, Jief_Machak said: The system version.plist you're showing is BS, not HS value (ProductVersion=11.0). So looks good. ops between the different things I was doing, I got the plist wrong for the screenshot and put the picture of what I restored 15 minutes ago, Jief_Machak said: To fix HS panic, do you have a backup folder with a working Clover ? (always always the same, I want to go back where it was working) high sierra I never use it, it's just there for testing, I find it strange that only he goes into kernel panic and not mojave, catalina and bigsur You have another EFI with Clover, version 5122 where high sierra starts regularly, serves log debugging with a boot from this Clover?! I am very concerned to solve the problem of compilation, since I also move on to other these Clovers, I would not like to generate problems on other hacks Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/964/#findComment-2741943 Share on other sites More sharing options...
iCanaro Posted October 23, 2020 Share Posted October 23, 2020 PS: here's the high sierra log debugging started with another EFI where I have Clover 5122 with integrated the first step of the quirks Z370_5122 (master, commit f4e10b1a2) _HS_OK_debug.log Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/964/#findComment-2741945 Share on other sites More sharing options...
Jief_Machak Posted October 23, 2020 Share Posted October 23, 2020 12 minutes ago, iCanaro said: PS: here's the high sierra log debugging started with another EFI where I have Clover 5122 with integrated the first step of the quirks Z370_5122 (master, commit f4e10b1a2) _HS_OK_debug.log If you put a 5124 in that EFI, does it start ? Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/964/#findComment-2741948 Share on other sites More sharing options...
iCanaro Posted October 23, 2020 Share Posted October 23, 2020 12 minutes ago, Jief_Machak said: If you put a 5124 in that EFI, does it start ? i try and then i mean I checked the kext well for 10.13 which were not ok, now they should be OK, I put the same of mojave, but always Kernel Panic 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/964/#findComment-2741949 Share on other sites More sharing options...
iCanaro Posted October 23, 2020 Share Posted October 23, 2020 @Jief_Machak I tried CLOVERX64-5124-c7c079e0f.efi but I always got KP [this is the Clover Test Development EFI] Z370_CLOVERX64-5124-c7c079e0f.efi_HS_NOK_debug.log 36 minutes ago, Jief_Machak said: 59 minutes ago, iCanaro said: PS: here's the high sierra log debugging started with another EFI where I have Clover 5122 with integrated the first step of the quirks Z370_5122 (master, commit f4e10b1a2) _HS_OK_debug.log If you put a 5124 in that EFI, does it start ? in the other EFI [stable] where I have Clover 5122, with this CLOVERX64-5124-c7c079e0f.efi always kernel panic PS: I upgraded XCODE to version 12.1 GM Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/964/#findComment-2741950 Share on other sites More sharing options...

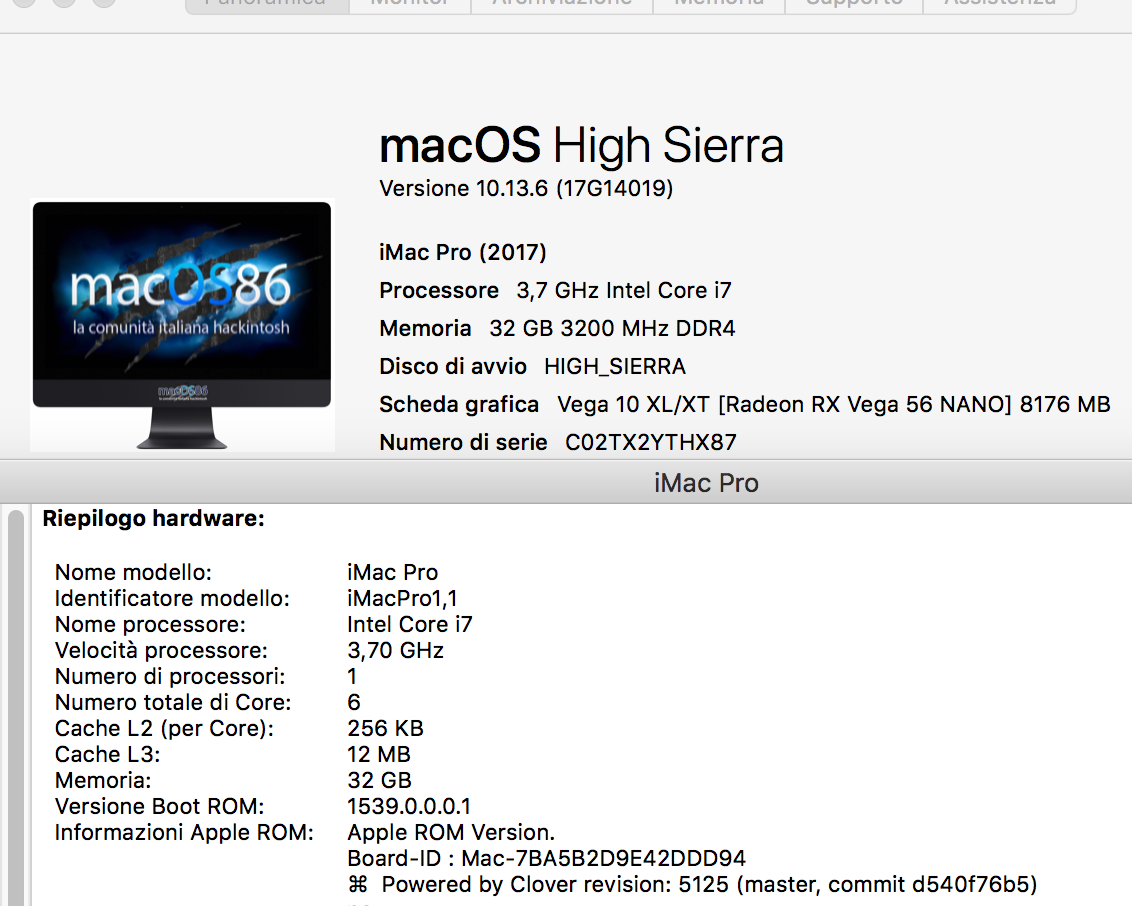

iCanaro Posted October 23, 2020 Share Posted October 23, 2020 (edited) FIXED High Sierra Z370 hack . Z370_5125 (master, commit d540f76b5)_HS_OK_debug.log ok well I think I fixed the compilation problems, I started and started HS leaving the kexts in EFI to the bare minimum (evidently there was one of those taken away that caused KP) using a Clover that I compiled CLOVERX64--5125--d540f76b5.efi.zip Edited October 23, 2020 by iCanaro 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/964/#findComment-2741952 Share on other sites More sharing options...
