terrorgen Posted October 30, 2012 Author Share Posted October 30, 2012 The connectors, cables and the board all arrived today. What a good timing! I spent the whole night trying to put them together... Man that frankencable is just too hard to solder! I am just thinking to revert to the second draft with smaller holes... Link to comment Share on other sites More sharing options...
PromoMotion Posted October 31, 2012 Share Posted October 31, 2012 I am interested in one... Will this work with a full size ATX mobo? Just received a donor G5, and starting to research the best way to do the conversion. Sounds like a great option terrorgen! Link to comment Share on other sites More sharing options...

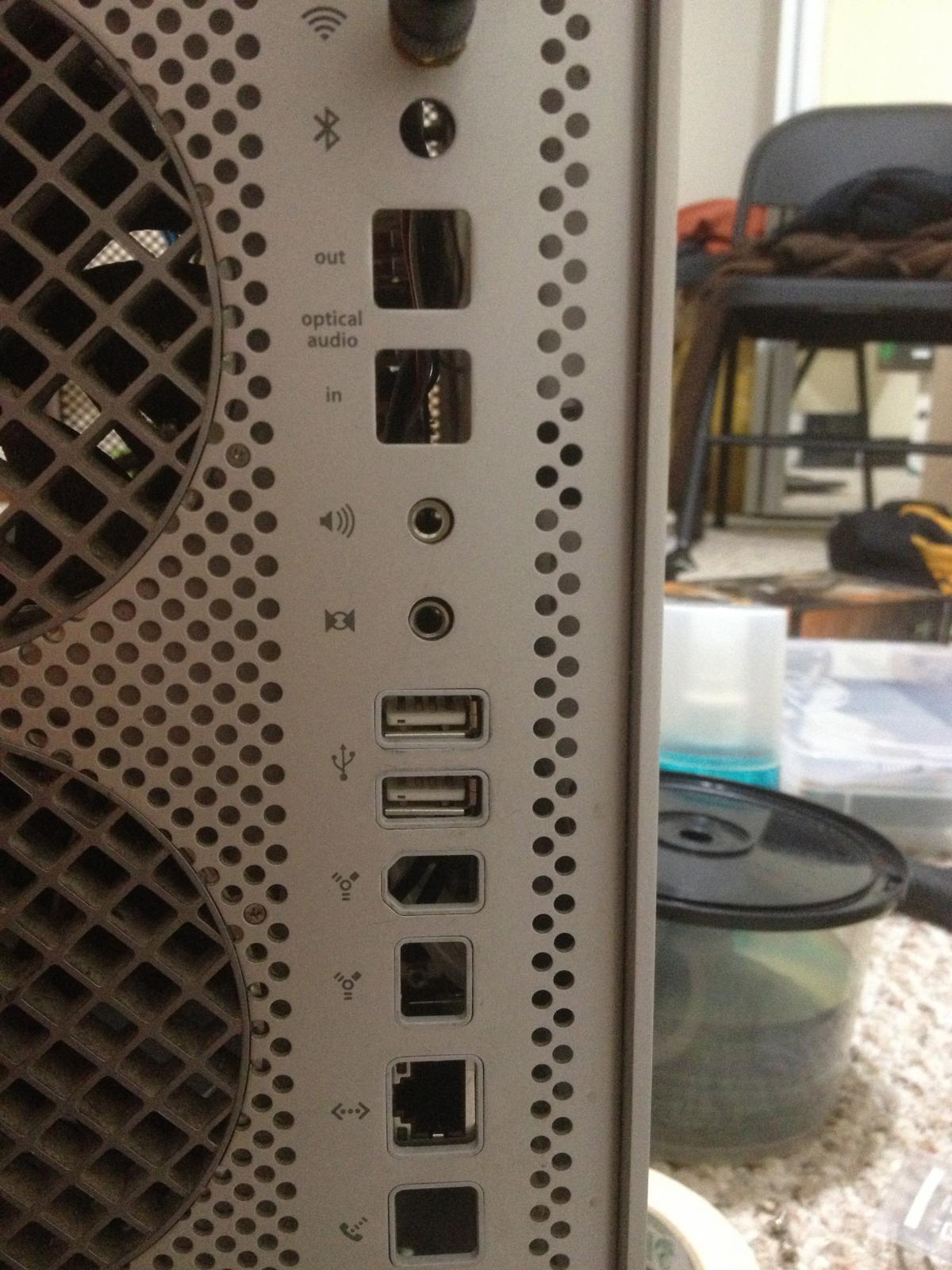

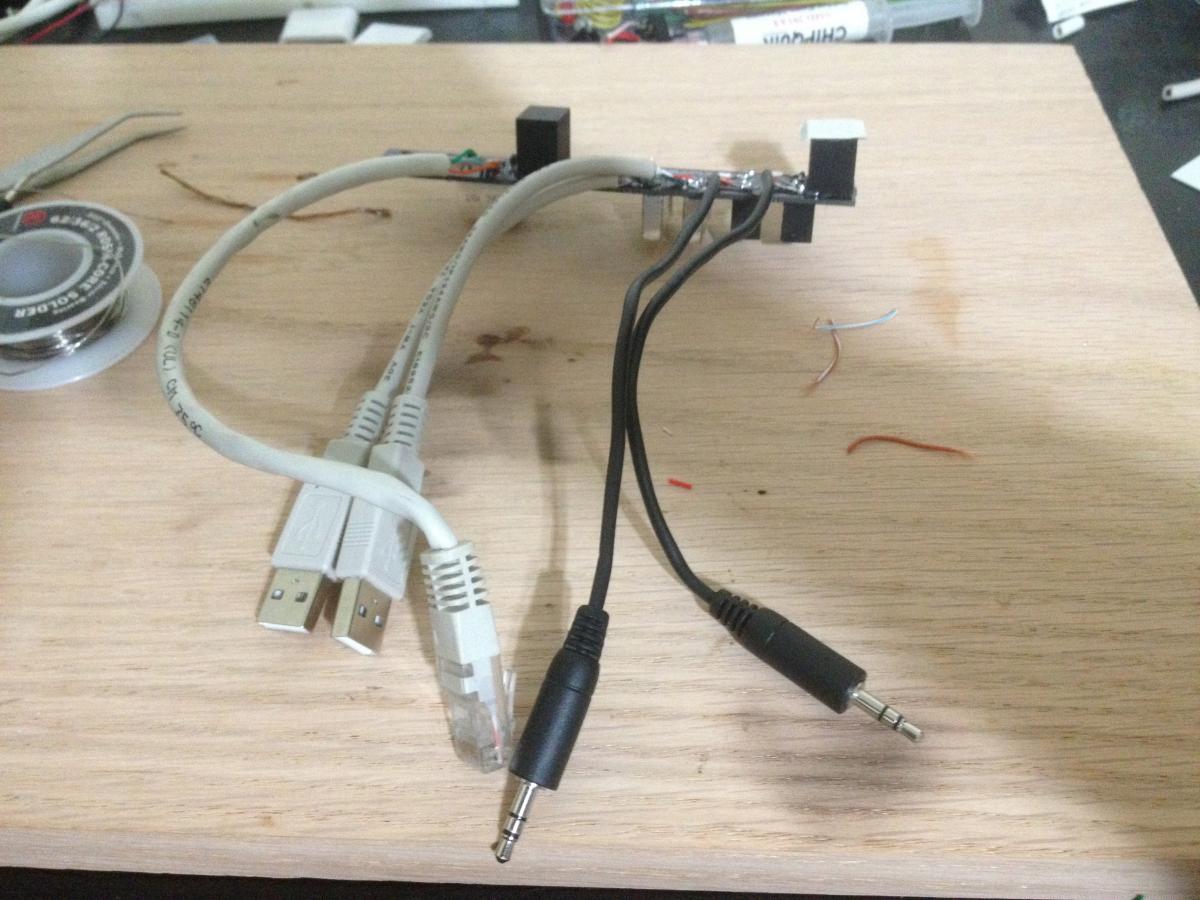

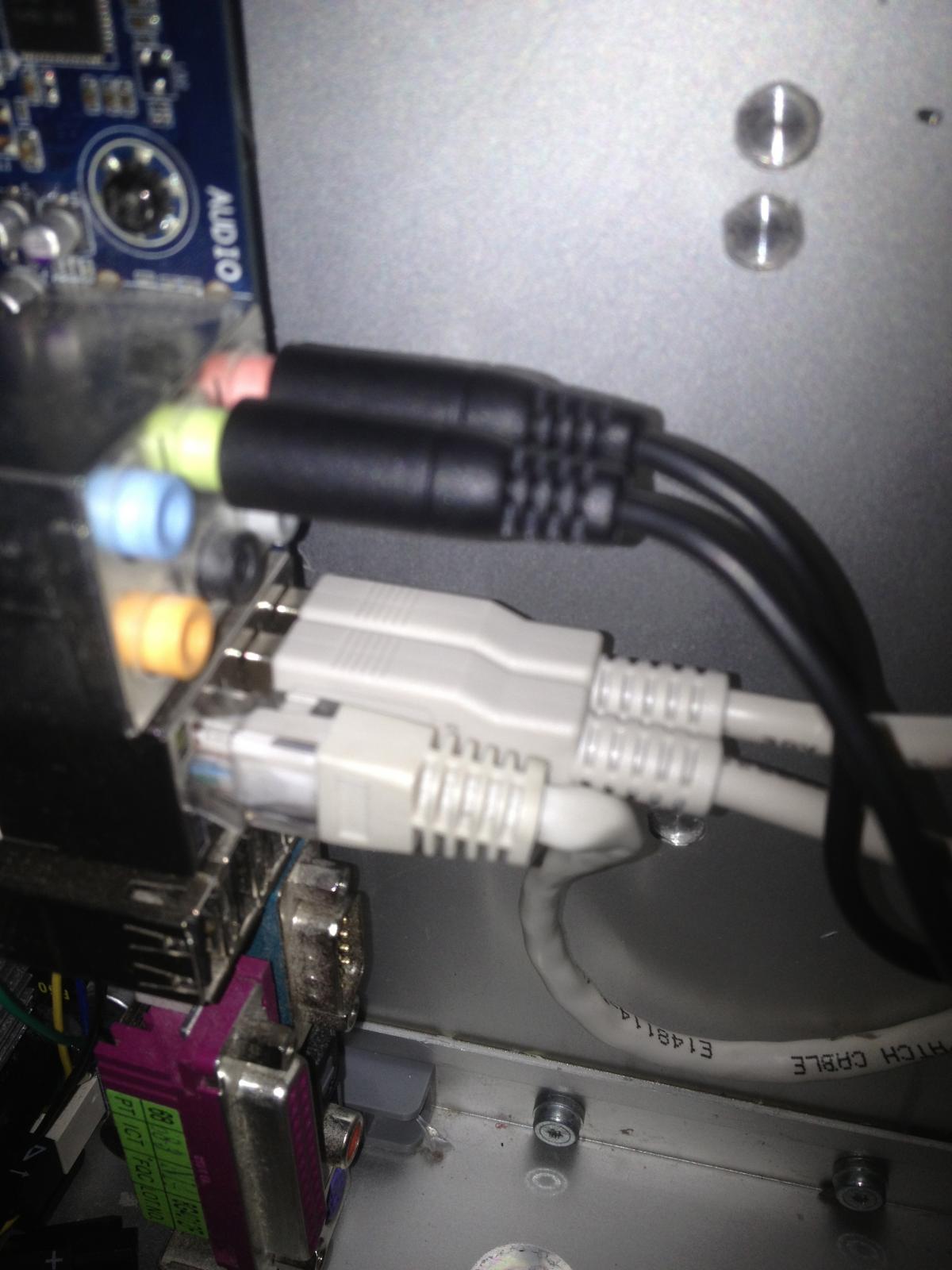

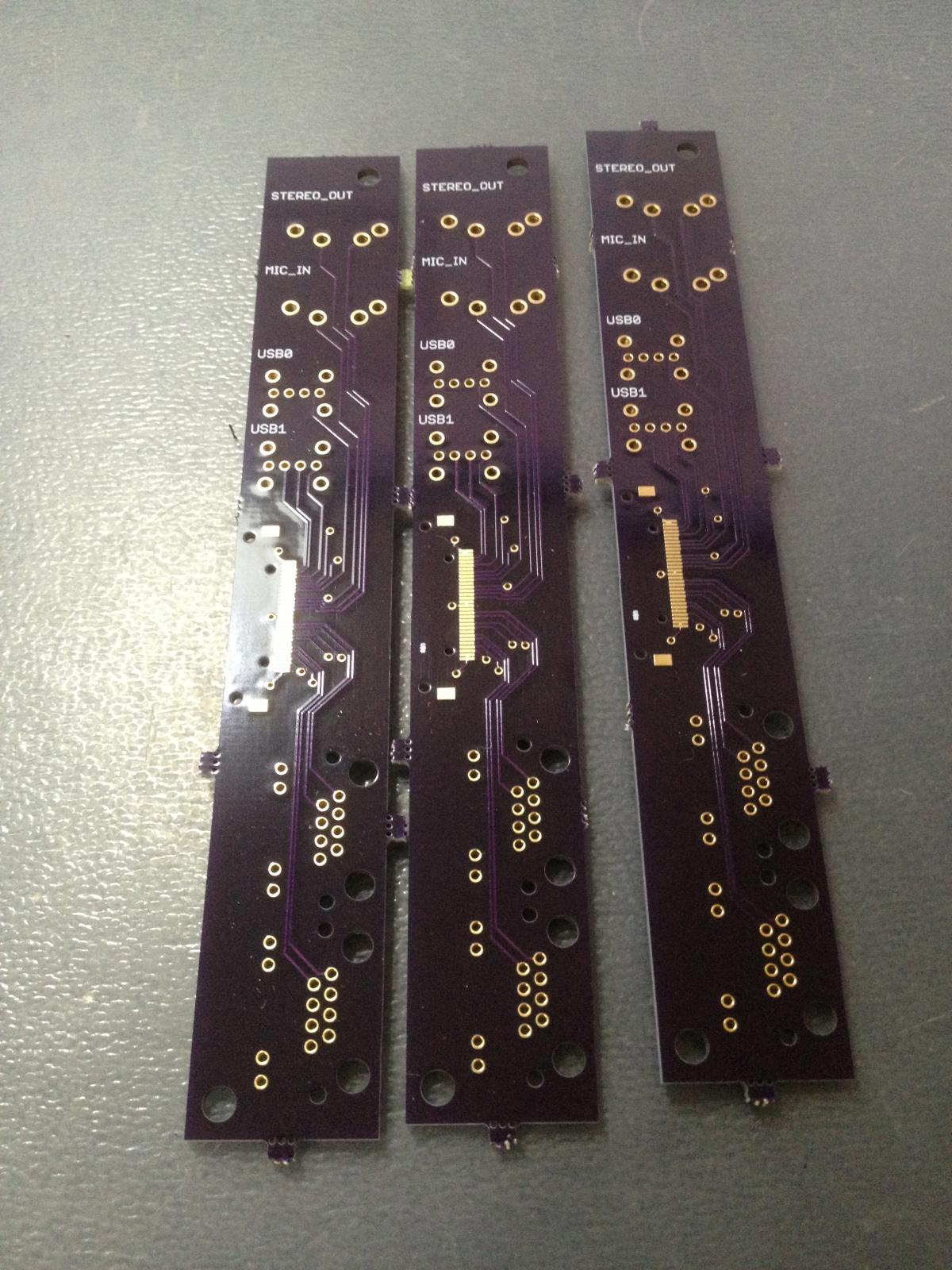

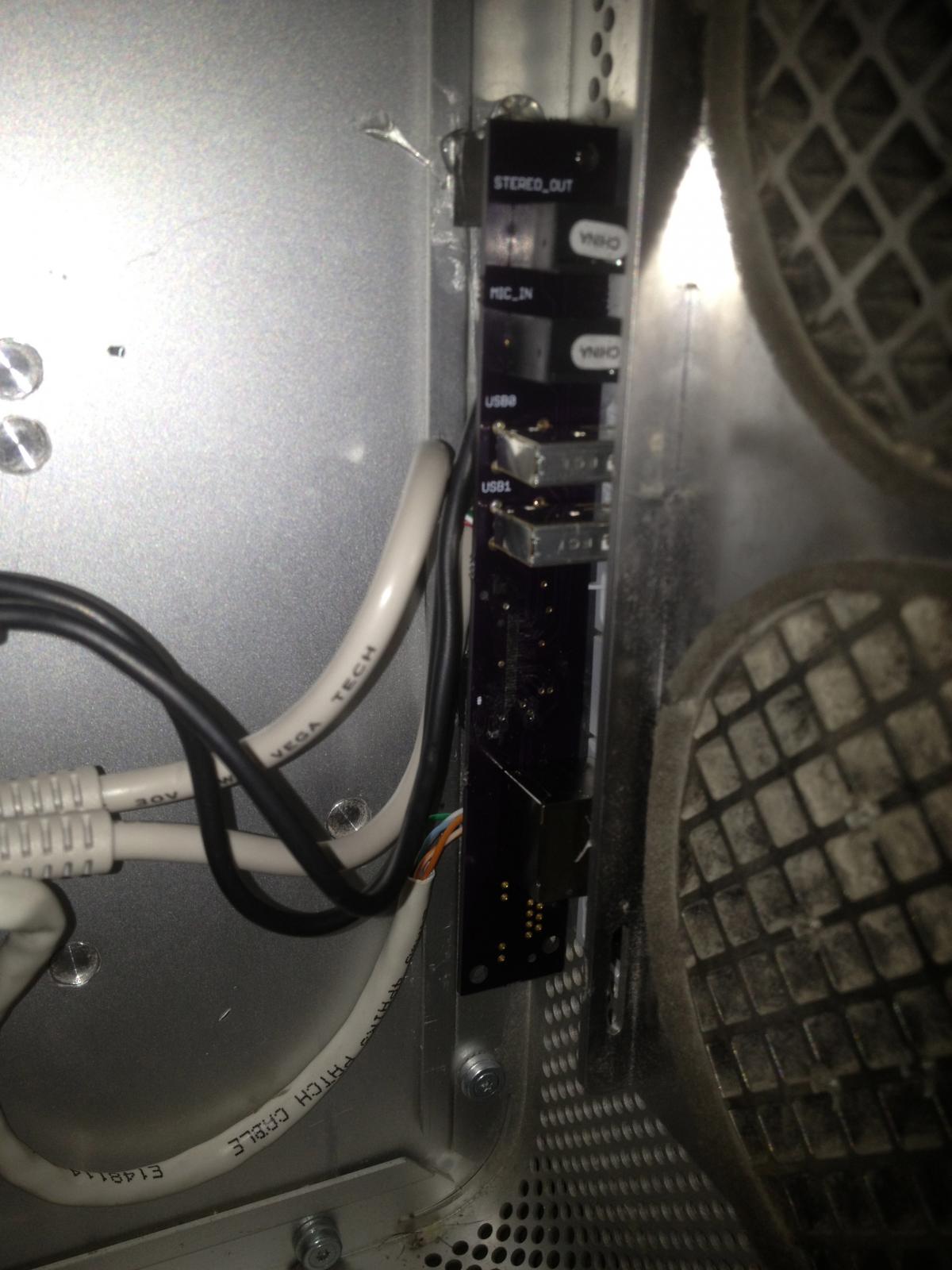

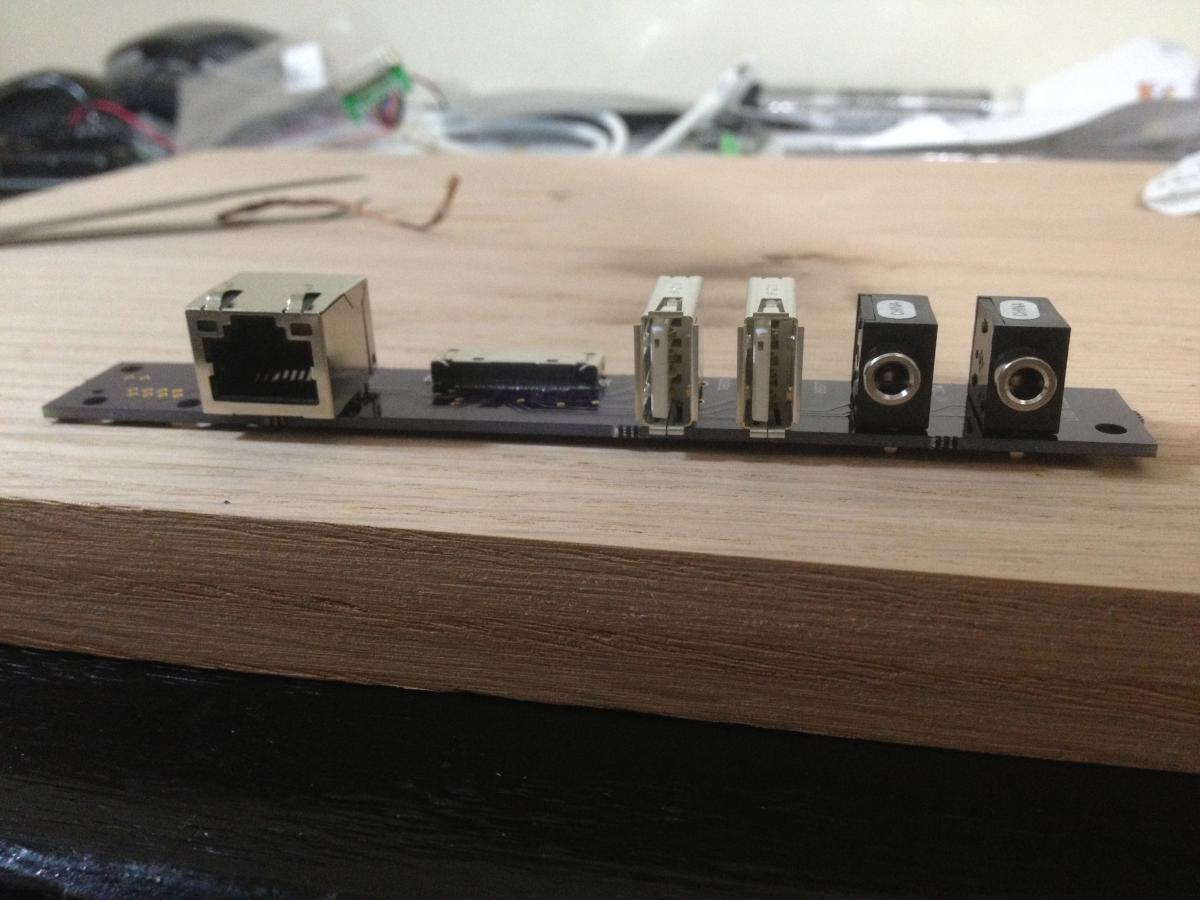

terrorgen Posted November 1, 2012 Author Share Posted November 1, 2012 Picture time! The bare boards... for some reason purple and gold just look so good in my eyes... This is how it look assembled with the ports. I removed the iPod connector hours later after tired of soldering the frankencable. So I decided to solder the cables directly to the board... Final result: Mounting the board to the case! It doesn't take too much space as you can see... Plugging in the cables to their respective ports on the motherboard. How the ports look from the rear. Well the audio jacks should be placed a little more forward. So, looks like a second build is inevitable... I am interested in one... Will this work with a full size ATX mobo? Just received a donor G5, and starting to research the best way to do the conversion. Sounds like a great option terrorgen! As long as your mobo has two audio jacks, two USB ports and one Ethernet jack this will work! Added you to the list 1 Link to comment Share on other sites More sharing options...
Mr.D. Posted November 1, 2012 Share Posted November 1, 2012 are YOU soldering the components onto the board or are those just engineering samples that are bare in the first picture? Link to comment Share on other sites More sharing options...
terrorgen Posted November 1, 2012 Author Share Posted November 1, 2012 I would say specimen is a better word to describe them... And yeah I soldered the ports to the board. Link to comment Share on other sites More sharing options...
Mr.D. Posted November 1, 2012 Share Posted November 1, 2012 I would say specimen is a better word to describe them... OK, are YOU soldering the components onto the board or are those just specimens that are bare in the first picture? Link to comment Share on other sites More sharing options...
terrorgen Posted November 1, 2012 Author Share Posted November 1, 2012 I am still not understanding your question... Lol but for the first part of the question... Yeah I soldered the connectors myself. Link to comment Share on other sites More sharing options...
Mr.D. Posted November 1, 2012 Share Posted November 1, 2012 That is what I was wondering. Thank you! Link to comment Share on other sites More sharing options...
terrorgen Posted November 2, 2012 Author Share Posted November 2, 2012 I decide to eliminate the second Ethernet jack. That make things easier and the cost will be down to $40 plus shipping. If you need the second Ethernet jack though, I can still make it for you with the previously stated $50 plus shipping. Link to comment Share on other sites More sharing options...
I-Heine-I Posted November 5, 2012 Share Posted November 5, 2012 definitely interested in the single-ethernet version! Count me in :wink2: Link to comment Share on other sites More sharing options...
PromoMotion Posted November 6, 2012 Share Posted November 6, 2012 Nice work! Looks great! I certainly don't need a 2nd ethernet port... One will do just fine, and the new price sounds perfect. Link to comment Share on other sites More sharing options...
I-Heine-I Posted November 6, 2012 Share Posted November 6, 2012 Hi! Is it possible that you can specify how one should mount the board to the case? Will the board be attached to the back of the case with screws? Tnx! Link to comment Share on other sites More sharing options...
Vpr99 Posted November 8, 2012 Share Posted November 8, 2012 I'd also love one of these when you make them... sign me up! Also, I've got a quick beginner's question for you: I'm going to be building up a G5 with a Gigabyte Z77X-UD5H and an EVGA GTX 670. From what I've that others have done, I like the idea of putting the motherboard near the back of the case, so that the GPU can be in its normal place (like gouedi did here). However, this leaves the rear I/O panel very, very close to the I/O panel on the motherboard. What would you suggest as an alternative connection for the GPU, or a way to better position things? zammykoo's method here is ok, but looks a little bit funky. Thoughts? Thanks in advance! Link to comment Share on other sites More sharing options...
terrorgen Posted November 9, 2012 Author Share Posted November 9, 2012 Hi! Is it possible that you can specify how one should mount the board to the case? Will the board be attached to the back of the case with screws? Tnx! You will need some sort of spacer like foam or a standoff. The Powermac standoff works well I think. Haven't tried. I'd also love one of these when you make them... sign me up! Also, I've got a quick beginner's question for you: I'm going to be building up a G5 with a Gigabyte Z77X-UD5H and an EVGA GTX 670. From what I've that others have done, I like the idea of putting the motherboard near the back of the case, so that the GPU can be in its normal place (like gouedi did here). However, this leaves the rear I/O panel very, very close to the I/O panel on the motherboard. What would you suggest as an alternative connection for the GPU, or a way to better position things? zammykoo's method here is ok, but looks a little bit funky. Thoughts? Thanks in advance! Which one do you need? The One Ethernet version or the Two Ethernet version? I did the way Zammykoo did, but without the PSU cover. I placed my PSU on the narrower side of the rectangle... (I don't know how to describe the position... LOL) Link to comment Share on other sites More sharing options...
Vpr99 Posted November 9, 2012 Share Posted November 9, 2012 Single ethernet would be awesome. Gotcha on the positioning thing. I'll just try to find some pretty and low-profile DVI cables. For the actual connection to the back of the case (this part), did you buy the connector? If so, where would you get one for the 670, or did you fabricate it yourself? If it isn't too much trouble, could you take a picture of yours? Link to comment Share on other sites More sharing options...
terrorgen Posted November 12, 2012 Author Share Posted November 12, 2012 I bought a 6in DVI male-to-female cable on ebay as well as the extra PCI bracket. You could take apart the PCI bracket from the graphics card instead. There is only one seller selling a 6in DVI cable on eBay with a reasonable price ($5.50). I am still figuring out how to fit the female end through the PCI bracket. The two sockets on either side of the DVI plug are not screw-ins like the DVI connector on the graphics card - Removing them wrecks the connector (still functionally works though). Link to comment Share on other sites More sharing options...
Vpr99 Posted November 16, 2012 Share Posted November 16, 2012 Gotcha. I think that's how I'll send up doing it. Just out of curiosity, what is your time frame for the cables to be completed and shipped? I'm in no rush (not building for a few months), but I'd like to know so I can plan ahead. Link to comment Share on other sites More sharing options...
terrorgen Posted November 17, 2012 Author Share Posted November 17, 2012 I am thinking maybe end of December/early January. 1 Link to comment Share on other sites More sharing options...
Vpr99 Posted November 17, 2012 Share Posted November 17, 2012 That works great. Thanks a bunch for doing these! Since I'm soldering-retarded, I wasn't looking forward to having to fab my own back panel. Link to comment Share on other sites More sharing options...
Kolki Posted November 25, 2012 Share Posted November 25, 2012 I'm interested in one (One Ethernet Jack). Sign me up please. Thanks Link to comment Share on other sites More sharing options...
matice Posted November 26, 2012 Share Posted November 26, 2012 so the board lets you mod the g5 case without cutting the rear,doesn't it? is it good for a micro atx mb? sorry I'm very noob to this. I have a spare g5 case and I'm trying to build an hackintosh with it without cutting anything Link to comment Share on other sites More sharing options...
terrorgen Posted November 26, 2012 Author Share Posted November 26, 2012 Does your mb have 2 USB ports, 1 line out, 1 mic in and 1 Ethernet jack? If it does then this will work. Link to comment Share on other sites More sharing options...
matice Posted November 26, 2012 Share Posted November 26, 2012 Does your mb have 2 USB ports, 1 line out, 1 mic in and 1 Ethernet jack? If it does then this will work. I still have to buy my mb. it will be one of these: GA-Z77-DS3H GA-H77-DS3H moreover this is a pic of the back of my g5. can I use this i/o board with it? http://img20.imagesh.../dsc0011hsr.jpg Link to comment Share on other sites More sharing options...
Vpr99 Posted November 28, 2012 Share Posted November 28, 2012 I still have to buy my mb. it will be one of these: GA-Z77-DS3H GA-H77-DS3H moreover this is a pic of the back of my g5. can I use this i/o board with it? http://img20.imagesh.../dsc0011hsr.jpg Both of those will work fine. Your back panel is identical to mine, so you should be good. Link to comment Share on other sites More sharing options...
enjoyfebruary Posted November 28, 2012 Share Posted November 28, 2012 Good idea! I wonder how good the audio quality is for a USB base sound card though... For myself, I would rather plug my speakers into my motherboard built in soundcard. Also we could consider thunderbolt in the future as well. The CM108 runs the front audio on the Mac Pros. I'm sure it sounds good enough. Link to comment Share on other sites More sharing options...
