ATI 4570 - QE/CI enabled | Full Res | Dell Studio 1555 | Lion 10.7.2 ! (Need some Help too)

19 posts in this topic

Recommended Posts

Hi all ! I have been able to activate QE/CI in my Dell Studio 1555. [ my laptop's screen resolution is 1366 x 768 ]






My Cinebench benchmark score:

CORES = 2
LOGICALCORES = 1
MHZ = 2194.000000
PROCESSOR = Intel Core 2 Duo CPU T6600
OPENGLVENDOR = ATI Technologies Inc.
OPENGLCARD = ATI Radeon HD 4570 OpenGL Engine
OPENGLVERSION = 2.1 ATI-7.12.9
CBTYPE = 64 BIT
OSVERSION = OS X 10.7.2
CBCPU1 = 0.333157
CBCPUX = 0.524710
CBOPENGL = 10.686460
CBOPENGLQUALITY = 99.283073
C4DINFO =
C4DVERSION = 11.529
C4DBUILDID = CB25720demo



If you want to implement, to understand further you need to go through this post thoroughly :weight_lift:

Here are my dumps and mods I have done :







$ sudo lspci -nnvd 0x1002: | grep -B2 Subsystem





01:00.0 VGA compatible controller [0300]: ATI Technologies Inc M92 [Mobility Radeon HD 4500 Series] [1002:9553] (prog-if 00 [VGA controller])
Subsystem: Dell Unknown device [1028:02be]
--

01:00.1 Audio device [0403]: ATI Technologies Inc R700 Audio Device [Radeon HD 4000 Series] [1002:aa38]
Subsystem: Dell Unknown device [1028:02be]

---------------------------

raedon_bios_decode:





ATOM BIOS Rom:
SubsystemVendorID: 0x1028 SubsystemID: 0x02be
IOBaseAddress: 0x2000
Filename: BR32787.001
BIOS Bootup Message:
BR32787-001 M92 GDDR3 64bit 500e/800m
PCI ID: 1002:9553
Connector at index 0
Type [@offset 45712]: VGA (1)
Encoder [@offset 45716]: INTERNAL_KLDSCP_DAC1 (0x15)
i2cid [@offset 45774]: 0x95, OSX senseid: 0x6
Connector at index 1
Type [@offset 45722]: HDMI-A (11)
Encoder [@offset 45726]: INTERNAL_UNIPHY (0x1e)
i2cid [@offset 45797]: 0x91, OSX senseid: 0x2
Connector at index 2
Type [@offset 45732]: LVDS (7)
Encoder [@offset 45736]: INTERNAL_UNIPHY2 (0x21)
i2cid [@offset 45824]: 0x90, OSX senseid: 0x1



----------------------------

raedon dump



Mapping DIG1 encoder to KLDSKP_UNIPHYE
Crtc[0]: found native mode from Monitor[LVDS Panel]:
Modeline "1366x768"  69  1366 1398 1430 1486  768 770 774 782
Connector "PANEL" uses Monitor "LVDS Panel":
RHDValidateScaledToMode
rhdModeValidateCrtc
DxModeValid: ATOM CRTC 1
rhdAtomOutputModeValid
Listing modesetting layout:
ATOM CRTC 1: tied to Atom PLL 1 and LUT A:
Outputs: AtomOutput UniphyE (PANEL)
ATOM CRTC 2: unused
Unused Outputs: AtomOutput DACA, AtomOutput UniphyB

------------------------



So,



CRTC0>DIG1>UNIPHYE>LVDS Encoder= 0x00 Transmitter = 0x12

CRTC1>DAC > DACA >VGA Encoder=0x10 Transmitter = 0x00

CRTC1>DIG2>UNIPHYB>HDMI Encoder= 0x01 Transmitter = 0x20



What I have concluded:



02000000 40000000 0901 0000 12 00 00 01  (LVDS)
10000000 10000000 0001 0000 00 10 01 06  (VGA)
00080000 00020000 0001 0000 20 01 02 02  (HDMI)



020000004000000009010000120000011000000010000000000100000010010600080000000200000001000020010202



Other mods:

1. DSDT:

[ First add Method DTGP ]



Device (M86)
			{
				Name (_ADR, Zero)
				Name (SWIT, One)
				Method (_DSM, 4, NotSerialized)
				{
					Store (Package (0x1E)
						{
							"@0,compatible",
							Buffer (0x0E)
							{
								"ATY,Shrike"
							},
							"@0,device_type",
							Buffer (0x08)
							{
								"display"
							},
							"@0,display-connect-flags",
							Buffer (0x04)
							{
								0x04, 0x00, 0x00, 0x00
							},
							"@0,display-dual-link",
							Buffer (0x04)
							{
								0x02, 0x00, 0x00, 0x00
							},
							"@0,VRAM,memsize",
							Buffer (0x04)
							{
								0x00, 0x00, 0x00, 0x20
							},
							"@0,display-type",
							Buffer (0x04)
							{
								"LCD"
							},
							"@0,name",
							Buffer (0x0E)
							{
								"ATY,Shrike"
							},
							"@1,compatible",
							Buffer (0x0E)
							{
								"ATY,Shrike"
							},
							"@1,device_type",
							Buffer (0x08)
							{
								"display"
							},
							"@1,VRAM,memsize",
							Buffer (0x08)
							{
								0x00, 0x00, 0x00, 0x20
							},
							"@1,name",
							Buffer (0x0E)
							{
								"ATY,Shrike"
							},
							"device_type",
							Buffer (0x14)
							{
								"ATY,ShrikeParent"
							},
							"hda-gfx",
							Buffer (0x0A)
							{
								"onboard-1"
							},
							"VRAM,totalsize",
							Buffer (0x04)
							{
								0x00, 0x00, 0x00, 0x20
							},
							"model",
							Buffer (0x23)
							{
								"ATI Mobility Radeon HD 4570"
							}
						}, Local0)
					DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
					Return (Local0)
				}

2. chameleon's(trunk rev 1703) /i386/libsaio/ati.c



{ 0x9552, 0x3000174B, CHIP_FAMILY_RV710,  "ATI Radeon HD 4300/4500 Series", kNull  },

{ 0x9552, 0x30001787, CHIP_FAMILY_RV710,  "ATI Radeon HD 4300/4500 Series", kNull  },

{ 0x9552, 0x300017AF, CHIP_FAMILY_RV710,  "ATI Radeon HD 4300/4500 Series", kNull  },

{ 0x9553, 0x02BE1028, CHIP_FAMILY_RV710,  "ATI Mobility Radeon HD 4570",  kShrike  },  // added

{ 0x9581, 0x95811002, CHIP_FAMILY_RV630,  "ATI Radeon HD 3600 Series",  kNull  },

{ 0x9581, 0x3000148C, CHIP_FAMILY_RV630,  "ATI Radeon HD 3600 Series",  kNull  },

{ 0x9583, 0x3000148C, CHIP_FAMILY_RV630,  "ATI Radeon HD 3600 Series",  kNull  },



If you have any improvements/suggestion or got any mistakes above please share :)



problems:

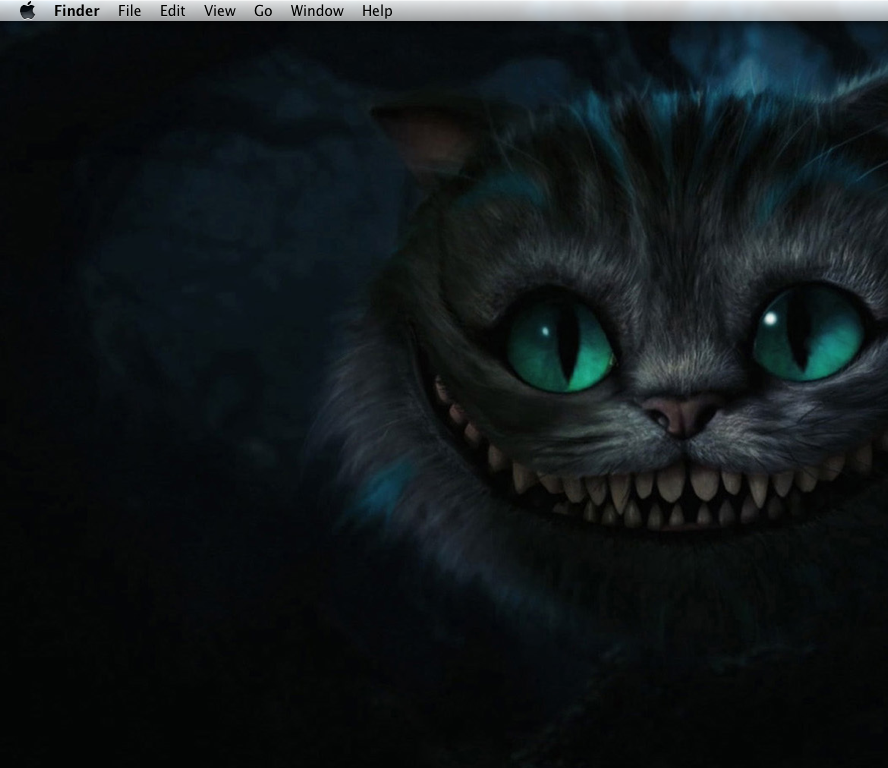

***Black/dark gradients are very crapy in my screen - in wallpaper/pictures/videos I dont have a clue how to fix it. :wallbash:




can you see the distorted black in left side and also in lower part?



***When I open a game in fullscreen the screen gets stuck and I have to force reboot. :hammer:

***recently I have got a acer monitor [ 1366 x 768 ] but getting problem in using that one.whenever I try to extend using extend key(in my dell studio - F1 key) the display breaks and if I try in system preferences-> display It shows my laptop screen as both display 1 & 2 ! I don't know what to do.Cannot use VGA port.



***Are there any mod needed for openGL in 4570 because to make my QE/CI work I havn't edited any kext except ATI4600Controller.kext . I dont know if it supports all the openGL functions a 4570 should support . How to know if openGL has been supported fully and properly?

Share this post


Link to post
Share on other sites
Advertisement

Will you plz upload the patched kext , I am also on the same machine & same OS x 10.7 ....searched a hell for qe & ci ....here you are with hopes...??

Share this post


Link to post
Share on other sites

Will you plz upload the patched kext , I am also on the same machine & same OS x 10.7 ....searched a hell for qe & ci ....here you are with hopes...

Sure! Use Kext Helper or [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] to install or



Mannualy copy the ATI4600Controller.kext to /System/Library/Extensions.

Open Terminal and write



sudo chmod -R 755 /System/LibraryExtensions/ATI4600Controller.kext
give_your_admin_password
sudo chown -R root:wheel /System/Library/Extensions/ATI4600Controller.kext
sudo rm -R /System/Library/Extensions.kextcache
sudo rm -R /System/Library/Extensions.mkext
Reboot

ATI4600Controller.kext.zip

Share this post


Link to post
Share on other sites

Hi xzeil, thanks a lot for the kext, I installed it, repaired permissions but there is some problem (see image below) may be because of:



1.I have lion 10.7 dp4(11A480e)..and i am using chameleon boot loader ,

2. I don't have: a. com.boot.plist(still my pc boots with -v ncpi=0x2000 boot flags)

b. smbios.plist

c. patched dstd

e. ATI framebuffer.kext

f. ATY init.kext



I know i am very close to it thanks to you but i think something's missing , would you plz take a look at it.


Share this post


Link to post
Share on other sites

Hi xzeil, thanks a lot for the kext, I installed it, repaired permissions but there is some problem (see image below) may be because of:



1.I have lion 10.7 dp4(11A480e)..and i am using chameleon boot loader ,

2. I don't have: a. com.boot.plist(still my pc boots with -v ncpi=0x2000 boot flags)

b. smbios.plist

c. patched dstd

e. ATI framebuffer.kext

f. ATY init.kext



I know i am very close to it thanks to you but i think something's missing , would you plz take a look at it.

For QE/CI in 1555 you have to use ATIframeBuffer- no need to edit it. Use GraphicsEnabler=Yes AtiConfig=Shrike boot flags while booting. You should patch dsdt.mod is given in 1st post. Edit it according to your GPU name and size.

Share this post


Link to post
Share on other sites

Hi Xzeil, I did whatever you told me to do including:



1: Installed your patched kext along with the original ATIFramebuffer.kext from the lion dmg file.

2:Then I used boot flags GraphicsEnabler=Yes & AtiConfig=Shrike (I have included my com.boot.plist in the attached file.

3.Ya & I modified my DSDT with the help of DSDTSE utility, in that i needed to use Method DTGP(to eliminate all the errors) along with your mods as per the 1st step of this guide. I directly copy pasted your DSDT.mod in mine in the right place :angel_not: :angel_not: as my machine is also same as yours studio 1555 512MB ATI radeon HD 4570.

4. Then i was getting error in early boot screens as "ATI card posted ...this is not recoverable error", so i installed chameleon 2.0 rc5 r 780 trunk( given in zip file :wink2: :wink2: )

5. This new chameleon fixed my last error, and then while booting i got the same error ( one which i had posted yesterday.... the image ). It said ATI4600Controller.kext not loaded & then last but not least my display screen showed grey black patches in between the white color & I couldn't get to my desktop.

6. then again when i rebooted with GraphicsEnabler=No & checked system info.....voila i saw my graphics card was detected as ATI Radeon mobility HD 4570 512MB ....but no qe ci.





I don't know exactly what problem is... but 4600controller kext is not getting loaded. And still unsure about the DSDT.mod plz plz check it.



I was wondering if your & mine machine is same so if i used your dsdt.aml as it is....will that be ok? :thumbsup_anim:





& sorry for this all trouble.

My System.zip

Share this post


Link to post
Share on other sites

Hi Xzeil, I did whatever you told me to do including:



1: Installed your patched kext along with the original ATIFramebuffer.kext from the lion dmg file.

2:Then I used boot flags GraphicsEnabler=Yes & AtiConfig=Shrike (I have included my com.boot.plist in the attached file.

3.Ya & I modified my DSDT with the help of DSDTSE utility, in that i needed to use Method DTGP(to eliminate all the errors) along with your mods as per the 1st step of this guide. I directly copy pasted your DSDT.mod in mine in the right place :angel_not: :angel_not: as my machine is also same as yours studio 1555 512MB ATI radeon HD 4570.

4. Then i was getting error in early boot screens as "ATI card posted ...this is not recoverable error", so i installed chameleon 2.0 rc5 r 780 trunk( given in zip file :wink2: :wink2: )

5. This new chameleon fixed my last error, and then while booting i got the same error ( one which i had posted yesterday.... the image ). It said ATI4600Controller.kext not loaded & then last but not least my display screen showed grey black patches in between the white color & I couldn't get to my desktop.

6. then again when i rebooted with GraphicsEnabler=No & checked system info.....voila i saw my graphics card was detected as ATI Radeon mobility HD 4570 512MB ....but no qe ci.





I don't know exactly what problem is... but 4600controller kext is not getting loaded. And still unsure about the DSDT.mod plz plz check it.



I was wondering if your & mine machine is same so if i used your dsdt.aml as it is....will that be ok? :thumbsup_anim:





& sorry for this all trouble.

No problem!

I think 4600Controller giving problem because its from 10.7.2[ 11C74 ] and yours is GM4 .. but not sure

I am giving my modded chameleon build(i386 folder) try to install this one..use org.chameleon.Boot.plist instead of com.boot.plist .. delete all unnecessary additions

Yeah sure! giving my dsdt I thinnk both our laptops are same. but still check It might be incompatible to your system,(My system is in my signature)

Archive.zip

Share this post


Link to post
Share on other sites

I have Dell studio 1555 too and running 10.6.7 successfully. Except wifi everything working. I also like to try 10.7.2. May I ask what devices are your working and what are not? I mean Ethernet, audio, wifi, trackpad etc.



May I also request you to plz upload your EXTRA folder and other S/L/E kext too.



I will apreciate your help.

Share this post


Link to post
Share on other sites

hi i'm working on a iaktos l2 (lion 10.7.2) for my asus laptop f6ve.

i have the same graphic card ATI Mobility RADEON HD 4570 whit GPU: M92 and 512mb of memory

i want to make qe/ci working...can you please help me to make that easier? i installed your patched kext but then?

i'm sorry but i'm a noob in mac world...:) any help i very appreciated...

Share this post


Link to post
Share on other sites

ok....2 days later:

i added the 2 kext whit the help of kext utility...i modified the dsdt whit dsdtse adding the code in the first post...

then my BIG problem is how can i modify my chameleon /i386/libsaio/ati.c adding this string

{ 0x9553, 0x02BE1028, CHIP_FAMILY_RV710, "ATI Mobility Radeon HD 4570", kShrike }, // added

???

anyone know how to do that? i just need this little help to make that graphic card working...

Share this post


Link to post
Share on other sites

then my BIG problem is how can i modify my chameleon /i386/libsaio/ati.c adding this string

{ 0x9553, 0x02BE1028, CHIP_FAMILY_RV710, "ATI Mobility Radeon HD 4570", kShrike }, // added

???

anyone know how to do that? i just need this little help to make that graphic card working...



- Download and install XCode (3.2.x or 4.2.x depending on which OSX version you're running).



- Pull down Chameleon source code as follows:

- Fire up a Terminal window

- Type
mkdir chamsrc
(or whatever name you prefer to name it)

- Type
cd chamsrc

- Type
svn co
- this will pull the latest from trunk. If you have a specific version in mind, simply add the version number between
co
and
http

. i.e. svn co 1700

- Type
cd chameleon/trunk/i386/libsaio

-
Edit
ati.c
with your editor of choice (you could use XCode's).

- Search for string "9553" and you should come up with a section where 9553's are grouped together (I believe latest trunk has two or three definitions).

- If your line does not exist already, add it and save the file.

- Type
cd ..
twice and then
pwd
to make sure you are inside the "trunk" directory (Look at your prompt line, it will show which directory you are in).

- Type
make clean
to prep working folders using during compile.

- Type
make
to start compiling the bootloader, and wait until it's finished.



The next steps assume your current configuration has the loader installed in the MBR and the boot file in your OSX installation's root. If you have a different configuration (i.e. dedicated EFI partition), these steps will not work and you will have to refer to other guides you can find on the Internet (Google is your friend...). Also, if you don't want to type "sudo" every time, just type sudo -s once. This will have you rooted. Personally, I root on a "once and only if needed" basis.

- Type
diskutil list
and take note of the identifier assigned to your OSX installation partition (normally it is disk0s2 and that is what I used for these instructions. If yours is different you must make sure you replace when typing the commands below).

- Type
cd sym/i386
and do a
ls
. You should have a bunch of boot files with different names, a "modules" folder, etc.

- Type
sudo ./fdisk440 -f boot0 -u -y /dev/rdisk
X
<< careful here, the X in rdiskX must be replaced to match the X in the diskXsZ part you noted from diskutil.

- Type
sudo dd if=boot1h of=/dev/rdisk
X
s
Z
<< again, X and Z from your diskXsZ you noted from diskutil. Normally you would type rdisk0s2 here...

You can make a copy of your current boot file, just in case. If you don't want to you can skip the next command.

-
Type
sudo cp /boot /boot.old

-
Type
sudo
cp boot /

-
Type
sudo ./fdisk440 -e /dev/disk
X
<< Need I say what N should be, again?

- Ignore any messages about the MBR and standalone folders...

- Type
f 2

- Type
write
and again ignore any messages about exclusive access. If asked to reboot to complete changes then answer y.

- Type
exit
to return to your bash prompt.

- You may optionally copy the entire "modules" folder in /Extra. I don't use it (yet).

- Make sure you have your GraphicsEnabler=Y setting in your boot.plist file and reboot OSX.

- If you don't KP and the system comes back up, there's a chance or two you may have QE/CI.



I hope you do, and I hope this helps.

Share this post


Link to post
Share on other sites

- Download and install XCode (3.2.x or 4.2.x depending on which OSX version you're running).



- Pull down Chameleon source code as follows

....





Thank you very much!! i'm going to try this as soon as possible...anyway is that way working on your graphic card to enable qe/ci??

Share this post


Link to post
Share on other sites

Thank you very much!! i'm going to try this as soon as possible...anyway is that way working on your graphic card to enable qe/ci??



No. I've been at it for almost four months now, and just a few nights ago I made some progress by achieving QE/CI on partially working outputs (actually HDMI and VGA are working properly, just LVDS is not).

Share this post


Link to post
Share on other sites

Hello, my name is fabrizio, I have a sony vaio vgn-nw21ef, I followed the guide to enable qe/ci on ati hd 4570, but still have the resolution 1024x768 please help me...

Share this post


Link to post
Share on other sites

hi to everyone..

I try to start this ati radeon 4570 video allreadey 1 mounth.

So can someone please give me zip with all kext,patch. and everyting what is need to start this card on yosemite.

I allready start it with 4600 - 512mb but without QE/CI.. and other  I start at Ati radeon 4570 3MB but with great rezolution..

so I will very happy with little help..

best regard

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By zeg66
      Please help me with this 10.9.5 system. Motherboard: Gigabyte 965p-s3 rev3.3, gpu: Ati Radeon HD6450 (dvi/hdmi/vga).
      Using any of the 3 ports on the 6450 (dvi, hdmi, vga), I see all the white letters on black background during boot but when they complete and it's time for the graphics to start I get a black screen and sometimes a restart after that. Using Clover 4411. Is there any way to get past this?
    • By Soeren_DK
      Hi there.
      I'm new to this site but not totally new to hack. I've had a hack since 10.4 and the latest version I ran was 10.9, not totally fixed but it worked to what I needed. Now I want to make the machine run as good as it can. I can see there has been a lot of changes/upgrades/new solutions since I installed my hack and I have a hard time to catch up.
      I've been able to boot and install macOSX and now I need the POST installation.
      I tried to install the clover EFI boot loader with these settings:

      and found the DSDT.aml and SSDT-0.aml from HERE
      found the apfs.efi
      and placed it in EFI -> EFI -> CLOVER -> driver64
      and these kext in here:



      But when I boot it up this is the first bootscreen I have. No partions, no mouse control, no nothing.

      if I exit clover this screen appear.

      and now everything works.

      What is wrong?
      Cheers
      Soren
    • By sajiddesigner
      Hello,

      I am planning to build a budget hackintosh (under $120 in total) please suggest hackintosh High Siera comptabile Nvidia or ATI graphics card so i can build this budget hackintosh .

      Waiting for reply

      Sajid Manzoor
    • By Onestyle
      THIS IS STILL WORK IN PROGRESS
      Laptop : Sony Vaio- SVE1712W1EB





      OSX version : 10.13 - High Sierra - SMBIOS - MacBookPro9,1

      Motherboard : Intel HM76 Express
      DSDT FIX :



      Show Fan RPM's : Updated,now working with Latest Istat Menus and HWMonitor



      CPU : i7 - 3632QM (2.2Ghz- 3.2Ghz) :



      Dedicated Graphics : AMD Radeon HD 7650M 2048MB
      Full QE/CI and Resolution:


      Fix gradient issue with AMD Graphics the fast way :


      Fix Brightness issue + brightness fn keys:



      Fix sleep issue  and naming issue with AMD Graphics :



      Integrated Graphics : Intel HD Graphics 4000 (can't be enabled in bios,no option)

      Touchpad and Keyboard :



      Wifi : AR9485 :



      Ethernet : Realtek RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller : Works out of the box

      Sound : Realtek ALC269 -VC1 :



      Battery: Works after patching :





      Built-in Camera :







      OSX version : 10.12 - Sierra - SMBIOS - MacBookPro9,1
      Motherboard : Intel HM76 Express
      DSDT FIX :



      Show Fan RPM's : Updated,now working with Latest Istat Menus and HWMonitor



      CPU : i7 - 3632QM (2.2Ghz- 3.2Ghz) :



      Dedicated Graphics : AMD Radeon HD 7650M 2048MB
      Full QE/CI and Resolution:


      Fix gradient issue with AMD Graphics the fast way :


      Fix Brightness issue + brightness fn keys:



      Integrated Graphics : Intel HD Graphics 4000 (can't be enabled in bios,no option)

      Touchpad and Keyboard :



      Wifi : AR9485 :



      Ethernet : Realtek RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller : Works out of the box

      Sound : Realtek ALC269 -VC1 :



      Battery: Works after patching :





      Built-in Camera :






      OSX version : 10.11.6 - El Capitan - SMBIOS - MacBookPro9,1

      Motherboard : Intel HM76 Express
      DSDT FIX :



      Show Fan RPM's : Updated,now working with Latest Istat Menus and HWMonitor



      CPU : i7 - 3632QM (2.2Ghz- 3.2Ghz) :



      Dedicated Graphics : AMD Radeon HD 7650M 2048MB
      Full QE/CI and Resolution:


      Fix gradient issue with AMD Graphics the fast way :


      Fix Brightness issue + brightness fn keys:



      Integrated Graphics : Intel HD Graphics 4000 (can't be enabled in bios,no option)

      Touchpad and Keyboard :



      Wifi : AR9485 :



      Ethernet : Realtek RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller : Works out of the box

      Sound : Realtek ALC269 -VC1 :



      Battery: Works after patching :





      Built-in Camera :





      UPDATED : October 9. 2016.
    • By Morea
      Hi everybody! I need some help today: I’m trying to install Mac OS Sierra 10.12.5 on my friend’s laptop, which is an Acer Aspire 5250, but that’s quite a difficult task because it’s an AMD CPU. The model is AMD E-450 APU with Radeon HD Graphics (graphics model Radeon HD 6320). I need some help because I can’t boot the installer, when I select my USB from Clover, after the row of pluses in verbose mode instead of showing me all the booting commands it stucks on a black screen and the screen starts flickering along with a continuous beep sound and so I’m unable to get to the installer. Do I need a patched kernel or something else? Are you able to give me some help? Thanks!
×
