hmorris48 Posted January 20, 2011 Share Posted January 20, 2011 dsdt.hmorris48.zipALIAS DTGP IRQs LPC RENAME SMBUS SHUTDOWN FIX WARNINGS send me the other DSDT what is your motherboard? Many thanks! This is a Dell xps model 435MT; the motherboard shows up as Dell 0R849j when running SiSoftware Sandra. I can't see any difference between this DSDT.aml and my previous one. Which is a good thing since I tried to use your dsdt patcher with the "generic" selection and the usb entries for the mouse where lost. Note that the "power button" doesn't start a shutdown with either DSDT.aml ; probably something wrong with my kexts. I've attached my previous DSDT.aml DSDT.aml.zip Link to comment Share on other sites More sharing options...
MaLd0n Posted January 20, 2011 Author Share Posted January 20, 2011 Many thanks! This is a Dell xps model 435MT; the motherboard shows up as Dell 0R849j when running SiSoftware Sandra. I can't see any difference between this DSDT.aml and my previous one. Which is a good thing since I tried to use your dsdt patcher with the "generic" selection and the usb entries for the mouse where lost. Note that the "power button" doesn't start a shutdown with either DSDT.aml ; probably something wrong with my kexts. I've attached my previous DSDT.aml ok I'll look into it Link to comment Share on other sites More sharing options...

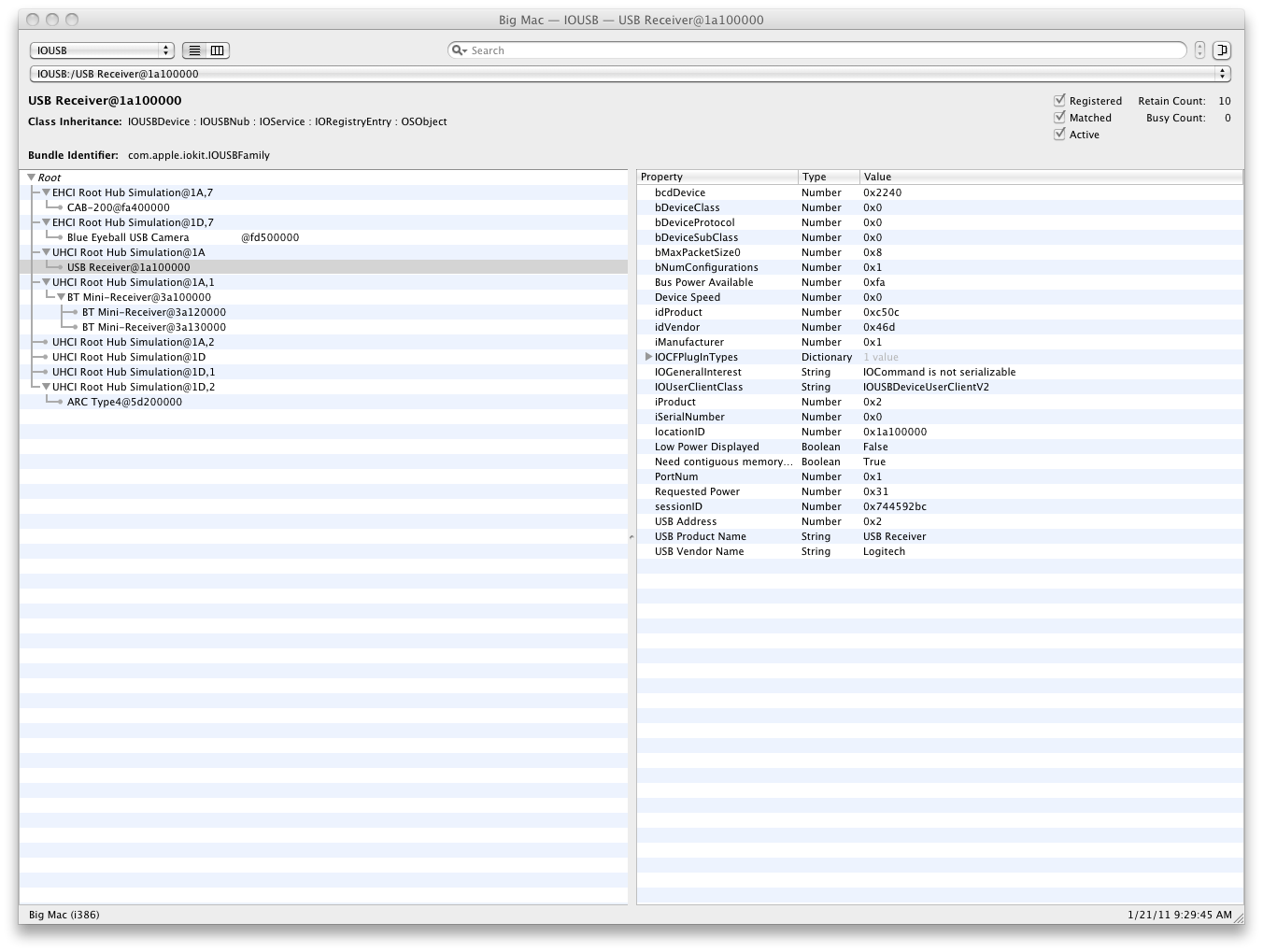

hmorris48 Posted January 21, 2011 Share Posted January 21, 2011 okI'll look into it Thanks. Do you see anything in my DSDT file that would stop my built-in bluetooth device from being seen? Under windows 7, it shows up as USB\VID_413C&PID_8130 which should be vendor id and product ids in hex. But neither System Profiler or IORegistryExplorer see the device. Link to comment Share on other sites More sharing options...
MaLd0n Posted January 21, 2011 Author Share Posted January 21, 2011 man use native power management NullCPUPowerManagement other OpenHaltRestart see the first post The DSDT is for you to have a system bordering on a real that's where you're using is far from it EDIT WoW PlatformUUID Link to comment Share on other sites More sharing options...
hmorris48 Posted January 21, 2011 Share Posted January 21, 2011 manuse native power management NullCPUPowerManagement <--- ???? other OpenHaltRestart <--- ??? see the first post The DSDT is for you to have a system bordering on a real that's where you're using is far from it EDIT WoW PlatformUUID <-- it is not used since World War II I started with a guide that installed 10.5.0 and those were the things needed to get going at that time. So, I updated the bootloader with the one in post #1 and removed NullCPUPowerManagement and OpenHaltRestart. No change in the system operation (again - a good thing). I've attached the results for run_me for this configuration. Any other changes needed to get me to a more current setup? Thanks again for the help! send_me.zip Link to comment Share on other sites More sharing options...
MaLd0n Posted January 21, 2011 Author Share Posted January 21, 2011 I started with a guide that installed 10.5.0 and those were the things needed to get going at that time. So, I updated the bootloader with the one in post #1 and removed NullCPUPowerManagement and OpenHaltRestart. No change in the system operation (again - a good thing). I've attached the results for run_me for this configuration. Any other changes needed to get me to a more current setup? Thanks again for the help! WoW is getting good com.apple.driver.AppleLPC (1.4.12) AppleIntelCPUPowerManagement: Turbo Ratios what problems you still have? Link to comment Share on other sites More sharing options...
berlindude Posted January 21, 2011 Share Posted January 21, 2011 Hey there! could someone please help me. I was quite happy with my dsdt. My system worked like charm until updating to 10.6.6, then I got KPs now i read that there are sometimes problems with dsdts My dsdt contains already powermangement for my q9550 1st gen., wake from usb, Audio. lan works but not with bonjour by dsdt, that is why I use realtekrtl81xx.kext in s/l/e Well I tried to use the dsdt auto patcher but I get the following error: [Line 285 type Error message Object does not exist (\_SB.PCI0.PX40.AG3E)] [Line 291 type Error message Object does not exist (\_SB.PCI0.PX40.AG3E)] [Line 2224 type Error message Object is not accessible from this scope (ATT3)] I used iasleme to extract dsdt on a real mac and loaded it into the autopatcher. Could someone please check, because I do not have an idea wht is going wrong. Or is the dsdt already fine and does not need to be patched and problem is located somewhere else. my kexts you can find in my signature. thanks in advance! DSDT.aml.zip Link to comment Share on other sites More sharing options...
René_ Posted January 21, 2011 Share Posted January 21, 2011 Hi MaLd0n, I was'nt able to find my iTunes server. So I installed Lnx2Mac's Realtek RTL81xx Driver http://lnx2mac.blogspot.com/p/realtekrtl81xx-osx-driver.html Now I can find the iTunes server. Is this good? Or could it also be patched in the DSDT? Link to comment Share on other sites More sharing options...
MaLd0n Posted January 21, 2011 Author Share Posted January 21, 2011 Hey there! could someone please help me. I was quite happy with my dsdt. My system worked like charm until updating to 10.6.6, then I got KPs now i read that there are sometimes problems with dsdts My dsdt contains already powermangement for my q9550 1st gen., wake from usb, Audio. lan works but not with bonjour by dsdt, that is why I use realtekrtl81xx.kext in s/l/e Well I tried to use the dsdt auto patcher but I get the following error: [Line 285 type Error message Object does not exist (\_SB.PCI0.PX40.AG3E)] [Line 291 type Error message Object does not exist (\_SB.PCI0.PX40.AG3E)] [Line 2224 type Error message Object is not accessible from this scope (ATT3)] I used iasleme to extract dsdt on a real mac and loaded it into the autopatcher. Could someone please check, because I do not have an idea wht is going wrong. Or is the dsdt already fine and does not need to be patched and problem is located somewhere else. my kexts you can find in my signature. thanks in advance! If you are using the Mac OS version of DSDT Auto-Patcher, do NOT use a DSDT replacement in Chameleon when you run the app, or it will be used as base for patching instead of the original one from BIOS. If you have a dsdt.aml in / or /Extra (or a specified file for DSDT key in com.apple.Boot.plist), remove it and reboot before running the Auto-Patcher. your DSDT is not a "virgin" extract from Windows or Linux or remove, reboot and extract new Is this good? Yep Use this kext Link to comment Share on other sites More sharing options...
MaLd0n Posted January 21, 2011 Author Share Posted January 21, 2011 dsdt.jeffsqartan.zip DTGP HID/CID ALIAS IRQs LPC HPET LAN RENAMED DEVICES SMBUS SHUTDOWN REMOVED DEVICES FIX WARNINGS Link to comment Share on other sites More sharing options...
KPOS Posted January 22, 2011 Share Posted January 22, 2011 @MaLdOn I have a 2nd machine and it is a Gigabyte GA-945GCM-S2C (BIOS F6d) based machine and I'm struggling to get full sleep support. I am running a vanilla 10.6.6 kernel from a retail install with native PM in Chameleon 5 (recent). I used your most recent DSDT Autopatcher to patch DSDT. I did it clean as you described so thatI wouldn't build off an existing DSDT. My audio solution is device-ID modified AppleHDA from 10.6.6 plus pist-only LegacyHDA (ALC662.kext) plus HDEF in DSDT.aml. Video is NVidia 7300GT, full support with Chameleon Graphics Injection. Only additional KEXT in E/E is FakeSMC. I am still having issues with the following: No perfect Ethernet solution (Realtek 8101E). I have tried both the most recent Linux port for this NIC (RealtekRTL81xx.kext) and the older 32bit offering from the now defunct Psystar (RealtekR1000.kext). I can only get full support for my NIC (including Bonjour/Time Machine) with the Psystar R1000 driver. The Built-in Ethernet Fix in Chameleon doesn't make the situation better or worse. Bigger problem is sleep. From my console log, it looks like I am fully supported for native PM and Speedstep, no HPET or LPC errors. (HPET however has to be on in the Chameleon CP to boot). My machine can only deep-sleep correctly if put to sleep manually. If it sleeps after a set idle time, it doesn't go into deep sleep (only monitor and disk spin-down). From a hint in another thread, I have tried a couple of different DVD mechanisms without any improvement. All internal drives including DVD are SATA. I have included a ZIP file with both my current DSDT.aml and my com.apple.Boot.plist. Thanks if you have any ideas... GA_945GCM_S2C.zip Link to comment Share on other sites More sharing options...
MaLd0n Posted January 22, 2011 Author Share Posted January 22, 2011 @MaLdOn I have a 2nd machine and it is a Gigabyte GA-945GCM-S2C (BIOS F6d) based machine and I'm struggling to get full sleep support. I am running a vanilla 10.6.6 kernel from a retail install with native PM in Chameleon 5 (recent). I used your most recent DSDT Autopatcher to patch DSDT. I did it clean as you described so thatI wouldn't build off an existing DSDT. My audio solution is device-ID modified AppleHDA from 10.6.6 plus pist-only LegacyHDA (ALC662.kext) plus HDEF in DSDT.aml. Video is NVidia 7300GT, full support with Chameleon Graphics Injection. Only additional KEXT in E/E is FakeSMC. I am still having issues with the following: No perfect Ethernet solution (Realtek 8101E). I have tried both the most recent Linux port for this NIC (RealtekRTL81xx.kext) and the older 32bit offering from the now defunct Psystar (RealtekR1000.kext). I can only get full support for my NIC (including Bonjour/Time Machine) with the Psystar R1000 driver. The Built-in Ethernet Fix in Chameleon doesn't make the situation better or worse. Bigger problem is sleep. From my console log, it looks like I am fully supported for native PM and Speedstep, no HPET or LPC errors. (HPET however has to be on in the Chameleon CP to boot). My machine can only deep-sleep correctly if put to sleep manually. If it sleeps after a set idle time, it doesn't go into deep sleep (only monitor and disk spin-down). From a hint in another thread, I have tried a couple of different DVD mechanisms without any improvement. All internal drives including DVD are SATA. I have included a ZIP file with both my current DSDT.aml and my com.apple.Boot.plist. Thanks if you have any ideas... GA_945GCM_S2C.zip it does not solve the problem? http://www.insanelymac.com/forum/index.php?showtopic=182535 Link to comment Share on other sites More sharing options...
BloodyVlad Posted January 22, 2011 Share Posted January 22, 2011 With your DSDT, EliottForceLegacyRTC.kext is needed - or CMOS is cleared. But that's not a big problem. Link to comment Share on other sites More sharing options...
MaLd0n Posted January 22, 2011 Author Share Posted January 22, 2011 With your DSDT, EliottForceLegacyRTC.kext is needed - or CMOS is cleared. But that's not a big problem. the fix was applied Device (RTC) { Name (_HID, EisaId ("PNP0B00")) Name (BUF0, ResourceTemplate () { IO (Decode16, 0x0070, // Range Minimum 0x0070, // Range Maximum 0x01, // Alignment 0x0[color="#FF0000"][b]2[/b][/color], // Length ) }) Link to comment Share on other sites More sharing options...
MaLd0n Posted January 22, 2011 Author Share Posted January 22, 2011 dsdt.lordliger.zip Link to comment Share on other sites More sharing options...
KPOS Posted January 22, 2011 Share Posted January 22, 2011 it does not solve the problem?http://www.insanelymac.com/forum/index.php?showtopic=182535 Did some more digging in the console log and found tons of errors about my Brother scanner software failing to load. Must have come over in the user migration from Leo. Uninstalled the Brother {censored} and reinstalled from new 10.6 package on their site, and I now can do FULL AUTOMATIC DEEP SLEEP.... Thanks! Link to comment Share on other sites More sharing options...
MaLd0n Posted January 22, 2011 Author Share Posted January 22, 2011 Did some more digging in the console log and found tons of errors about my Brother scanner software failing to load. Must have come over in the user migration from Leo. Uninstalled the Brother {censored} and reinstalled from new 10.6 package on their site, and I now can do FULL AUTOMATIC DEEP SLEEP.... Thanks! WoW Link to comment Share on other sites More sharing options...
MaLd0n Posted January 22, 2011 Author Share Posted January 22, 2011 dsdt.Colten_Edwards.zip Link to comment Share on other sites More sharing options...
figgy Posted January 22, 2011 Share Posted January 22, 2011 Hi MaLd0n just wondering if you made any progress on my ich7 issue Link to comment Share on other sites More sharing options...
MaLd0n Posted January 22, 2011 Author Share Posted January 22, 2011 Hi MaLd0n just wondering if you made any progress on my ich7 issue NoPe I am a little time at the moment if you find something share with us Link to comment Share on other sites More sharing options...
ravenwing Posted January 22, 2011 Share Posted January 22, 2011 Hello MaLd0n, I've got GA-P35-DS3P mobo and GTS 450 video. I've tried many things to run stable Snow Leopard, but without success, and than I found this topic. I've used DSDT from kexts.com and apply it with [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] and also tonymacx86 NVIDIA Update for the video. System boot and run and everything seems to work normal, but after some time it freezes. I've checked your auto patcher for my mobo, and I haven't found it, so I'm attaching this. Thank you! I forgot to mention that I run the script in fresh install of SL without anything installed (bootloaders, kexts, patches etc.) send_me.zip Link to comment Share on other sites More sharing options...
MaLd0n Posted January 22, 2011 Author Share Posted January 22, 2011 Hello MaLd0n, I've got GA-P35-DS3P mobo and GTS 450 video. I've tried many things to run stable Snow Leopard, but without success, and than I found this topic. I've used DSDT from kexts.com and apply it with [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] and also tonymacx86 NVIDIA Update for the video. System boot and run and everything seems to work normal, but after some time it freezes. I've checked your auto patcher for my mobo, and I haven't found it, so I'm attaching this. Thank you! I forgot to mention that I run the script in fresh install of SL without anything installed (bootloaders, kexts, patches etc.) "Extra" folder Extra.zip Chameleon RC5 Chameleon_v2.0_RC5_r709.zip Nvidia(4xx) many users complain of multiple crash DTGP HDEF HID/CID HPET IRQs RTC SBUS SHUTDOWN EHCI LPC UHCI REMOVED DEVICES _WAK Link to comment Share on other sites More sharing options...

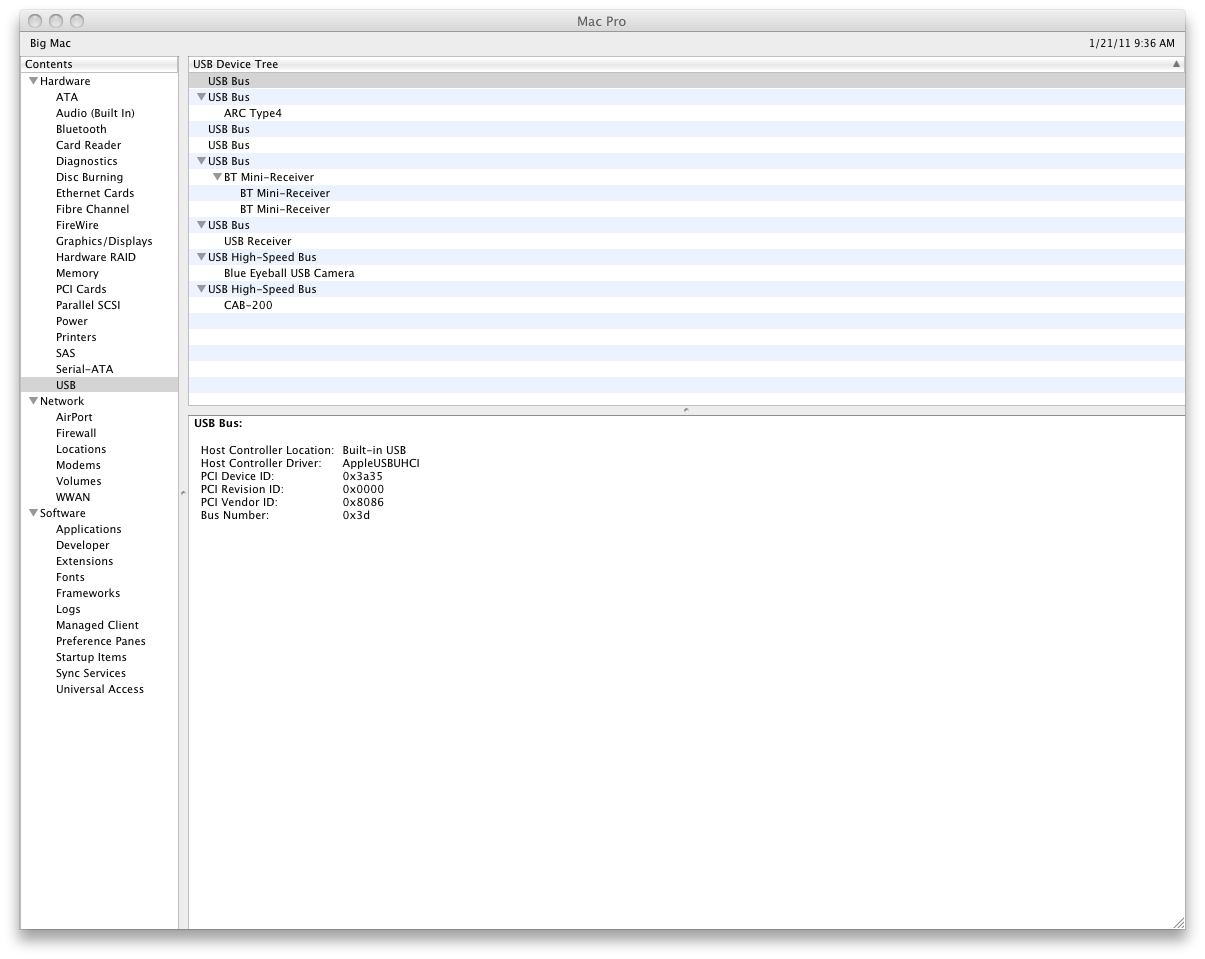

figgy Posted January 22, 2011 Share Posted January 22, 2011 Iam getting really slow usb transfer speeds using this dsdt...its showing 4 normal and 1 hi-speed g31m-s2l Is there anything i can do to improve this Link to comment Share on other sites More sharing options...
MaLd0n Posted January 22, 2011 Author Share Posted January 22, 2011 Iam getting really slow usb transfer speeds using this dsdt...its showing 4 normal and 1 hi-speedg31m-s2l Is there anything i can do to improve this ich7 Gigabyte do not need the fix UHCI only the EHCI Method (_DSM, 4, NotSerialized) { Store (Package (0x04) { "AAPL,clock-id", Buffer (One) { 0x01 }, "device_type", Buffer (0x05) { "EHCI" } }, Local0) DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0)) Return (Local0) } } 4 UHCI - 1.0 1 EHCI - 2.0 Link to comment Share on other sites More sharing options...
ravenwing Posted January 22, 2011 Share Posted January 22, 2011 "Extra" folderExtra.zip Chameleon RC5 Chameleon_v2.0_RC5_r709.zip Nvidia(4xx) many users complain of multiple crash DTGP HDEF HID/CID HPET IRQs RTC SBUS SHUTDOWN EHCI LPC UHCI REMOVED DEVICES _WAK Thank you very much MaLd0n, that was lightspeed fast, thank you!!! Link to comment Share on other sites More sharing options...
