userx Posted October 17, 2009 Share Posted October 17, 2009 hnak, can you modify the app so that it doesn't show the CPU graph in the dock, or best, doesn't show up at all? The graph is quite ugly, and I do not like moving things in my dock. I searched for a way to hide apps there, but Google wasn't particularly helpful. Maybe you can make this behaviour optional, for those that like a CPU graph in their dock You can use Dock Dodger to get rid of the dock icon all together. Set PStateChanger to "hide" in Login Items. A reboot may be required to get rid of the PStateChanger window from popping up after you use Dock Dodger. http://foggynoggin.com/dockdodger Check Activety Monitor to make sure it's running. Hope that helps... Link to comment https://www.insanelymac.com/forum/topic/188954-64bit-p-state/page/3/#findComment-1301864 Share on other sites More sharing options...
Brewers Posted October 19, 2009 Share Posted October 19, 2009 Thanks, I already found a similar application, called Dockless On another note... I get a 'hanging' mouse cursor whenever the Pstate changes. The cursor stays in its place and jumps to the actual position where it's supposed to be shortly afterwards (after the timer interval? Already set it to 250ms, but it doesn't seem to help). Also, the memory usage is quite hefty, uses 300Mb after running nonstop for 3 days. Doesn't really concern me, since I have 8GB of RAM, but others may feel different. Apart from that, no problems so far, no crashes, etc. Quite a nice tool Link to comment https://www.insanelymac.com/forum/topic/188954-64bit-p-state/page/3/#findComment-1303672 Share on other sites More sharing options...
hnak Posted October 20, 2009 Author Share Posted October 20, 2009 Also, the memory usage is quite hefty, uses 300Mb after running nonstop for 3 days. Doesn't really concern me, since I have 8GB of RAM, but others may feel different. Ooops! It is a sign of memory leaks. I uploaded a fixed version (1.0.3). Link to comment https://www.insanelymac.com/forum/topic/188954-64bit-p-state/page/3/#findComment-1304400 Share on other sites More sharing options...
markswell Posted October 20, 2009 Share Posted October 20, 2009 Whats funny is that, if i use that iMark (was iCPU) tool (also app + .kext set) metchde my tool is not based on voodoomonitor/cpu-i or generic/voodoopower, it do another way. Link to comment https://www.insanelymac.com/forum/topic/188954-64bit-p-state/page/3/#findComment-1304831 Share on other sites More sharing options...
mitch_de Posted October 20, 2009 Share Posted October 20, 2009 Thanks imark for clearing difference way of throttling for iMark. Latest iMark & Ringpower.kext does work in 10.5(with 10.5 kext version) and 10.6 very well with my OC sytem : BIOS FSB higher but one step in fsb multiplier less = no KPs as with voodoopoer based tools without manual limit to PState 1: ) ). Link to comment https://www.insanelymac.com/forum/topic/188954-64bit-p-state/page/3/#findComment-1304967 Share on other sites More sharing options...
userx Posted October 20, 2009 Share Posted October 20, 2009 I find that v1.0.1 uses half the CPU of v1.0.3. Does v1.0.1 also have memory issues? Link to comment https://www.insanelymac.com/forum/topic/188954-64bit-p-state/page/3/#findComment-1305236 Share on other sites More sharing options...
mitch_de Posted October 20, 2009 Share Posted October 20, 2009 I find that v1.0.1 uses half the CPU of v1.0.3. Does v1.0.1 also have memory issues? ?? Whatt do you mean with "half" . Half of CPU % using the control app ? Link to comment https://www.insanelymac.com/forum/topic/188954-64bit-p-state/page/3/#findComment-1305304 Share on other sites More sharing options...
aka120 Posted October 21, 2009 Share Posted October 21, 2009 hnak, can you modify the app so that it doesn't show the CPU graph in the dock, or best, doesn't show up at all? The graph is quite ugly, and I do not like moving things in my dock. I searched for a way to hide apps there, but Google wasn't particularly helpful. Maybe you can make this behaviour optional, for those that like a CPU graph in their dock I know its a bit late, but you can hide the dock icon without any third party apps... just edit the PStateChanger.app's info.plist, to include this key/string... [KEY]NSUIElement[/KEY] [STRING]1[/STRING] And this will hide the icon from the dock permanently On a side note, I wouldn't call it an "ugly" graph, that's a bit harsh... Link to comment https://www.insanelymac.com/forum/topic/188954-64bit-p-state/page/3/#findComment-1305430 Share on other sites More sharing options...
mitch_de Posted October 21, 2009 Share Posted October 21, 2009 NEWS + Pstates HINT: I found out that latest (1.0.3) .kext has an key to enable UseACPI. It switches to an other way to get the available Pstates (if set NO=default) the .kext uses an build in routine to compute all possible Psates from cpu type and fsb. With UseACPI set YES it takes the bios/dsdt psates. Advantage of NO(default) is, that those voodoopower based .kext can compute pstates even bios or dsdt havent pstates to give. Other powermanager may fail if ACPI (bios or dsdt) didnt have pstates. Problem of NO (default) is, that if someone set multi in bios up or down the voodoopower gets wrong with the availbale pstates (KP or not full speed). Now i must not limit to Psate = 1 (with control app prefs) anymore to avoud KP in an OC System (OC by FSB+, Multi -) Problem with 1.0.3 : Bug: Voltage is shown always 0 Was not with before versions, there where correct Volts shown (no UseACPI key). Pics left shows Pstates 0 - 3 (max. 2999 MHz) =correct if with UseACPI YES , with UseACPI NO(default) Pstates 0 -4, Pstate 0=3333 Mhz = not available / not in dsdt (ACPI) = much to high for my OC 2666 MHz CPU right shows Volts always 0 Link to comment https://www.insanelymac.com/forum/topic/188954-64bit-p-state/page/3/#findComment-1305522 Share on other sites More sharing options...
userx Posted October 21, 2009 Share Posted October 21, 2009 ?? Whatt do you mean with "half" . Half of CPU % using the control app ? yes... v1.0.3 uses twice the cpu %. Link to comment https://www.insanelymac.com/forum/topic/188954-64bit-p-state/page/3/#findComment-1305559 Share on other sites More sharing options...
hnak Posted October 21, 2009 Author Share Posted October 21, 2009 yes... v1.0.3 uses twice the cpu %. You check the cpu % with Performance monitor ? It can be caused by the default timer interval difference if you use the default preference values. If you use the same timer interval, the difference may be due to doc icon update. The only other difference is releasing memory in 1.0.3 to fix memory leak bug. Link to comment https://www.insanelymac.com/forum/topic/188954-64bit-p-state/page/3/#findComment-1305568 Share on other sites More sharing options...
mitch_de Posted October 21, 2009 Share Posted October 21, 2009 Hint: You can set the interval of refreshing / sec of the controller app in his Pref. Simple set higher value from 400 mS to 1000mS. 1 refresh / sec is enough to show changes. For my knowledge this didnt change the speed of trotthling, its only cosmetic for showing faster/slower (less cpu %) the results. I found an key in the .kext .plist which may do also change cpu % usage of the trottling background .kext itself. There is an default of 100 . I believe that stands for 100mS interval checking cpu load and compute to throttle or not throtthle. 10 times / sec (100 mS) maybe very fast (and noticable cpu usage of the kext itself !) . I switched to 200 (ms), means 5 times / Sec . Even 300 may be fast enough (3 times / Sec) to check+do throttling. The higher that value the slower the reaction of thotthling if cpu load changed. But 200 - 300 mS may fast enough to avoid noticable system slowness if cpu load rised and throttling up was a bit to slow. Link to comment https://www.insanelymac.com/forum/topic/188954-64bit-p-state/page/3/#findComment-1305691 Share on other sites More sharing options...
pug999 Posted October 23, 2009 Share Posted October 23, 2009 good job !!! :P In your new ver. I have no sleep problem. and How about add menu bar funtion? I think it will better than dock icon.... Link to comment https://www.insanelymac.com/forum/topic/188954-64bit-p-state/page/3/#findComment-1307627 Share on other sites More sharing options...
hnak Posted October 23, 2009 Author Share Posted October 23, 2009 In your new ver. I have no sleep problem. It's strange. As my systems have never succeeded in sleep, I have no way to investigate it. How about add menu bar funtion? I think it will better than dock icon.... As the menu bar is regarded as Apple-reserved, they discourage using it as far as I know. If you ( or someone else ) are interested in building a menubar app, http://www.makeuseof.com/tag/11-tiny-and-u...ations-for-mac/ might be a good reference. Link to comment https://www.insanelymac.com/forum/topic/188954-64bit-p-state/page/3/#findComment-1307638 Share on other sites More sharing options...
haraldschmidt Posted October 24, 2009 Share Posted October 24, 2009 Hey hnak, thanks sooo much ! Great work ! I was using voodoopower and stayed in 32 bit mode due to powermanagement and leaking driver support for my 3g modem (usb stick)... But now completly in 64 bit mode with fast system reaction and even cooler temps... Everything runs sooo cool around mid 30 degree temps... QUESTION: can I rely on the temps in the control app? What TjMax Temp is used? I'm running a T8300 should be 105 or 100 degrees I think... I really love the undervolting part, can't wait to see how my battery lifetime will develop... Thanks a lot, Harry PS: for menubar integration maybe superhai is a help, his control.app had a hide to bar functionality Link to comment https://www.insanelymac.com/forum/topic/188954-64bit-p-state/page/3/#findComment-1308718 Share on other sites More sharing options...
hnak Posted October 24, 2009 Author Share Posted October 24, 2009 QUESTION: can I rely on the temps in the control app? What TjMax Temp is used? I'm running a T8300 should be 105 or 100 degrees I think... PS: for menubar integration maybe superhai is a help, his control.app had a hide to bar functionality About TjMax, please check the code ( intel.cpp ). I just modified VoodooPower's code to return absolute temperature instead of a value relative to TjMax. TjMax extraction code is untouched. For menubar, I am just lazy enough to be satisfied with doc icon or using spaces to make it disappear for now. I will think about UI after Core i5. Link to comment https://www.insanelymac.com/forum/topic/188954-64bit-p-state/page/3/#findComment-1308790 Share on other sites More sharing options...
marionez Posted October 26, 2009 Share Posted October 26, 2009 1.0.3 SL download link on first post is not working Link to comment https://www.insanelymac.com/forum/topic/188954-64bit-p-state/page/3/#findComment-1310995 Share on other sites More sharing options...
bcc9 Posted November 4, 2009 Share Posted November 4, 2009 I've found that on my laptop (dell studio xps 1340) the super-lfm pstates cause the system to lock-up hard as soon as voodoopstate or voodoopower is run. I reported this to superhai with a fix a while back but he didn't integrate any support into voodoopower. Linux&windows don't have a problem with p-states on this laptop, but linux and apparently windows just pick up the min-max levels from the ACPI dynamic pstate tables (_PSS in the dynamic SSDT tables), which for this laptop, don't include the super-lfm states. So here is a patch for VoodooPState that disables the super-lfm p-states if broken_lfm is set. I think it would be nice to make this a config option in Info.plist. PS: Thanks for picking up where voodoopower left off; I think voodoopstate is really handy. Edit: Better diffs included in my next post, 2 posts below. Link to comment https://www.insanelymac.com/forum/topic/188954-64bit-p-state/page/3/#findComment-1320174 Share on other sites More sharing options...

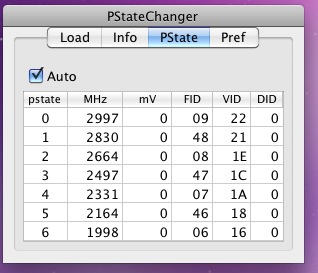

mitch_de Posted November 6, 2009 Share Posted November 6, 2009 Hi, i see that teh 64 Bit version does also shows the 0.5 * Pstates (screenshoot) in SL. With same dsdt (here my Pstates) in Leo + Leo Version of Pstates that also x.5 Steps are not shown , means not 7 Pstates (dsdt) only 4 with x.0 stepsshown. Can the dev look into the codes if Leo Version code has some differences that it cant show that x.5 Pstates. Also would be nice to know its only an cosmetic problem (not showing that x.5 steps) but using them, or also not using them if not shown. mitchs Pstates with also x.5 * FSB Steps / SL. Link to comment https://www.insanelymac.com/forum/topic/188954-64bit-p-state/page/3/#findComment-1321515 Share on other sites More sharing options...
bcc9 Posted November 6, 2009 Share Posted November 6, 2009 Here's a new version of my super-LFM patch. It also includes a fix for a rounding error in intel_probe(), where cumulative rounding errors in vidstep causes the p-states to use higher frequencies than necessary. The rounding problem is independent of the LFM problem, and also exists in the VoodooPower version of this code. With this change, my 6x p-state runs with .0125v less *** intel.orig.cpp 2009-10-20 00:03:32.000000000 -0700 --- intel.cpp 2009-11-06 13:49:04.145023634 -0800 *************** *** 92,97 **** --- 92,99 ---- bool intel_probe(VoodooPState* vp) { + bool broken_lfm = true; + // assign callbacks vp->VoodooReadProc = IntelReadProc; vp->VoodooWriteProc = IntelWriteProc; *************** *** 304,317 **** if (vp->PStateControl) { vp->PStateCount = Maximum.cid - Minimum.cid + 1; if (vp->PStateCount > PStateCountMax) vp->PStateCount = PStateCountMax; - UInt8 vidstep; UInt8 i = 0, invalid = 0; ! vidstep = ((Maximum.vid << 2) - (Minimum.vid << 2)) / (vp->PStateCount - 1); for (UInt8 u = 0; u < vp->PStateCount; u++) { i = u - invalid; vp->PState[i].cid = Maximum.cid - u; vp->PState[i].fid = (vp->PState[i].cid >> 1); if (vp->PState[i].fid < 0x6) { if (vp->Intel_DynamicFSB) vp->PState[i].fid = (vp->PState[i].fid << 1) | 0x80; } else { if (vp->NonIntegerBusRatio) vp->PState[i].fid = vp->PState[i].fid | (0x40 * (vp->PState[i].cid & 0x1)); --- 306,336 ---- if (vp->PStateControl) { vp->PStateCount = Maximum.cid - Minimum.cid + 1; if (vp->PStateCount > PStateCountMax) vp->PStateCount = PStateCountMax; UInt8 i = 0, invalid = 0; ! UInt8 u, cid; ! ! if (broken_lfm) { ! /* Subtract off super lfm P-state entries */ ! for (u = 0; u < vp->PStateCount; u++) { ! cid = Maximum.cid - u; ! if ((cid >>1) < 0x6) { ! break; ! } ! } ! if (u) { ! Minimum.cid = cid+1; ! vp->PStateCount = Maximum.cid - Minimum.cid + 1; ! } ! } for (UInt8 u = 0; u < vp->PStateCount; u++) { i = u - invalid; vp->PState[i].cid = Maximum.cid - u; vp->PState[i].fid = (vp->PState[i].cid >> 1); if (vp->PState[i].fid < 0x6) { + if (broken_lfm) { + invalid++; + continue; + } if (vp->Intel_DynamicFSB) vp->PState[i].fid = (vp->PState[i].fid << 1) | 0x80; } else { if (vp->NonIntegerBusRatio) vp->PState[i].fid = vp->PState[i].fid | (0x40 * (vp->PState[i].cid & 0x1)); *************** *** 321,333 **** invalid++; } } - vp->PState[i].vid = ((Maximum.vid << 2) - (vidstep * u)) >> 2; } vp->PStateCount -= invalid; if (!vp->PStateCount) { ErrorLog("Insane P-State values"); return false; } } else { return false; } --- 340,357 ---- invalid++; } } } vp->PStateCount -= invalid; if (!vp->PStateCount) { ErrorLog("Insane P-State values"); return false; } + /* Avoid cumulative roundoff errors in vidstep by computing + delta directly */ + for (i = 0; i < vp->PStateCount; i++) { + vp->PState[i].vid = Maximum.vid - + ((Maximum.vid - Minimum.vid)*i / (vp->PStateCount - 1)); + } } else { return false; } Link to comment https://www.insanelymac.com/forum/topic/188954-64bit-p-state/page/3/#findComment-1321521 Share on other sites More sharing options...
cparm Posted November 6, 2009 Share Posted November 6, 2009 guys, i move it to: The X labs > intel speedstep Link to comment https://www.insanelymac.com/forum/topic/188954-64bit-p-state/page/3/#findComment-1321525 Share on other sites More sharing options...
Brewers Posted November 6, 2009 Share Posted November 6, 2009 Hey, I still encounter cursor jumping when the tool changes the Pstate. Interval is set to 250ms. Did anyone else encounter this problem? Link to comment https://www.insanelymac.com/forum/topic/188954-64bit-p-state/page/3/#findComment-1321599 Share on other sites More sharing options...
mitch_de Posted November 6, 2009 Share Posted November 6, 2009 Here's a new version of my super-LFM patch. It also includes a fix for a rounding error in intel_probe(), where cumulative rounding errors in vidstep causes the p-states to use higher frequencies than necessary. The rounding problem is independent of the LFM problem, and also exists in the VoodooPower version of this code. With this change, my 6x p-state runs with .0125v less *** intel.cpp 2009-10-20 00:03:32.000000000 -0700 --- intel.cpp.new2 2009-11-05 15:38:00.913023711 -0800 *************** *** 92,97 **** --- 92,99 ---- bool intel_probe(VoodooPState* vp) { + bool broken_lfm = true; + Can you upload scuh an modded ready to run build somewhere. Doe this also is for Leo version of VoodooPstate ?Thanks Link to comment https://www.insanelymac.com/forum/topic/188954-64bit-p-state/page/3/#findComment-1321740 Share on other sites More sharing options...
Smith@@™ Posted November 6, 2009 Share Posted November 6, 2009 Is there a new kext for pstate? I don't understand. If yes, when it will possible to download? Link to comment https://www.insanelymac.com/forum/topic/188954-64bit-p-state/page/3/#findComment-1321837 Share on other sites More sharing options...
bcc9 Posted November 6, 2009 Share Posted November 6, 2009 Can you upload scuh an modded ready to run build somewhere. Doe this also is for Leo version of VoodooPstate ? I've posted a build of just my modified voodoopstate.kext, based upon hnak's 1.0.3 version, in this thread, specifically here's the kextUpdate: New version, v4, here I built with hnak's default settings, which means it's a 10.6 only bundle. 10.5.x kexts would have to be built separately. Link to comment https://www.insanelymac.com/forum/topic/188954-64bit-p-state/page/3/#findComment-1322005 Share on other sites More sharing options...
