MSI X-SLIM 340

Jack-Black

By Jack-Black,
in OSx86 10.5 (Leopard)

 Share
116 posts in this topic

Recommended Posts

balestrap1
balestrap1
Posted
Posted
Hello. I propose to open topic about installation on this nootebook (Mac Air Clone). I share my experience about installing.



Specification



Intel Core 2 Solo Processor



Intel GS45 + ICH9M-SFF



2GB max of DDR2 667/800



TFT-LCD Display, 16:9 widescreen1366x768



2.5 in. 320GB SATA



1.3 megapixel webcam



2-in1 Card Reader (SD/SDHC/MMC



Built-in Gigabit Ethernet LAN and Modem Module



Built-in 802.11b/g/n WLAN Card, Bluetooth is optional



Ports: 1 D-Sub; 2 USB 2.0; 1 Mic-in; 1 Headphone Out; 1 HDMI Por; 1 LANTried 10.5.2, 10.5.4,







Installed 10.5.6, 10.5.7, 10.5.8 builds from iAtkos, IPC, Leo4All, iDeneb



Installed without any problem and worked very fast after logon without any kernel panics.



Problems:



1: 5-6 minutes booting (due to absence of VGA and wi-fi driver I suppose) stuck on IOKit timeout error. Till this moment and after fast boot without any problems.



can't identify devices



2: No wi-fi and vga driver. 1024x768 resolution.



I tried linux boot manager fix and x3100 modified kext (with these kexts blue screen on logon and nothing happens) for VGA nothing help.



Sound, Lan, usb, bluetooth working perfectly as keyboard and touchpad.



battery and sound kexts from Voodoo Project available in last builds.



Tried to find a solution for vga and wi-fi. Spent about week on this (read a lot of topics). And at the end install Windows 7 till the following drivers will be made



I can live without VGA and wi-fi but 5-6 minutes boot it's borring. For info. Have a big experience in installing hackintosh on PC, notebooks, netbooks.



Ok. Let's starting to solve following problems to finally get a fully working notebook.





I have the same pc x340, wich configuration you used to hackintosch?

Link to comment
Share on other sites
  • 2 weeks later...
koldun2
koldun2
Posted
Posted

Hi!

How I can create bootable USB flash drive with Mac os for my X340?



I have tried by Disk Utility (partition GIUD, restore image dmg on USB flash), but mac os setup doesnt boot - black screen and nothing :)

Link to comment
Share on other sites
Jack-Black
Jack-Black
Posted
  • Author
Posted
Hi!

How I can create bootable USB flash drive with Mac os for my X340?



I have tried by Disk Utility (partition GIUD, restore image dmg on USB flash), but mac os setup doesnt boot - black screen and nothing :(



I didn't use usb flash as if I recover Leopard on x-slim's partition from my PC backup with R-drive image software. The other working method is to restore install hackintosh iso on usb flash drive with disk utility in mac I have macbook and did it. By the way don't recommend you to install mac in a way wi-fi and video drivers not exist (video patch - only native resolution no acceleration). Install Win 7, working like a charm to the moment when drivers will be made.

See my videos:

http://www.youtube.com/watch?v=H0ZxQ62Biso

http://www.youtube.com/watch?v=5E6wtRWo_NQ

Link to comment
Share on other sites
  • 2 weeks later...
denk
denk
Posted
Posted

iwidarwin: Intel® PROSet/Wireless drivers for Mac OS X

SVN Latest - Install at your own risk :thumbsup_anim: - PROSet/Wireless 3945, 4965, 5150, 5350, 6x00, 6x50, 1000 OS X 10.5 SVN latest

Here



for MSI X-Slim X340 with Intel 5150/5350 Wireless.

Link to comment
Share on other sites
Jack-Black
Jack-Black
Posted
  • Author
Posted
Jack-Black, can you upload your backup of Leo? ;) And what do you think about Snow Leopard on X-Slim X340?



No I can't it's 30Gb backup image. :) If it's not boot and dark screen you did smth wrong. Anyway you need Mac PC to do this. I'll recomend you buy any dvdrw usb drive for 40-50$ to do this best.



iwidarwin: Intel® PROSet/Wireless drivers for Mac OS X



Here



for MSI X-Slim X340 with Intel 5150/5350 Wireless.



Not working

Link to comment
Share on other sites
unclemik
unclemik
Posted
Posted

Hi



i finally install iDeneb 10.5.8 on x340, all fine.



the only thing i cannot set is the suspend when i close the cover....,



and it freeze if go to suspension....



and i cant see battery level (i tried voodoo battery without success...)



(oh, damn... a long boot time over four minutes..)



thanks for help



Mik

Link to comment
Share on other sites
Jack-Black
Jack-Black
Posted
  • Author
Posted
i am testing video patch on x340: full (native) resolution, but i cant play any video (avi dvix xvid ecc.) on quicktime and VLC.



some help?



mik



DivX, xvid, mpeg, mkv and others codecs for quicktime. All in one.

http://perian.org/



this is fine on my x340

http://www.insanelymac.com/forum/index.php?showtopic=173338.



something about suspend, and webcam?



mik



Webcam will work only with x4500 acceleration enabled (another words Quartz Extreme enabled). Suspend depend on acceleration too.

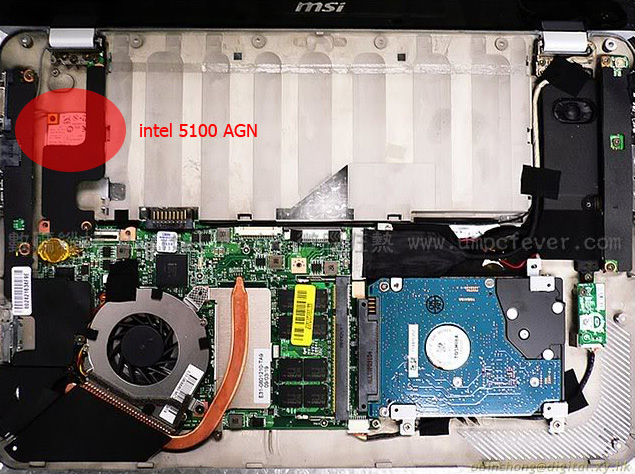

I know the way now how to get wi-fi working it's very simple just replace internal wi-fi module with compatible one. You can do it in service or yourself (but say bye bye your warranty). Below I show picture where this one is located and replace with those:

http://cgi.ebay.co.uk/Apple-AirPort-Extrem...=item518b8eab94

Apple branded

http://cgi.ebay.co.uk/ws/eBayISAPI.dll?Vie...em=200327447249


Link to comment
Share on other sites
JIPE
JIPE
Posted
Posted

I use "Google Translation" to join this forum.

Upon its release, the MSI X340 was deemed incompatible with distribution Hackintosh

Moreover, its keyboard was very bad and especially the fan walked continuously with a noisy hard drive.

Under Hackintosh, fan and hard drive are they noisy?

Link to comment
Share on other sites
Jack-Black
Jack-Black
Posted
  • Author
Posted
I use "Google Translation" to join this forum.

Upon its release, the MSI X340 was deemed incompatible with distribution Hackintosh

Moreover, its keyboard was very bad and especially the fan walked continuously with a noisy hard drive.

Under Hackintosh, fan and hard drive are they noisy?



Maybe the noisy fan depend on revision. My one is silent. Keyboard is bad enough I agree but I fixed this with long stainless plate. Now it's good for touching... and not bend when you typing :)

Link to comment
Share on other sites
radgue
radgue
Posted
Posted

hi, first of all thank you for all your information, i have a mis x340 with EVERYTHING working, eaven the wifi (of course o had to change the wireless card) now the only thing missing is QE but for my university propouses it works just fine, here is a video of my laptop.......









http://www.youtube.com/watch?v=6v2M0qyiBnE









also, jack black could you post some pics  or tell me more about how did you do to fix the keyboard bending problem.









 thanks

Link to comment
Share on other sites
Jack-Black
Jack-Black
Posted
  • Author
Posted
hi, first of all thank you for all your information, i have a mis x340 with EVERYTHING working, eaven the wifi (of course o had to change the wireless card) now the only thing missing is QE but for my university propouses it works just fine, here is a video of my laptop.......



http://www.youtube.com/watch?v=6v2M0qyiBnE



also, jack black could you post some pics or tell me more about how did you do to fix the keyboard bending problem.



thanks



Can't see your video in a cause "The URL contained a malformed video ID."



About keyboard fix. I used stainless steel plate with 0.5mm thickness and assembly double side tape ( 0.2mm tape). This plate deаdly keep bad aluminum keyboard's surface and now it's not bend. Very nice click :)


Link to comment
Share on other sites
unclemik
unclemik
Posted
Posted

i have some problem with battery recognition. i tested some 'battery manager' package but i cant see the battery life in the taskbar.



with 'power management 10.5.3' at first time seems ok, but after a reboot kernel panic.

now in use a battery manager of ideneb 10.5.6 but in the task bar is a space and clicking i see 'no battery found'.



(i work with installed ideneb 10.5.8 lite)



where i can find a battery manager for my x340?



thanks all (expecially jack black)



nothing for the long long boot time?

Link to comment
Share on other sites
unclemik
unclemik
Posted
Posted
i have some problem with battery recognition. i tested some 'battery manager' package but i cant see the battery life in the taskbar.



with 'power management 10.5.3' at first time seems ok, but after a reboot kernel panic.

now in use a battery manager of ideneb 10.5.6 but in the task bar is a space and clicking i see 'no battery found'.



(i work with installed ideneb 10.5.8 lite)



where i can find a battery manager for my x340?



thanks all (expecially jack black)



nothing for the long long boot time?





i solved with this voodoo battery

http://www.superhai.com/darwin.html





now all ok. (not wifi obv), only suspend but i undertood without QE is impossible. right?

thanks jack.

Link to comment
Share on other sites
Jack-Black
Jack-Black
Posted
  • Author
Posted
Hi



i finally install iDeneb 10.5.8 on x340, all fine.



the only thing i cannot set is the suspend when i close the cover....,



and it freeze if go to suspension....



and i cant see battery level (i tried voodoo battery without success...)



(oh, damn... a long boot time over four minutes..)



thanks for help



Mik



The same problem with long boot. I noticed that long boot on all 10.5.x Leopard builds. But it's also depend on notebook revision. For example on other it's boot quickly. Another words I can't resolve this problem (removed all kexts one by one - no success long boot. Funny but in Snow Leopard this problem absent.) and installed SL on inactive partition.

Link to comment
Share on other sites
Jack-Black
Jack-Black
Posted
  • Author
Posted

I posted image and video of fixed keyboard.

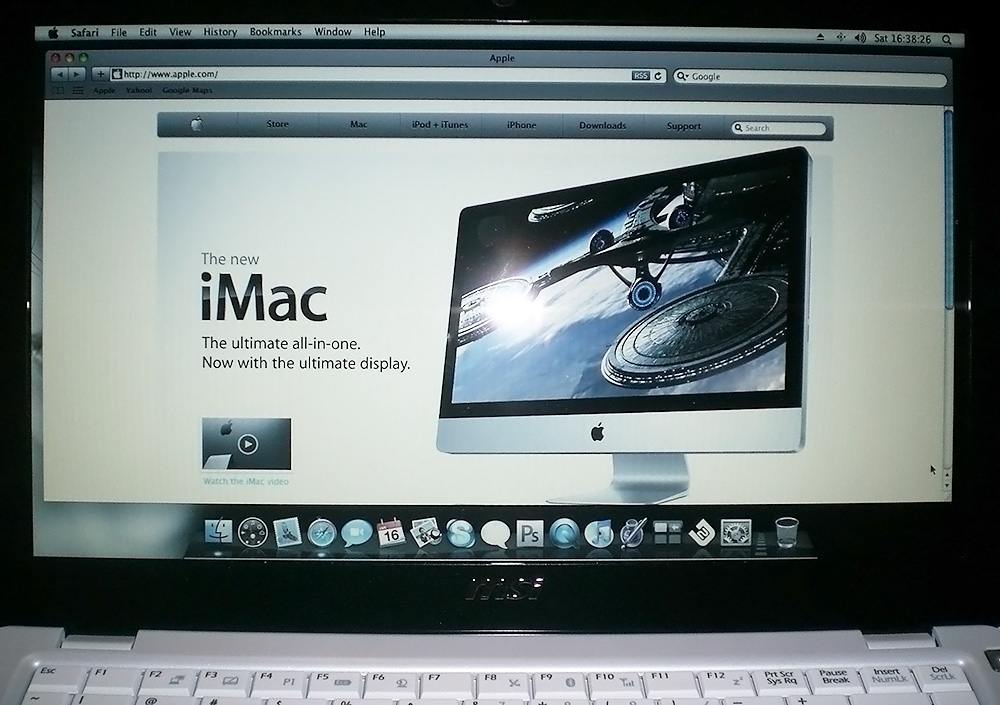

About Mac OS X. I installed a lot of 10.5.x Leopard builds from iAtkos, HTC, iDeneb and others. Result - 5 mins boot. I tried to replace, delete, edit kexts as result - nothing help (long boot). Yesterday I got SL 10.6.2 working with x3100 patched file (native resolution) now only 2 things left wi-fi and QE/CI acceleration. I posted image and video of how it's working. P.S. Leopard despite on long boot playing DivX files little better then SL.

http://www.youtube.com/watch?v=KHVO5w6XDOc

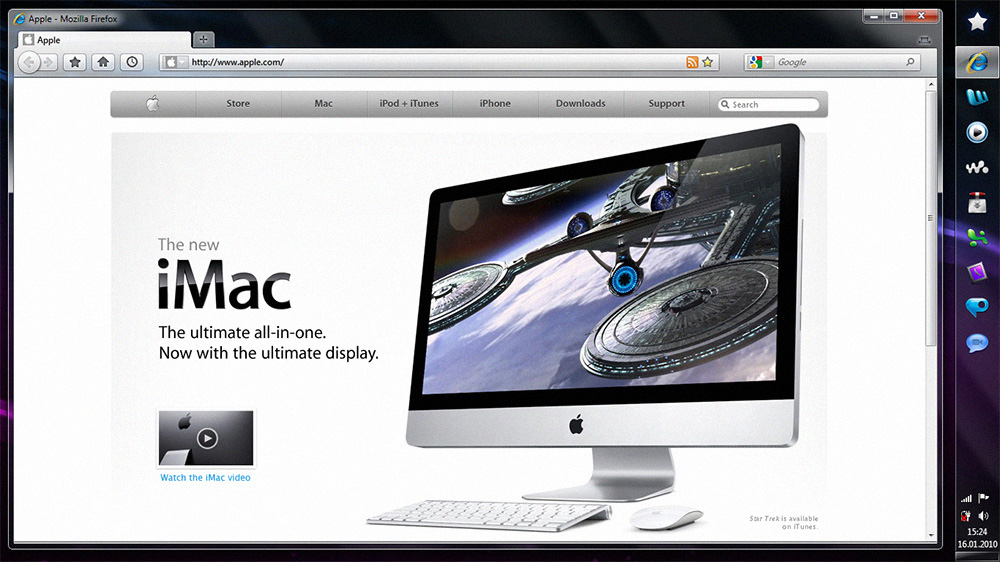

About Windows 7. For this moment it's best choice for this laptop as if it plays all video formats without lagging. Even 1920x1080 working well (only MKV Full HD - freezing, 720p running good) + a greet amount of software and most important thing - it's very stable and fast.

Pictures and video here.

http://www.youtube.com/watch?v=AVpwcXhZL9I



For this moment I stop to do experiment as if it's useless (I don't need lagging video and no Wi-Fi). I left Snow Leo on inactive HDD's partition for booting when situation with driver will change. 5 months and no driver for wi-fi and x4500. Now I doubt that it will be done (maybe only wi-fi). Continue patiently to wait for drivers for at least fully working X4500 (as if wi-fi card can be replaced with working one).
