HOW TO FIX MESSAGES APP
work in progress-subject to change

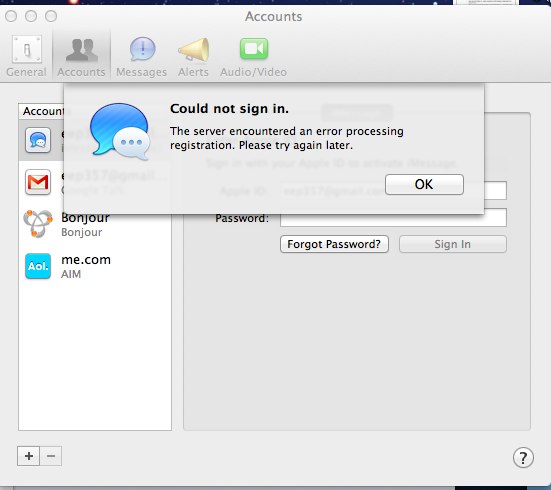

This is only for those of you who are running Mountain Lion and getting this error since the Messages Beta for Lion ended on 12/14/12, but can still sign into other services like iCloud, App Store, etc.

 Messages-Not SignIn.jpg   40.69K   308 downloads

To fix this, we need an added value to the NVRAM which as of the time of this writing, can only be done by using the latest revision (r980) of boot loader by Slice, dmazar and others:  Clover.png   45.83K   773 downloads
To get the most recent installer package, we"ll use the tool created by STLVNUB: "Clover Grower" which can be downloaded here. You'll need Xcode's Command Line Tools installed, available for download in Xcode's preferences. The full list of instructions and options can be found here. Highly recommend reading them since every person's setup is different and there are many additional features you may want to explore. Only the basics here.

Once you've downloaded Clover Grower, open Terminal.app from /Application/Utilities/Terminal.app. From your downloaded Clover Grower, drag and drop CloverGrower.command into terminal window and hit enter. Follow the prompts and enter password, Yes, etc. when asked. I recommend using all default settings unless you know what your doing. The process may take a little while as additional tools to compile are installed by the script. Once it's all done you should now have a folder with the package installer in it looking like this:

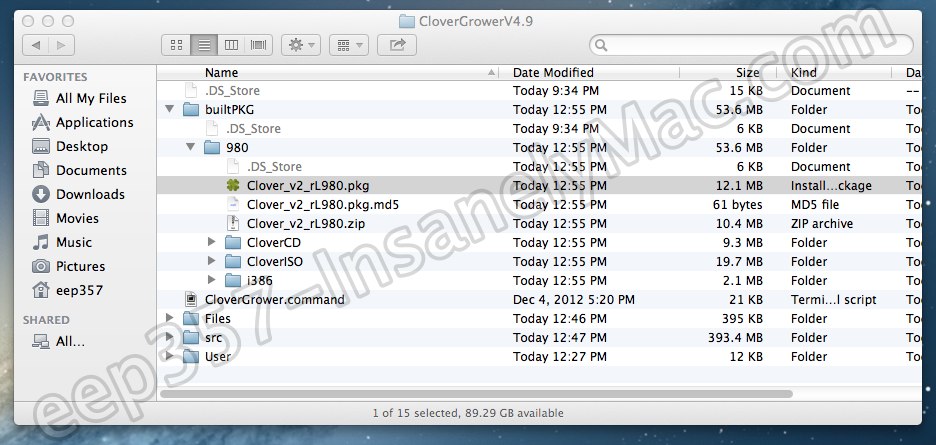

 CloverGrowerV4.9.jpg   110.34K   1142 downloads

Next prepare a USB thumb drive to install it onto. Use Disk Utility and format it as FAT32 with a MBR partition scheme. You can install the boot loader to your main hard drive later once your sure it all works and are comfortable with the configuration.

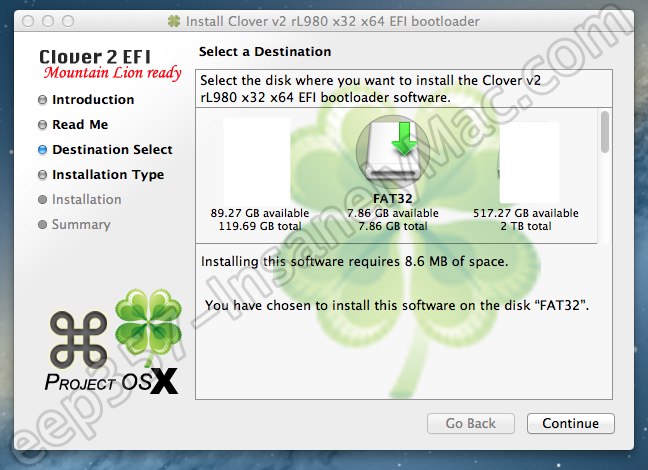

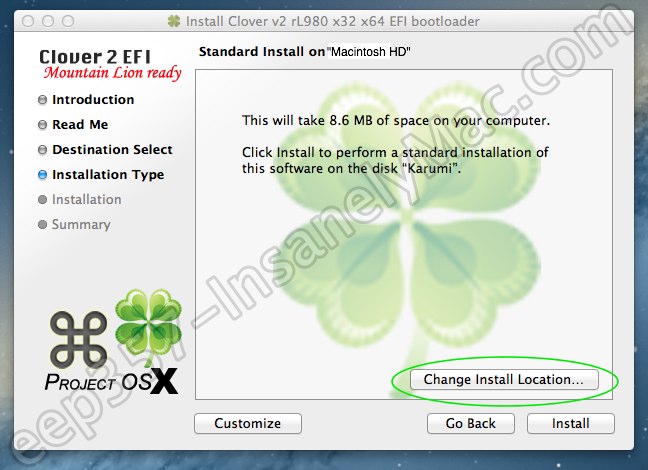

Run the Clover package installer, leaving all settings as default except choose your thumb drive as the install location.

 Install Clover v2 rL980 x32 x64 EFI bootloader.jpg   65.77K   742 downloads  fat.jpg   72.25K   512 downloads

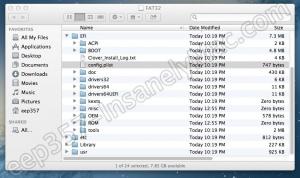

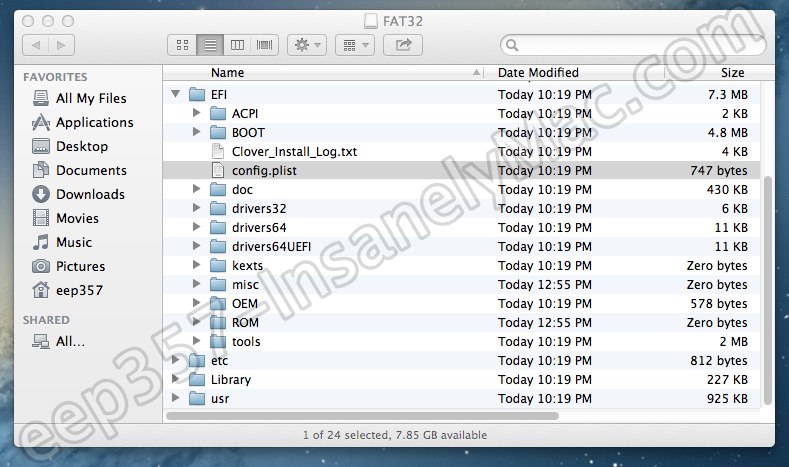

Once the install is complete navigate to your new Clover USB drive and open the config.plist with text editor (RT Click and "Open With")
 FAT32files.jpg   94.89K   1565 downloads

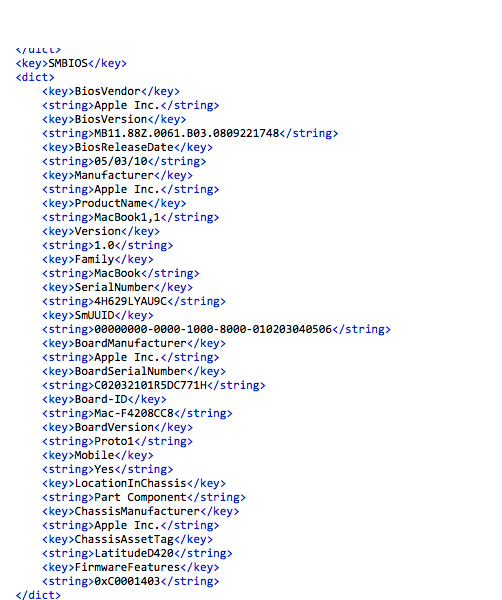

This plist is like org.chameleon.Boot.plist and smbios.plist all in one file. Some options are the same, some are similar but have different names, and some are new for added config ability. This is where some system specific changes maybe needed, but first try simple leaving everything as is, and will only add info from our current smbios and what's needed for messages fix. Copy all info from your smbios into config.plist, and then you will need to change the names of the values inside each <key></key> to match the new format. Here is how they need to be named in Clover:
 SMBIOS.png   100.71K   2809 downloads

Additional examples can be found in /EFI/doc/ inside Clover drive.

For UEFI boot and additional Graphics config, follow dmazar's instructions here

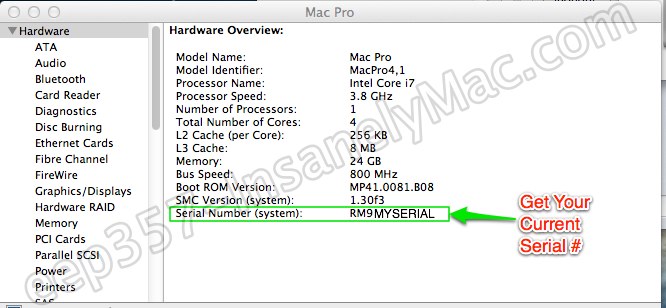

For the Message part, first get your current serial which is in the smbios you just copied, and can also be found in system information:
 Mac Pro-Serial.jpg   55.98K   2695 downloads

Now we add a new entry to config.plist that includes that 11 digit serial #, but we need to append 6 more digits onto it to make it a 17 digit #. So for example RM9MYSERIAL becomes RM9MYSERIAL234567 and the entry looks like this:

<key>RtVariables</key>
<dict>
  <key>MLB</key>
  <string>RM916W05EEP3574PC</string>
</dict>

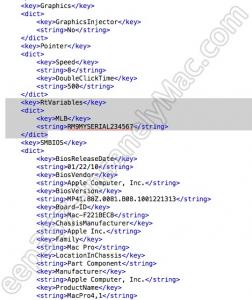

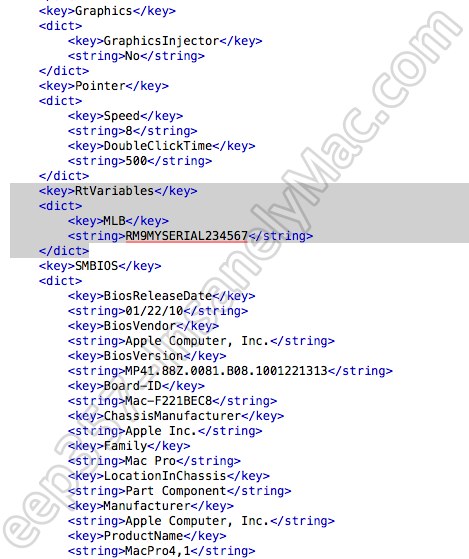

In the image below you can see inserted into the list with some of the entry before and after visible to give an idea how it should look.
This is mine for my own PC, not yours, it's for frame of reference on how the code is inserted and should not to be copied in full if you want anything to work!
 config.plist2.jpg   77.15K   1606 downloads
If you use a patched DSDT, copy it to the root of your main OSX drive.

Try it!

Please, please, please read all the instructions for Clover here before asking any Clover related questions!

Edit or maybe Warning: One note, a few people have had message saying "account locked, call customer service" either right away or even after a successful login and a reboot. Not sure the cause, but I recommend rebooting twice before trying to log into Messages incase there are nvram values such as platform-uuid that if you are not specifying them in config.plist, Clover will set them at shutdown to be applied on the next reboot, which would then be the second time your booting using Clover.--Further reports on this have indicated success after a credit card has been tied to appleID account through the appstore, or when a small $1 app is purchased.

Credits: The testing, brainstorming and collaborating involved was an unprecedented (in recent history) effort by the entire community, with valued efforts by too many people to list, but a special thank you to ElNono and flux84 for putting the final pieces together, to Slice for Clover and dmazar for pushing and update so quickly! Great work everyone!!!

[shmk]

Can't run the .command file it keeps sending me to download Xcode but it is already installed.

[eep357]

Do you have xcode command line tools installed? It's the first thing I install when setting up OSX so didn't occur to me it may be needed. Launch xcode, go to preferences>downloads and install them there.

[shmk]

Thanks that works

[afd_sg]

My thanks as well to ALL involved in sorting out this problem so quickly. I agree the co-operation of all involved is worthy sincere thanks world wide for a job well done and a great spirit and determination. It just shows what can be done...

[sekmo]

Thanks very much. Love this community!

[dannymichel]

So we need a USB to start OS X every time?

Edited by eep357, 10 January 2013 - 02:42 PM.
removed quoting of entire how-to, I know your talking about Clover without it :)

[eep357]

No you do not need a USB every time, this is a safety precaution so that if you don't configure something correctly in Clover, you can still boot into your system and fix things. Once your confident your USB bootloader is set up properly and everything works, you can then run the package installer again and target your primary hard drive, then copy your config files from the USB over to the corresponding locations on your main hard drive. If at all possible DO IT ON A USB FIRST!

[dannymichel]

Thanks. I know you said to use default settings unless you know what you're doing, but would you happen to know from experience if people with Gigabyte GA-EP45-UD3P (rev 1.1), F10 Bios should use HFSPlus.efi, OsxFatBinaryDrv-64.efi?

[eep357]

Nope, not a clue, this is why you use a USB But it usually can boot with ZERO config at all, but will need config as noted above for Messages still.

[dannymichel]

Do we remove anything from our current /Extra folder at all?

[eep357]

No, keep it intact so you can still boot with Chameleon if you have to. Just copy your DSDT to /
there are other places DSDT can go instead, but for simplicity, just copy it to / and read the Clover instructions linked in guide if you want to start tinkering around with it later. (Read them either way)

[mrintegra]

I left everything alone and just followed the prompts in terminal asked by CloverGrower.

Thank you to all of those who contributed to fixing this problem. Now I'm running at 100% full compatibility on a Lenovo M91P.

dannymichel, on 10 January 2013 - 03:38 PM, said:

Do we remove anything from our current /Extra folder at all?

[Donw35]

I want to say "Thanks" to the hard work those that solved this have done, they are the unsung hero's of our community.

Good Job Guys

[dmazar]

Thanks for the guide eep357!

Few hints from me ...

I noticed that some guys with UEFI boards are ending up with no OSX volumes when they start Clover. That happens because installer by default does not install needed UEFI drivers needed for UEFI boot to the stick. And users are choosing "UEFI: <the name of the stick>" when booting from it. More about it here.

Another hint is to try to add to get native resolution by video bios patching. In config.plist, in Graphics section, PatchVBios option:

<key>Graphics</key>
<dict>
  <key>GraphicsInjector</key>
  <string>Yes</string>
  ...
  <key>PatchVBios</key>
  <string>Yes</string>
</dict>

Not guaranteed to work for everybody, but it usually works with ATI cards, Intel and some Nvidia. Some Nvidia may end up with black border, but that can be resolved only by moding the card bios. Standard BIOS CloverEFI users do not need anything else, but UEFI users require additional CsmVideoDxe-64.efi driver to be added to /efi/drivers64UEFI (available with installer).

One more hint is to try putting mouse driver (UsbMouseDxe-64.efi or Ps2MouseDxe-64.efi - also available via installer) to /Efi/drivers64 (for standard CloverEFI BIOS mode). Not the best mouse experience possible, but it works.

[dannymichel]

I booted in with the USB fine after having installed Clover, so I installed the package from what CloverGrower made me onto my main HDD /, copied the values from SMBios, but I still cant log into messages.

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
<key>SystemParameters</key>
<dict>
  <key>boot-args</key>
  <string>-v npci=0x2000</string>
  <key>prev-lang:kbd</key>
  <string>en:0</string>
  <key>InjectSystemID</key>
  <string>Yes</string>
  <key>LegacyBoot</key>
  <string>PBR</string>
</dict>
<key>Pointer</key>
<dict>
  <key>Speed</key>
  <string>8</string>
</dict>
<key>Graphics</key>
<dict>
  <key>GraphicsInjector</key>
  <string>Yes</string>
  <key>PatchVBiosBytes</key>
  <dict>
   <key>Find</key>
   <data>gAeoAqAF</data>
   <key>Replace</key>
   <data>gAeoAjgE</data>
  </dict>
</dict>
</dict>
<key>RtVariables</key>
<dict>
<key>MLB</key>
<string>QT8362N5XYK234567</string>
</dict>
<key>SMBIOS</key>
<dict>
<key>BiosVendor</key>
<string>Apple Inc.</string>
<key>BiosVersion</key>
<string>MP31.88Z.006C.B05.0803691410</string>
<key>Board-ID</key>
<string>Mac-F42C36C8</string>
<key>Family</key>
<string>Mac Pro</string>
<key>ProductName</key>
<string>MacPro3,1</string>
<key>SerialNumber</key>
<string>QT8362N5XYK</string>
</dict>
</plist>

[mendietinha]

i have a laptop with hd4000 and ati 7650m, and cant install clover. if i install in the usb, the screen blinks for 2 or 3 seconds, a 7 apears in the left upper corner and nothing more happens.. if i install in the hdd, get boot1 error.

i format in the correct way, try with dsdt and without, install default and boot legacy and uefi. nothing works.

please, what can i do? thanks!

[fffeee]

I've been doing a DSDT-less boot with UEFI on my Gigabyte z68x-ud3h-b3 via Chameleon and I'm still timid about Clover for that reason.  I appreciate the guide and the information, I never thought I'd be learning a new bootloader, but then again I thought the same thing when I learned LILO.

[eep357]

mendietinha, on 10 January 2013 - 04:30 PM, said:

i have a laptop with hd4000 and ati 7650m, and cant install clover. if i install in the usb, the screen blinks for 2 or 3 seconds, a 7 apears in the left upper corner and nothing more happens.. if i install in the hdd, get boot1 error.

i format in the correct way, try with dsdt and without, install default and boot legacy and uefi. nothing works.

please, what can i do? thanks!

after the 7 appears, just wait like 2-3 mins, trust me. It's just having a little trouble reading something on there, but will come up eventually.

[Kynyo]

I've try to change serial but none edits works....
It's randomly generated a serial by Clover.
What I have to do?

I've the "Call Support" error. I tried to change the password, but none of these methods work.
