Intel® Pentium® D Processor with Dual Core Technology Up to 820 (2.8GHz,2X1M,800MHz FSB)
Intel® Pentium® 4 Processor with Hyper-Threading Technology Up to 650 (3.4GHz,2M,800MHz FSB)
Intel® Celeron® D Processor Up to 351 (3.2GHz,256K,533MHz FSB)
and 3 case case configurations, mini tower, desktop and SSF (small form factor). The GX620 comes in an additional case an UltraSmallFormFactor. All share the same motherboard chipset and integrated audio, video & wired network (shown in my sig below).
8086;Intel Corporation;2770;82945G/GZ/P/PL Memory Controller Hub;Bridge;Host bridge 8086;Intel Corporation;2776;82945G/GZ Integrated Graphics Controller;Display controller;Display controller 8086;Intel Corporation;27cc;N10/ICH 7 Family USB2 EHCI Controller;Serial bus controller;USB Controller 8086;Intel Corporation;27de;82801G (ICH7 Family) AC'97 Audio Controller;Multimedia controller;Multimedia audio controller 8086;Intel Corporation;27df;82801G (ICH7 Family) IDE Controller;Mass storage controller;IDE interface 8086;Intel Corporation;27c0;N10/ICH7 Family SATA IDE Controller;Mass storage controller;IDE interface 8086;Intel Corporation;27da;N10/ICH 7 Family SMBus Controller;Serial bus controller;SMBus 8086;Intel Corporation;27cb;N10/ICH 7 Family USB UHCI Controller #4;Serial bus controller;USB Controller 8086;Intel Corporation;27ca;N10/ICH 7 Family USB UHCI Controller #3;Serial bus controller;USB Controller 8086;Intel Corporation;27c9;N10/ICH 7 Family USB UHCI Controller #2;Serial bus controller;USB Controller 8086;Intel Corporation;27c8;N10/ICH7 Family USB UHCI Controller #1;Serial bus controller;USB Controller 8086;Intel Corporation;27b8;82801GB/GR (ICH7 Family) LPC Interface Bridge;Bridge;ISA bridge 8086;Intel Corporation;2772;82945G/GZ Integrated Graphics Controller;Display controller;VGA compatible controller 8086;Intel Corporation;2771;82945G/GZ/P/PL PCI Express Root Port;Bridge;PCI bridge 8086;Intel Corporation;27d2;N10/ICH 7 Family PCI Express Port 2;Bridge;PCI bridge 14e4;Broadcom Corporation;1677;NetXtreme BCM5751 Gigabit Ethernet PCI Express;Network controller;Ethernet controller 8086;Intel Corporation;27d0;N10/ICH 7 Family PCI Express Port 1;Bridge;PCI bridge 8086;Intel Corporation;244e;82801 PCI Bridge;Bridge;PCI bridge
I would suggest that you read right through and then re-read to make sure you understand each step and/or download/print for future reference
Please read the EDITS before posting a question.
What you need for install
1- Access to a MAC or Hack (Running 10.0-10.6 doesn't matter which)
2- Mac OS X Install DVD
3- 8GB or larger External USB Drive or Flash Drive
4- myHack installer found here http://osx86.sojugar...r-1-1-released/
UPDATE- Updated myHack for the 10.6.4 Legacy Kernel http://blog.nawcom.com/?p=242
5-Carbon Copy Cloner (free) found here http://www.bombich.com/
6-One Kext each for Audio, Lan & Video Note for video with 10.6.3-4 you only need one kext for video but
if you are installing form an earlier DVD or image you will need to upgrade to at least 10.6.3, if not a DSDT
or GFX Strings will be needed (kexts posted below)
7-Common sense & patience.
This method differs from the method on the myhack site as I found this simpler. I will call the Mac or Hack used to do this "Donor" the USB drive "Install"
INSTALLATION -- Attach USB drive to "Donor" computer. Open Disk Utility and partition the USB drive. Use one partition Mac OS extended journaled and under options pick GUID partition table.
Insert Mac OS X Install DVD. DO NOT click on the install Mac OS X when it pops up.
In the Finder Go Menu- Go to folder-type /Volumes/Mac OS X Install DVD/System/Installation/Packages..Open 'OSInstall.mpkg NOT OSInstall.pkg or the upgrade.pkg ..MAKE SURE that the destination chosen is the external drive "Install" Under the custom tab, uncheck printer drivers, languages, fonts etc, if you need any of these, they can be installed later. When the install is finished, close the installer.
Note: If you get an installation failed message after install it is safe to ignore it, this is a common but inconsistent error. It happens when the installer can not “bless” the targeted partition and it believes your system will not be bootable.

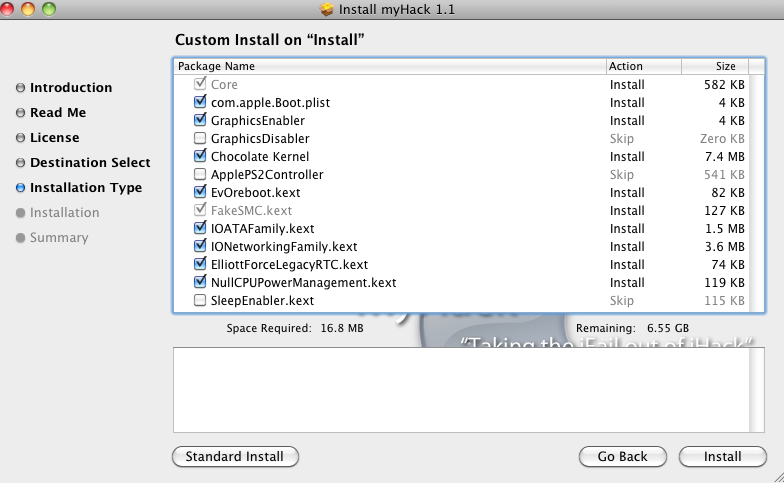

Next (still on 'Donor" computer open the myHack.mpkg. It is most IMPORTANT that you change install location to the USB drive "Install"
Check the following options..com.apple.Boot.plist......Graphics Enabler....Chocolate Kernel......evOverboot.kext......IOATAFamily.kext....
Close myhack installer when finished.
by_default_2010_10_01_at_________5.38.38_AM.png 78.68K 1895 downloads
Copy Carbon Copy Cloner (CCC) and myHack.mpkg all these attachments to the USB disc "Install" They will be needed later.
Chameleon_2.0_RC4.zip 882.04K 878 downloads
AppleAC97Audio.kext.zip 234.91K 859 downloads
Updated Kext AppleAC97Audio.kext.zip 210.57K 1232 downloads
AppleBCM5751Ethernet.kext.zip 206.88K 1273 downloads
AppleIntelIntegratedFramebuffer.kext.zip 65.67K 1188 downloads EDIT For DSDT for Video see Post #4 below. If you intend to do the dsdt DON"T install frame buffer kext.
Kext_Utility.zip 57.02K 1011 downloads
Eject and unplug "Install" from "Donor"
TRANSFER TO OPTIPLEX -- Plug in USB "Install" to your Dell Optiplex. Boot dell and enter Bios (tap F2 key while starting) Under Drives/Sata operation choose Combination, save and exit bios now Tap F12 to enter boot options, choose USB device. When you see the Chameleon Boot loader screen tap the space bar and type -v If the boot hangs this will help. Be patient the first boot always take time.
You should get to the OS X setup screen, you will not have sound or ethernet or accelerated graphics yet, will fix that later.
TRANSFER from "Install" to Dell Optiplex Hard Drive-- You should now be booted into OS X on the Dell from the USB Drive. Open Disk Utility and partition the Dell Internal Drive. If you want to dual boot with Windows Later have two partitions on Mac os extended and one NTFS (or DOS) or you may want to have a partition for your OS X backup, or three partitions MAC-Windows-Backup. or just one partition. For simplicity now name your os x partition "MAC" Whatever you choose go ahead and do it.
When you have finished partitioning open CCC, set source to"Install", destination to "MAC" settings to copy all and erase destination unchecked. Go ahead and clone.
When cloning is finished run myhack again with the same settings, destination "MAC" .. or simpler run the Chameleon installer if you downloaded it earlier again select destination "MAC". Either method will do the same, that is, install the boot loader to the internal drive.
Now restart and boot from "MAC"
EDIT For Onboard Network problems. With some routers a "mac address has to be set. Thanks to Weazlmon for this solution
Open a terminal window and type (not sure if you need to sudo -s first):
sudo nano rc.local
edit the end of the file with:
ifconfig en0 ether xx:xx:xx:xx:xx:xx
where you replace the xx's with your actual MAC address
press ctrl-x, and select y to save it.
OK Video, Audio & Lan--- Move the kexts & kext utility to desktop, Unzip them all. Drag audio, ethernet & framebuffer kexts onto kext utility icon and it will install them and rebuild caches and permissions automatically. when it is finished reboot and all will be working.
UPDATE to 10.6.4 -- Don't update via Software Update
If you have 10.6.0-10.6.2 download the combo update here http://support.apple...iewlocale=en_US
If you have 10.6.3 you can get away with the slightly smaller update here http://support.apple.com/kb/dl1049.
Download the 10.6.4 Legacy Kernel from http://www.insanelym...howtopic=221599
Run the 10.6.4 update but DON"T RESTART
Run MyHack installer (same settings as above)-DON"T RESTART
Run 10.6.4 Legacy Kernel installer-DON"T RESTART
Re install framebuffer kext with kext utility
UPDATE to 10.6.5 --Don't update via Software Update
If you have 10.6.0 -10.6.3 Download the 10.6.5 Combo Update from Apple
If you have 10.6.4 you can download the smaller 10.6.5 Update.
Run the update - DON"T RESTART
Download and install 10.5 Legacy Kernel
Now restart -If you have not done the DSDT fix for Video. you will have to reinstall the frame buffer kext.
UPDATE to 10.6.6
If you have 10.6.5 Download and install the 10.6.6 update http://support.apple.com/kb/DL1343
If you have 10.6.4 or earlier, Download and install the 10.6.6 combo update .http://support.apple.com/kb/DL1349 If you use the combo update install Legacy Kernel before restart
If you have not done the DSDT fix for Video. you will have to reinstall the frame buffer kext.
10.6 Legacy Kernel available http://blog.nawcom.com/?p=538
UPDATE to 10.6.7
Read the previous updates re Kernel & GMA 950 frame buffer. If you have a DSDT fix for Video & using the Vanilla kernel boot file patch just update via software update. If not here is the new kernel for 10.6.7 http://dl.nawcom.com...-10.7.0.pkg.zip
EDIT _ EDIT You can now run the vanilla kernel
Thank you to scififan68 for this
See here http://osx86.co/f36/...l-cpu-to-t6737/
boot.zip 194.23K 545 downloads
NullCPUPowerManagement.kext.zip 28.28K 464 downloads
Chameleon.699.zip 7.68MB 543 downloads
See posts 117-124
Change com.apple.boot.plist in extra folder to
If you upgrade "Chameleon" at any time you must replace the "Boot" file again. I suggest you leave the "Legacy Kernel" in place so that you can boot "legacy_kernel" at the boot prompt in case of problems.
**** Glad to have any suggestions re errors or omissions. ****
****Any suggestion on how to improve guide welcome ****
***** While I am more than happy to help people as far as my limited prowess allows, as my avatar suggests I will not spoon feed anyone that is too lazy to do some research themselves. I also wont assist via PM or email, so please dont ask.(have had previously requests)********[color="#FF0000"]
