[HowTo] P5N-E SLI nForce 650i leopard Complete Walkthrough Guide

KellyKelly

By KellyKelly,
in OSx86 10.5 (Leopard)

 Share
199 posts in this topic

Recommended Posts

verdant
verdant
Posted
Posted
Could you describe what options did you choose on ipc and bios? I want help my sister to install leo and her computer's config are p5ne-sli, sata hd and dvd and core 2 duo e6750. The problem I'm miles away from her and I need to do a little tutorial. Thank you in advance.









It would be nice if you describe what options to choose in bios and installation if you don't mind. I would thank forever...



See my blog and Pre-Series 7 nForce thread for iPC 10.5.6 Customize selections and BIOS settings...... ^_^

Link to comment
Share on other sites
shf
shf
Posted
Posted

ok i've managed to install iPC 10.5.6 Final on my rig :

Intel Core 2 Duo E4300 @ 3GHz

P5N-E SLi(bios 1301)

4GB RAM

Radeon HD 4850 512MB

and here's the problem: i can only boot with "cpus=1" flag, otherwise my mouse and keyboard freeze. With "cpus=1" flag everything works fine excet i've only one core ;/ is there any fix for this ? or maybe i have to change some settings in bios ?



I'm using Voodoo Kernel 9.5.0 (on vinilla i'm getting kernel panic "wait queue deadlock").

Link to comment
Share on other sites
  • 2 weeks later...
AdrianT
AdrianT
Posted
Posted

managed to install only the iDeneb 1.4 10.5.6, all the rest didn't get me anyware..and i tryed iAtkos from v1 to v5.5i, Kalyway 10.5.2 and iDeneb 1.3 10.5.5...

when installing i chose only the voodoo kernel 9.5.0, apple nforce ata, jmicron driver, nvdarwin512 for gf8800gt 512 and the the fix for ddr2 800...the sound works with the pach found at the beginning of this topic

did not try ethernet or firewire, the usb works perfect for me tryed even some aplications...

one issue is that it doesn't want to shutdown...

i can restart and everything but no shutdown

and the second one was that i was unable to mount the dmg's that i was downloading...

if u get kernel panic when trying to do so use this fix works perfect for me

Link to comment
Share on other sites
  • 3 weeks later...
pdhc
pdhc
Posted
Posted

almost 100% working!



Specs in signature



iPC OSx86 Final 10.5.6 V1.1 PPF

the DVD boots without any flags, though I used -v



Voodoo kernel

Chipset: ApplenForceATAtest

Video: Nvinject default

Audio: ALC 883

Ethernet: nForce LAN

Patched USB

Seatbelt 10.5.5

Shutdown/restart fix

SMBIOS 667MHz

All applications except the first one





-Sound works after setting "Output" to Line-Out.

-Video has glitches, so I used EFI studio to add EFI string for 8800GS 384MB. Then I deleted nvinject.kext, and cleared extensions cache and touched the folder with OSx86tools. Rebooted and video is working perfectly.

-Ethernet worked after I updated with 0.62.12n here. I simply ran the .pkg file and rebooted.



One minor problem though, the computer doesnt shutdown/restart properly. Screen goes black but the fans still spin.

Link to comment
Share on other sites
Nittoo
Nittoo
Posted
Posted

hi

thanks for great tutorial but i have a problem after installation

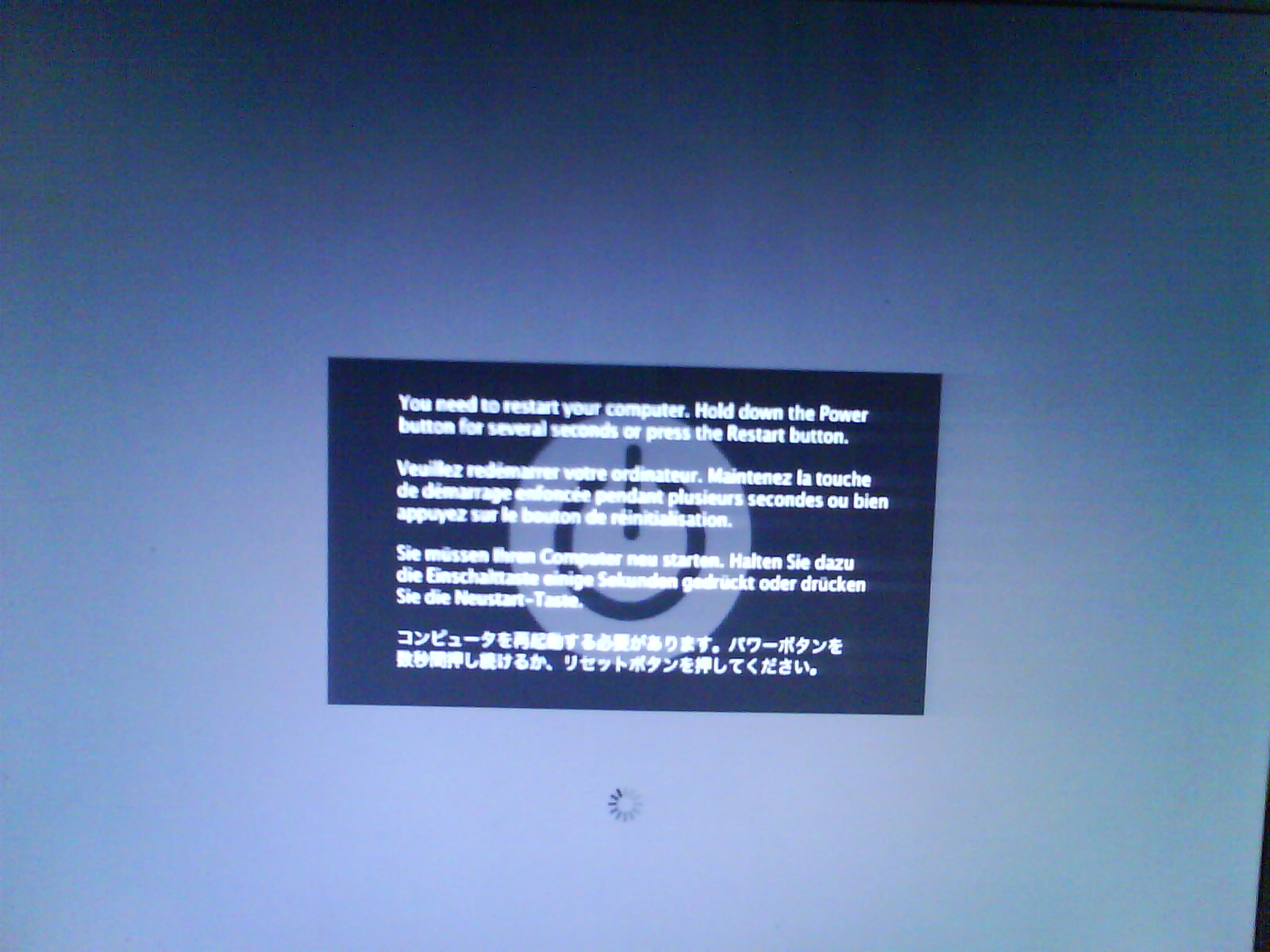

system asks to reboot plzzzzzz help

thanks

Configuration is

Intel Core 2 Duo E4300

Asus P5nesli

2 gb ddr2

Geforce 7300gt pci-e




Link to comment
Share on other sites
verdant
verdant
Posted
Posted
hi

thanks for great tutorial but i have a problem after installation

system asks to reboot plzzzzzz help

thanks

Configuration is

Intel Core 2 Duo E4300

Asus P5nesli

2 gb ddr2

Geforce 7300gt pci-e





Check out my Pre-Series 7 nForce chipset thread......and my blog install guides...... :D

Link to comment
Share on other sites
shf
shf
Posted
Posted
ok i've managed to install iPC 10.5.6 Final on my rig :

Intel Core 2 Duo E4300 @ 3GHz

P5N-E SLi(bios 1301)

4GB RAM

Radeon HD 4850 512MB

and here's the problem: i can only boot with "cpus=1" flag, otherwise my mouse and keyboard freeze. With "cpus=1" flag everything works fine excet i've only one core ;/ is there any fix for this ? or maybe i have to change some settings in bios ?



I'm using Voodoo Kernel 9.5.0 (on vinilla i'm getting kernel panic "wait queue deadlock").



i solved this issue by disabling onboard firewire, now my mouse and keyboard works with both cores enabled. no freezes! ;]

Link to comment
Share on other sites
pdhc
pdhc
Posted
Posted

I screwed up my OSx86 installation earlier when trying to enable USB 2.0, so I reinstalled it. Now everything is pretty much working 100%



iPC OSx86 Final 10.5.6 V1.1 PPF



Kernel: Voodoo

Chipset: ApplenForceATAtest

Video: none

Audio: ALC 883

Ethernet: none

Fixes: Seatbelt 10.5.5, Shutdown/restart fix, Dual-boot time sync fix, SMBIOS 667MHz



This time around, I did not install the patched USB drivers. USB 2.0 works fine out of the box without them.



After installation:

Go to sound preferences and change "Output" to Line-Out.

Use EFI studio to add EFI string for 8800GS 384MB.

Run the 0.62.12n.pkg here



What works:

Video QE/CI hardware acceleration

Sound output

Ethernet

USB 2.0 (including front panel)

Apple Software Update

Shutdown and restart



Not tested:

Firewire (disabled in BIOS since I don't have any Firewire devices)

Sound input

eSATA

Link to comment
Share on other sites
Draw
Draw
Posted
Posted

Hello everyone. First, i know english not so good to tell all the problem but, i will try (Авось эсть кто-то кто на руском говорит- дайте ответ на родном языке).



I have such config



Core 2 Duo e4600 2.4



Asus P5N-e Sli (with onboard sound and lan)



GeForce 8500 GT



2 gb of brains.



Wich pack is best for config.? iDeneb, iPC, XXX???



And second thing is, will its install and worck with my keyboard becouse i have mouse USB, keybord PS/2?

Link to comment
Share on other sites
nononsense
nononsense
Posted
Posted

I'm new at this osx86 business..



MOBO: XFX 650i Ultra

GFX: XFX Geforce 8800 gts



I've been trying to install iPC OSX86 10.5.6 on my esata.

Does anybody have any experience using this motherboard?

What kext, bootloader, installation prefs should i use?



I'd really appreciate it if anybody could help me..

Link to comment
Share on other sites
verdant
verdant
Posted
Posted
the first time i encountered an error with the CPUS command, after i typed -v -f cpus=4 it started to work, and then i got this error, can anyone help me on this?



http://img22.imageshack.us/img22/5286/img0067jjc.jpg



ps, this is the guide i used to go through, except i used the v5 of iatkos.





I'm new at this osx86 business..



MOBO: XFX 650i Ultra

GFX: XFX Geforce 8800 gts



I've been trying to install iPC OSX86 10.5.6 on my esata.

Does anybody have any experience using this motherboard?

What kext, bootloader, installation prefs should i use?



I'd really appreciate it if anybody could help me..



Post in my Pre-Series 7 nForce chipset thread, giving full system details as requested in post #1 of my thread......and I will help you there...... :huh:

Link to comment
Share on other sites
  • 4 months later...
tony74
tony74
Posted
Posted

can i follow this guide if i am using iAtkos V7 10.5.7? Are there any settings that would affect installation if using the latest release? Also does the BIOs version make a difference, i have V0703. I dont see that recomendation in the BIOS PDF in the Pre-Series 7 nForce link above. thanks!



specs as follows:

asus p5n-e SLI

intel 2.4ghz quad

4gb corsair ddr800

160gb SATA maxtor

512mb Nvidia quadro fx1700

Link to comment
Share on other sites
Der-3
Der-3
Posted
Posted

I have this mobo and the guide seems quite complicated to me.



To install Leopard, i use iPC 10.5.6 then install combo updates 10.5.7 & 10.5.8.



The installation is straight and just require to check some options (very few) at the installation of Leopard.



Sorry for bad english.

Link to comment
Share on other sites
Der-3
Der-3
Posted
Posted
which options did you select? i tried countless combinations with iPC, and the install would get to the same place every time, and just hang. i let it sit for a while, then i would just reboot. thanks for the reply



I'll try to give you the informations as soon as possible but i am quite busy right now. ;)

Link to comment
Share on other sites
maxgamer64
maxgamer64
Posted
Posted

I need help trying to install the osx86 I'm new to the Mac os system, and I really want to get this working here are my spec's







Asus P5N-E SLI

Intel Q6600 2.4ghz

BFG 8800 GT 512mb GDDR3

4gigs of ram



I tried the IPC 10.5.6 LiveDVD and the live part works, when it installs fines, but doesn't sucessfully log off and log back in



I also tried the kalway 10.5.2 and it doesn't even work please help me with this problem







thanks







Maxgamer

Link to comment
Share on other sites
Der-3
Der-3
Posted
Posted
no problem my friend. thanks for checking back with me!!!!





Ok, here is my installation :



I use iPC 10.5.6 and install Leopard on a MBR partition. I have a tri-boot Leopard / WinXP / Win7.



Here are the options i select :



-> Kernels

# 9.5.0 Voodoo Kernel

-> Drivers

-> Chipset Drivers

# AppleNForceATA nForce Drivers

-> Audio Drivers

-> ALCxxx

# ALC883

-> Fixes and patches

# SATA Drive Icon Fix (new)

# Dual Boot Time Sync

# SeatBelt.kext 10.5.5

-> DSDT patches

# Patch DSDT

-> Apple SMBIOS patch

# AppleSMBIOSEFI



And that's all.

The installation finish but the computer may not reboot automatically so force it.

Then no problem to boot.

No problem to update to 10.5.7 and 10.5.8.



Tell me if you want details.

Link to comment
Share on other sites
Der-3
Der-3
Posted
Posted
thanks for the info!!!!!!!! i'll try this for sure. one thing i forgot to ask is in the bios. did you make any changes? what version bios do you have. min is quite old at 0703. would i need to update?



I have the BIOS 1101.

Yes, i have made changes in the BIOS. Here are the main options to set.

http://img84.imageshack.us/gal.php?g=photo0039n.jpg



Edit : by the way, the OpenHaltRestart kext should be selected for installation. It solves halt/reboot problems.

Can be found here : http://www.psystar.com/opensource/openhaltrestart



Edit 2 : Install the kext from this topic for onboard lan : http://www.insanelymac.com/forum/index.php?showtopic=125569

Link to comment
Share on other sites
Der-3
Der-3
Posted
Posted
this is awesome. i may finally get this to work. you rock.

as far as the bios changes you made. i assume you change them back after osx install? for instance onboard lan, jmicron sata, and plug anf play os.



Tony



I assume you can change them back but only testing will tell :(

Link to comment
