NootedGreen.kext is on air! It's a long long road to complete..

Stezza88 · April 11

I'm ensuring every time to preserve maximum compatibility possible immaginable..

Mastachief · April 11

Why do you have whatevergreen's nvram boot-arg?

-wegdbg

That's not needed for Ngreen

Stezza88 · April 12

forgotten.. i used it for ICL kexts to test coexistance between kexts

We are diggin' deeper.. constant updates promised every hour

* Added bundle support + Scheduler selection

Edited April 12 by Stezza88

Mastachief · April 12

Are you committing each set of changes to the github?

Stezza88 · April 12

38 minutes ago, Mastachief said:

Are you committing each set of changes to the github?

yo

Edited April 12 by Stezza88

Stezza88 · April 12

It's a long, long, long, way down

Stezza88 · April 12

We are near to implement ExecList command.. now investigating why ring is in idle

Road to get MTLexture to remove DYLD patches..

Edited April 12 by Stezza88

Stezza88 · April 12

* Added -ngreenAllowMetal boot arg... enjoy it

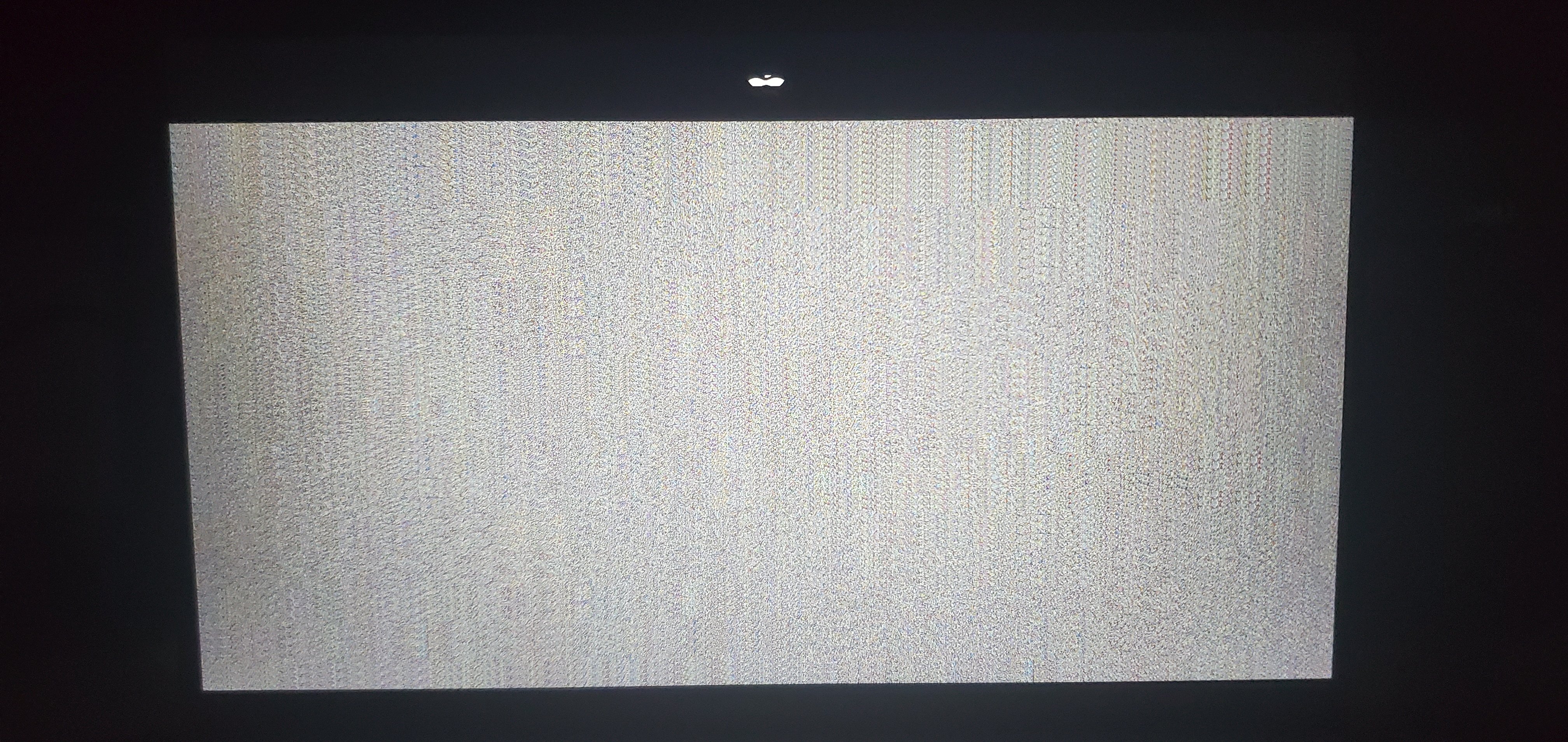

Try this to test and give me logs or photo if it boots!! And remember to tell your conf-specs.

-v keepsyms=1 debug=0x100 IGLogLevel=8 -NGreenDebug -liludbg liludump=60 ngreen-dmc=skip -allow3d -disablegfxfirmware -ngreenAllowMetal (and as optional= "ngreenSched=N", 3 = GuC firmware, 4 = IGScheduler4, 5 = host preemptive (default: 5) )

Edited April 12 by Stezza88

Stezza88 · April 12

* Still not have a complete MTLDevice but got MTLTexture

Roadmap: Getting a Complete MTLDevice

Phase 1: Fix BCS (Blitter Command Streamer) Init — START HERE
This is the single blocker. The blitter engine never starts:

BCS HEAD=0x0 TAIL=0x0 CTL=0x0 START=0x0BCS HWS_PGA=0x40006000 ← HWS page IS allocatedBCS INSTDONE=0xa ← non-zero = engine exists in silicon BCS EXECLIST_STATUS=0x1 ← idle
The HWS page is allocated but the ring was never enabled. Likely, IGHardwareCommandStreamer5::init for BCS fails because:

The BCS ring is never programmed — RCS gets START=0x402cb000, CTL=0x7000 (enabled, 4 pages buffer), but BCS gets nothing. The host scheduler (type 5) likely only starts RCS and expects the kext to start BCS separately.

There may be a BCS-specific forcewake or power gate not being cleared.

What to try first:

In resetGraphicsEngine (which you already hook for the TGL path), or in a new hook right before the BCS init path, manually program the BCS ring:

// After ForceWake for blitter domain:writeReg32(FORCEWAKE_BLITTER_GEN9, (1 << 16) | 1);// Wait for ACK...// Reset BCSwriteReg32(RING_CTL(BLT_RING_BASE), STOP_RING); // 0x22000 + 0x3c// Wait for ring stop...writeReg32(RING_CTL(BLT_RING_BASE), 0);// Clear errorswriteReg32(RING_EIR(BLT_RING_BASE), 0);writeReg32(RING_EMR(BLT_RING_BASE), ~I915_ERROR_INSTRUCTION);
But the real question is why BCS init fails. You need to hook IGHardwareCommandStreamer5::init for the BCS engine and log what happens.

Phase 2: Bypass the BCS Readiness Check in IntelAccelerator::start()
If fixing BCS is hard, you can try to bypass the check that prevents IGAccelDevice creation. The encodeFailureStack is populated during start(). Find where IntelAccelerator::start() reads encodeFailureStack to decide whether to create IGAccelDevice, and NOP that check.

Look for a pattern like:

cmp [r15+0x1c50], 0 ; encodeFailureStack countjne skip_accel_device ; ← NOP this; ... creates IGAccelDevice ...
This is in the TGL HW binary (AppleIntelTGLGraphics). You already have extensive binary patches there — add one more that forces the IGAccelDevice creation path even with encodeFailureStack[1]=1.

Phase 3: Verify IOServiceOpen Works
Once IGAccelDevice appears as a child, WindowServer should automatically call IOServiceOpen() on it. From there:

The user client creates the Metal command queue
MTLCreateSystemDefaultDevice() returns non-nil
CoreDisplay can render through Metal
Phase 4: GT Interrupt Delivery
Your log shows:

GFX_MSTR_IRQ=0x80000001 (bit31=1, bit0=1)RENDER_COPY_INTR_EN=0x1100110
Master IRQ is enabled and there's a pending interrupt in DW0 bit 0 (RCS). But GT_INTR_DW0=0x1 just sits there — you clear it, it comes back. This means RCS user interrupts fire but may not be delivered to the scheduler. The V37-disabled readAndClearInterrupts hook was meant to fix this. You'll likely need it once IGAccelDevice is running, or stamps won't complete.

Phase 5: CoreDisplay Metal Path (Already Handled)
Your -ngreenAllowMetal flag already lets CoreDisplay try the Metal path. Once MTLDevice is non-nil, you can remove the RunFullDisplayPipe/Present/GetMTLTexture/AccessComplete skip patches.

Concrete Next Step
Start by finding the exact binary pattern in AppleIntelTGLGraphics where IntelAccelerator::start() checks engine init results and decides whether to create IGAccelDevice. Add a diagnostic hook or binary patch to force IGAccelDevice creation regardless of BCS status. That's the fastest path to getting a non-nil MTLDevice and seeing what happens next.

You already have BCS HWS allocated (HWS_PGA=0x40006000), the silicon exists (INSTDONE=0xa), and RCS is working perfectly — so the GPU itself is functional. The blitter failure is likely a software-level init sequencing issue in Apple's TGL kext, not a hardware problem.

Edited April 12 by Stezza88

Stezza88 · April 12

The f1/f2 patches cover device ID and capability checks, but something else blocks children from being created.

Update : problem not are in children, I get 5 children.. problem is that GPU can't still execute commands..

Cross-Platform Detection (V52)

NootedGreen uses inline CPUID (EAX=1) at load time to read the real CPU model — no config.plist or device-ID spoofing can fake this. The result sets isRealTGL:

CPU	Model	`isRealTGL`
Tiger Lake-U (i7-1165G7, etc.)	`0x8C`	`true`
Tiger Lake-H (i7-11800H, etc.)	`0x8D`	`true`
Raptor Lake-P (i7-13700H, etc.)	`0xBA`	`false`
Raptor Lake-S	`0xBF`	`false`
Raptor Lake-HX	`0xB7`	`false`
Alder Lake-P	`0x9A`	`false`
Alder Lake-S	`0x97`	`false`

Edited April 12 by Stezza88

Stezza88 · April 12

Honest assessment: We're ~70% there infrastructure-wise. The hardest part remains — making the GPU actually execute Metal commands on RPL hardware spoofed as TGL.

Stezza88 · April 12

For TGL should be "ready to use" ... have you tried it???? boyyyyssss

Most probably also for ICL... but ICL are "hardware supported" already so...

Edited April 12 by Stezza88

Mastachief · April 12

The kext loads, however does not attach to TGL kexts running from /L/E

jkbuha · April 12

2 hours ago, Mastachief said:

The kext loads, however does not attach to TGL kexts running from /L/E

Same issue here with i7-1185g7. Built NootedGreen, Lilu-NootedGreen and HookCase, all loading and running successfully, but not loading any TGL kexts from /L/E.

Last login: Sun Apr 12 16:09:10 on ttys000
jkbuha@JuliansthGenAir ~ % kextstat | grep -i "ngreen\|NootedGreen\|StezzaPilot"
Executing: /usr/bin/kmutil showloaded
No variant specified, falling back to release
   74    0 0xffffff8006b2d000 0x4e000    0x4e000    com.StezzaPilot.NootedGreen (1.0.0) 9FD0E4A7-B228-37FA-A902-28B738F711FD <57 18 9 7 6 3 2 1>
jkbuha@JuliansthGenAir ~ % kextstat | grep -i "lilu\|vit9696"
Executing: /usr/bin/kmutil showloaded
No variant specified, falling back to release
   57   16 0xffffff8004012000 0x88000    0x88000    as.vit9696.Lilu (1.7.3) EEAADD41-5187-36D3-8097-E99D80AB336F <9 7 6 3 2 1>
   60    0 0xffffff800540d000 0x1cd000   0x1cd000   as.vit9696.AppleALC (1.9.7) CBFC7A37-E2E8-39D9-AF1F-77E36A9ACA66 <57 18 9 7 6 3 1>
   65    0 0xffffff80069a4000 0xd000     0xd000     as.vit9696.RestrictEvents (1.1.7) A708639D-FD60-3173-8B5C-9B536E7A8191 <57 9 7 6 3 2 1>
   66    5 0xffffff800409a000 0x19000    0x19000    as.vit9696.VirtualSMC (1.3.8) A6D60AC3-212F-3186-8A6B-96A81DC7240B <57 17 9 7 6 3 1>
   76    0 0xffffff80069e1000 0xc000     0xc000     as.vit9696.SMCProcessor (1.3.8) A0652DDF-5B1B-352F-8823-0EEF1D612D6A <66 57 17 9 7 6 3 2 1>
jkbuha@JuliansthGenAir ~ % kextstat | grep -i "TGL\|xxxxx"
Executing: /usr/bin/kmutil showloaded
No variant specified, falling back to release
jkbuha@JuliansthGenAir ~ % kextstat | grep -i "HookCase\|smichaud"
Executing: /usr/bin/kmutil showloaded
No variant specified, falling back to release
  183    0 0xffffff7f97385000 0x21306    0x21306    org.smichaud.HookCase (8.0.1) 1B4A7F61-3F35-3F47-BBEE-10E6870DDF19 <18 9 7 6 3 2 1>
jkbuha@JuliansthGenAir ~ % log show --last 5m --predicate 'eventMessage contains "ngreen" or eventMessage contains "NGreen" or eventMessage contains "NootedGreen"' 2>/dev/null | head -30

Timestamp                       Thread     Type        Activity             PID    TTL
jkbuha@JuliansthGenAir ~ % ioreg -l -p IOService | grep -i "Iris Xe\|Intel.*Graphics\|TGL\|ngreen" | head -10

  |   "IOKitDiagnostics" = {"Instance allocation"=27927760,"Container allocation"=5875438,"Pageable allocation"=424792064,"Classes"={"IONDRVFramebuffer"=1,"IOHIDEventServiceFastPathUserClient"=0,"IONaturalMemoryCursor"=0,"IOKitDiagnosticsClient"=0,"AppleUSBXHCIIsochronousRequestPool"=2,"AppleUSBDiagnostics"=0,"IOAudioClientBufferSet"=0,"AppleHDAMikeyInternalCS4208"=0,"AppleSMCPMC"=0,"IOEventLink"=0,"AppleUSBRequest"=1,"TSNPacketPool"=0,"AppleASMedia1042USBXHCICommandRing"=0,"DspFuncBuzzKill"=0,"IOUSBMassStorageDriverRequestTimer"=0,"IOUserBlockStorageDevice"=0,"IOHDACodecDevice"=1,"AppleHDATDM_Codec"=0,"IORegistryEntry"=144,"ApplePS2Controller"=1,"IOUSBMassStorageUASDriver"=0,"AppleActuatorDevice"=1,"AppleHDAWorkLoop"=1,"IORTC"=1,"AppleNVMeRequestPoolTagReserve"=0,"IOHIDevice"=2,"IOPCIEventSource"=0,"OSAction_IOUserNetworkEthernet__TxSQDataAvailable"=0,"KDIFileBackingStore"=1,"AppleHDAHardwareConfigDriver"=0,"IO80211DriverCommandDescriptor"=0,"AppleHDAHardwareConfigDriverLoader"=0,"DspFuncUserClient"=0,"IOMemoryCursor"=1,"IOPMGR"=0,"AppleSmartBatteryManager"=1,"ItlIwm"=0,"AppleHDATDM_CS42L81"=0,"IOBreaker"=0,"AppleHDAFunctionGroup_80862807"=0,"AppleUSBUserHCIDevice"=0,"IOUSBLowLatencyCommandLegacy"=0,"IOTimeSyncClockManagerDaemonClient"=2,"AppleUSBUserHCITransferQueue"=0,"EFIData"=334,"AIDCircularBufferShared"=0,"USBDeviceController"=0,"AppleUSBXHCIPort"=2,"AppleSMCControl"=0,"DspFunc4ChOutput"=0,"AppleLockdownMode"=1,"IOSurfaceSharedEventNotification"=0,"AppleKeyStoreUserClient"=46,"IOTimeSyncSyncDaemonClient"=1,"AppleHDAFunctionGroupWM8800"=0,"IOSMBusRequest"=0,"VoodooGPIOAMD"=0,"IOSkywalkPacket"=0,"IntelBTPatcher"=1,"DspFuncBeamFormer"=0,"IOPMServiceInterestNotifier"=127,"AppleACPILid"=1,"hv_vmx_vcpua_t"=0,"IOStorage"=4,"IOHIDResourceQueue"=0,"AppleUpstreamUserClientDriver"=1,"IOSkywalkLogicalLink"=0,"AppleRSMChannelControllerClient"=1,"ItlIwn"=0,"AppleUSBRequestPool"=2,"IOSerialStreamSync"=1,"IOHIDConsumer"=0,"AppleSMCRTC"=0,"IOSharedInterruptController"=4,"AppleUSBHostCompositeDevice"=1,"IO80211AWDLMulticastPeer"=0,"IOHIDClientData"=6,"IOBluetoothMemoryDescriptorRetainer"=0,"IOGraphicsWorkLoop"=2,"hv_vmx_vm_t"=0,"AppleHDATDMBusManagerCS4208"=0,"OSSerializer"=45,"IOTimeSyncClockManagerUserClient"=0,"OSCollection"=6,"IOPCIMessagedInterruptController"=1,"AppleKeyStoreTestUserClient"=0,"IOUserEthernetResourceUserClient"=0,"IORDMAInterface"=0,"CPUFriend"=1,"com_apple_driver_16X50BusInterface"=0,"IOUSBDeviceUserClientV2"=1,"SmbusHandler"=1,"AppleHDAEngineOutput"=1,"SMCSMBusController"=1,"AIDReporters"=0,"_IOServiceNullNotifier"=1,"AIDInterface"=0,"IOTimeSyncUnicastUDPv4PtPPort"=0,"IOUserNetworkRxCompletionQueue"=0,"AppleCallbackPowerSourceProvider"=1,"IOSkywalkMemorySegment"=0,"IOBluetoothHCIUserClient"=1,"hv_vioapic_t"=0,"AppleIntelPCHPMC"=0,"AppleASMediaUSBXHCIDevice"=0,"IONetworkStackUserClient"=1,"AppleMultitouchEventDriverV2Wrapper"=1,"AppleDisplay"=1,"IOTimeSyncPortManager"=0,"VoltageShiftAnVMSR"=1,"com_apple_driver_pm_cpu_reporter"=1,"_IOServiceNotifier"=693,"IOInterleavedMemoryDescriptor"=0,"AppleAPFSUserClient"=0,"AppleHDAFunctionGroupGT216"=0,"TrackpointDevice"=1,"AppleUSBLegacyInterfaceUserClient"=0,"IOServiceStateNotificationEventSource"=0,"AppleUSBUserHCIResources"=1,"AppleGraphicsDevicePolicy"=0,"AppleHDAFunctionGroupCS4208"=0,"IOSkywalkEthernetInterface"=0,"IOSKArena"=8,"IOTimeSyncEthernetInterfaceAdapter"=0,"AppleUSBXHCILPTCommandRing"=0,"IOUSBHostDevice"=3,"IOSubMemoryDescriptor"=4,"AppleHSBluetoothInterface"=0,"AppleUSBRequestCompleter"=1,"DspFuncVolume_4ch"=0,"IOHIDTranslationServiceClient"=0,"IOUserNetworkWLAN"=0,"IOAVBNubUserClient"=0,"AirportItlwmInterface"=1,"IOServiceUserNotification"=598,"AppleMultitouchTrackpadHIDEventDriver"=1,"AppleFDEKeyStoreUserClient"=0,"AppleUSBHostResourcesTypeCBPC"=0,"IO80211ThroughputCache"=0,"IOPlatformSensor"=0,"IO80211PacketDescriptor"=0,"IOSkywalkNetworkBSDClient"=0,"DspFuncPreGain"=0,"IOTimeSyncDomainDaemonClient"=1,"IOHIDReportElementQueue"=0,"AUAEffectUnitDictionary"=0,"com_apple_filesystems_apfs"=1,"DigitizerTransducer"=0,"IOSKRegionMapper"=22,"IOBluetoothL2CAPInformationFrameMemoryBlock"=0,"IOMbufMemoryCursor"=1,"AppleHDAController"=1,"IOSKMemoryArray"=0,"AppleUSBUserHCITransferStructPool"=0,"IOCPU"=1,"IONetworkStack"=1,"AppleACPIEventPoller"=1,"OSAction_IOUserNetworkEthernet__DataAvailable"=0,"IO80211ActionFrameDescriptor"=0,"DspFuncBiquad"=0,"CCDataPipeBlob"=0,"IOTimeSyncNetworkPortUserClient"=0,"ApplePlatformEnabler"=1,"VoodooInputActuatorDevice"=1,"IOSCSIPeripheralDeviceType07"=0,"IOSlaveMemory"=0,"ACMKeybagKernelService"=0,"AppleHDAFunctionGroupATI_RS710"=0,"ACMRestrictedModeAnalyticsKernelService"=1,"IOSimpleReporter"=232,"IO80211Interface"=1,"AppleUSBUserHCIIsochronousTransferQueue"=0,"AppleUSBXHCILPTHB"=0,"VoodooI2CControllerNub"=1,"IOModemSerialStreamSync"=0,"IOHDIXControllerUserClient"=0,"IOUSBMassStorageCBIDriverNub"=0,"AppleHDATDM_CS42L83"=0,"AppleALC"=1,"com_apple_AppleFSCompression_AppleFSCompressionTypeZlib"=1,"AppleHDATDMAmpMAX98706"=0,"DspFunc2Dot2Crossover"=0,"AppleUSBLegacyRoot"=1,"IOUSBInterface"=1,"CCFaultReporter"=1,"IO80211EventSource"=0,"AppleHDAPathControl"=8,"AGPMClient"=0,"AppleHDATDMAmpTAS5764L"=0,"IOAVBValidate"=1,"AppleKeyStoreTest"=1,"IOSCSIPrimaryCommandsDevice"=0,"AppleNVMeWorkLoop"=2,"AppleSMBusControllerMCP"=0,"IOTimeSyncDomainUserClient"=0,"AppleMCCSControlGibraltar"=0,"AppleUSBAudioInterruptPipe"=0,"IOHIDProviderPropertyMerger"=0,"IOUSBDevice"=1,"IOGDiagnosticUserClient"=0,"AppleSEPControl"=0,"AppleHDAEngineInput"=1,"IOServiceNotificationDispatchSource"=0,"IOUSBMassStorageResourceUserClient"=0,"IntelBluetoothFirmware"=1,"IOSkywalkNetworkInterface"=0,"IOHIDKeyboard"=0,"VoodooI2CPCIController"=1,"IOTimeSyncEdgeTimeCaptureUserClient"=0,"AIDQueueEventSourceWorkItem"=0,"AUAConfigurationDictionary"=0,"IOACPIPlatformDevice"=240,"IOUserService"=2,"IOTimeSyncTSNInterfaceAdapter"=0,"_IOServiceInterestNotifier"=173,"AppleUSBHostRequestCompleter"=3,"IOBluetoothLocalUtilityEventSource"=0,"IOFramebufferI2CInterface"=0,"IOPowerConnection"=91,"IOFBController"=1,"VoodooI2CSensor"=0,"IOWatchDogTimer"=0,"CoreAnalyticsEventRatePolicy"=1,"IOEventSource"=13,"IODMACommand"=52,"IOUserNetworkTxCompletionQueue"=0,"IOMachPort"=2066,"IOPMinformeeList"=125,"VoodooGPIOIceLakeLP"=0,"IO80211AsyncUserClientParameters"=0,"AppleCredentialManager"=1,"IO80211LinkRecovery"=0,"AppleRSMChannelController"=1,"AppleUSB30XHCITypeCPort"=0,"UVCService"=0,"AppleACPIPowerResource"=0,"CCLogStream"=3,"IOPCIHostBridgeData"=1,"AppleUSBHostControllerIsochEndpoint"=0,"AGDPUserClient"=0,"IOHIDEvent"=0,"IO80211AsyncEventUserClient"=0,"DspFuncNoiseCanceller"=1,"OSDictionary"=16635,"IOAGPDevice"=0,"AppleMultitouchMouseHIDEventDriver"=0,"IOHDACodecDeviceUserClient"=0,"AppleActuatorHIDEventDriver"=1,"IOTimeSyncServiceDaemonClient"=5,"AppleUSBXHCIParkingCommandRing"=0,"AppleFDEKeyStore"=1,"IODisplayWrangler"=1,"AppleCyrus"=1,"IOUSBMassStorageDriverUFIDevice"=0,"AppleUSBIORequest"=40,"_IOUserServerCheckInCancellationHandler"=0,"IOUSBPipeV2"=0,"AppleUSBHostLegacyClient"=3,"IOUSBMassStorageResource"=1,"VoodooI2CServices"=1,"IO80211HistogramReporter"=0,"DspFuncFIRdirect"=0,"IOTimeSyncUnicastUDPv6PtPPort"=0,"AppleHDATDMSinkDevice"=0,"AppleUIOPCIUserClient"=0,"Dont_Steal_Mac_OS_X"=1,"SEPEpoch"=0,"IOAudioTimeIntervalFilterIIR"=0,"IOHIDEventSource"=6,"IOSurfaceRootParavirtMapperInterface"=0,"GTraceBuffer"=4,"OSSet"=763,"IOSurfaceShared"=35,"AppleUSBUserHCIUserClient"=0,"AppleIntelPanel"=1,"AppleNVMeRequestPool"=1,"DspFuncCalibrationEQ"=0,"AppleUSB30XHCICardReaderPort"=0,"IOAudioEngineUserClient"=36,"AGPMHeuristic4"=0,"IOPCIHostBridge"=1,"AppleHDAWidget_80862805"=0,"DspFuncChOutput"=0,"IOAVBRingBufferMemoryDescriptor"=0,"VoodooGPIOIntel"=0,"IOCommand"=131,"AppleHDAWidgetAD1984"=35,"IOTimeSyncTranslationMach"=1,"IOAudioTimerEvent"=0,"CCDataPipe"=2,"DspPatchPoint"=8,"HIDMTQueueEventSourceWorkItem"=0,"IOSCSIProtocolInterface"=0,"AppleTDMType00"=0,"AppleUSBXHCIAR"=0,"IOTimeSyncNanosecondSnapshotService"=0,"IOPlatformIO"=0,"IOBluetoothGamepadHIDDriver"=0,"IOAVBNub"=1,"AppleHDAFunctionGroupALC885"=0,"AppleHDAFunctionGroup"=1,"AppleHDAFunctionGroupExternalControl"=2,"IOGUIDPartitionScheme"=1,"AppleHDANode"=2,"IOUSBMassStorageUFIDriverNub"=0,"OSCollectionIterator"=51,"AppleEFIRuntime"=1,"IOHIDPowerSourceClient"=0,"AIDSharedMemoryManager"=0,"IOFilterScheme"=0,"AppleMCCSIOController"=2,"AppleUSBHostResources"=1,"IONVMeController"=1,"AppleUSBAudioIsocFrameList"=0,"IOApplePartitionScheme"=0,"IOSkywalkInterface"=0,"IOSurfaceRootUserClient"=35,"IO80211PeerExtendedStats"=0,"IOTimeSyncTranslationPMGR"=0,"IODisplay"=1,"TDMConfig"=0,"IOHIDAsyncReportQueue"=0,"IOSkywalkPacketQueue"=0,"IOUserEthernetResource"=1,"IOBasicOutputQueue"=1,"VoodooI2CHIDTransducerWrapper"=1,"AppleS3ELabController"=0,"OSAction_IOUserNetworkEthernet__RxSQDataAvailable"=0,"AppleUSBHostControllerListElement"=0,"AppleHDACodec"=1,"AppleSEPIntelIOP"=0,"IOUSBControllerIsochListElement"=0,"AppleGPUWranglerClient"=4,"IOPacketQueue"=1,"IOFramebufferSharedUserClient"=1,"IOUserClient"=27,"IOHITabletPointer"=0,"IOAVBAudioLoader"=0,"IO80211PeerBssSteeringManager"=0,"AppleUSBAudioStreamNode"=0,"AppleUSBHostControllerIsochListElement"=0,"RestrictEvents"=1,"AUAControlDictionary"=0,"IOHIDEventSystemUserClient"=1,"AppleHDAWidgetFactory"=0,"IOHDIXHDDrive"=1,"DIDeviceRequestPool"=0,"IOSurfaceMemoryPoolBunch"=0,"AGPM"=1,"AppleSystemPolicy"=1,"IOSurfaceDescriptor"=0,"VoodooI2CMultitouchHIDEventDriver"=1,"IO80211AWDLPeer"=0,"AIDCircularReadBufferShared"=0,"AppleIPDormancyHandler"=1,"DspFunc3ChOutput"=0,"AppleMCCSControlModule"=1,"IO80211SimpleReporter"=8,"IORDMAFamilyUC"=0,"ACMKernelService"=6,"AppleASMedia3142USBXHCIUserClient"=0,"APFSOSNumberAtomic"=1030,"IOUSBHostPipe"=1,"IOPolledFilePollers"=1,"CoreAnalyticsTestUserClient"=0,"IOTimeSyncDaemonClientBase"=4,"IO80211String"=0,"IOHDIXHDDriveOutKernelUserClient"=0,"IOUSBNotification"=0,"AppleHDAWidgetSTAC9220"=0,"AppleUSBUserHCIPipe"=0,"IOSkywalkNetworkKDPPoller"=0,"IOSkywalkRxSubmissionQueue"=0,"IOUSBInterfaceUserClient"=1,"AppleUSBHostDeviceUserClient"=10,"KDIUDIFEncoding"=0,"AppleHDAMikeyInternal"=0,"IORSMCommand"=0,"IOFramebufferParameterHandler"=1,"AppleTDMControlLUN"=0,"IOGatedOutputQueue"=2,"IOSurface"=110,"AppleUSBRootHubDevice"=1,"com_apple_filesystems_lifs"=1,"IOReportLegend"=2,"com_waves_WCAudioGridDevice"=1,"AppleHDAFunctionGroupMCP89"=0,"SMCBatteryManager"=1,"AppleUSBXHCIEndpoint"=8,"OSValueObject<int>"=0,"IOHIDEventQueue"=0,"AppleIntelUSBXHCICommandRing"=1,"IOSurfaceSendRight"=1,"AppleAPICInterruptController"=1,"AppleSMC"=1,"IOSkywalkNetworkController"=0,"IOTimeSyncService"=2,"AppleSmartBatteryUserClient"=0,"AppleXsanDriver"=0,"IOCommandPool"=5,"IOBlockStorageDevice"=2,"VoodooI2CStylusHIDEventDriver"=0,"AIDService"=0,"AGPMHeuristic"=1,"AppleRSMChannel"=0,"IORSMCommandQueue"=0,"IOPMrootDomain"=1,"BrightnessKeys"=1,"AppleEffaceableStorage"=0,"AUAFeatureUnitDictionary"=0,"IOUSBDeviceUserClient"=1,"IO80211VirtualInterfaceNamer"=1,"KDIUDIFDiskImage"=0,"ItlIwx"=1,"AppleUSBNetworkingCommandPool"=0,"OSUserMetaClass"=171,"IOPlatformControl"=0,"VoodooGPIOCannonLakeLP"=0,"KextAuditUserClient"=1,"VoodooI2CDeviceNub"=1,"IOI2CInterfaceUserClient"=0,"IntelBluetoothOpsGen1"=0,"AppleHDAFunctionGroupAD1984"=1,"DspFuncControlFreak"=0,"_IOOpenServiceIterator"=0,"IOHDIXCommandQueue"=1,"IOCommandGate"=374,"EventElementCollection"=0,"VoodooI2CHIDSYNA3602Device"=0,"IOWorkGroup"=0,"IOUSBMassStorageDriver"=0,"AppleUSBNetworkingHostCommandPool"=0,"DspParameter"=23,"IOPMRequestQueue"=2,"IOSkywalkRxCompletionQueue"=0,"AppleECSMBusController"=0,"IOBlockStorageDriver"=2,"IOTimeSyncInterfaceAdapter"=0,"IOWatchdogx86"=1,"AppleHDAWidgetALC262"=0,"DspFuncThermalSpeakerProtection"=0,"IOHIDWorkLoop"=1,"AUASelectorUnitDictionary"=0,"IOBlockStorageServices"=0,"AppleACPIACAdapter"=1,"IOUSBInterfaceIterator"=0,"IODTPlatformExpert"=1,"IOAppleLabelScheme"=0,"IOBluetoothMemoryBlock"=0,"IOMbufBigMemoryCursor"=0,"IOSlaveMemoryBuffer"=0,"AppleUSBXHCIInterrupter"=1,"AppleUSBXHCIPCI"=2,"AppleUSBXHCIIsochronousEndpoint"=0,"AppleUSBXHCICommandRing"=2,"IOTimeSyncDaemonService"=1,"IOSurfaceMemoryPool"=0,"AUAUnitDictionary"=0,"AppleHDAControllerUserClient"=0,"IOTimeSyncLocalClockPort"=1,"AppleACPIPS2Nub"=1,"IO80211Peer"=0,"RootDomainUserClient"=103,"DspFuncSplineLimiter"=0,"AppleAPFSContainer"=2,"AppleSEPDiscovery"=0,"DspFuncMozartCompressorDualBand"=0,"IONDRV"=1,"AppleHSBluetoothNub"=0,"IOPCIDevice"=27,"AppleUSB20XHCIPort"=5,"IOBluetoothInactivityTimerEventSource"=0,"OSNumber"=44374,"AUAOutputTerminalDictionary"=0,"AIDUserClientLogger"=0,"CCFaultReport"=0,"SMCProcessor"=1,"OSValueObject<AsyncReportParam>"=0,"AppleHDAFunctionGroupExternalControl_VirtualGPO"=1,"AppleUSBUserHCIPort"=0,"IOTimeSyncTimedEdgeGeneratorUserClient"=0,"IOGDiagnosticGTraceClient"=1,"AppleUSBXHCI"=1,"IOTimeSyncIntervalFilter"=0,"IOTimeSyncNetworkPort"=0,"AppleUSBHostPacketFilter"=1,"AppleIntelCNLUSBXHCI"=0,"ACMFirstResponderKernelService"=1,"AppleHDAFunctionGroup_1002AAA0"=0,"IOUserNotification"=2,"IOTimeSyncUnicastLinkLayerPtPPort"=0,"IOHIDKeyboardDevice"=0,"SMCLightSensor"=0,"AppleUSBAudioStream"=0,"IOHDAStream"=2,"AppleUSBXHCILPT"=0,"AppleGPUWrangler_GPUPostStartWorkItem"=0,"com_apple_AppleFSCompression_AppleFSCompressionTypeDataless"=1,"VoodooGPIO"=0,"AGPMHeuristic3"=0,"IOSurfaceSharedEventListener"=0,"AppleUSBXHCITransferRing"=8,"SMCSuperIO"=0,"AppleAPFSSnapshot"=1,"OSDextCrash"=0,"IOWrappedMemoryDescriptor"=0,"AppleHDAFunctionGroupATI_Broadway"=0,"VoodooI2CLogger"=1,"IOUSBHubDevice"=0,"AppleUSBHostDeviceIdler"=3,"IOPMWorkQueue"=1,"IOTimeSyncFilteredService"=0,"VoodooI2CMultitouchInterface"=1,"AGDCBacklightControlNub"=0,"AIDImageDownloader"=0,"IOGuardPageMemoryDescriptor"=0,"AppleUSB30XHCIPort"=2,"AIDEventLogger"=0,"AppleSMBusControllerUserClient"=0,"IODeblocker"=0,"IOUserClient2022"=10,"AppleRTC"=1,"AppleUSBXHCISPT"=1,"IOPlatformCtrlLoop"=0,"IOSharedDataQueue"=3,"X86PlatformShim"=1,"IOSyncer"=0,"AppleGPUWrangler_WorkItem"=0,"AppleDeviceManagementHIDEventService"=0,"IOHDIXHDDriveInKernel"=1,"AppleUSBAudioPlugin"=0,"IORangeAllocator"=2,"IOKitRegistryCompatibility"=1,"OSBoolean"=2,"IOMediaBSDClient"=9,"AppleSEPCommand"=0,"OSAction"=10,"AppleUSBXHCIRequest"=21,"IOUserNetworkLogicalLink"=0,"IOTimeSyncUserFilteredServiceDaemonClient"=0,"OSAction_IOHIDEventService__SetUserProperties"=0,"com_waves_WCAudioGridEngine"=0,"IOWorkQueue"=1,"ApplePlatformEnablerUserClient"=0,"CoreAnalyticsUserClient"=1,"DspFuncAutoGainControl"=0,"IOMapper"=2,"IOHIDInterface"=6,"AppleACPIInterruptLink"=0,"IOUSBMassStorageUFIDriver"=0,"IOPCI2PCIBridge"=4,"IOSurfaceRoot"=1,"IOHIDSystem"=1,"com_apple_BootCache"=1,"IOUSBInterfaceUserClientV3"=2,"BlueToolFixup"=1,"IOAppleBluetoothHIDDriver"=0,"IOUSBHostStream"=0,"LogManagerDevice"=3,"IOTimeSyncgPTPManagerDaemonClient"=1,"AppleHDA8086_9D70Controller"=0,"IOHIDDeviceElementContainer"=6,"AIDReporter"=0,"IOUSBController"=1,"KDIBackingStore"=1,"AppleHDAFunctionGroupATI_RS730"=0,"AppleHDAWidgetATI_Park"=0,"_IOServiceStateNotification"=0,"AppleBacklightParameterHandler"=1,"AppleACPICPU"=8,"IONetworkInterface"=1,"AppleMCCSControlFamily"=1,"IOTimeSyncNetworkPortDaemonClient"=0,"IOBluetoothACLMemoryDescriptor"=0,"IOHIDOOBReportDescriptor"=0,"AppleASMediaUSBXHCIStreamingEndpoint"=0,"IONetworkUserClient"=0,"com_apple_driver_16X50UARTSync"=0,"IOReportUserClient"=3,"AppleUserHIDEventService"=2,"DspFunc2To4Splitter"=0,"AppleUSBXHCIPipe"=8,"DspFuncDRC"=0,"IOServiceStateNotificationDispatchSource"=0,"IOSkywalkLegacyEthernet"=0,"IOHDACodecFunction"=1,"IOCharacterDevice"=3,"IOUSBNub"=2,"AppleUSBHostMergeProperties"=0,"_IOConfigThread"=0,"AppleACPIPMC"=1,"AppleMultitouchHIDEventDriverV2"=1,"AppleHDAEngine"=2,"IOTimeSyncClockManager"=1,"AppleUSBXHCIARRequest"=0,"IO80211FlowQueueDatabase"=1,"AppleUSBAudioDevice"=0,"AppleHDAWidgetGK10X"=0,"AppleUSBHostController"=1,"IODiskImageBlockStorageDeviceOutKernel"=0,"OSValueObject<AsyncCommitParam>"=0,"AppleMultitouchHIDService"=0,"IOTimeSyncFDPtPPort"=0,"AppleSEPXART"=0,"IOUSBMassStorageDriverUFIStorageServices"=0,"AppleRXEDevice"=0,"IOCPUInterruptController"=1,"IOHIDPowerSource"=1,"BtIntel"=0,"ApplePS2MouseDevice"=1,"AppleHDAFunctionGroupFactory"=0,"CoreAnalyticsHub"=1,"IOSkywalkKernelPipeBSDClient"=0,"IOUserServer"=3,"VoodooI2CMultitouchEngine"=1,"IO80211P2PInterface"=0,"CCLogPipeUserClient"=0,"AppleIPAppenderUserClient"=0,"PMHaltWorker"=0,"AppleHDAFunctionGroupALC262"=0,"AppleHDATDMDevice"=0,"VoodooI2CController"=1,"AppleMCCSUserClient"=0,"AppleHSBluetoothHIDDriver"=0,"IOSlaveCPU"=0,"AppleUSBXHCIFL1100"=0,"IOUserNetworkPacket"=0,"AppleUpstreamUserClient"=0,"IOTimeSyncSyncUserClient"=0,"KDISocketPool"=0,"ACPI_SMC_PlatformPlugin"=0,"AppleAPFSGraft"=3,"IOAudioTimeIntervalFilter"=0,"IOTSAEITimeSyncHandler"=0,"AppleUSBTDMMassStorageClass"=0,"IOBootFramebuffer"=0,"IOHIDResourceDeviceUserClient"=0,"IOInterruptController"=5,"DspFunc"=4,"AppleASMediaUSBXHCI"=0,"SMCPolledInterface"=1,"AppleUSBHostResourcesClient"=1,"IOEthernetInterface"=1,"IOSkywalkPacketPoller"=0,"AppleHDAFunctionGroup_80862805"=0,"IOTimeSyncTimeLineFilter"=0,"AppleANS2Controller"=0,"AppleUSBXHCIARIsochronousRequest"=0,"IOAVBStreamCapture"=0,"IOMbufLittleMemoryCursor"=0,"com_waves_WCAudioGridUserClient"=1,"AGDCPlugin"=1,"AppleHDATDMBusManager"=0,"AppleUSBHubPolicyMaker"=1,"IOConditionLock"=0,"IOGraphicsControllerWorkLoop"=1,"IO80211WorkLoop"=1,"AppleUSBAudioComposite"=0,"AppleDiskImageDevice"=0,"IOUSBUserClientLegacy"=1,"AppleUSBHostIORequestPool"=8,"AppleHDAFunctionGroupGK10X"=0,"AppleUSBHostFrameworkClient"=1,"com_apple_driver_pm_pch_reporter"=1,"DspFuncMultiBandDRC"=0,"IOAccelerator"=0,"IOPlatformPluginLegacy"=0,"IOUserResources"=1,"AppleAPFSVolume"=8,"AppleNVMeBuffer"=5,"IOWatchdogUserClient"=1,"IOFenceTransaction"=0,"IOSkywalkStatisticsReporter"=0,"PMTraceWorker"=1,"NVMePMProxy"=1,"AppleUSBXHCISparseRequest"=0,"IOSCSIBlockCommandsDevice"=0,"VoodooI2CDeviceOrientationSensor"=0,"ApplePS2Device"=2,"IO80211QueueCall"=1,"IOAudioControl"=3,"AppleSMBusControllerICH"=0,"IntelBluetoothOpsGen2"=0,"IONVMeBlockStorageDevice"=1,"AppleHDAWidgetCS4206"=0,"IOI2CInterface"=0,"AppleHDAHDMI_DPDriver"=0,"IO80211QueueDescriptor"=0,"IODTNVRAMVariables"=0,"AppleUSBXHCIEndpointSoftRetry"=0,"VoodooI2CPCILakeController"=1,"IOUSBHostIOSource"=1,"AppleHDAFunctionGroupSTAC9220"=0,"VoodooI2CHIDDevice"=1,"OSString"=39856,"IONetworkController"=1,"IODiskImageBlockStorageDeviceInKernel"=1,"IORSMMemoryDescriptorArray"=0,"CCIOReporterHub"=2,"IOUserIterator"=49,"SMCDellSensors"=1,"AppleMCCSParameterHandler"=1,"IOSortableConfigurationDescriptor"=1,"PMSettingHandle"=5,"DspFunc2To6Splitter"=0,"OSOrderedSet"=286,"AppleMobileFileIntegrityUserClient"=0,"AppleUSBXHCIIsochronousRequest"=10,"VoodooI2CPrecisionTouchpadHIDEventDriver"=1,"AppleUSBXHCIStream"=0,"IOHIDEventDriver"=3,"DspFuncClientGainAdjust"=0,"TSNWiFiControlInterface"=0,"IOAudioStream"=1,"IOStateReporter"=7,"AppleUSBXHCIPPT"=0,"IOSerialBSDClient"=1,"com_apple_driver_pm_flex_reporter"=1,"AppleAPFSMedia"=3,"APFSCryptoContext"=1152,"IONotifier"=4,"IOBluetoothL2CAPMemoryBlock"=0,"AIDLoggerUserClient"=0,"AGPMHeuristic2"=1,"OSValueObject<void*>"=0,"VoodooI2CAccelerometerSensor"=0,"AppleUSBPipe"=0,"IOTimeSyncTimeLineFilterIIR128"=0,"AUAADC3ClassSpecificDescriptorFetcher"=0,"IOFilterInterruptEventSource"=5,"IOLittleMemoryCursor"=0,"IOTimeSyncDaemonServiceBase"=1,"DspFuncGain"=1,"IOUserNetworkPacketBufferPool"=0,"VoodooI2CSensorHubEventDriver"=0,"IOHIDPointingDevice"=0,"IOSkywalkTxSubmissionQueue"=0,"AppleUSBXHCIWPT"=0,"AppleSEPIntelIOPNub"=0,"AppleSmartBatteryHFDataClient"=0,"_IOFramebufferNotifier"=4,"IOBluetoothDataQueue"=0,"IOHDAController"=1,"AppleIntelSlowAdaptiveClockingManager"=1,"AppleUSBHostRequest"=2,"IODisplayAssertionUserClient"=0,"IOSKRegion"=33,"IOMedia"=11,"IO80211VirtualInterface"=0,"AppleUSBAudioDictionary"=0,"IOHistogramReporter"=5,"IOHIDAction"=0,"IOPlatformPluginFamilyPriv"=1,"IONVMeControllerPolledAdapter"=1,"IOPerfControlWorkContext"=115,"IO80211AWDLPeerManager"=0,"AppleHDAFunctionGroupExternalControlFactory"=0,"AppleSMBusDevice"=0,"IOBluetoothMemoryBlockQueue"=1,"EndpointSecurityDriverClient"=1,"OSSymbol"=22029,"IOSurfaceSharedEventNotificationPort"=0,"AppleUserHIDDevice"=0,"IOSMBusController"=1,"KDIDiskImageNubUserClient"=0,"IO80211LinkQualityMonitor"=0,"AppleRSMCommand"=0,"OSEntitlements"=1287,"AppleACPIPlatformExpert"=1,"IORegistryPlane"=8,"AppleUSBCDCControl"=0,"IOHIDLibUserClient"=0,"IOUSBMassStorageDriverNub"=0,"AppleUSBHostUserClient"=1,"AppleIntelUSBXHCI"=1,"AppleUSBInterfaceIterator"=0,"IOSlaveEndpoint"=0,"AppleCyrusUserClient"=0,"AppleHDAFunctionGroupExternalControl_GPIO"=1,"AppleSMBusController"=0,"CCDataPipeBlobOS"=0,"IOInterruptEventSource"=35,"VoodooGPIOSunrisePointH"=0,"AppleUSBXHCIInterrupterMSI"=6,"IOSkywalkPacketBufferPool"=0,"ACPI_SMC_GPU_CtrlLoop"=0,"AudioAUUCDriver"=1,"AppleUSBUserHCI"=0,"IO80211ServiceRequestDescriptor"=0,"OSObject"=128,"IOHIDTranslationEventReq"=0,"AppleHDAMikeyInternalCS8409"=0,"IOHDIXController"=1,"IOStateNotificationItem"=4,"TSNAssistedInterface"=0,"IOMbufNaturalMemoryCursor"=1312,"IOWatchdog"=1,"KDIEncoding"=0,"VoodooI2CACPIController"=0,"AppleHDAPathSet"=4,"IOKDP"=0,"CCIOReporterDataStream"=1,"IOBluetoothHIDDriver"=0,"IO80211AssociationJoinSnapshot"=1,"IOFence"=0,"AppleUSBNetworkingCommand"=0,"IOGraphicsDevice"=1,"IOResources"=1,"AppleNVMeRequest"=256,"IOUSBControllerListElement"=0,"IOAVBValidateUserClient"=0,"AUAMixerUnitDictionary"=0,"DIDeviceCreatorUserClient"=0,"KDIObject"=2,"AppleHDAWidgetAD1988"=0,"DspFuncMultiBandCompressor"=0,"GMetricsRecorder"=0,"IOGraphicsSystemWorkLoop"=1,"ItlHalService"=1,"IOSCSIPeripheralDeviceNub"=0,"RSNSupplicant"=1,"AppleUSBXHCIARRequestPool"=0,"VoodooI2CTouchscreenHIDEventDriver"=0,"IOSurfaceDeviceCache"=0,"AppleUIOMemUserClient"=0,"AGPMController"=1,"AppleUSBXHCIRequestPool"=3,"CoreAnalyticsPipe"=1,"AppleGraphicsDeviceControlClient"=1,"IOUSBBus"=1,"IOServicePM"=125,"AppleUSBLegacyDeviceUserClient"=1,"IOBigMemoryCursor"=0,"TSNInterface"=0,"CTimeout"=255,"AppleSmartBattery"=1,"AppleBusControllerCS8409"=0,"ACMRestrictedModeKernelService"=1,"AppleUSBHostBusCurrentPool"=0,"AppleHDAWidgetMCP89"=0,"IOMemoryDescriptor"=2,"AppleTDMAKSServices"=0,"AppleUIOMem"=1,"IOTimeSyncTimeSyncTimePort"=1,"AppleIntelLpssGspi"=0,"AppleHDAFunctionGroupATI_RS780"=0,"IOHIDActionQueue"=0,"IOUSBInterfaceUserClientV2"=1,"IODMAController"=0,"AppleUSBInterface"=8,"VoodooI2CControllerDriver"=1,"IOUSBControllerV3"=1,"TSNBSDStackInterface"=0,"AppleGraphicsControl"=0,"IOBluetoothSCOMemoryDescriptorRetainer"=0,"com_apple_driver_16X50PCI"=0,"EventQueue"=0,"NootedGreen"=1,"IOHIDTranslationEvent"=0,"AppleHDATDMBusManagerCS8409"=0,"AGPMEventSource"=1,"IOSystemStateNotification"=1,"SEPApNonce"=0,"KDIRAMBackingStore"=0,"DspFuncEQ"=1,"IOCatalogue"=1,"IOWorkLoop"=71,"AppleSEPEndpointService"=0,"IODataQueue"=1,"AppleAPFSMediaBSDClient"=2,"AppleUSBUserHCIRequestPool"=0,"CCIOReporterLogStream"=1,"AppleRSMChannelTestClient"=0,"ACMPersistentStoreKernelService"=1,"USBToolBox"=0,"IOHIDDevice"=4,"IOHDACodecDriver"=1,"IOSkywalkNetworkPacket"=0,"AppleHDAWidgetATI_RS730"=0,"IOBluetoothL2CAPChannel"=0,"AppleUSBHostFrameworkInterfaceClient"=3,"CCStream"=2,"AppleGCSyntheticDeviceUserClient"=0,"AppleGCResourceDeviceUserClient"=1,"AirportItlwm"=1,"_IOMemoryDescriptorMixedData"=4475,"IOHIDElement"=1,"IO80211InfraInterface"=0,"IOReportHub"=1,"VoodooGPIOCannonLakeH"=0,"AppleHDAWidgetATI_RS780"=0,"DspFunc6ChOutput"=0,"IO80211ScanManager"=1,"IOEthernetController"=1,"DspFuncStereoEnhancer"=0,"IOSlowAdaptiveClockingDomain"=0,"IOTimerEventSource"=184,"AppleHDAFunctionGroupCS8409"=0,"VoodooI2CDigitiserStylus"=0,"CryptoBufferDescriptor"=1152,"IOPCIConfigurator"=1,"IOSerialDriverSync"=0,"com_apple_filesystems_hfs_encodings"=1,"Stopwatch"=3,"IO80211NetBootNub"=0,"IOTimeSyncEthernetConcreteControllerAdapter"=0,"IOUserNetworkMemorySegment"=0,"DspFunc2WayCrossover"=0,"CCLogPipe"=2,"AppleSMCClient"=4,"AppleHDAWidgetGT216"=0,"AppleUSBXHCIFL1100CommandRing"=0,"AIDReporterState"=0,"HookCase"=1,"IOServiceMessageUserNotification"=226,"AppleXsanScheme"=0,"AppleTDMAKSDriver"=0,"IOReporter"=3,"IOTimeSyncUserClient"=0,"VoodooI2CSensorHubEnabler"=0,"OSObjectWrapper"=0,"AppleUSBHostBusCurrentClient"=4,"IOAVBTimeSyncCapture"=0,"IOMultiMemoryDescriptor"=0,"AnVMSRUserClient"=0,"DspFuncVolume_3ch"=0,"IOPlatformPluginFamily"=1,"hv_vmx_vma_t"=0,"IOSCSILogicalUnitNub"=0,"AUAInputTerminalDictionary"=0,"AppleLIFSUserClient"=3,"AUAStreamDictionary"=0,"HIDMTQueueEventSource"=1,"IOTimeSyncEthernetControllerAdapter"=0,"AppleHDAWidget_80862807"=0,"OSValueObject<PMAssertStruct>"=1,"IOSCSIHierarchicalLogicalUnit"=0,"IOTimeSyncDaemonServiceProcess"=2,"IORSMReceiveQueueEntry"=0,"AppleDiskImagesController"=1,"DisplayMergeNub"=0,"AppleHDATDMDeviceFactory"=0,"AppleSEPDeviceService"=0,"IOTimeSyncClockMapping"=2,"OSValueObject<OSKextRequestResourceCallback>"=0,"AIDCircularBuffer"=0,"KDIURL"=1,"IntelBluetoothOpsGen3"=0,"AGPMHeuristic1"=0,"IOPanicPlatform"=0,"IODMAEventSource"=0,"IOSCSIMultipathedLogicalUnit"=0,"IOPlatformDevice"=4,"AppleNVMeSMARTUserClient"=0,"AppleHDAWidgetCS4208"=0,"AppleHIDTransportIODataQueue"=0,"DspFuncSum"=0,"AppleUSBHostDARTDMACommand"=0,"IOSurfaceDescriptorComponent"=0,"AIDLogger"=0,"DspFuncStereoToMono"=0,"AppleUSBAudioEngine"=0,"IOUserNetworkEthernet"=0,"AppleUSBHostResourcesTypeC"=0,"KDIUDIFCacheBuffer"=0,"AppleHDATDMAmpSSM3515"=0,"AppleHDAAudioSelectorControlDP"=0,"CCCapture"=0,"AppleMultitouchHIDEventService"=0,"AppleUSBHostFrameworkDeviceClient"=0,"IOSurfaceWiredSendRight"=0,"IO80211RangingManager"=1,"VoodooI2CDigitiserTransducer"=5,"IOUSBMassStorageUASDriverCommand"=0,"IOSkywalkController"=0,"IOAudioControlUserClient"=32,"IOAVBStreamCaptureUserClient"=0,"DspBuffer"=4,"IOStateNotificationListener"=0,"IOAudioEngine"=1,"OSSerialize"=1,"ALCUserClient"=0,"AppleUSBDescriptorCache"=3,"IOSurfaceSharedEventReference"=0,"IOAudioDevice"=2,"OSKext"=504,"AppleHSBluetoothDevice"=0,"ApplePMC"=1,"AppleUSBDescriptor"=16,"AppleSMBIOS"=1,"com_apple_driver_pm_msr_reporter"=1,"IOProviderPropertyMerger"=0,"IOSkywalkTxCompletionQueue"=0,"AUAClockMultiplierDictionary"=0,"SMCWatchDogTimer"=1,"VoodooInputSimulatorDevice"=1,"AppleGPUWrangler_GPU"=1,"IOTimeSyncUnicastLinkLayerEtEPort"=0,"AppleHDAFunctionGroupAD1988"=0,"AppleUSBHostBouncedDMACommand"=0,"_IOServiceJob"=0,"IO80211InterfaceMonitor"=1,"AGDPClientControl"=0,"IOPMPowerStateQueue"=1,"NVMeFix"=1,"AppleEmbeddedHIDEventService"=0,"IOUserNetworkPacketQueue"=0,"OSIterator"=3,"hv_vcpu_t"=0,"IOAccelerationUserClient"=1,"IOBluetoothTimerEventSource"=0,"AppleUSBHostBusCurrentAllocator"=7,"IOMemoryMap"=672,"CCDataStream"=2,"IO80211RangingManagerExt"=0,"DspFuncDelay"=0,"IOAudioToggleControl"=10,"AppleSEPTesting"=0,"com_apple_driver_pmtelemetry"=1,"IOAVBTimeSyncCaptureUserClient"=0,"SCSITask"=0,"AppleSmartBatteryManagerUserClient"=0,"IOBluetoothL2CAPSupervisoryFrameMemoryBlock"=0,"IOHDIXHDDriveOutKernel"=0,"IOUserUserClient"=3,"IOUSBMassStorageCBIDriver"=0,"AppleNVMeController"=0,"AppleUSBXHCIDevice"=3,"IO80211Controller"=1,"AppleMobileFileIntegrity"=1,"AUAExtensionUnitDictionary"=0,"AGDCBacklightControl"=0,"AppleHDAEngineUserClient"=0,"AppleHDAFunctionGroupMCP79"=0,"X86PlatformPlugin"=1,"IOPCIDiagnosticsClient"=0,"IOHIDParamUserClient"=4,"IOPCIBridge"=2,"IORSMChannel"=0,"AppleASMediaUSBXHCIIsochronousRequestPool"=0,"AppleEffaceableStorageUserClient"=0,"OSData"=4943,"IORegistryIterator"=1,"AIDReporterSimple"=0,"AppleUIOPCI"=0,"IOHDIXCommandPool"=1,"TransducerState"=0,"PMAssertionsTracker"=1,"IOOutputQueue"=1,"AppleSEPUserClient"=0,"com_waves_WCAudioGridInterfaceFilter"=3,"IOExclaveProxy"=0,"EndpointSecurityExternalClient"=0,"AppleUSBHostDMACommand"=0,"AppleEmbeddedKeyboard"=0,"DspFuncCrossover"=0,"IOSCSIPeripheralDeviceType00"=0,"IOPMClientAck"=0,"IO80211PeerManager"=0,"IOHDIXHDDriveNub"=1,"AppleKeyStoreCommand"=2,"SMIMonitor"=1,"AppleACPIPlatformUserClient"=0,"AppleNVMeRequestTimer"=1,"IOSkywalkLegacyEthernetInterface"=0,"IOHIDKeyboardEventDevice"=2,"IOSCSITargetDevice"=0,"AppleBacklightDisplay"=0,"IOTimeSyncDaemonUserClient"=1,"IORootParent"=1,"AppleUSB20HostController"=0,"AppleASMedia1042USBXHCI"=0,"DspFuncMozartCompressor"=0,"com_apple_driver_pm_cstate_reporter"=1,"IO80211PeerMonitor"=0,"AppleUSBAudioControlInterface"=0,"AIDQueueEventSource"=0,"PMSettingObject"=5,"IODispatchSource"=0,"AppleUSBHostPortInterruptEventSource"=7,"TSNBSDInterface"=0,"AppleACPIPCI"=1,"AppleKeyStore"=1,"BatteryManager"=1,"IOUSBHostInterfaceIterator"=0,"IOUserNetworkRxSubmissionQueue"=0,"AppleGPUWrangler_MatchNotificationWorkItem"=0,"IOPMinformee"=73,"AppleUSBHostDMABufferMemoryDescriptor"=23,"IOUSBCommand"=0,"IOPMPowerSource"=1,"IOSlowAdaptiveClockingManager"=1,"AppleGCResource"=1,"hv_vmx_space_t"=0,"IOTimeSyncReverseSync"=0,"EndpointSecurityDriver"=1,"IOTimeSyncEdgeTimeCapture"=0,"IOUSBLog"=1,"DspFuncLimiter"=0,"CCPipeUserClient"=0,"AppleUSBHostResourcesBusPowerClient"=0,"IOTimeSyncTimedEdgeGenerator"=0,"AppleSEPManager"=0,"AppleHDAMikeyInternalFactory"=0,"IOBluetoothDevice"=1,"AppleBusPowerController"=0,"DspFuncWithSharedMemory"=0,"IOTimeSyncgPTPManager"=1,"IOExtensiblePaniclog"=0,"TSNUserWiFiControlInterface"=0,"AppleIntelPanelA"=1,"IODisplayParameterHandler"=3,"IOBufferMemoryDescriptor"=221,"AppleUSBXHCILPTH"=0,"AppleACPIButton"=1,"AppleHDADriverUserClient"=0,"CCPipe"=2,"IOHIDEventServiceUserClient"=6,"AppleHDAWidgetCS8409"=0,"AppleSystemPolicyUserClient"=2,"AppleHDAWidgetALC885"=0,"DspFuncBeam2"=0,"DspFunc2Dot1Crossover"=0,"AppleUSBHostInterfaceUserClient"=0,"AppleRSMChannelServerClient"=0,"AppleMultitouchHIDEventDriver"=0,"IOPolledInterface"=3,"IONDRVDevice"=0,"IOTimeSyncTimeLineFilter128"=0,"OSKextSavedMutableSegment"=6,"IOUserSerialUserClient"=0,"IOHIDElementContainer"=1,"AppleUSBDevice"=4,"IOPlatformExpertDevice"=1,"IOSurfaceMemoryTag"=110,"IOUSBHubPolicyMaker"=1,"IOHIPointing"=1,"IOBluetoothHCIController"=1,"AIDUserClient"=0,"IOTimeSyncFDEtEPort"=0,"AudioAUUC"=0,"AppleAPFSContainerScheme"=2,"IONetworkData"=4,"IOAudioLevelControl"=4,"AUAClockSourceDictionary"=0,"AppleUSBXHCISPTLP"=0,"IOECStateNotifier"=0,"IODTNVRAMPlatformNotifier"=0,"IOUSBCommandPool"=0,"AUAProcessingUnitDictionary"=0,"IORSMReceiveQueue"=0,"AppleAPFSVolumeBSDClient"=7,"AppleMultitouchEventServiceWrapper"=0,"IO80211FlowQueue"=0,"AppleHDADriver"=1,"AppleImage4UserClient"=0,"OSAction_IOHIDEventService__SetLED"=0,"IOPlatformPluginDevice"=2,"AppleTDMAKSCommand"=0,"IODTNVRAMDiags"=0,"KDISparseDiskImage"=0,"IOKernelDebugger"=0,"AppleRXE"=1,"IOBacklightDisplay"=0,"IODispatchQueue"=11,"CoreAnalyticsMessenger"=1,"AppleFIVRDriver"=0,"KDIHTTPBackingStore"=0,"IONetworkMedium"=1,"IODisplayConnect"=1,"CCIOService"=0,"ACPI_SMC_PluginUserClient"=0,"IOSurfaceDescriptorContext"=0,"IOSkywalkCloneableNetworkPacket"=0,"IOHIDResource"=1,"IOUserNetworkQueueSet"=0,"IOTimeSyncTimeLineFilterIIR"=0,"AGPMHeuristic0"=0,"AppleHDAWidgetATI_RS710"=0,"AppleNVMeTranslationSMARTUserClient"=0,"ALCUserClientProvider"=0,"VoodooGPIOSunrisePointLP"=0,"AppleHDAWidgetWM8800"=0,"AppleSATLSMARTUserClient"=0,"AppleUSBCDCCompositeDevice"=0,"AppleBSDKextStarter"=1,"IOTimeSyncPort"=1,"AppleUSBXHCISparseRequestPool"=0,"IOUSBRootHubDevice"=0,"AppleMultitouchInputHIDEventDriver"=1,"KDISocket"=0,"IOHIDPointingEventDevice"=1,"IOTimeSyncgPTPManagerUserClient"=0,"IOHIDDeviceShim"=2,"AppleSCSISubsystemGlobals"=1,"IOTimeSyncTimeOfDayPort"=0,"AppleHDAWidget_1002AAA0"=0,"OSValueObject<SMCNotification>"=1,"IOBluetoothObject"=1,"IOBluetoothACPIMethods"=1,"OSMetaClass"=0,"AppleUSBXHCIARIsochronousRequestPool"=0,"DspFuncVolume"=1,"AppleImage4"=1,"AppleGraphicsDeviceControl"=1,"CCDataPipeBlobOD"=0,"IOUSBControllerV2"=1,"IOHIDPointing"=0,"IOAudioSelectorControl"=2,"DspFuncAudioMeter"=0,"IOUserSerial"=1,"IOUserNetworkTxSubmissionQueue"=0,"CCDataSession"=0,"IO80211P2PSteeringManager"=0,"IOSKMapper"=7,"OSValueObject<__ReportResult>"=0,"IOSCSIProtocolServices"=0,"IOHIDEventDummyService"=0,"VoodooInput"=1,"IOPlatformPluginThermalProfile"=0,"AppleEFINVRAM"=1,"IOKitDiagnostics"=1,"IOTimeSyncDomain"=1,"AppleMultitouchDeviceUserClient"=1,"IODTNVRAM"=1,"IOHIDTranslationService"=0,"IOHIDEventServiceQueue"=7,"com_apple_driver_pm_reporter"=8,"AppleUSBHostDMACommandPool"=2,"IO80211P2PDFSProxyManager"=0,"AppleUSBXHCITDPool"=2,"IOSurfaceMemoryRegion"=0,"AppleACPIEC"=1,"AppleRTCUserClient"=2,"IO80211SkywalkInterface"=0,"DspFuncXTC"=0,"AppleUSBAudioIsocPipe"=0,"UIOPCIMatch"=0,"IO80211P2PSupervisor"=0,"AppleHDAWidgetMCP79"=0,"AppleSSE"=1,"IOBluetoothHIDChannel"=0,"hv_vm_t"=0,"hv_vatpic_t"=0,"IOPMRequest"=0,"IOECTimeSyncHandler"=0,"AppleGCSyntheticDevice"=0,"IOHIDUserDevice"=0,"IOHIKeyboard"=2,"AppleGPUWrangler_BusyInterestWorkItem"=0,"AppleHDATDMAmpTAS5758L"=0,"AppleMCCSControlCello"=0,"AUAASEndpointDictionary"=0,"AppleHDAFunctionGroupATI_Park"=0,"AppleXsanDevice"=0,"IOService"=204,"IOSurfaceSharedEvent"=0,"EndpointSecurityNoAuthClient"=0,"IORS232SerialStreamSync"=0,"IOUserServerCheckInToken"=3,"IOBluetoothWorkLoop"=0,"AppleHDAWidget_10DE0014"=0,"ACMAccessoryCacheKernelService"=1,"IOHIDEventRepairDriver"=0,"AppleHDAFunctionGroup_10DE0014"=0,"ACPI_SMC_Idle_CtrlLoop"=0,"IOSKMemoryBuffer"=119,"IOTimeSyncUnicastUDPv4EtEPort"=0,"KextAudit"=1,"AppleSMCFamily"=1,"IOFramebuffer"=1,"KDIDiskImage"=1,"HIDAlwaysNotifyingIODataQueue"=1,"pci_intr_handle"=1,"AppleMultitouchDevice"=1,"AppleIPAppender"=1,"AppleUSBXHCIIsochronousTransferRing"=0,"IOPMCompletionQueue"=1,"IOPlatformStateSensor"=0,"AppleSEPCommandPool"=0,"IOTimeSyncUserFilteredService"=0,"DspFuncVirtualization"=0,"IOSkywalkQueueSet"=0,"AppleHV"=1,"AppleCredentialManagerUserClient"=8,"AppleFileSystemDriver"=0,"mDNSOffloadUserClient"=0,"IOUSBHostInterfaceLegacyIterator"=0,"AppleUSBHostPort"=1,"PassthruInterruptController"=0,"CCDataPipeUserClient"=0,"AppleUSBUserHCICommandQueue"=0,"AppleHDAWidget"=1,"IOFDiskPartitionScheme"=0,"com_apple_filesystems_hfs"=1,"AppleMultitouchEventDriverWrapper"=1,"IODataQueueDispatchSource"=0,"KDIDiskImageNub"=1,"AppleTDMEffaceableNORDriver"=0,"OSAction_IOHIDDevice__CompleteReport"=0,"AppleUSBXHCITR"=0,"AppleHDAFunctionGroupCS4206"=0,"AppleUSBUserHCIRequest"=0,"AppleUSBXHCIStreamingEndpoint"=0,"AppleHDACodecGeneric"=1,"AppleGPUWrangler_DeferredReleaseWorkItem"=0,"AppleSSEUserClient"=0,"IOUSBMassStorageInterfaceNub"=0,"IOHIDPowerSourceController"=1,"IOPMPowerSourceList"=0,"AppleHDAEngineOutputDP"=0,"IOHIDSystem_notificationData"=0,"OSAction_IOUserClient_KernelCompletion"=0,"com_apple_filesystems_nfs"=1,"OSValueObject<KeyboardReserved>"=2,"AUAEndpointDictionary"=0,"mDNSHandoff"=0,"AppleVTDDeviceMapper"=3,"IOTimeSyncEthernetSoftDMAInterfaceAdapter"=0,"AppleHDAStream"=3,"AppleIntelLpssI2C"=0,"AppleAMDUSBXHCIPCI"=0,"ApplePS2Keyboard"=1,"AppleACPICPUInterruptController"=1,"IOUSBPipe"=0,"TSNITimeSyncHandler"=0,"AppleActuatorDeviceUserClient"=1,"IOAVBControllerHelper"=0,"AppleVTD"=1,"AppleSEPEndpoint"=0,"IOPerfControlClient"=2,"VoodooI2CNativeEngine"=1,"AppleUSBSparseArray"=3,"VirtualSMC"=1,"ApplePS2KeyboardDevice"=1,"EupDSP"=0,"CPUFriendData"=0,"Lilu"=1,"AppleBusControllerFactory"=0,"IOPlatformExpert"=1,"IOUserEthernetController"=0,"IOTimeSyncEthernetPort"=0,"IOUserSCSIPeripheralDeviceType00"=0,"com_apple_driver_pm_uncore_reporter"=1,"TSNWiFiInterface"=0,"AppleUSBController"=1,"IOTimeSyncUserFilteredServiceUserClient"=0,"IOPartitionScheme"=2,"IOAVBTimeSyncSyncUserClient"=0,"IOTimeSyncIntervalFilter128"=0,"IOUserSCSIPeripheralDeviceType07"=0,"ACPI_SMC_CtrlLoop"=0,"IOSlaveFirmware"=0,"AMFIPass"=1,"IOTimeSyncRootService"=1,"AppleASMedia3142USBXHCI"=0,"KDIReadWriteDiskImage"=1,"IOHIDUserClient"=1,"LogManager"=1,"IOACPIPlatformExpert"=1,"hv_vlapic_t"=0,"ACMLockdownModeKernelService"=1,"KDIUDIFCacheObject"=0,"com_apple_driver_pm_cpu_mbox"=105,"IOUSBControllerIsochEndpoint"=0,"IOTimeSyncEthernetModernInterfaceAdapter"=0,"DspFuncLoudness"=0,"IOSurfaceDeviceMemoryRegion"=0,"IOServiceCompatibility"=3,"IOHIDEventService"=4,"IOAudioTimeIntervalFilterFIR"=0,"AppleASMediaUSBXHCIIsochronousRequest"=0,"IOTimeSyncIntervalFilterIIR128"=0,"IOUserEthernetInterface"=0,"OSDextStatistics"=17,"IOAudioPort"=0,"IOInterruptDispatchSource"=0,"AppleUSBBusPowerClient"=0,"IOSkywalkPacketBuffer"=0,"IOHIKeyboardMapper"=2,"AppleSMBusPCI"=0,"OSAction_IOHIDEventService__CopyEvent"=0,"IOTimeSyncUnicastUDPv6EtEPort"=0,"ACMBridgeKernelService"=0,"IOTimeSyncIntervalFilterIIR"=0,"IOUSBHostInterface"=8,"AppleGPUWrangler"=1,"hv_vmx_vcpu_t"=0,"com_apple_driver_pm_msr_limits_reporter"=1,"OSArray"=11339,"IOGeneralMemoryDescriptor"=3091,"IOSkywalkBSDClient"=0,"IOSCSICommandGate"=0,"IOUSBIsocCommand"=0,"KDISecondaryEncoding"=0,"AIDCircularWriteBufferShared"=0,"IOSlaveProcessor"=0,"IO80211FlowQueueLegacy"=0,"DIDeviceIOUserClient"=0,"KDIShadowedDiskImage"=0,"IO80211ControllerMonitor"=1,"IOTimeSyncClockTestUserClient"=0,"IOUSBWorkLoop"=1,"AppleCallbackPowerSource"=0,"IOSurfaceClient"=150,"IOAudioEngineEntry"=0,"com_apple_driver_pm_ltr_reporter"=1,"IOConfigurationDescriptorOrderedSet"=1,"AppleBusController"=0,"AIDSerialLogger"=0,"AppleIntelICLUSBXHCI"=0,"AppleGraphicsDeviceControlPlugin"=1,"IO80211CommandQueue"=0,"IOCancelationWrapper"=0,"HibernationFixup"=1,"DspFuncManager"=2,"AppleUSB20XHCITypeCPort"=0,"DspFuncSplitBand"=0,"IOBootNDRV"=1,"IOHIDElementPrivate"=2622,"AppleHDAPath"=4,"AppleSSEInterface"=1,"AGDCPluginDisplayMetrics"=1,"VoodooI2CHIDDeviceOverride"=0,"IOHITablet"=0,"AUAClockSelectorDictionary"=0,"AppleTDMBlockStorageServices"=0,"AppleACPIEventController"=1,"IOFramebufferUserClient"=1},"IOMalloc allocation"=121834682}
    | |   | |   "model" = <"Intel Iris Xe Graphics">
    |         "boot-args" = "-v debug=0x100 keepsyms=1 agdpmod=pikera -radcodec -wegswitchgpu -wegbeta -amfipassbeta -lilubetaall -vi2c-force-polling amfi_get_out_of_my_way=1 -NGreenDebug -disablegfxfirmware ngreen-dmc=skip -allow3d -nbdyldoff"
jkbuha@JuliansthGenAir ~ % system_profiler SPDisplaysDataType 2>/dev/null | head -20
Graphics/Displays:

    Intel Iris Xe Graphics:

      Chipset Model: Intel Iris Xe Graphics
      Type: GPU
      Bus: Built-In
      Slot: built-in
      VRAM (Total): 8 MB
      VRAM (Dynamic, Max):
      Vendor: Intel
      Device ID: 0x9a49
      Revision ID: 0x0001
      Kernel Extension Info: No Kext Loaded
      Displays:
        Display:
          Resolution: 1920 x 1200 (WUXGA - Widescreen Ultra eXtended Graphics Array)
          UI Looks like: 1920 x 1200
          Framebuffer Depth: 24-Bit Color (ARGB8888)
          Main Display: Yes
jkbuha@JuliansthGenAir ~ %

Stezza88 · April 12

My father has been taken today to the hospital.. they have found in him a cancer at the liver.. i need to suspehend a moment.. i'll be back soon as possible.. post logs and photos if you got problems.. blessing everybody

12 minutes ago, jkbuha said:

Same issue here with i7-1185g7. Built NootedGreen, Lilu-NootedGreen and HookCase, all loading and running successfully, but not loading any TGL kexts from /L/E.

Last login: Sun Apr 12 16:09:10 on ttys000
jkbuha@JuliansthGenAir ~ % kextstat | grep -i "ngreen\|NootedGreen\|StezzaPilot"
Executing: /usr/bin/kmutil showloaded
No variant specified, falling back to release
   74    0 0xffffff8006b2d000 0x4e000    0x4e000    com.StezzaPilot.NootedGreen (1.0.0) 9FD0E4A7-B228-37FA-A902-28B738F711FD <57 18 9 7 6 3 2 1>
jkbuha@JuliansthGenAir ~ % kextstat | grep -i "lilu\|vit9696"
Executing: /usr/bin/kmutil showloaded
No variant specified, falling back to release
   57   16 0xffffff8004012000 0x88000    0x88000    as.vit9696.Lilu (1.7.3) EEAADD41-5187-36D3-8097-E99D80AB336F <9 7 6 3 2 1>
   60    0 0xffffff800540d000 0x1cd000   0x1cd000   as.vit9696.AppleALC (1.9.7) CBFC7A37-E2E8-39D9-AF1F-77E36A9ACA66 <57 18 9 7 6 3 1>
   65    0 0xffffff80069a4000 0xd000     0xd000     as.vit9696.RestrictEvents (1.1.7) A708639D-FD60-3173-8B5C-9B536E7A8191 <57 9 7 6 3 2 1>
   66    5 0xffffff800409a000 0x19000    0x19000    as.vit9696.VirtualSMC (1.3.8) A6D60AC3-212F-3186-8A6B-96A81DC7240B <57 17 9 7 6 3 1>
   76    0 0xffffff80069e1000 0xc000     0xc000     as.vit9696.SMCProcessor (1.3.8) A0652DDF-5B1B-352F-8823-0EEF1D612D6A <66 57 17 9 7 6 3 2 1>
jkbuha@JuliansthGenAir ~ % kextstat | grep -i "TGL\|xxxxx"
Executing: /usr/bin/kmutil showloaded
No variant specified, falling back to release
jkbuha@JuliansthGenAir ~ % kextstat | grep -i "HookCase\|smichaud"
Executing: /usr/bin/kmutil showloaded
No variant specified, falling back to release
  183    0 0xffffff7f97385000 0x21306    0x21306    org.smichaud.HookCase (8.0.1) 1B4A7F61-3F35-3F47-BBEE-10E6870DDF19 <18 9 7 6 3 2 1>
jkbuha@JuliansthGenAir ~ % log show --last 5m --predicate 'eventMessage contains "ngreen" or eventMessage contains "NGreen" or eventMessage contains "NootedGreen"' 2>/dev/null | head -30

Timestamp                       Thread     Type        Activity             PID    TTL
jkbuha@JuliansthGenAir ~ % ioreg -l -p IOService | grep -i "Iris Xe\|Intel.*Graphics\|TGL\|ngreen" | head -10

  |   "IOKitDiagnostics" = {"Instance allocation"=27927760,"Container allocation"=5875438,"Pageable allocation"=424792064,"Classes"={"IONDRVFramebuffer"=1,"IOHIDEventServiceFastPathUserClient"=0,"IONaturalMemoryCursor"=0,"IOKitDiagnosticsClient"=0,"AppleUSBXHCIIsochronousRequestPool"=2,"AppleUSBDiagnostics"=0,"IOAudioClientBufferSet"=0,"AppleHDAMikeyInternalCS4208"=0,"AppleSMCPMC"=0,"IOEventLink"=0,"AppleUSBRequest"=1,"TSNPacketPool"=0,"AppleASMedia1042USBXHCICommandRing"=0,"DspFuncBuzzKill"=0,"IOUSBMassStorageDriverRequestTimer"=0,"IOUserBlockStorageDevice"=0,"IOHDACodecDevice"=1,"AppleHDATDM_Codec"=0,"IORegistryEntry"=144,"ApplePS2Controller"=1,"IOUSBMassStorageUASDriver"=0,"AppleActuatorDevice"=1,"AppleHDAWorkLoop"=1,"IORTC"=1,"AppleNVMeRequestPoolTagReserve"=0,"IOHIDevice"=2,"IOPCIEventSource"=0,"OSAction_IOUserNetworkEthernet__TxSQDataAvailable"=0,"KDIFileBackingStore"=1,"AppleHDAHardwareConfigDriver"=0,"IO80211DriverCommandDescriptor"=0,"AppleHDAHardwareConfigDriverLoader"=0,"DspFuncUserClient"=0,"IOMemoryCursor"=1,"IOPMGR"=0,"AppleSmartBatteryManager"=1,"ItlIwm"=0,"AppleHDATDM_CS42L81"=0,"IOBreaker"=0,"AppleHDAFunctionGroup_80862807"=0,"AppleUSBUserHCIDevice"=0,"IOUSBLowLatencyCommandLegacy"=0,"IOTimeSyncClockManagerDaemonClient"=2,"AppleUSBUserHCITransferQueue"=0,"EFIData"=334,"AIDCircularBufferShared"=0,"USBDeviceController"=0,"AppleUSBXHCIPort"=2,"AppleSMCControl"=0,"DspFunc4ChOutput"=0,"AppleLockdownMode"=1,"IOSurfaceSharedEventNotification"=0,"AppleKeyStoreUserClient"=46,"IOTimeSyncSyncDaemonClient"=1,"AppleHDAFunctionGroupWM8800"=0,"IOSMBusRequest"=0,"VoodooGPIOAMD"=0,"IOSkywalkPacket"=0,"IntelBTPatcher"=1,"DspFuncBeamFormer"=0,"IOPMServiceInterestNotifier"=127,"AppleACPILid"=1,"hv_vmx_vcpua_t"=0,"IOStorage"=4,"IOHIDResourceQueue"=0,"AppleUpstreamUserClientDriver"=1,"IOSkywalkLogicalLink"=0,"AppleRSMChannelControllerClient"=1,"ItlIwn"=0,"AppleUSBRequestPool"=2,"IOSerialStreamSync"=1,"IOHIDConsumer"=0,"AppleSMCRTC"=0,"IOSharedInterruptController"=4,"AppleUSBHostCompositeDevice"=1,"IO80211AWDLMulticastPeer"=0,"IOHIDClientData"=6,"IOBluetoothMemoryDescriptorRetainer"=0,"IOGraphicsWorkLoop"=2,"hv_vmx_vm_t"=0,"AppleHDATDMBusManagerCS4208"=0,"OSSerializer"=45,"IOTimeSyncClockManagerUserClient"=0,"OSCollection"=6,"IOPCIMessagedInterruptController"=1,"AppleKeyStoreTestUserClient"=0,"IOUserEthernetResourceUserClient"=0,"IORDMAInterface"=0,"CPUFriend"=1,"com_apple_driver_16X50BusInterface"=0,"IOUSBDeviceUserClientV2"=1,"SmbusHandler"=1,"AppleHDAEngineOutput"=1,"SMCSMBusController"=1,"AIDReporters"=0,"_IOServiceNullNotifier"=1,"AIDInterface"=0,"IOTimeSyncUnicastUDPv4PtPPort"=0,"IOUserNetworkRxCompletionQueue"=0,"AppleCallbackPowerSourceProvider"=1,"IOSkywalkMemorySegment"=0,"IOBluetoothHCIUserClient"=1,"hv_vioapic_t"=0,"AppleIntelPCHPMC"=0,"AppleASMediaUSBXHCIDevice"=0,"IONetworkStackUserClient"=1,"AppleMultitouchEventDriverV2Wrapper"=1,"AppleDisplay"=1,"IOTimeSyncPortManager"=0,"VoltageShiftAnVMSR"=1,"com_apple_driver_pm_cpu_reporter"=1,"_IOServiceNotifier"=693,"IOInterleavedMemoryDescriptor"=0,"AppleAPFSUserClient"=0,"AppleHDAFunctionGroupGT216"=0,"TrackpointDevice"=1,"AppleUSBLegacyInterfaceUserClient"=0,"IOServiceStateNotificationEventSource"=0,"AppleUSBUserHCIResources"=1,"AppleGraphicsDevicePolicy"=0,"AppleHDAFunctionGroupCS4208"=0,"IOSkywalkEthernetInterface"=0,"IOSKArena"=8,"IOTimeSyncEthernetInterfaceAdapter"=0,"AppleUSBXHCILPTCommandRing"=0,"IOUSBHostDevice"=3,"IOSubMemoryDescriptor"=4,"AppleHSBluetoothInterface"=0,"AppleUSBRequestCompleter"=1,"DspFuncVolume_4ch"=0,"IOHIDTranslationServiceClient"=0,"IOUserNetworkWLAN"=0,"IOAVBNubUserClient"=0,"AirportItlwmInterface"=1,"IOServiceUserNotification"=598,"AppleMultitouchTrackpadHIDEventDriver"=1,"AppleFDEKeyStoreUserClient"=0,"AppleUSBHostResourcesTypeCBPC"=0,"IO80211ThroughputCache"=0,"IOPlatformSensor"=0,"IO80211PacketDescriptor"=0,"IOSkywalkNetworkBSDClient"=0,"DspFuncPreGain"=0,"IOTimeSyncDomainDaemonClient"=1,"IOHIDReportElementQueue"=0,"AUAEffectUnitDictionary"=0,"com_apple_filesystems_apfs"=1,"DigitizerTransducer"=0,"IOSKRegionMapper"=22,"IOBluetoothL2CAPInformationFrameMemoryBlock"=0,"IOMbufMemoryCursor"=1,"AppleHDAController"=1,"IOSKMemoryArray"=0,"AppleUSBUserHCITransferStructPool"=0,"IOCPU"=1,"IONetworkStack"=1,"AppleACPIEventPoller"=1,"OSAction_IOUserNetworkEthernet__DataAvailable"=0,"IO80211ActionFrameDescriptor"=0,"DspFuncBiquad"=0,"CCDataPipeBlob"=0,"IOTimeSyncNetworkPortUserClient"=0,"ApplePlatformEnabler"=1,"VoodooInputActuatorDevice"=1,"IOSCSIPeripheralDeviceType07"=0,"IOSlaveMemory"=0,"ACMKeybagKernelService"=0,"AppleHDAFunctionGroupATI_RS710"=0,"ACMRestrictedModeAnalyticsKernelService"=1,"IOSimpleReporter"=232,"IO80211Interface"=1,"AppleUSBUserHCIIsochronousTransferQueue"=0,"AppleUSBXHCILPTHB"=0,"VoodooI2CControllerNub"=1,"IOModemSerialStreamSync"=0,"IOHDIXControllerUserClient"=0,"IOUSBMassStorageCBIDriverNub"=0,"AppleHDATDM_CS42L83"=0,"AppleALC"=1,"com_apple_AppleFSCompression_AppleFSCompressionTypeZlib"=1,"AppleHDATDMAmpMAX98706"=0,"DspFunc2Dot2Crossover"=0,"AppleUSBLegacyRoot"=1,"IOUSBInterface"=1,"CCFaultReporter"=1,"IO80211EventSource"=0,"AppleHDAPathControl"=8,"AGPMClient"=0,"AppleHDATDMAmpTAS5764L"=0,"IOAVBValidate"=1,"AppleKeyStoreTest"=1,"IOSCSIPrimaryCommandsDevice"=0,"AppleNVMeWorkLoop"=2,"AppleSMBusControllerMCP"=0,"IOTimeSyncDomainUserClient"=0,"AppleMCCSControlGibraltar"=0,"AppleUSBAudioInterruptPipe"=0,"IOHIDProviderPropertyMerger"=0,"IOUSBDevice"=1,"IOGDiagnosticUserClient"=0,"AppleSEPControl"=0,"AppleHDAEngineInput"=1,"IOServiceNotificationDispatchSource"=0,"IOUSBMassStorageResourceUserClient"=0,"IntelBluetoothFirmware"=1,"IOSkywalkNetworkInterface"=0,"IOHIDKeyboard"=0,"VoodooI2CPCIController"=1,"IOTimeSyncEdgeTimeCaptureUserClient"=0,"AIDQueueEventSourceWorkItem"=0,"AUAConfigurationDictionary"=0,"IOACPIPlatformDevice"=240,"IOUserService"=2,"IOTimeSyncTSNInterfaceAdapter"=0,"_IOServiceInterestNotifier"=173,"AppleUSBHostRequestCompleter"=3,"IOBluetoothLocalUtilityEventSource"=0,"IOFramebufferI2CInterface"=0,"IOPowerConnection"=91,"IOFBController"=1,"VoodooI2CSensor"=0,"IOWatchDogTimer"=0,"CoreAnalyticsEventRatePolicy"=1,"IOEventSource"=13,"IODMACommand"=52,"IOUserNetworkTxCompletionQueue"=0,"IOMachPort"=2066,"IOPMinformeeList"=125,"VoodooGPIOIceLakeLP"=0,"IO80211AsyncUserClientParameters"=0,"AppleCredentialManager"=1,"IO80211LinkRecovery"=0,"AppleRSMChannelController"=1,"AppleUSB30XHCITypeCPort"=0,"UVCService"=0,"AppleACPIPowerResource"=0,"CCLogStream"=3,"IOPCIHostBridgeData"=1,"AppleUSBHostControllerIsochEndpoint"=0,"AGDPUserClient"=0,"IOHIDEvent"=0,"IO80211AsyncEventUserClient"=0,"DspFuncNoiseCanceller"=1,"OSDictionary"=16635,"IOAGPDevice"=0,"AppleMultitouchMouseHIDEventDriver"=0,"IOHDACodecDeviceUserClient"=0,"AppleActuatorHIDEventDriver"=1,"IOTimeSyncServiceDaemonClient"=5,"AppleUSBXHCIParkingCommandRing"=0,"AppleFDEKeyStore"=1,"IODisplayWrangler"=1,"AppleCyrus"=1,"IOUSBMassStorageDriverUFIDevice"=0,"AppleUSBIORequest"=40,"_IOUserServerCheckInCancellationHandler"=0,"IOUSBPipeV2"=0,"AppleUSBHostLegacyClient"=3,"IOUSBMassStorageResource"=1,"VoodooI2CServices"=1,"IO80211HistogramReporter"=0,"DspFuncFIRdirect"=0,"IOTimeSyncUnicastUDPv6PtPPort"=0,"AppleHDATDMSinkDevice"=0,"AppleUIOPCIUserClient"=0,"Dont_Steal_Mac_OS_X"=1,"SEPEpoch"=0,"IOAudioTimeIntervalFilterIIR"=0,"IOHIDEventSource"=6,"IOSurfaceRootParavirtMapperInterface"=0,"GTraceBuffer"=4,"OSSet"=763,"IOSurfaceShared"=35,"AppleUSBUserHCIUserClient"=0,"AppleIntelPanel"=1,"AppleNVMeRequestPool"=1,"DspFuncCalibrationEQ"=0,"AppleUSB30XHCICardReaderPort"=0,"IOAudioEngineUserClient"=36,"AGPMHeuristic4"=0,"IOPCIHostBridge"=1,"AppleHDAWidget_80862805"=0,"DspFuncChOutput"=0,"IOAVBRingBufferMemoryDescriptor"=0,"VoodooGPIOIntel"=0,"IOCommand"=131,"AppleHDAWidgetAD1984"=35,"IOTimeSyncTranslationMach"=1,"IOAudioTimerEvent"=0,"CCDataPipe"=2,"DspPatchPoint"=8,"HIDMTQueueEventSourceWorkItem"=0,"IOSCSIProtocolInterface"=0,"AppleTDMType00"=0,"AppleUSBXHCIAR"=0,"IOTimeSyncNanosecondSnapshotService"=0,"IOPlatformIO"=0,"IOBluetoothGamepadHIDDriver"=0,"IOAVBNub"=1,"AppleHDAFunctionGroupALC885"=0,"AppleHDAFunctionGroup"=1,"AppleHDAFunctionGroupExternalControl"=2,"IOGUIDPartitionScheme"=1,"AppleHDANode"=2,"IOUSBMassStorageUFIDriverNub"=0,"OSCollectionIterator"=51,"AppleEFIRuntime"=1,"IOHIDPowerSourceClient"=0,"AIDSharedMemoryManager"=0,"IOFilterScheme"=0,"AppleMCCSIOController"=2,"AppleUSBHostResources"=1,"IONVMeController"=1,"AppleUSBAudioIsocFrameList"=0,"IOApplePartitionScheme"=0,"IOSkywalkInterface"=0,"IOSurfaceRootUserClient"=35,"IO80211PeerExtendedStats"=0,"IOTimeSyncTranslationPMGR"=0,"IODisplay"=1,"TDMConfig"=0,"IOHIDAsyncReportQueue"=0,"IOSkywalkPacketQueue"=0,"IOUserEthernetResource"=1,"IOBasicOutputQueue"=1,"VoodooI2CHIDTransducerWrapper"=1,"AppleS3ELabController"=0,"OSAction_IOUserNetworkEthernet__RxSQDataAvailable"=0,"AppleUSBHostControllerListElement"=0,"AppleHDACodec"=1,"AppleSEPIntelIOP"=0,"IOUSBControllerIsochListElement"=0,"AppleGPUWranglerClient"=4,"IOPacketQueue"=1,"IOFramebufferSharedUserClient"=1,"IOUserClient"=27,"IOHITabletPointer"=0,"IOAVBAudioLoader"=0,"IO80211PeerBssSteeringManager"=0,"AppleUSBAudioStreamNode"=0,"AppleUSBHostControllerIsochListElement"=0,"RestrictEvents"=1,"AUAControlDictionary"=0,"IOHIDEventSystemUserClient"=1,"AppleHDAWidgetFactory"=0,"IOHDIXHDDrive"=1,"DIDeviceRequestPool"=0,"IOSurfaceMemoryPoolBunch"=0,"AGPM"=1,"AppleSystemPolicy"=1,"IOSurfaceDescriptor"=0,"VoodooI2CMultitouchHIDEventDriver"=1,"IO80211AWDLPeer"=0,"AIDCircularReadBufferShared"=0,"AppleIPDormancyHandler"=1,"DspFunc3ChOutput"=0,"AppleMCCSControlModule"=1,"IO80211SimpleReporter"=8,"IORDMAFamilyUC"=0,"ACMKernelService"=6,"AppleASMedia3142USBXHCIUserClient"=0,"APFSOSNumberAtomic"=1030,"IOUSBHostPipe"=1,"IOPolledFilePollers"=1,"CoreAnalyticsTestUserClient"=0,"IOTimeSyncDaemonClientBase"=4,"IO80211String"=0,"IOHDIXHDDriveOutKernelUserClient"=0,"IOUSBNotification"=0,"AppleHDAWidgetSTAC9220"=0,"AppleUSBUserHCIPipe"=0,"IOSkywalkNetworkKDPPoller"=0,"IOSkywalkRxSubmissionQueue"=0,"IOUSBInterfaceUserClient"=1,"AppleUSBHostDeviceUserClient"=10,"KDIUDIFEncoding"=0,"AppleHDAMikeyInternal"=0,"IORSMCommand"=0,"IOFramebufferParameterHandler"=1,"AppleTDMControlLUN"=0,"IOGatedOutputQueue"=2,"IOSurface"=110,"AppleUSBRootHubDevice"=1,"com_apple_filesystems_lifs"=1,"IOReportLegend"=2,"com_waves_WCAudioGridDevice"=1,"AppleHDAFunctionGroupMCP89"=0,"SMCBatteryManager"=1,"AppleUSBXHCIEndpoint"=8,"OSValueObject<int>"=0,"IOHIDEventQueue"=0,"AppleIntelUSBXHCICommandRing"=1,"IOSurfaceSendRight"=1,"AppleAPICInterruptController"=1,"AppleSMC"=1,"IOSkywalkNetworkController"=0,"IOTimeSyncService"=2,"AppleSmartBatteryUserClient"=0,"AppleXsanDriver"=0,"IOCommandPool"=5,"IOBlockStorageDevice"=2,"VoodooI2CStylusHIDEventDriver"=0,"AIDService"=0,"AGPMHeuristic"=1,"AppleRSMChannel"=0,"IORSMCommandQueue"=0,"IOPMrootDomain"=1,"BrightnessKeys"=1,"AppleEffaceableStorage"=0,"AUAFeatureUnitDictionary"=0,"IOUSBDeviceUserClient"=1,"IO80211VirtualInterfaceNamer"=1,"KDIUDIFDiskImage"=0,"ItlIwx"=1,"AppleUSBNetworkingCommandPool"=0,"OSUserMetaClass"=171,"IOPlatformControl"=0,"VoodooGPIOCannonLakeLP"=0,"KextAuditUserClient"=1,"VoodooI2CDeviceNub"=1,"IOI2CInterfaceUserClient"=0,"IntelBluetoothOpsGen1"=0,"AppleHDAFunctionGroupAD1984"=1,"DspFuncControlFreak"=0,"_IOOpenServiceIterator"=0,"IOHDIXCommandQueue"=1,"IOCommandGate"=374,"EventElementCollection"=0,"VoodooI2CHIDSYNA3602Device"=0,"IOWorkGroup"=0,"IOUSBMassStorageDriver"=0,"AppleUSBNetworkingHostCommandPool"=0,"DspParameter"=23,"IOPMRequestQueue"=2,"IOSkywalkRxCompletionQueue"=0,"AppleECSMBusController"=0,"IOBlockStorageDriver"=2,"IOTimeSyncInterfaceAdapter"=0,"IOWatchdogx86"=1,"AppleHDAWidgetALC262"=0,"DspFuncThermalSpeakerProtection"=0,"IOHIDWorkLoop"=1,"AUASelectorUnitDictionary"=0,"IOBlockStorageServices"=0,"AppleACPIACAdapter"=1,"IOUSBInterfaceIterator"=0,"IODTPlatformExpert"=1,"IOAppleLabelScheme"=0,"IOBluetoothMemoryBlock"=0,"IOMbufBigMemoryCursor"=0,"IOSlaveMemoryBuffer"=0,"AppleUSBXHCIInterrupter"=1,"AppleUSBXHCIPCI"=2,"AppleUSBXHCIIsochronousEndpoint"=0,"AppleUSBXHCICommandRing"=2,"IOTimeSyncDaemonService"=1,"IOSurfaceMemoryPool"=0,"AUAUnitDictionary"=0,"AppleHDAControllerUserClient"=0,"IOTimeSyncLocalClockPort"=1,"AppleACPIPS2Nub"=1,"IO80211Peer"=0,"RootDomainUserClient"=103,"DspFuncSplineLimiter"=0,"AppleAPFSContainer"=2,"AppleSEPDiscovery"=0,"DspFuncMozartCompressorDualBand"=0,"IONDRV"=1,"AppleHSBluetoothNub"=0,"IOPCIDevice"=27,"AppleUSB20XHCIPort"=5,"IOBluetoothInactivityTimerEventSource"=0,"OSNumber"=44374,"AUAOutputTerminalDictionary"=0,"AIDUserClientLogger"=0,"CCFaultReport"=0,"SMCProcessor"=1,"OSValueObject<AsyncReportParam>"=0,"AppleHDAFunctionGroupExternalControl_VirtualGPO"=1,"AppleUSBUserHCIPort"=0,"IOTimeSyncTimedEdgeGeneratorUserClient"=0,"IOGDiagnosticGTraceClient"=1,"AppleUSBXHCI"=1,"IOTimeSyncIntervalFilter"=0,"IOTimeSyncNetworkPort"=0,"AppleUSBHostPacketFilter"=1,"AppleIntelCNLUSBXHCI"=0,"ACMFirstResponderKernelService"=1,"AppleHDAFunctionGroup_1002AAA0"=0,"IOUserNotification"=2,"IOTimeSyncUnicastLinkLayerPtPPort"=0,"IOHIDKeyboardDevice"=0,"SMCLightSensor"=0,"AppleUSBAudioStream"=0,"IOHDAStream"=2,"AppleUSBXHCILPT"=0,"AppleGPUWrangler_GPUPostStartWorkItem"=0,"com_apple_AppleFSCompression_AppleFSCompressionTypeDataless"=1,"VoodooGPIO"=0,"AGPMHeuristic3"=0,"IOSurfaceSharedEventListener"=0,"AppleUSBXHCITransferRing"=8,"SMCSuperIO"=0,"AppleAPFSSnapshot"=1,"OSDextCrash"=0,"IOWrappedMemoryDescriptor"=0,"AppleHDAFunctionGroupATI_Broadway"=0,"VoodooI2CLogger"=1,"IOUSBHubDevice"=0,"AppleUSBHostDeviceIdler"=3,"IOPMWorkQueue"=1,"IOTimeSyncFilteredService"=0,"VoodooI2CMultitouchInterface"=1,"AGDCBacklightControlNub"=0,"AIDImageDownloader"=0,"IOGuardPageMemoryDescriptor"=0,"AppleUSB30XHCIPort"=2,"AIDEventLogger"=0,"AppleSMBusControllerUserClient"=0,"IODeblocker"=0,"IOUserClient2022"=10,"AppleRTC"=1,"AppleUSBXHCISPT"=1,"IOPlatformCtrlLoop"=0,"IOSharedDataQueue"=3,"X86PlatformShim"=1,"IOSyncer"=0,"AppleGPUWrangler_WorkItem"=0,"AppleDeviceManagementHIDEventService"=0,"IOHDIXHDDriveInKernel"=1,"AppleUSBAudioPlugin"=0,"IORangeAllocator"=2,"IOKitRegistryCompatibility"=1,"OSBoolean"=2,"IOMediaBSDClient"=9,"AppleSEPCommand"=0,"OSAction"=10,"AppleUSBXHCIRequest"=21,"IOUserNetworkLogicalLink"=0,"IOTimeSyncUserFilteredServiceDaemonClient"=0,"OSAction_IOHIDEventService__SetUserProperties"=0,"com_waves_WCAudioGridEngine"=0,"IOWorkQueue"=1,"ApplePlatformEnablerUserClient"=0,"CoreAnalyticsUserClient"=1,"DspFuncAutoGainControl"=0,"IOMapper"=2,"IOHIDInterface"=6,"AppleACPIInterruptLink"=0,"IOUSBMassStorageUFIDriver"=0,"IOPCI2PCIBridge"=4,"IOSurfaceRoot"=1,"IOHIDSystem"=1,"com_apple_BootCache"=1,"IOUSBInterfaceUserClientV3"=2,"BlueToolFixup"=1,"IOAppleBluetoothHIDDriver"=0,"IOUSBHostStream"=0,"LogManagerDevice"=3,"IOTimeSyncgPTPManagerDaemonClient"=1,"AppleHDA8086_9D70Controller"=0,"IOHIDDeviceElementContainer"=6,"AIDReporter"=0,"IOUSBController"=1,"KDIBackingStore"=1,"AppleHDAFunctionGroupATI_RS730"=0,"AppleHDAWidgetATI_Park"=0,"_IOServiceStateNotification"=0,"AppleBacklightParameterHandler"=1,"AppleACPICPU"=8,"IONetworkInterface"=1,"AppleMCCSControlFamily"=1,"IOTimeSyncNetworkPortDaemonClient"=0,"IOBluetoothACLMemoryDescriptor"=0,"IOHIDOOBReportDescriptor"=0,"AppleASMediaUSBXHCIStreamingEndpoint"=0,"IONetworkUserClient"=0,"com_apple_driver_16X50UARTSync"=0,"IOReportUserClient"=3,"AppleUserHIDEventService"=2,"DspFunc2To4Splitter"=0,"AppleUSBXHCIPipe"=8,"DspFuncDRC"=0,"IOServiceStateNotificationDispatchSource"=0,"IOSkywalkLegacyEthernet"=0,"IOHDACodecFunction"=1,"IOCharacterDevice"=3,"IOUSBNub"=2,"AppleUSBHostMergeProperties"=0,"_IOConfigThread"=0,"AppleACPIPMC"=1,"AppleMultitouchHIDEventDriverV2"=1,"AppleHDAEngine"=2,"IOTimeSyncClockManager"=1,"AppleUSBXHCIARRequest"=0,"IO80211FlowQueueDatabase"=1,"AppleUSBAudioDevice"=0,"AppleHDAWidgetGK10X"=0,"AppleUSBHostController"=1,"IODiskImageBlockStorageDeviceOutKernel"=0,"OSValueObject<AsyncCommitParam>"=0,"AppleMultitouchHIDService"=0,"IOTimeSyncFDPtPPort"=0,"AppleSEPXART"=0,"IOUSBMassStorageDriverUFIStorageServices"=0,"AppleRXEDevice"=0,"IOCPUInterruptController"=1,"IOHIDPowerSource"=1,"BtIntel"=0,"ApplePS2MouseDevice"=1,"AppleHDAFunctionGroupFactory"=0,"CoreAnalyticsHub"=1,"IOSkywalkKernelPipeBSDClient"=0,"IOUserServer"=3,"VoodooI2CMultitouchEngine"=1,"IO80211P2PInterface"=0,"CCLogPipeUserClient"=0,"AppleIPAppenderUserClient"=0,"PMHaltWorker"=0,"AppleHDAFunctionGroupALC262"=0,"AppleHDATDMDevice"=0,"VoodooI2CController"=1,"AppleMCCSUserClient"=0,"AppleHSBluetoothHIDDriver"=0,"IOSlaveCPU"=0,"AppleUSBXHCIFL1100"=0,"IOUserNetworkPacket"=0,"AppleUpstreamUserClient"=0,"IOTimeSyncSyncUserClient"=0,"KDISocketPool"=0,"ACPI_SMC_PlatformPlugin"=0,"AppleAPFSGraft"=3,"IOAudioTimeIntervalFilter"=0,"IOTSAEITimeSyncHandler"=0,"AppleUSBTDMMassStorageClass"=0,"IOBootFramebuffer"=0,"IOHIDResourceDeviceUserClient"=0,"IOInterruptController"=5,"DspFunc"=4,"AppleASMediaUSBXHCI"=0,"SMCPolledInterface"=1,"AppleUSBHostResourcesClient"=1,"IOEthernetInterface"=1,"IOSkywalkPacketPoller"=0,"AppleHDAFunctionGroup_80862805"=0,"IOTimeSyncTimeLineFilter"=0,"AppleANS2Controller"=0,"AppleUSBXHCIARIsochronousRequest"=0,"IOAVBStreamCapture"=0,"IOMbufLittleMemoryCursor"=0,"com_waves_WCAudioGridUserClient"=1,"AGDCPlugin"=1,"AppleHDATDMBusManager"=0,"AppleUSBHubPolicyMaker"=1,"IOConditionLock"=0,"IOGraphicsControllerWorkLoop"=1,"IO80211WorkLoop"=1,"AppleUSBAudioComposite"=0,"AppleDiskImageDevice"=0,"IOUSBUserClientLegacy"=1,"AppleUSBHostIORequestPool"=8,"AppleHDAFunctionGroupGK10X"=0,"AppleUSBHostFrameworkClient"=1,"com_apple_driver_pm_pch_reporter"=1,"DspFuncMultiBandDRC"=0,"IOAccelerator"=0,"IOPlatformPluginLegacy"=0,"IOUserResources"=1,"AppleAPFSVolume"=8,"AppleNVMeBuffer"=5,"IOWatchdogUserClient"=1,"IOFenceTransaction"=0,"IOSkywalkStatisticsReporter"=0,"PMTraceWorker"=1,"NVMePMProxy"=1,"AppleUSBXHCISparseRequest"=0,"IOSCSIBlockCommandsDevice"=0,"VoodooI2CDeviceOrientationSensor"=0,"ApplePS2Device"=2,"IO80211QueueCall"=1,"IOAudioControl"=3,"AppleSMBusControllerICH"=0,"IntelBluetoothOpsGen2"=0,"IONVMeBlockStorageDevice"=1,"AppleHDAWidgetCS4206"=0,"IOI2CInterface"=0,"AppleHDAHDMI_DPDriver"=0,"IO80211QueueDescriptor"=0,"IODTNVRAMVariables"=0,"AppleUSBXHCIEndpointSoftRetry"=0,"VoodooI2CPCILakeController"=1,"IOUSBHostIOSource"=1,"AppleHDAFunctionGroupSTAC9220"=0,"VoodooI2CHIDDevice"=1,"OSString"=39856,"IONetworkController"=1,"IODiskImageBlockStorageDeviceInKernel"=1,"IORSMMemoryDescriptorArray"=0,"CCIOReporterHub"=2,"IOUserIterator"=49,"SMCDellSensors"=1,"AppleMCCSParameterHandler"=1,"IOSortableConfigurationDescriptor"=1,"PMSettingHandle"=5,"DspFunc2To6Splitter"=0,"OSOrderedSet"=286,"AppleMobileFileIntegrityUserClient"=0,"AppleUSBXHCIIsochronousRequest"=10,"VoodooI2CPrecisionTouchpadHIDEventDriver"=1,"AppleUSBXHCIStream"=0,"IOHIDEventDriver"=3,"DspFuncClientGainAdjust"=0,"TSNWiFiControlInterface"=0,"IOAudioStream"=1,"IOStateReporter"=7,"AppleUSBXHCIPPT"=0,"IOSerialBSDClient"=1,"com_apple_driver_pm_flex_reporter"=1,"AppleAPFSMedia"=3,"APFSCryptoContext"=1152,"IONotifier"=4,"IOBluetoothL2CAPMemoryBlock"=0,"AIDLoggerUserClient"=0,"AGPMHeuristic2"=1,"OSValueObject<void*>"=0,"VoodooI2CAccelerometerSensor"=0,"AppleUSBPipe"=0,"IOTimeSyncTimeLineFilterIIR128"=0,"AUAADC3ClassSpecificDescriptorFetcher"=0,"IOFilterInterruptEventSource"=5,"IOLittleMemoryCursor"=0,"IOTimeSyncDaemonServiceBase"=1,"DspFuncGain"=1,"IOUserNetworkPacketBufferPool"=0,"VoodooI2CSensorHubEventDriver"=0,"IOHIDPointingDevice"=0,"IOSkywalkTxSubmissionQueue"=0,"AppleUSBXHCIWPT"=0,"AppleSEPIntelIOPNub"=0,"AppleSmartBatteryHFDataClient"=0,"_IOFramebufferNotifier"=4,"IOBluetoothDataQueue"=0,"IOHDAController"=1,"AppleIntelSlowAdaptiveClockingManager"=1,"AppleUSBHostRequest"=2,"IODisplayAssertionUserClient"=0,"IOSKRegion"=33,"IOMedia"=11,"IO80211VirtualInterface"=0,"AppleUSBAudioDictionary"=0,"IOHistogramReporter"=5,"IOHIDAction"=0,"IOPlatformPluginFamilyPriv"=1,"IONVMeControllerPolledAdapter"=1,"IOPerfControlWorkContext"=115,"IO80211AWDLPeerManager"=0,"AppleHDAFunctionGroupExternalControlFactory"=0,"AppleSMBusDevice"=0,"IOBluetoothMemoryBlockQueue"=1,"EndpointSecurityDriverClient"=1,"OSSymbol"=22029,"IOSurfaceSharedEventNotificationPort"=0,"AppleUserHIDDevice"=0,"IOSMBusController"=1,"KDIDiskImageNubUserClient"=0,"IO80211LinkQualityMonitor"=0,"AppleRSMCommand"=0,"OSEntitlements"=1287,"AppleACPIPlatformExpert"=1,"IORegistryPlane"=8,"AppleUSBCDCControl"=0,"IOHIDLibUserClient"=0,"IOUSBMassStorageDriverNub"=0,"AppleUSBHostUserClient"=1,"AppleIntelUSBXHCI"=1,"AppleUSBInterfaceIterator"=0,"IOSlaveEndpoint"=0,"AppleCyrusUserClient"=0,"AppleHDAFunctionGroupExternalControl_GPIO"=1,"AppleSMBusController"=0,"CCDataPipeBlobOS"=0,"IOInterruptEventSource"=35,"VoodooGPIOSunrisePointH"=0,"AppleUSBXHCIInterrupterMSI"=6,"IOSkywalkPacketBufferPool"=0,"ACPI_SMC_GPU_CtrlLoop"=0,"AudioAUUCDriver"=1,"AppleUSBUserHCI"=0,"IO80211ServiceRequestDescriptor"=0,"OSObject"=128,"IOHIDTranslationEventReq"=0,"AppleHDAMikeyInternalCS8409"=0,"IOHDIXController"=1,"IOStateNotificationItem"=4,"TSNAssistedInterface"=0,"IOMbufNaturalMemoryCursor"=1312,"IOWatchdog"=1,"KDIEncoding"=0,"VoodooI2CACPIController"=0,"AppleHDAPathSet"=4,"IOKDP"=0,"CCIOReporterDataStream"=1,"IOBluetoothHIDDriver"=0,"IO80211AssociationJoinSnapshot"=1,"IOFence"=0,"AppleUSBNetworkingCommand"=0,"IOGraphicsDevice"=1,"IOResources"=1,"AppleNVMeRequest"=256,"IOUSBControllerListElement"=0,"IOAVBValidateUserClient"=0,"AUAMixerUnitDictionary"=0,"DIDeviceCreatorUserClient"=0,"KDIObject"=2,"AppleHDAWidgetAD1988"=0,"DspFuncMultiBandCompressor"=0,"GMetricsRecorder"=0,"IOGraphicsSystemWorkLoop"=1,"ItlHalService"=1,"IOSCSIPeripheralDeviceNub"=0,"RSNSupplicant"=1,"AppleUSBXHCIARRequestPool"=0,"VoodooI2CTouchscreenHIDEventDriver"=0,"IOSurfaceDeviceCache"=0,"AppleUIOMemUserClient"=0,"AGPMController"=1,"AppleUSBXHCIRequestPool"=3,"CoreAnalyticsPipe"=1,"AppleGraphicsDeviceControlClient"=1,"IOUSBBus"=1,"IOServicePM"=125,"AppleUSBLegacyDeviceUserClient"=1,"IOBigMemoryCursor"=0,"TSNInterface"=0,"CTimeout"=255,"AppleSmartBattery"=1,"AppleBusControllerCS8409"=0,"ACMRestrictedModeKernelService"=1,"AppleUSBHostBusCurrentPool"=0,"AppleHDAWidgetMCP89"=0,"IOMemoryDescriptor"=2,"AppleTDMAKSServices"=0,"AppleUIOMem"=1,"IOTimeSyncTimeSyncTimePort"=1,"AppleIntelLpssGspi"=0,"AppleHDAFunctionGroupATI_RS780"=0,"IOHIDActionQueue"=0,"IOUSBInterfaceUserClientV2"=1,"IODMAController"=0,"AppleUSBInterface"=8,"VoodooI2CControllerDriver"=1,"IOUSBControllerV3"=1,"TSNBSDStackInterface"=0,"AppleGraphicsControl"=0,"IOBluetoothSCOMemoryDescriptorRetainer"=0,"com_apple_driver_16X50PCI"=0,"EventQueue"=0,"NootedGreen"=1,"IOHIDTranslationEvent"=0,"AppleHDATDMBusManagerCS8409"=0,"AGPMEventSource"=1,"IOSystemStateNotification"=1,"SEPApNonce"=0,"KDIRAMBackingStore"=0,"DspFuncEQ"=1,"IOCatalogue"=1,"IOWorkLoop"=71,"AppleSEPEndpointService"=0,"IODataQueue"=1,"AppleAPFSMediaBSDClient"=2,"AppleUSBUserHCIRequestPool"=0,"CCIOReporterLogStream"=1,"AppleRSMChannelTestClient"=0,"ACMPersistentStoreKernelService"=1,"USBToolBox"=0,"IOHIDDevice"=4,"IOHDACodecDriver"=1,"IOSkywalkNetworkPacket"=0,"AppleHDAWidgetATI_RS730"=0,"IOBluetoothL2CAPChannel"=0,"AppleUSBHostFrameworkInterfaceClient"=3,"CCStream"=2,"AppleGCSyntheticDeviceUserClient"=0,"AppleGCResourceDeviceUserClient"=1,"AirportItlwm"=1,"_IOMemoryDescriptorMixedData"=4475,"IOHIDElement"=1,"IO80211InfraInterface"=0,"IOReportHub"=1,"VoodooGPIOCannonLakeH"=0,"AppleHDAWidgetATI_RS780"=0,"DspFunc6ChOutput"=0,"IO80211ScanManager"=1,"IOEthernetController"=1,"DspFuncStereoEnhancer"=0,"IOSlowAdaptiveClockingDomain"=0,"IOTimerEventSource"=184,"AppleHDAFunctionGroupCS8409"=0,"VoodooI2CDigitiserStylus"=0,"CryptoBufferDescriptor"=1152,"IOPCIConfigurator"=1,"IOSerialDriverSync"=0,"com_apple_filesystems_hfs_encodings"=1,"Stopwatch"=3,"IO80211NetBootNub"=0,"IOTimeSyncEthernetConcreteControllerAdapter"=0,"IOUserNetworkMemorySegment"=0,"DspFunc2WayCrossover"=0,"CCLogPipe"=2,"AppleSMCClient"=4,"AppleHDAWidgetGT216"=0,"AppleUSBXHCIFL1100CommandRing"=0,"AIDReporterState"=0,"HookCase"=1,"IOServiceMessageUserNotification"=226,"AppleXsanScheme"=0,"AppleTDMAKSDriver"=0,"IOReporter"=3,"IOTimeSyncUserClient"=0,"VoodooI2CSensorHubEnabler"=0,"OSObjectWrapper"=0,"AppleUSBHostBusCurrentClient"=4,"IOAVBTimeSyncCapture"=0,"IOMultiMemoryDescriptor"=0,"AnVMSRUserClient"=0,"DspFuncVolume_3ch"=0,"IOPlatformPluginFamily"=1,"hv_vmx_vma_t"=0,"IOSCSILogicalUnitNub"=0,"AUAInputTerminalDictionary"=0,"AppleLIFSUserClient"=3,"AUAStreamDictionary"=0,"HIDMTQueueEventSource"=1,"IOTimeSyncEthernetControllerAdapter"=0,"AppleHDAWidget_80862807"=0,"OSValueObject<PMAssertStruct>"=1,"IOSCSIHierarchicalLogicalUnit"=0,"IOTimeSyncDaemonServiceProcess"=2,"IORSMReceiveQueueEntry"=0,"AppleDiskImagesController"=1,"DisplayMergeNub"=0,"AppleHDATDMDeviceFactory"=0,"AppleSEPDeviceService"=0,"IOTimeSyncClockMapping"=2,"OSValueObject<OSKextRequestResourceCallback>"=0,"AIDCircularBuffer"=0,"KDIURL"=1,"IntelBluetoothOpsGen3"=0,"AGPMHeuristic1"=0,"IOPanicPlatform"=0,"IODMAEventSource"=0,"IOSCSIMultipathedLogicalUnit"=0,"IOPlatformDevice"=4,"AppleNVMeSMARTUserClient"=0,"AppleHDAWidgetCS4208"=0,"AppleHIDTransportIODataQueue"=0,"DspFuncSum"=0,"AppleUSBHostDARTDMACommand"=0,"IOSurfaceDescriptorComponent"=0,"AIDLogger"=0,"DspFuncStereoToMono"=0,"AppleUSBAudioEngine"=0,"IOUserNetworkEthernet"=0,"AppleUSBHostResourcesTypeC"=0,"KDIUDIFCacheBuffer"=0,"AppleHDATDMAmpSSM3515"=0,"AppleHDAAudioSelectorControlDP"=0,"CCCapture"=0,"AppleMultitouchHIDEventService"=0,"AppleUSBHostFrameworkDeviceClient"=0,"IOSurfaceWiredSendRight"=0,"IO80211RangingManager"=1,"VoodooI2CDigitiserTransducer"=5,"IOUSBMassStorageUASDriverCommand"=0,"IOSkywalkController"=0,"IOAudioControlUserClient"=32,"IOAVBStreamCaptureUserClient"=0,"DspBuffer"=4,"IOStateNotificationListener"=0,"IOAudioEngine"=1,"OSSerialize"=1,"ALCUserClient"=0,"AppleUSBDescriptorCache"=3,"IOSurfaceSharedEventReference"=0,"IOAudioDevice"=2,"OSKext"=504,"AppleHSBluetoothDevice"=0,"ApplePMC"=1,"AppleUSBDescriptor"=16,"AppleSMBIOS"=1,"com_apple_driver_pm_msr_reporter"=1,"IOProviderPropertyMerger"=0,"IOSkywalkTxCompletionQueue"=0,"AUAClockMultiplierDictionary"=0,"SMCWatchDogTimer"=1,"VoodooInputSimulatorDevice"=1,"AppleGPUWrangler_GPU"=1,"IOTimeSyncUnicastLinkLayerEtEPort"=0,"AppleHDAFunctionGroupAD1988"=0,"AppleUSBHostBouncedDMACommand"=0,"_IOServiceJob"=0,"IO80211InterfaceMonitor"=1,"AGDPClientControl"=0,"IOPMPowerStateQueue"=1,"NVMeFix"=1,"AppleEmbeddedHIDEventService"=0,"IOUserNetworkPacketQueue"=0,"OSIterator"=3,"hv_vcpu_t"=0,"IOAccelerationUserClient"=1,"IOBluetoothTimerEventSource"=0,"AppleUSBHostBusCurrentAllocator"=7,"IOMemoryMap"=672,"CCDataStream"=2,"IO80211RangingManagerExt"=0,"DspFuncDelay"=0,"IOAudioToggleControl"=10,"AppleSEPTesting"=0,"com_apple_driver_pmtelemetry"=1,"IOAVBTimeSyncCaptureUserClient"=0,"SCSITask"=0,"AppleSmartBatteryManagerUserClient"=0,"IOBluetoothL2CAPSupervisoryFrameMemoryBlock"=0,"IOHDIXHDDriveOutKernel"=0,"IOUserUserClient"=3,"IOUSBMassStorageCBIDriver"=0,"AppleNVMeController"=0,"AppleUSBXHCIDevice"=3,"IO80211Controller"=1,"AppleMobileFileIntegrity"=1,"AUAExtensionUnitDictionary"=0,"AGDCBacklightControl"=0,"AppleHDAEngineUserClient"=0,"AppleHDAFunctionGroupMCP79"=0,"X86PlatformPlugin"=1,"IOPCIDiagnosticsClient"=0,"IOHIDParamUserClient"=4,"IOPCIBridge"=2,"IORSMChannel"=0,"AppleASMediaUSBXHCIIsochronousRequestPool"=0,"AppleEffaceableStorageUserClient"=0,"OSData"=4943,"IORegistryIterator"=1,"AIDReporterSimple"=0,"AppleUIOPCI"=0,"IOHDIXCommandPool"=1,"TransducerState"=0,"PMAssertionsTracker"=1,"IOOutputQueue"=1,"AppleSEPUserClient"=0,"com_waves_WCAudioGridInterfaceFilter"=3,"IOExclaveProxy"=0,"EndpointSecurityExternalClient"=0,"AppleUSBHostDMACommand"=0,"AppleEmbeddedKeyboard"=0,"DspFuncCrossover"=0,"IOSCSIPeripheralDeviceType00"=0,"IOPMClientAck"=0,"IO80211PeerManager"=0,"IOHDIXHDDriveNub"=1,"AppleKeyStoreCommand"=2,"SMIMonitor"=1,"AppleACPIPlatformUserClient"=0,"AppleNVMeRequestTimer"=1,"IOSkywalkLegacyEthernetInterface"=0,"IOHIDKeyboardEventDevice"=2,"IOSCSITargetDevice"=0,"AppleBacklightDisplay"=0,"IOTimeSyncDaemonUserClient"=1,"IORootParent"=1,"AppleUSB20HostController"=0,"AppleASMedia1042USBXHCI"=0,"DspFuncMozartCompressor"=0,"com_apple_driver_pm_cstate_reporter"=1,"IO80211PeerMonitor"=0,"AppleUSBAudioControlInterface"=0,"AIDQueueEventSource"=0,"PMSettingObject"=5,"IODispatchSource"=0,"AppleUSBHostPortInterruptEventSource"=7,"TSNBSDInterface"=0,"AppleACPIPCI"=1,"AppleKeyStore"=1,"BatteryManager"=1,"IOUSBHostInterfaceIterator"=0,"IOUserNetworkRxSubmissionQueue"=0,"AppleGPUWrangler_MatchNotificationWorkItem"=0,"IOPMinformee"=73,"AppleUSBHostDMABufferMemoryDescriptor"=23,"IOUSBCommand"=0,"IOPMPowerSource"=1,"IOSlowAdaptiveClockingManager"=1,"AppleGCResource"=1,"hv_vmx_space_t"=0,"IOTimeSyncReverseSync"=0,"EndpointSecurityDriver"=1,"IOTimeSyncEdgeTimeCapture"=0,"IOUSBLog"=1,"DspFuncLimiter"=0,"CCPipeUserClient"=0,"AppleUSBHostResourcesBusPowerClient"=0,"IOTimeSyncTimedEdgeGenerator"=0,"AppleSEPManager"=0,"AppleHDAMikeyInternalFactory"=0,"IOBluetoothDevice"=1,"AppleBusPowerController"=0,"DspFuncWithSharedMemory"=0,"IOTimeSyncgPTPManager"=1,"IOExtensiblePaniclog"=0,"TSNUserWiFiControlInterface"=0,"AppleIntelPanelA"=1,"IODisplayParameterHandler"=3,"IOBufferMemoryDescriptor"=221,"AppleUSBXHCILPTH"=0,"AppleACPIButton"=1,"AppleHDADriverUserClient"=0,"CCPipe"=2,"IOHIDEventServiceUserClient"=6,"AppleHDAWidgetCS8409"=0,"AppleSystemPolicyUserClient"=2,"AppleHDAWidgetALC885"=0,"DspFuncBeam2"=0,"DspFunc2Dot1Crossover"=0,"AppleUSBHostInterfaceUserClient"=0,"AppleRSMChannelServerClient"=0,"AppleMultitouchHIDEventDriver"=0,"IOPolledInterface"=3,"IONDRVDevice"=0,"IOTimeSyncTimeLineFilter128"=0,"OSKextSavedMutableSegment"=6,"IOUserSerialUserClient"=0,"IOHIDElementContainer"=1,"AppleUSBDevice"=4,"IOPlatformExpertDevice"=1,"IOSurfaceMemoryTag"=110,"IOUSBHubPolicyMaker"=1,"IOHIPointing"=1,"IOBluetoothHCIController"=1,"AIDUserClient"=0,"IOTimeSyncFDEtEPort"=0,"AudioAUUC"=0,"AppleAPFSContainerScheme"=2,"IONetworkData"=4,"IOAudioLevelControl"=4,"AUAClockSourceDictionary"=0,"AppleUSBXHCISPTLP"=0,"IOECStateNotifier"=0,"IODTNVRAMPlatformNotifier"=0,"IOUSBCommandPool"=0,"AUAProcessingUnitDictionary"=0,"IORSMReceiveQueue"=0,"AppleAPFSVolumeBSDClient"=7,"AppleMultitouchEventServiceWrapper"=0,"IO80211FlowQueue"=0,"AppleHDADriver"=1,"AppleImage4UserClient"=0,"OSAction_IOHIDEventService__SetLED"=0,"IOPlatformPluginDevice"=2,"AppleTDMAKSCommand"=0,"IODTNVRAMDiags"=0,"KDISparseDiskImage"=0,"IOKernelDebugger"=0,"AppleRXE"=1,"IOBacklightDisplay"=0,"IODispatchQueue"=11,"CoreAnalyticsMessenger"=1,"AppleFIVRDriver"=0,"KDIHTTPBackingStore"=0,"IONetworkMedium"=1,"IODisplayConnect"=1,"CCIOService"=0,"ACPI_SMC_PluginUserClient"=0,"IOSurfaceDescriptorContext"=0,"IOSkywalkCloneableNetworkPacket"=0,"IOHIDResource"=1,"IOUserNetworkQueueSet"=0,"IOTimeSyncTimeLineFilterIIR"=0,"AGPMHeuristic0"=0,"AppleHDAWidgetATI_RS710"=0,"AppleNVMeTranslationSMARTUserClient"=0,"ALCUserClientProvider"=0,"VoodooGPIOSunrisePointLP"=0,"AppleHDAWidgetWM8800"=0,"AppleSATLSMARTUserClient"=0,"AppleUSBCDCCompositeDevice"=0,"AppleBSDKextStarter"=1,"IOTimeSyncPort"=1,"AppleUSBXHCISparseRequestPool"=0,"IOUSBRootHubDevice"=0,"AppleMultitouchInputHIDEventDriver"=1,"KDISocket"=0,"IOHIDPointingEventDevice"=1,"IOTimeSyncgPTPManagerUserClient"=0,"IOHIDDeviceShim"=2,"AppleSCSISubsystemGlobals"=1,"IOTimeSyncTimeOfDayPort"=0,"AppleHDAWidget_1002AAA0"=0,"OSValueObject<SMCNotification>"=1,"IOBluetoothObject"=1,"IOBluetoothACPIMethods"=1,"OSMetaClass"=0,"AppleUSBXHCIARIsochronousRequestPool"=0,"DspFuncVolume"=1,"AppleImage4"=1,"AppleGraphicsDeviceControl"=1,"CCDataPipeBlobOD"=0,"IOUSBControllerV2"=1,"IOHIDPointing"=0,"IOAudioSelectorControl"=2,"DspFuncAudioMeter"=0,"IOUserSerial"=1,"IOUserNetworkTxSubmissionQueue"=0,"CCDataSession"=0,"IO80211P2PSteeringManager"=0,"IOSKMapper"=7,"OSValueObject<__ReportResult>"=0,"IOSCSIProtocolServices"=0,"IOHIDEventDummyService"=0,"VoodooInput"=1,"IOPlatformPluginThermalProfile"=0,"AppleEFINVRAM"=1,"IOKitDiagnostics"=1,"IOTimeSyncDomain"=1,"AppleMultitouchDeviceUserClient"=1,"IODTNVRAM"=1,"IOHIDTranslationService"=0,"IOHIDEventServiceQueue"=7,"com_apple_driver_pm_reporter"=8,"AppleUSBHostDMACommandPool"=2,"IO80211P2PDFSProxyManager"=0,"AppleUSBXHCITDPool"=2,"IOSurfaceMemoryRegion"=0,"AppleACPIEC"=1,"AppleRTCUserClient"=2,"IO80211SkywalkInterface"=0,"DspFuncXTC"=0,"AppleUSBAudioIsocPipe"=0,"UIOPCIMatch"=0,"IO80211P2PSupervisor"=0,"AppleHDAWidgetMCP79"=0,"AppleSSE"=1,"IOBluetoothHIDChannel"=0,"hv_vm_t"=0,"hv_vatpic_t"=0,"IOPMRequest"=0,"IOECTimeSyncHandler"=0,"AppleGCSyntheticDevice"=0,"IOHIDUserDevice"=0,"IOHIKeyboard"=2,"AppleGPUWrangler_BusyInterestWorkItem"=0,"AppleHDATDMAmpTAS5758L"=0,"AppleMCCSControlCello"=0,"AUAASEndpointDictionary"=0,"AppleHDAFunctionGroupATI_Park"=0,"AppleXsanDevice"=0,"IOService"=204,"IOSurfaceSharedEvent"=0,"EndpointSecurityNoAuthClient"=0,"IORS232SerialStreamSync"=0,"IOUserServerCheckInToken"=3,"IOBluetoothWorkLoop"=0,"AppleHDAWidget_10DE0014"=0,"ACMAccessoryCacheKernelService"=1,"IOHIDEventRepairDriver"=0,"AppleHDAFunctionGroup_10DE0014"=0,"ACPI_SMC_Idle_CtrlLoop"=0,"IOSKMemoryBuffer"=119,"IOTimeSyncUnicastUDPv4EtEPort"=0,"KextAudit"=1,"AppleSMCFamily"=1,"IOFramebuffer"=1,"KDIDiskImage"=1,"HIDAlwaysNotifyingIODataQueue"=1,"pci_intr_handle"=1,"AppleMultitouchDevice"=1,"AppleIPAppender"=1,"AppleUSBXHCIIsochronousTransferRing"=0,"IOPMCompletionQueue"=1,"IOPlatformStateSensor"=0,"AppleSEPCommandPool"=0,"IOTimeSyncUserFilteredService"=0,"DspFuncVirtualization"=0,"IOSkywalkQueueSet"=0,"AppleHV"=1,"AppleCredentialManagerUserClient"=8,"AppleFileSystemDriver"=0,"mDNSOffloadUserClient"=0,"IOUSBHostInterfaceLegacyIterator"=0,"AppleUSBHostPort"=1,"PassthruInterruptController"=0,"CCDataPipeUserClient"=0,"AppleUSBUserHCICommandQueue"=0,"AppleHDAWidget"=1,"IOFDiskPartitionScheme"=0,"com_apple_filesystems_hfs"=1,"AppleMultitouchEventDriverWrapper"=1,"IODataQueueDispatchSource"=0,"KDIDiskImageNub"=1,"AppleTDMEffaceableNORDriver"=0,"OSAction_IOHIDDevice__CompleteReport"=0,"AppleUSBXHCITR"=0,"AppleHDAFunctionGroupCS4206"=0,"AppleUSBUserHCIRequest"=0,"AppleUSBXHCIStreamingEndpoint"=0,"AppleHDACodecGeneric"=1,"AppleGPUWrangler_DeferredReleaseWorkItem"=0,"AppleSSEUserClient"=0,"IOUSBMassStorageInterfaceNub"=0,"IOHIDPowerSourceController"=1,"IOPMPowerSourceList"=0,"AppleHDAEngineOutputDP"=0,"IOHIDSystem_notificationData"=0,"OSAction_IOUserClient_KernelCompletion"=0,"com_apple_filesystems_nfs"=1,"OSValueObject<KeyboardReserved>"=2,"AUAEndpointDictionary"=0,"mDNSHandoff"=0,"AppleVTDDeviceMapper"=3,"IOTimeSyncEthernetSoftDMAInterfaceAdapter"=0,"AppleHDAStream"=3,"AppleIntelLpssI2C"=0,"AppleAMDUSBXHCIPCI"=0,"ApplePS2Keyboard"=1,"AppleACPICPUInterruptController"=1,"IOUSBPipe"=0,"TSNITimeSyncHandler"=0,"AppleActuatorDeviceUserClient"=1,"IOAVBControllerHelper"=0,"AppleVTD"=1,"AppleSEPEndpoint"=0,"IOPerfControlClient"=2,"VoodooI2CNativeEngine"=1,"AppleUSBSparseArray"=3,"VirtualSMC"=1,"ApplePS2KeyboardDevice"=1,"EupDSP"=0,"CPUFriendData"=0,"Lilu"=1,"AppleBusControllerFactory"=0,"IOPlatformExpert"=1,"IOUserEthernetController"=0,"IOTimeSyncEthernetPort"=0,"IOUserSCSIPeripheralDeviceType00"=0,"com_apple_driver_pm_uncore_reporter"=1,"TSNWiFiInterface"=0,"AppleUSBController"=1,"IOTimeSyncUserFilteredServiceUserClient"=0,"IOPartitionScheme"=2,"IOAVBTimeSyncSyncUserClient"=0,"IOTimeSyncIntervalFilter128"=0,"IOUserSCSIPeripheralDeviceType07"=0,"ACPI_SMC_CtrlLoop"=0,"IOSlaveFirmware"=0,"AMFIPass"=1,"IOTimeSyncRootService"=1,"AppleASMedia3142USBXHCI"=0,"KDIReadWriteDiskImage"=1,"IOHIDUserClient"=1,"LogManager"=1,"IOACPIPlatformExpert"=1,"hv_vlapic_t"=0,"ACMLockdownModeKernelService"=1,"KDIUDIFCacheObject"=0,"com_apple_driver_pm_cpu_mbox"=105,"IOUSBControllerIsochEndpoint"=0,"IOTimeSyncEthernetModernInterfaceAdapter"=0,"DspFuncLoudness"=0,"IOSurfaceDeviceMemoryRegion"=0,"IOServiceCompatibility"=3,"IOHIDEventService"=4,"IOAudioTimeIntervalFilterFIR"=0,"AppleASMediaUSBXHCIIsochronousRequest"=0,"IOTimeSyncIntervalFilterIIR128"=0,"IOUserEthernetInterface"=0,"OSDextStatistics"=17,"IOAudioPort"=0,"IOInterruptDispatchSource"=0,"AppleUSBBusPowerClient"=0,"IOSkywalkPacketBuffer"=0,"IOHIKeyboardMapper"=2,"AppleSMBusPCI"=0,"OSAction_IOHIDEventService__CopyEvent"=0,"IOTimeSyncUnicastUDPv6EtEPort"=0,"ACMBridgeKernelService"=0,"IOTimeSyncIntervalFilterIIR"=0,"IOUSBHostInterface"=8,"AppleGPUWrangler"=1,"hv_vmx_vcpu_t"=0,"com_apple_driver_pm_msr_limits_reporter"=1,"OSArray"=11339,"IOGeneralMemoryDescriptor"=3091,"IOSkywalkBSDClient"=0,"IOSCSICommandGate"=0,"IOUSBIsocCommand"=0,"KDISecondaryEncoding"=0,"AIDCircularWriteBufferShared"=0,"IOSlaveProcessor"=0,"IO80211FlowQueueLegacy"=0,"DIDeviceIOUserClient"=0,"KDIShadowedDiskImage"=0,"IO80211ControllerMonitor"=1,"IOTimeSyncClockTestUserClient"=0,"IOUSBWorkLoop"=1,"AppleCallbackPowerSource"=0,"IOSurfaceClient"=150,"IOAudioEngineEntry"=0,"com_apple_driver_pm_ltr_reporter"=1,"IOConfigurationDescriptorOrderedSet"=1,"AppleBusController"=0,"AIDSerialLogger"=0,"AppleIntelICLUSBXHCI"=0,"AppleGraphicsDeviceControlPlugin"=1,"IO80211CommandQueue"=0,"IOCancelationWrapper"=0,"HibernationFixup"=1,"DspFuncManager"=2,"AppleUSB20XHCITypeCPort"=0,"DspFuncSplitBand"=0,"IOBootNDRV"=1,"IOHIDElementPrivate"=2622,"AppleHDAPath"=4,"AppleSSEInterface"=1,"AGDCPluginDisplayMetrics"=1,"VoodooI2CHIDDeviceOverride"=0,"IOHITablet"=0,"AUAClockSelectorDictionary"=0,"AppleTDMBlockStorageServices"=0,"AppleACPIEventController"=1,"IOFramebufferUserClient"=1},"IOMalloc allocation"=121834682}
    | |   | |   "model" = <"Intel Iris Xe Graphics">
    |         "boot-args" = "-v debug=0x100 keepsyms=1 agdpmod=pikera -radcodec -wegswitchgpu -wegbeta -amfipassbeta -lilubetaall -vi2c-force-polling amfi_get_out_of_my_way=1 -NGreenDebug -disablegfxfirmware ngreen-dmc=skip -allow3d -nbdyldoff"
jkbuha@JuliansthGenAir ~ % system_profiler SPDisplaysDataType 2>/dev/null | head -20
Graphics/Displays:

    Intel Iris Xe Graphics:

      Chipset Model: Intel Iris Xe Graphics
      Type: GPU
      Bus: Built-In
      Slot: built-in
      VRAM (Total): 8 MB
      VRAM (Dynamic, Max):
      Vendor: Intel
      Device ID: 0x9a49
      Revision ID: 0x0001
      Kernel Extension Info: No Kext Loaded
      Displays:
        Display:
          Resolution: 1920 x 1200 (WUXGA - Widescreen Ultra eXtended Graphics Array)
          UI Looks like: 1920 x 1200
          Framebuffer Depth: 24-Bit Color (ARGB8888)
          Main Display: Yes
jkbuha@JuliansthGenAir ~ %

With mine lilu plugin it push kexts - FB and Graphics - to be loaded forcely. Check sources to understand how. Build in release not debug version!

Edited April 12 by Stezza88

jkbuha · April 12

3 minutes ago, Stezza88 said:

My father has been taken today to the hospital.. they have found in him a cancer at the liver.. i need to suspehend a moment.. i'll be back soon as possible.. post logs and photos if you got problems.. blessing everybody

coraggio stezza. fatti forza. un abraccio a tutta la famiglia.

Stezza88 · April 12

They will never stops me!! We'll make a powerful library..

Mastachief · April 12

Share a screenshot of your hackintool interface, go to the connectors tab, click on the connector highlighted in red,

Stezza88 · April 12

31 minutes ago, Mastachief said:

Share a screenshot of your hackintool interface, go to the connectors tab, click on the connector highlighted in red,

My gen infrastructure is still in development, still not booting.. but it should working most probably only with TGL at the actual state.. i will make a post with every info when finally i will boot with RPL..

At the actual state i'm implementing the infrastucture for "!realTGL" branches.. i could be glad if someone post logs or something about the real testing of TGL actual state..

Edited April 12 by Stezza88

Mastachief · April 12

When you say not booting, you mean KP or freeze at window server, can you VNC, does it start the iGPU in verbose mode allowing visuals via VNC, I get a KP with NootedGreen, BatGPT is working on fixing it right now.

jkbuha · April 12

1 hour ago, Stezza88 said:

My gen infrastructure is still in development, still not booting.. but it should working most probably only with TGL at the actual state.. i will make a post with every info when finally i will boot with RPL..

At the actual state i'm implementing the infrastucture for "!realTGL" branches.. i could be glad if someone post logs or something about the real testing of TGL actual state..

I've managed to patch your Lilu fork to compile and load on Sequoia, compile NootedGreen and HookCase, force load both TGL kexts with a launchdaemon. Screen boots up without acceleration, but still on 8MB VRAM.

Here's what's working

NootedGreen V58 Release+Debug: loads, patches both TGL kexts
Patched Lilu 1.7.3 with loadKinfoPlaceholder: loads, Release build on EFI
HookCase 8.0.1: loads from /Library/Extensions
TGL FB + TGL HW: both load (via launch daemons), both in auxiliary KC
V58 real-TGL detection works: "Real TGL — native topology"
IOAccelF2 patches: OK

Not working so far:

All Intel classes at 0 instances (AppleIntelFramebufferController, IntelAccelerator, IGAccelDevice, IGHardwareGuC, IntelTGLMemoryManager)
NDRV still owns IGPU — no TGL framebuffer matched
VRAM 8MB, "No Kext Loaded" in System Profiler
No dmesg/log output on Sequoia (buffer rolls over before capture, unified log empty)

Let me know how to produce debug/logfiles and I'll attach them here.

Edited April 12 by jkbuha

Mastachief · April 12

Share those kexts you built in a zip, my boot does not give that. You can get logs by running dmesg, however you will need to truncate it so it's not overload with irellevevant info, you can also use hackintool and go to the logs section and parse the system logs.

Also do you have SSDT-PNLF enabled? Should be disabled for now, also AppleIntelFramebufferController should have personalities published, similar to Nblues way of publishing the personality upfront

Mastachief · April 13

Current error in Metal pipeline creation.

-------------------------------------
Translated Report (Full Report Below)
-------------------------------------

Process:               WindowServer [156]
Path:                  /System/Library/PrivateFrameworks/SkyLight.framework/Versions/A/Resources/WindowServer
Identifier:            WindowServer
Version:               ???
Code Type:             X86-64 (Native)
Parent Process:        launchd [1]
User ID:               88

Date/Time:             2026-04-12 23:55:32.6523 -0500
OS Version:            macOS 14.8.3 (23J220)
Report Version:        12
Anonymous UUID:        C61662F0-F760-1F32-8B2C-5C0905DEF1EA


Time Awake Since Boot: 110 seconds

System Integrity Protection: disabled

Crashed Thread:        0  ws_main_thread  Dispatch queue: com.apple.main-thread

Exception Type:        EXC_CRASH (SIGABRT)
Exception Codes:       0x0000000000000000, 0x0000000000000000

Termination Reason:    Namespace SIGNAL, Code 6 Abort trap: 6
Terminating Process:   WindowServer [156]

Application Specific Information:
abort() called


Kernel Triage:
VM - (arg = 0x0) Returned success with no page
VM - (arg = 0x0) Returned success with no page


Thread 0 Crashed:: ws_main_thread Dispatch queue: com.apple.main-thread
0   libsystem_kernel.dylib        	    0x7ff8033f7d96 __pthread_kill + 10
1   libsystem_pthread.dylib       	    0x7ff803430e51 pthread_kill + 262
2   libsystem_c.dylib             	    0x7ff803356a69 abort + 126
3   SkyLight                      	    0x7ff808cc3657 MetalShader::CopyPipelineState(MetalContext*, bool, bool) + 3209
4   SkyLight                      	    0x7ff808e5ecec MetalTiledBacking::RenderToDestination(MetalContext*, WSCompositeSourceLayer*, WSCompositeDestination*) + 676
5   SkyLight                      	    0x7ff808e697b4 MetalCompositeLayers + 41
6   SkyLight                      	    0x7ff808e6928b CompositorMetal::composite(WSCompositeSourceLayer*, WSCompositeDestination*, bool, bool) + 415
7   SkyLight                      	    0x7ff808e63f3a CompositorMetal::CompositeLayersToDestination(WSCompositeSourceLayer*, WSCompositeDestination*, unsigned long long) + 244
8   SkyLight                      	    0x7ff808cef44e WS::Displays::CDDisplay::render_update(WS::Displays::Update&, Compositor*, unsigned int, WSCompositeSourceLayer*) + 872
9   SkyLight                      	    0x7ff808dac3ae WS::Updater::UpdateDisplays(CGXConnection*, bool, std::__1::vector<std::__1::shared_ptr<WS::Displays::Display>, std::__1::allocator<std::__1::shared_ptr<WS::Displays::Display>>>) + 21295
10  SkyLight                      	    0x7ff808da7053 CGXUpdateDisplay + 91
11  SkyLight                      	    0x7ff808d9ad27 update_display_callback(void*, double) + 1825
12  SkyLight                      	    0x7ff808e39ab7 run_timer_pass + 556
13  SkyLight                      	    0x7ff808e39baa non_coalesced_timer_handler + 16
14  SkyLight                      	    0x7ff808e78f70 post_port_data + 269
15  SkyLight                      	    0x7ff808e78cbb CGXRunOneServicesPass + 1696
16  SkyLight                      	    0x7ff808e79662 server_loop + 98
17  SkyLight                      	    0x7ff808e794bc SLXServer + 1265
18  WindowServer                  	       0x10b0e048c 0x10b0df000 + 5260
19  dyld                          	    0x7ff8030a5345 start + 1909

Thread 1:: com.apple.coreanimation.render-server
0   libsystem_kernel.dylib        	    0x7ff8033f106e mach_msg2_trap + 10
1   libsystem_kernel.dylib        	    0x7ff8033ff858 mach_msg2_internal + 84
2   libsystem_kernel.dylib        	    0x7ff8033f8158 mach_msg_overwrite + 653
3   libsystem_kernel.dylib        	    0x7ff8033f135d mach_msg + 19
4   QuartzCore                    	    0x7ff80bb3bc3e CA::Render::Server::server_thread(void*) + 664
5   QuartzCore                    	    0x7ff80bb3b993 thread_fun(void*) + 25
6   libsystem_pthread.dylib       	    0x7ff80343111f _pthread_start + 99
7   libsystem_pthread.dylib       	    0x7ff80342cac3 thread_start + 15

Thread 2::  Dispatch queue: com.apple.VirtualDisplayListener
0   libsystem_kernel.dylib        	    0x7ff8033f106e mach_msg2_trap + 10
1   libsystem_kernel.dylib        	    0x7ff8033ff858 mach_msg2_internal + 84
2   libsystem_kernel.dylib        	    0x7ff8033f8158 mach_msg_overwrite + 653
3   libsystem_kernel.dylib        	    0x7ff8033fa156 mach_msg_server_once + 266
4   CoreDisplay                   	    0x7ff80527b95d -[VirtualDisplayListener rx] + 77
5   libdispatch.dylib             	    0x7ff80328eac6 _dispatch_call_block_and_release + 12
6   libdispatch.dylib             	    0x7ff80328fdbc _dispatch_client_callout + 8
7   libdispatch.dylib             	    0x7ff803295eff _dispatch_lane_serial_drain + 800
8   libdispatch.dylib             	    0x7ff803296997 _dispatch_lane_invoke + 377
9   libdispatch.dylib             	    0x7ff8032a0414 _dispatch_root_queue_drain_deferred_wlh + 271
10  libdispatch.dylib             	    0x7ff80329fd2a _dispatch_workloop_worker_thread + 451
11  libsystem_pthread.dylib       	    0x7ff80342db18 _pthread_wqthread + 327
12  libsystem_pthread.dylib       	    0x7ff80342caaf start_wqthread + 15

Thread 3::  Dispatch queue: PLClientLoggingAdaptivePermissionWorkQueue
0   libsystem_kernel.dylib        	    0x7ff8033f106e mach_msg2_trap + 10
1   libsystem_kernel.dylib        	    0x7ff8033ff858 mach_msg2_internal + 84
2   libsystem_kernel.dylib        	    0x7ff8033f8158 mach_msg_overwrite + 653
3   libsystem_kernel.dylib        	    0x7ff8033f135d mach_msg + 19
4   libdispatch.dylib             	    0x7ff8032a7661 _dispatch_mach_send_and_wait_for_reply + 521
5   libdispatch.dylib             	    0x7ff8032a7a65 dispatch_mach_send_with_result_and_wait_for_reply + 50
6   libxpc.dylib                  	    0x7ff80313fb8d xpc_connection_send_message_with_reply_sync + 261
7   PowerLog                      	    0x7ff818e2b671 -[PLClientLogger xpcSendMessageWithReply:withClientID:withKey:withPayload:] + 251
8   PowerLog                      	    0x7ff818e2a96c __68-[PLClientLogger permissionForClientID:withKey:withType:completion:]_block_invoke + 133
9   libdispatch.dylib             	    0x7ff80328eac6 _dispatch_call_block_and_release + 12
10  libdispatch.dylib             	    0x7ff80328fdbc _dispatch_client_callout + 8
11  libdispatch.dylib             	    0x7ff803295eff _dispatch_lane_serial_drain + 800
12  libdispatch.dylib             	    0x7ff803296997 _dispatch_lane_invoke + 377
13  libdispatch.dylib             	    0x7ff8032a0414 _dispatch_root_queue_drain_deferred_wlh + 271
14  libdispatch.dylib             	    0x7ff80329fd2a _dispatch_workloop_worker_thread + 451
15  libsystem_pthread.dylib       	    0x7ff80342db18 _pthread_wqthread + 327
16  libsystem_pthread.dylib       	    0x7ff80342caaf start_wqthread + 15

Thread 4::  Dispatch queue: com.apple.libtrace.state.block-list
0   libsystem_kernel.dylib        	    0x7ff8033f2826 __ulock_wait + 10
1   libdispatch.dylib             	    0x7ff8032905d4 _dlock_wait + 46
2   libdispatch.dylib             	    0x7ff80329045c _dispatch_thread_event_wait_slow + 40
3   libdispatch.dylib             	    0x7ff80329cfb8 __DISPATCH_WAIT_FOR_QUEUE__ + 307
4   libdispatch.dylib             	    0x7ff80329cbe4 _dispatch_sync_f_slow + 175
5   libsystem_trace.dylib         	    0x7ff803188099 ___os_state_request_for_self_block_invoke + 375
6   libdispatch.dylib             	    0x7ff80328eac6 _dispatch_call_block_and_release + 12
7   libdispatch.dylib             	    0x7ff80328fdbc _dispatch_client_callout + 8
8   libdispatch.dylib             	    0x7ff803295eff _dispatch_lane_serial_drain + 800
9   libdispatch.dylib             	    0x7ff803296997 _dispatch_lane_invoke + 377
10  libdispatch.dylib             	    0x7ff8032a0414 _dispatch_root_queue_drain_deferred_wlh + 271
11  libdispatch.dylib             	    0x7ff80329fd2a _dispatch_workloop_worker_thread + 451
12  libsystem_pthread.dylib       	    0x7ff80342db18 _pthread_wqthread + 327
13  libsystem_pthread.dylib       	    0x7ff80342caaf start_wqthread + 15

Thread 5:
0   libsystem_pthread.dylib       	    0x7ff80342caa0 start_wqthread + 0

Thread 6::  Dispatch queue: com.apple.CoreBrightness.BSCI serial
0   libsystem_kernel.dylib        	    0x7ff8033f106e mach_msg2_trap + 10
1   libsystem_kernel.dylib        	    0x7ff8033ff858 mach_msg2_internal + 84
2   libsystem_kernel.dylib        	    0x7ff8033f8158 mach_msg_overwrite + 653
3   libsystem_kernel.dylib        	    0x7ff8033f135d mach_msg + 19
4   libdispatch.dylib             	    0x7ff8032a7661 _dispatch_mach_send_and_wait_for_reply + 521
5   libdispatch.dylib             	    0x7ff8032a7a65 dispatch_mach_send_with_result_and_wait_for_reply + 50
6   libxpc.dylib                  	    0x7ff80313fb8d xpc_connection_send_message_with_reply_sync + 261
7   Foundation                    	    0x7ff804482fd0 __NSXPCCONNECTION_IS_WAITING_FOR_A_SYNCHRONOUS_REPLY__ + 9
8   Foundation                    	    0x7ff804480f56 -[NSXPCConnection _sendInvocation:orArguments:count:methodSignature:selector:withProxy:] + 3103
9   Foundation                    	    0x7ff80448758a -[NSXPCConnection _sendSelector:withProxy:arg1:arg2:] + 132
10  Foundation                    	    0x7ff8044874b7 _NSXPCDistantObjectSimpleMessageSend2 + 63
11  CoreBrightness                	    0x7ff812519133 __53-[BrightnessSystemClientInternal copyPropertyForKey:]_block_invoke + 89
12  libdispatch.dylib             	    0x7ff803293050 _dispatch_block_sync_invoke + 301
13  libdispatch.dylib             	    0x7ff80328fdbc _dispatch_client_callout + 8
14  libdispatch.dylib             	    0x7ff80329cd3c _dispatch_lane_barrier_sync_invoke_and_complete + 60
15  libdispatch.dylib             	    0x7ff803293f0f _dispatch_sync_block_with_privdata + 410
16  CoreBrightness                	    0x7ff812518dfe -[BrightnessSystemClientInternal copyPropertyForKey:] + 233
17  CoreBrightness                	    0x7ff812583b53 -[CBBlueLightClient init] + 98
18  SkyLight                      	    0x7ff808c9b232 invocation function for block in get_shared_blue_light_client() + 188
19  libdispatch.dylib             	    0x7ff80328fdbc _dispatch_client_callout + 8
20  libdispatch.dylib             	    0x7ff80329104e _dispatch_once_callout + 20
21  SkyLight                      	    0x7ff808c9afd3 __PKGInitializeAppearanceTransitions_block_invoke + 61
22  libdispatch.dylib             	    0x7ff80328eac6 _dispatch_call_block_and_release + 12
23  libdispatch.dylib             	    0x7ff80328fdbc _dispatch_client_callout + 8
24  libdispatch.dylib             	    0x7ff803295eff _dispatch_lane_serial_drain + 800
25  libdispatch.dylib             	    0x7ff803296997 _dispatch_lane_invoke + 377
26  libdispatch.dylib             	    0x7ff8032a0414 _dispatch_root_queue_drain_deferred_wlh + 271
27  libdispatch.dylib             	    0x7ff80329fd2a _dispatch_workloop_worker_thread + 451
28  libsystem_pthread.dylib       	    0x7ff80342db18 _pthread_wqthread + 327
29  libsystem_pthread.dylib       	    0x7ff80342caaf start_wqthread + 15

Thread 7:: IOHIDService - RunLoopCompatibilityThread
0   libsystem_kernel.dylib        	    0x7ff8033f106e mach_msg2_trap + 10
1   libsystem_kernel.dylib        	    0x7ff8033ff858 mach_msg2_internal + 84
2   libsystem_kernel.dylib        	    0x7ff8033f8158 mach_msg_overwrite + 653
3   libsystem_kernel.dylib        	    0x7ff8033f135d mach_msg + 19
4   CoreFoundation                	    0x7ff80350f035 __CFRunLoopServiceMachPort + 143
5   CoreFoundation                	    0x7ff80350daa5 __CFRunLoopRun + 1371
6   CoreFoundation                	    0x7ff80350cf82 CFRunLoopRunSpecific + 557
7   CoreFoundation                	    0x7ff803588a0e CFRunLoopRun + 40
8   IOKit                         	    0x7ff806a723be __IOHIDServiceRunLoopCompatibilityThread + 307
9   libsystem_pthread.dylib       	    0x7ff80343111f _pthread_start + 99
10  libsystem_pthread.dylib       	    0x7ff80342cac3 thread_start + 15

Thread 8:
0   libsystem_kernel.dylib        	    0x7ff8033f106e mach_msg2_trap + 10
1   libsystem_kernel.dylib        	    0x7ff8033ff858 mach_msg2_internal + 84
2   libsystem_kernel.dylib        	    0x7ff8033f8158 mach_msg_overwrite + 653
3   libsystem_kernel.dylib        	    0x7ff8033f135d mach_msg + 19
4   CoreDisplay                   	    0x7ff805299ca0 CoreDisplay::Mach::Message::Receive(unsigned int) + 80
5   CoreDisplay                   	    0x7ff80535637b CoreDisplay::Mach::Server::Start() + 105
6   CoreDisplay                   	    0x7ff805356444 void* std::__1::__thread_proxy[abi:ue170006]<std::__1::tuple<std::__1::unique_ptr<std::__1::__thread_struct, std::__1::default_delete<std::__1::__thread_struct>>, void (CoreDisplay::Mach::Server::*)(), CoreDisplay::Mach::Server*>>(void*) + 79
7   libsystem_pthread.dylib       	    0x7ff80343111f _pthread_start + 99
8   libsystem_pthread.dylib       	    0x7ff80342cac3 thread_start + 15

Thread 9:
0   libsystem_pthread.dylib       	    0x7ff80342caa0 start_wqthread + 0

Thread 10:
0   libsystem_pthread.dylib       	    0x7ff80342caa0 start_wqthread + 0

Thread 11:: com.apple.windowserver.root_queue
0   libsystem_kernel.dylib        	    0x7ff8033f1002 semaphore_timedwait_trap + 10
1   libdispatch.dylib             	    0x7ff80329030d _dispatch_sema4_timedwait + 73
2   libdispatch.dylib             	    0x7ff803290759 _dispatch_semaphore_wait_slow + 58
3   libdispatch.dylib             	    0x7ff80329eee1 _dispatch_worker_thread + 324
4   libsystem_pthread.dylib       	    0x7ff80343111f _pthread_start + 99
5   libsystem_pthread.dylib       	    0x7ff80342cac3 thread_start + 15


Thread 0 crashed with X86 Thread State (64-bit):
  rax: 0x0000000000000000  rbx: 0x0000000000000006  rcx: 0x00007ff7b4e0ea38  rdx: 0x0000000000000000
  rdi: 0x0000000000000103  rsi: 0x0000000000000006  rbp: 0x00007ff7b4e0ea60  rsp: 0x00007ff7b4e0ea38
   r8: 0x00007ff844c11390   r9: 0x0000000000000500  r10: 0x0000000000000000  r11: 0x0000000000000246
  r12: 0x0000000000000103  r13: 0x00007ff82346c292  r14: 0x00007ff846971800  r15: 0x0000000000000016
  rip: 0x00007ff8033f7d96  rfl: 0x0000000000000246  cr2: 0x0000000000000000

Logical CPU:     0
Error Code:      0x02000148
Trap Number:     133


Binary Images:
       0x10b52b000 -        0x10b53efff TouchBarEvent.bundle (*) <9347c308-5d42-3576-919f-e3c6412920d7> /System/Library/CoreServices/TouchBarEvent.bundle
       0x1279f4000 -        0x127e73fff com.apple.driver.AppleIntelTGLGraphicsMTLDriver (16.0.32) <2b849e57-ac6a-3216-a67b-38e080603585> /System/Library/Extensions/AppleIntelTGLGraphicsMTLDriver.bundle/Contents/MacOS/AppleIntelTGLGraphicsMTLDriver
       0x10b36f000 -        0x10b36ffff com.apple.driver.IOAccelerator2D (481.40.2) <9156b710-fd38-3f08-853d-4815e994e497> /System/Library/Extensions/IOAccelerator2D.plugin/Contents/MacOS/IOAccelerator2D
       0x10b327000 -        0x10b32bfff com.apple.KeyboardTelemetryServiceFilter (1.0) <5b63b15c-8384-3842-b2fc-610d3c111571> /System/Library/HIDPlugins/ServiceFilters/KeyboardTelemetryServiceFilter.plugin/Contents/MacOS/KeyboardTelemetryServiceFilter
       0x10b2c4000 -        0x10b2d0fff com.apple.iokit.hid.IOHIDKeyboardFilter (1.0) <0a6f1836-9411-3cff-b4d4-3601951b8f68> /System/Library/HIDPlugins/IOHIDKeyboardFilter.plugin/Contents/MacOS/IOHIDKeyboardFilter
       0x10b2ee000 -        0x10b2f1fff com.apple.IOHIDEventServicePlugin (1.0) <e98a8bdc-ceb0-353c-a792-ac43b4c156ec> /System/Library/HIDPlugins/ServicePlugins/IOHIDEventServicePlugin.plugin/Contents/MacOS/IOHIDEventServicePlugin
       0x10b2e2000 -        0x10b2e3fff com.apple.iokit.IOHIDNXEventRouter (2.0.0) <c5776ed1-edf2-32dd-931d-0c9af0baa570> /System/Library/Extensions/IOHIDFamily.kext/Contents/PlugIns/IOHIDNXEventRouter.plugin/Contents/MacOS/IOHIDNXEventRouter
       0x10b290000 -        0x10b29afff com.apple.iokit.hid.IOHIDPointerScrollFilter (1.0) <fffa6ff3-aca0-336c-a683-3d6ad2aec591> /System/Library/HIDPlugins/IOHIDPointerScrollFilter.plugin/Contents/MacOS/IOHIDPointerScrollFilter
       0x10b641000 -        0x10b6f8fff com.apple.universalcontrol.servicefilter (1.0) <3fb727a2-1bf5-3eca-8eb4-83cba783ec3e> /System/Library/HIDPlugins/ServiceFilters/UniversalControlServiceFilter.plugin/Contents/MacOS/UniversalControlServiceFilter
       0x10b2b2000 -        0x10b2b4fff com.apple.AppleHIDBluetoothFilter (1.0) <1ec1be0b-acc8-3dd0-a1ad-44224ab7a799> /System/Library/HIDPlugins/ServiceFilters/AppleHIDBluetoothFilter.plugin/Contents/MacOS/AppleHIDBluetoothFilter
       0x10b20f000 -        0x10b213fff com.apple.iokit.hid.IOHIDEventProcessorFilter (1.0) <d17a743a-1e32-3f58-9e2c-82f55f34c9f1> /System/Library/HIDPlugins/IOHIDEventProcessorFilter.plugin/Contents/MacOS/IOHIDEventProcessorFilter
       0x10b1ec000 -        0x10b200fff com.apple.hid.ColourSensorFilterPlugin (1.0) <ea9e0391-31e6-3871-8b14-ccf2caeb95ec> /System/Library/HIDPlugins/ColourSensorFilterPlugin.plugin/Contents/MacOS/ColourSensorFilterPlugin
       0x10b245000 -        0x10b247fff com.apple.iokit.hid.IOHIDNXEventTranslatorServiceFilter (1.0) <43951734-596c-3deb-9ee9-4b80ee2830c5> /System/Library/HIDPlugins/IOHIDNXEventTranslatorServiceFilter.plugin/Contents/MacOS/IOHIDNXEventTranslatorServiceFilter
       0x10b233000 -        0x10b236fff com.apple.iokit.plugin.AmbientLightSensorHID (361) <d5810c88-faab-36f9-9039-f93cc5f0fc33> /System/Library/Extensions/AppleSMCLMU.kext/Contents/PlugIns/AmbientLightSensorHID.plugin/Contents/MacOS/AmbientLightSensorHID
       0x10b21f000 -        0x10b227fff com.apple.CoreRCPlugin (1.0) <29ac854d-98c8-334d-8d6e-5ce6f6a6c682> /System/Library/HIDPlugins/SessionFilters/CoreRCPlugin.plugin/Contents/MacOS/CoreRCPlugin
       0x10b1e0000 -        0x10b1e1fff com.apple.IOHIDRemoteSensorSessionFilter (1.0) <6a629302-3064-33a5-9084-a035ce3c1837> /System/Library/HIDPlugins/SessionFilters/IOHIDRemoteSensorSessionFilter.plugin/Contents/MacOS/IOHIDRemoteSensorSessionFilter
       0x10b258000 -        0x10b26afff com.apple.IOAnalytics (1.0) <004cbf55-ba19-3c6f-a3fa-e8137b5f0fc6> /System/Library/HIDPlugins/SessionFilters/IOAnalytics.plugin/Contents/MacOS/IOAnalytics
       0x10b1b3000 -        0x10b1b5fff com.apple.iokit.hid.IOHIDDFREventFilter (1.0) <9a9ef30e-c243-35bd-8d1d-67c26ec7eb0e> /System/Library/HIDPlugins/IOHIDDFREventFilter.plugin/Contents/MacOS/IOHIDDFREventFilter
       0x10b1c7000 -        0x10b1d0fff com.apple.iokit.hid.IOHIDNXEventTranslatorSessionFilter (1.0) <2e19b531-bc96-3cde-8212-76ae6e45ea84> /System/Library/HIDPlugins/IOHIDNXEventTranslatorSessionFilter.plugin/Contents/MacOS/IOHIDNXEventTranslatorSessionFilter
       0x10c4d8000 -        0x10cc0afff CursorAsset (*) <8a2677bd-626f-36bd-b101-497695b244eb> /System/Library/PrivateFrameworks/SkyLight.framework/Versions/A/Resources/CursorAsset
       0x10b0df000 -        0x10b0e0fff WindowServer (*) <199c252f-22bf-3ce0-877c-126b96555a61> /System/Library/PrivateFrameworks/SkyLight.framework/Versions/A/Resources/WindowServer
    0x7ff8033f0000 -     0x7ff80342aff7 libsystem_kernel.dylib (*) <c14e014c-3042-3d58-9021-a9d513db9f17> /usr/lib/system/libsystem_kernel.dylib
    0x7ff80342b000 -     0x7ff803436fff libsystem_pthread.dylib (*) <94607857-3850-3632-af50-37163dd339f7> /usr/lib/system/libsystem_pthread.dylib
    0x7ff8032d7000 -     0x7ff80335eff7 libsystem_c.dylib (*) <3ac1393a-1569-381a-a323-7aa477b504c5> /usr/lib/system/libsystem_c.dylib
    0x7ff808b0a000 -     0x7ff808f6cffe com.apple.SkyLight (1.600.0) <17842b99-c260-30bb-bec8-d1e270c11d56> /System/Library/PrivateFrameworks/SkyLight.framework/Versions/A/SkyLight
    0x7ff80309f000 -     0x7ff80312fa87 dyld (*) <43926ebe-f6c6-30d6-aa12-c0945b2bf6d3> /usr/lib/dyld
               0x0 - 0xffffffffffffffff ??? (*) <00000000-0000-0000-0000-000000000000> ???
    0x7ff80baf3000 -     0x7ff80be7dffd com.apple.QuartzCore (1.11) <a43c79b7-1399-3e97-b225-9ee0fc73c68d> /System/Library/Frameworks/QuartzCore.framework/Versions/A/QuartzCore
    0x7ff80526a000 -     0x7ff805397ff5 com.apple.CoreDisplay (285) <817784a6-869c-3676-ae6c-a552292238b0> /System/Library/Frameworks/CoreDisplay.framework/Versions/A/CoreDisplay
    0x7ff80328d000 -     0x7ff8032d3ff1 libdispatch.dylib (*) <1b5bc7ce-4058-3461-839d-24e12c03a809> /usr/lib/system/libdispatch.dylib
    0x7ff803134000 -     0x7ff80317bffd libxpc.dylib (*) <8d4dfdcc-86f5-305b-92d1-66fd33efc920> /usr/lib/system/libxpc.dylib
    0x7ff818e28000 -     0x7ff818e4ffff com.apple.PowerLog (1.0) <2c630a86-ed64-3caf-9f81-64a60ff3e42e> /System/Library/PrivateFrameworks/PowerLog.framework/Versions/A/PowerLog
    0x7ff80317c000 -     0x7ff803195ffe libsystem_trace.dylib (*) <e35d68c9-391f-3e37-9aaf-b7c2186ab377> /usr/lib/system/libsystem_trace.dylib
    0x7ff804465000 -     0x7ff80509cffb com.apple.Foundation (6.9) <c14ad813-8ea1-31fd-8197-5fd3ebe56186> /System/Library/Frameworks/Foundation.framework/Versions/C/Foundation
    0x7ff812516000 -     0x7ff812618fff com.apple.corebrightness (1.0) <f09fde2b-ab55-348a-85e9-a85f721ded79> /System/Library/PrivateFrameworks/CoreBrightness.framework/Versions/A/CoreBrightness
    0x7ff803493000 -     0x7ff80392dffc com.apple.CoreFoundation (6.9) <b125508e-b96a-3abc-b2da-cba80ed21f4b> /System/Library/Frameworks/CoreFoundation.framework/Versions/A/CoreFoundation
    0x7ff806a18000 -     0x7ff806adbfff com.apple.framework.IOKit (2.0.2) <6d34b5af-17e8-3292-970f-dd672c908f56> /System/Library/Frameworks/IOKit.framework/Versions/A/IOKit

External Modification Summary:
  Calls made by other processes targeting this process:
    task_for_pid: 0
    thread_create: 0
    thread_set_state: 0
  Calls made by this process:
    task_for_pid: 0
    thread_create: 0
    thread_set_state: 0
  Calls made by all processes on this machine:
    task_for_pid: 0
    thread_create: 0
    thread_set_state: 0

VM Region Summary:
ReadOnly portion of Libraries: Total=463.9M resident=0K(0%) swapped_out_or_unallocated=463.9M(100%)
Writable regions: Total=2.9G written=0K(0%) resident=0K(0%) swapped_out=0K(0%) unallocated=2.9G(100%)

                                VIRTUAL   REGION
REGION TYPE                        SIZE    COUNT (non-coalesced)
===========                     =======  =======
Activity Tracing                   256K        1
CG backing stores                 8120K        6
CG framebuffers                    1.0G        9
CG framebuffers (reserved)       589.1M        8         reserved VM address space (unallocated)
ColorSync                           12K        2
Kernel Alloc Once                    8K        1
MALLOC                             1.3G       43
MALLOC guard page                   48K       12
Mach message                        12K        1
STACK GUARD                       56.0M       12
Stack                             14.1M       12
VM_ALLOCATE                        992K       11
VM_ALLOCATE (reserved)              12K        1         reserved VM address space (unallocated)
__CGSERVER                           4K        1
__DATA                            18.6M      370
__DATA_CONST                      16.5M      242
__DATA_DIRTY                       656K      113
__FONT_DATA                        2352        1
__LINKEDIT                       181.5M       23
__OBJC_RO                         71.9M        1
__OBJC_RW                         2201K        2
__SLSERVER                           4K        1
__TEXT                           282.3M      396
mapped file                       31.3M        4
shared memory                      768K       16
===========                     =======  =======
TOTAL                              3.6G     1289
TOTAL, minus reserved VM space     3.0G     1289



-----------
Full Report
-----------

{"app_name":"WindowServer","timestamp":"2026-04-12 23:55:36.00 -0500","app_version":"","slice_uuid":"199c252f-22bf-3ce0-877c-126b96555a61","build_version":"","platform":1,"share_with_app_devs":0,"is_first_party":1,"bug_type":"309","os_version":"macOS 14.8.3 (23J220)","roots_installed":0,"incident_id":"929E3F9B-B8CD-41B9-BE4E-45D167D53951","name":"WindowServer"}
{
  "uptime" : 110,
  "procRole" : "Graphics",
  "version" : 2,
  "userID" : 88,
  "deployVersion" : 210,
  "modelCode" : "MacBookPro16,2",
  "coalitionID" : 141,
  "osVersion" : {
    "train" : "macOS 14.8.3",
    "build" : "23J220",
    "releaseType" : "User"
  },
  "captureTime" : "2026-04-12 23:55:32.6523 -0500",
  "codeSigningMonitor" : 0,
  "incident" : "929E3F9B-B8CD-41B9-BE4E-45D167D53951",
  "pid" : 156,
  "cpuType" : "X86-64",
  "roots_installed" : 0,
  "bug_type" : "309",
  "procLaunch" : "2026-04-12 23:54:00.4306 -0500",
  "procStartAbsTime" : 24712200816,
  "procExitAbsTime" : 116902853318,
  "procName" : "WindowServer",
  "procPath" : "\/System\/Library\/PrivateFrameworks\/SkyLight.framework\/Versions\/A\/Resources\/WindowServer",
  "parentProc" : "launchd",
  "parentPid" : 1,
  "coalitionName" : "com.apple.WindowServer",
  "crashReporterKey" : "C61662F0-F760-1F32-8B2C-5C0905DEF1EA",
  "throttleTimeout" : 10,
  "codeSigningID" : "com.apple.WindowServer",
  "codeSigningTeamID" : "",
  "codeSigningFlags" : 570518017,
  "codeSigningValidationCategory" : 1,
  "codeSigningTrustLevel" : 4294967295,
  "sip" : "disabled",
  "exception" : {"codes":"0x0000000000000000, 0x0000000000000000","rawCodes":[0,0],"type":"EXC_CRASH","signal":"SIGABRT"},
  "termination" : {"flags":0,"code":6,"namespace":"SIGNAL","indicator":"Abort trap: 6","byProc":"WindowServer","byPid":156},
  "ktriageinfo" : "VM - (arg = 0x0) Returned success with no page\nVM - (arg = 0x0) Returned success with no page\n",
  "asi" : {"libsystem_c.dylib":["abort() called"]},
  "extMods" : {"caller":{"thread_create":0,"thread_set_state":0,"task_for_pid":0},"system":{"thread_create":0,"thread_set_state":0,"task_for_pid":0},"targeted":{"thread_create":0,"thread_set_state":0,"task_for_pid":0},"warnings":0},
  "faultingThread" : 0,
  "threads" : [{"threadState":{"r13":{"value":140703720456850,"objc-selector":"name"},"rax":{"value":0},"rflags":{"value":582},"cpu":{"value":0},"r14":{"value":140704312924160,"symbolLocation":0,"symbol":"_main_thread"},"rsi":{"value":6},"r8":{"value":140704282121104,"symbolLocation":0,"symbol":"_os_log_current_test_callback"},"cr2":{"value":0},"rdx":{"value":0},"r10":{"value":0},"r9":{"value":1280},"r15":{"value":22},"rbx":{"value":6},"trap":{"value":133},"err":{"value":33554760},"r11":{"value":582},"rip":{"value":140703183109526,"matchesCrashFrame":1},"rbp":{"value":140701868288608},"rsp":{"value":140701868288568},"r12":{"value":259},"rcx":{"value":140701868288568},"flavor":"x86_THREAD_STATE","rdi":{"value":259}},"id":809,"triggered":true,"name":"ws_main_thread","queue":"com.apple.main-thread","frames":[{"imageOffset":32150,"symbol":"__pthread_kill","symbolLocation":10,"imageIndex":21},{"imageOffset":24145,"symbol":"pthread_kill","symbolLocation":262,"imageIndex":22},{"imageOffset":522857,"symbol":"abort","symbolLocation":126,"imageIndex":23},{"imageOffset":1807959,"symbol":"MetalShader::CopyPipelineState(MetalContext*, bool, bool)","symbolLocation":3209,"imageIndex":24},{"imageOffset":3493100,"symbol":"MetalTiledBacking::RenderToDestination(MetalContext*, WSCompositeSourceLayer*, WSCompositeDestination*)","symbolLocation":676,"imageIndex":24},{"imageOffset":3536820,"symbol":"MetalCompositeLayers","symbolLocation":41,"imageIndex":24},{"imageOffset":3535499,"symbol":"CompositorMetal::composite(WSCompositeSourceLayer*, WSCompositeDestination*, bool, bool)","symbolLocation":415,"imageIndex":24},{"imageOffset":3514170,"symbol":"CompositorMetal::CompositeLayersToDestination(WSCompositeSourceLayer*, WSCompositeDestination*, unsigned long long)","symbolLocation":244,"imageIndex":24},{"imageOffset":1987662,"symbol":"WS::Displays::CDDisplay::render_update(WS::Displays::Update&, Compositor*, unsigned int, WSCompositeSourceLayer*)","symbolLocation":872,"imageIndex":24},{"imageOffset":2761646,"symbol":"WS::Updater::UpdateDisplays(CGXConnection*, bool, std::__1::vector<std::__1::shared_ptr<WS::Displays::Display>, std::__1::allocator<std::__1::shared_ptr<WS::Displays::Display>>>)","symbolLocation":21295,"imageIndex":24},{"imageOffset":2740307,"symbol":"CGXUpdateDisplay","symbolLocation":91,"imageIndex":24},{"imageOffset":2690343,"symbol":"update_display_callback(void*, double)","symbolLocation":1825,"imageIndex":24},{"imageOffset":3340983,"symbol":"run_timer_pass","symbolLocation":556,"imageIndex":24},{"imageOffset":3341226,"symbol":"non_coalesced_timer_handler","symbolLocation":16,"imageIndex":24},{"imageOffset":3600240,"symbol":"post_port_data","symbolLocation":269,"imageIndex":24},{"imageOffset":3599547,"symbol":"CGXRunOneServicesPass","symbolLocation":1696,"imageIndex":24},{"imageOffset":3602018,"symbol":"server_loop","symbolLocation":98,"imageIndex":24},{"imageOffset":3601596,"symbol":"SLXServer","symbolLocation":1265,"imageIndex":24},{"imageOffset":5260,"imageIndex":20},{"imageOffset":25413,"symbol":"start","symbolLocation":1909,"imageIndex":25}]},{"id":2241,"name":"com.apple.coreanimation.render-server","threadState":{"r13":{"value":21525170190},"rax":{"value":268451845},"rflags":{"value":514},"cpu":{"value":0},"r14":{"value":2},"rsi":{"value":21525170190},"r8":{"value":0},"cr2":{"value":0},"rdx":{"value":8589934592},"r10":{"value":0},"r9":{"value":43993350012928},"r15":{"value":43993350012928},"rbx":{"value":123145536088800},"trap":{"value":133},"err":{"value":16777263},"r11":{"value":514},"rip":{"value":140703183081582},"rbp":{"value":123145536088640},"rsp":{"value":123145536088536},"r12":{"value":0},"rcx":{"value":123145536088536},"flavor":"x86_THREAD_STATE","rdi":{"value":123145536088800}},"frames":[{"imageOffset":4206,"symbol":"mach_msg2_trap","symbolLocation":10,"imageIndex":21},{"imageOffset":63576,"symbol":"mach_msg2_internal","symbolLocation":84,"imageIndex":21},{"imageOffset":33112,"symbol":"mach_msg_overwrite","symbolLocation":653,"imageIndex":21},{"imageOffset":4957,"symbol":"mach_msg","symbolLocation":19,"imageIndex":21},{"imageOffset":298046,"symbol":"CA::Render::Server::server_thread(void*)","symbolLocation":664,"imageIndex":27},{"imageOffset":297363,"symbol":"thread_fun(void*)","symbolLocation":25,"imageIndex":27},{"imageOffset":24863,"symbol":"_pthread_start","symbolLocation":99,"imageIndex":22},{"imageOffset":6851,"symbol":"thread_start","symbolLocation":15,"imageIndex":22}]},{"id":2249,"threadState":{"r13":{"value":21525170178},"rax":{"value":268451845},"rflags":{"value":514},"cpu":{"value":0},"r14":{"value":2},"rsi":{"value":21525170178},"r8":{"value":0},"cr2":{"value":0},"rdx":{"value":8589934592},"r10":{"value":0},"r9":{"value":344160024395776},"r15":{"value":344160024395776},"rbx":{"value":123145536640832},"trap":{"value":133},"err":{"value":16777263},"r11":{"value":514},"rip":{"value":140703183081582},"rbp":{"value":123145536640672},"rsp":{"value":123145536640568},"r12":{"value":0},"rcx":{"value":123145536640568},"flavor":"x86_THREAD_STATE","rdi":{"value":123145536640832}},"queue":"com.apple.VirtualDisplayListener","frames":[{"imageOffset":4206,"symbol":"mach_msg2_trap","symbolLocation":10,"imageIndex":21},{"imageOffset":63576,"symbol":"mach_msg2_internal","symbolLocation":84,"imageIndex":21},{"imageOffset":33112,"symbol":"mach_msg_overwrite","symbolLocation":653,"imageIndex":21},{"imageOffset":41302,"symbol":"mach_msg_server_once","symbolLocation":266,"imageIndex":21},{"imageOffset":72029,"symbol":"-[VirtualDisplayListener rx]","symbolLocation":77,"imageIndex":28},{"imageOffset":6854,"symbol":"_dispatch_call_block_and_release","symbolLocation":12,"imageIndex":29},{"imageOffset":11708,"symbol":"_dispatch_client_callout","symbolLocation":8,"imageIndex":29},{"imageOffset":36607,"symbol":"_dispatch_lane_serial_drain","symbolLocation":800,"imageIndex":29},{"imageOffset":39319,"symbol":"_dispatch_lane_invoke","symbolLocation":377,"imageIndex":29},{"imageOffset":78868,"symbol":"_dispatch_root_queue_drain_deferred_wlh","symbolLocation":271,"imageIndex":29},{"imageOffset":77098,"symbol":"_dispatch_workloop_worker_thread","symbolLocation":451,"imageIndex":29},{"imageOffset":11032,"symbol":"_pthread_wqthread","symbolLocation":327,"imageIndex":22},{"imageOffset":6831,"symbol":"start_wqthread","symbolLocation":15,"imageIndex":22}]},{"id":2255,"threadState":{"r13":{"value":17297326606},"rax":{"value":268451845},"rflags":{"value":514},"cpu":{"value":0},"r14":{"value":16384},"rsi":{"value":17297326606},"r8":{"value":7812748569497375763},"cr2":{"value":0},"rdx":{"value":1702259048},"r10":{"value":867967677400964355},"r9":{"value":57187489546240},"r15":{"value":57187489546240},"rbx":{"value":123145537160576},"trap":{"value":133},"err":{"value":16777263},"r11":{"value":514},"rip":{"value":140703183081582},"rbp":{"value":123145537160208},"rsp":{"value":123145537160104},"r12":{"value":0},"rcx":{"value":123145537160104},"flavor":"x86_THREAD_STATE","rdi":{"value":123145537160576}},"queue":"PLClientLoggingAdaptivePermissionWorkQueue","frames":[{"imageOffset":4206,"symbol":"mach_msg2_trap","symbolLocation":10,"imageIndex":21},{"imageOffset":63576,"symbol":"mach_msg2_internal","symbolLocation":84,"imageIndex":21},{"imageOffset":33112,"symbol":"mach_msg_overwrite","symbolLocation":653,"imageIndex":21},{"imageOffset":4957,"symbol":"mach_msg","symbolLocation":19,"imageIndex":21},{"imageOffset":108129,"symbol":"_dispatch_mach_send_and_wait_for_reply","symbolLocation":521,"imageIndex":29},{"imageOffset":109157,"symbol":"dispatch_mach_send_with_result_and_wait_for_reply","symbolLocation":50,"imageIndex":29},{"imageOffset":48013,"symbol":"xpc_connection_send_message_with_reply_sync","symbolLocation":261,"imageIndex":30},{"imageOffset":13937,"symbol":"-[PLClientLogger xpcSendMessageWithReply:withClientID:withKey:withPayload:]","symbolLocation":251,"imageIndex":31},{"imageOffset":10604,"symbol":"__68-[PLClientLogger permissionForClientID:withKey:withType:completion:]_block_invoke","symbolLocation":133,"imageIndex":31},{"imageOffset":6854,"symbol":"_dispatch_call_block_and_release","symbolLocation":12,"imageIndex":29},{"imageOffset":11708,"symbol":"_dispatch_client_callout","symbolLocation":8,"imageIndex":29},{"imageOffset":36607,"symbol":"_dispatch_lane_serial_drain","symbolLocation":800,"imageIndex":29},{"imageOffset":39319,"symbol":"_dispatch_lane_invoke","symbolLocation":377,"imageIndex":29},{"imageOffset":78868,"symbol":"_dispatch_root_queue_drain_deferred_wlh","symbolLocation":271,"imageIndex":29},{"imageOffset":77098,"symbol":"_dispatch_workloop_worker_thread","symbolLocation":451,"imageIndex":29},{"imageOffset":11032,"symbol":"_pthread_wqthread","symbolLocation":327,"imageIndex":22},{"imageOffset":6831,"symbol":"start_wqthread","symbolLocation":15,"imageIndex":22}]},{"id":2260,"threadState":{"r13":{"value":123145537713952},"rax":{"value":18446744073709551612},"rflags":{"value":514},"cpu":{"value":0},"r14":{"value":16777217},"rsi":{"value":123145537714048},"r8":{"value":335007449088},"cr2":{"value":0},"rdx":{"value":0},"r10":{"value":0},"r9":{"value":0},"r15":{"value":0},"rbx":{"value":4294967295},"trap":{"value":133},"err":{"value":33554947},"r11":{"value":514},"rip":{"value":140703183087654},"rbp":{"value":123145537713856},"rsp":{"value":123145537713816},"r12":{"value":123145537714048},"rcx":{"value":123145537713816},"flavor":"x86_THREAD_STATE","rdi":{"value":16777217}},"queue":"com.apple.libtrace.state.block-list","frames":[{"imageOffset":10278,"symbol":"__ulock_wait","symbolLocation":10,"imageIndex":21},{"imageOffset":13780,"symbol":"_dlock_wait","symbolLocation":46,"imageIndex":29},{"imageOffset":13404,"symbol":"_dispatch_thread_event_wait_slow","symbolLocation":40,"imageIndex":29},{"imageOffset":65464,"symbol":"__DISPATCH_WAIT_FOR_QUEUE__","symbolLocation":307,"imageIndex":29},{"imageOffset":64484,"symbol":"_dispatch_sync_f_slow","symbolLocation":175,"imageIndex":29},{"imageOffset":49305,"symbol":"___os_state_request_for_self_block_invoke","symbolLocation":375,"imageIndex":32},{"imageOffset":6854,"symbol":"_dispatch_call_block_and_release","symbolLocation":12,"imageIndex":29},{"imageOffset":11708,"symbol":"_dispatch_client_callout","symbolLocation":8,"imageIndex":29},{"imageOffset":36607,"symbol":"_dispatch_lane_serial_drain","symbolLocation":800,"imageIndex":29},{"imageOffset":39319,"symbol":"_dispatch_lane_invoke","symbolLocation":377,"imageIndex":29},{"imageOffset":78868,"symbol":"_dispatch_root_queue_drain_deferred_wlh","symbolLocation":271,"imageIndex":29},{"imageOffset":77098,"symbol":"_dispatch_workloop_worker_thread","symbolLocation":451,"imageIndex":29},{"imageOffset":11032,"symbol":"_pthread_wqthread","symbolLocation":327,"imageIndex":22},{"imageOffset":6831,"symbol":"start_wqthread","symbolLocation":15,"imageIndex":22}]},{"id":2356,"frames":[{"imageOffset":6816,"symbol":"start_wqthread","symbolLocation":0,"imageIndex":22}],"threadState":{"r13":{"value":0},"rax":{"value":33554800},"rflags":{"value":512},"cpu":{"value":0},"r14":{"value":1},"rsi":{"value":16743},"r8":{"value":409604},"cr2":{"value":0},"rdx":{"value":123145537728512},"r10":{"value":0},"r9":{"value":18446744073709551615},"r15":{"value":123145538251640},"rbx":{"value":123145538252800},"trap":{"value":133},"err":{"value":33554800},"r11":{"value":582},"rip":{"value":140703183325856},"rbp":{"value":0},"rsp":{"value":123145538252800},"r12":{"value":5193732},"rcx":{"value":0},"flavor":"x86_THREAD_STATE","rdi":{"value":123145538252800}}},{"id":2357,"threadState":{"r13":{"value":17297326606},"rax":{"value":268451845},"rflags":{"value":514},"cpu":{"value":0},"r14":{"value":16384},"rsi":{"value":17297326606},"r8":{"value":0},"cr2":{"value":0},"rdx":{"value":0},"r10":{"value":82179},"r9":{"value":355155140673536},"r15":{"value":355155140673536},"rbx":{"value":123145538767168},"trap":{"value":133},"err":{"value":16777263},"r11":{"value":514},"rip":{"value":140703183081582},"rbp":{"value":123145538766800},"rsp":{"value":123145538766696},"r12":{"value":0},"rcx":{"value":123145538766696},"flavor":"x86_THREAD_STATE","rdi":{"value":123145538767168}},"queue":"com.apple.CoreBrightness.BSCI serial","frames":[{"imageOffset":4206,"symbol":"mach_msg2_trap","symbolLocation":10,"imageIndex":21},{"imageOffset":63576,"symbol":"mach_msg2_internal","symbolLocation":84,"imageIndex":21},{"imageOffset":33112,"symbol":"mach_msg_overwrite","symbolLocation":653,"imageIndex":21},{"imageOffset":4957,"symbol":"mach_msg","symbolLocation":19,"imageIndex":21},{"imageOffset":108129,"symbol":"_dispatch_mach_send_and_wait_for_reply","symbolLocation":521,"imageIndex":29},{"imageOffset":109157,"symbol":"dispatch_mach_send_with_result_and_wait_for_reply","symbolLocation":50,"imageIndex":29},{"imageOffset":48013,"symbol":"xpc_connection_send_message_with_reply_sync","symbolLocation":261,"imageIndex":30},{"imageOffset":122832,"symbol":"__NSXPCCONNECTION_IS_WAITING_FOR_A_SYNCHRONOUS_REPLY__","symbolLocation":9,"imageIndex":33},{"imageOffset":114518,"symbol":"-[NSXPCConnection _sendInvocation:orArguments:count:methodSignature:selector:withProxy:]","symbolLocation":3103,"imageIndex":33},{"imageOffset":140682,"symbol":"-[NSXPCConnection _sendSelector:withProxy:arg1:arg2:]","symbolLocation":132,"imageIndex":33},{"imageOffset":140471,"symbol":"_NSXPCDistantObjectSimpleMessageSend2","symbolLocation":63,"imageIndex":33},{"imageOffset":12595,"symbol":"__53-[BrightnessSystemClientInternal copyPropertyForKey:]_block_invoke","symbolLocation":89,"imageIndex":34},{"imageOffset":24656,"symbol":"_dispatch_block_sync_invoke","symbolLocation":301,"imageIndex":29},{"imageOffset":11708,"symbol":"_dispatch_client_callout","symbolLocation":8,"imageIndex":29},{"imageOffset":64828,"symbol":"_dispatch_lane_barrier_sync_invoke_and_complete","symbolLocation":60,"imageIndex":29},{"imageOffset":28431,"symbol":"_dispatch_sync_block_with_privdata","symbolLocation":410,"imageIndex":29},{"imageOffset":11774,"symbol":"-[BrightnessSystemClientInternal copyPropertyForKey:]","symbolLocation":233,"imageIndex":34},{"imageOffset":449363,"symbol":"-[CBBlueLightClient init]","symbolLocation":98,"imageIndex":34},{"imageOffset":1643058,"symbol":"invocation function for block in get_shared_blue_light_client()","symbolLocation":188,"imageIndex":24},{"imageOffset":11708,"symbol":"_dispatch_client_callout","symbolLocation":8,"imageIndex":29},{"imageOffset":16462,"symbol":"_dispatch_once_callout","symbolLocation":20,"imageIndex":29},{"imageOffset":1642451,"symbol":"__PKGInitializeAppearanceTransitions_block_invoke","symbolLocation":61,"imageIndex":24},{"imageOffset":6854,"symbol":"_dispatch_call_block_and_release","symbolLocation":12,"imageIndex":29},{"imageOffset":11708,"symbol":"_dispatch_client_callout","symbolLocation":8,"imageIndex":29},{"imageOffset":36607,"symbol":"_dispatch_lane_serial_drain","symbolLocation":800,"imageIndex":29},{"imageOffset":39319,"symbol":"_dispatch_lane_invoke","symbolLocation":377,"imageIndex":29},{"imageOffset":78868,"symbol":"_dispatch_root_queue_drain_deferred_wlh","symbolLocation":271,"imageIndex":29},{"imageOffset":77098,"symbol":"_dispatch_workloop_worker_thread","symbolLocation":451,"imageIndex":29},{"imageOffset":11032,"symbol":"_pthread_wqthread","symbolLocation":327,"imageIndex":22},{"imageOffset":6831,"symbol":"start_wqthread","symbolLocation":15,"imageIndex":22}]},{"id":2367,"name":"IOHIDService - RunLoopCompatibilityThread","threadState":{"r13":{"value":21592279046},"rax":{"value":268451845},"rflags":{"value":518},"cpu":{"value":0},"r14":{"value":2},"rsi":{"value":21592279046},"r8":{"value":0},"cr2":{"value":0},"rdx":{"value":8589934592},"r10":{"value":133070971731968},"r9":{"value":133070971731968},"r15":{"value":133070971731968},"rbx":{"value":123145539321808},"trap":{"value":133},"err":{"value":16777263},"r11":{"value":518},"rip":{"value":140703183081582},"rbp":{"value":123145539321648},"rsp":{"value":123145539321544},"r12":{"value":4294967295},"rcx":{"value":123145539321544},"flavor":"x86_THREAD_STATE","rdi":{"value":123145539321808}},"frames":[{"imageOffset":4206,"symbol":"mach_msg2_trap","symbolLocation":10,"imageIndex":21},{"imageOffset":63576,"symbol":"mach_msg2_internal","symbolLocation":84,"imageIndex":21},{"imageOffset":33112,"symbol":"mach_msg_overwrite","symbolLocation":653,"imageIndex":21},{"imageOffset":4957,"symbol":"mach_msg","symbolLocation":19,"imageIndex":21},{"imageOffset":507957,"symbol":"__CFRunLoopServiceMachPort","symbolLocation":143,"imageIndex":35},{"imageOffset":502437,"symbol":"__CFRunLoopRun","symbolLocation":1371,"imageIndex":35},{"imageOffset":499586,"symbol":"CFRunLoopRunSpecific","symbolLocation":557,"imageIndex":35},{"imageOffset":1006094,"symbol":"CFRunLoopRun","symbolLocation":40,"imageIndex":35},{"imageOffset":369598,"symbol":"__IOHIDServiceRunLoopCompatibilityThread","symbolLocation":307,"imageIndex":36},{"imageOffset":24863,"symbol":"_pthread_start","symbolLocation":99,"imageIndex":22},{"imageOffset":6851,"symbol":"thread_start","symbolLocation":15,"imageIndex":22}]},{"id":2564,"frames":[{"imageOffset":4206,"symbol":"mach_msg2_trap","symbolLocation":10,"imageIndex":21},{"imageOffset":63576,"symbol":"mach_msg2_internal","symbolLocation":84,"imageIndex":21},{"imageOffset":33112,"symbol":"mach_msg_overwrite","symbolLocation":653,"imageIndex":21},{"imageOffset":4957,"symbol":"mach_msg","symbolLocation":19,"imageIndex":21},{"imageOffset":195744,"symbol":"CoreDisplay::Mach::Message::Receive(unsigned int)","symbolLocation":80,"imageIndex":28},{"imageOffset":967547,"symbol":"CoreDisplay::Mach::Server::Start()","symbolLocation":105,"imageIndex":28},{"imageOffset":967748,"symbol":"void* std::__1::__thread_proxy[abi:ue170006]<std::__1::tuple<std::__1::unique_ptr<std::__1::__thread_struct, std::__1::default_delete<std::__1::__thread_struct>>, void (CoreDisplay::Mach::Server::*)(), CoreDisplay::Mach::Server*>>(void*)","symbolLocation":79,"imageIndex":28},{"imageOffset":24863,"symbol":"_pthread_start","symbolLocation":99,"imageIndex":22},{"imageOffset":6851,"symbol":"thread_start","symbolLocation":15,"imageIndex":22}],"threadState":{"r13":{"value":21525170182},"rax":{"value":268451845},"rflags":{"value":518},"cpu":{"value":0},"r14":{"value":2},"rsi":{"value":21525170182},"r8":{"value":0},"cr2":{"value":0},"rdx":{"value":8589934592},"r10":{"value":0},"r9":{"value":346719824904192},"r15":{"value":346719824904192},"rbx":{"value":123145540935024},"trap":{"value":133},"err":{"value":16777263},"r11":{"value":518},"rip":{"value":140703183081582},"rbp":{"value":123145540934864},"rsp":{"value":123145540934760},"r12":{"value":0},"rcx":{"value":123145540934760},"flavor":"x86_THREAD_STATE","rdi":{"value":123145540935024}}},{"id":2801,"frames":[{"imageOffset":6816,"symbol":"start_wqthread","symbolLocation":0,"imageIndex":22}],"threadState":{"r13":{"value":0},"rax":{"value":33554800},"rflags":{"value":512},"cpu":{"value":0},"r14":{"value":1},"rsi":{"value":129315},"r8":{"value":409604},"cr2":{"value":0},"rdx":{"value":123145539874816},"r10":{"value":0},"r9":{"value":18446744073709551615},"r15":{"value":123145540397944},"rbx":{"value":123145540399104},"trap":{"value":133},"err":{"value":33554800},"r11":{"value":582},"rip":{"value":140703183325856},"rbp":{"value":0},"rsp":{"value":123145540399104},"r12":{"value":13500416},"rcx":{"value":0},"flavor":"x86_THREAD_STATE","rdi":{"value":123145540399104}}},{"id":2802,"frames":[{"imageOffset":6816,"symbol":"start_wqthread","symbolLocation":0,"imageIndex":22}],"threadState":{"r13":{"value":0},"rax":{"value":0},"rflags":{"value":512},"cpu":{"value":0},"r14":{"value":0},"rsi":{"value":0},"r8":{"value":278530},"cr2":{"value":0},"rdx":{"value":123145541484544},"r10":{"value":0},"r9":{"value":18446744073709551615},"r15":{"value":0},"rbx":{"value":0},"trap":{"value":0},"err":{"value":0},"r11":{"value":0},"rip":{"value":140703183325856},"rbp":{"value":0},"rsp":{"value":123145542008832},"r12":{"value":0},"rcx":{"value":0},"flavor":"x86_THREAD_STATE","rdi":{"value":123145542008832}}},{"id":2871,"name":"com.apple.windowserver.root_queue","threadState":{"r13":{"value":18446744071427850239},"rax":{"value":14},"rflags":{"value":518},"cpu":{"value":0},"r14":{"value":140408935957056},"rsi":{"value":4294965663912427524},"r8":{"value":1},"cr2":{"value":0},"rdx":{"value":999999620},"r10":{"value":4294965663912427520},"r9":{"value":2638291157},"r15":{"value":19342813113834067},"rbx":{"value":121380681995},"trap":{"value":133},"err":{"value":16777254},"r11":{"value":518},"rip":{"value":140703183081474},"rbp":{"value":123145541472064},"rsp":{"value":123145541472024},"r12":{"value":0},"rcx":{"value":123145541472024},"flavor":"x86_THREAD_STATE","rdi":{"value":5891}},"frames":[{"imageOffset":4098,"symbol":"semaphore_timedwait_trap","symbolLocation":10,"imageIndex":21},{"imageOffset":13069,"symbol":"_dispatch_sema4_timedwait","symbolLocation":73,"imageIndex":29},{"imageOffset":14169,"symbol":"_dispatch_semaphore_wait_slow","symbolLocation":58,"imageIndex":29},{"imageOffset":73441,"symbol":"_dispatch_worker_thread","symbolLocation":324,"imageIndex":29},{"imageOffset":24863,"symbol":"_pthread_start","symbolLocation":99,"imageIndex":22},{"imageOffset":6851,"symbol":"thread_start","symbolLocation":15,"imageIndex":22}]}],
  "usedImages" : [
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4484935680,
    "size" : 81920,
    "uuid" : "9347c308-5d42-3576-919f-e3c6412920d7",
    "path" : "\/System\/Library\/CoreServices\/TouchBarEvent.bundle",
    "name" : "TouchBarEvent.bundle"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4959715328,
    "CFBundleShortVersionString" : "16.0.32",
    "CFBundleIdentifier" : "com.apple.driver.AppleIntelTGLGraphicsMTLDriver",
    "size" : 4718592,
    "uuid" : "2b849e57-ac6a-3216-a67b-38e080603585",
    "path" : "\/System\/Library\/Extensions\/AppleIntelTGLGraphicsMTLDriver.bundle\/Contents\/MacOS\/AppleIntelTGLGraphicsMTLDriver",
    "name" : "AppleIntelTGLGraphicsMTLDriver",
    "CFBundleVersion" : "16.0.0"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4483117056,
    "CFBundleShortVersionString" : "481.40.2",
    "CFBundleIdentifier" : "com.apple.driver.IOAccelerator2D",
    "size" : 4096,
    "uuid" : "9156b710-fd38-3f08-853d-4815e994e497",
    "path" : "\/System\/Library\/Extensions\/IOAccelerator2D.plugin\/Contents\/MacOS\/IOAccelerator2D",
    "name" : "IOAccelerator2D",
    "CFBundleVersion" : "481.40.2"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4482822144,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.KeyboardTelemetryServiceFilter",
    "size" : 20480,
    "uuid" : "5b63b15c-8384-3842-b2fc-610d3c111571",
    "path" : "\/System\/Library\/HIDPlugins\/ServiceFilters\/KeyboardTelemetryServiceFilter.plugin\/Contents\/MacOS\/KeyboardTelemetryServiceFilter",
    "name" : "KeyboardTelemetryServiceFilter",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4482416640,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.iokit.hid.IOHIDKeyboardFilter",
    "size" : 53248,
    "uuid" : "0a6f1836-9411-3cff-b4d4-3601951b8f68",
    "path" : "\/System\/Library\/HIDPlugins\/IOHIDKeyboardFilter.plugin\/Contents\/MacOS\/IOHIDKeyboardFilter",
    "name" : "IOHIDKeyboardFilter",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4482588672,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.IOHIDEventServicePlugin",
    "size" : 16384,
    "uuid" : "e98a8bdc-ceb0-353c-a792-ac43b4c156ec",
    "path" : "\/System\/Library\/HIDPlugins\/ServicePlugins\/IOHIDEventServicePlugin.plugin\/Contents\/MacOS\/IOHIDEventServicePlugin",
    "name" : "IOHIDEventServicePlugin",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4482539520,
    "CFBundleShortVersionString" : "2.0.0",
    "CFBundleIdentifier" : "com.apple.iokit.IOHIDNXEventRouter",
    "size" : 8192,
    "uuid" : "c5776ed1-edf2-32dd-931d-0c9af0baa570",
    "path" : "\/System\/Library\/Extensions\/IOHIDFamily.kext\/Contents\/PlugIns\/IOHIDNXEventRouter.plugin\/Contents\/MacOS\/IOHIDNXEventRouter",
    "name" : "IOHIDNXEventRouter",
    "CFBundleVersion" : "2.0.0"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4482203648,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.iokit.hid.IOHIDPointerScrollFilter",
    "size" : 45056,
    "uuid" : "fffa6ff3-aca0-336c-a683-3d6ad2aec591",
    "path" : "\/System\/Library\/HIDPlugins\/IOHIDPointerScrollFilter.plugin\/Contents\/MacOS\/IOHIDPointerScrollFilter",
    "name" : "IOHIDPointerScrollFilter",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4486074368,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.universalcontrol.servicefilter",
    "size" : 753664,
    "uuid" : "3fb727a2-1bf5-3eca-8eb4-83cba783ec3e",
    "path" : "\/System\/Library\/HIDPlugins\/ServiceFilters\/UniversalControlServiceFilter.plugin\/Contents\/MacOS\/UniversalControlServiceFilter",
    "name" : "UniversalControlServiceFilter",
    "CFBundleVersion" : "140.300"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4482342912,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.AppleHIDBluetoothFilter",
    "size" : 12288,
    "uuid" : "1ec1be0b-acc8-3dd0-a1ad-44224ab7a799",
    "path" : "\/System\/Library\/HIDPlugins\/ServiceFilters\/AppleHIDBluetoothFilter.plugin\/Contents\/MacOS\/AppleHIDBluetoothFilter",
    "name" : "AppleHIDBluetoothFilter",
    "CFBundleVersion" : "7440.8.2"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4481675264,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.iokit.hid.IOHIDEventProcessorFilter",
    "size" : 20480,
    "uuid" : "d17a743a-1e32-3f58-9e2c-82f55f34c9f1",
    "path" : "\/System\/Library\/HIDPlugins\/IOHIDEventProcessorFilter.plugin\/Contents\/MacOS\/IOHIDEventProcessorFilter",
    "name" : "IOHIDEventProcessorFilter",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4481531904,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.hid.ColourSensorFilterPlugin",
    "size" : 86016,
    "uuid" : "ea9e0391-31e6-3871-8b14-ccf2caeb95ec",
    "path" : "\/System\/Library\/HIDPlugins\/ColourSensorFilterPlugin.plugin\/Contents\/MacOS\/ColourSensorFilterPlugin",
    "name" : "ColourSensorFilterPlugin",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4481896448,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.iokit.hid.IOHIDNXEventTranslatorServiceFilter",
    "size" : 12288,
    "uuid" : "43951734-596c-3deb-9ee9-4b80ee2830c5",
    "path" : "\/System\/Library\/HIDPlugins\/IOHIDNXEventTranslatorServiceFilter.plugin\/Contents\/MacOS\/IOHIDNXEventTranslatorServiceFilter",
    "name" : "IOHIDNXEventTranslatorServiceFilter",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4481822720,
    "CFBundleShortVersionString" : "361",
    "CFBundleIdentifier" : "com.apple.iokit.plugin.AmbientLightSensorHID",
    "size" : 16384,
    "uuid" : "d5810c88-faab-36f9-9039-f93cc5f0fc33",
    "path" : "\/System\/Library\/Extensions\/AppleSMCLMU.kext\/Contents\/PlugIns\/AmbientLightSensorHID.plugin\/Contents\/MacOS\/AmbientLightSensorHID",
    "name" : "AmbientLightSensorHID",
    "CFBundleVersion" : "361"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4481740800,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.CoreRCPlugin",
    "size" : 36864,
    "uuid" : "29ac854d-98c8-334d-8d6e-5ce6f6a6c682",
    "path" : "\/System\/Library\/HIDPlugins\/SessionFilters\/CoreRCPlugin.plugin\/Contents\/MacOS\/CoreRCPlugin",
    "name" : "CoreRCPlugin",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4481482752,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.IOHIDRemoteSensorSessionFilter",
    "size" : 8192,
    "uuid" : "6a629302-3064-33a5-9084-a035ce3c1837",
    "path" : "\/System\/Library\/HIDPlugins\/SessionFilters\/IOHIDRemoteSensorSessionFilter.plugin\/Contents\/MacOS\/IOHIDRemoteSensorSessionFilter",
    "name" : "IOHIDRemoteSensorSessionFilter",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4481974272,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.IOAnalytics",
    "size" : 77824,
    "uuid" : "004cbf55-ba19-3c6f-a3fa-e8137b5f0fc6",
    "path" : "\/System\/Library\/HIDPlugins\/SessionFilters\/IOAnalytics.plugin\/Contents\/MacOS\/IOAnalytics",
    "name" : "IOAnalytics",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4481298432,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.iokit.hid.IOHIDDFREventFilter",
    "size" : 12288,
    "uuid" : "9a9ef30e-c243-35bd-8d1d-67c26ec7eb0e",
    "path" : "\/System\/Library\/HIDPlugins\/IOHIDDFREventFilter.plugin\/Contents\/MacOS\/IOHIDDFREventFilter",
    "name" : "IOHIDDFREventFilter",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4481380352,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.iokit.hid.IOHIDNXEventTranslatorSessionFilter",
    "size" : 40960,
    "uuid" : "2e19b531-bc96-3cde-8212-76ae6e45ea84",
    "path" : "\/System\/Library\/HIDPlugins\/IOHIDNXEventTranslatorSessionFilter.plugin\/Contents\/MacOS\/IOHIDNXEventTranslatorSessionFilter",
    "name" : "IOHIDNXEventTranslatorSessionFilter",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4501372928,
    "size" : 7548928,
    "uuid" : "8a2677bd-626f-36bd-b101-497695b244eb",
    "path" : "\/System\/Library\/PrivateFrameworks\/SkyLight.framework\/Versions\/A\/Resources\/CursorAsset",
    "name" : "CursorAsset"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4480430080,
    "size" : 8192,
    "uuid" : "199c252f-22bf-3ce0-877c-126b96555a61",
    "path" : "\/System\/Library\/PrivateFrameworks\/SkyLight.framework\/Versions\/A\/Resources\/WindowServer",
    "name" : "WindowServer"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703183077376,
    "size" : 241656,
    "uuid" : "c14e014c-3042-3d58-9021-a9d513db9f17",
    "path" : "\/usr\/lib\/system\/libsystem_kernel.dylib",
    "name" : "libsystem_kernel.dylib"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703183319040,
    "size" : 49152,
    "uuid" : "94607857-3850-3632-af50-37163dd339f7",
    "path" : "\/usr\/lib\/system\/libsystem_pthread.dylib",
    "name" : "libsystem_pthread.dylib"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703181926400,
    "size" : 557048,
    "uuid" : "3ac1393a-1569-381a-a323-7aa477b504c5",
    "path" : "\/usr\/lib\/system\/libsystem_c.dylib",
    "name" : "libsystem_c.dylib"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703274409984,
    "CFBundleShortVersionString" : "1.600.0",
    "CFBundleIdentifier" : "com.apple.SkyLight",
    "size" : 4599807,
    "uuid" : "17842b99-c260-30bb-bec8-d1e270c11d56",
    "path" : "\/System\/Library\/PrivateFrameworks\/SkyLight.framework\/Versions\/A\/SkyLight",
    "name" : "SkyLight"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703179599872,
    "size" : 592520,
    "uuid" : "43926ebe-f6c6-30d6-aa12-c0945b2bf6d3",
    "path" : "\/usr\/lib\/dyld",
    "name" : "dyld"
  },
  {
    "size" : 0,
    "source" : "A",
    "base" : 0,
    "uuid" : "00000000-0000-0000-0000-000000000000"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703324647424,
    "CFBundleShortVersionString" : "1.11",
    "CFBundleIdentifier" : "com.apple.QuartzCore",
    "size" : 3715070,
    "uuid" : "a43c79b7-1399-3e97-b225-9ee0fc73c68d",
    "path" : "\/System\/Library\/Frameworks\/QuartzCore.framework\/Versions\/A\/QuartzCore",
    "name" : "QuartzCore",
    "CFBundleVersion" : "1120.34.15"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703215034368,
    "CFBundleShortVersionString" : "285",
    "CFBundleIdentifier" : "com.apple.CoreDisplay",
    "size" : 1236982,
    "uuid" : "817784a6-869c-3676-ae6c-a552292238b0",
    "path" : "\/System\/Library\/Frameworks\/CoreDisplay.framework\/Versions\/A\/CoreDisplay",
    "name" : "CoreDisplay",
    "CFBundleVersion" : "285"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703181623296,
    "size" : 290802,
    "uuid" : "1b5bc7ce-4058-3461-839d-24e12c03a809",
    "path" : "\/usr\/lib\/system\/libdispatch.dylib",
    "name" : "libdispatch.dylib"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703180210176,
    "size" : 294910,
    "uuid" : "8d4dfdcc-86f5-305b-92d1-66fd33efc920",
    "path" : "\/usr\/lib\/system\/libxpc.dylib",
    "name" : "libxpc.dylib"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703546114048,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.PowerLog",
    "size" : 163840,
    "uuid" : "2c630a86-ed64-3caf-9f81-64a60ff3e42e",
    "path" : "\/System\/Library\/PrivateFrameworks\/PowerLog.framework\/Versions\/A\/PowerLog",
    "name" : "PowerLog",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703180505088,
    "size" : 106495,
    "uuid" : "e35d68c9-391f-3e37-9aaf-b7c2186ab377",
    "path" : "\/usr\/lib\/system\/libsystem_trace.dylib",
    "name" : "libsystem_trace.dylib"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703200333824,
    "CFBundleShortVersionString" : "6.9",
    "CFBundleIdentifier" : "com.apple.Foundation",
    "size" : 12812284,
    "uuid" : "c14ad813-8ea1-31fd-8197-5fd3ebe56186",
    "path" : "\/System\/Library\/Frameworks\/Foundation.framework\/Versions\/C\/Foundation",
    "name" : "Foundation",
    "CFBundleVersion" : "2602.0.902.1.403"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703435939840,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.corebrightness",
    "size" : 1060864,
    "uuid" : "f09fde2b-ab55-348a-85e9-a85f721ded79",
    "path" : "\/System\/Library\/PrivateFrameworks\/CoreBrightness.framework\/Versions\/A\/CoreBrightness",
    "name" : "CoreBrightness",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64h",
    "base" : 140703183745024,
    "CFBundleShortVersionString" : "6.9",
    "CFBundleIdentifier" : "com.apple.CoreFoundation",
    "size" : 4829181,
    "uuid" : "b125508e-b96a-3abc-b2da-cba80ed21f4b",
    "path" : "\/System\/Library\/Frameworks\/CoreFoundation.framework\/Versions\/A\/CoreFoundation",
    "name" : "CoreFoundation",
    "CFBundleVersion" : "2602.0.902.1.403"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703239864320,
    "CFBundleShortVersionString" : "2.0.2",
    "CFBundleIdentifier" : "com.apple.framework.IOKit",
    "size" : 802816,
    "uuid" : "6d34b5af-17e8-3292-970f-dd672c908f56",
    "path" : "\/System\/Library\/Frameworks\/IOKit.framework\/Versions\/A\/IOKit",
    "name" : "IOKit"
  }
],
  "sharedCache" : {
  "base" : 140703178903552,
  "size" : 25769803776,
  "uuid" : "6b48bb4a-0319-363f-b4b8-675f97dcaba4"
},
  "vmSummary" : "ReadOnly portion of Libraries: Total=463.9M resident=0K(0%) swapped_out_or_unallocated=463.9M(100%)\nWritable regions: Total=2.9G written=0K(0%) resident=0K(0%) swapped_out=0K(0%) unallocated=2.9G(100%)\n\n                                VIRTUAL   REGION \nREGION TYPE                        SIZE    COUNT (non-coalesced) \n===========                     =======  ======= \nActivity Tracing                   256K        1 \nCG backing stores                 8120K        6 \nCG framebuffers                    1.0G        9 \nCG framebuffers (reserved)       589.1M        8         reserved VM address space (unallocated)\nColorSync                           12K        2 \nKernel Alloc Once                    8K        1 \nMALLOC                             1.3G       43 \nMALLOC guard page                   48K       12 \nMach message                        12K        1 \nSTACK GUARD                       56.0M       12 \nStack                             14.1M       12 \nVM_ALLOCATE                        992K       11 \nVM_ALLOCATE (reserved)              12K        1         reserved VM address space (unallocated)\n__CGSERVER                           4K        1 \n__DATA                            18.6M      370 \n__DATA_CONST                      16.5M      242 \n__DATA_DIRTY                       656K      113 \n__FONT_DATA                        2352        1 \n__LINKEDIT                       181.5M       23 \n__OBJC_RO                         71.9M        1 \n__OBJC_RW                         2201K        2 \n__SLSERVER                           4K        1 \n__TEXT                           282.3M      396 \nmapped file                       31.3M        4 \nshared memory                      768K       16 \n===========                     =======  ======= \nTOTAL                              3.6G     1289 \nTOTAL, minus reserved VM space     3.0G     1289 \n",
  "legacyInfo" : {
  "threadTriggered" : {
    "name" : "ws_main_thread",
    "queue" : "com.apple.main-thread"
  }
},
  "logWritingSignature" : "29cc8bafac136fe7f7cba38f92a88c8b26d6baf2"
}

Model: MacBookPro16,2, BootROM 9999.999.999.999.999, 4 processors, Quad-Core Intel Core i5, 1.38 GHz, 32 GB, SMC
Graphics: Intel Iris Xe Graphics, Intel Iris Xe Graphics, Built-In
Display: Unknown Display, 1920 x 1080 (1080p FHD - Full High Definition), Main, MirrorOff, Online
Memory Module: BANK 0/DIMM 1, 16 GB, DDR4, 3200 MHz, 80CE000080CE, M471A2K43DB1-CWE
Memory Module: BANK 0/DIMM 2, 16 GB, DDR4, 3200 MHz, 80CE000080CE, M471A2K43DB1-CWE
AirPort: spairport_wireless_card_type_wifi (0x8086, 0x84), itlwm: 2.3.0 fw: 68.01d30b0c.0
Bluetooth: Version (null), 0 services, 0 devices, 0 incoming serial ports
Network Service: Wi-Fi, AirPort, en1
Network Service: Tailscale, VPN (io.tailscale.ipn.macsys), utun4
PCI Card: Intel Iris Xe Graphics, VGA-Compatible Controller, built-in
PCI Card: Tiger Lake-LP Dynamic Tuning Processor Participant, Signal processing controller, Internal@0,4,0
PCI Card: GNA Scoring Accelerator module, System peripheral, Internal@0,8,0
PCI Card: Tiger Lake-LP Thunderbolt 4 USB Controller, USB controller, Internal@0,13,0
PCI Card: Tiger Lake-LP USB 3.2 Gen 2x1 xHCI Host Controller, USB controller, Internal@0,20,0
PCI Card: Tiger Lake-LP Shared SRAM, RAM memory, Internal@0,20,2
PCI Card: Tiger Lake-LP Serial IO I2C Controller #0, Serial bus controller, Internal@0,21,0
PCI Card: Tiger Lake-LP Serial IO I2C Controller #1, Serial bus controller, Internal@0,21,1
PCI Card: Tiger Lake-LP Management Engine Interface, Communication controller, Internal@0,22,0
PCI Card: Tiger Lake-LP Smart Sound Technology Audio Controller, Multimedia audio controller, Internal@0,31,3
PCI Card: Tiger Lake-LP SMBus Controller, SMBus, Internal@0,31,4
PCI Card: Tiger Lake-LP SPI Controller, Serial bus controller, Internal@0,31,5
USB Device: USB31Bus
USB Device: Dell dock
USB Device: USB 10/100/1000 LAN
USB Device: Dell dock
USB Device: USB31Bus
USB Device: Bluetooth USB Host Controller
USB Device: Integrated_Webcam_HD
USB Device: 2.4G Mouse
USB Device: DataTraveler 3.0
USB Device: Dell dock
USB Device: Dell Dock WD19S
USB Device: Dell dock
USB Device: Dell dock
Thunderbolt Bus:

Upon Boot, currently at the frozen screen, no vnc options, the client gets stuck at downloading first frame.

Edited April 13 by Mastachief

Stezza88 · April 13

15 hours ago, jkbuha said:

I've managed to patch your Lilu fork to compile and load on Sequoia, compile NootedGreen and HookCase, force load both TGL kexts with a launchdaemon. Screen boots up without acceleration, but still on 8MB VRAM.

Here's what's working

NootedGreen V58 Release+Debug: loads, patches both TGL kexts
Patched Lilu 1.7.3 with loadKinfoPlaceholder: loads, Release build on EFI
HookCase 8.0.1: loads from /Library/Extensions
TGL FB + TGL HW: both load (via launch daemons), both in auxiliary KC
V58 real-TGL detection works: "Real TGL — native topology"
IOAccelF2 patches: OK

Not working so far:

All Intel classes at 0 instances (AppleIntelFramebufferController, IntelAccelerator, IGAccelDevice, IGHardwareGuC, IntelTGLMemoryManager)
NDRV still owns IGPU — no TGL framebuffer matched
VRAM 8MB, "No Kext Loaded" in System Profiler
No dmesg/log output on Sequoia (buffer rolls over before capture, unified log empty)

Let me know how to produce debug/logfiles and I'll attach them here.

Need these below and your lilu dump at /var/log :

log show --style syslog --predicate 'processID == 0' --last 15m --info --debug > /tmp/x.log

5 hours ago, Mastachief said:

Current error in Metal pipeline creation.

-------------------------------------
Translated Report (Full Report Below)
-------------------------------------

Process:               WindowServer [156]
Path:                  /System/Library/PrivateFrameworks/SkyLight.framework/Versions/A/Resources/WindowServer
Identifier:            WindowServer
Version:               ???
Code Type:             X86-64 (Native)
Parent Process:        launchd [1]
User ID:               88

Date/Time:             2026-04-12 23:55:32.6523 -0500
OS Version:            macOS 14.8.3 (23J220)
Report Version:        12
Anonymous UUID:        C61662F0-F760-1F32-8B2C-5C0905DEF1EA


Time Awake Since Boot: 110 seconds

System Integrity Protection: disabled

Crashed Thread:        0  ws_main_thread  Dispatch queue: com.apple.main-thread

Exception Type:        EXC_CRASH (SIGABRT)
Exception Codes:       0x0000000000000000, 0x0000000000000000

Termination Reason:    Namespace SIGNAL, Code 6 Abort trap: 6
Terminating Process:   WindowServer [156]

Application Specific Information:
abort() called


Kernel Triage:
VM - (arg = 0x0) Returned success with no page
VM - (arg = 0x0) Returned success with no page


Thread 0 Crashed:: ws_main_thread Dispatch queue: com.apple.main-thread
0   libsystem_kernel.dylib        	    0x7ff8033f7d96 __pthread_kill + 10
1   libsystem_pthread.dylib       	    0x7ff803430e51 pthread_kill + 262
2   libsystem_c.dylib             	    0x7ff803356a69 abort + 126
3   SkyLight                      	    0x7ff808cc3657 MetalShader::CopyPipelineState(MetalContext*, bool, bool) + 3209
4   SkyLight                      	    0x7ff808e5ecec MetalTiledBacking::RenderToDestination(MetalContext*, WSCompositeSourceLayer*, WSCompositeDestination*) + 676
5   SkyLight                      	    0x7ff808e697b4 MetalCompositeLayers + 41
6   SkyLight                      	    0x7ff808e6928b CompositorMetal::composite(WSCompositeSourceLayer*, WSCompositeDestination*, bool, bool) + 415
7   SkyLight                      	    0x7ff808e63f3a CompositorMetal::CompositeLayersToDestination(WSCompositeSourceLayer*, WSCompositeDestination*, unsigned long long) + 244
8   SkyLight                      	    0x7ff808cef44e WS::Displays::CDDisplay::render_update(WS::Displays::Update&, Compositor*, unsigned int, WSCompositeSourceLayer*) + 872
9   SkyLight                      	    0x7ff808dac3ae WS::Updater::UpdateDisplays(CGXConnection*, bool, std::__1::vector<std::__1::shared_ptr<WS::Displays::Display>, std::__1::allocator<std::__1::shared_ptr<WS::Displays::Display>>>) + 21295
10  SkyLight                      	    0x7ff808da7053 CGXUpdateDisplay + 91
11  SkyLight                      	    0x7ff808d9ad27 update_display_callback(void*, double) + 1825
12  SkyLight                      	    0x7ff808e39ab7 run_timer_pass + 556
13  SkyLight                      	    0x7ff808e39baa non_coalesced_timer_handler + 16
14  SkyLight                      	    0x7ff808e78f70 post_port_data + 269
15  SkyLight                      	    0x7ff808e78cbb CGXRunOneServicesPass + 1696
16  SkyLight                      	    0x7ff808e79662 server_loop + 98
17  SkyLight                      	    0x7ff808e794bc SLXServer + 1265
18  WindowServer                  	       0x10b0e048c 0x10b0df000 + 5260
19  dyld                          	    0x7ff8030a5345 start + 1909

Thread 1:: com.apple.coreanimation.render-server
0   libsystem_kernel.dylib        	    0x7ff8033f106e mach_msg2_trap + 10
1   libsystem_kernel.dylib        	    0x7ff8033ff858 mach_msg2_internal + 84
2   libsystem_kernel.dylib        	    0x7ff8033f8158 mach_msg_overwrite + 653
3   libsystem_kernel.dylib        	    0x7ff8033f135d mach_msg + 19
4   QuartzCore                    	    0x7ff80bb3bc3e CA::Render::Server::server_thread(void*) + 664
5   QuartzCore                    	    0x7ff80bb3b993 thread_fun(void*) + 25
6   libsystem_pthread.dylib       	    0x7ff80343111f _pthread_start + 99
7   libsystem_pthread.dylib       	    0x7ff80342cac3 thread_start + 15

Thread 2::  Dispatch queue: com.apple.VirtualDisplayListener
0   libsystem_kernel.dylib        	    0x7ff8033f106e mach_msg2_trap + 10
1   libsystem_kernel.dylib        	    0x7ff8033ff858 mach_msg2_internal + 84
2   libsystem_kernel.dylib        	    0x7ff8033f8158 mach_msg_overwrite + 653
3   libsystem_kernel.dylib        	    0x7ff8033fa156 mach_msg_server_once + 266
4   CoreDisplay                   	    0x7ff80527b95d -[VirtualDisplayListener rx] + 77
5   libdispatch.dylib             	    0x7ff80328eac6 _dispatch_call_block_and_release + 12
6   libdispatch.dylib             	    0x7ff80328fdbc _dispatch_client_callout + 8
7   libdispatch.dylib             	    0x7ff803295eff _dispatch_lane_serial_drain + 800
8   libdispatch.dylib             	    0x7ff803296997 _dispatch_lane_invoke + 377
9   libdispatch.dylib             	    0x7ff8032a0414 _dispatch_root_queue_drain_deferred_wlh + 271
10  libdispatch.dylib             	    0x7ff80329fd2a _dispatch_workloop_worker_thread + 451
11  libsystem_pthread.dylib       	    0x7ff80342db18 _pthread_wqthread + 327
12  libsystem_pthread.dylib       	    0x7ff80342caaf start_wqthread + 15

Thread 3::  Dispatch queue: PLClientLoggingAdaptivePermissionWorkQueue
0   libsystem_kernel.dylib        	    0x7ff8033f106e mach_msg2_trap + 10
1   libsystem_kernel.dylib        	    0x7ff8033ff858 mach_msg2_internal + 84
2   libsystem_kernel.dylib        	    0x7ff8033f8158 mach_msg_overwrite + 653
3   libsystem_kernel.dylib        	    0x7ff8033f135d mach_msg + 19
4   libdispatch.dylib             	    0x7ff8032a7661 _dispatch_mach_send_and_wait_for_reply + 521
5   libdispatch.dylib             	    0x7ff8032a7a65 dispatch_mach_send_with_result_and_wait_for_reply + 50
6   libxpc.dylib                  	    0x7ff80313fb8d xpc_connection_send_message_with_reply_sync + 261
7   PowerLog                      	    0x7ff818e2b671 -[PLClientLogger xpcSendMessageWithReply:withClientID:withKey:withPayload:] + 251
8   PowerLog                      	    0x7ff818e2a96c __68-[PLClientLogger permissionForClientID:withKey:withType:completion:]_block_invoke + 133
9   libdispatch.dylib             	    0x7ff80328eac6 _dispatch_call_block_and_release + 12
10  libdispatch.dylib             	    0x7ff80328fdbc _dispatch_client_callout + 8
11  libdispatch.dylib             	    0x7ff803295eff _dispatch_lane_serial_drain + 800
12  libdispatch.dylib             	    0x7ff803296997 _dispatch_lane_invoke + 377
13  libdispatch.dylib             	    0x7ff8032a0414 _dispatch_root_queue_drain_deferred_wlh + 271
14  libdispatch.dylib             	    0x7ff80329fd2a _dispatch_workloop_worker_thread + 451
15  libsystem_pthread.dylib       	    0x7ff80342db18 _pthread_wqthread + 327
16  libsystem_pthread.dylib       	    0x7ff80342caaf start_wqthread + 15

Thread 4::  Dispatch queue: com.apple.libtrace.state.block-list
0   libsystem_kernel.dylib        	    0x7ff8033f2826 __ulock_wait + 10
1   libdispatch.dylib             	    0x7ff8032905d4 _dlock_wait + 46
2   libdispatch.dylib             	    0x7ff80329045c _dispatch_thread_event_wait_slow + 40
3   libdispatch.dylib             	    0x7ff80329cfb8 __DISPATCH_WAIT_FOR_QUEUE__ + 307
4   libdispatch.dylib             	    0x7ff80329cbe4 _dispatch_sync_f_slow + 175
5   libsystem_trace.dylib         	    0x7ff803188099 ___os_state_request_for_self_block_invoke + 375
6   libdispatch.dylib             	    0x7ff80328eac6 _dispatch_call_block_and_release + 12
7   libdispatch.dylib             	    0x7ff80328fdbc _dispatch_client_callout + 8
8   libdispatch.dylib             	    0x7ff803295eff _dispatch_lane_serial_drain + 800
9   libdispatch.dylib             	    0x7ff803296997 _dispatch_lane_invoke + 377
10  libdispatch.dylib             	    0x7ff8032a0414 _dispatch_root_queue_drain_deferred_wlh + 271
11  libdispatch.dylib             	    0x7ff80329fd2a _dispatch_workloop_worker_thread + 451
12  libsystem_pthread.dylib       	    0x7ff80342db18 _pthread_wqthread + 327
13  libsystem_pthread.dylib       	    0x7ff80342caaf start_wqthread + 15

Thread 5:
0   libsystem_pthread.dylib       	    0x7ff80342caa0 start_wqthread + 0

Thread 6::  Dispatch queue: com.apple.CoreBrightness.BSCI serial
0   libsystem_kernel.dylib        	    0x7ff8033f106e mach_msg2_trap + 10
1   libsystem_kernel.dylib        	    0x7ff8033ff858 mach_msg2_internal + 84
2   libsystem_kernel.dylib        	    0x7ff8033f8158 mach_msg_overwrite + 653
3   libsystem_kernel.dylib        	    0x7ff8033f135d mach_msg + 19
4   libdispatch.dylib             	    0x7ff8032a7661 _dispatch_mach_send_and_wait_for_reply + 521
5   libdispatch.dylib             	    0x7ff8032a7a65 dispatch_mach_send_with_result_and_wait_for_reply + 50
6   libxpc.dylib                  	    0x7ff80313fb8d xpc_connection_send_message_with_reply_sync + 261
7   Foundation                    	    0x7ff804482fd0 __NSXPCCONNECTION_IS_WAITING_FOR_A_SYNCHRONOUS_REPLY__ + 9
8   Foundation                    	    0x7ff804480f56 -[NSXPCConnection _sendInvocation:orArguments:count:methodSignature:selector:withProxy:] + 3103
9   Foundation                    	    0x7ff80448758a -[NSXPCConnection _sendSelector:withProxy:arg1:arg2:] + 132
10  Foundation                    	    0x7ff8044874b7 _NSXPCDistantObjectSimpleMessageSend2 + 63
11  CoreBrightness                	    0x7ff812519133 __53-[BrightnessSystemClientInternal copyPropertyForKey:]_block_invoke + 89
12  libdispatch.dylib             	    0x7ff803293050 _dispatch_block_sync_invoke + 301
13  libdispatch.dylib             	    0x7ff80328fdbc _dispatch_client_callout + 8
14  libdispatch.dylib             	    0x7ff80329cd3c _dispatch_lane_barrier_sync_invoke_and_complete + 60
15  libdispatch.dylib             	    0x7ff803293f0f _dispatch_sync_block_with_privdata + 410
16  CoreBrightness                	    0x7ff812518dfe -[BrightnessSystemClientInternal copyPropertyForKey:] + 233
17  CoreBrightness                	    0x7ff812583b53 -[CBBlueLightClient init] + 98
18  SkyLight                      	    0x7ff808c9b232 invocation function for block in get_shared_blue_light_client() + 188
19  libdispatch.dylib             	    0x7ff80328fdbc _dispatch_client_callout + 8
20  libdispatch.dylib             	    0x7ff80329104e _dispatch_once_callout + 20
21  SkyLight                      	    0x7ff808c9afd3 __PKGInitializeAppearanceTransitions_block_invoke + 61
22  libdispatch.dylib             	    0x7ff80328eac6 _dispatch_call_block_and_release + 12
23  libdispatch.dylib             	    0x7ff80328fdbc _dispatch_client_callout + 8
24  libdispatch.dylib             	    0x7ff803295eff _dispatch_lane_serial_drain + 800
25  libdispatch.dylib             	    0x7ff803296997 _dispatch_lane_invoke + 377
26  libdispatch.dylib             	    0x7ff8032a0414 _dispatch_root_queue_drain_deferred_wlh + 271
27  libdispatch.dylib             	    0x7ff80329fd2a _dispatch_workloop_worker_thread + 451
28  libsystem_pthread.dylib       	    0x7ff80342db18 _pthread_wqthread + 327
29  libsystem_pthread.dylib       	    0x7ff80342caaf start_wqthread + 15

Thread 7:: IOHIDService - RunLoopCompatibilityThread
0   libsystem_kernel.dylib        	    0x7ff8033f106e mach_msg2_trap + 10
1   libsystem_kernel.dylib        	    0x7ff8033ff858 mach_msg2_internal + 84
2   libsystem_kernel.dylib        	    0x7ff8033f8158 mach_msg_overwrite + 653
3   libsystem_kernel.dylib        	    0x7ff8033f135d mach_msg + 19
4   CoreFoundation                	    0x7ff80350f035 __CFRunLoopServiceMachPort + 143
5   CoreFoundation                	    0x7ff80350daa5 __CFRunLoopRun + 1371
6   CoreFoundation                	    0x7ff80350cf82 CFRunLoopRunSpecific + 557
7   CoreFoundation                	    0x7ff803588a0e CFRunLoopRun + 40
8   IOKit                         	    0x7ff806a723be __IOHIDServiceRunLoopCompatibilityThread + 307
9   libsystem_pthread.dylib       	    0x7ff80343111f _pthread_start + 99
10  libsystem_pthread.dylib       	    0x7ff80342cac3 thread_start + 15

Thread 8:
0   libsystem_kernel.dylib        	    0x7ff8033f106e mach_msg2_trap + 10
1   libsystem_kernel.dylib        	    0x7ff8033ff858 mach_msg2_internal + 84
2   libsystem_kernel.dylib        	    0x7ff8033f8158 mach_msg_overwrite + 653
3   libsystem_kernel.dylib        	    0x7ff8033f135d mach_msg + 19
4   CoreDisplay                   	    0x7ff805299ca0 CoreDisplay::Mach::Message::Receive(unsigned int) + 80
5   CoreDisplay                   	    0x7ff80535637b CoreDisplay::Mach::Server::Start() + 105
6   CoreDisplay                   	    0x7ff805356444 void* std::__1::__thread_proxy[abi:ue170006]<std::__1::tuple<std::__1::unique_ptr<std::__1::__thread_struct, std::__1::default_delete<std::__1::__thread_struct>>, void (CoreDisplay::Mach::Server::*)(), CoreDisplay::Mach::Server*>>(void*) + 79
7   libsystem_pthread.dylib       	    0x7ff80343111f _pthread_start + 99
8   libsystem_pthread.dylib       	    0x7ff80342cac3 thread_start + 15

Thread 9:
0   libsystem_pthread.dylib       	    0x7ff80342caa0 start_wqthread + 0

Thread 10:
0   libsystem_pthread.dylib       	    0x7ff80342caa0 start_wqthread + 0

Thread 11:: com.apple.windowserver.root_queue
0   libsystem_kernel.dylib        	    0x7ff8033f1002 semaphore_timedwait_trap + 10
1   libdispatch.dylib             	    0x7ff80329030d _dispatch_sema4_timedwait + 73
2   libdispatch.dylib             	    0x7ff803290759 _dispatch_semaphore_wait_slow + 58
3   libdispatch.dylib             	    0x7ff80329eee1 _dispatch_worker_thread + 324
4   libsystem_pthread.dylib       	    0x7ff80343111f _pthread_start + 99
5   libsystem_pthread.dylib       	    0x7ff80342cac3 thread_start + 15


Thread 0 crashed with X86 Thread State (64-bit):
  rax: 0x0000000000000000  rbx: 0x0000000000000006  rcx: 0x00007ff7b4e0ea38  rdx: 0x0000000000000000
  rdi: 0x0000000000000103  rsi: 0x0000000000000006  rbp: 0x00007ff7b4e0ea60  rsp: 0x00007ff7b4e0ea38
   r8: 0x00007ff844c11390   r9: 0x0000000000000500  r10: 0x0000000000000000  r11: 0x0000000000000246
  r12: 0x0000000000000103  r13: 0x00007ff82346c292  r14: 0x00007ff846971800  r15: 0x0000000000000016
  rip: 0x00007ff8033f7d96  rfl: 0x0000000000000246  cr2: 0x0000000000000000

Logical CPU:     0
Error Code:      0x02000148
Trap Number:     133


Binary Images:
       0x10b52b000 -        0x10b53efff TouchBarEvent.bundle (*) <9347c308-5d42-3576-919f-e3c6412920d7> /System/Library/CoreServices/TouchBarEvent.bundle
       0x1279f4000 -        0x127e73fff com.apple.driver.AppleIntelTGLGraphicsMTLDriver (16.0.32) <2b849e57-ac6a-3216-a67b-38e080603585> /System/Library/Extensions/AppleIntelTGLGraphicsMTLDriver.bundle/Contents/MacOS/AppleIntelTGLGraphicsMTLDriver
       0x10b36f000 -        0x10b36ffff com.apple.driver.IOAccelerator2D (481.40.2) <9156b710-fd38-3f08-853d-4815e994e497> /System/Library/Extensions/IOAccelerator2D.plugin/Contents/MacOS/IOAccelerator2D
       0x10b327000 -        0x10b32bfff com.apple.KeyboardTelemetryServiceFilter (1.0) <5b63b15c-8384-3842-b2fc-610d3c111571> /System/Library/HIDPlugins/ServiceFilters/KeyboardTelemetryServiceFilter.plugin/Contents/MacOS/KeyboardTelemetryServiceFilter
       0x10b2c4000 -        0x10b2d0fff com.apple.iokit.hid.IOHIDKeyboardFilter (1.0) <0a6f1836-9411-3cff-b4d4-3601951b8f68> /System/Library/HIDPlugins/IOHIDKeyboardFilter.plugin/Contents/MacOS/IOHIDKeyboardFilter
       0x10b2ee000 -        0x10b2f1fff com.apple.IOHIDEventServicePlugin (1.0) <e98a8bdc-ceb0-353c-a792-ac43b4c156ec> /System/Library/HIDPlugins/ServicePlugins/IOHIDEventServicePlugin.plugin/Contents/MacOS/IOHIDEventServicePlugin
       0x10b2e2000 -        0x10b2e3fff com.apple.iokit.IOHIDNXEventRouter (2.0.0) <c5776ed1-edf2-32dd-931d-0c9af0baa570> /System/Library/Extensions/IOHIDFamily.kext/Contents/PlugIns/IOHIDNXEventRouter.plugin/Contents/MacOS/IOHIDNXEventRouter
       0x10b290000 -        0x10b29afff com.apple.iokit.hid.IOHIDPointerScrollFilter (1.0) <fffa6ff3-aca0-336c-a683-3d6ad2aec591> /System/Library/HIDPlugins/IOHIDPointerScrollFilter.plugin/Contents/MacOS/IOHIDPointerScrollFilter
       0x10b641000 -        0x10b6f8fff com.apple.universalcontrol.servicefilter (1.0) <3fb727a2-1bf5-3eca-8eb4-83cba783ec3e> /System/Library/HIDPlugins/ServiceFilters/UniversalControlServiceFilter.plugin/Contents/MacOS/UniversalControlServiceFilter
       0x10b2b2000 -        0x10b2b4fff com.apple.AppleHIDBluetoothFilter (1.0) <1ec1be0b-acc8-3dd0-a1ad-44224ab7a799> /System/Library/HIDPlugins/ServiceFilters/AppleHIDBluetoothFilter.plugin/Contents/MacOS/AppleHIDBluetoothFilter
       0x10b20f000 -        0x10b213fff com.apple.iokit.hid.IOHIDEventProcessorFilter (1.0) <d17a743a-1e32-3f58-9e2c-82f55f34c9f1> /System/Library/HIDPlugins/IOHIDEventProcessorFilter.plugin/Contents/MacOS/IOHIDEventProcessorFilter
       0x10b1ec000 -        0x10b200fff com.apple.hid.ColourSensorFilterPlugin (1.0) <ea9e0391-31e6-3871-8b14-ccf2caeb95ec> /System/Library/HIDPlugins/ColourSensorFilterPlugin.plugin/Contents/MacOS/ColourSensorFilterPlugin
       0x10b245000 -        0x10b247fff com.apple.iokit.hid.IOHIDNXEventTranslatorServiceFilter (1.0) <43951734-596c-3deb-9ee9-4b80ee2830c5> /System/Library/HIDPlugins/IOHIDNXEventTranslatorServiceFilter.plugin/Contents/MacOS/IOHIDNXEventTranslatorServiceFilter
       0x10b233000 -        0x10b236fff com.apple.iokit.plugin.AmbientLightSensorHID (361) <d5810c88-faab-36f9-9039-f93cc5f0fc33> /System/Library/Extensions/AppleSMCLMU.kext/Contents/PlugIns/AmbientLightSensorHID.plugin/Contents/MacOS/AmbientLightSensorHID
       0x10b21f000 -        0x10b227fff com.apple.CoreRCPlugin (1.0) <29ac854d-98c8-334d-8d6e-5ce6f6a6c682> /System/Library/HIDPlugins/SessionFilters/CoreRCPlugin.plugin/Contents/MacOS/CoreRCPlugin
       0x10b1e0000 -        0x10b1e1fff com.apple.IOHIDRemoteSensorSessionFilter (1.0) <6a629302-3064-33a5-9084-a035ce3c1837> /System/Library/HIDPlugins/SessionFilters/IOHIDRemoteSensorSessionFilter.plugin/Contents/MacOS/IOHIDRemoteSensorSessionFilter
       0x10b258000 -        0x10b26afff com.apple.IOAnalytics (1.0) <004cbf55-ba19-3c6f-a3fa-e8137b5f0fc6> /System/Library/HIDPlugins/SessionFilters/IOAnalytics.plugin/Contents/MacOS/IOAnalytics
       0x10b1b3000 -        0x10b1b5fff com.apple.iokit.hid.IOHIDDFREventFilter (1.0) <9a9ef30e-c243-35bd-8d1d-67c26ec7eb0e> /System/Library/HIDPlugins/IOHIDDFREventFilter.plugin/Contents/MacOS/IOHIDDFREventFilter
       0x10b1c7000 -        0x10b1d0fff com.apple.iokit.hid.IOHIDNXEventTranslatorSessionFilter (1.0) <2e19b531-bc96-3cde-8212-76ae6e45ea84> /System/Library/HIDPlugins/IOHIDNXEventTranslatorSessionFilter.plugin/Contents/MacOS/IOHIDNXEventTranslatorSessionFilter
       0x10c4d8000 -        0x10cc0afff CursorAsset (*) <8a2677bd-626f-36bd-b101-497695b244eb> /System/Library/PrivateFrameworks/SkyLight.framework/Versions/A/Resources/CursorAsset
       0x10b0df000 -        0x10b0e0fff WindowServer (*) <199c252f-22bf-3ce0-877c-126b96555a61> /System/Library/PrivateFrameworks/SkyLight.framework/Versions/A/Resources/WindowServer
    0x7ff8033f0000 -     0x7ff80342aff7 libsystem_kernel.dylib (*) <c14e014c-3042-3d58-9021-a9d513db9f17> /usr/lib/system/libsystem_kernel.dylib
    0x7ff80342b000 -     0x7ff803436fff libsystem_pthread.dylib (*) <94607857-3850-3632-af50-37163dd339f7> /usr/lib/system/libsystem_pthread.dylib
    0x7ff8032d7000 -     0x7ff80335eff7 libsystem_c.dylib (*) <3ac1393a-1569-381a-a323-7aa477b504c5> /usr/lib/system/libsystem_c.dylib
    0x7ff808b0a000 -     0x7ff808f6cffe com.apple.SkyLight (1.600.0) <17842b99-c260-30bb-bec8-d1e270c11d56> /System/Library/PrivateFrameworks/SkyLight.framework/Versions/A/SkyLight
    0x7ff80309f000 -     0x7ff80312fa87 dyld (*) <43926ebe-f6c6-30d6-aa12-c0945b2bf6d3> /usr/lib/dyld
               0x0 - 0xffffffffffffffff ??? (*) <00000000-0000-0000-0000-000000000000> ???
    0x7ff80baf3000 -     0x7ff80be7dffd com.apple.QuartzCore (1.11) <a43c79b7-1399-3e97-b225-9ee0fc73c68d> /System/Library/Frameworks/QuartzCore.framework/Versions/A/QuartzCore
    0x7ff80526a000 -     0x7ff805397ff5 com.apple.CoreDisplay (285) <817784a6-869c-3676-ae6c-a552292238b0> /System/Library/Frameworks/CoreDisplay.framework/Versions/A/CoreDisplay
    0x7ff80328d000 -     0x7ff8032d3ff1 libdispatch.dylib (*) <1b5bc7ce-4058-3461-839d-24e12c03a809> /usr/lib/system/libdispatch.dylib
    0x7ff803134000 -     0x7ff80317bffd libxpc.dylib (*) <8d4dfdcc-86f5-305b-92d1-66fd33efc920> /usr/lib/system/libxpc.dylib
    0x7ff818e28000 -     0x7ff818e4ffff com.apple.PowerLog (1.0) <2c630a86-ed64-3caf-9f81-64a60ff3e42e> /System/Library/PrivateFrameworks/PowerLog.framework/Versions/A/PowerLog
    0x7ff80317c000 -     0x7ff803195ffe libsystem_trace.dylib (*) <e35d68c9-391f-3e37-9aaf-b7c2186ab377> /usr/lib/system/libsystem_trace.dylib
    0x7ff804465000 -     0x7ff80509cffb com.apple.Foundation (6.9) <c14ad813-8ea1-31fd-8197-5fd3ebe56186> /System/Library/Frameworks/Foundation.framework/Versions/C/Foundation
    0x7ff812516000 -     0x7ff812618fff com.apple.corebrightness (1.0) <f09fde2b-ab55-348a-85e9-a85f721ded79> /System/Library/PrivateFrameworks/CoreBrightness.framework/Versions/A/CoreBrightness
    0x7ff803493000 -     0x7ff80392dffc com.apple.CoreFoundation (6.9) <b125508e-b96a-3abc-b2da-cba80ed21f4b> /System/Library/Frameworks/CoreFoundation.framework/Versions/A/CoreFoundation
    0x7ff806a18000 -     0x7ff806adbfff com.apple.framework.IOKit (2.0.2) <6d34b5af-17e8-3292-970f-dd672c908f56> /System/Library/Frameworks/IOKit.framework/Versions/A/IOKit

External Modification Summary:
  Calls made by other processes targeting this process:
    task_for_pid: 0
    thread_create: 0
    thread_set_state: 0
  Calls made by this process:
    task_for_pid: 0
    thread_create: 0
    thread_set_state: 0
  Calls made by all processes on this machine:
    task_for_pid: 0
    thread_create: 0
    thread_set_state: 0

VM Region Summary:
ReadOnly portion of Libraries: Total=463.9M resident=0K(0%) swapped_out_or_unallocated=463.9M(100%)
Writable regions: Total=2.9G written=0K(0%) resident=0K(0%) swapped_out=0K(0%) unallocated=2.9G(100%)

                                VIRTUAL   REGION
REGION TYPE                        SIZE    COUNT (non-coalesced)
===========                     =======  =======
Activity Tracing                   256K        1
CG backing stores                 8120K        6
CG framebuffers                    1.0G        9
CG framebuffers (reserved)       589.1M        8         reserved VM address space (unallocated)
ColorSync                           12K        2
Kernel Alloc Once                    8K        1
MALLOC                             1.3G       43
MALLOC guard page                   48K       12
Mach message                        12K        1
STACK GUARD                       56.0M       12
Stack                             14.1M       12
VM_ALLOCATE                        992K       11
VM_ALLOCATE (reserved)              12K        1         reserved VM address space (unallocated)
__CGSERVER                           4K        1
__DATA                            18.6M      370
__DATA_CONST                      16.5M      242
__DATA_DIRTY                       656K      113
__FONT_DATA                        2352        1
__LINKEDIT                       181.5M       23
__OBJC_RO                         71.9M        1
__OBJC_RW                         2201K        2
__SLSERVER                           4K        1
__TEXT                           282.3M      396
mapped file                       31.3M        4
shared memory                      768K       16
===========                     =======  =======
TOTAL                              3.6G     1289
TOTAL, minus reserved VM space     3.0G     1289



-----------
Full Report
-----------

{"app_name":"WindowServer","timestamp":"2026-04-12 23:55:36.00 -0500","app_version":"","slice_uuid":"199c252f-22bf-3ce0-877c-126b96555a61","build_version":"","platform":1,"share_with_app_devs":0,"is_first_party":1,"bug_type":"309","os_version":"macOS 14.8.3 (23J220)","roots_installed":0,"incident_id":"929E3F9B-B8CD-41B9-BE4E-45D167D53951","name":"WindowServer"}
{
  "uptime" : 110,
  "procRole" : "Graphics",
  "version" : 2,
  "userID" : 88,
  "deployVersion" : 210,
  "modelCode" : "MacBookPro16,2",
  "coalitionID" : 141,
  "osVersion" : {
    "train" : "macOS 14.8.3",
    "build" : "23J220",
    "releaseType" : "User"
  },
  "captureTime" : "2026-04-12 23:55:32.6523 -0500",
  "codeSigningMonitor" : 0,
  "incident" : "929E3F9B-B8CD-41B9-BE4E-45D167D53951",
  "pid" : 156,
  "cpuType" : "X86-64",
  "roots_installed" : 0,
  "bug_type" : "309",
  "procLaunch" : "2026-04-12 23:54:00.4306 -0500",
  "procStartAbsTime" : 24712200816,
  "procExitAbsTime" : 116902853318,
  "procName" : "WindowServer",
  "procPath" : "\/System\/Library\/PrivateFrameworks\/SkyLight.framework\/Versions\/A\/Resources\/WindowServer",
  "parentProc" : "launchd",
  "parentPid" : 1,
  "coalitionName" : "com.apple.WindowServer",
  "crashReporterKey" : "C61662F0-F760-1F32-8B2C-5C0905DEF1EA",
  "throttleTimeout" : 10,
  "codeSigningID" : "com.apple.WindowServer",
  "codeSigningTeamID" : "",
  "codeSigningFlags" : 570518017,
  "codeSigningValidationCategory" : 1,
  "codeSigningTrustLevel" : 4294967295,
  "sip" : "disabled",
  "exception" : {"codes":"0x0000000000000000, 0x0000000000000000","rawCodes":[0,0],"type":"EXC_CRASH","signal":"SIGABRT"},
  "termination" : {"flags":0,"code":6,"namespace":"SIGNAL","indicator":"Abort trap: 6","byProc":"WindowServer","byPid":156},
  "ktriageinfo" : "VM - (arg = 0x0) Returned success with no page\nVM - (arg = 0x0) Returned success with no page\n",
  "asi" : {"libsystem_c.dylib":["abort() called"]},
  "extMods" : {"caller":{"thread_create":0,"thread_set_state":0,"task_for_pid":0},"system":{"thread_create":0,"thread_set_state":0,"task_for_pid":0},"targeted":{"thread_create":0,"thread_set_state":0,"task_for_pid":0},"warnings":0},
  "faultingThread" : 0,
  "threads" : [{"threadState":{"r13":{"value":140703720456850,"objc-selector":"name"},"rax":{"value":0},"rflags":{"value":582},"cpu":{"value":0},"r14":{"value":140704312924160,"symbolLocation":0,"symbol":"_main_thread"},"rsi":{"value":6},"r8":{"value":140704282121104,"symbolLocation":0,"symbol":"_os_log_current_test_callback"},"cr2":{"value":0},"rdx":{"value":0},"r10":{"value":0},"r9":{"value":1280},"r15":{"value":22},"rbx":{"value":6},"trap":{"value":133},"err":{"value":33554760},"r11":{"value":582},"rip":{"value":140703183109526,"matchesCrashFrame":1},"rbp":{"value":140701868288608},"rsp":{"value":140701868288568},"r12":{"value":259},"rcx":{"value":140701868288568},"flavor":"x86_THREAD_STATE","rdi":{"value":259}},"id":809,"triggered":true,"name":"ws_main_thread","queue":"com.apple.main-thread","frames":[{"imageOffset":32150,"symbol":"__pthread_kill","symbolLocation":10,"imageIndex":21},{"imageOffset":24145,"symbol":"pthread_kill","symbolLocation":262,"imageIndex":22},{"imageOffset":522857,"symbol":"abort","symbolLocation":126,"imageIndex":23},{"imageOffset":1807959,"symbol":"MetalShader::CopyPipelineState(MetalContext*, bool, bool)","symbolLocation":3209,"imageIndex":24},{"imageOffset":3493100,"symbol":"MetalTiledBacking::RenderToDestination(MetalContext*, WSCompositeSourceLayer*, WSCompositeDestination*)","symbolLocation":676,"imageIndex":24},{"imageOffset":3536820,"symbol":"MetalCompositeLayers","symbolLocation":41,"imageIndex":24},{"imageOffset":3535499,"symbol":"CompositorMetal::composite(WSCompositeSourceLayer*, WSCompositeDestination*, bool, bool)","symbolLocation":415,"imageIndex":24},{"imageOffset":3514170,"symbol":"CompositorMetal::CompositeLayersToDestination(WSCompositeSourceLayer*, WSCompositeDestination*, unsigned long long)","symbolLocation":244,"imageIndex":24},{"imageOffset":1987662,"symbol":"WS::Displays::CDDisplay::render_update(WS::Displays::Update&, Compositor*, unsigned int, WSCompositeSourceLayer*)","symbolLocation":872,"imageIndex":24},{"imageOffset":2761646,"symbol":"WS::Updater::UpdateDisplays(CGXConnection*, bool, std::__1::vector<std::__1::shared_ptr<WS::Displays::Display>, std::__1::allocator<std::__1::shared_ptr<WS::Displays::Display>>>)","symbolLocation":21295,"imageIndex":24},{"imageOffset":2740307,"symbol":"CGXUpdateDisplay","symbolLocation":91,"imageIndex":24},{"imageOffset":2690343,"symbol":"update_display_callback(void*, double)","symbolLocation":1825,"imageIndex":24},{"imageOffset":3340983,"symbol":"run_timer_pass","symbolLocation":556,"imageIndex":24},{"imageOffset":3341226,"symbol":"non_coalesced_timer_handler","symbolLocation":16,"imageIndex":24},{"imageOffset":3600240,"symbol":"post_port_data","symbolLocation":269,"imageIndex":24},{"imageOffset":3599547,"symbol":"CGXRunOneServicesPass","symbolLocation":1696,"imageIndex":24},{"imageOffset":3602018,"symbol":"server_loop","symbolLocation":98,"imageIndex":24},{"imageOffset":3601596,"symbol":"SLXServer","symbolLocation":1265,"imageIndex":24},{"imageOffset":5260,"imageIndex":20},{"imageOffset":25413,"symbol":"start","symbolLocation":1909,"imageIndex":25}]},{"id":2241,"name":"com.apple.coreanimation.render-server","threadState":{"r13":{"value":21525170190},"rax":{"value":268451845},"rflags":{"value":514},"cpu":{"value":0},"r14":{"value":2},"rsi":{"value":21525170190},"r8":{"value":0},"cr2":{"value":0},"rdx":{"value":8589934592},"r10":{"value":0},"r9":{"value":43993350012928},"r15":{"value":43993350012928},"rbx":{"value":123145536088800},"trap":{"value":133},"err":{"value":16777263},"r11":{"value":514},"rip":{"value":140703183081582},"rbp":{"value":123145536088640},"rsp":{"value":123145536088536},"r12":{"value":0},"rcx":{"value":123145536088536},"flavor":"x86_THREAD_STATE","rdi":{"value":123145536088800}},"frames":[{"imageOffset":4206,"symbol":"mach_msg2_trap","symbolLocation":10,"imageIndex":21},{"imageOffset":63576,"symbol":"mach_msg2_internal","symbolLocation":84,"imageIndex":21},{"imageOffset":33112,"symbol":"mach_msg_overwrite","symbolLocation":653,"imageIndex":21},{"imageOffset":4957,"symbol":"mach_msg","symbolLocation":19,"imageIndex":21},{"imageOffset":298046,"symbol":"CA::Render::Server::server_thread(void*)","symbolLocation":664,"imageIndex":27},{"imageOffset":297363,"symbol":"thread_fun(void*)","symbolLocation":25,"imageIndex":27},{"imageOffset":24863,"symbol":"_pthread_start","symbolLocation":99,"imageIndex":22},{"imageOffset":6851,"symbol":"thread_start","symbolLocation":15,"imageIndex":22}]},{"id":2249,"threadState":{"r13":{"value":21525170178},"rax":{"value":268451845},"rflags":{"value":514},"cpu":{"value":0},"r14":{"value":2},"rsi":{"value":21525170178},"r8":{"value":0},"cr2":{"value":0},"rdx":{"value":8589934592},"r10":{"value":0},"r9":{"value":344160024395776},"r15":{"value":344160024395776},"rbx":{"value":123145536640832},"trap":{"value":133},"err":{"value":16777263},"r11":{"value":514},"rip":{"value":140703183081582},"rbp":{"value":123145536640672},"rsp":{"value":123145536640568},"r12":{"value":0},"rcx":{"value":123145536640568},"flavor":"x86_THREAD_STATE","rdi":{"value":123145536640832}},"queue":"com.apple.VirtualDisplayListener","frames":[{"imageOffset":4206,"symbol":"mach_msg2_trap","symbolLocation":10,"imageIndex":21},{"imageOffset":63576,"symbol":"mach_msg2_internal","symbolLocation":84,"imageIndex":21},{"imageOffset":33112,"symbol":"mach_msg_overwrite","symbolLocation":653,"imageIndex":21},{"imageOffset":41302,"symbol":"mach_msg_server_once","symbolLocation":266,"imageIndex":21},{"imageOffset":72029,"symbol":"-[VirtualDisplayListener rx]","symbolLocation":77,"imageIndex":28},{"imageOffset":6854,"symbol":"_dispatch_call_block_and_release","symbolLocation":12,"imageIndex":29},{"imageOffset":11708,"symbol":"_dispatch_client_callout","symbolLocation":8,"imageIndex":29},{"imageOffset":36607,"symbol":"_dispatch_lane_serial_drain","symbolLocation":800,"imageIndex":29},{"imageOffset":39319,"symbol":"_dispatch_lane_invoke","symbolLocation":377,"imageIndex":29},{"imageOffset":78868,"symbol":"_dispatch_root_queue_drain_deferred_wlh","symbolLocation":271,"imageIndex":29},{"imageOffset":77098,"symbol":"_dispatch_workloop_worker_thread","symbolLocation":451,"imageIndex":29},{"imageOffset":11032,"symbol":"_pthread_wqthread","symbolLocation":327,"imageIndex":22},{"imageOffset":6831,"symbol":"start_wqthread","symbolLocation":15,"imageIndex":22}]},{"id":2255,"threadState":{"r13":{"value":17297326606},"rax":{"value":268451845},"rflags":{"value":514},"cpu":{"value":0},"r14":{"value":16384},"rsi":{"value":17297326606},"r8":{"value":7812748569497375763},"cr2":{"value":0},"rdx":{"value":1702259048},"r10":{"value":867967677400964355},"r9":{"value":57187489546240},"r15":{"value":57187489546240},"rbx":{"value":123145537160576},"trap":{"value":133},"err":{"value":16777263},"r11":{"value":514},"rip":{"value":140703183081582},"rbp":{"value":123145537160208},"rsp":{"value":123145537160104},"r12":{"value":0},"rcx":{"value":123145537160104},"flavor":"x86_THREAD_STATE","rdi":{"value":123145537160576}},"queue":"PLClientLoggingAdaptivePermissionWorkQueue","frames":[{"imageOffset":4206,"symbol":"mach_msg2_trap","symbolLocation":10,"imageIndex":21},{"imageOffset":63576,"symbol":"mach_msg2_internal","symbolLocation":84,"imageIndex":21},{"imageOffset":33112,"symbol":"mach_msg_overwrite","symbolLocation":653,"imageIndex":21},{"imageOffset":4957,"symbol":"mach_msg","symbolLocation":19,"imageIndex":21},{"imageOffset":108129,"symbol":"_dispatch_mach_send_and_wait_for_reply","symbolLocation":521,"imageIndex":29},{"imageOffset":109157,"symbol":"dispatch_mach_send_with_result_and_wait_for_reply","symbolLocation":50,"imageIndex":29},{"imageOffset":48013,"symbol":"xpc_connection_send_message_with_reply_sync","symbolLocation":261,"imageIndex":30},{"imageOffset":13937,"symbol":"-[PLClientLogger xpcSendMessageWithReply:withClientID:withKey:withPayload:]","symbolLocation":251,"imageIndex":31},{"imageOffset":10604,"symbol":"__68-[PLClientLogger permissionForClientID:withKey:withType:completion:]_block_invoke","symbolLocation":133,"imageIndex":31},{"imageOffset":6854,"symbol":"_dispatch_call_block_and_release","symbolLocation":12,"imageIndex":29},{"imageOffset":11708,"symbol":"_dispatch_client_callout","symbolLocation":8,"imageIndex":29},{"imageOffset":36607,"symbol":"_dispatch_lane_serial_drain","symbolLocation":800,"imageIndex":29},{"imageOffset":39319,"symbol":"_dispatch_lane_invoke","symbolLocation":377,"imageIndex":29},{"imageOffset":78868,"symbol":"_dispatch_root_queue_drain_deferred_wlh","symbolLocation":271,"imageIndex":29},{"imageOffset":77098,"symbol":"_dispatch_workloop_worker_thread","symbolLocation":451,"imageIndex":29},{"imageOffset":11032,"symbol":"_pthread_wqthread","symbolLocation":327,"imageIndex":22},{"imageOffset":6831,"symbol":"start_wqthread","symbolLocation":15,"imageIndex":22}]},{"id":2260,"threadState":{"r13":{"value":123145537713952},"rax":{"value":18446744073709551612},"rflags":{"value":514},"cpu":{"value":0},"r14":{"value":16777217},"rsi":{"value":123145537714048},"r8":{"value":335007449088},"cr2":{"value":0},"rdx":{"value":0},"r10":{"value":0},"r9":{"value":0},"r15":{"value":0},"rbx":{"value":4294967295},"trap":{"value":133},"err":{"value":33554947},"r11":{"value":514},"rip":{"value":140703183087654},"rbp":{"value":123145537713856},"rsp":{"value":123145537713816},"r12":{"value":123145537714048},"rcx":{"value":123145537713816},"flavor":"x86_THREAD_STATE","rdi":{"value":16777217}},"queue":"com.apple.libtrace.state.block-list","frames":[{"imageOffset":10278,"symbol":"__ulock_wait","symbolLocation":10,"imageIndex":21},{"imageOffset":13780,"symbol":"_dlock_wait","symbolLocation":46,"imageIndex":29},{"imageOffset":13404,"symbol":"_dispatch_thread_event_wait_slow","symbolLocation":40,"imageIndex":29},{"imageOffset":65464,"symbol":"__DISPATCH_WAIT_FOR_QUEUE__","symbolLocation":307,"imageIndex":29},{"imageOffset":64484,"symbol":"_dispatch_sync_f_slow","symbolLocation":175,"imageIndex":29},{"imageOffset":49305,"symbol":"___os_state_request_for_self_block_invoke","symbolLocation":375,"imageIndex":32},{"imageOffset":6854,"symbol":"_dispatch_call_block_and_release","symbolLocation":12,"imageIndex":29},{"imageOffset":11708,"symbol":"_dispatch_client_callout","symbolLocation":8,"imageIndex":29},{"imageOffset":36607,"symbol":"_dispatch_lane_serial_drain","symbolLocation":800,"imageIndex":29},{"imageOffset":39319,"symbol":"_dispatch_lane_invoke","symbolLocation":377,"imageIndex":29},{"imageOffset":78868,"symbol":"_dispatch_root_queue_drain_deferred_wlh","symbolLocation":271,"imageIndex":29},{"imageOffset":77098,"symbol":"_dispatch_workloop_worker_thread","symbolLocation":451,"imageIndex":29},{"imageOffset":11032,"symbol":"_pthread_wqthread","symbolLocation":327,"imageIndex":22},{"imageOffset":6831,"symbol":"start_wqthread","symbolLocation":15,"imageIndex":22}]},{"id":2356,"frames":[{"imageOffset":6816,"symbol":"start_wqthread","symbolLocation":0,"imageIndex":22}],"threadState":{"r13":{"value":0},"rax":{"value":33554800},"rflags":{"value":512},"cpu":{"value":0},"r14":{"value":1},"rsi":{"value":16743},"r8":{"value":409604},"cr2":{"value":0},"rdx":{"value":123145537728512},"r10":{"value":0},"r9":{"value":18446744073709551615},"r15":{"value":123145538251640},"rbx":{"value":123145538252800},"trap":{"value":133},"err":{"value":33554800},"r11":{"value":582},"rip":{"value":140703183325856},"rbp":{"value":0},"rsp":{"value":123145538252800},"r12":{"value":5193732},"rcx":{"value":0},"flavor":"x86_THREAD_STATE","rdi":{"value":123145538252800}}},{"id":2357,"threadState":{"r13":{"value":17297326606},"rax":{"value":268451845},"rflags":{"value":514},"cpu":{"value":0},"r14":{"value":16384},"rsi":{"value":17297326606},"r8":{"value":0},"cr2":{"value":0},"rdx":{"value":0},"r10":{"value":82179},"r9":{"value":355155140673536},"r15":{"value":355155140673536},"rbx":{"value":123145538767168},"trap":{"value":133},"err":{"value":16777263},"r11":{"value":514},"rip":{"value":140703183081582},"rbp":{"value":123145538766800},"rsp":{"value":123145538766696},"r12":{"value":0},"rcx":{"value":123145538766696},"flavor":"x86_THREAD_STATE","rdi":{"value":123145538767168}},"queue":"com.apple.CoreBrightness.BSCI serial","frames":[{"imageOffset":4206,"symbol":"mach_msg2_trap","symbolLocation":10,"imageIndex":21},{"imageOffset":63576,"symbol":"mach_msg2_internal","symbolLocation":84,"imageIndex":21},{"imageOffset":33112,"symbol":"mach_msg_overwrite","symbolLocation":653,"imageIndex":21},{"imageOffset":4957,"symbol":"mach_msg","symbolLocation":19,"imageIndex":21},{"imageOffset":108129,"symbol":"_dispatch_mach_send_and_wait_for_reply","symbolLocation":521,"imageIndex":29},{"imageOffset":109157,"symbol":"dispatch_mach_send_with_result_and_wait_for_reply","symbolLocation":50,"imageIndex":29},{"imageOffset":48013,"symbol":"xpc_connection_send_message_with_reply_sync","symbolLocation":261,"imageIndex":30},{"imageOffset":122832,"symbol":"__NSXPCCONNECTION_IS_WAITING_FOR_A_SYNCHRONOUS_REPLY__","symbolLocation":9,"imageIndex":33},{"imageOffset":114518,"symbol":"-[NSXPCConnection _sendInvocation:orArguments:count:methodSignature:selector:withProxy:]","symbolLocation":3103,"imageIndex":33},{"imageOffset":140682,"symbol":"-[NSXPCConnection _sendSelector:withProxy:arg1:arg2:]","symbolLocation":132,"imageIndex":33},{"imageOffset":140471,"symbol":"_NSXPCDistantObjectSimpleMessageSend2","symbolLocation":63,"imageIndex":33},{"imageOffset":12595,"symbol":"__53-[BrightnessSystemClientInternal copyPropertyForKey:]_block_invoke","symbolLocation":89,"imageIndex":34},{"imageOffset":24656,"symbol":"_dispatch_block_sync_invoke","symbolLocation":301,"imageIndex":29},{"imageOffset":11708,"symbol":"_dispatch_client_callout","symbolLocation":8,"imageIndex":29},{"imageOffset":64828,"symbol":"_dispatch_lane_barrier_sync_invoke_and_complete","symbolLocation":60,"imageIndex":29},{"imageOffset":28431,"symbol":"_dispatch_sync_block_with_privdata","symbolLocation":410,"imageIndex":29},{"imageOffset":11774,"symbol":"-[BrightnessSystemClientInternal copyPropertyForKey:]","symbolLocation":233,"imageIndex":34},{"imageOffset":449363,"symbol":"-[CBBlueLightClient init]","symbolLocation":98,"imageIndex":34},{"imageOffset":1643058,"symbol":"invocation function for block in get_shared_blue_light_client()","symbolLocation":188,"imageIndex":24},{"imageOffset":11708,"symbol":"_dispatch_client_callout","symbolLocation":8,"imageIndex":29},{"imageOffset":16462,"symbol":"_dispatch_once_callout","symbolLocation":20,"imageIndex":29},{"imageOffset":1642451,"symbol":"__PKGInitializeAppearanceTransitions_block_invoke","symbolLocation":61,"imageIndex":24},{"imageOffset":6854,"symbol":"_dispatch_call_block_and_release","symbolLocation":12,"imageIndex":29},{"imageOffset":11708,"symbol":"_dispatch_client_callout","symbolLocation":8,"imageIndex":29},{"imageOffset":36607,"symbol":"_dispatch_lane_serial_drain","symbolLocation":800,"imageIndex":29},{"imageOffset":39319,"symbol":"_dispatch_lane_invoke","symbolLocation":377,"imageIndex":29},{"imageOffset":78868,"symbol":"_dispatch_root_queue_drain_deferred_wlh","symbolLocation":271,"imageIndex":29},{"imageOffset":77098,"symbol":"_dispatch_workloop_worker_thread","symbolLocation":451,"imageIndex":29},{"imageOffset":11032,"symbol":"_pthread_wqthread","symbolLocation":327,"imageIndex":22},{"imageOffset":6831,"symbol":"start_wqthread","symbolLocation":15,"imageIndex":22}]},{"id":2367,"name":"IOHIDService - RunLoopCompatibilityThread","threadState":{"r13":{"value":21592279046},"rax":{"value":268451845},"rflags":{"value":518},"cpu":{"value":0},"r14":{"value":2},"rsi":{"value":21592279046},"r8":{"value":0},"cr2":{"value":0},"rdx":{"value":8589934592},"r10":{"value":133070971731968},"r9":{"value":133070971731968},"r15":{"value":133070971731968},"rbx":{"value":123145539321808},"trap":{"value":133},"err":{"value":16777263},"r11":{"value":518},"rip":{"value":140703183081582},"rbp":{"value":123145539321648},"rsp":{"value":123145539321544},"r12":{"value":4294967295},"rcx":{"value":123145539321544},"flavor":"x86_THREAD_STATE","rdi":{"value":123145539321808}},"frames":[{"imageOffset":4206,"symbol":"mach_msg2_trap","symbolLocation":10,"imageIndex":21},{"imageOffset":63576,"symbol":"mach_msg2_internal","symbolLocation":84,"imageIndex":21},{"imageOffset":33112,"symbol":"mach_msg_overwrite","symbolLocation":653,"imageIndex":21},{"imageOffset":4957,"symbol":"mach_msg","symbolLocation":19,"imageIndex":21},{"imageOffset":507957,"symbol":"__CFRunLoopServiceMachPort","symbolLocation":143,"imageIndex":35},{"imageOffset":502437,"symbol":"__CFRunLoopRun","symbolLocation":1371,"imageIndex":35},{"imageOffset":499586,"symbol":"CFRunLoopRunSpecific","symbolLocation":557,"imageIndex":35},{"imageOffset":1006094,"symbol":"CFRunLoopRun","symbolLocation":40,"imageIndex":35},{"imageOffset":369598,"symbol":"__IOHIDServiceRunLoopCompatibilityThread","symbolLocation":307,"imageIndex":36},{"imageOffset":24863,"symbol":"_pthread_start","symbolLocation":99,"imageIndex":22},{"imageOffset":6851,"symbol":"thread_start","symbolLocation":15,"imageIndex":22}]},{"id":2564,"frames":[{"imageOffset":4206,"symbol":"mach_msg2_trap","symbolLocation":10,"imageIndex":21},{"imageOffset":63576,"symbol":"mach_msg2_internal","symbolLocation":84,"imageIndex":21},{"imageOffset":33112,"symbol":"mach_msg_overwrite","symbolLocation":653,"imageIndex":21},{"imageOffset":4957,"symbol":"mach_msg","symbolLocation":19,"imageIndex":21},{"imageOffset":195744,"symbol":"CoreDisplay::Mach::Message::Receive(unsigned int)","symbolLocation":80,"imageIndex":28},{"imageOffset":967547,"symbol":"CoreDisplay::Mach::Server::Start()","symbolLocation":105,"imageIndex":28},{"imageOffset":967748,"symbol":"void* std::__1::__thread_proxy[abi:ue170006]<std::__1::tuple<std::__1::unique_ptr<std::__1::__thread_struct, std::__1::default_delete<std::__1::__thread_struct>>, void (CoreDisplay::Mach::Server::*)(), CoreDisplay::Mach::Server*>>(void*)","symbolLocation":79,"imageIndex":28},{"imageOffset":24863,"symbol":"_pthread_start","symbolLocation":99,"imageIndex":22},{"imageOffset":6851,"symbol":"thread_start","symbolLocation":15,"imageIndex":22}],"threadState":{"r13":{"value":21525170182},"rax":{"value":268451845},"rflags":{"value":518},"cpu":{"value":0},"r14":{"value":2},"rsi":{"value":21525170182},"r8":{"value":0},"cr2":{"value":0},"rdx":{"value":8589934592},"r10":{"value":0},"r9":{"value":346719824904192},"r15":{"value":346719824904192},"rbx":{"value":123145540935024},"trap":{"value":133},"err":{"value":16777263},"r11":{"value":518},"rip":{"value":140703183081582},"rbp":{"value":123145540934864},"rsp":{"value":123145540934760},"r12":{"value":0},"rcx":{"value":123145540934760},"flavor":"x86_THREAD_STATE","rdi":{"value":123145540935024}}},{"id":2801,"frames":[{"imageOffset":6816,"symbol":"start_wqthread","symbolLocation":0,"imageIndex":22}],"threadState":{"r13":{"value":0},"rax":{"value":33554800},"rflags":{"value":512},"cpu":{"value":0},"r14":{"value":1},"rsi":{"value":129315},"r8":{"value":409604},"cr2":{"value":0},"rdx":{"value":123145539874816},"r10":{"value":0},"r9":{"value":18446744073709551615},"r15":{"value":123145540397944},"rbx":{"value":123145540399104},"trap":{"value":133},"err":{"value":33554800},"r11":{"value":582},"rip":{"value":140703183325856},"rbp":{"value":0},"rsp":{"value":123145540399104},"r12":{"value":13500416},"rcx":{"value":0},"flavor":"x86_THREAD_STATE","rdi":{"value":123145540399104}}},{"id":2802,"frames":[{"imageOffset":6816,"symbol":"start_wqthread","symbolLocation":0,"imageIndex":22}],"threadState":{"r13":{"value":0},"rax":{"value":0},"rflags":{"value":512},"cpu":{"value":0},"r14":{"value":0},"rsi":{"value":0},"r8":{"value":278530},"cr2":{"value":0},"rdx":{"value":123145541484544},"r10":{"value":0},"r9":{"value":18446744073709551615},"r15":{"value":0},"rbx":{"value":0},"trap":{"value":0},"err":{"value":0},"r11":{"value":0},"rip":{"value":140703183325856},"rbp":{"value":0},"rsp":{"value":123145542008832},"r12":{"value":0},"rcx":{"value":0},"flavor":"x86_THREAD_STATE","rdi":{"value":123145542008832}}},{"id":2871,"name":"com.apple.windowserver.root_queue","threadState":{"r13":{"value":18446744071427850239},"rax":{"value":14},"rflags":{"value":518},"cpu":{"value":0},"r14":{"value":140408935957056},"rsi":{"value":4294965663912427524},"r8":{"value":1},"cr2":{"value":0},"rdx":{"value":999999620},"r10":{"value":4294965663912427520},"r9":{"value":2638291157},"r15":{"value":19342813113834067},"rbx":{"value":121380681995},"trap":{"value":133},"err":{"value":16777254},"r11":{"value":518},"rip":{"value":140703183081474},"rbp":{"value":123145541472064},"rsp":{"value":123145541472024},"r12":{"value":0},"rcx":{"value":123145541472024},"flavor":"x86_THREAD_STATE","rdi":{"value":5891}},"frames":[{"imageOffset":4098,"symbol":"semaphore_timedwait_trap","symbolLocation":10,"imageIndex":21},{"imageOffset":13069,"symbol":"_dispatch_sema4_timedwait","symbolLocation":73,"imageIndex":29},{"imageOffset":14169,"symbol":"_dispatch_semaphore_wait_slow","symbolLocation":58,"imageIndex":29},{"imageOffset":73441,"symbol":"_dispatch_worker_thread","symbolLocation":324,"imageIndex":29},{"imageOffset":24863,"symbol":"_pthread_start","symbolLocation":99,"imageIndex":22},{"imageOffset":6851,"symbol":"thread_start","symbolLocation":15,"imageIndex":22}]}],
  "usedImages" : [
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4484935680,
    "size" : 81920,
    "uuid" : "9347c308-5d42-3576-919f-e3c6412920d7",
    "path" : "\/System\/Library\/CoreServices\/TouchBarEvent.bundle",
    "name" : "TouchBarEvent.bundle"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4959715328,
    "CFBundleShortVersionString" : "16.0.32",
    "CFBundleIdentifier" : "com.apple.driver.AppleIntelTGLGraphicsMTLDriver",
    "size" : 4718592,
    "uuid" : "2b849e57-ac6a-3216-a67b-38e080603585",
    "path" : "\/System\/Library\/Extensions\/AppleIntelTGLGraphicsMTLDriver.bundle\/Contents\/MacOS\/AppleIntelTGLGraphicsMTLDriver",
    "name" : "AppleIntelTGLGraphicsMTLDriver",
    "CFBundleVersion" : "16.0.0"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4483117056,
    "CFBundleShortVersionString" : "481.40.2",
    "CFBundleIdentifier" : "com.apple.driver.IOAccelerator2D",
    "size" : 4096,
    "uuid" : "9156b710-fd38-3f08-853d-4815e994e497",
    "path" : "\/System\/Library\/Extensions\/IOAccelerator2D.plugin\/Contents\/MacOS\/IOAccelerator2D",
    "name" : "IOAccelerator2D",
    "CFBundleVersion" : "481.40.2"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4482822144,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.KeyboardTelemetryServiceFilter",
    "size" : 20480,
    "uuid" : "5b63b15c-8384-3842-b2fc-610d3c111571",
    "path" : "\/System\/Library\/HIDPlugins\/ServiceFilters\/KeyboardTelemetryServiceFilter.plugin\/Contents\/MacOS\/KeyboardTelemetryServiceFilter",
    "name" : "KeyboardTelemetryServiceFilter",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4482416640,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.iokit.hid.IOHIDKeyboardFilter",
    "size" : 53248,
    "uuid" : "0a6f1836-9411-3cff-b4d4-3601951b8f68",
    "path" : "\/System\/Library\/HIDPlugins\/IOHIDKeyboardFilter.plugin\/Contents\/MacOS\/IOHIDKeyboardFilter",
    "name" : "IOHIDKeyboardFilter",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4482588672,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.IOHIDEventServicePlugin",
    "size" : 16384,
    "uuid" : "e98a8bdc-ceb0-353c-a792-ac43b4c156ec",
    "path" : "\/System\/Library\/HIDPlugins\/ServicePlugins\/IOHIDEventServicePlugin.plugin\/Contents\/MacOS\/IOHIDEventServicePlugin",
    "name" : "IOHIDEventServicePlugin",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4482539520,
    "CFBundleShortVersionString" : "2.0.0",
    "CFBundleIdentifier" : "com.apple.iokit.IOHIDNXEventRouter",
    "size" : 8192,
    "uuid" : "c5776ed1-edf2-32dd-931d-0c9af0baa570",
    "path" : "\/System\/Library\/Extensions\/IOHIDFamily.kext\/Contents\/PlugIns\/IOHIDNXEventRouter.plugin\/Contents\/MacOS\/IOHIDNXEventRouter",
    "name" : "IOHIDNXEventRouter",
    "CFBundleVersion" : "2.0.0"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4482203648,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.iokit.hid.IOHIDPointerScrollFilter",
    "size" : 45056,
    "uuid" : "fffa6ff3-aca0-336c-a683-3d6ad2aec591",
    "path" : "\/System\/Library\/HIDPlugins\/IOHIDPointerScrollFilter.plugin\/Contents\/MacOS\/IOHIDPointerScrollFilter",
    "name" : "IOHIDPointerScrollFilter",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4486074368,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.universalcontrol.servicefilter",
    "size" : 753664,
    "uuid" : "3fb727a2-1bf5-3eca-8eb4-83cba783ec3e",
    "path" : "\/System\/Library\/HIDPlugins\/ServiceFilters\/UniversalControlServiceFilter.plugin\/Contents\/MacOS\/UniversalControlServiceFilter",
    "name" : "UniversalControlServiceFilter",
    "CFBundleVersion" : "140.300"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4482342912,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.AppleHIDBluetoothFilter",
    "size" : 12288,
    "uuid" : "1ec1be0b-acc8-3dd0-a1ad-44224ab7a799",
    "path" : "\/System\/Library\/HIDPlugins\/ServiceFilters\/AppleHIDBluetoothFilter.plugin\/Contents\/MacOS\/AppleHIDBluetoothFilter",
    "name" : "AppleHIDBluetoothFilter",
    "CFBundleVersion" : "7440.8.2"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4481675264,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.iokit.hid.IOHIDEventProcessorFilter",
    "size" : 20480,
    "uuid" : "d17a743a-1e32-3f58-9e2c-82f55f34c9f1",
    "path" : "\/System\/Library\/HIDPlugins\/IOHIDEventProcessorFilter.plugin\/Contents\/MacOS\/IOHIDEventProcessorFilter",
    "name" : "IOHIDEventProcessorFilter",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4481531904,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.hid.ColourSensorFilterPlugin",
    "size" : 86016,
    "uuid" : "ea9e0391-31e6-3871-8b14-ccf2caeb95ec",
    "path" : "\/System\/Library\/HIDPlugins\/ColourSensorFilterPlugin.plugin\/Contents\/MacOS\/ColourSensorFilterPlugin",
    "name" : "ColourSensorFilterPlugin",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4481896448,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.iokit.hid.IOHIDNXEventTranslatorServiceFilter",
    "size" : 12288,
    "uuid" : "43951734-596c-3deb-9ee9-4b80ee2830c5",
    "path" : "\/System\/Library\/HIDPlugins\/IOHIDNXEventTranslatorServiceFilter.plugin\/Contents\/MacOS\/IOHIDNXEventTranslatorServiceFilter",
    "name" : "IOHIDNXEventTranslatorServiceFilter",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4481822720,
    "CFBundleShortVersionString" : "361",
    "CFBundleIdentifier" : "com.apple.iokit.plugin.AmbientLightSensorHID",
    "size" : 16384,
    "uuid" : "d5810c88-faab-36f9-9039-f93cc5f0fc33",
    "path" : "\/System\/Library\/Extensions\/AppleSMCLMU.kext\/Contents\/PlugIns\/AmbientLightSensorHID.plugin\/Contents\/MacOS\/AmbientLightSensorHID",
    "name" : "AmbientLightSensorHID",
    "CFBundleVersion" : "361"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4481740800,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.CoreRCPlugin",
    "size" : 36864,
    "uuid" : "29ac854d-98c8-334d-8d6e-5ce6f6a6c682",
    "path" : "\/System\/Library\/HIDPlugins\/SessionFilters\/CoreRCPlugin.plugin\/Contents\/MacOS\/CoreRCPlugin",
    "name" : "CoreRCPlugin",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4481482752,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.IOHIDRemoteSensorSessionFilter",
    "size" : 8192,
    "uuid" : "6a629302-3064-33a5-9084-a035ce3c1837",
    "path" : "\/System\/Library\/HIDPlugins\/SessionFilters\/IOHIDRemoteSensorSessionFilter.plugin\/Contents\/MacOS\/IOHIDRemoteSensorSessionFilter",
    "name" : "IOHIDRemoteSensorSessionFilter",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4481974272,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.IOAnalytics",
    "size" : 77824,
    "uuid" : "004cbf55-ba19-3c6f-a3fa-e8137b5f0fc6",
    "path" : "\/System\/Library\/HIDPlugins\/SessionFilters\/IOAnalytics.plugin\/Contents\/MacOS\/IOAnalytics",
    "name" : "IOAnalytics",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4481298432,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.iokit.hid.IOHIDDFREventFilter",
    "size" : 12288,
    "uuid" : "9a9ef30e-c243-35bd-8d1d-67c26ec7eb0e",
    "path" : "\/System\/Library\/HIDPlugins\/IOHIDDFREventFilter.plugin\/Contents\/MacOS\/IOHIDDFREventFilter",
    "name" : "IOHIDDFREventFilter",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4481380352,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.iokit.hid.IOHIDNXEventTranslatorSessionFilter",
    "size" : 40960,
    "uuid" : "2e19b531-bc96-3cde-8212-76ae6e45ea84",
    "path" : "\/System\/Library\/HIDPlugins\/IOHIDNXEventTranslatorSessionFilter.plugin\/Contents\/MacOS\/IOHIDNXEventTranslatorSessionFilter",
    "name" : "IOHIDNXEventTranslatorSessionFilter",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4501372928,
    "size" : 7548928,
    "uuid" : "8a2677bd-626f-36bd-b101-497695b244eb",
    "path" : "\/System\/Library\/PrivateFrameworks\/SkyLight.framework\/Versions\/A\/Resources\/CursorAsset",
    "name" : "CursorAsset"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 4480430080,
    "size" : 8192,
    "uuid" : "199c252f-22bf-3ce0-877c-126b96555a61",
    "path" : "\/System\/Library\/PrivateFrameworks\/SkyLight.framework\/Versions\/A\/Resources\/WindowServer",
    "name" : "WindowServer"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703183077376,
    "size" : 241656,
    "uuid" : "c14e014c-3042-3d58-9021-a9d513db9f17",
    "path" : "\/usr\/lib\/system\/libsystem_kernel.dylib",
    "name" : "libsystem_kernel.dylib"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703183319040,
    "size" : 49152,
    "uuid" : "94607857-3850-3632-af50-37163dd339f7",
    "path" : "\/usr\/lib\/system\/libsystem_pthread.dylib",
    "name" : "libsystem_pthread.dylib"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703181926400,
    "size" : 557048,
    "uuid" : "3ac1393a-1569-381a-a323-7aa477b504c5",
    "path" : "\/usr\/lib\/system\/libsystem_c.dylib",
    "name" : "libsystem_c.dylib"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703274409984,
    "CFBundleShortVersionString" : "1.600.0",
    "CFBundleIdentifier" : "com.apple.SkyLight",
    "size" : 4599807,
    "uuid" : "17842b99-c260-30bb-bec8-d1e270c11d56",
    "path" : "\/System\/Library\/PrivateFrameworks\/SkyLight.framework\/Versions\/A\/SkyLight",
    "name" : "SkyLight"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703179599872,
    "size" : 592520,
    "uuid" : "43926ebe-f6c6-30d6-aa12-c0945b2bf6d3",
    "path" : "\/usr\/lib\/dyld",
    "name" : "dyld"
  },
  {
    "size" : 0,
    "source" : "A",
    "base" : 0,
    "uuid" : "00000000-0000-0000-0000-000000000000"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703324647424,
    "CFBundleShortVersionString" : "1.11",
    "CFBundleIdentifier" : "com.apple.QuartzCore",
    "size" : 3715070,
    "uuid" : "a43c79b7-1399-3e97-b225-9ee0fc73c68d",
    "path" : "\/System\/Library\/Frameworks\/QuartzCore.framework\/Versions\/A\/QuartzCore",
    "name" : "QuartzCore",
    "CFBundleVersion" : "1120.34.15"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703215034368,
    "CFBundleShortVersionString" : "285",
    "CFBundleIdentifier" : "com.apple.CoreDisplay",
    "size" : 1236982,
    "uuid" : "817784a6-869c-3676-ae6c-a552292238b0",
    "path" : "\/System\/Library\/Frameworks\/CoreDisplay.framework\/Versions\/A\/CoreDisplay",
    "name" : "CoreDisplay",
    "CFBundleVersion" : "285"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703181623296,
    "size" : 290802,
    "uuid" : "1b5bc7ce-4058-3461-839d-24e12c03a809",
    "path" : "\/usr\/lib\/system\/libdispatch.dylib",
    "name" : "libdispatch.dylib"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703180210176,
    "size" : 294910,
    "uuid" : "8d4dfdcc-86f5-305b-92d1-66fd33efc920",
    "path" : "\/usr\/lib\/system\/libxpc.dylib",
    "name" : "libxpc.dylib"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703546114048,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.PowerLog",
    "size" : 163840,
    "uuid" : "2c630a86-ed64-3caf-9f81-64a60ff3e42e",
    "path" : "\/System\/Library\/PrivateFrameworks\/PowerLog.framework\/Versions\/A\/PowerLog",
    "name" : "PowerLog",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703180505088,
    "size" : 106495,
    "uuid" : "e35d68c9-391f-3e37-9aaf-b7c2186ab377",
    "path" : "\/usr\/lib\/system\/libsystem_trace.dylib",
    "name" : "libsystem_trace.dylib"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703200333824,
    "CFBundleShortVersionString" : "6.9",
    "CFBundleIdentifier" : "com.apple.Foundation",
    "size" : 12812284,
    "uuid" : "c14ad813-8ea1-31fd-8197-5fd3ebe56186",
    "path" : "\/System\/Library\/Frameworks\/Foundation.framework\/Versions\/C\/Foundation",
    "name" : "Foundation",
    "CFBundleVersion" : "2602.0.902.1.403"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703435939840,
    "CFBundleShortVersionString" : "1.0",
    "CFBundleIdentifier" : "com.apple.corebrightness",
    "size" : 1060864,
    "uuid" : "f09fde2b-ab55-348a-85e9-a85f721ded79",
    "path" : "\/System\/Library\/PrivateFrameworks\/CoreBrightness.framework\/Versions\/A\/CoreBrightness",
    "name" : "CoreBrightness",
    "CFBundleVersion" : "1"
  },
  {
    "source" : "P",
    "arch" : "x86_64h",
    "base" : 140703183745024,
    "CFBundleShortVersionString" : "6.9",
    "CFBundleIdentifier" : "com.apple.CoreFoundation",
    "size" : 4829181,
    "uuid" : "b125508e-b96a-3abc-b2da-cba80ed21f4b",
    "path" : "\/System\/Library\/Frameworks\/CoreFoundation.framework\/Versions\/A\/CoreFoundation",
    "name" : "CoreFoundation",
    "CFBundleVersion" : "2602.0.902.1.403"
  },
  {
    "source" : "P",
    "arch" : "x86_64",
    "base" : 140703239864320,
    "CFBundleShortVersionString" : "2.0.2",
    "CFBundleIdentifier" : "com.apple.framework.IOKit",
    "size" : 802816,
    "uuid" : "6d34b5af-17e8-3292-970f-dd672c908f56",
    "path" : "\/System\/Library\/Frameworks\/IOKit.framework\/Versions\/A\/IOKit",
    "name" : "IOKit"
  }
],
  "sharedCache" : {
  "base" : 140703178903552,
  "size" : 25769803776,
  "uuid" : "6b48bb4a-0319-363f-b4b8-675f97dcaba4"
},
  "vmSummary" : "ReadOnly portion of Libraries: Total=463.9M resident=0K(0%) swapped_out_or_unallocated=463.9M(100%)\nWritable regions: Total=2.9G written=0K(0%) resident=0K(0%) swapped_out=0K(0%) unallocated=2.9G(100%)\n\n                                VIRTUAL   REGION \nREGION TYPE                        SIZE    COUNT (non-coalesced) \n===========                     =======  ======= \nActivity Tracing                   256K        1 \nCG backing stores                 8120K        6 \nCG framebuffers                    1.0G        9 \nCG framebuffers (reserved)       589.1M        8         reserved VM address space (unallocated)\nColorSync                           12K        2 \nKernel Alloc Once                    8K        1 \nMALLOC                             1.3G       43 \nMALLOC guard page                   48K       12 \nMach message                        12K        1 \nSTACK GUARD                       56.0M       12 \nStack                             14.1M       12 \nVM_ALLOCATE                        992K       11 \nVM_ALLOCATE (reserved)              12K        1         reserved VM address space (unallocated)\n__CGSERVER                           4K        1 \n__DATA                            18.6M      370 \n__DATA_CONST                      16.5M      242 \n__DATA_DIRTY                       656K      113 \n__FONT_DATA                        2352        1 \n__LINKEDIT                       181.5M       23 \n__OBJC_RO                         71.9M        1 \n__OBJC_RW                         2201K        2 \n__SLSERVER                           4K        1 \n__TEXT                           282.3M      396 \nmapped file                       31.3M        4 \nshared memory                      768K       16 \n===========                     =======  ======= \nTOTAL                              3.6G     1289 \nTOTAL, minus reserved VM space     3.0G     1289 \n",
  "legacyInfo" : {
  "threadTriggered" : {
    "name" : "ws_main_thread",
    "queue" : "com.apple.main-thread"
  }
},
  "logWritingSignature" : "29cc8bafac136fe7f7cba38f92a88c8b26d6baf2"
}

Model: MacBookPro16,2, BootROM 9999.999.999.999.999, 4 processors, Quad-Core Intel Core i5, 1.38 GHz, 32 GB, SMC
Graphics: Intel Iris Xe Graphics, Intel Iris Xe Graphics, Built-In
Display: Unknown Display, 1920 x 1080 (1080p FHD - Full High Definition), Main, MirrorOff, Online
Memory Module: BANK 0/DIMM 1, 16 GB, DDR4, 3200 MHz, 80CE000080CE, M471A2K43DB1-CWE
Memory Module: BANK 0/DIMM 2, 16 GB, DDR4, 3200 MHz, 80CE000080CE, M471A2K43DB1-CWE
AirPort: spairport_wireless_card_type_wifi (0x8086, 0x84), itlwm: 2.3.0 fw: 68.01d30b0c.0
Bluetooth: Version (null), 0 services, 0 devices, 0 incoming serial ports
Network Service: Wi-Fi, AirPort, en1
Network Service: Tailscale, VPN (io.tailscale.ipn.macsys), utun4
PCI Card: Intel Iris Xe Graphics, VGA-Compatible Controller, built-in
PCI Card: Tiger Lake-LP Dynamic Tuning Processor Participant, Signal processing controller, Internal@0,4,0
PCI Card: GNA Scoring Accelerator module, System peripheral, Internal@0,8,0
PCI Card: Tiger Lake-LP Thunderbolt 4 USB Controller, USB controller, Internal@0,13,0
PCI Card: Tiger Lake-LP USB 3.2 Gen 2x1 xHCI Host Controller, USB controller, Internal@0,20,0
PCI Card: Tiger Lake-LP Shared SRAM, RAM memory, Internal@0,20,2
PCI Card: Tiger Lake-LP Serial IO I2C Controller #0, Serial bus controller, Internal@0,21,0
PCI Card: Tiger Lake-LP Serial IO I2C Controller #1, Serial bus controller, Internal@0,21,1
PCI Card: Tiger Lake-LP Management Engine Interface, Communication controller, Internal@0,22,0
PCI Card: Tiger Lake-LP Smart Sound Technology Audio Controller, Multimedia audio controller, Internal@0,31,3
PCI Card: Tiger Lake-LP SMBus Controller, SMBus, Internal@0,31,4
PCI Card: Tiger Lake-LP SPI Controller, Serial bus controller, Internal@0,31,5
USB Device: USB31Bus
USB Device: Dell dock
USB Device: USB 10/100/1000 LAN
USB Device: Dell dock
USB Device: USB31Bus
USB Device: Bluetooth USB Host Controller
USB Device: Integrated_Webcam_HD
USB Device: 2.4G Mouse
USB Device: DataTraveler 3.0
USB Device: Dell dock
USB Device: Dell Dock WD19S
USB Device: Dell dock
USB Device: Dell dock
Thunderbolt Bus:

Upon Boot, currently at the frozen screen, no vnc options, the client gets stuck at downloading first frame.

Boot fast after with an empty nooted blue and without liludump and give me these

Need these below and your lilu dump at /var/log :

log show --style syslog --predicate 'processID == 0' --last 15m --info --debug > /tmp/x.log

Edited April 13 by Stezza88

jkbuha · April 13

NG.zip x.log

Here you go. Compiled kexts on Sequoia and boot x.log

Interesting side-effect. Without WEG, and using these kexts, display eGPU thunderbolt hotplug works. I can plug in my Radeon RX6950 via thunderbolt on this XPS 9310 (i7-1185g7) and the GPU is automatically detected and display automatically extends. Still without hardware acceleration, but eGPU hotplug never worked on the previous XPS 9300 Ice Lake machine.

Edited April 13 by jkbuha

NootedGreen.kext is on air! It's a long long road to complete..

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Cross-Platform Detection (V52)

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
