InfinitThread Posted June 29, 2023 Share Posted June 29, 2023 Hardware: CPU: Intel Core i7-9700k GPU: iGPU RAM: 32GB DDR4 Motherboard/Laptop model: ASUS Z390 Prime Audio Codec: ALC1220 Ethernet Card: Intel I219-V What guide/tool was followed: Dortania What part I got an issue with: Kernal panic seen in the video linked below. What files/config I am using: Attached and explained below. Extra Info: I have attempted to create a MacOS 13 installer on Windows previously and gotten stuck at it actually installing. I now have access to an actual MacBook, which I have used to try from the beginning at making the installer and OpenCore booter on an external USB. I think it is worth noting my previous troubles seemed to revolve around CPU Power Management. Files: ACPI: SSDT-AWAC.aml SSDT-EC-USBX-DESKTOP.aml SSDT-PLUG-DRTNIA.aml SSDT-PMC.aml Drivers: HfsPlus.efi OpenRuntime.efi Kexts: AppleALC.kext IntelMausi.kext Lilu.kext SMCProcessor.kext SMCSuperIO.kext USBToolBox.kext UTBMap.kext VirtualSMC.kext WhateverGreen.kext Tools OpenShell.efi BIOS Changes: Enabled VT-x Above 4G Decoding XHCI Hand-off Disabled Fast Boot Serial Port VT-d Launch CSM Thunderbolt CFG Lock Could not locate Hyper-Threading Execute Disable Bit Secure Boot Parallel Port Intel SGX Intel Platform Trust Other OS Type => Other OS DVMT Pre-allocated => 64M SATA Mode => AHCI Google Drive: <= This is the link EFI: My EFI file with everything inside (Serial/UUID have been changed to NULL for discretion). Debug Logs.txt - The logs from my last boot attempt. Frame Before Panic.PNG - A screenshot of the debugger in the immediate frame prior to the panic. USB Boot Sequence.MOV - A video of my boot sequence. NOTE: I am attempting the Ventura (macOS 13) version of a Hackintosh.Sorry this is so long, any help is greatly appreciated!! Quote Link to comment https://www.insanelymac.com/forum/topic/357092-can-someone-assist-with-debugging-my-opencore-im-getting-desperate-lol/ Share on other sites More sharing options...
MaLd0n Posted June 29, 2023 Share Posted June 29, 2023 -Bios/UEFI in full default settings(Just change settings if need) -Users with IGPU can use -igfxvesa bootarg for easy installation 1 Quote Link to comment https://www.insanelymac.com/forum/topic/357092-can-someone-assist-with-debugging-my-opencore-im-getting-desperate-lol/#findComment-2807512 Share on other sites More sharing options...
InfinitThread Posted July 1, 2023 Author Share Posted July 1, 2023 On 6/29/2023 at 4:47 PM, MaLd0n said: -Bios/UEFI in full default settings(Just change settings if need) -Users with IGPU can use -igfxvesa bootarg for easy installation Okay, I got it to boot, my BIOS settings are still what they are from the post. However, I now cannot remove the -igfxvesa as it will just give me a black screen if I don't use it. Quote Link to comment https://www.insanelymac.com/forum/topic/357092-can-someone-assist-with-debugging-my-opencore-im-getting-desperate-lol/#findComment-2807608 Share on other sites More sharing options...
Slice Posted July 1, 2023 Share Posted July 1, 2023 On 6/30/2023 at 1:27 AM, InfinitThread said: OS Type => Other OS No! Set Windows 8 WHCI or even 10. 1 Quote Link to comment https://www.insanelymac.com/forum/topic/357092-can-someone-assist-with-debugging-my-opencore-im-getting-desperate-lol/#findComment-2807611 Share on other sites More sharing options...

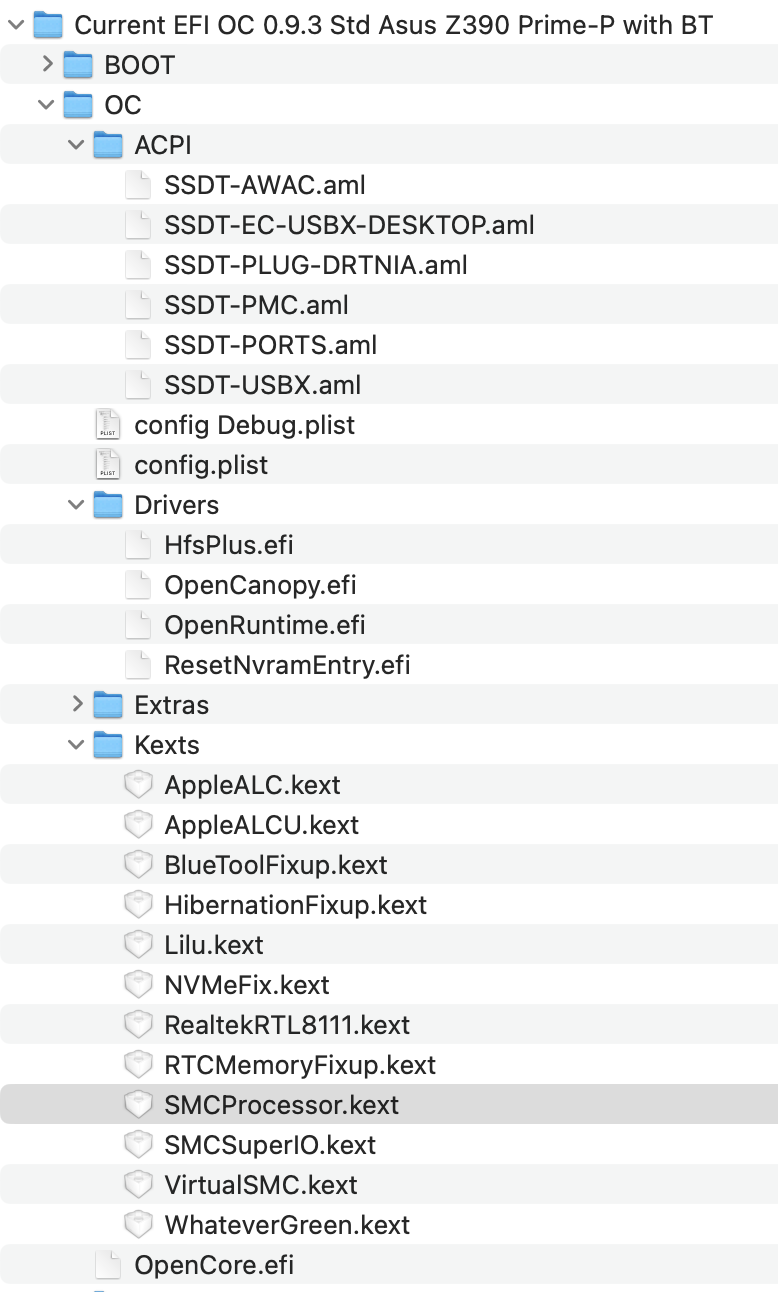

Sandgroper Posted July 5, 2023 Share Posted July 5, 2023 Hi, You did not specify the specific variant of the Asus Z390 Prime. I have the Asus Z390 Prime-P other than that the only difference between your config that you have listed is I also have an RX580 as my GPU. I am running Ventura 13.4.1 This is my current OC configuration which is working very well. I have used an SSDT for the USB ports instead of the USB Kext you have used. I did however disable in the BIOS USB ports 7 and 8 (internal motherboard USB3 ports) and USB ports 11 and 13 (internal motherboard USB2 ports). I upgraded the MB BIOS to version 4.0 - the latest version. The secure boot and Intel Trust Platform are both there, it was even present in my original BIOS version 1.3. There is no parallel port which explains why you could not find it. Also it is not actually possible to disable the Serial port, you have a choice of 4 possible configuration for the port however this is a red hearing as it has nothing to do with preventing the MacOS from operation correctly. I am an electronics geek and use the onboard serial port for connecting to serial devices. If you could not find the Secure Boot and the Intel Trust Platform then are you using the Simplified BIOS setup as opposed to the extended (F7) setup? I also set the DVMT Preallocated to 256M although it is not applicable to you as you are using a GPU. I am using M.2 NVME SSDs hence the NVME fixup. I use the identical EFI on both my installation USB stick as my boot SSD drive. For Bluetooth I am using a Bluetooth Dongle and therefore I also needed Bluetooth Quote Link to comment https://www.insanelymac.com/forum/topic/357092-can-someone-assist-with-debugging-my-opencore-im-getting-desperate-lol/#findComment-2807726 Share on other sites More sharing options...
cankiulascmnfye Posted July 5, 2023 Share Posted July 5, 2023 @InfinitThread Don't create Installers in Windows, use your Mac for that instead. You can use OpenCore Legacy Patcher to download macOS and create a USB installer Disable in BIOS: VT-x Vt-d Config: Enable XcpmCfgLock quirk for testing Misc/Security/SecureBootModel: Disabled (written word) -wegonogpu What is this? There's no such boot-arg called wegonogpu! It's called either wegnoegpu or wegnoigpu and you need neither of them 1 Quote Link to comment https://www.insanelymac.com/forum/topic/357092-can-someone-assist-with-debugging-my-opencore-im-getting-desperate-lol/#findComment-2807732 Share on other sites More sharing options...
deeveedee Posted July 5, 2023 Share Posted July 5, 2023 @cankiulascmnfye I've screamed "O no!" many times when attempting to debug WEG with my iGPU. I think wegonogpu is the technical term for this outburst. 2 Quote Link to comment https://www.insanelymac.com/forum/topic/357092-can-someone-assist-with-debugging-my-opencore-im-getting-desperate-lol/#findComment-2807733 Share on other sites More sharing options...
Slice Posted July 6, 2023 Share Posted July 6, 2023 On 7/5/2023 at 6:05 PM, cankiulascmnfye said: @InfinitThread Don't create Installers in Windows, use your Mac for that instead. You can use OpenCore Legacy Patcher to download macOS and create a USB installer Disable in BIOS: VT-x Vt-d Config: Enable XcpmCfgLock quirk for testing Misc/Security/SecureBootModel: Disabled (written word) -wegonogpu What is this? There's no such boot-arg called wegonogpu! It's called either wegnoegpu or wegnoigpu and you need neither of them I usually think VT-x is obligatory enabled for macOS. 1 Quote Link to comment https://www.insanelymac.com/forum/topic/357092-can-someone-assist-with-debugging-my-opencore-im-getting-desperate-lol/#findComment-2807808 Share on other sites More sharing options...
deeveedee Posted July 6, 2023 Share Posted July 6, 2023 (edited) 4 hours ago, Slice said: I usually think VT-x is obligatory enabled for macOS. Especially if the config.plist uses VM "spoofing" for OTA updates (e.g., VMM ON). Edited July 6, 2023 by deeveedee Quote Link to comment https://www.insanelymac.com/forum/topic/357092-can-someone-assist-with-debugging-my-opencore-im-getting-desperate-lol/#findComment-2807826 Share on other sites More sharing options...
