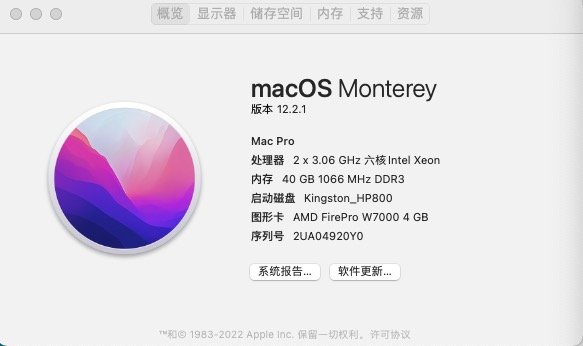

Feng QUan Posted March 11, 2022 Share Posted March 11, 2022 (edited) Hello my friend. My machine is HP Z800, configured as X5675*2 /Firepro W7000. I refer to the information of some experts in this forum, especially @mfifer's excellent work, and successfully made my own EFI file. However, the problem is that the machine cannot be shut down properly and I have to manually shut down. I tried to MAPPING USB, or directly modify DSDT, but it didn't work either. What I want to ask is, has anyone been able to solve this problem? I am attaching my own EFI file. This EFI can successfully boot Monterey. During the installation, I finished installing Monterey in my other HP Z840 and then transferred the SSD to the HP Z800 machine. Then, boot and work perfectly with this EFI. Another known issue is that when the machine is powered on, I plug in my USB keyboard and it doesn't work. The machine doesn't even recognize this keyboard. I hope you guys can solve this problem. I test for several times, the shutdown problem seems to be solved. However, the "restart" problem appears. When I restart my HP Z800, the whole computer seems lost response with a black screen . EFI.zip Edited March 11, 2022 by Feng QUan 1 Quote Link to comment https://www.insanelymac.com/forum/topic/351052-for-mac-os-12-monterey-installation-on-hp-z800-workstation-computer-with-efi-for-reference/ Share on other sites More sharing options...
Cyberdevs Posted March 11, 2022 Share Posted March 11, 2022 @Feng QUan Please do not double post. Quote Link to comment https://www.insanelymac.com/forum/topic/351052-for-mac-os-12-monterey-installation-on-hp-z800-workstation-computer-with-efi-for-reference/#findComment-2778015 Share on other sites More sharing options...
mfifer Posted April 7, 2022 Share Posted April 7, 2022 (edited) I mentioned in a related thread, that I had time to review the OC docs and I fixed my reboot-not-working issue by making this change to my config.plist in the Quirks section (change false to true): <key>FadtEnableReset</key> <true/> See if that change helps your restart challenges... -=- mf On 3/10/2022 at 8:33 PM, Feng QUan said: Hello my friend. My machine is HP Z800, configured as X5675*2 /Firepro W7000. I refer to the information of some experts in this forum, especially @mfifer's excellent work, and successfully made my own EFI file. However, the problem is that the machine cannot be shut down properly and I have to manually shut down. I tried to MAPPING USB, or directly modify DSDT, but it didn't work either. What I want to ask is, has anyone been able to solve this problem? I am attaching my own EFI file. This EFI can successfully boot Monterey. During the installation, I finished installing Monterey in my other HP Z840 and then transferred the SSD to the HP Z800 machine. Then, boot and work perfectly with this EFI. Another known issue is that when the machine is powered on, I plug in my USB keyboard and it doesn't work. The machine doesn't even recognize this keyboard. I hope you guys can solve this problem. I test for several times, the shutdown problem seems to be solved. However, the "restart" problem appears. When I restart my HP Z800, the whole computer seems lost response with a black screen . Edited April 7, 2022 by mfifer 1 Quote Link to comment https://www.insanelymac.com/forum/topic/351052-for-mac-os-12-monterey-installation-on-hp-z800-workstation-computer-with-efi-for-reference/#findComment-2779486 Share on other sites More sharing options...
BingoGo Posted May 1, 2022 Share Posted May 1, 2022 (edited) Hello! Can you reupload EFI for z840 please?) What to try Monterey on my z840))) Update!! Looks like it was my problem with downloading, so, link works now!) Edited June 14, 2022 by BingoGo Quote Link to comment https://www.insanelymac.com/forum/topic/351052-for-mac-os-12-monterey-installation-on-hp-z800-workstation-computer-with-efi-for-reference/#findComment-2781438 Share on other sites More sharing options...
Feng QUan Posted June 14, 2022 Author Share Posted June 14, 2022 On 5/1/2022 at 8:15 PM, BingoGo said: Hello! Can you reupload EDI for z840 please?) What to try Monterey on my z840))) Update!! Looks like it was my problem with downloading, so, link works now!) We talk about HP Z800 , not HP Z840. The two machines are in different platform, so the EFI can not universal. Quote Link to comment https://www.insanelymac.com/forum/topic/351052-for-mac-os-12-monterey-installation-on-hp-z800-workstation-computer-with-efi-for-reference/#findComment-2785452 Share on other sites More sharing options...
BingoGo Posted June 14, 2022 Share Posted June 14, 2022 1 hour ago, Feng QUan said: We talk about HP Z800 , not HP Z840. The two machines are in different platform, so the EFI can not universal. Ok, Sorry. From first message on this page I thought that EFI was moved from z840 Quote "I finished installing Monterey in my other HP Z840 and then transferred the SSD to the HP Z800 machine. Then, boot and work perfectly with this EFI" Quote Link to comment https://www.insanelymac.com/forum/topic/351052-for-mac-os-12-monterey-installation-on-hp-z800-workstation-computer-with-efi-for-reference/#findComment-2785469 Share on other sites More sharing options...
nenu Posted October 29, 2022 Share Posted October 29, 2022 Can I have hp z800 efi for monterey Quote Link to comment https://www.insanelymac.com/forum/topic/351052-for-mac-os-12-monterey-installation-on-hp-z800-workstation-computer-with-efi-for-reference/#findComment-2796225 Share on other sites More sharing options...
the_ace Posted February 18, 2023 Share Posted February 18, 2023 Also interested in an EFI for Big Sur or Monterey on a Z800 1 Quote Link to comment https://www.insanelymac.com/forum/topic/351052-for-mac-os-12-monterey-installation-on-hp-z800-workstation-computer-with-efi-for-reference/#findComment-2801570 Share on other sites More sharing options...
Rocky12 Posted February 19, 2023 Share Posted February 19, 2023 (edited) @the_ace Monterey installation on HP Z800 Workstation 165236452_MontereyinstallationonHPZ800Workstation.zip Edited February 19, 2023 by Rocky12 2 Quote Link to comment https://www.insanelymac.com/forum/topic/351052-for-mac-os-12-monterey-installation-on-hp-z800-workstation-computer-with-efi-for-reference/#findComment-2801610 Share on other sites More sharing options...
the_ace Posted February 25, 2023 Share Posted February 25, 2023 @Rocky12 Any additional notes or hints for the installation? is there any editor for OC out there like the clover configurator? I might have to fix the GPU to a GTX Titan. This one only runs with OCLP when i read this right:nvidia gpu compatiblity' Quote Link to comment https://www.insanelymac.com/forum/topic/351052-for-mac-os-12-monterey-installation-on-hp-z800-workstation-computer-with-efi-for-reference/#findComment-2801825 Share on other sites More sharing options...
Rocky12 Posted February 26, 2023 Share Posted February 26, 2023 OpenCore Configurator ProperTree is a cross-platform GUI plist editor https://dortania.github.io/OpenCore-Install-Guide/installer-guide/mac-install.html#downloading-macos-modern-os Quote Link to comment https://www.insanelymac.com/forum/topic/351052-for-mac-os-12-monterey-installation-on-hp-z800-workstation-computer-with-efi-for-reference/#findComment-2801846 Share on other sites More sharing options...
sok5 Posted March 14, 2023 Share Posted March 14, 2023 Have anyone try install Ventura on Z800? thank you Quote Link to comment https://www.insanelymac.com/forum/topic/351052-for-mac-os-12-monterey-installation-on-hp-z800-workstation-computer-with-efi-for-reference/#findComment-2802360 Share on other sites More sharing options...
mfifer Posted April 28, 2023 Share Posted April 28, 2023 On 3/13/2023 at 8:40 PM, sok5 said: Have anyone try install Ventura on Z800? thank you Yes, with no luck so far. It's a double whammy of a Hackintosh AND a deprecated processor with an installer block. I've just not had the time to fight the combination successfully. One of these days I will because we are probably coming to the end of the line of X86 compatible OS releases for older hardware, so I'd like to go as far as possible. (I'm also saving up for a Mac Studio, having read the writing on the wall...) 1 Quote Link to comment https://www.insanelymac.com/forum/topic/351052-for-mac-os-12-monterey-installation-on-hp-z800-workstation-computer-with-efi-for-reference/#findComment-2804092 Share on other sites More sharing options...
sok5 Posted May 13, 2023 Share Posted May 13, 2023 I'm successfully install Mac os Ventura 13.3.1 on my HP z800. 1 Quote Link to comment https://www.insanelymac.com/forum/topic/351052-for-mac-os-12-monterey-installation-on-hp-z800-workstation-computer-with-efi-for-reference/#findComment-2804584 Share on other sites More sharing options...
nenu Posted July 19, 2023 Share Posted July 19, 2023 @sok5 can you share your latest efi , I have same graphics and cpu. Quote Link to comment https://www.insanelymac.com/forum/topic/351052-for-mac-os-12-monterey-installation-on-hp-z800-workstation-computer-with-efi-for-reference/#findComment-2808436 Share on other sites More sharing options...
sok5 Posted July 23, 2023 Share Posted July 23, 2023 (edited) Here is my EFI, it's work with 13.4, 13.5 beta and os 14 bera2. recommended you change series number by using OCAuxlliarytoos after you successfully installation os of your choice. I have more luck on OS Ventura, it is easier to install than Monetary . 588393863_EFIpreinstall.zip Edited July 23, 2023 by sok5 1 Quote Link to comment https://www.insanelymac.com/forum/topic/351052-for-mac-os-12-monterey-installation-on-hp-z800-workstation-computer-with-efi-for-reference/#findComment-2808655 Share on other sites More sharing options...
sok5 Posted July 23, 2023 Share Posted July 23, 2023 (edited) after installation complete use this EFI with csr-active-config 03080000. so you can use OpenCore-Patcher for your video card patching. Edited October 5, 2023 by sok5 1 Quote Link to comment https://www.insanelymac.com/forum/topic/351052-for-mac-os-12-monterey-installation-on-hp-z800-workstation-computer-with-efi-for-reference/#findComment-2808656 Share on other sites More sharing options...
nenu Posted August 30, 2023 Share Posted August 30, 2023 i am running into boot loop issue, do you have to patch the CPU i am using X5650 Quote Link to comment https://www.insanelymac.com/forum/topic/351052-for-mac-os-12-monterey-installation-on-hp-z800-workstation-computer-with-efi-for-reference/#findComment-2810667 Share on other sites More sharing options...
sok5 Posted August 31, 2023 Share Posted August 31, 2023 (edited) you can try my EFI, I hope it's working for you. Edited October 5, 2023 by sok5 Quote Link to comment https://www.insanelymac.com/forum/topic/351052-for-mac-os-12-monterey-installation-on-hp-z800-workstation-computer-with-efi-for-reference/#findComment-2810680 Share on other sites More sharing options...
leo68464 Posted December 7, 2023 Share Posted December 7, 2023 On 8/31/2023 at 12:22 PM, sok5 said: you can try my EFI, I hope it's working for you. Hi sok5, I'm new to Hackintosh. My HP Z800 is: CPU 2x Xeon x5690, RAM 88GB Video card: AMD Radio RX580 WiFi: RTL8188EU WLAN 802.11n USB 2.0 USB3 PCIe MSI MS-4256 Which one I need to download? Quote Link to comment https://www.insanelymac.com/forum/topic/351052-for-mac-os-12-monterey-installation-on-hp-z800-workstation-computer-with-efi-for-reference/#findComment-2814362 Share on other sites More sharing options...

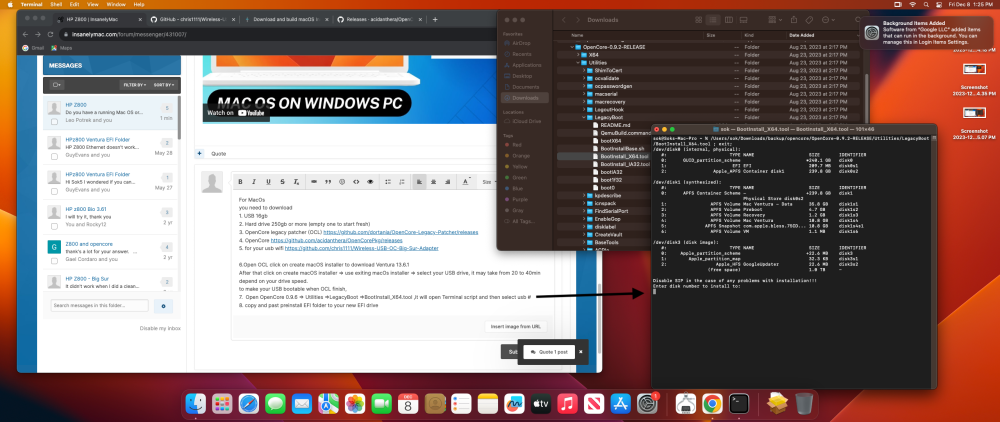

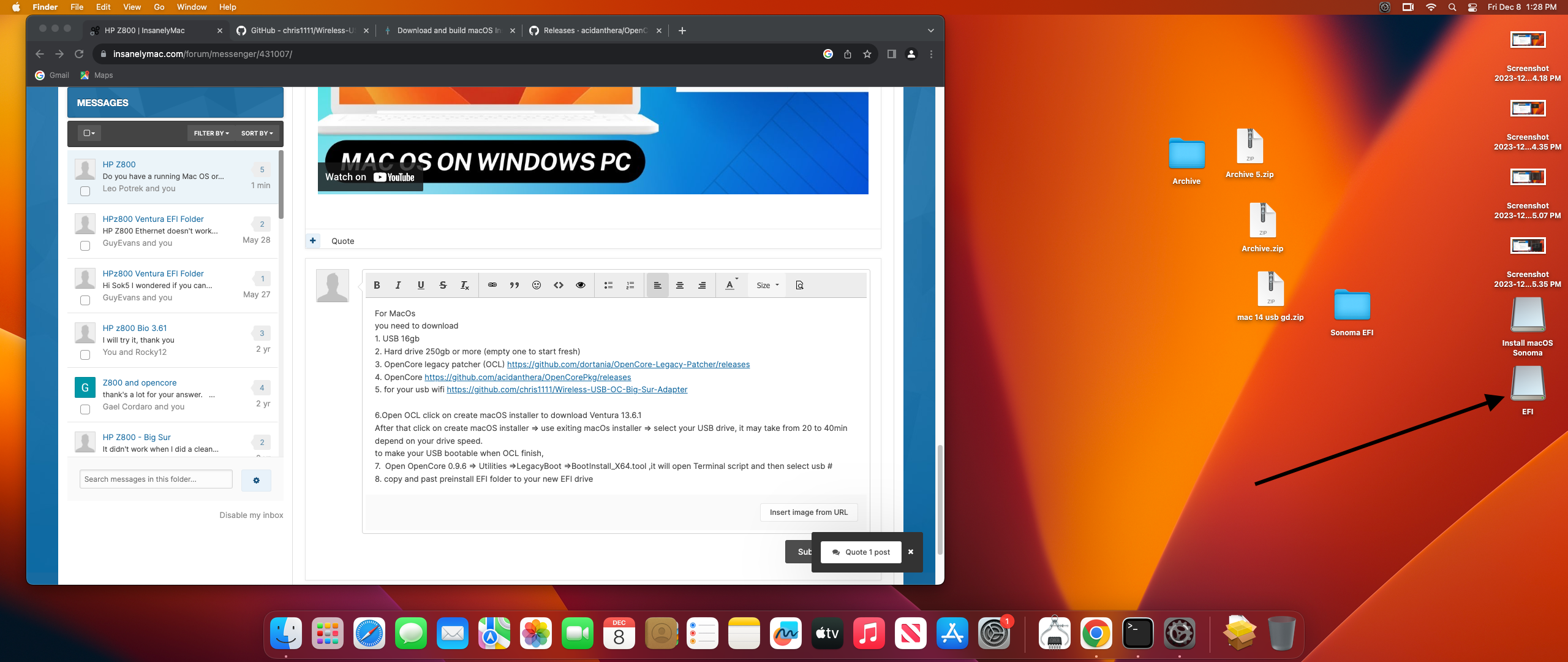

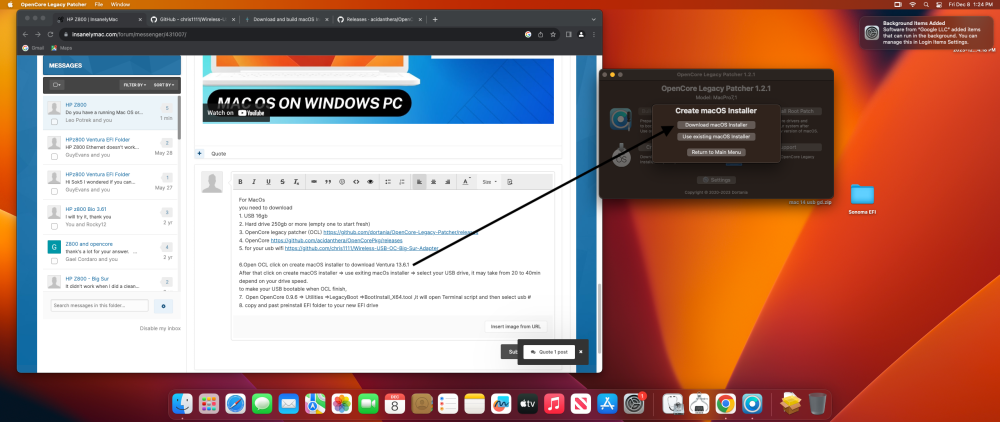

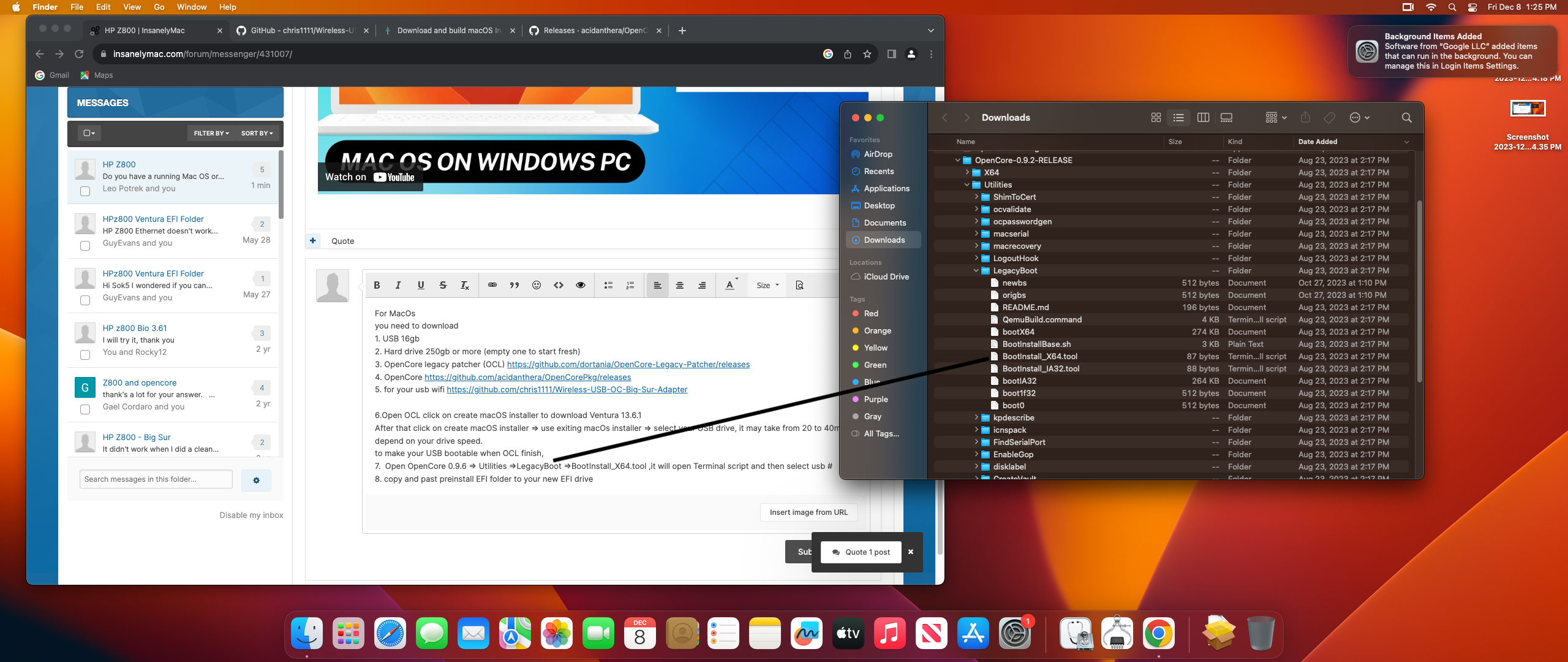

sok5 Posted December 8, 2023 Share Posted December 8, 2023 For MacOs you need to download 1. USB 16gb 2. Hard drive 250gb or more (empty one to start fresh) 3. OpenCore legacy patcher (OCL) https://github.com/dortania/OpenCore-Legacy-Patcher/releases 4. OpenCore https://github.com/acidanthera/OpenCorePkg/releases 5. for your usb wifi https://github.com/chris1111/Wireless-USB-OC-Big-Sur-Adapter 6.Open OCL click on create macOS installer to download Ventura 13.6.1 it's easy then Sonoma After that click on create macOS installer => use exiting macOs installer => select your USB drive, it may take from 20 to 40min depend on your drive speed. to make your USB bootable when OCL finish, 7. Open OpenCore 0.9.6 => Utilities =>LegacyBoot =>BootInstall_X64.tool ,it will open Terminal script and then select usb # 8. copy and past preinstall EFI folder to your new EFI drive 9. remove all the hard drive except one you want to install. 10. Bio setup to boot from UBS 11. boot your usb installer => when it boot up => Disk utility => format APFS (GUID partition) exit and instill OS after installation finish, it'll reboot several time to complete the final operating system. 12. used step # 7 to make your hard drive bootable without USB drive. 10. copy and past post installation EFI Quote Link to comment https://www.insanelymac.com/forum/topic/351052-for-mac-os-12-monterey-installation-on-hp-z800-workstation-computer-with-efi-for-reference/#findComment-2814415 Share on other sites More sharing options...
sok5 Posted December 8, 2023 Share Posted December 8, 2023 pre install EFI.zippost install EFI.zip 1 Quote Link to comment https://www.insanelymac.com/forum/topic/351052-for-mac-os-12-monterey-installation-on-hp-z800-workstation-computer-with-efi-for-reference/#findComment-2814416 Share on other sites More sharing options...
leo68464 Posted December 18, 2023 Share Posted December 18, 2023 On 12/9/2023 at 6:05 AM, sok5 said: pre install EFI.zip 4.34 MB · 7 downloads post install EFI.zip 5.58 MB · 5 downloads It gives me this Quote Link to comment https://www.insanelymac.com/forum/topic/351052-for-mac-os-12-monterey-installation-on-hp-z800-workstation-computer-with-efi-for-reference/#findComment-2814675 Share on other sites More sharing options...
leo68464 Posted December 19, 2023 Share Posted December 19, 2023 On 12/9/2023 at 6:05 AM, sok5 said: pre install EFI.zip 4.34 MB · 8 downloads post install EFI.zip 5.58 MB · 6 downloads Boot now is working with your ventura preinstallation EFI. Thank you. Quote Link to comment https://www.insanelymac.com/forum/topic/351052-for-mac-os-12-monterey-installation-on-hp-z800-workstation-computer-with-efi-for-reference/#findComment-2814679 Share on other sites More sharing options...
sok5 Posted December 19, 2023 Share Posted December 19, 2023 Good to hear you have successful installed Ventura with system. Quote Link to comment https://www.insanelymac.com/forum/topic/351052-for-mac-os-12-monterey-installation-on-hp-z800-workstation-computer-with-efi-for-reference/#findComment-2814702 Share on other sites More sharing options...
