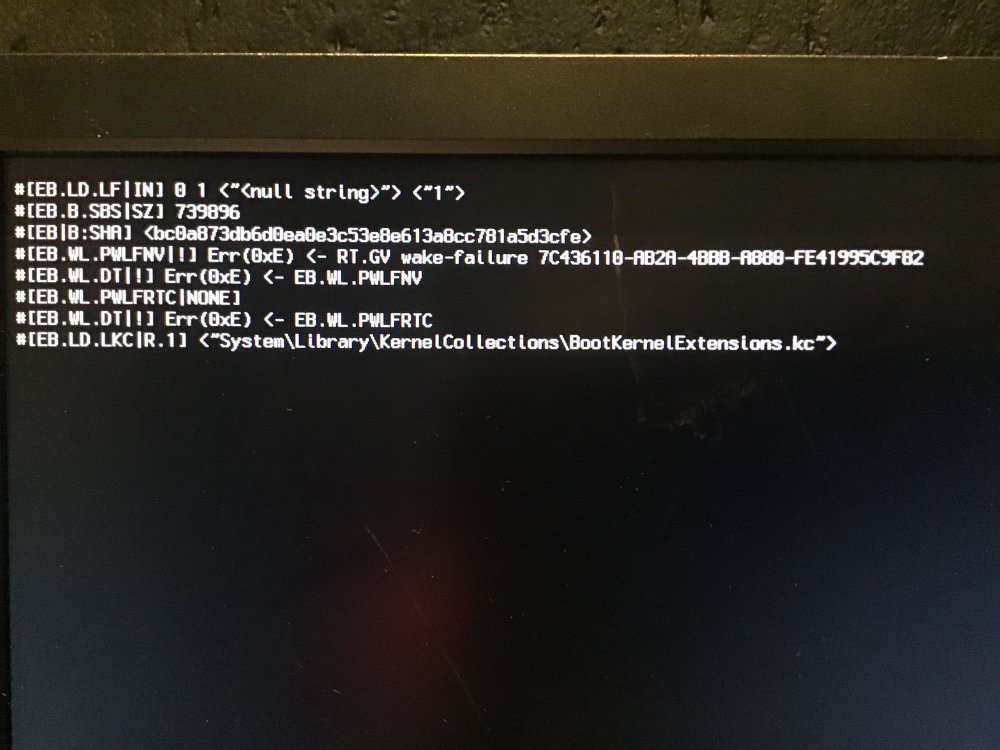

Springblade Posted January 25, 2022 Share Posted January 25, 2022 (edited) Hello there🙂, I'm trying to upgrade from macOS 10.13 to 12 because my dGPU is no longer supported in 10.13+ systems😅. So I removed my dGPU to use my iGPU instead, which is supported on macOS 12😀, but whenever I boot the installation from OpenCore I get stuck at the same error shown in the log😥. Can anybody please help me out🤔? Here's my specs and the O.C. log: Motherboard: Gigabyte GA-H110M-S2V. CPU: Intel Core i5-7400 (Kaby Lake) 4 Cores, 3.50 GHz. iGPU: Intel HD Graphics 630. Ethernet: Realtek ALC887. OpenCore version: 0.7.7. My drivers: HfsPlus.efi; OpenRuntime.efi. My Tools: OpenShell.efi My ACPIs: SSDT-EC-USBX-DESKTOP.aml; SSDT-PLUG-DRTNIA.aml. My Kexts: AppleALC; Lilu; NVMFix; RealtekRTL8111; SMCProcessor; SMCSuperIO; USBInjectAll;VirtualSMC; WhateverGreen. My config.plist: MediaFire - config.plist OpenCore log: 00:000 00:000 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82 00:064 00:064 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82 00:128 00:063 AAPL: #[EB|H:IS] 0 00:190 00:062 AAPL: #[EB|LOG:INIT] 2022-01-25T01:32:28 00:252 00:061 AAPL: #[EB|VERSION] <"bootbase.efi 540.60.2~89 (Official), built 2021-11-13T05:19:10-0800"> 00:360 00:108 AAPL: #[EB|BUILD] <"BUILD-INFO[306]:{"DisplayName":"bootbase.efi","DisplayVersion":"540.60.2~89","RecordUuid":"F1BD5C6D-1281-4B9F-9BCC-CB3CE6D72A9B","BuildTime":"2021-11-13T05:19:10-0800","ProjectName":"efiboot","ProductName":"bootbase.efi","SourceVersion":"540.60.2","BuildVersion":"89","BuildConfiguration":"Release","BuildType":"Official"}"> 00:420 00:059 AAPL: #[EB.CFG.DEV|!] Err(0xE) <- RT.GV booter-strict-xmlparser 7C436110-AB2A-4BBB-A880-FE41995C9F82 00:491 00:070 AAPL: #[EB|CFG:DEV] r5 0x0 0x0 00:554 00:063 AAPL: #[EB|H:IS] 0 00:614 00:059 AAPL: #[EB|WL:MODE] 0 00:674 00:060 AAPL: #[EB|CFG:ARG] boot-save-log 0x0000000000000002 (0x0000000000000002 < 0xFFFFFFFFFFFFFFFF) default 00:734 00:059 AAPL: #[EB|CFG:ARG] wake-save-log 0x0000000000000002 (0x0000000000000002 < 0x0000000000000002) default 00:800 00:066 AAPL: #[EB|CFG:ARG] console 0x0000000000000001 (0x0000000000000001 < 0x0000000000000001) default 00:872 00:071 AAPL: #[EB|CFG:ARG] serial 0x0000000000000001 (0x0000000000000001 < 0x0000000000000000) default 00:934 00:062 AAPL: #[EB|CFG:ARG] preoslog 0x0000000000000001 (0x0000000000000001 < 0xFFFFFFFFFFFFFFFF) default 00:995 00:060 AAPL: #[EB|CFG:ARG] timestamps 0x0000000000000000 (0x0000000000000000 < 0xFFFFFFFFFFFFFFFF) default 01:055 00:060 AAPL: #[EB|CFG:ARG] log-level 0x0000000000000001 (0x0000000000000001 & 0x0000000000000021) default 01:116 00:060 AAPL: #[EB|CFG:ARG] breakpoint 0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) default 01:183 00:067 AAPL: #[EB|CFG:ARG] kc-read-size 0x0000000000100000 (0x0000000000100000 < 0xFFFFFFFFFFFFFFFF) default 01:243 00:060 AAPL: #[EB|H:IS] 0 01:306 00:063 AAPL: #[EB|WL] 0 0 0x01 0x01 0 0x00 01:368 00:061 AAPL: #[EB|BRD:NV] Mac-4B682C642B45593E 01:470 00:102 AAPL: #[EB|B:VAw] 01:533 00:062 AAPL: #[EB|B:IAw] 01:604 00:071 AAPL: #[EB|WL] 0 0 0x01 0x01 2 0x00 01:678 00:073 AAPL: #[EB.BST.IDT|+] 01:741 00:062 AAPL: #[EB|BM] X86LEGACYAP 01:800 00:059 AAPL: #[EB.BST.IDT|-] 01:860 00:060 AAPL: #[EB|WL] 0 0 0x01 0x01 3 0x00 01:920 00:059 AAPL: #[EB|WL] 0 0 0x01 0x01 4 0x00 01:980 00:060 AAPL: #[EB|BRD:NV] Mac-4B682C642B45593E 02:060 00:080 AAPL: #[EB|WL] 0 0 0x01 0x01 5 0x00 02:121 00:060 AAPL: #[EB.H.CHK|BM] 0x0000000000000000 02:180 00:059 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82 02:240 00:060 AAPL: #[EB|WL] 0 0 0x01 0x01 23 0x0E 02:300 00:059 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82 02:361 00:060 AAPL: #[EB|WL] 0 0 0x01 0x01 24 0x0E 02:435 00:074 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82 02:496 00:061 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82 02:557 00:060 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82 02:661 00:103 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82 02:721 00:059 AAPL: #[EB|H:NOT] 02:798 00:077 AAPL: #[EB|SB:P] 0x0 02:862 00:063 AAPL: #[EB|LIMG:DP] VenMedia(957932CC-7E8E-433B-8F41-D391EA3C10F8)/MemMap(10:100000000-100001000)/DMG_00000000260808DE.dmg/VenMedia(004B07E8-0B9C-427E-B0D4-A466E6E57A62)/HD(Part2,Sig6074A990-9578-482B-99D7-D7EEEFD11A7E) 02:934 00:072 AAPL: #[EB|LIMG:FP] \System\Library\CoreServices\boot.efi 02:994 00:059 AAPL: #[EB|LIMG:OPT] 03:060 00:065 AAPL: #[EB.B.OBV|BM:+DMG] 03:120 00:060 AAPL: #[EB.B.OBV|BM:+ROS] 03:199 00:078 AAPL: #[EB|RPS] 0 0 0 03:263 00:064 AAPL: #[EB.OPT.LXF|F] <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> 03:336 00:073 AAPL: #[EB.LD.LF|IN] 0 1 <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> <"0"> 03:398 00:061 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> 03:464 00:066 AAPL: #[EB.OPT.LXF|LF!] Err(0xE) 03:524 00:060 AAPL: #[EB.OPT.LXF|F] <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist"> 03:592 00:067 AAPL: #[EB.LD.LF|IN] 0 1 <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist"> <"0"> 03:659 00:067 AAPL: #[EB|KF] <""> 03:732 00:073 AAPL: #[EB|MBA:CL] <""> 03:831 00:098 AAPL: #[EB|MBA:NV] <"-v keepsyms=1 debug=0x100 keepsyms=1 alcid=1 -wegnoegpu"> 03:890 00:058 AAPL: #[EB|MBA:KF] <""> 03:961 00:071 AAPL: #[EB|MBA:OUT] <"-v keepsyms=1 debug=0x100 alcid=1 -wegnoegpu"> 04:024 00:063 AAPL: #[EB|LOG:VERBOSE] 2022-01-25T01:32:32 04:085 00:060 AAPL: #[EB|OPT:BM] 0x821082 04:145 00:060 AAPL: #[EB.OPT.LXF|F] <"\\System\\Library\\CoreServices\\PlatformSupport.plist"> 04:211 00:066 AAPL: #[EB.LD.LF|IN] 0 1 <"\\System\\Library\\CoreServices\\PlatformSupport.plist"> <"0"> 04:278 00:066 AAPL: #[EB.B.MN|BM:ROS] 04:356 00:078 AAPL: #[EB|WL] 0 0 0x01 0x01 19 0x0E 04:467 00:111 AAPL: #[EB.CS.CSKSD|+] 04:530 00:062 AAPL: #[EB.G.CS|-?] Ok(0) 04:591 00:060 AAPL: #[EB.LD.LF|IN] 0 1 <"<null string>"> <"1"> 04:671 00:079 AAPL: #[EB.B.SBS|SZ] 723512 04:737 00:065 AAPL: #[EB|B:SHA] <143598cec12c9d344c2db4bb60c3621e81109781> 04:798 00:061 AAPL: #[EB.WL.PWLFNV|!] Err(0xE) <- RT.GV wake-failure 7C436110-AB2A-4BBB-A880-FE41995C9F82 04:862 00:063 AAPL: #[EB.WL.DT|!] Err(0xE) <- EB.WL.PWLFNV 04:924 00:062 AAPL: #[EB.WL.PWLFRTC|NONE] 04:985 00:061 AAPL: #[EB.WL.DT|!] Err(0xE) <- EB.WL.PWLFRTC 05:081 00:095 AAPL: #[EB.LD.LKC|R.1] <"System\Library\KernelCollections\BootKernelExtensions.kc"> 07:050 01:969 AAPL: #[EB.LD.LKFS|-?] Ok(0) 07:132 00:081 AAPL: #[EB.LD.LKC|-?] Ok(0) 07:195 00:062 AAPL: #[EB|BST:REV1] 07:255 00:060 AAPL: #[EB|CSR:IN] 0x00000040 07:315 00:059 AAPL: #[EB|CSR:OUT] 0x00000040 07:376 00:061 AAPL: #[EB.BST.FBS|+] 07:436 00:060 AAPL: #[EB.BST.FBS|ADSZ] 0 07:514 00:077 AAPL: #[EB.BST.FBS|KSSZ] 0 07:577 00:063 AAPL: #[EB|SB:SBGMFNS] x86legacyap.im4m 07:638 00:060 AAPL: #[EB|RH:PF] usr\standalone\OS.dmg.root_hash 07:698 00:060 AAPL: #[EB|RH:MF] <"usr\\standalone\\OS.dmg.root_hash.x86legacyap.im4m"> 07:759 00:060 AAPL: #[EB.LD.LF|IN] 0 1 <"usr\\standalone\\OS.dmg.root_hash"> <"0"> 07:823 00:064 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"usr\\standalone\\OS.dmg.root_hash"> 07:890 00:066 AAPL: #[EB.RH.LRH|P!] Err(0xE) <- EB.LD.LF 07:952 00:062 AAPL: #[EB.BST.FBS|!] Err(0xE) <- EB.RH.LRH 08:014 00:061 AAPL: #[EB|LOG:DT] 2022-01-25T01:32:36 08:075 00:060 AAPL: #[EB|LOG:EXITBS:START] 2022-01-25T01:32:36 Edited January 25, 2022 by Springblade Grammar fixes Quote Link to comment Share on other sites More sharing options...
HmO Posted January 25, 2022 Share Posted January 25, 2022 @Springblade config.plist is broken Quote Link to comment Share on other sites More sharing options...
Springblade Posted January 25, 2022 Author Share Posted January 25, 2022 (edited) 1 hour ago, HmO said: @Springblade config.plist is broken @HmO What do you mean? I didn't make any noticable change but the ones that were required for the generation... Edited January 25, 2022 by Springblade Quote HmO Quote Link to comment Share on other sites More sharing options...
eSaF Posted January 25, 2022 Share Posted January 25, 2022 @Springblade Hi there is no need to post your files off site (i.e MediaFire) just compress your EFI Folder and post it here so that some one can correct the errors or provide aid. Quote Link to comment Share on other sites More sharing options...
Guest 5T33Z0 Posted January 25, 2022 Share Posted January 25, 2022 @Springblade VirtualSMC is in the wrong position. It needs to be in 2nd place right after Lilu. Rest of config seens fine on first glance. Quote Link to comment Share on other sites More sharing options...
rafale77 Posted January 25, 2022 Share Posted January 25, 2022 @Springblade You might want to download a tool like opencore configurator and have it scan your config.plist for consistency and errors. It could save you a lot of time. Quote Link to comment Share on other sites More sharing options...
Springblade Posted January 25, 2022 Author Share Posted January 25, 2022 11 hours ago, 5T33Z0 said: @Springblade VirtualSMC is in the wrong position. It needs to be in 2nd place right after Lilu. Rest of config seens fine on first glance. This may sound like a rookie question, but how do I know what's their positions? Is it located on config.plist? If so, where? Quote Link to comment Share on other sites More sharing options...
Springblade Posted January 25, 2022 Author Share Posted January 25, 2022 5 minutes ago, Hervé said: Yes and the add-on kexts have to be in a correct order with main parent kexts before their PlugIns. For instance, Lilu before its AppleALC or Whatevergreen PlugIns or VirtualSMC before any of its sensor PlugIns. I got it, but wasn't that the "Clean Snapshot" function? Put everything in their right positions? I did that, but the question I have now is: If I'll have to relocate everything manually, how would I know which one is what and what are their plugins? Quote Link to comment Share on other sites More sharing options...
Guest 5T33Z0 Posted January 25, 2022 Share Posted January 25, 2022 (edited) @Springblade Simply move the entries in the list. Here are examples: https://github.com/5T33Z0/OC-Little-Translated/tree/main/10_Kexts_Loading_Sequence_Examples Edited January 25, 2022 by 5T33Z0 Quote Link to comment Share on other sites More sharing options...

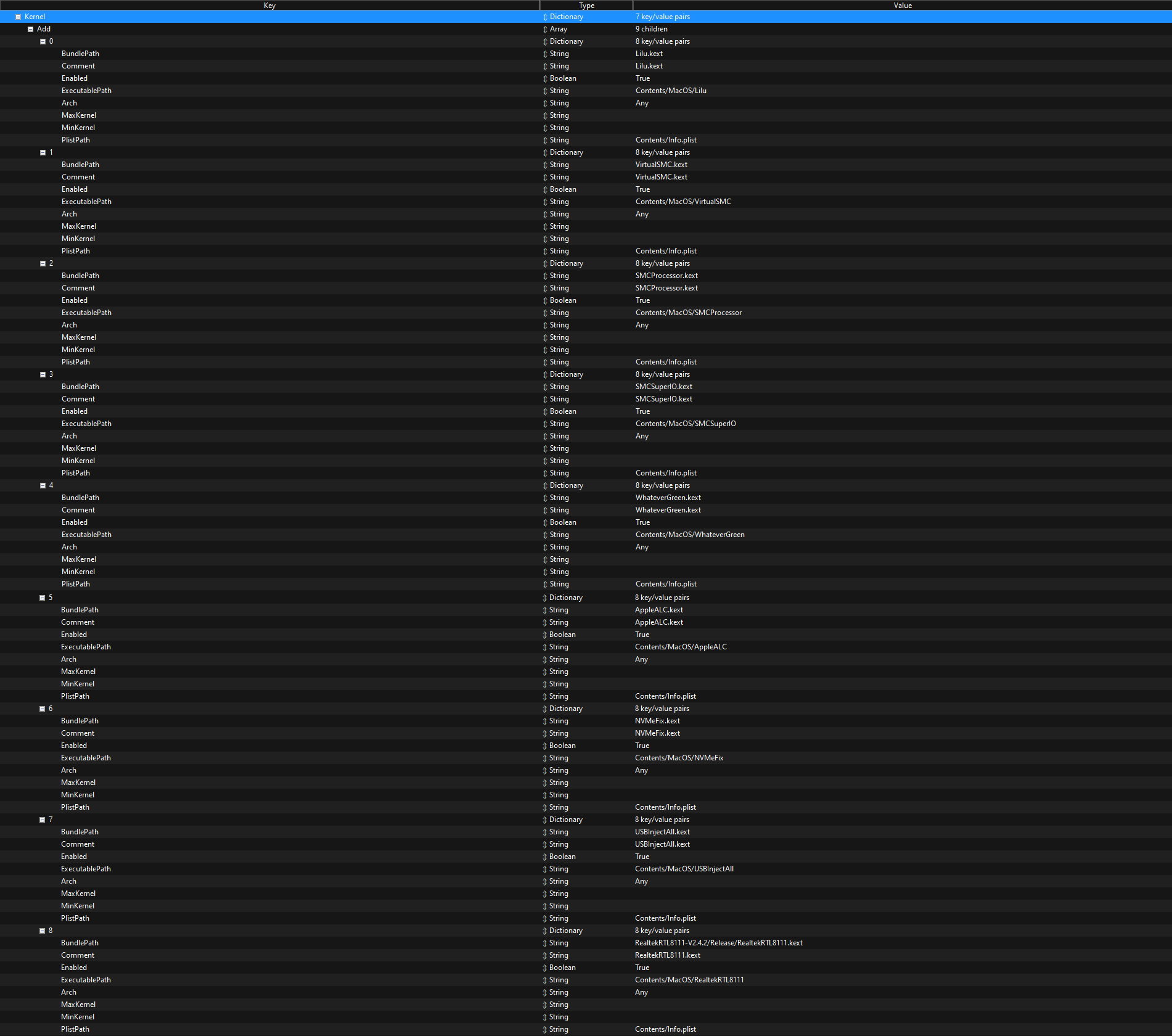

Springblade Posted January 25, 2022 Author Share Posted January 25, 2022 58 minutes ago, 5T33Z0 said: @Springblade Simply move the entries in the list. Here are examples: https://github.com/5T33Z0/OC-Little-Translated/tree/main/10_Kexts_Loading_Sequence_Examples Look, I think I managed to identify the error here, altough I changed the order according to your guide (1st picture) I used the sanity checker from the OC Package that I've downloaded and another one online, both says: " Drivers > Need either VBoxHfs.efi, OpenHfsPlus.efi or HfsPlus.efi here / OpenRuntime.efi is missing" But as you can see (2nd picture) I have both placed into my EFI. What could be done if that's really the error here? Quote Link to comment Share on other sites More sharing options...
fantomas Posted January 26, 2022 Share Posted January 26, 2022 @Springblade Hi, Please do not delete your topic(s). And if you managed to solve your problem, it would be nice to post the solution to help other users. Thank you for your understanding. BR fantomas 1 Quote Link to comment Share on other sites More sharing options...
Guest 5T33Z0 Posted January 26, 2022 Share Posted January 26, 2022 (edited) @Springblade try this one. I've generated it using OpenCore Auxiliary Tools, which can generate EFI folders based on an existing config and performs vailidity checks. The Framebuffer Patch was disabled (# in front of entries) PS: USB might not work since the XHCI portlimit patch stopped working in macOS 11.3. Therefore you need to generate a custom USB Port kext. https://github.com/5T33Z0/OC-Little-Translated/tree/main/03_USB_Fixes EFI.zip Edited January 26, 2022 by 5T33Z0 Quote Link to comment Share on other sites More sharing options...
Springblade Posted January 28, 2022 Author Share Posted January 28, 2022 (edited) On 1/26/2022 at 5:08 AM, 5T33Z0 said: @Springblade try this one. I've generated it using OpenCore Auxiliary Tools, which can generate EFI folders based on an existing config and performs vailidity checks. The Framebuffer Patch was disabled (# in front of entries) PS: USB might not work since the XHCI portlimit patch stopped working in macOS 11.3. Therefore you need to generate a custom USB Port kext. https://github.com/5T33Z0/OC-Little-Translated/tree/main/03_USB_Fixes EFI.zip 5.76 MB · 2 downloads Look, I really appreciate what you did, but it keeps turning off my monitor after a few seconds after booting up the flash drive. It boots up, I choose to install macOS Monterey, wait a few seconds on a screen with a lot of lines then it just stop and turns off. I don't know what to do anymore, I've got tired of trying to learn those things and trying every single combination of any value to see if I can fix the problem because I've spent already 2 weeks and a half on it but it's no use... Here's the log tho, but I'm giving up on this: 00:000 00:000 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82 00:083 00:083 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82 00:150 00:066 AAPL: #[EB|H:IS] 0 00:217 00:067 AAPL: #[EB|LOG:INIT] 2016-01-22T15:23:23 00:283 00:066 AAPL: #[EB|VERSION] <"bootbase.efi 540.80.2~11 (Official), built 2021-12-17T18:42:44-0800"> 00:350 00:066 AAPL: #[EB|BUILD] <"BUILD-INFO[306]:{"DisplayName":"bootbase.efi","DisplayVersion":"540.80.2~11","RecordUuid":"9FC806E8-C3D6-40A1-9A7E-5BB759DC1924","BuildTime":"2021-12-17T18:42:44-0800","ProjectName":"efiboot","ProductName":"bootbase.efi","SourceVersion":"540.80.2","BuildVersion":"11","BuildConfiguration":"Release","BuildType":"Official"}"> 00:417 00:066 AAPL: #[EB.CFG.DEV|!] Err(0xE) <- RT.GV booter-strict-xmlparser 7C436110-AB2A-4BBB-A880-FE41995C9F82 00:494 00:077 AAPL: #[EB|CFG:DEV] r5 0x0 0x0 00:573 00:078 AAPL: #[EB|H:IS] 0 00:639 00:066 AAPL: #[EB|WL:MODE] 0 00:705 00:066 AAPL: #[EB|CFG:ARG] boot-save-log 0x0000000000000002 (0x0000000000000002 < 0xFFFFFFFFFFFFFFFF) default 00:817 00:111 AAPL: #[EB|CFG:ARG] wake-save-log 0x0000000000000002 (0x0000000000000002 < 0x0000000000000002) default 00:883 00:066 AAPL: #[EB|CFG:ARG] console 0x0000000000000001 (0x0000000000000001 < 0x0000000000000001) default 00:950 00:066 AAPL: #[EB|CFG:ARG] serial 0x0000000000000001 (0x0000000000000001 < 0x0000000000000000) default 01:017 00:066 AAPL: #[EB|CFG:ARG] preoslog 0x0000000000000001 (0x0000000000000001 < 0xFFFFFFFFFFFFFFFF) default 01:083 00:066 AAPL: #[EB|CFG:ARG] timestamps 0x0000000000000000 (0x0000000000000000 < 0xFFFFFFFFFFFFFFFF) default 01:150 00:066 AAPL: #[EB|CFG:ARG] log-level 0x0000000000000001 (0x0000000000000001 & 0x0000000000000021) default 01:217 00:066 AAPL: #[EB|CFG:ARG] breakpoint 0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) default 01:283 00:066 AAPL: #[EB|CFG:ARG] kc-read-size 0x0000000000100000 (0x0000000000100000 < 0xFFFFFFFFFFFFFFFF) default 01:350 00:066 AAPL: #[EB|H:IS] 0 01:417 00:066 AAPL: #[EB|WL] 0 0 0x01 0x01 0 0x00 01:484 00:066 AAPL: #[EB|BRD:NV] Mac-4B682C642B45593E 01:550 00:066 AAPL: #[EB|B:VAw] 01:617 00:066 AAPL: #[EB|B:IAw] 01:683 00:066 AAPL: #[EB|WL] 0 0 0x01 0x01 2 0x00 01:761 00:078 AAPL: #[EB.BST.IDT|+] 01:829 00:067 AAPL: #[EB.BST.IDT|-] 01:917 00:087 AAPL: #[EB|WL] 0 0 0x01 0x01 3 0x00 01:983 00:066 AAPL: #[EB|WL] 0 0 0x01 0x01 4 0x00 02:050 00:066 AAPL: #[EB|BRD:NV] Mac-4B682C642B45593E 02:117 00:066 AAPL: #[EB|WL] 0 0 0x01 0x01 5 0x00 02:183 00:066 AAPL: #[EB.H.CHK|BM] 0x0000000000000000 02:250 00:067 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82 02:317 00:066 AAPL: #[EB|WL] 0 0 0x01 0x01 23 0x0E 02:384 00:066 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82 02:450 00:066 AAPL: #[EB|WL] 0 0 0x01 0x01 24 0x0E 02:517 00:067 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82 02:584 00:066 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82 02:661 00:077 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82 02:728 00:066 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82 02:794 00:066 AAPL: #[EB|H:NOT] 02:862 00:067 AAPL: #[EB|SB:P] 0x0 02:931 00:069 AAPL: #[EB|LIMG:DP] Acpi(PNP0A03,0)/Pci(17|0)/SATA(2,FFFF)/HD(Part2,SigC1E8CD0D-D566-44D5-8AC7-586B1B6EB68A) 02:994 00:062 AAPL: #[EB|LIMG:FP] \System\Library\CoreServices\boot.efi 03:061 00:067 AAPL: #[EB|LIMG:OPT] 03:128 00:066 AAPL: #[EB|RPS] 0 0 0 03:204 00:076 AAPL: #[EB.OPT.LXF|F] <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> 03:283 00:079 AAPL: #[EB.LD.LF|IN] 0 1 <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> <"0"> 03:350 00:066 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> 03:417 00:067 AAPL: #[EB.OPT.LXF|LF!] Err(0xE) 03:483 00:066 AAPL: #[EB.OPT.LXF|F] <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist"> 03:550 00:066 AAPL: #[EB.LD.LF|IN] 0 1 <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist"> <"0"> 03:631 00:081 AAPL: #[EB|KF] <"root-dmg=file:///BaseSystem/BaseSystem.dmg"> 03:716 00:085 AAPL: #[EB|MBA:CL] <""> 03:783 00:066 AAPL: #[EB|MBA:NV] <"-v keepsyms=1 debug=0x100 keepsyms=1 alcid=1 -wegnoegpu"> 03:850 00:066 AAPL: #[EB|MBA:KF] <"root-dmg=file:///BaseSystem/BaseSystem.dmg"> 03:916 00:066 AAPL: #[EB|MBA:OUT] <"-v keepsyms=1 debug=0x100 alcid=1 -wegnoegpu root-dmg=file:///BaseSystem/BaseSystem.dmg"> 03:983 00:066 AAPL: #[EB|LOG:VERBOSE] 2016-01-22T15:23:23 04:050 00:066 AAPL: #[EB|OPT:BM] 0x82 04:116 00:066 AAPL: #[EB.OPT.LXF|F] <"\\System\\Library\\CoreServices\\PlatformSupport.plist"> 04:183 00:066 AAPL: #[EB.LD.LF|IN] 0 1 <"\\System\\Library\\CoreServices\\PlatformSupport.plist"> <"0"> 04:262 00:078 AAPL: #[EB|P:CPR] N 04:339 00:076 AAPL: #[EB|P:MPI] N 04:406 00:066 AAPL: #[EB|P:BPI] N 04:494 00:088 AAPL: #[EB|KMR] 359776256 04:561 00:066 AAPL: #[EB.CS.CSKSD|+] 04:628 00:066 AAPL: #[EB.CS.CSKSD|!] Err(0xE) <- RT.GV boot-info-payload 8D63D4FE-BD3C-4AAD-881D-86FD974BC1DF 04:694 00:066 AAPL: #[EB.G.CS|-?] Ok(0) 04:761 00:066 AAPL: #[EB.LD.LF|IN] 0 1 <"<null string>"> <"1"> 04:851 00:089 AAPL: #[EB.B.SBS|SZ] 727608 04:933 00:082 AAPL: #[EB|B:SHA] <d52094c49748186ddb70b472991ab9fa609398a7> 04:995 00:061 AAPL: #[EB.WL.PWLFNV|!] Err(0xE) <- RT.GV wake-failure 7C436110-AB2A-4BBB-A880-FE41995C9F82 05:061 00:066 AAPL: #[EB.WL.DT|!] Err(0xE) <- EB.WL.PWLFNV 05:128 00:066 AAPL: #[EB|WL:DT] 0xf27a8a2a 05:194 00:066 AAPL: #[EB.LD.LKC|D] <"System\Library\KernelCollections\BootKernelExtensions.kc.development"> 05:262 00:067 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.development"> 05:328 00:066 AAPL: #[EB.LD.LKC|R.2] <"System\Library\KernelCollections\BootKernelExtensions.kc"> 06:429 01:101 AAPL: #[EB.LD.LKFS|-?] Ok(0) 06:494 00:065 AAPL: #[EB.LD.LKC|-?] Ok(0) 06:562 00:067 AAPL: #[EB|BST:REV1] 06:628 00:065 AAPL: #[EB|CSR:IN] 0x000007C7 06:694 00:066 AAPL: #[EB|CSR:OUT] 0x000007C7 06:775 00:080 AAPL: #[EB.BST.FBS|+] 06:862 00:086 AAPL: #[EB.BST.FBS|ADSZ] 0 06:927 00:065 AAPL: #[EB.BST.FBS|KSSZ] 0 06:995 00:067 AAPL: #[EB|SB:SBGMFNS] x86legacyap.im4m 07:061 00:066 AAPL: #[EB|RH:PF] usr\standalone\OS.dmg.root_hash 07:128 00:066 AAPL: #[EB|RH:MF] <"usr\\standalone\\OS.dmg.root_hash.x86legacyap.im4m"> 07:194 00:066 AAPL: #[EB.LD.LF|IN] 0 1 <"usr\\standalone\\OS.dmg.root_hash"> <"0"> 07:261 00:066 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"usr\\standalone\\OS.dmg.root_hash"> 07:327 00:066 AAPL: #[EB.RH.LRH|P!] Err(0xE) <- EB.LD.LF 07:394 00:066 AAPL: #[EB.BST.FBS|!] Err(0xE) <- EB.RH.LRH 07:461 00:067 AAPL: #[EB|LOG:DT] 2016-01-22T15:23:23 07:528 00:066 AAPL: #[EB|LOG:EXITBS:START] 2016-01-22T15:23:23 Edited January 28, 2022 by Springblade Quote Link to comment Share on other sites More sharing options...

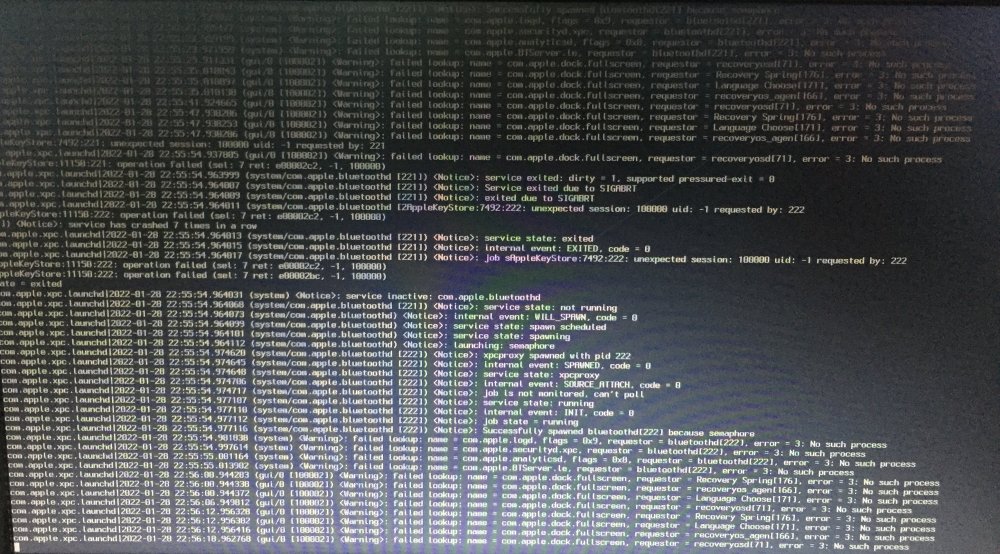

Springblade Posted January 28, 2022 Author Share Posted January 28, 2022 Also, I really doubt of this being helpful because I've set up to my iGPU input instead my dGPU I used this time just to see what was happening after the screen goes black and that's what I could photograph, it keeps on this loop but I think it's because I'm using a dGPU instead my iGPU, anyway, here's what I've got: Quote Link to comment Share on other sites More sharing options...
PastEth Man Posted July 4, 2022 Share Posted July 4, 2022 Hi I’ve also recently gotten this error Below is my EFI file Motherboard: Asu’s Prime H310m K R2.0 CPu: Intel Celeron G4930 8GB RAM 120GB SSD 1TB HDD Please Help, this is urgent. EFI-20220704T164749Z-001.zip Quote Link to comment Share on other sites More sharing options...
Guest ricoc90 Posted July 4, 2022 Share Posted July 4, 2022 What happened with your kexts? lol. Quote Link to comment Share on other sites More sharing options...
PastEth Man Posted July 4, 2022 Share Posted July 4, 2022 I don’t know, I’m pretty new to this Quote Link to comment Share on other sites More sharing options...
Guest ricoc90 Posted July 4, 2022 Share Posted July 4, 2022 4 minutes ago, PastEth Man said: I don’t know, I’m pretty new to this I've fixed them for you:EFI.zip Quote Link to comment Share on other sites More sharing options...
Slice Posted July 4, 2022 Share Posted July 4, 2022 24 minutes ago, PastEth Man said: Hi I’ve also recently gotten this error Below is my EFI file Motherboard: Asu’s Prime H310m K R2.0 CPu: Intel Celeron G4930 8GB RAM 120GB SSD 1TB HDD Please Help, this is urgent. EFI-20220704T164749Z-001.zip 3.62 MB · 2 downloads Hello, have you any graphics card? Celeron can't be the one in macOS. Quote Link to comment Share on other sites More sharing options...
PastEth Man Posted July 4, 2022 Share Posted July 4, 2022 I don’t have a gpu, is it unsupported or is it not able to run? Quote Link to comment Share on other sites More sharing options...
fengkou da Posted March 14, 2023 Share Posted March 14, 2023 (edited) Im join ，the same question。 Its make me socrazy. please help me. thank u. 26:082 00:015 AAPL: #[EB.B.SBS|SZ] 723512 26:104 00:022 AAPL: #[EB|B:SHA] <966d5e3bc8a58fe6f354f044a21095ae05081193> 26:126 00:021 AAPL: #[EB.WL.PWLFNV|!] Err(0x5) <- RT.GV wake-failure 7C436110-AB2A-4BBB-A880-FE41995C9F82 26:145 00:019 AAPL: #[EB.WL.DT|!] Err(0x5) <- EB.WL.PWLFNV 26:161 00:015 AAPL: #[EB.FS.AGSVH|RU] EB0FC9F6-EFE1-4FC7-BFC5-D91B039C2EFC 26:181 00:019 AAPL: #[EB.FS.AGSVH|!] Ok(0) <- BS.LocHB 964E5B22-6459-11D2-8E39-00A0C969723B 26:198 00:016 AAPL: #[EB.FS.AGSVH|GVI!] Err(0x3) 0 26:212 00:014 AAPL: #[EB.FS.AGSVH|GVI!] Err(0x3) 1 26:224 00:011 AAPL: #[EB.FS.AGSVH|GVI!] Err(0x3) 2 26:244 00:020 AAPL: #[EB.FS.AGSVH|GVI!] Err(0x3) 3 26:264 00:020 AAPL: #[EB.FS.AGSVH|GVI!] Err(0x3) 4 26:284 00:020 AAPL: #[EB.FS.AGSVH|GVI!] Err(0x3) 5 26:304 00:020 AAPL: #[EB.FS.AGSVH|GVI!] Err(0x3) 6 26:329 00:024 AAPL: #[EB|FMUFSV] RV EB0FC9F6-EFE1-4FC7-BFC5-D91B039C2EFC 0x00000040 26:356 00:027 AAPL: #[EB.LD.LKC|CFG] <"\\boot\\BootKernelExtensions.kc"> 26:402 00:046 OC: Kext reservation size info 56D000 exe 355000 26:416 00:013 OC: Trying 64-bit XNU hook on \boot\BootKernelExtensions.kc 26:694 00:278 OC: Result of 64-bit XNU hook on \boot\BootKernelExtensions.kc (00000000) is Success 26:723 00:028 OCAK: Read kernel version 21.6.0 (210600) 26:739 00:015 OCAK: Zeroing _xcpm_core_scope_msrs 0xE2 applicable CPUs (76) 26:754 00:015 OCAK: Zeroing _xcpm_core_scope_msrs 0xE2 applicable CPUs (406416) 26:769 00:015 OCAK: Zeroing _xcpm_core_scope_msrs 0xE2 applicable CPUs (16384) 26:788 00:018 OCAK: 64-bit XcpmCfgLockRel replace count - 2 26:804 00:016 OCAK: Zeroing _xcpm_pkg_scope_msrs 0x1A0 applicable CPUs (422876) 26:820 00:015 OCAK: Zeroing _xcpm_pkg_scope_msrs 0x1FC applicable CPUs (422876) 26:836 00:015 OCAK: Zeroing _xcpm_pkg_scope_msrs 0x1AA applicable CPUs (422876) 26:851 00:015 OCAK: Zeroing _xcpm_pkg_scope_msrs 0x620 applicable CPUs (422876) 26:867 00:015 OCAK: Zeroing _xcpm_pkg_scope_msrs 0x64C applicable CPUs (422876) 26:883 00:015 OCAK: Zeroing _xcpm_pkg_scope_msrs 0x63A applicable CPUs (406492) 26:899 00:015 OCAK: Zeroing _xcpm_pkg_scope_msrs 0x642 applicable CPUs (406492) 26:918 00:019 OCAK: Zeroing _xcpm_SMT_scope_msrs data 0x2E applicable CPUs (422876) 26:934 00:015 OCAK: Zeroing _xcpm_SMT_scope_msrs data 0x1A0 applicable CPUs (422876) 26:950 00:015 OCAK: Zeroing _xcpm_SMT_scope_msrs data 0x1B0 applicable CPUs (400) 26:965 00:015 OCAK: Zeroing _xcpm_SMT_scope_msrs data 0x1B0 applicable CPUs (401996) 26:981 00:015 OCAK: Zeroing _xcpm_SMT_scope_msrs data 0x1B0 applicable CPUs (20480) 26:997 00:015 OCAK: Zeroing _xcpm_SMT_scope_msrs data 0x609 applicable CPUs (406416) 27:079 00:082 OCAK: 64-bit MiscPwrMgmtRel replace count - 7 27:094 00:014 OCAK: Patch write max to MSR_IA32_PERF_CONTROL 27:134 00:039 OCAK: 64-bit PanicKextDump replace count - 1 27:147 00:013 OCAK: Patch success kext dump 27:159 00:012 OCAK: 64-bit PowerStateTimeout replace count - 1 27:173 00:013 OCAK: Patch success inline power state 27:188 00:015 OCAK: Found jettisoning fileset 27:273 00:085 OCAK: 64-bit xcpm_core_scope_msrs (c) Pike R. Alpha Modify By N.Mano 11.3 replace count - 0 27:293 00:019 OC: Kernel patcher result 0 for kernel (xcpm_core_scope_msrs (c) Pike R. Alpha Modify By N.Mano 11.3) - Not Found 27:389 00:096 OCAK: 64-bit _xcpm_pkg_scope_msrs Modify By N.Mano 11.3 replace count - 0 27:406 00:016 OC: Kernel patcher result 1 for kernel (_xcpm_pkg_scope_msrs Modify By N.Mano 11.3) - Not Found 27:500 00:093 OCAK: 64-bit _xcpm_pkg_scope_msrs Modify By N.Mano 11.3 replace count - 0 27:518 00:017 OC: Kernel patcher result 2 for kernel (_xcpm_pkg_scope_msrs Modify By N.Mano 11.3) - Not Found 27:612 00:094 OCAK: 64-bit _xcpm_SMT_scope_msrs_2 Modify By N.Mano 11.3 replace count - 0 27:629 00:017 OC: Kernel patcher result 3 for kernel (_xcpm_SMT_scope_msrs_2 Modify By N.Mano 11.3) - Not Found 27:726 00:096 OCAK: 64-bit __xcpm_enable_pstate_patch Modify By N.Mano 11.3 replace count - 0 27:743 00:017 OC: Kernel patcher result 4 for kernel (__xcpm_enable_pstate_patch Modify By N.Mano 11.3) - Not Found 27:837 00:094 OCAK: 64-bit xcpm_bootstrap_HASwell_E (c) Pike R. Alpha Modify By N.Mano 11.3 replace count - 1 27:857 00:019 OC: Kernel patcher result 5 for kernel (xcpm_bootstrap_HASwell_E (c) Pike R. Alpha Modify By N.Mano 11.3) - Success 27:946 00:088 OCAK: 64-bit xcpm MSR Patch 4206 By N.Mano 11.3 replace count - 0 27:962 00:015 OC: Kernel patcher result 6 for kernel (xcpm MSR Patch 4206 By N.Mano 11.3) - Not Found 28:048 00:085 OCAK: 64-bit xcpm support /0x82D390/MSR_PP0_POLICY 0x63a Modify By N.Mano 11.3 replace count - 0 28:068 00:019 OC: Kernel patcher result 7 for kernel (xcpm support /0x82D390/MSR_PP0_POLICY 0x63a Modify By N.Mano 11.3) - Not Found 28:161 00:093 OCAK: 64-bit Disable panic kext +0x7700 Modify By N.Mano 11.3 replace count - 2 28:179 00:017 OC: Kernel patcher result 8 for kernel (Disable panic kext +0x7700 Modify By N.Mano 11.3) - Success 28:302 00:123 OCAK: Patching invalid size 1D000 with 29DF000 for com.apple.driver.AppleIntelCPUPowerManagement 28:365 00:063 OCAK: Patching invalid size 2D000 with 142E000 for com.apple.iokit.IOPCIFamily 28:383 00:017 OCAK: 64-bit AppleIoMapper replace count - 1 28:396 00:012 OCAK: Patch success com.apple.iokit.IOPCIFamily AppleIoMapper 28:444 00:048 OCAK: Local relocs 689 on FFFFFF8004265000 28:460 00:015 OC: Prelinked injection Lilu.kext (V1.6.4 | Lilu.kext) - Success 28:475 00:015 OC: Prelinked injection Lilu.kext v1.6.4 28:492 00:016 OCAK: Patching invalid size 2000 with 18D8000 for com.apple.iokit.IOACPIFamily 28:520 00:028 OCAK: Local relocs 515 on FFFFFF8004294000 28:536 00:015 OC: Prelinked injection VirtualSMC.kext (V1.3.1) - Success 28:551 00:014 OC: Prelinked injection VirtualSMC.kext v1.3.1 28:581 00:029 OCAK: Local relocs 1869 on FFFFFF80042AE000 28:602 00:021 OC: Prelinked injection WhateverGreen.kext (V1.6.4 | WhateverGreen.kext) - Success 28:620 00:017 OC: Prelinked injection WhateverGreen.kext v1.6.4 28:643 00:022 OCAK: Local relocs 624 on FFFFFF800432F000 28:658 00:015 OC: Prelinked injection NVMeFix.kext (V1.1.0 | NVMeFix.kext) - Success 28:675 00:016 OC: Prelinked injection NVMeFix.kext v1.1.0 28:692 00:016 OCAK: Patching invalid size 17000 with 16CD000 for com.apple.iokit.IONetworkingFamily 28:728 00:036 OCAK: Local relocs 469 on FFFFFF800433C000 28:743 00:014 OC: Prelinked injection RealtekRTL8111.kext (V2.4.2 | RealtekRTL8111.kext) - Success 28:760 00:017 OC: Prelinked injection RealtekRTL8111.kext v2.4.2 28:774 00:013 OC: Prelinked injection USBPorts.kext (V1.0) - Success 28:788 00:014 OC: Prelinked injection USBPorts.kext v1.0 28:802 00:013 OC: Prelinked injection XHCI-unsupported.kext (V0.9.2 | XHCI-unsupported.kext) - Success 28:820 00:018 OC: Prelinked injection XHCI-unsupported.kext v0.9.2 28:858 00:037 OCAK: Local relocs 5750 on FFFFFF80043C0000 28:901 00:043 OC: Prelinked injection AppleALC.kext (V1.8.0 | AppleALC.kext) - Success 28:917 00:016 OC: Prelinked injection AppleALC.kext v1.8.0 28:939 00:021 OCAK: Local relocs 325 on FFFFFF8004569000 28:953 00:013 OC: Prelinked injection SMCProcessor.kext (V1.3.1 | SMCProcessor.kext) - Success 28:971 00:017 OC: Prelinked injection SMCProcessor.kext v1.3.1 28:993 00:022 OCAK: Local relocs 2168 on FFFFFF8004578000 29:024 00:030 OC: Prelinked injection SMCSuperIO.kext (V1.3.1 | SMCSuperIO.kext) - Success 29:041 00:017 OC: Prelinked injection SMCSuperIO.kext v1.3.1 29:060 00:019 OCAK: Patching invalid size E000 with DF9000 for com.apple.kec.Libm 29:086 00:026 OCAK: Local relocs 703 on FFFFFF8004597000 29:102 00:015 OC: Prelinked injection RadeonSensor.kext (V0.3.1) - Success 29:117 00:015 OC: Prelinked injection RadeonSensor.kext v0.3.1 29:140 00:023 OCAK: Local relocs 308 on FFFFFF80045AB000 29:154 00:013 OC: Prelinked injection SMCRadeonGPU.kext (V0.3.1) - Success 29:169 00:015 OC: Prelinked injection SMCRadeonGPU.kext v0.3.1 29:183 00:014 OC: Prelink size 71671808 kext offset 68177920 reserved 3493888 29:199 00:015 OCAK: KC TEXT is 65536 bytes with 64096 Mach-O headers need 792 29:266 00:067 OC: Prelinked status - Success 29:300 00:033 AAPL: #[EB.LD.LKFS|-?] Ok(0) 29:318 00:018 AAPL: #[EB.LD.LKC|-?] Ok(0) 29:335 00:017 AAPL: #[EB|BST:REV1] 29:352 00:017 AAPL: #[EB|CSR:OUT] 0x00000067 29:370 00:017 AAPL: #[EB.BST.FBS|+] 29:387 00:017 AAPL: #[EB|GIP:PHS.1] Boot 3 29:406 00:019 AAPL: #[EB.BST.FBS|ADSZ] 0 29:424 00:017 AAPL: #[EB.BST.FBS|KSSZ] 0 29:443 00:019 AAPL: #[EB|SB:SBGMFNS] x86legacyap.im4m 29:466 00:022 AAPL: #[EB|RH:PF] usr\standalone\OS.dmg.root_hash 29:492 00:026 AAPL: #[EB|RH:MF] <"usr\\standalone\\OS.dmg.root_hash.x86legacyap.im4m"> 29:521 00:028 AAPL: #[EB.LD.LF|IN] 0 1 <"usr\\standalone\\OS.dmg.root_hash"> <"0"> 29:550 00:028 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"usr\\standalone\\OS.dmg.root_hash"> 29:575 00:025 AAPL: #[EB.RH.LRH|P!] Err(0xE) <- EB.LD.LF 29:597 00:021 AAPL: #[EB.BST.FBS|!] Err(0xE) <- EB.RH.LRH 29:610 00:013 OCSMC: SmcReadValue Key 4D535463 Size 1 29:622 00:012 OCSMC: SmcReadValue Key 4D534163 Size 2 29:643 00:020 AAPL: #[EB|LOG:DT] 2023-03-14T16:19:45 29:665 00:022 AAPL: #[EB|LOG:EXITBS:START] 2023-03-14T16:19:45 29:679 00:013 AmiShimTimerBoostExit changed current period to 549254 30:199 00:520 OC: ReleaseUsbOwnership - Not Found <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>ACPI</key> <dict> <key>Add</key> <array> <dict> <key>Comment</key> <string>SSDT-EC-DESKTOP.aml</string> <key>Enabled</key> <true/> <key>Path</key> <string>SSDT-EC-DESKTOP.aml</string> </dict> <dict> <key>Comment</key> <string>SSDT-HPET.aml</string> <key>Enabled</key> <true/> <key>Path</key> <string>SSDT-HPET.aml</string> </dict> <dict> <key>Comment</key> <string>SSDT-PLUG-DRTNIA.aml</string> <key>Enabled</key> <true/> <key>Path</key> <string>SSDT-PLUG-DRTNIA.aml</string> </dict> <dict> <key>Comment</key> <string>SSDT-RTC0-RANGE-HEDT.aml</string> <key>Enabled</key> <true/> <key>Path</key> <string>SSDT-RTC0-RANGE-HEDT.aml</string> </dict> <dict> <key>Comment</key> <string>SSDT-UNC.aml</string> <key>Enabled</key> <true/> <key>Path</key> <string>SSDT-UNC.aml</string> </dict> <dict> <key>Comment</key> <string>X99-CP00-XCPM.aml</string> <key>Enabled</key> <true/> <key>Path</key> <string>X99-CP00-XCPM.aml</string> </dict> </array> <key>Delete</key> <array/> <key>Patch</key> <array> <dict> <key>Base</key> <string></string> <key>BaseSkip</key> <integer>0</integer> <key>Comment</key> <string>EHC1 to EH01</string> <key>Count</key> <integer>0</integer> <key>Enabled</key> <true/> <key>Find</key> <data>RUhDMQ==</data> <key>Limit</key> <integer>0</integer> <key>Mask</key> <data></data> <key>OemTableId</key> <data></data> <key>Replace</key> <data>RUgwMQ==</data> <key>ReplaceMask</key> <data></data> <key>Skip</key> <integer>0</integer> <key>TableLength</key> <integer>0</integer> <key>TableSignature</key> <data></data> </dict> <dict> <key>Base</key> <string></string> <key>BaseSkip</key> <integer>0</integer> <key>Comment</key> <string>_LID to XLID</string> <key>Count</key> <integer>0</integer> <key>Enabled</key> <false/> <key>Find</key> <data>X0xJRAA=</data> <key>Limit</key> <integer>0</integer> <key>Mask</key> <data></data> <key>OemTableId</key> <data></data> <key>Replace</key> <data>WExJRAA=</data> <key>ReplaceMask</key> <data></data> <key>Skip</key> <integer>0</integer> <key>TableLength</key> <integer>0</integer> <key>TableSignature</key> <data></data> </dict> <dict> <key>Base</key> <string></string> <key>BaseSkip</key> <integer>0</integer> <key>Comment</key> <string>BTNV to XTNV(dell-Fn+Insert)</string> <key>Count</key> <integer>0</integer> <key>Enabled</key> <false/> <key>Find</key> <data>QlROVgI=</data> <key>Limit</key> <integer>0</integer> <key>Mask</key> <data></data> <key>OemTableId</key> <data></data> <key>Replace</key> <data>WFROVgI=</data> <key>ReplaceMask</key> <data></data> <key>Skip</key> <integer>0</integer> <key>TableLength</key> <integer>0</integer> <key>TableSignature</key> <data></data> </dict> <dict> <key>Base</key> <string></string> <key>BaseSkip</key> <integer>0</integer> <key>Comment</key> <string>_S3 to XS3</string> <key>Count</key> <integer>0</integer> <key>Enabled</key> <true/> <key>Find</key> <data>X1MzXw==</data> <key>Limit</key> <integer>0</integer> <key>Mask</key> <data></data> <key>OemTableId</key> <data></data> <key>Replace</key> <data>WFMzXw==</data> <key>ReplaceMask</key> <data></data> <key>Skip</key> <integer>0</integer> <key>TableLength</key> <integer>0</integer> <key>TableSignature</key> <data></data> </dict> <dict> <key>Base</key> <string></string> <key>BaseSkip</key> <integer>0</integer> <key>Comment</key> <string>_Q13 to XQ13(TP-Fn+F4)</string> <key>Count</key> <integer>0</integer> <key>Enabled</key> <false/> <key>Find</key> <data>X1ExMw==</data> <key>Limit</key> <integer>0</integer> <key>Mask</key> <data></data> <key>OemTableId</key> <data></data> <key>Replace</key> <data>WFExMw==</data> <key>ReplaceMask</key> <data></data> <key>Skip</key> <integer>0</integer> <key>TableLength</key> <integer>0</integer> <key>TableSignature</key> <data></data> </dict> <dict> <key>Base</key> <string></string> <key>BaseSkip</key> <integer>0</integer> <key>Comment</key> <string>EHC2 to EH02</string> <key>Count</key> <integer>0</integer> <key>Enabled</key> <true/> <key>Find</key> <data>RUhDMg==</data> <key>Limit</key> <integer>0</integer> <key>Mask</key> <data></data> <key>OemTableId</key> <data></data> <key>Replace</key> <data>RUgwMg==</data> <key>ReplaceMask</key> <data></data> <key>Skip</key> <integer>0</integer> <key>TableLength</key> <integer>0</integer> <key>TableSignature</key> <data></data> </dict> <dict> <key>Base</key> <string></string> <key>BaseSkip</key> <integer>0</integer> <key>Comment</key> <string>EC0 to EC</string> <key>Count</key> <integer>0</integer> <key>Enabled</key> <true/> <key>Find</key> <data>RUMwXw==</data> <key>Limit</key> <integer>0</integer> <key>Mask</key> <data></data> <key>OemTableId</key> <data></data> <key>Replace</key> <data>RUNfXw==</data> <key>ReplaceMask</key> <data></data> <key>Skip</key> <integer>0</integer> <key>TableLength</key> <integer>0</integer> <key>TableSignature</key> <data></data> </dict> <dict> <key>Base</key> <string></string> <key>BaseSkip</key> <integer>0</integer> <key>Comment</key> <string>H_EC to EC</string> <key>Count</key> <integer>0</integer> <key>Enabled</key> <true/> <key>Find</key> <data>SF9FQw==</data> <key>Limit</key> <integer>0</integer> <key>Mask</key> <data></data> <key>OemTableId</key> <data></data> <key>Replace</key> <data>RUNfXw==</data> <key>ReplaceMask</key> <data></data> <key>Skip</key> <integer>0</integer> <key>TableLength</key> <integer>0</integer> <key>TableSignature</key> <data>RFNEVA==</data> </dict> <dict> <key>Base</key> <string></string> <key>BaseSkip</key> <integer>0</integer> <key>Comment</key> <string>Rename EUSB to EH01 (USB)</string> <key>Count</key> <integer>0</integer> <key>Enabled</key> <true/> <key>Find</key> <data>RVVTQg==</data> <key>Limit</key> <integer>0</integer> <key>Mask</key> <data></data> <key>OemTableId</key> <data></data> <key>Replace</key> <data>RUgwMQ==</data> <key>ReplaceMask</key> <data></data> <key>Skip</key> <integer>0</integer> <key>TableLength</key> <integer>0</integer> <key>TableSignature</key> <data>RFNEVA==</data> </dict> <dict> <key>Base</key> <string></string> <key>BaseSkip</key> <integer>0</integer> <key>Comment</key> <string>Rename USBE to EH02 (USB)</string> <key>Count</key> <integer>0</integer> <key>Enabled</key> <true/> <key>Find</key> <data>VVNCRQ==</data> <key>Limit</key> <integer>0</integer> <key>Mask</key> <data></data> <key>OemTableId</key> <data></data> <key>Replace</key> <data>RUgwMg==</data> <key>ReplaceMask</key> <data></data> <key>Skip</key> <integer>0</integer> <key>TableLength</key> <integer>0</integer> <key>TableSignature</key> <data>RFNEVA==</data> </dict> <dict> <key>Base</key> <string></string> <key>BaseSkip</key> <integer>0</integer> <key>Comment</key> <string>Rename XHCI to XHC (USB)</string> <key>Count</key> <integer>0</integer> <key>Enabled</key> <true/> <key>Find</key> <data>WEhDSQ==</data> <key>Limit</key> <integer>0</integer> <key>Mask</key> <data></data> <key>OemTableId</key> <data></data> <key>Replace</key> <data>WEhDXw==</data> <key>ReplaceMask</key> <data></data> <key>Skip</key> <integer>0</integer> <key>TableLength</key> <integer>0</integer> <key>TableSignature</key> <data>RFNEVA==</data> </dict> <dict> <key>Base</key> <string></string> <key>BaseSkip</key> <integer>0</integer> <key>Comment</key> <string>Rename XHC1 to XHC (USB)</string> <key>Count</key> <integer>0</integer> <key>Enabled</key> <true/> <key>Find</key> <data>WEhDMQ==</data> <key>Limit</key> <integer>0</integer> <key>Mask</key> <data></data> <key>OemTableId</key> <data></data> <key>Replace</key> <data>WEhDXw==</data> <key>ReplaceMask</key> <data></data> <key>Skip</key> <integer>0</integer> <key>TableLength</key> <integer>0</integer> <key>TableSignature</key> <data>RFNEVA==</data> </dict> <dict> <key>Base</key> <string></string> <key>BaseSkip</key> <integer>0</integer> <key>Comment</key> <string>Rename AZAL to HDEF (Audio)</string> <key>Count</key> <integer>0</integer> <key>Enabled</key> <true/> <key>Find</key> <data>QVpBTA==</data> <key>Limit</key> <integer>0</integer> <key>Mask</key> <data></data> <key>OemTableId</key> <data></data> <key>Replace</key> <data>SERFRg==</data> <key>ReplaceMask</key> <data></data> <key>Skip</key> <integer>0</integer> <key>TableLength</key> <integer>0</integer> <key>TableSignature</key> <data>RFNEVA==</data> </dict> <dict> <key>Base</key> <string></string> <key>BaseSkip</key> <integer>0</integer> <key>Comment</key> <string>Rename HDAS to HDEF (Audio)</string> <key>Count</key> <integer>0</integer> <key>Enabled</key> <true/> <key>Find</key> <data>SERBUw==</data> <key>Limit</key> <integer>0</integer> <key>Mask</key> <data></data> <key>OemTableId</key> <data></data> <key>Replace</key> <data>SERFRg==</data> <key>ReplaceMask</key> <data></data> <key>Skip</key> <integer>0</integer> <key>TableLength</key> <integer>0</integer> <key>TableSignature</key> <data>RFNEVA==</data> </dict> <dict> <key>Base</key> <string></string> <key>BaseSkip</key> <integer>0</integer> <key>Comment</key> <string>Fix RTC _STA bug</string> <key>Count</key> <integer>0</integer> <key>Enabled</key> <true/> <key>Find</key> <data>oAqTU1RBUwE=</data> <key>Limit</key> <integer>0</integer> <key>Mask</key> <data></data> <key>OemTableId</key> <data></data> <key>Replace</key> <data>oAqRCv8L//8=</data> <key>ReplaceMask</key> <data></data> <key>Skip</key> <integer>0</integer> <key>TableLength</key> <integer>0</integer> <key>TableSignature</key> <data>RFNEVA==</data> </dict> <dict> <key>Base</key> <string></string> <key>BaseSkip</key> <integer>0</integer> <key>Comment</key> <string>HPET _CRS to XCRS Rename</string> <key>Count</key> <integer>0</integer> <key>Enabled</key> <true/> <key>Find</key> <data>Bl9DUlM=</data> <key>Limit</key> <integer>0</integer> <key>Mask</key> <data></data> <key>OemTableId</key> <data>AAAAAA==</data> <key>Replace</key> <data>BlhDUlM=</data> <key>ReplaceMask</key> <data></data> <key>Skip</key> <integer>0</integer> <key>TableLength</key> <integer>0</integer> <key>TableSignature</key> <data></data> </dict> <dict> <key>Base</key> <string></string> <key>BaseSkip</key> <integer>0</integer> <key>Comment</key> <string>RTC IRQ 8 Patch</string> <key>Count</key> <integer>0</integer> <key>Enabled</key> <true/> <key>Find</key> <data>IgABeQA=</data> <key>Limit</key> <integer>0</integer> <key>Mask</key> <data></data> <key>OemTableId</key> <data>AAAAAA==</data> <key>Replace</key> <data>IgAAeQA=</data> <key>ReplaceMask</key> <data></data> <key>Skip</key> <integer>0</integer> <key>TableLength</key> <integer>0</integer> <key>TableSignature</key> <data></data> </dict> <dict> <key>Base</key> <string></string> <key>BaseSkip</key> <integer>0</integer> <key>Comment</key> <string>TMR IRQ 0 Patch</string> <key>Count</key> <integer>0</integer> <key>Enabled</key> <true/> <key>Find</key> <data>IgEAeQA=</data> <key>Limit</key> <integer>0</integer> <key>Mask</key> <data></data> <key>OemTableId</key> <data>AAAAAA==</data> <key>Replace</key> <data>IgAAeQA=</data> <key>ReplaceMask</key> <data></data> <key>Skip</key> <integer>0</integer> <key>TableLength</key> <integer>0</integer> <key>TableSignature</key> <data></data> </dict> </array> <key>Quirks</key> <dict> <key>FadtEnableReset</key> <false/> <key>NormalizeHeaders</key> <false/> <key>RebaseRegions</key> <false/> <key>ResetHwSig</key> <false/> <key>ResetLogoStatus</key> <false/> <key>SyncTableIds</key> <false/> </dict> </dict> <key>Booter</key> <dict> <key>MmioWhitelist</key> <array/> <key>Patch</key> <array/> <key>Quirks</key> <dict> <key>AllowRelocationBlock</key> <false/> <key>AvoidRuntimeDefrag</key> <true/> <key>DevirtualiseMmio</key> <false/> <key>DisableSingleUser</key> <false/> <key>DisableVariableWrite</key> <false/> <key>DiscardHibernateMap</key> <false/> <key>EnableSafeModeSlide</key> <true/> <key>EnableWriteUnprotector</key> <true/> <key>ForceBooterSignature</key> <false/> <key>ForceExitBootServices</key> <false/> <key>ProtectMemoryRegions</key> <false/> <key>ProtectSecureBoot</key> <false/> <key>ProtectUefiServices</key> <false/> <key>ProvideCustomSlide</key> <true/> <key>ProvideMaxSlide</key> <integer>0</integer> <key>RebuildAppleMemoryMap</key> <true/> <key>ResizeAppleGpuBars</key> <integer>-1</integer> <key>SetupVirtualMap</key> <true/> <key>SignalAppleOS</key> <false/> <key>SyncRuntimePermissions</key> <false/> </dict> </dict> <key>DeviceProperties</key> <dict> <key>Add</key> <dict> <key>PciRoot(0x0)/Pci(0x1,0x1)/Pci(0x0,0x0)</key> <dict> <key>built-in</key> <data>AQAAAA==</data> </dict> <key>PciRoot(0x0)/Pci(0x1B,0x0)</key> <dict> <key>AAPL,slot-name</key> <string>Internal@0,27,0</string> <key>device_type</key> <string>Audio device</string> <key>layout-id</key> <integer>7</integer> <key>model</key> <string>Apple High Definition Audio Controller</string> </dict> <key>PciRoot(0x0)/Pci(0x1C,0x2)/Pci(0x0,0x0)</key> <dict> <key>AAPL,slot-name</key> <string>Internal@0,28,2/0,0</string> <key>built-in</key> <data>AQ==</data> <key>device_type</key> <string>Ethernet controller</string> <key>model</key> <string>RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller</string> </dict> <key>PciRoot(0x128)/Pci(0x3,0x0)/Pci(0x0,0x0)</key> <dict> <key>CFG,CFG_USE_AGDC</key> <data>AA==</data> </dict> </dict> <key>Delete</key> <dict/> </dict> <key>Kernel</key> <dict> <key>Add</key> <array> <dict> <key>Arch</key> <string>Any</string> <key>BundlePath</key> <string>Lilu.kext</string> <key>Comment</key> <string>V1.6.4 | Lilu.kext</string> <key>Enabled</key> <true/> <key>ExecutablePath</key> <string>Contents/MacOS/Lilu</string> <key>MaxKernel</key> <string></string> <key>MinKernel</key> <string></string> <key>PlistPath</key> <string>Contents/Info.plist</string> </dict> <dict> <key>Arch</key> <string>Any</string> <key>BundlePath</key> <string>VirtualSMC.kext</string> <key>Comment</key> <string>V1.3.1</string> <key>Enabled</key> <true/> <key>ExecutablePath</key> <string>Contents/MacOS/VirtualSMC</string> <key>MaxKernel</key> <string></string> <key>MinKernel</key> <string></string> <key>PlistPath</key> <string>Contents/Info.plist</string> </dict> <dict> <key>Arch</key> <string>Any</string> <key>BundlePath</key> <string>WhateverGreen.kext</string> <key>Comment</key> <string>V1.6.4 | WhateverGreen.kext</string> <key>Enabled</key> <true/> <key>ExecutablePath</key> <string>Contents/MacOS/WhateverGreen</string> <key>MaxKernel</key> <string></string> <key>MinKernel</key> <string></string> <key>PlistPath</key> <string>Contents/Info.plist</string> </dict> <dict> <key>Arch</key> <string>Any</string> <key>BundlePath</key> <string>AGPMInjector.kext</string> <key>Comment</key> <string>V125 | AGPMInjector.kext</string> <key>Enabled</key> <false/> <key>ExecutablePath</key> <string></string> <key>MaxKernel</key> <string></string> <key>MinKernel</key> <string></string> <key>PlistPath</key> <string>Contents/Info.plist</string> </dict> <dict> <key>Arch</key> <string>Any</string> <key>BundlePath</key> <string>NVMeFix.kext</string> <key>Comment</key> <string>V1.1.0 | NVMeFix.kext</string> <key>Enabled</key> <true/> <key>ExecutablePath</key> <string>Contents/MacOS/NVMeFix</string> <key>MaxKernel</key> <string></string> <key>MinKernel</key> <string></string> <key>PlistPath</key> <string>Contents/Info.plist</string> </dict> <dict> <key>Arch</key> <string>Any</string> <key>BundlePath</key> <string>RealtekRTL8111.kext</string> <key>Comment</key> <string>V2.4.2 | RealtekRTL8111.kext</string> <key>Enabled</key> <true/> <key>ExecutablePath</key> <string>Contents/MacOS/RealtekRTL8111</string> <key>MaxKernel</key> <string></string> <key>MinKernel</key> <string></string> <key>PlistPath</key> <string>Contents/Info.plist</string> </dict> <dict> <key>Arch</key> <string>Any</string> <key>BundlePath</key> <string>USBPorts.kext</string> <key>Comment</key> <string>V1.0</string> <key>Enabled</key> <true/> <key>ExecutablePath</key> <string></string> <key>MaxKernel</key> <string></string> <key>MinKernel</key> <string></string> <key>PlistPath</key> <string>Contents/Info.plist</string> </dict> <dict> <key>Arch</key> <string>Any</string> <key>BundlePath</key> <string>XHCI-unsupported.kext</string> <key>Comment</key> <string>V0.9.2 | XHCI-unsupported.kext</string> <key>Enabled</key> <true/> <key>ExecutablePath</key> <string></string> <key>MaxKernel</key> <string></string> <key>MinKernel</key> <string></string> <key>PlistPath</key> <string>Contents/Info.plist</string> </dict> <dict> <key>Arch</key> <string>Any</string> <key>BundlePath</key> <string>AppleALC.kext</string> <key>Comment</key> <string>V1.8.0 | AppleALC.kext</string> <key>Enabled</key> <true/> <key>ExecutablePath</key> <string>Contents/MacOS/AppleALC</string> <key>MaxKernel</key> <string></string> <key>MinKernel</key> <string></string> <key>PlistPath</key> <string>Contents/Info.plist</string> </dict> <dict> <key>Arch</key> <string>Any</string> <key>BundlePath</key> <string>SMCProcessor.kext</string> <key>Comment</key> <string>V1.3.1 | SMCProcessor.kext</string> <key>Enabled</key> <true/> <key>ExecutablePath</key> <string>Contents/MacOS/SMCProcessor</string> <key>MaxKernel</key> <string></string> <key>MinKernel</key> <string></string> <key>PlistPath</key> <string>Contents/Info.plist</string> </dict> <dict> <key>Arch</key> <string>Any</string> <key>BundlePath</key> <string>SMCSuperIO.kext</string> <key>Comment</key> <string>V1.3.1 | SMCSuperIO.kext</string> <key>Enabled</key> <true/> <key>ExecutablePath</key> <string>Contents/MacOS/SMCSuperIO</string> <key>MaxKernel</key> <string></string> <key>MinKernel</key> <string></string> <key>PlistPath</key> <string>Contents/Info.plist</string> </dict> <dict> <key>Arch</key> <string>Any</string> <key>BundlePath</key> <string>RadeonSensor.kext</string> <key>Comment</key> <string>V0.3.1</string> <key>Enabled</key> <true/> <key>ExecutablePath</key> <string>Contents/MacOS/RadeonSensor</string> <key>MaxKernel</key> <string></string> <key>MinKernel</key> <string></string> <key>PlistPath</key> <string>Contents/Info.plist</string> </dict> <dict> <key>Arch</key> <string>Any</string> <key>BundlePath</key> <string>SMCRadeonGPU.kext</string> <key>Comment</key> <string>V0.3.1</string> <key>Enabled</key> <true/> <key>ExecutablePath</key> <string>Contents/MacOS/SMCRadeonGPU</string> <key>MaxKernel</key> <string></string> <key>MinKernel</key> <string></string> <key>PlistPath</key> <string>Contents/Info.plist</string> </dict> </array> <key>Block</key> <array/> <key>Emulate</key> <dict> <key>Cpuid1Data</key> <data>8gYDAAAAAAAAAAAAAAAAAA==</data> <key>Cpuid1Mask</key> <data>/////wAAAAAAAAAAAAAAAA==</data> <key>DummyPowerManagement</key> <false/> <key>MaxKernel</key> <string></string> <key>MinKernel</key> <string></string> </dict> <key>Force</key> <array/> <key>Patch</key> <array> <dict> <key>Arch</key> <string>x86_64</string> <key>Base</key> <string></string> <key>Comment</key> <string>xcpm_core_scope_msrs (c) Pike R. Alpha Modify By N.Mano 11.3</string> <key>Count</key> <integer>0</integer> <key>Enabled</key> <true/> <key>Find</key> <data>MdLo3U0BAA==</data> <key>Identifier</key> <string>kernel</string> <key>Limit</key> <integer>0</integer> <key>Mask</key> <data></data> <key>MaxKernel</key> <string></string> <key>MinKernel</key> <string>20.4.0</string> <key>Replace</key> <data>MdKQkJCQkA==</data> <key>ReplaceMask</key> <data></data> <key>Skip</key> <integer>0</integer> </dict> <dict> <key>Arch</key> <string>x86_64</string> <key>Base</key> <string></string> <key>Comment</key> <string>_xcpm_pkg_scope_msrs Modify By N.Mano 11.3</string> <key>Count</key> <integer>0</integer> <key>Enabled</key> <true/> <key>Find</key> <data>MdLoyiL//w==</data> <key>Identifier</key> <string>kernel</string> <key>Limit</key> <integer>0</integer> <key>Mask</key> <data></data> <key>MaxKernel</key> <string></string> <key>MinKernel</key> <string>20.4.0</string> <key>Replace</key> <data>MdKQkJCQkA==</data> <key>ReplaceMask</key> <data></data> <key>Skip</key> <integer>0</integer> </dict> <dict> <key>Arch</key> <string>x86_64</string> <key>Base</key> <string></string> <key>Comment</key> <string>_xcpm_pkg_scope_msrs Modify By N.Mano 11.3</string> <key>Count</key> <integer>0</integer> <key>Enabled</key> <true/> <key>Find</key> <data>MdLoyiL//w==</data> <key>Identifier</key> <string>kernel</string> <key>Limit</key> <integer>0</integer> <key>Mask</key> <data></data> <key>MaxKernel</key> <string></string> <key>MinKernel</key> <string>20.4.0</string> <key>Replace</key> <data>MdKQkJCQkA==</data> <key>ReplaceMask</key> <data></data> <key>Skip</key> <integer>0</integer> </dict> <dict> <key>Arch</key> <string>x86_64</string> <key>Base</key> <string></string> <key>Comment</key> <string>_xcpm_SMT_scope_msrs_2 Modify By N.Mano 11.3</string> <key>Count</key> <integer>0</integer> <key>Enabled</key> <true/> <key>Find</key> <data>MdLoLv3//w==</data> <key>Identifier</key> <string>kernel</string> <key>Limit</key> <integer>0</integer> <key>Mask</key> <data></data> <key>MaxKernel</key> <string></string> <key>MinKernel</key> <string>20.4.0</string> <key>Replace</key> <data>MdKQkJCQkA==</data> <key>ReplaceMask</key> <data></data> <key>Skip</key> <integer>0</integer> </dict> <dict> <key>Arch</key> <string>x86_64</string> <key>Base</key> <string></string> <key>Comment</key> <string>__xcpm_enable_pstate_patch Modify By N.Mano 11.3</string> <key>Count</key> <integer>0</integer> <key>Enabled</key> <true/> <key>Find</key> <data>QcHmCElj1onQSMHqIA==</data> <key>Identifier</key> <string>kernel</string> <key>Limit</key> <integer>0</integer> <key>Mask</key> <data></data> <key>MaxKernel</key> <string></string> <key>MinKernel</key> <string>20.4.0</string> <key>Replace</key> <data>QcHmCLgA/wAAMdKQkA==</data> <key>ReplaceMask</key> <data></data> <key>Skip</key> <integer>0</integer> </dict> <dict> <key>Arch</key> <string>x86_64</string> <key>Base</key> <string></string> <key>Comment</key> <string>xcpm_bootstrap_HASwell_E (c) Pike R. Alpha Modify By N.Mano 11.3</string> <key>Count</key> <integer>0</integer> <key>Enabled</key> <true/> <key>Find</key> <data>jUPEPEJ3Ig==</data> <key>Identifier</key> <string>kernel</string> <key>Limit</key> <integer>0</integer> <key>Mask</key> <data></data> <key>MaxKernel</key> <string></string> <key>MinKernel</key> <string>20.4.0</string> <key>Replace</key> <data>jUPBPEJ3Ig==</data> <key>ReplaceMask</key> <data></data> <key>Skip</key> <integer>0</integer> </dict> <dict> <key>Arch</key> <string>x86_64</string> <key>Base</key> <string></string> <key>Comment</key> <string>xcpm MSR Patch 4206 By N.Mano 11.3</string> <key>Count</key> <integer>0</integer> <key>Enabled</key> <true/> <key>Find</key> <data>QgYAANwzBgAAAAAAAAAAAB8AAAAAAAAAGAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA</data> <key>Identifier</key> <string>kernel</string> <key>Limit</key> <integer>0</integer> <key>Mask</key> <data></data> <key>MaxKernel</key> <string></string> <key>MinKernel</key> <string>20.4.0</string> <key>Replace</key> <data>QgYAAAAAAAAAAAAAAAAAAB8AAAAAAAAAGAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA</data> <key>ReplaceMask</key> <data></data> <key>Skip</key> <integer>0</integer> </dict> <dict> <key>Arch</key> <string>x86_64</string> <key>Base</key> <string></string> <key>Comment</key> <string>xcpm support /0x82D390/MSR_PP0_POLICY 0x63a Modify By N.Mano 11.3</string> <key>Count</key> <integer>0</integer> <key>Enabled</key> <true/> <key>Find</key> <data>OgYAANwzBgAAAAAAAAAAAB8=</data> <key>Identifier</key> <string>kernel</string> <key>Limit</key> <integer>0</integer> <key>Mask</key> <data></data> <key>MaxKernel</key> <string></string> <key>MinKernel</key> <string>20.4.0</string> <key>Replace</key> <data>OgYAAAAAAAAAAAAAAAAAAB8=</data> <key>ReplaceMask</key> <data></data> <key>Skip</key> <integer>0</integer> </dict> <dict> <key>Arch</key> <string>x86_64</string> <key>Base</key> <string></string> <key>Comment</key> <string>Disable panic kext +0x7700 Modify By N.Mano 11.3</string> <key>Count</key> <integer>0</integer> <key>Enabled</key> <true/> <key>Find</key> <data>igKEwHQN</data> <key>Identifier</key> <string>kernel</string> <key>Limit</key> <integer>0</integer> <key>Mask</key> <data></data> <key>MaxKernel</key> <string></string> <key>MinKernel</key> <string>20.4.0</string> <key>Replace</key> <data>igKEwOsN</data> <key>ReplaceMask</key> <data></data> <key>Skip</key> <integer>0</integer> </dict> </array> <key>Quirks</key> <dict> <key>AppleCpuPmCfgLock</key> <true/> <key>AppleXcpmCfgLock</key> <true/> <key>AppleXcpmExtraMsrs</key> <true/> <key>AppleXcpmForceBoost</key> <true/> <key>CustomPciSerialDevice</key> <false/> <key>CustomSMBIOSGuid</key> <false/> <key>DisableIoMapper</key> <true/> <key>DisableLinkeditJettison</key> <true/> <key>DisableRtcChecksum</key> <false/> <key>ExtendBTFeatureFlags</key> <false/> <key>ExternalDiskIcons</key> <false/> <key>ForceAquantiaEthernet</key> <false/> <key>ForceSecureBootScheme</key> <false/> <key>IncreasePciBarSize</key> <false/> <key>LapicKernelPanic</key> <false/> <key>LegacyCommpage</key> <false/> <key>PanicNoKextDump</key> <true/> <key>PowerTimeoutKernelPanic</key> <true/> <key>ProvideCurrentCpuInfo</key> <false/> <key>SetApfsTrimTimeout</key> <integer>-1</integer> <key>ThirdPartyDrives</key> <false/> <key>XhciPortLimit</key> <false/> </dict> <key>Scheme</key> <dict> <key>CustomKernel</key> <false/> <key>FuzzyMatch</key> <true/> <key>KernelArch</key> <string>x86_64</string> <key>KernelCache</key> <string>Auto</string> </dict> </dict> <key>Misc</key> <dict> <key>BlessOverride</key> <array/> <key>Boot</key> <dict> <key>ConsoleAttributes</key> <integer>0</integer> <key>HibernateMode</key> <string>None</string> <key>HideAuxiliary</key> <false/> <key>LauncherOption</key> <string>Full</string> <key>LauncherPath</key> <string>Default</string> <key>PickerAttributes</key> <integer>17</integer> <key>PickerAudioAssist</key> <false/> <key>PickerMode</key> <string>External</string> <key>PickerVariant</key> <string>HeiPG\AppleSilicon</string> <key>PollAppleHotKeys</key> <true/> <key>ShowPicker</key> <true/> <key>TakeoffDelay</key> <integer>0</integer> <key>Timeout</key> <integer>5</integer> </dict> <key>Debug</key> <dict> <key>AppleDebug</key> <true/> <key>ApplePanic</key> <true/> <key>DisableWatchDog</key> <false/> <key>DisplayDelay</key> <integer>0</integer> <key>DisplayLevel</key> <integer>2147483714</integer> <key>LogModules</key> <string></string> <key>SysReport</key> <false/> <key>Target</key> <integer>67</integer> </dict> <key>Entries</key> <array/> <key>Security</key> <dict> <key>AllowSetDefault</key> <true/> <key>ApECID</key> <integer>0</integer> <key>AuthRestart</key> <false/> <key>BlacklistAppleUpdate</key> <false/> <key>DmgLoading</key> <string>Disabled</string> <key>EnablePassword</key> <false/> <key>ExposeSensitiveData</key> <integer>6</integer> <key>HaltLevel</key> <integer>2147483648</integer> <key>PasswordHash</key> <data></data> <key>PasswordSalt</key> <data></data> <key>ScanPolicy</key> <integer>0</integer> <key>SecureBootModel</key> <string>Disabled</string> <key>Vault</key> <string>Optional</string> </dict> <key>Serial</key> <dict> <key>Custom</key> <dict> <key>BaudRate</key> <integer>115200</integer> <key>ClockRate</key> <integer>1843200</integer> <key>DetectCable</key> <false/> <key>ExtendedTxFifoSize</key> <integer>64</integer> <key>FifoControl</key> <integer>7</integer> <key>LineControl</key> <integer>3</integer> <key>PciDeviceInfo</key> <data>/w==</data> <key>RegisterAccessWidth</key> <integer>8</integer> <key>RegisterBase</key> <integer>1016</integer> <key>RegisterStride</key> <integer>1</integer> <key>UseHardwareFlowControl</key> <false/> <key>UseMmio</key> <false/> </dict> <key>Init</key> <false/> <key>Override</key> <false/> </dict> <key>Tools</key> <array> <dict> <key>Arguments</key> <string></string> <key>Auxiliary</key> <false/> <key>Comment</key> <string>BootKicker.efi</string> <key>Enabled</key> <false/> <key>Flavour</key> <string>Auto</string> <key>Name</key> <string>BootKicker.efi</string> <key>Path</key> <string>BootKicker.efi</string> <key>RealPath</key> <false/> <key>TextMode</key> <false/> </dict> <dict> <key>Arguments</key> <string></string> <key>Auxiliary</key> <false/> <key>Comment</key> <string>ChipTune.efi</string> <key>Enabled</key> <false/> <key>Flavour</key> <string>Auto</string> <key>Name</key> <string>ChipTune.efi</string> <key>Path</key> <string>ChipTune.efi</string> <key>RealPath</key> <false/> <key>TextMode</key> <false/> </dict> <dict> <key>Arguments</key> <string></string> <key>Auxiliary</key> <false/> <key>Comment</key> <string>CleanNvram.efi</string> <key>Enabled</key> <false/> <key>Flavour</key> <string>Auto</string> <key>Name</key> <string>CleanNvram.efi</string> <key>Path</key> <string>CleanNvram.efi</string> <key>RealPath</key> <false/> <key>TextMode</key> <false/> </dict> <dict> <key>Arguments</key> <string></string> <key>Auxiliary</key> <false/> <key>Comment</key> <string>ControlMsrE2.efi</string> <key>Enabled</key> <false/> <key>Flavour</key> <string>Auto</string> <key>Name</key> <string>ControlMsrE2.efi</string> <key>Path</key> <string>ControlMsrE2.efi</string> <key>RealPath</key> <false/> <key>TextMode</key> <false/> </dict> <dict> <key>Arguments</key> <string></string> <key>Auxiliary</key> <false/> <key>Comment</key> <string>CsrUtil.efi</string> <key>Enabled</key> <false/> <key>Flavour</key> <string>Auto</string> <key>Name</key> <string>CsrUtil.efi</string> <key>Path</key> <string>CsrUtil.efi</string> <key>RealPath</key> <false/> <key>TextMode</key> <false/> </dict> <dict> <key>Arguments</key> <string></string> <key>Auxiliary</key> <false/> <key>Comment</key> <string>GopStop.efi</string> <key>Enabled</key> <false/> <key>Flavour</key> <string>Auto</string> <key>Name</key> <string>GopStop.efi</string> <key>Path</key> <string>GopStop.efi</string> <key>RealPath</key> <false/> <key>TextMode</key> <false/> </dict> <dict> <key>Arguments</key> <string></string> <key>Auxiliary</key> <false/> <key>Comment</key> <string>KeyTester.efi</string> <key>Enabled</key> <false/> <key>Flavour</key> <string>Auto</string> <key>Name</key> <string>KeyTester.efi</string> <key>Path</key> <string>KeyTester.efi</string> <key>RealPath</key> <false/> <key>TextMode</key> <false/> </dict> <dict> <key>Arguments</key> <string></string> <key>Auxiliary</key> <false/> <key>Comment</key> <string>MmapDump.efi</string> <key>Enabled</key> <false/> <key>Flavour</key> <string>Auto</string> <key>Name</key> <string>MmapDump.efi</string> <key>Path</key> <string>MmapDump.efi</string> <key>RealPath</key> <false/> <key>TextMode</key> <false/> </dict> <dict> <key>Arguments</key> <string></string> <key>Auxiliary</key> <false/> <key>Comment</key> <string>OpenControl.efi</string> <key>Enabled</key> <false/> <key>Flavour</key> <string>Auto</string> <key>Name</key> <string>OpenControl.efi</string> <key>Path</key> <string>OpenControl.efi</string> <key>RealPath</key> <false/> <key>TextMode</key> <false/> </dict> <dict> <key>Arguments</key> <string></string> <key>Auxiliary</key> <true/> <key>Comment</key> <string>OpenShell.efi</string> <key>Enabled</key> <true/> <key>Flavour</key> <string>Auto</string> <key>Name</key> <string>OpenShell.efi</string> <key>Path</key> <string>OpenShell.efi</string> <key>RealPath</key> <false/> <key>TextMode</key> <false/> </dict> <dict> <key>Arguments</key> <string></string> <key>Auxiliary</key> <false/> <key>Comment</key> <string>ResetSystem.efi</string> <key>Enabled</key> <false/> <key>Flavour</key> <string>Auto</string> <key>Name</key> <string>ResetSystem.efi</string> <key>Path</key> <string>ResetSystem.efi</string> <key>RealPath</key> <false/> <key>TextMode</key> <false/> </dict> <dict> <key>Arguments</key> <string></string> <key>Auxiliary</key> <false/> <key>Comment</key> <string>RtcRw.efi</string> <key>Enabled</key> <false/> <key>Flavour</key> <string>Auto</string> <key>Name</key> <string>RtcRw.efi</string> <key>Path</key> <string>RtcRw.efi</string> <key>RealPath</key> <false/> <key>TextMode</key> <false/> </dict> <dict> <key>Arguments</key> <string></string> <key>Auxiliary</key> <false/> <key>Comment</key> <string>TpmInfo.efi</string> <key>Enabled</key> <false/> <key>Flavour</key> <string>Auto</string> <key>Name</key> <string>TpmInfo.efi</string> <key>Path</key> <string>TpmInfo.efi</string> <key>RealPath</key> <false/> <key>TextMode</key> <false/> </dict> </array> </dict> <key>NVRAM</key> <dict> <key>Add</key> <dict> <key>4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14</key> <dict> <key>DefaultBackgroundColor</key> <data>AAAAAA==</data> <key>UIScale</key> <data>Ag==</data> </dict> <key>4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102</key> <dict> <key>rtc-blacklist</key> <data></data> </dict> <key>7C436110-AB2A-4BBB-A880-FE41995C9F82</key> <dict> <key>ForceDisplayRotationInEFI</key> <integer>0</integer> <key>SystemAudioVolume</key> <data>Rg==</data> <key>boot-args</key> <string>keepsyms=1 npci=0x2000 brcmfx-country=HK brcmfx-driver=2 slide=128 swd_panic=1 -lilubetaall agdpmod=pikera -v -no_compat_check -disablegfxfirmware npci=0x3000 debug=0x100</string> <key>csr-active-config</key> <data>AAAAAA==</data> <key>prev-lang:kbd</key> <string>zh-Hans:252</string> <key>run-efi-updater</key> <string>No</string> </dict> </dict> <key>Delete</key> <dict> <key>4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14</key> <array> <string>UIScale</string> <string>DefaultBackgroundColor</string> </array> <key>4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102</key> <array> <string>rtc-blacklist</string> </array> <key>7C436110-AB2A-4BBB-A880-FE41995C9F82</key> <array> <string>boot-args</string> </array> </dict> <key>LegacyOverwrite</key> <true/> <key>LegacySchema</key> <dict> <key>7C436110-AB2A-4BBB-A880-FE41995C9F82</key> <array> <string>EFILoginHiDPI</string> <string>EFIBluetoothDelay</string> <string>LocationServicesEnabled</string> <string>SystemAudioVolume</string> <string>SystemAudioVolumeDB</string> <string>SystemAudioVolumeSaved</string> <string>bluetoothActiveControllerInfo</string> <string>bluetoothInternalControllerInfo</string> <string>flagstate</string> <string>fmm-computer-name</string> <string>fmm-mobileme-token-FMM</string> <string>fmm-mobileme-token-FMM-BridgeHasAccount</string> <string>nvda_drv</string> <string>prev-lang:kbd</string> </array> <key>8BE4DF61-93CA-11D2-AA0D-00E098032B8C</key> <array> <string>Boot0080</string> <string>Boot0081</string> <string>Boot0082</string> <string>BootNext</string> <string>BootOrder</string> </array> </dict> <key>WriteFlash</key> <true/> </dict> <key>PlatformInfo</key> <dict> <key>Automatic</key> <true/> <key>CustomMemory</key> <false/> <key>Generic</key> <dict> <key>AdviseFeatures</key> <false/> <key>MLB</key> <string>C02916609GUJG368C</string> <key>MaxBIOSVersion</key> <false/> <key>ProcessorType</key> <integer>3842</integer> <key>ROM</key> <data>yA19UFe+</data> <key>SpoofVendor</key> <true/> <key>SystemMemoryStatus</key> <string>Auto</string> <key>SystemProductName</key> <string>iMacPro1,1</string> <key>SystemSerialNumber</key> <string>C02YL0ZZHX87</string> <key>SystemUUID</key> <string>7FCF40FA-47E5-47B1-BA9A-877A0DF77024</string> </dict> <key>UpdateDataHub</key> <true/> <key>UpdateNVRAM</key> <true/> <key>UpdateSMBIOS</key> <true/> <key>UpdateSMBIOSMode</key> <string>Create</string> <key>UseRawUuidEncoding</key> <false/> </dict> <key>UEFI</key> <dict> <key>APFS</key> <dict> <key>EnableJumpstart</key> <true/> <key>GlobalConnect</key> <false/> <key>HideVerbose</key> <true/> <key>JumpstartHotPlug</key> <false/> <key>MinDate</key> <integer>0</integer> <key>MinVersion</key> <integer>0</integer> </dict> <key>AppleInput</key> <dict> <key>AppleEvent</key> <string>Builtin</string> <key>CustomDelays</key> <false/> <key>GraphicsInputMirroring</key> <true/> <key>KeyInitialDelay</key> <integer>0</integer> <key>KeySubsequentDelay</key> <integer>5</integer> <key>PointerPollMask</key> <integer>-1</integer> <key>PointerPollMax</key> <integer>0</integer> <key>PointerPollMin</key> <integer>0</integer> <key>PointerSpeedDiv</key> <integer>1</integer> <key>PointerSpeedMul</key> <integer>1</integer> </dict> <key>Audio</key> <dict> <key>AudioCodec</key> <integer>0</integer> <key>AudioDevice</key> <string>PciRoot(0x0)/Pci(0x1B,0x0)</string> <key>AudioOutMask</key> <integer>-1</integer> <key>AudioSupport</key> <true/> <key>DisconnectHda</key> <false/> <key>MaximumGain</key> <integer>-15</integer> <key>MinimumAssistGain</key> <integer>-30</integer> <key>MinimumAudibleGain</key> <integer>-128</integer> <key>PlayChime</key> <string>Auto</string> <key>ResetTrafficClass</key> <false/> <key>SetupDelay</key> <integer>0</integer> </dict> <key>ConnectDrivers</key> <true/> <key>Drivers</key> <array> <dict> <key>Arguments</key> <string></string> <key>Comment</key> <string>HfsPlus.efi</string> <key>Enabled</key> <true/> <key>LoadEarly</key> <false/> <key>Path</key> <string>HfsPlus.efi</string> </dict> <dict> <key>Arguments</key> <string></string> <key>Comment</key> <string>OpenCanopy.efi</string> <key>Enabled</key> <true/> <key>LoadEarly</key> <false/> <key>Path</key> <string>OpenCanopy.efi</string> </dict> <dict> <key>Arguments</key> <string></string> <key>Comment</key> <string>OpenRuntime.efi</string> <key>Enabled</key> <true/> <key>LoadEarly</key> <false/> <key>Path</key> <string>OpenRuntime.efi</string> </dict> <dict> <key>Arguments</key> <string></string> <key>Comment</key> <string>AudioDxe.efi</string> <key>Enabled</key> <true/> <key>LoadEarly</key> <false/> <key>Path</key> <string>AudioDxe.efi</string> </dict> </array> <key>Input</key> <dict> <key>KeyFiltering</key> <false/> <key>KeyForgetThreshold</key> <integer>5</integer> <key>KeySupport</key> <true/> <key>KeySupportMode</key> <string>Auto</string> <key>KeySwap</key> <false/> <key>PointerSupport</key> <false/> <key>PointerSupportMode</key> <string>ASUS</string> <key>TimerResolution</key> <integer>50000</integer> </dict> <key>Output</key> <dict> <key>ClearScreenOnModeSwitch</key> <false/> <key>ConsoleMode</key> <string>Max</string> <key>DirectGopRendering</key> <false/> <key>ForceResolution</key> <true/> <key>GopPassThrough</key> <string>Disabled</string> <key>IgnoreTextInGraphics</key> <false/> <key>ProvideConsoleGop</key> <true/> <key>ReconnectGraphicsOnConnect</key> <false/> <key>ReconnectOnResChange</key> <false/> <key>ReplaceTabWithSpace</key> <false/> <key>Resolution</key> <string>Max</string> <key>SanitiseClearScreen</key> <false/> <key>TextRenderer</key> <string>BuiltinGraphics</string> <key>UIScale</key> <integer>-1</integer> <key>UgaPassThrough</key> <false/> </dict> <key>ProtocolOverrides</key> <dict> <key>AppleAudio</key> <false/> <key>AppleBootPolicy</key> <false/> <key>AppleDebugLog</key> <false/> <key>AppleEg2Info</key> <false/> <key>AppleFramebufferInfo</key> <false/> <key>AppleImageConversion</key> <false/> <key>AppleImg4Verification</key> <false/> <key>AppleKeyMap</key> <false/> <key>AppleRtcRam</key> <false/> <key>AppleSecureBoot</key> <false/> <key>AppleSmcIo</key> <false/> <key>AppleUserInterfaceTheme</key> <false/> <key>DataHub</key> <false/> <key>DeviceProperties</key> <false/> <key>FirmwareVolume</key> <true/> <key>HashServices</key> <false/> <key>OSInfo</key> <false/> <key>UnicodeCollation</key> <false/> </dict> <key>Quirks</key> <dict> <key>ActivateHpetSupport</key> <true/> <key>DisableSecurityPolicy</key> <false/> <key>EnableVectorAcceleration</key> <true/> <key>EnableVmx</key> <false/> <key>ExitBootServicesDelay</key> <integer>0</integer> <key>ForceOcWriteFlash</key> <false/> <key>ForgeUefiSupport</key> <false/> <key>IgnoreInvalidFlexRatio</key> <true/> <key>ReleaseUsbOwnership</key> <true/> <key>ReloadOptionRoms</key> <false/> <key>RequestBootVarRouting</key> <true/> <key>ResizeGpuBars</key> <integer>-1</integer> <key>TscSyncTimeout</key> <integer>0</integer> <key>UnblockFsConnect</key> <false/> </dict> <key>ReservedMemory</key> <array/> </dict> </dict> </plist> I've just finished installing it, I'm ready to go to the system interface, and in the end it keeps shutting down and restarting, over and over again. Edited March 14, 2023 by fengkou da Quote Link to comment Share on other sites More sharing options...
Slice Posted March 16, 2023 Share Posted March 16, 2023 @fengkou da Do you want to make a signature with the hardware in question? Else we can't help you. Quote Link to comment Share on other sites More sharing options...
CharlyMX Posted June 9, 2023 Share Posted June 9, 2023 Estoy teniendo el mismo problema, ya probé con muchas EFI, desde OpenCore 0.8.8 hasta 0.9.3 y todas me hacen lo mismo, también me ayudaron a crear una EFI que si funciona en otros equipos, pero en el mio no: placa madre: Asus Tuf Gaming X570 Procesador: ryzen 5 5600 GPU: sapphire rx 5600 les dejo mi log, también me di cuenta que cuando sale error la PC le quita la energía a los periféricos USB. 00:000 00:000 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82 00:042 00:042 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82 00:084 00:041 AAPL: #[EB|H:IS] 0 00:125 00:041 AAPL: #[EB|LOG:INIT] 2023-06-08T19:53:20 00:166 00:041 AAPL: #[EB|VERSION] <"bootbase.efi 577~170 (Official), built 2023-04-15T04:14:26-0700"> 00:207 00:040 AAPL: #[EB|BUILD] <"BUILD-INFO[400]:{"DisplayName":"bootbase.efi","DisplayVersion":"577~170","RecordUuid":"66DF046F-46FD-4D43-8276-80823DCE6890","BuildTime":"2023-04-15T04:14:26-0700","ProjectName":"efiboot","ProductName":"bootbase.efi","SourceVersion":"577","BuildVersion":"170","BuildConfiguration":"Release","BuildType":"Official","Compiler":"clang-1403.0.22.11","SdkVersion":"13.4","SdkBuild":"22F47","TargetArchitectures":"x86_64"}"> 00:248 00:041 AAPL: #[EB.CFG.DEV|!] Err(0xE) <- RT.GV booter-strict-xmlparser 7C436110-AB2A-4BBB-A880-FE41995C9F82 00:289 00:040 AAPL: #[EB|CFG:DEV] r5 0x0 0x0 00:329 00:040 AAPL: #[EB|H:IS] 0 00:371 00:041 AAPL: #[EB|WL:MODE] 0 00:412 00:041 AAPL: #[EB|CFG:ARG] boot-save-log 0x0000000000000002 (0x0000000000000002 < 0xFFFFFFFFFFFFFFFF) default 00:452 00:040 AAPL: #[EB|CFG:ARG] wake-save-log 0x0000000000000002 (0x0000000000000002 < 0x0000000000000002) default 00:493 00:041 AAPL: #[EB|CFG:ARG] console 0x0000000000000001 (0x0000000000000001 < 0x0000000000000001) default 00:535 00:041 AAPL: #[EB|CFG:ARG] serial 0x0000000000000001 (0x0000000000000001 < 0x0000000000000000) default 00:575 00:039 AAPL: #[EB|CFG:ARG] preoslog 0x0000000000000001 (0x0000000000000001 < 0xFFFFFFFFFFFFFFFF) default 00:616 00:041 AAPL: #[EB|CFG:ARG] timestamps 0x0000000000000000 (0x0000000000000000 < 0xFFFFFFFFFFFFFFFF) default 00:657 00:041 AAPL: #[EB|CFG:ARG] log-level 0x0000000000000001 (0x0000000000000001 & 0x0000000000000021) default 00:699 00:041 AAPL: #[EB|CFG:ARG] breakpoint 0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) default 00:741 00:042 AAPL: #[EB|CFG:ARG] kc-read-size 0x0000000000100000 (0x0000000000100000 < 0xFFFFFFFFFFFFFFFF) default 00:782 00:041 AAPL: #[EB|CFG:ARG] force-error 0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) default 00:822 00:040 AAPL: #[EB|H:IS] 0 00:863 00:041 AAPL: #[EB|WL] 0 0 0x01 0x01 0 0x00 00:904 00:041 AAPL: #[EB|BRD:NV] Mac-27AD2F918AE68F61 00:944 00:040 AAPL: #[EB|B:VAw] 00:986 00:041 AAPL: #[EB|B:IAw] 01:027 00:041 AAPL: #[EB|WL] 0 0 0x01 0x01 2 0x00 01:067 00:040 AAPL: #[EB.BST.IDT|+] 01:108 00:041 AAPL: #[EB|BM] J160AP 01:149 00:041 AAPL: #[EB.BST.IDT|-] 01:189 00:040 AAPL: #[EB|WL] 0 0 0x01 0x01 3 0x00 01:231 00:041 AAPL: #[EB|WL] 0 0 0x01 0x01 4 0x00 01:272 00:041 AAPL: #[EB|BRD:NV] Mac-27AD2F918AE68F61 01:312 00:040 AAPL: #[EB|WL] 0 0 0x01 0x01 5 0x00 01:355 00:042 AAPL: #[EB.H.CHK|BM] 0x0000000000000000 01:397 00:042 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82 01:437 00:040 AAPL: #[EB|WL] 0 0 0x01 0x01 23 0x0E 01:478 00:041 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82 01:520 00:041 AAPL: #[EB|WL] 0 0 0x01 0x01 24 0x0E 01:560 00:040 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82 01:601 00:041 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82 01:643 00:041 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82 01:683 00:040 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82 01:724 00:041 AAPL: #[EB|H:NOT] 01:765 00:041 AAPL: #[EB|SB:P] 0x1 01:806 00:040 AAPL: #[EB.B.MN|BM:+SB] 01:847 00:041 AAPL: #[EB|LIMG:DP] Acpi(PNP0A03,0)/Pci(8|1)/Pci(0|3)/Usb(7, 0)/HD(Part2,SigFCEE17C9-2F0C-4D0D-9F42-2DB441E7E260) 01:888 00:041 AAPL: #[EB|LIMG:FP] \System\Library\CoreServices\boot.efi 01:929 00:040 AAPL: #[EB|LIMG:OPT] 01:971 00:042 AAPL: #[EB|RPS] 0 0 0 02:016 00:044 AAPL: #[EB.OPT.LXF|F] <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> 02:057 00:041 AAPL: #[EB.LD.LF|IN] 0 1 <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> <"0"> 02:099 00:041 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> 02:140 00:041 AAPL: #[EB.OPT.LXF|LF!] Err(0xE) 02:180 00:040 AAPL: #[EB.OPT.LXF|F] <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist"> 02:222 00:041 AAPL: #[EB.LD.LF|IN] 0 1 <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist"> <"0"> 02:265 00:042 AAPL: #[EB|KF] <"root-dmg=file:///BaseSystem/BaseSystem.dmg"> 02:305 00:040 AAPL: #[EB|MBA:CL] <""> 02:347 00:041 AAPL: #[EB|MBA:NV] <"-v keepsyms=1 debug=0x100 npci=0x3000 alcid=1 agdpmod=pikera unfairgva=1 slide=253"> 02:388 00:041 AAPL: #[EB|MBA:KF] <"root-dmg=file:///BaseSystem/BaseSystem.dmg"> 02:428 00:039 AAPL: #[EB|MBA:OUT] <"-v keepsyms=1 debug=0x100 npci=0x3000 alcid=1 agdpmod=pikera unfairgva=1 slide=253 root-dmg=file:///BaseSystem/BaseSystem.dmg"> 02:469 00:041 AAPL: #[EB|LOG:VERBOSE] 2023-06-08T19:53:23 02:510 00:041 AAPL: #[EB.CSR.S|VAR] 0x00000050 02:550 00:040 AAPL: #[EB|OPT:BM] 0x200082 02:592 00:041 AAPL: #[EB.OPT.LXF|F] <"\\System\\Library\\CoreServices\\PlatformSupport.plist"> 02:633 00:041 AAPL: #[EB.LD.LF|IN] 0 1 <"\\System\\Library\\CoreServices\\PlatformSupport.plist"> <"0"> 02:675 00:042 AAPL: #[EB|P:CPR] N 02:718 00:042 AAPL: #[EB|P:MPI] N 02:759 00:041 AAPL: #[EB|P:BPI] N 02:799 00:040 AAPL: #[EB.OPT.RKS|!] Err(0xE) <- BS.LocP EDB4A040-6D8A-11EC-8FAD-3E22FB93ADCF 02:840 00:041 AAPL: #[EB|KMR] 332677120 02:882 00:041 AAPL: #[EB.CS.CSKSD|+] 02:922 00:040 AAPL: #[EB.CS.CSKSD|!] Err(0xE) <- RT.GV boot-info-payload 8D63D4FE-BD3C-4AAD-881D-86FD974BC1DF 02:963 00:041 AAPL: #[EB.G.CS|-?] Ok(0) 03:011 00:048 AAPL: #[EB.LD.LF|IN] 0 1 <"<null string>"> <"1"> 03:063 00:051 AAPL: #[EB.B.SBS|SZ] 723512 03:119 00:056 AAPL: #[EB|B:SHA] <520e7ee6a29135b4538f361361fd2dad6e20c65f> 03:176 00:056 AAPL: #[EB.WL.PWLFNV|!] Err(0xE) <- RT.GV wake-failure 7C436110-AB2A-4BBB-A880-FE41995C9F82 03:223 00:046 AAPL: #[EB.WL.DT|!] Err(0xE) <- EB.WL.PWLFNV 03:268 00:045 AAPL: #[EB.WL.PWLFRTC|NONE] 03:316 00:048 AAPL: #[EB.WL.DT|!] Err(0xE) <- EB.WL.PWLFRTC 03:371 00:055 AAPL: #[EB.LD.LKC|D] <"System\Library\KernelCollections\BootKernelExtensions.kc.development"> 03:433 00:061 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.development"> <"0"> 03:493 00:060 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.development"> 03:547 00:053 AAPL: #[EB.LD.LKC|R.2] <"System\Library\KernelCollections\BootKernelExtensions.kc"> 03:605 00:058 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\KernelCollections\\BootKernelExtensions.kc"> <"0"> 05:941 02:335 AAPL: #[EB|SB:P] 0x1 05:986 00:045 AAPL: #[EB|SB:SBGMFNS] j160ap.im4m 06:043 00:056 AAPL: #[EB|SB:MF] System\\Library\\KernelCollections\\BootKernelExtensions.kc.j160ap.im4m 06:102 00:058 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.j160ap.im4m"> <"0"> 06:411 00:308 AAPL: #[EB|SB:MKRN] 06:467 00:055 AAPL: #[EB.LD.LKFS|-?] Ok(0) 06:511 00:044 AAPL: #[EB.LD.LKC|-?] Ok(0) 06:557 00:045 AAPL: #[EB|BST:REV1] 06:603 00:045 AAPL: #[EB|CSR:OUT] 0x00000040 06:648 00:045 AAPL: #[EB.BST.FBS|+] 06:692 00:043 AAPL: #[EB.BST.FBS|ADSZ] 0 06:737 00:045 AAPL: #[EB.BST.FBS|KSSZ] 0 06:784 00:047 AAPL: #[EB|SB:SBGMFNS] j160ap.im4m 06:833 00:048 AAPL: #[EB|RH:PF] usr\standalone\OS.dmg.root_hash 06:886 00:052 AAPL: #[EB|RH:MF] <"usr\\standalone\\OS.dmg.root_hash.j160ap.im4m"> 06:938 00:052 AAPL: #[EB.LD.LF|IN] 0 1 <"usr\\standalone\\OS.dmg.root_hash"> <"0"> 06:990 00:051 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"usr\\standalone\\OS.dmg.root_hash"> 07:038 00:048 AAPL: #[EB.RH.LRH|P!] Err(0xE) <- EB.LD.LF 07:085 00:047 AAPL: #[EB.BST.FBS|!] Err(0xE) <- EB.RH.LRH 07:131 00:045 AAPL: #[EB|LOG:DT] 2023-06-08T19:53:27 07:181 00:049 AAPL: #[EB|LOG:EXITBS:START] 2023-06-08T19:53:27 Quote Link to comment Share on other sites More sharing options...
Chip Mini Posted June 27, 2023 Share Posted June 27, 2023 (edited) I fixed this by set the "SecureBootModel" in the config.plist to "Disabled". Then, after installing successfully, I set it back to "Default". And I added AppleMCEReporterDisabler.kext to fix boot loop. Note: I used this tool to edit config.plist -> https://github.com/ic005k/OCAuxiliaryTools OpenCore v0.9.3 12.6.7 macOS Monterey (21G651) My spec: CPU: i3-10100F Mainboard: Gigabyte H470M DS3H GPU: HD 7750 Edited June 27, 2023 by Chip Mini update 1 Quote Link to comment Share on other sites More sharing options...

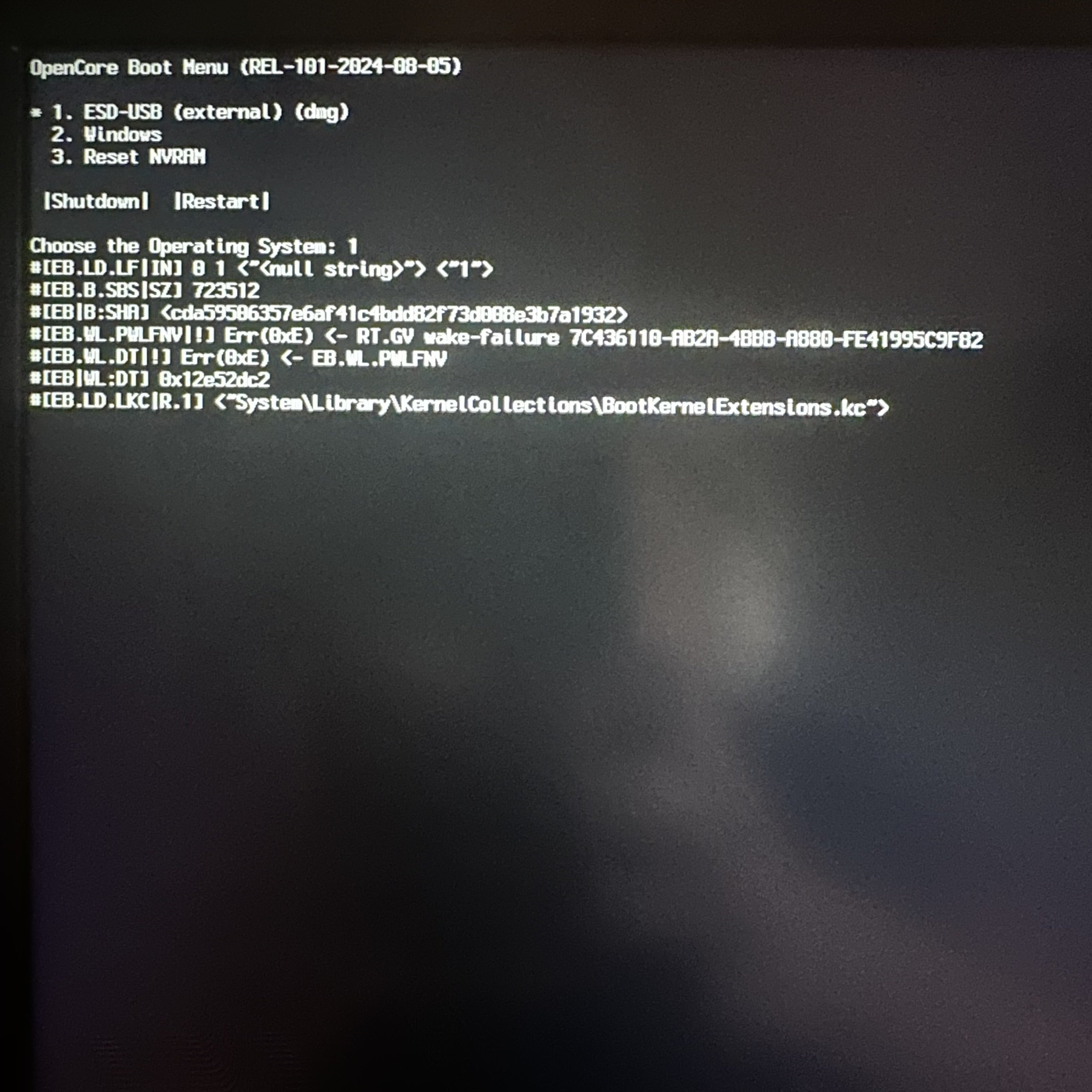

Logofatu Eugen Posted Monday at 10:04 PM Share Posted Monday at 10:04 PM Hello , i am having the same issue .. it drives me crazy .. laptop Asus g531g Cpu: i7 9750H gpu: intel 630 Quote Link to comment Share on other sites More sharing options...
