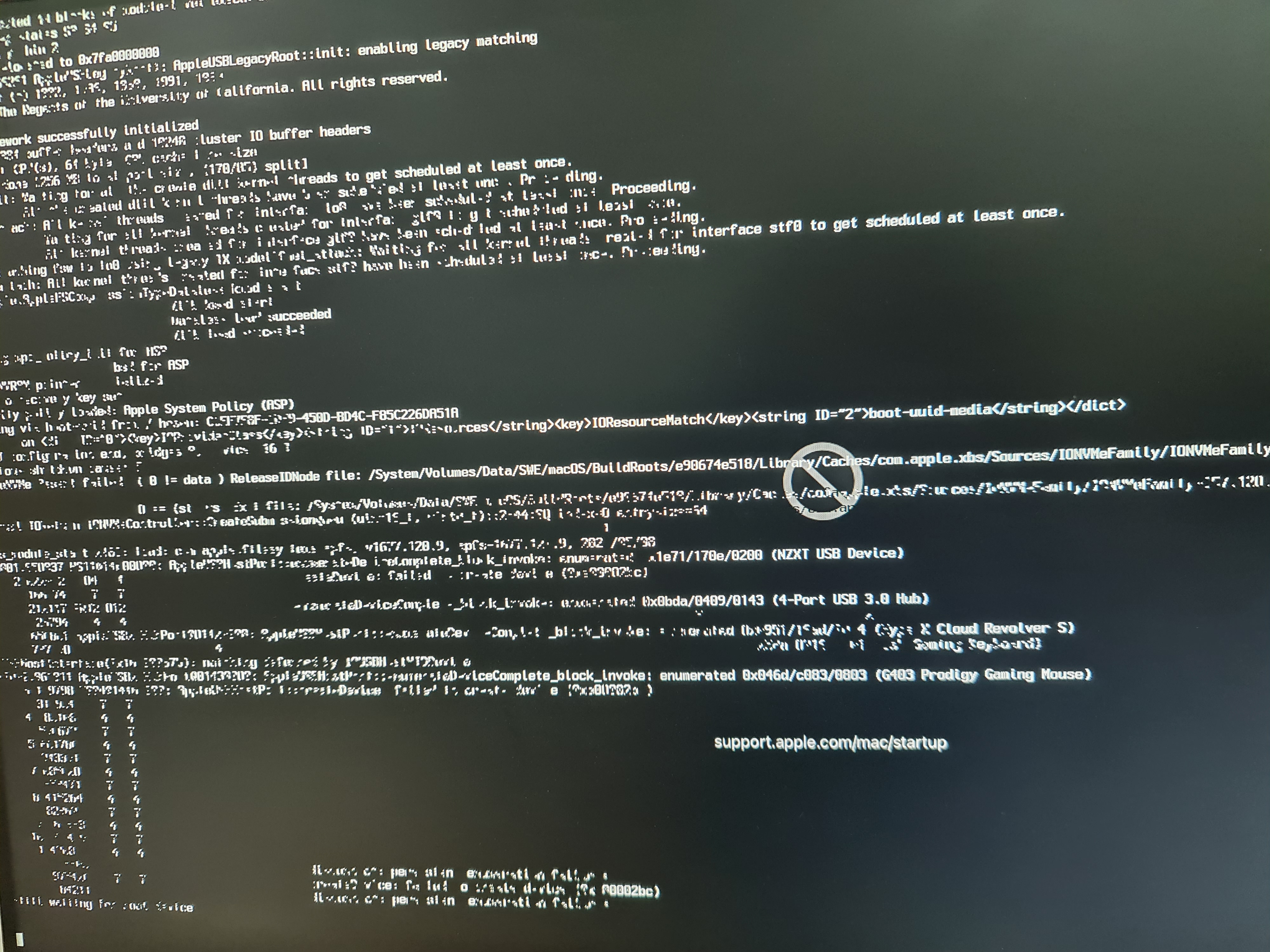

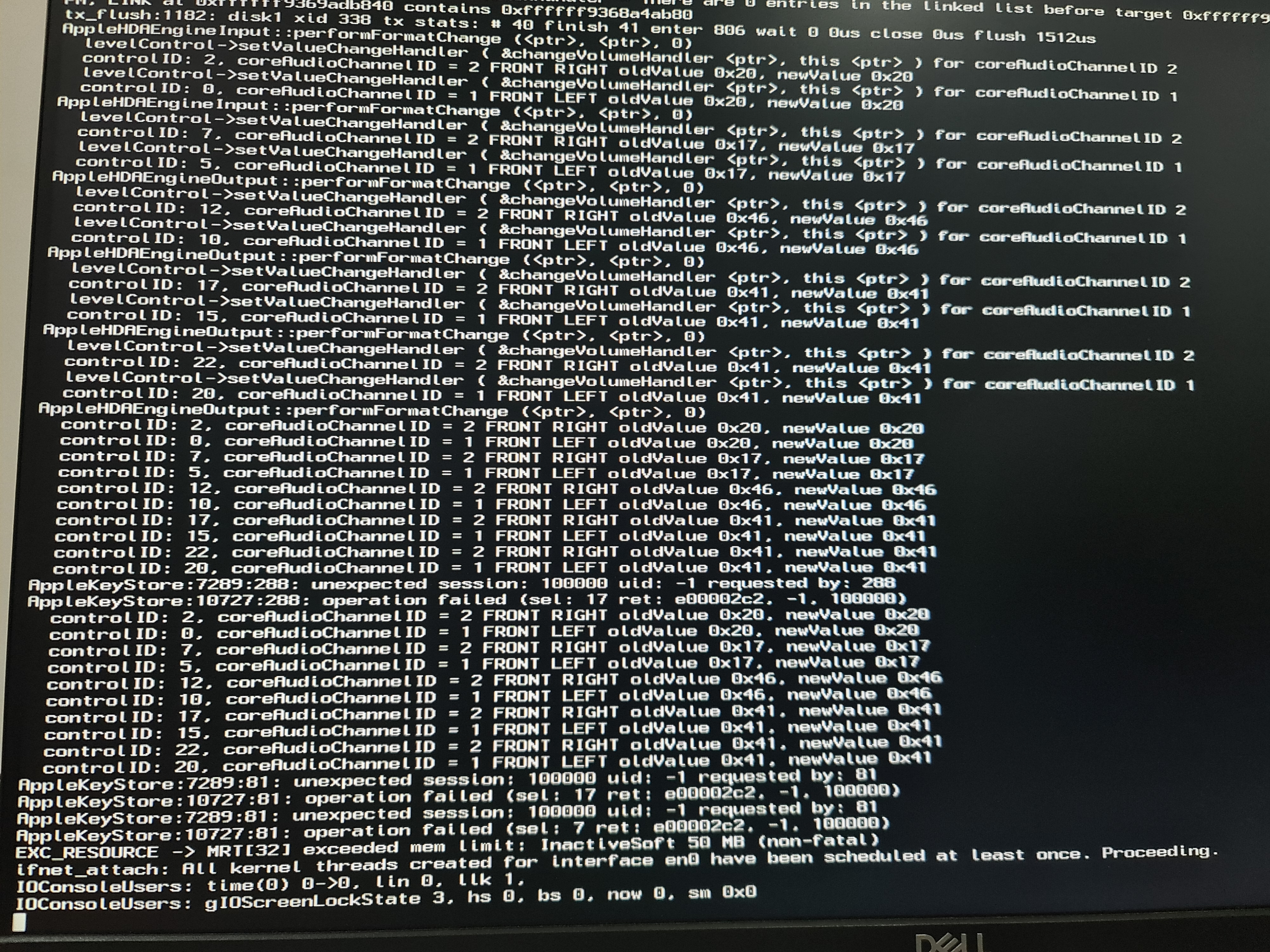

Emanuel Alejandro Posted July 12, 2021 Share Posted July 12, 2021 I just followed the open core guide for kabylake. Got everything settled but i got into this screen :( please help I'll detail my specs below: I7 7700k Asus z270E 16gb ram I have a GTX 1060 3gb but i have the display connected directly to the mother also the config.plist is configured for iGPU. Please if need something else i can give u further details in order to have this fixed :( thanks!! Quote Link to comment Share on other sites More sharing options...
Slice Posted July 12, 2021 Share Posted July 12, 2021 The screen shows that graphics is not working. What do you do for your HD630? Quote Link to comment Share on other sites More sharing options...
Allan Posted July 12, 2021 Share Posted July 12, 2021 5 hours ago, Emanuel Alejandro said: I have a GTX 1060 Words from @Hervé: Those were never natively supported and required the nVidia Web Driver so that they could be supported in Sierra and High Sierra. No Web Driver since Mojave so, indeed, that card is unsupported since Mojave and therefore of no use in 10.14 and later. Following @Slice's hint is the best. Quote Link to comment Share on other sites More sharing options...
Emanuel Alejandro Posted July 13, 2021 Author Share Posted July 13, 2021 Thanks guys. 19 hours ago, Slice said: The screen shows that graphics is not working. What do you do for your HD630? How can i configure to use this iGPU? Quote Link to comment Share on other sites More sharing options...
Slice Posted July 13, 2021 Share Posted July 13, 2021 First of all attach video cable to the iGPU output. Second set in BIOS IGPU to be enabled and priority. Then you may use Lilu+WhateverGreen which is the simplest way. Quote Link to comment Share on other sites More sharing options...

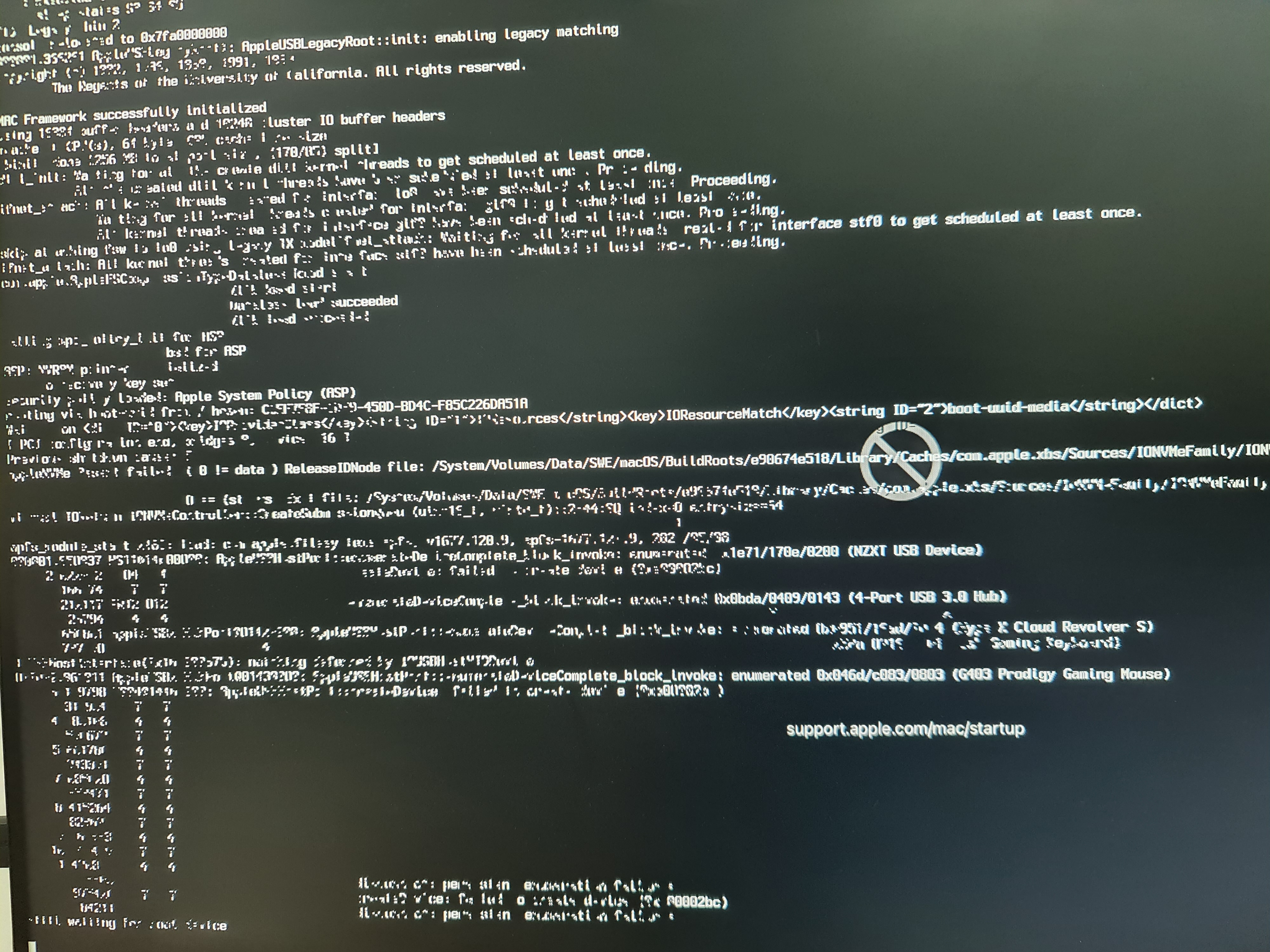

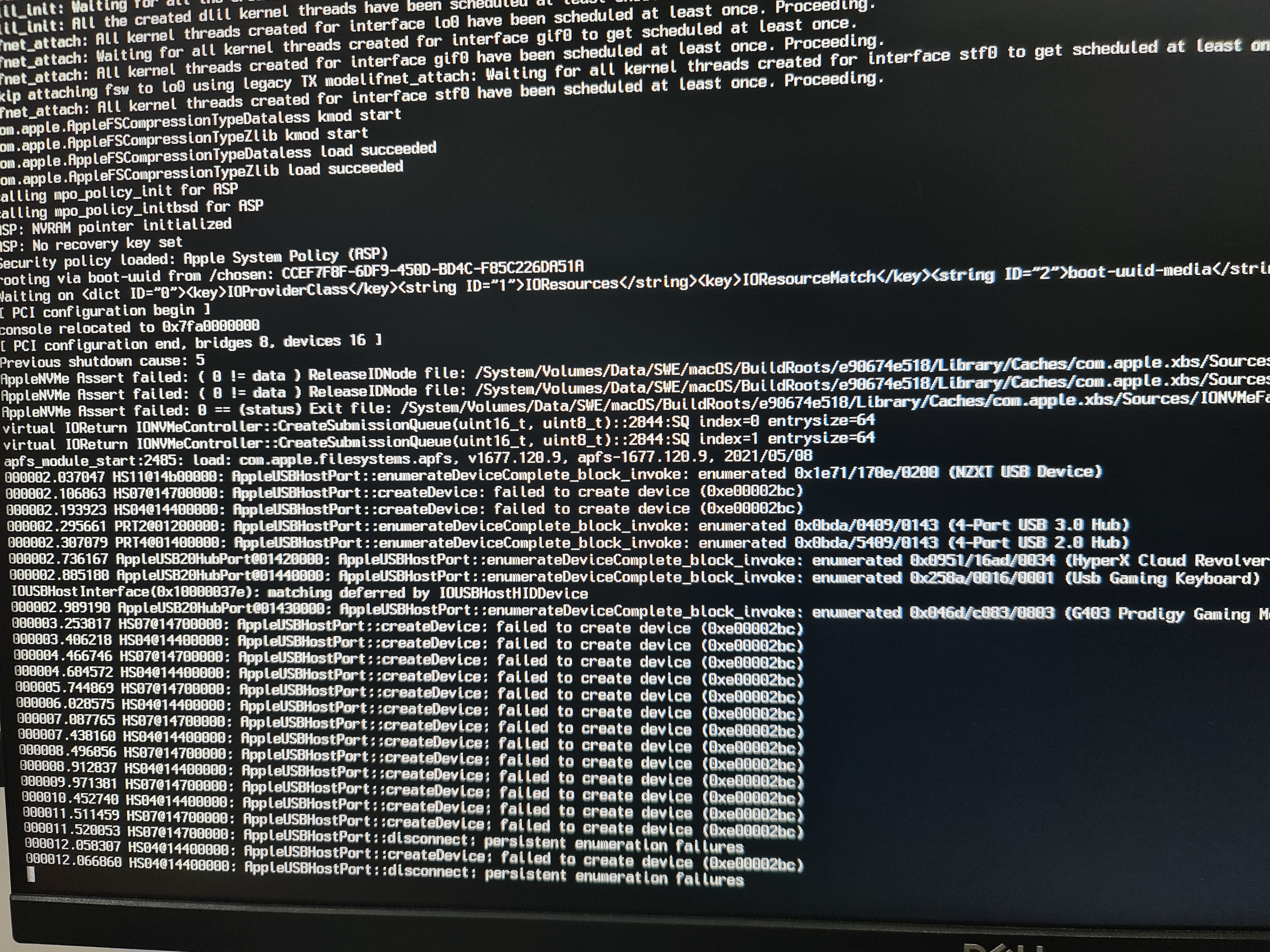

Emanuel Alejandro Posted July 13, 2021 Author Share Posted July 13, 2021 (edited) 1 hour ago, Slice said: First of all attach video cable to the iGPU output. Second set in BIOS IGPU to be enabled and priority. Then you may use Lilu+WhateverGreen which is the simplest way. Thank you! I figured out this and just booted, maked the first setup. Then mounted the disk and copied the efi to the directory and tried to boot again, but this happened. Edited July 13, 2021 by Emanuel Alejandro Quote Link to comment Share on other sites More sharing options...
shl628 Posted July 13, 2021 Share Posted July 13, 2021 The cause of Still waiting for root device logs and prohibited sign is mainly USB or SATA related issues. Please refer to the OpenCore Troubleshooting Guide below. https://dortania.github.io/OpenCore-Install-Guide/troubleshooting/extended/kernel-issues.html#waiting-for-root-device-or-prohibited-sign-error Quote Link to comment Share on other sites More sharing options...
Slice Posted July 13, 2021 Share Posted July 13, 2021 2 hours ago, Emanuel Alejandro said: Thank you! I figured out this and just booted, maked the first setup. Then mounted the disk and copied the efi to the directory and tried to boot again, but this happened. What ig-platform-id did you use? Quote Link to comment Share on other sites More sharing options...
