mfifer Posted June 29, 2021 Share Posted June 29, 2021 Wondering if anyone is trying their HP Z800 with the latest OpenCore versions and Big Sur? I searched the forums but only find references to some older work (and potentially around Clover not OpenCore). Similarly, there is an EFI for HP Z600 but it's for a MUCH older version of OpenCore. I'm getting nowhere fast but would be glad to share notes 😉 Quote Link to comment Share on other sites More sharing options...
Rocky12 Posted June 30, 2021 Share Posted June 30, 2021 (edited) Open Core Install Guide This is your starting point Don't look around trust your own self just do it Read carefully each of the part https://dortania.github.io/OpenCore-Install-Guide/config-HEDT/nehalem.html Open Core Sanity Checker https://opencore.slowgeek.com/ Big Sur from USB installer no go because apple drop support for ICH10 But there is another way how to get Big Sur on unsupported hack and this is called Emulated NVRAM https://dortania.github.io/OpenCore-Post-Install/misc/nvram.html Another guide which will help you how to do that https://www.insanelymac.com/forum/topic/345910-unable-to-upgrade-from-catalina-to-big-sur-on-system-with-legacy-bios/?do=findComment&comment=2746083 important thing is proper configure open core bootloader which can install macOS Catalina on your HP Z800 Edited June 30, 2021 by Rocky12 Quote Link to comment Share on other sites More sharing options...
mfifer Posted June 30, 2021 Author Share Posted June 30, 2021 Thanks Rocky! I'm very familiar with the Dortania guide (as well as the OpenGeek checker though that appears to have stopped being updated several revisions of OpenCore ago). I've been bit by the "EXITBS" issue, despite painstaking process-of-elimination troubleshooting. (https://dortania.github.io/OpenCore-Install-Guide/troubleshooting/extended/kernel-issues.html#stuck-on-eb-log-exitbs-start) I'll re-read the Emulated NVRAM link -- I skimmed it but didn't connect it to the process mentally. I'm going to take your advice and try Catalina instead of big Sur as a starting point. Appreciate your feedback greatly!!! 1 Quote Link to comment Share on other sites More sharing options...
Rocky12 Posted June 30, 2021 Share Posted June 30, 2021 So okay there are three different option for Bios Based machine NR = 1 VMware method on any working macOS, you need separate HDD or SSD for it https://www.insanelymac.com/forum/topic/344299-guide-gigabyte-ga-z370n-wifi-i7-8700k-uhd-630-big-sur-110-dp1/ NR= 2 macOS Image Restore Method https://www.olarila.com/topic/9679-olarila-big-sur-beta-5-vanilla-image-restore-mode-easy-way-opencore/ NR= 3 Emulated NVRAM can help you to upgrade from Catalina to Big Sur Nobody is perfect until you put your hands on If no one did that before, you could be the one wish you all the best 1 Quote Link to comment Share on other sites More sharing options...
HenryV Posted July 1, 2021 Share Posted July 1, 2021 (edited) On 6/29/2021 at 8:55 PM, mfifer said: Wondering if anyone is trying their HP Z800 with the latest OpenCore versions and Big Sur? I searched the forums but only find references to some older work (and potentially around Clover not OpenCore). Similarly, there is an EFI for HP Z600 but it's for a MUCH older version of OpenCore. I'm getting nowhere fast but would be glad to share notes 😉 Look here: https://github.com/topics/hackintosh?o=desc&s=updated https://github.com/topics/opencore-efi for updates to published efi's Otherwise the principle is the same. Start with a minimum of drivers and kexts and applicable ACPI .aml(s) for your config that follows a current guide for your hardware. If you make changes do so one at a time. csr-active-config 67080000. Recent version(s) of Open Core may not inject some kexts with functionality while there can be no problem with the same kexts and booting with recent version(s) of Clover. per your message here are some notes to share including how to avoid disturbing a working bootloder: https://www.insanelymac.com/forum/topic/346639-updated-tips-and-observations-for-big-sur-and-monterey-b2/ Edited July 1, 2021 by HenryV 3 Quote Link to comment Share on other sites More sharing options...

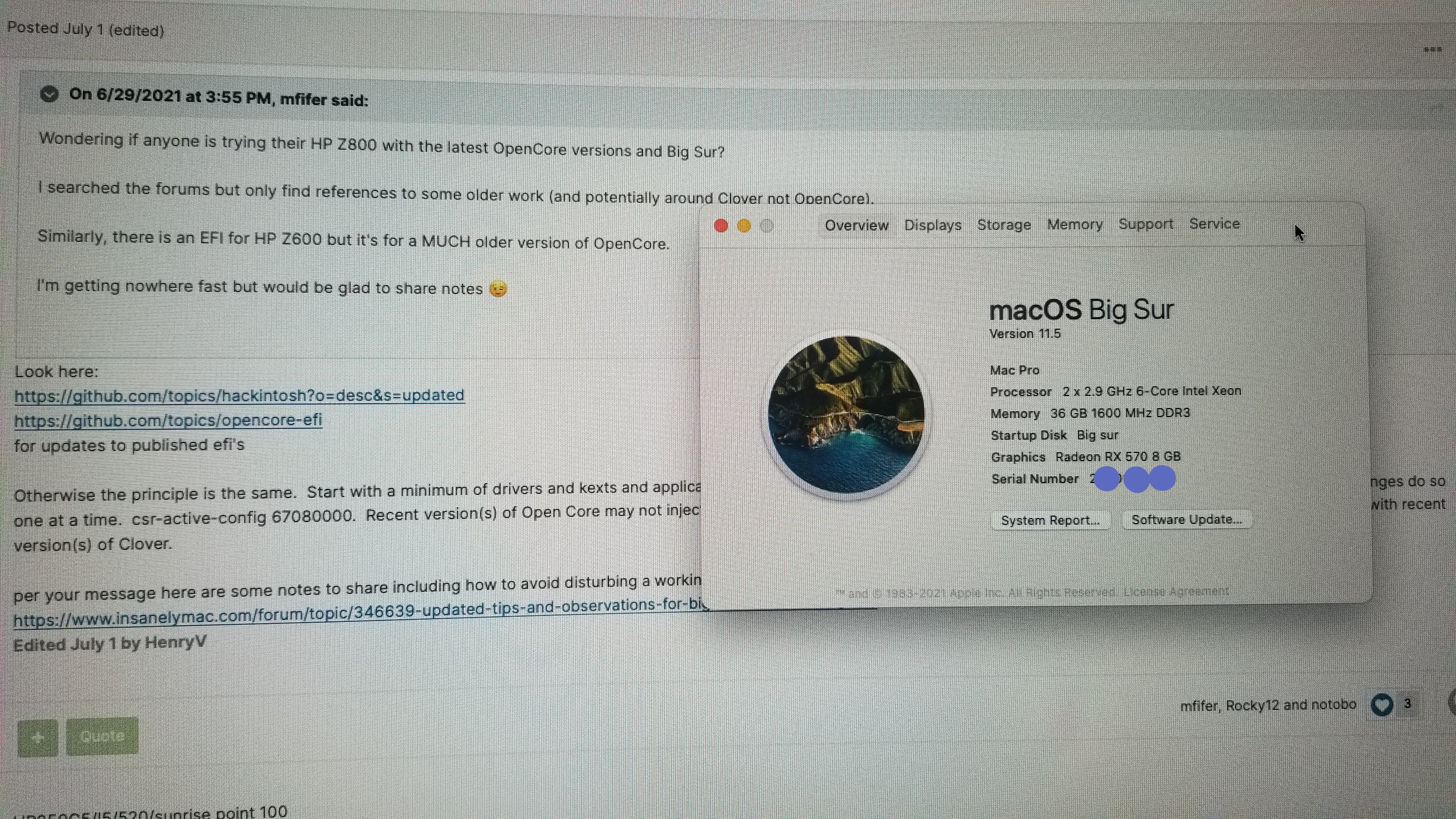

sok5 Posted July 25, 2021 Share Posted July 25, 2021 I have my HP Z800 running Big Sur 11.5, it's running slower after update to Big Sur. 6 months ago I used this link https://github.com/huytbt/Hackintosh-HP-Z600-OpenCore. Big Thank to Huytbt EFI 1 Quote Link to comment Share on other sites More sharing options...
sok5 Posted July 25, 2021 Share Posted July 25, 2021 my EFI and unzip apple zip file and place it in Efi folder. efi 2.zip EFI file larger than 10mb, I have spit it. APPLE.zip 1 Quote Link to comment Share on other sites More sharing options...
sok5 Posted October 5, 2021 Share Posted October 5, 2021 anyone have HP Z800 bios 3.61 backup, I system crash when I tried to install opencore v0.74 Thank you 1 Quote Link to comment Share on other sites More sharing options...
sok5 Posted October 6, 2021 Share Posted October 6, 2021 Thank you Quote Link to comment Share on other sites More sharing options...
Ileolo Posted October 21, 2021 Share Posted October 21, 2021 Hi, i have two z800 with 3.91 bios (rev 2, rev 3). how can I help you ? Quote Link to comment Share on other sites More sharing options...
mfifer Posted December 30, 2021 Author Share Posted December 30, 2021 I'd like to reply to you in the real thread but the inane policies prevent me from doing so. I've spent the holidays bringing up the 0.6 config to 0.7.6 apparently like you did, so I tried your EFI and I still crash out with yours the same place I do mine. If IM ever lets me out of n00b jail, I'll post one of my working EFIs so we can compare notes. I'm really curious how you're getting installed and running, while I crash out in the second phase of the install process whether I'm using BigSur or Monterey or my config or yours... 1 Quote Link to comment Share on other sites More sharing options...
mfifer Posted January 3, 2022 Author Share Posted January 3, 2022 Using your (Rocky12's) EFI folder, I've created a bootable USB following the legacy process (using LegacyBoot/BootInstall_X64.tool to install the Duet package enabling legacy boot) and with Catalina installed on the USB with the "createinstallmedia --volume /Volumes/MyUSBVolume" and yet curiously I now kernel panic early into boot (right after OC handoff) with a AE_ALREADY_EXISTS error that I don't recall seeing while attempting building OpenCore installers for Big Sur or Monterey My end game is Monterey, but baby steps... Definitely fine with Catalina on OpenCore as a starting point... Quote Link to comment Share on other sites More sharing options...

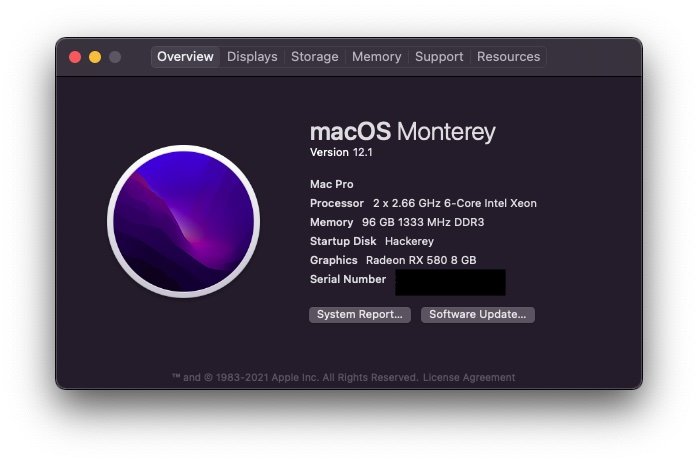

mfifer Posted January 4, 2022 Author Share Posted January 4, 2022 Happy to report success -- used that EFI as a base and made a couple of changes to things. First, I had to run FIX-HPET to resolve the "AE_ALREADY_EXISTS" error and swap in the resulting AML. Second, had to add the USB keyboard/mouse fix from the OpenCore docs. Other than that, it was install OpenCore 0.7.6 with the LegacyBoot tool, create a Monterey installer with the createinstallmedia tool, and do the install and 400 hundred reboots. 😉 1 Quote Link to comment Share on other sites More sharing options...
datafeedexpert Posted January 28, 2022 Share Posted January 28, 2022 On 1/4/2022 at 7:56 AM, mfifer said: Happy to report success -- used that EFI as a base and made a couple of changes to things. First, I had to run FIX-HPET to resolve the "AE_ALREADY_EXISTS" error and swap in the resulting AML. Second, had to add the USB keyboard/mouse fix from the OpenCore docs. Other than that, it was install OpenCore 0.7.6 with the LegacyBoot tool, create a Monterey installer with the createinstallmedia tool, and do the install and 400 hundred reboots. 😉 Can you please share your EFI as sample 1 Quote Link to comment Share on other sites More sharing options...
mfifer Posted February 21, 2022 Author Share Posted February 21, 2022 Absolutely! Apologies for the delay - I didn't see the notification. (NOTE: I've run into an issue where my system won't fully restart. At shutdown, reboot, it does the OS shutdown but the hardware doesn't respond and I have to press the power button to physically effect the reboot or shutdown. I don't remember when it started but I've been too busy to chase the issue down since the workaround is tolerable. For now. 😉) This folder is using OpenCore 0.7.8 Key kexts: Lilu 1.5.9 VirtualSMC 1.2.8 WhateverGreen 1.5.7 Please look carefully at config.plist -- not all of the included KEXTs are active. Audio does not work reliably without CodecCommander which I really don't think should be necessary. I'm on macOS 12.2.1 My system is a Z800: 2 x X5950 Xeon 96GB RAM Radeon RX580 2TB SSD on PCIe 6Gbps SATA card Add-in Wifi card (Fenvi T919) Add-in USB 3.0 card (Inateck KT4006 2-port) Hope this helps! EFI.zip 1 Quote Link to comment Share on other sites More sharing options...
datafeedexpert Posted June 30, 2022 Share Posted June 30, 2022 On 2/21/2022 at 10:30 PM, mfifer said: Absolutely! Apologies for the delay - I didn't see the notification. (NOTE: I've run into an issue where my system won't fully restart. At shutdown, reboot, it does the OS shutdown but the hardware doesn't respond and I have to press the power button to physically effect the reboot or shutdown. I don't remember when it started but I've been too busy to chase the issue down since the workaround is tolerable. For now. 😉) This folder is using OpenCore 0.7.8 Key kexts: Lilu 1.5.9 VirtualSMC 1.2.8 WhateverGreen 1.5.7 Please look carefully at config.plist -- not all of the included KEXTs are active. Audio does not work reliably without CodecCommander which I really don't think should be necessary. I'm on macOS 12.2.1 My system is a Z800: 2 x X5950 Xeon 96GB RAM Radeon RX580 2TB SSD on PCIe 6Gbps SATA card Add-in Wifi card (Fenvi T919) Add-in USB 3.0 card (Inateck KT4006 2-port) Hope this helps! EFI.zip 6.29 MB · 14 downloads Thanks For the EFI & Info Quote Link to comment Share on other sites More sharing options...
datafeedexpert Posted January 6, 2023 Share Posted January 6, 2023 On 10/22/2021 at 1:11 AM, Ileolo said: Hi, i have two z800 with 3.91 bios (rev 2, rev 3). how can I help you ? I am unable to find Bios Ver 3.91 , Its Publish on HP Support ? Quote Link to comment Share on other sites More sharing options...
GuyEvans Posted June 26, 2023 Share Posted June 26, 2023 Hello I wondered if you can help me please. I also have a HP Z800 and am trying to follow an up to date guide with a working EFI for this type of machine, but no matter what I do my Open Core USB will not boot. It shows in the boot menu and when I try to click on it, it just skips to the hard drive boot. (I currently have a clover install of Sierra on my HD). I can't figure out at all why the installer will not boot. I've followed guides and put Monterey on the USB using Balena Etcher software, and copied over the EFI, changed serial number, checked with OC Auxiliary Tools and all looks ok. Any help at all would be great. Thank you. Quote Link to comment Share on other sites More sharing options...
