HP Z800 Big Sur OpenCore or Clover Installation


26 posts in this topic

Recommended Posts

Hey everyone The latest version of Catalina has been running fairly stable on my HP Z800 for over a year. For this I use Clover and a MacPro5,1 SMBIOS.

Kext are always up to date. Now I want to get Big Sur (Clean if necessary) running on the same device. However, I run into a few problems here.



I looked for the EFI folder together at the time, so I'm assuming that it could be made cleaner and some drivers or Kext are certainly unnecessary.

I noticed that ACPI has a few fixes, and I don't know which ones are necessary here either. But that's how the system works.

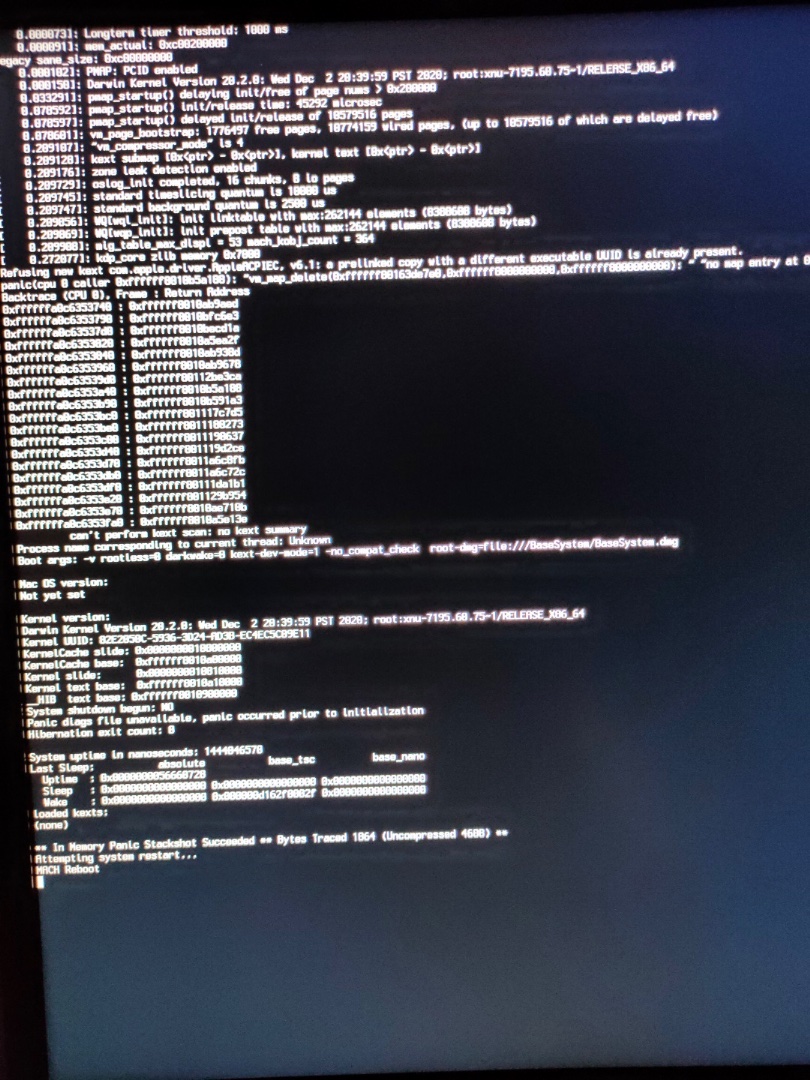

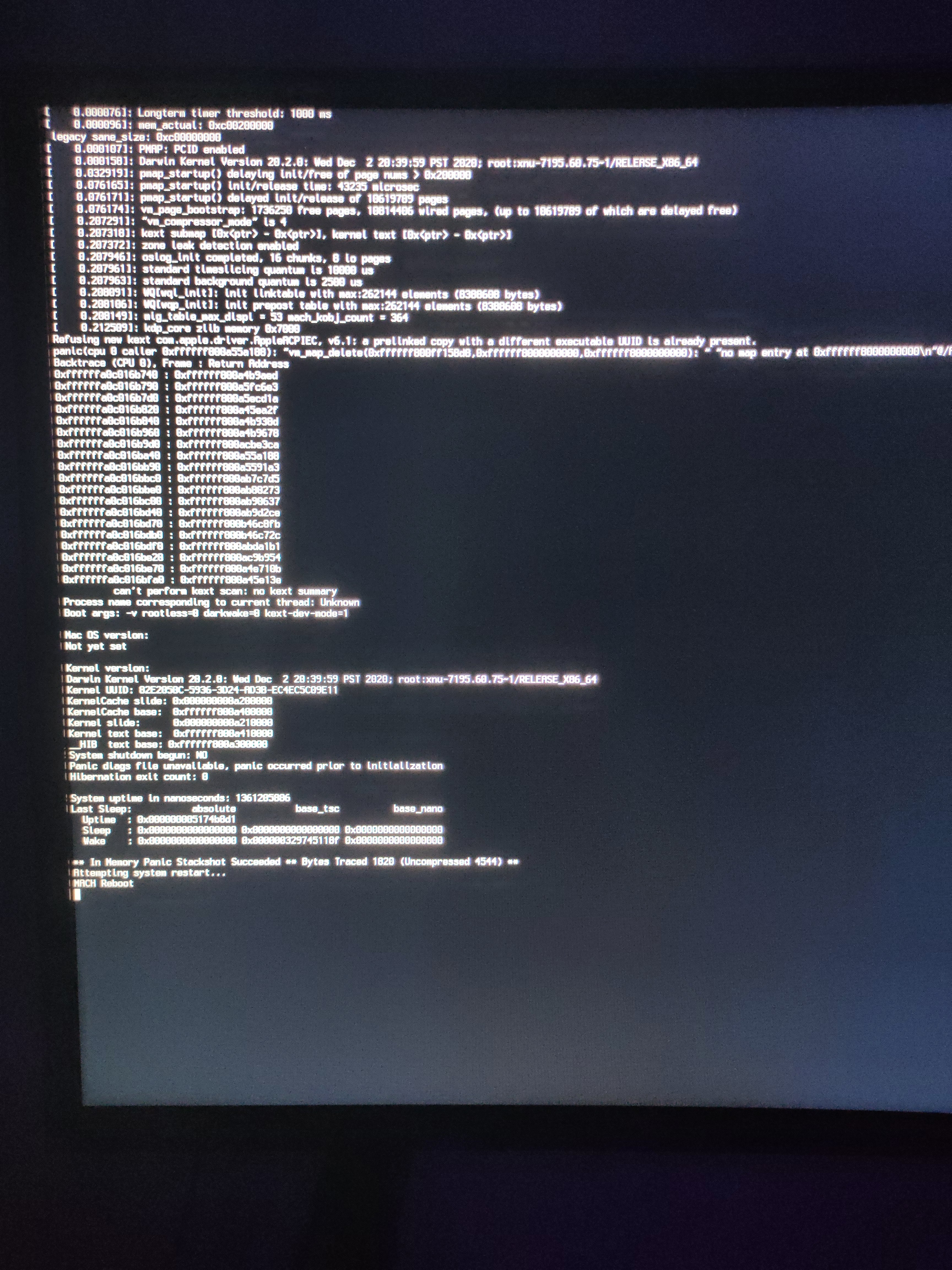

When starting BigSur Install (clean pulled / created by gibmacos and createinstallmedia) and -no_compat_check, the part hangs up and shows me the message from the attachment. Unfortunately I can't do anything with it.



With MacPro6,1 SMBIOS nothing starts at all. I can now get the Z800 started with iMac15.1 SMBIOS. I had a DSDT created in Windows. Because a Google search showed that I should patch something there?



OpenCore Boots my working Catalina installation (with Clover installed), but the mouse and keyboard don't work.Drivers for USB mouse and keyboard are included, also USBInjectAll, I also tried to map my USP ports, all without success. The BigSur installation does not even start, here I am stuck at the very beginning: [EB | #LOG: EXITBS: START]



I would say that I know my way around quite well by now and can do a lot myself, so throw yourself around with technical terms: D Would be grateful if you could help me.



Here again my system more precisely: HP Z800, BIOS 3.61 48GB 1600Mhz RAM RX 570 8GB via display port Sandisk Cruzer USB stick with 16GB




Edited by FabianZettl

Thanks Rocky, I tried this before but it did not work.

Should I install High Sierra and updtae from there to Big Sur or go directly to Big Sur?#



Do I need to add my own DSDT and something else I forgot?



With OpenCore and a BigSur Install Stick i am stuck here.



LOG FILE:



17:059 00:131 AAPL: #[EB|SB:SBGMFNS] x86legacyap.im4m
17:191 00:131 AAPL: #[EB|RH:PF] usr\standalone\OS.dmg.root_hash
17:323 00:132 AAPL: #[EB|RH:MF] <"usr\\standalone\\OS.dmg.root_hash.x86legacyap.im4m">
17:455 00:132 AAPL: #[EB.LD.LF|IN] 0 1 <"usr\\standalone\\OS.dmg.root_hash"> <"0">
17:588 00:132 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"usr\\standalone\\OS.dmg.root_hash">
17:720 00:131 AAPL: #[EB.RH.LRH|P!] Err(0xE) <- EB.LD.LF
17:852 00:131 AAPL: #[EB.BST.FBS|!] Err(0xE) <- EB.RH.LRH
17:983 00:131 AAPL: #[EB.B.WFDW|!WF] Err(0xE) 0
18:115 00:131 AAPL: #[EB|LOG:DT] 2021-01-31T04:33:24
18:247 00:131 AAPL: #[EB|LOG:EXITBS:START] 2021-01-31T04:33:24






Edited by FabianZettl

Thanks, so Ive gone with Emulated NVRAM mtehod and gone furter than before, but right after my mouse aooears on the screen (beofre the updatesetup starts) the screen goes black, and nothing happens, no reboot or anything





I've created a opencore EFI by myself following this guide before.



Quote from the first post :



OpenCore Boots my working Catalina installation (with Clover installed), but the mouse and keyboard don't work.

Drivers for USB mouse and keyboard are included, also USBInjectAll, I also tried to map my USP ports, all without success. The BigSur installation does not even start, here I am stuck at the very beginning: [EB | #LOG: EXITBS: START]





Die Fixes auf https://dortania.github.io/Ope…ck-on-eb-log-exitbs-start habe ich fast alle durch:



SetupVirtualMap, und

  • EnableWriteUnprotector -> True
  • RebuildAppleMemoryMap -> False
  • SyncRuntimePermissions -> False
Edited by FabianZettl

Thank you for the help Rocky.

So I've put the OC EFI on my USB with the BigSur Installer and trief the following.



Install BigSUr Update within my Catalina (booted with Clover) - boot the USB with OC into the installer partition - it goes black. Retsarts an only boots my Clover HDD.

Log file still reads:

68:363 00:099 AAPL: #[EB|LOG:DT] 2021-01-31T16:53:47
68:462 00:099 AAPL: #[EB|LOG:EXITBS:START] 2021-01-31T16:53:47
68:561 00:098 AmiShimTimerBoostExit changed current period to 100000





I also tried booting from OC USB directly into the USB Installer, but get the same results.



Booting from OC USB to my existing Catalina Installation works, but no USB Keyboard and MOuse is working from any USB Port.





Great help thank you!



But still the same problems, no mouse and keyboard in Catalina.

BIOS is correct, Clover boots my Catalina without any problems.



There's no way to get BigSur on Z800 with Clover working, is there?

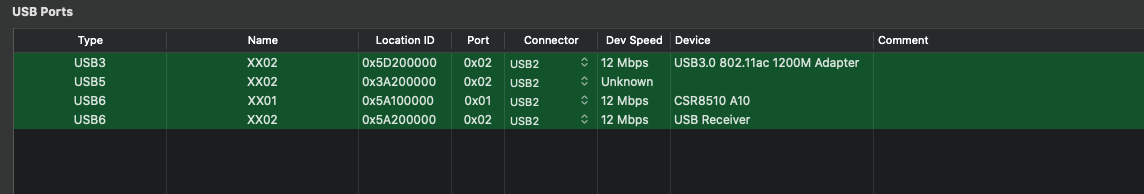

I did, I've added the USBPorts.kext with USBinjectall and without.

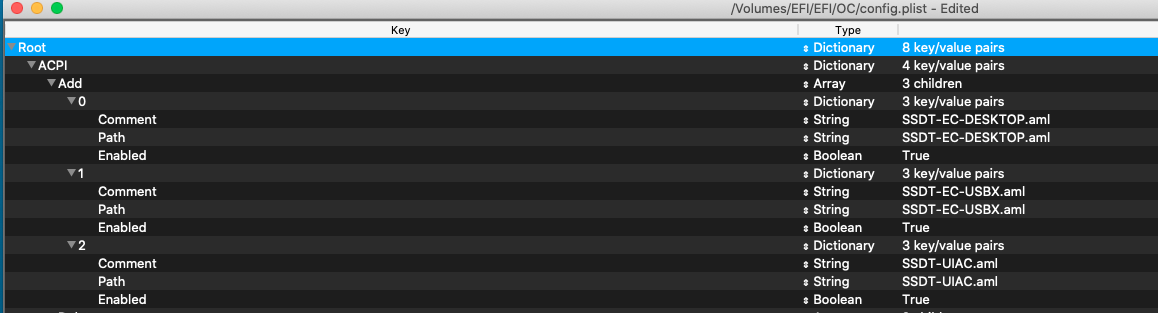

I've also tried adding the .aml Hackintool creates after the export



I just exported again and will try again.

1880493148_Bildschirmfoto2021-01-31um21_49_13.thumb.png.8721ebe5df20ab6497266735b93c3975.png

Bildschirmfoto 2021-01-31 um 21.48.59.png

Bildschirmfoto 2021-01-31 um 21.50.11.png

Edited by FabianZettl

I can do that, I have a lot of external HDDs or SATA Drives, and VMware Fusion runs too.

I also have Windows running on another drive inside the Z800 if it helps.

Is there a written guide?

Edited by FabianZettl

Thanks I will try that immediatly, just one question. The part about adding stuff to config.plist is opencore specific, where do I add this in clover?



- Add following items do config.plist:



NVRAM -> Add -> 7C436110-AB2A-4BBB-A880-FE41995C9F82 -> boot-args -> -lilubetaall (append)

NVRAM -> Add -> 7C436110-AB2A-4BBB-A880-FE41995C9F82 -> booter-fileset-basesystem + Data + <00>

NVRAM -> Add -> 7C436110-AB2A-4BBB-A880-FE41995C9F82 -> booter-fileset-kernel + Data + <00>

NVRAM -> Delete -> 7C436110-AB2A-4BBB-A880-FE41995C9F82 -> booter-fileset-basesystem

NVRAM -> Delete -> 7C436110-AB2A-4BBB-A880-FE41995C9F82 -> booter-fileset-kernel

Edited by FabianZettl

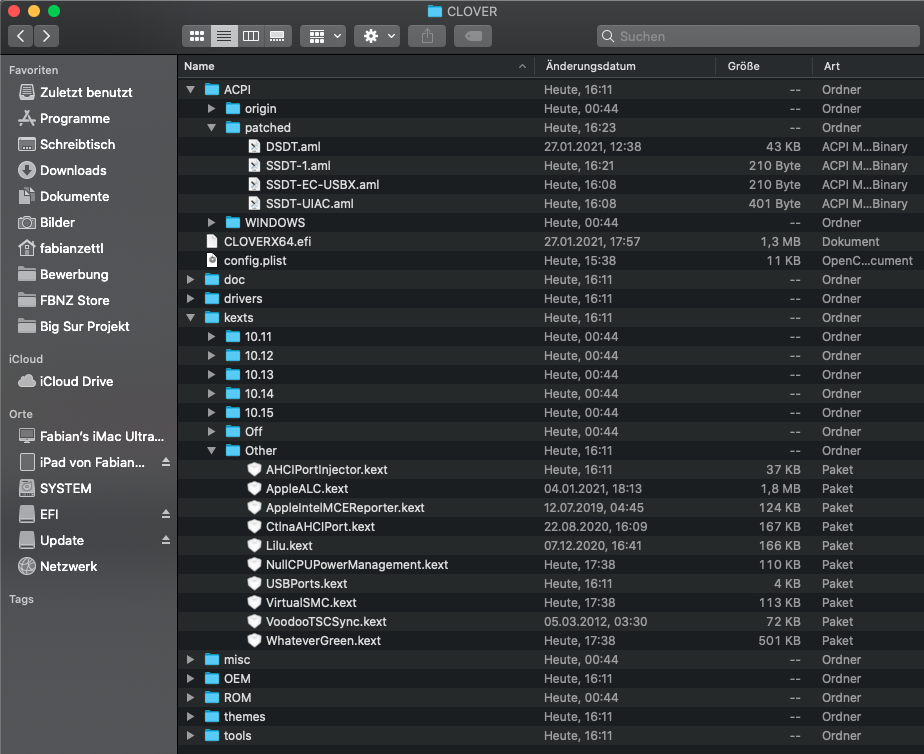

Thanks, so my EFI now looks like this.



Clover is 5129

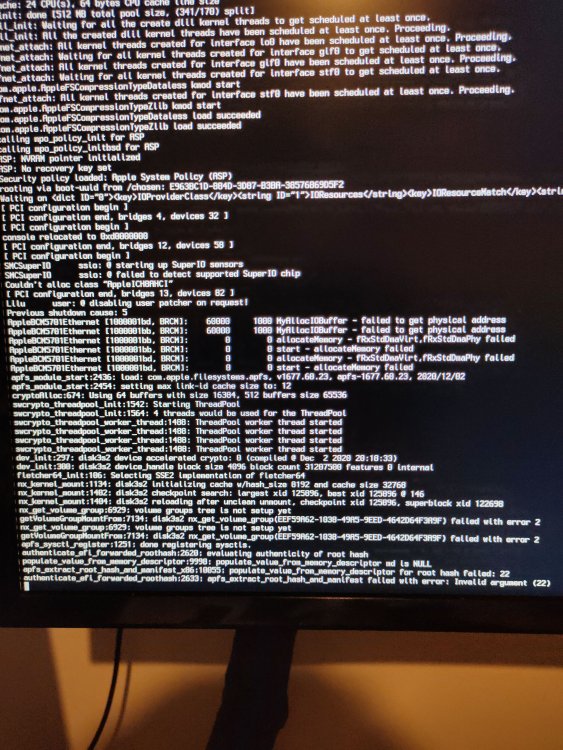

the error from my previous post/Screenshot is resolved but now it goes black and just restarts after choosing the bigsur hdd.

The VoodooTSCSync is very old I try updating it...



I've also uploaded the new EFI I am using now. With all aml files in it. Maybe the bootlog file i've attached can help too.

Bildschirmfoto 2021-02-01 um 16.23.37.png

EFI.zip

bootlog.txt

Edited by FabianZettl

Still can't get it to work.

I've tried generating a SSDT-1 with Info given in the other Thread.

Added:

gUserDefinedCPUList=(
X5690,130,1600,3460,3730,6,12,4,133



But it tells me it's an Unkn own Processor Model.



I've replaced VoodooTSCsync with CPUTscSync.

gDataPath: /Users/fabianzettl/Library/ssdtPRGen/Data

Override value: (-d) debug mode, now using: 2!

Override value: (-turbo) maximum (turbo) frequency, now using: 3460 MHz!

Override value: (-l) number of logical processors, now using: 24!

Override value: (-c) CPU type, now using: Ivy Bridge!



Error: Invalid argument detected: -target

Aborting ...

Done.



17 hours ago, FabianZettl said:

gDataPath: /Users/fabianzettl/Library/ssdtPRGen/Data

Override value: (-d) debug mode, now using: 2!

Override value: (-turbo) maximum (turbo) frequency, now using: 3460 MHz!

Override value: (-l) number of logical processors, now using: 24!

Override value: (-c) CPU type, now using: Ivy Bridge!



Error: Invalid argument detected: -target

Aborting ...

Done.





The comment yu've sent me returned this error.

I couldn't regenrate a SSD-1 yet.

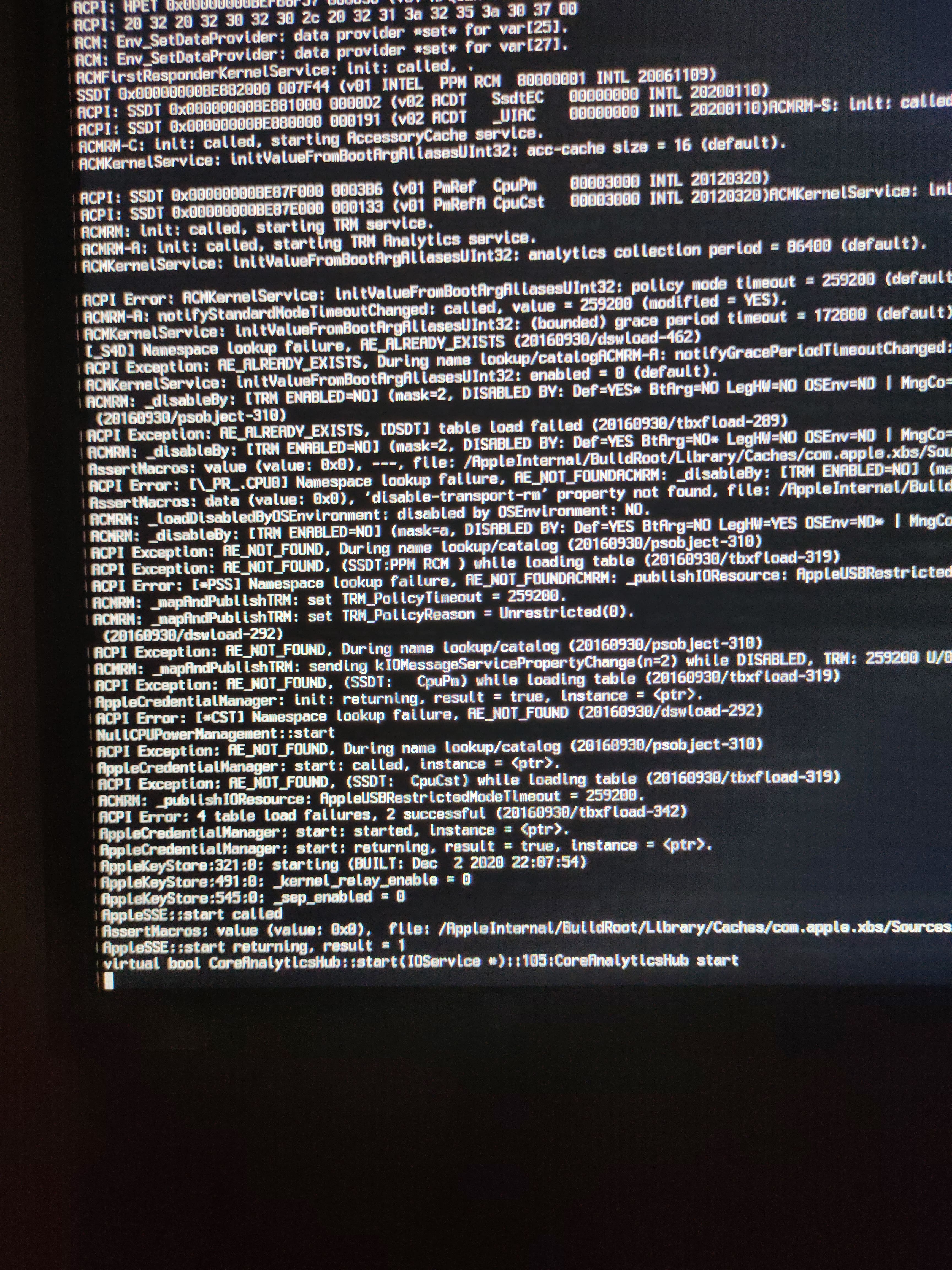

A boot always returns with ACPI error from the screenshot above, is this still CPU related?

Okay so I#ve tried with your EFI Folder, and I gues the CPU PM Problem is gone.

HOWEVER now it's shutting dwn after [PCI configuration..]



Here's the Bootlog. Which sounds like a graphic problem. I Use a Gigabyte RX 570 8GB which has to be natively supported?





12:847  0:000  SSDT with CPU P-States and plugin-type generated successfully
12:847  0:000  SSDT with CPU C-States generated successfully
12:847  0:000  Cleanup XSDT: count=11, length=124
12:847  0:000  corrected XSDT count=10, length=116
12:847  0:000  === [ RestSetup macOS ] =========================
12:847  0:000  EdidDiscovered size=128
12:847  0:000  --- Discovered EDID Table size:128
12:847  0:000  000  |  00  FF  FF  FF  FF  FF  FF  00  4C  2D
12:847  0:000  010  |  FD  0B  00  00  00  00  27  18  01  04
12:847  0:000  020  |  A5  50  21  78  3A  52  95  A5  56  54
12:847  0:000  030  |  9D  25  0E  50  54  BF  EF  80  71  4F
12:847  0:000  040  |  81  00  81  C0  81  80  95  00  A9  C0
12:847  0:000  050  |  B3  00  01  01  E7  7C  70  A0  D0  A0
12:847  0:000  060  |  29  50  30  20  3A  00  1D  4D  31  00
12:847  0:000  070  |  00  1A  56  5E  00  A0  A0  A0  29  50
12:847  0:000  080  |  30  20  35  00  1D  4D  31  00  00  1A
12:847  0:000  090  |  00  00  00  FD  00  38  4B  1E  5A  20
12:847  0:000  100  |  00  0A  20  20  20  20  20  20  00  00
12:847  0:000  110  |  00  FC  00  53  45  37  39  30  43  0A
12:847  0:000  120  |  20  20  20  20  20  20  01  65
12:847  0:000  ATI injection not set
12:847  0:000  Device 0 deinited
12:848  0:000   setting specified layout-id=28 (0x1C)
12:848  0:000  stringlength = 3896
12:848  0:000  CurrentMode: Width=3440 Height=1440
12:848  0:000  Use origin smbios table type 1 guid.
12:849  0:000  Custom boot screen not used because entry has unset use graphics

Edited by FabianZettl
