Hey so I think I'm almost there.

I've been following the Dortinas guide for a while now.

I've tried booting up the installation and a get this:


I have an AsusVivoBook X512F

specs:

Cpu: Intel(R) Core(TM) i7-8565U CPU @ 1.80GHz (Whiskey Lake)

memory: 8 GB ddr4 ram

Graphics: NVIDIA GeForce MX110 + Intel Graphics 620

touchpad + keyboard

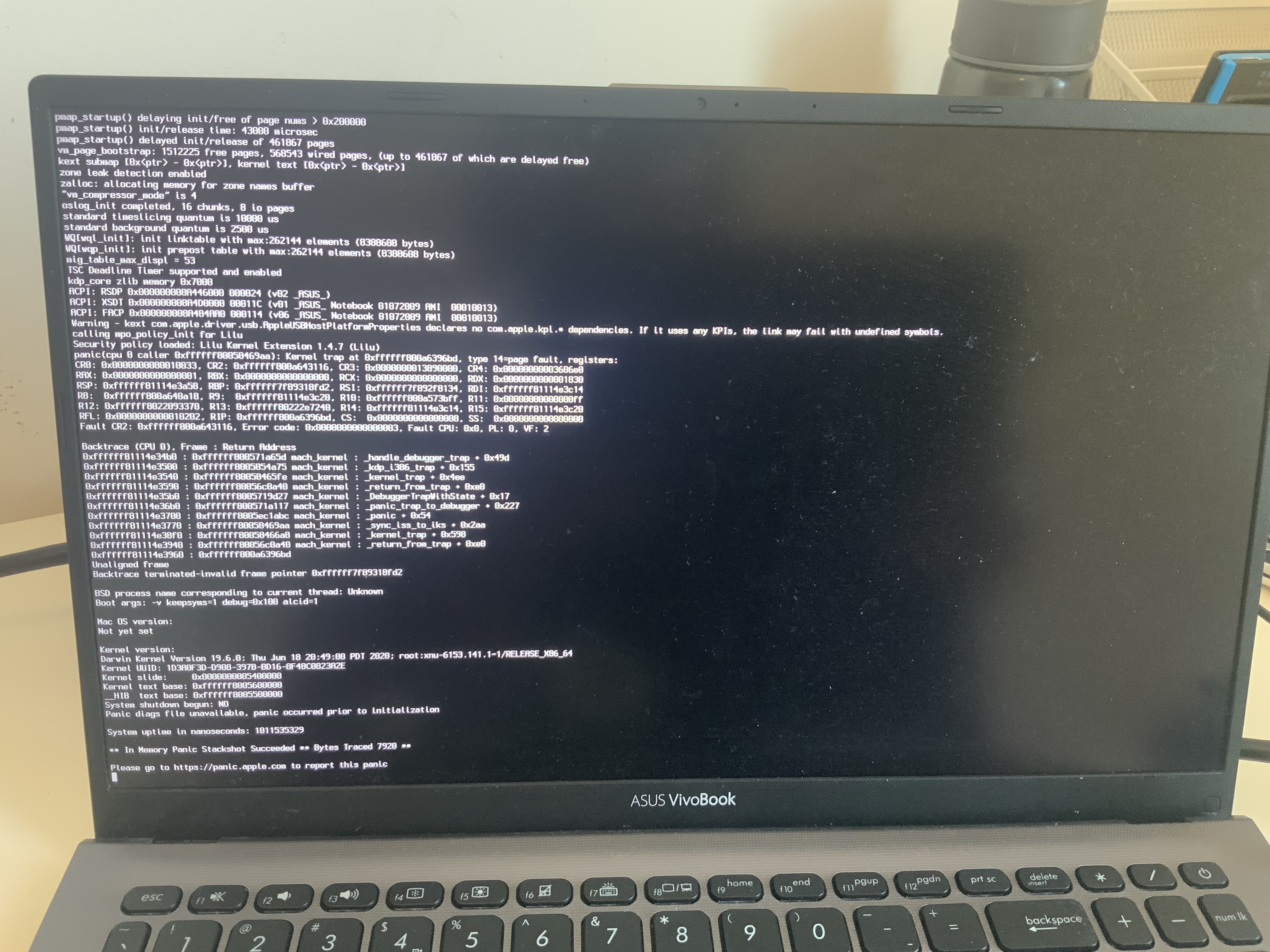

this is the error thing

opencore-2020-08-25-162224.txt

opencore-2020-08-25-155229.txt



and I add my EFI as a zip

EFI.zip



I'd love some help Im sweating like hell lol



opencore-2020-08-25-155229.txt

WhatsApp Image 2020-08-25 at 16.38.14.jpeg

Edited by yuvalz55
Link to comment
Share on other sites
spakk
spakk
Posted
Posted

take a look here, It is an Asus Vivobook X510UA BQ490 u but it should boot with it.
use the opencore folder and the EFI folder it contains, then exchange your ACPI folder for the ACPI folder located there.



https://github.com/whatnameisit/Asus-Vivobook-X510UA-BQ490-Catalina-10.15.6-Hackintosh

Link to comment
Share on other sites
yuvalz55
yuvalz55
Posted
  • Author
Posted
Just now, spakk said:

take a look here, It is an Asus Vivobook X510UA BQ490 u but it should boot with it.
use the opencore folder and the EFI folder it contains, then exchange your ACPI folder for the ACPI folder located there.
https://github.com/whatnameisit/Asus-Vivobook-X510UA-BQ490-Catalina-10.15.6-Hackintosh

ok thanks I'll give it a go

Link to comment
Share on other sites
spakk
spakk
Posted
Posted

..oh then you have to adjust (change) the config.plist according to the content of your ACPI folder.

then give a feedback whether it worked or not

Link to comment
Share on other sites
spakk
spakk
Posted
Posted

only replace this part, this is the content of your ACPI folder:



<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>Add</key>
		<array>
			<dict>
				<key>Enabled</key>
				<true/>
				<key>Comment</key>
				<string>SSDT-EC-USBX-LAPTOP.aml</string>
				<key>Path</key>
				<string>SSDT-EC-USBX-LAPTOP.aml</string>
			</dict>
			<dict>
				<key>Enabled</key>
				<true/>
				<key>Comment</key>
				<string>SSDT-EC.aml</string>
				<key>Path</key>
				<string>SSDT-EC.aml</string>
			</dict>
			<dict>
				<key>Enabled</key>
				<true/>
				<key>Comment</key>
				<string>SSDT-HPET.aml</string>
				<key>Path</key>
				<string>SSDT-HPET.aml</string>
			</dict>
			<dict>
				<key>Enabled</key>
				<true/>
				<key>Comment</key>
				<string>SSDT-PLUG-DRTNIA.aml</string>
				<key>Path</key>
				<string>SSDT-PLUG-DRTNIA.aml</string>
			</dict>
			<dict>
				<key>Enabled</key>
				<true/>
				<key>Comment</key>
				<string>SSDT-PLUG.aml</string>
				<key>Path</key>
				<string>SSDT-PLUG.aml</string>
			</dict>
			<dict>
				<key>Enabled</key>
				<true/>
				<key>Comment</key>
				<string>SSDT-PNLF.aml</string>
				<key>Path</key>
				<string>SSDT-PNLF.aml</string>
			</dict>
			<dict>
				<key>Enabled</key>
				<true/>
				<key>Comment</key>
				<string>SSDT-XOSI.aml</string>
				<key>Path</key>
				<string>SSDT-XOSI.aml</string>
			</dict>
			<dict>
				<key>Enabled</key>
				<true/>
				<key>Comment</key>
				<string>SSDT-GPIO.aml</string>
				<key>Path</key>
				<string>SSDT-GPIO.aml</string>
			</dict>



Link to comment
Share on other sites
yuvalz55
yuvalz55
Posted
  • Author
Posted
Just now, spakk said:

..oh then you have to adjust (change) the config.plist according to the content of your ACPI folder.

then give a feedback whether it worked or not

Quote

00:000 00:000 AAPL: [EB|#LOG:INIT] 2020-08-25T19:11:42
00:039 00:039 AAPL: [EB|#VERSION] bootbase.efi 422.140.3~2 (Official), built 2020-06-07T17:23:12-0700
00:083 00:044 AAPL: [EB|#BUILD] BUILD-INFO[306]:{"DisplayName":"bootbase.efi","DisplayVersion":"422.140.3~2","RecordUuid":"D49FA16E-32C0-433B-A742-7405C713BE39","BuildTime":"2020-06-07T17:23:12-0700","ProjectName":"efiboot","ProductName":"bootbase.efi","SourceVersion":"422.140.3","BuildVersion":"2","BuildConfiguration":"Release","BuildType":"Official"}
00:154 00:070 AAPL: [EB|#H:IS] 0
00:193 00:038 AAPL: [EB|#WL:MODE] 0
00:357 00:164 AAPL: [EB|#CONFIG:SRC] <default>
00:396 00:038 AAPL: [EB|#CONFIG| 0] boot-save-log : 0x0000000000000002 (0x0000000000000002 < 0xFFFFFFFFFFFFFFFF) <default>
00:435 00:038 AAPL: [EB|#CONFIG| 1] wake-save-log : 0x0000000000000002 (0x0000000000000002 < 0x0000000000000002) <default>
00:473 00:038 AAPL: [EB|#CONFIG| 2] console       : 0x0000000000000001 (0x0000000000000001 < 0x0000000000000001) <default>
00:638 00:164 AAPL: [EB|#CONFIG| 3] serial        : 0x0000000000000000 (0x0000000000000000 < 0x0000000000000000) <default>
00:677 00:038 AAPL: [EB|#CONFIG| 4] embed-log-dt  : 0x0000000000000000 (0x0000000000000000 < 0x0000000000000000) <default>
00:716 00:038 AAPL: [EB|#CONFIG| 5] timestamps    : 0x0000000000000000 (0x0000000000000000 < 0xFFFFFFFFFFFFFFFF) <default>
00:755 00:038 AAPL: [EB|#CONFIG| 6] log-level     : 0x0000000000000001 (0x0000000000000001 & 0x0000000000000001) <default>
00:793 00:038 AAPL: [EB|#CONFIG| 7] breakpoint    : 0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) <default>
00:958 00:164 AAPL: [EB|#CONFIG| 8] kc-read-size  : 0x0000000000100000 (0x0000000000100000 < 0xFFFFFFFFFFFFFFFF) <default>
00:997 00:038 AAPL: [EB|#H:IS] 0
01:036 00:038 AAPL: [EB|#WL|0] 0x01 0x01   0 0x00
01:074 00:038 AAPL: [EB|#BRD:NV] Mac-53FDB3D8DB8CA971
01:240 00:165 AAPL: [EB|#WL|1] 0x01 0x01   2 0x00
01:278 00:038 AAPL: [EB|`BST:IDT] {
01:318 00:039 AAPL: [EB|`BST:IDT] }
01:389 00:071 AAPL: [EB|#WL|2] 0x01 0x01   3 0x00
01:554 00:164 AAPL: [EB|#WL|3] 0x01 0x01   4 0x00
01:593 00:038 AAPL: [EB|#BRD:NV] Mac-53FDB3D8DB8CA971
01:632 00:038 AAPL: [EB|#WL|4] 0x01 0x01   5 0x00
01:676 00:044 AAPL: [EB|`H:CHK] BM: 0x0000000000000000
01:842 00:165 AAPL: [EB|`H:CHK] Err(0xE) @ GV boot-signature
01:880 00:038 AAPL: [EB|#WL|5] 0x01 0x01  23 0x0E
01:919 00:038 AAPL: [EB|`H:CPM] Err(0xE), (24, 24) @ GV Persistent-memory-note
01:958 00:039 AAPL: [EB|`SB:EN] Err(0xE) @ LocP 24B73556-2197-4702-82A8-3E1337DAFBF2
01:997 00:039 AAPL: [EB|#LIMG:DP] VenMedia(957932CC-7E8E-433B-8F41-D391EA3C10F8)/MemMap(10:100000000-100001000)/DMG_000000001DB7B0CC.dmg/VenMedia(004B07E8-0B9C-427E-B0D4-A466E6E57A62)/HD(Part1,Sig8133157E-D211-4C73-815D-FEF5AE3B8B1F)
02:161 00:164 AAPL: [EB|#LIMG:FP] \System\Library\CoreServices\boot.efi
02:200 00:038 AAPL: [EB|#LIMG:OPT] ()
02:239 00:038 AAPL: [EB|`B:OBV] BM: +DMG
02:278 00:038 AAPL: [EB|`B:OBV] BM: +ROS
02:447 00:169 AAPL: [EB|#RPS] R?0 P?0 S?0
02:492 00:044 AAPL: [EB|`OPT:LXF] 'LF (\\System\\Library\\CoreServices\\com.apple.Boot.plist)
02:530 00:038 AAPL: [EB|`LD:LF] FIO: 0, DIR: 1, P: \\System\\Library\\CoreServices\\com.apple.Boot.plist, DP: 0
02:602 00:071 AAPL: [EB|`LD:OFS] Err(0xE) @ OPEN (\\System\\Library\\CoreServices\\com.apple.Boot.plist)
02:766 00:164 AAPL: [EB|`OPT:LXF] Err(0xE) @ 'LF
02:805 00:038 AAPL: [EB|`OPT:LXF] 'LF (Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist)
02:844 00:038 AAPL: [EB|`LD:LF] FIO: 0, DIR: 1, P: Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist, DP: 0
02:900 00:056 AAPL: [EB:#KF] ()
03:065 00:164 AAPL: [EB|#MBA:CL] ()
03:103 00:038 AAPL: [EB|#MBA:NV] (-v keepsyms=1 debug=0x100 alcid=1)
03:142 00:038 AAPL: [EB|#MBA:KF] ()
03:181 00:038 AAPL: [EB|#MBA:OUT] (-v keepsyms=1 debug=0x100 alcid=1)
03:220 00:038 AAPL: [EB|#LOG:VERBOSE] 2020-08-25T19:11:45
03:384 00:164 AAPL: [EB|#OPT:BM] 0x825082
03:423 00:038 AAPL: [EB|`OPT:LXF] 'LF (\\System\\Library\\CoreServices\\PlatformSupport.plist)
03:462 00:038 AAPL: [EB|`LD:LF] FIO: 0, DIR: 1, P: \\System\\Library\\CoreServices\\PlatformSupport.plist, DP: 0
03:524 00:062 AAPL: [EB|#B:VAw]
03:689 00:164 AAPL: [EB|`B:MN] BM: ROS
03:727 00:038 AAPL: [EB|#WL|6] 0x01 0x01  19 0x0E
03:766 00:038 AAPL: [EB|`CS:CSKSD] {
03:805 00:039 AAPL: [EB|`G:CS] } Ok(0)
04:003 00:197 AAPL: [EB|`LD:LF] FIO: 0, DIR: 1, P: <null string>, DP: 1
04:050 00:046 AAPL: [EB|`B:SBS] SZ: 621112
04:092 00:042 AAPL: [EB|#B:SHA] 4f3bba9614aa0dbae1943ab55b83beac7e278986
04:131 00:038 AAPL: [EB|`WL:PWLFNV] Err(0xE) @ GV wake-failure
04:296 00:165 AAPL: [EB|`WL:DT] Err(0xE) @ WL:PWLFNV
04:335 00:039 AAPL: [EB|#WL:DT] 0xFD 0xBF 255 0xFD
04:374 00:039 AAPL: [EB|`LD:LKC] BM:R -> (System\Library\PrelinkedKernels\prelinkedkernel)
06:354 01:979 AAPL: [EB|`LD:LKFS] } Ok(0)
06:518 00:164 AAPL: [EB|`LD:LKC] } Ok(0)
06:558 00:039 AAPL: [EB|#FWFM] 0xFF9FFF3F
06:597 00:039 AAPL: [EB|#FWFT] 0xFD8FF426
06:636 00:038 AAPL: [EB|#CSR:IN] 0x000003FF
06:675 00:038 AAPL: [EB|#CSR:OUT] 0x000003FF
06:845 00:170 AAPL: [EB|`BST:FBS] {
06:884 00:039 AAPL: [EB|`BST:FBS] BA.ADSZ: 0
06:923 00:038 AAPL: [EB|`BST:FBS] BA.KSDSZ: 0
06:968 00:044 AAPL: [EB|`B:WFDW] Err(0xE), 0 @ LocHB 71B4903C-14EC-42C4-BDC6-CE1449930E49
07:165 00:197 AAPL: [EB|#LOG:DT] 2020-08-25T19:11:49
07:204 00:039 AAPL: [EB|#LOG:EXITBS:START] 2020-08-25T19:11:49



So I tried doing what you said it still crashes (I updated the config)







Link to comment
Share on other sites
yuvalz55
yuvalz55
Posted
  • Author
Posted
Just now, spakk said:

only replace this part, this is the content of your ACPI folder:




<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>Add</key>
		<array>
			<dict>
				<key>Enabled</key>
				<true/>
				<key>Comment</key>
				<string>SSDT-EC-USBX-LAPTOP.aml</string>
				<key>Path</key>
				<string>SSDT-EC-USBX-LAPTOP.aml</string>
			</dict>
			<dict>
				<key>Enabled</key>
				<true/>
				<key>Comment</key>
				<string>SSDT-EC.aml</string>
				<key>Path</key>
				<string>SSDT-EC.aml</string>
			</dict>
			<dict>
				<key>Enabled</key>
				<true/>
				<key>Comment</key>
				<string>SSDT-HPET.aml</string>
				<key>Path</key>
				<string>SSDT-HPET.aml</string>
			</dict>
			<dict>
				<key>Enabled</key>
				<true/>
				<key>Comment</key>
				<string>SSDT-PLUG-DRTNIA.aml</string>
				<key>Path</key>
				<string>SSDT-PLUG-DRTNIA.aml</string>
			</dict>
			<dict>
				<key>Enabled</key>
				<true/>
				<key>Comment</key>
				<string>SSDT-PLUG.aml</string>
				<key>Path</key>
				<string>SSDT-PLUG.aml</string>
			</dict>
			<dict>
				<key>Enabled</key>
				<true/>
				<key>Comment</key>
				<string>SSDT-PNLF.aml</string>
				<key>Path</key>
				<string>SSDT-PNLF.aml</string>
			</dict>
			<dict>
				<key>Enabled</key>
				<true/>
				<key>Comment</key>
				<string>SSDT-XOSI.aml</string>
				<key>Path</key>
				<string>SSDT-XOSI.aml</string>
			</dict>
			<dict>
				<key>Enabled</key>
				<true/>
				<key>Comment</key>
				<string>SSDT-GPIO.aml</string>
				<key>Path</key>
				<string>SSDT-GPIO.aml</string>
			</dict>



I have no Idea how to do that can you tell me step by step?

Link to comment
Share on other sites
spakk
spakk
Posted
Posted

config.zip



when the system boots then make a small change in "boot-arg" for

brcmfx-country=XX changes the country code to XX (US, CN, #a, ...)

                <key>boot-args</key>
<string>brcmfx-country=XX bpr_postresetdelay=400 bpr_initialdelay=400 bpr_probedelay=200</string>



Link to comment
Share on other sites
yuvalz55
yuvalz55
Posted
  • Author
Posted
26 minutes ago, spakk said:

config.zip



when the system boots then make a small change in "boot-arg" for

brcmfx-country=XX changes the country code to XX (US, CN, #a, ...)


                <key>boot-args</key>
<string>brcmfx-country=XX bpr_postresetdelay=400 bpr_initialdelay=400 bpr_probedelay=200</string>



First of all thanks for the help

so I’ve tried changing the config with what you gave me

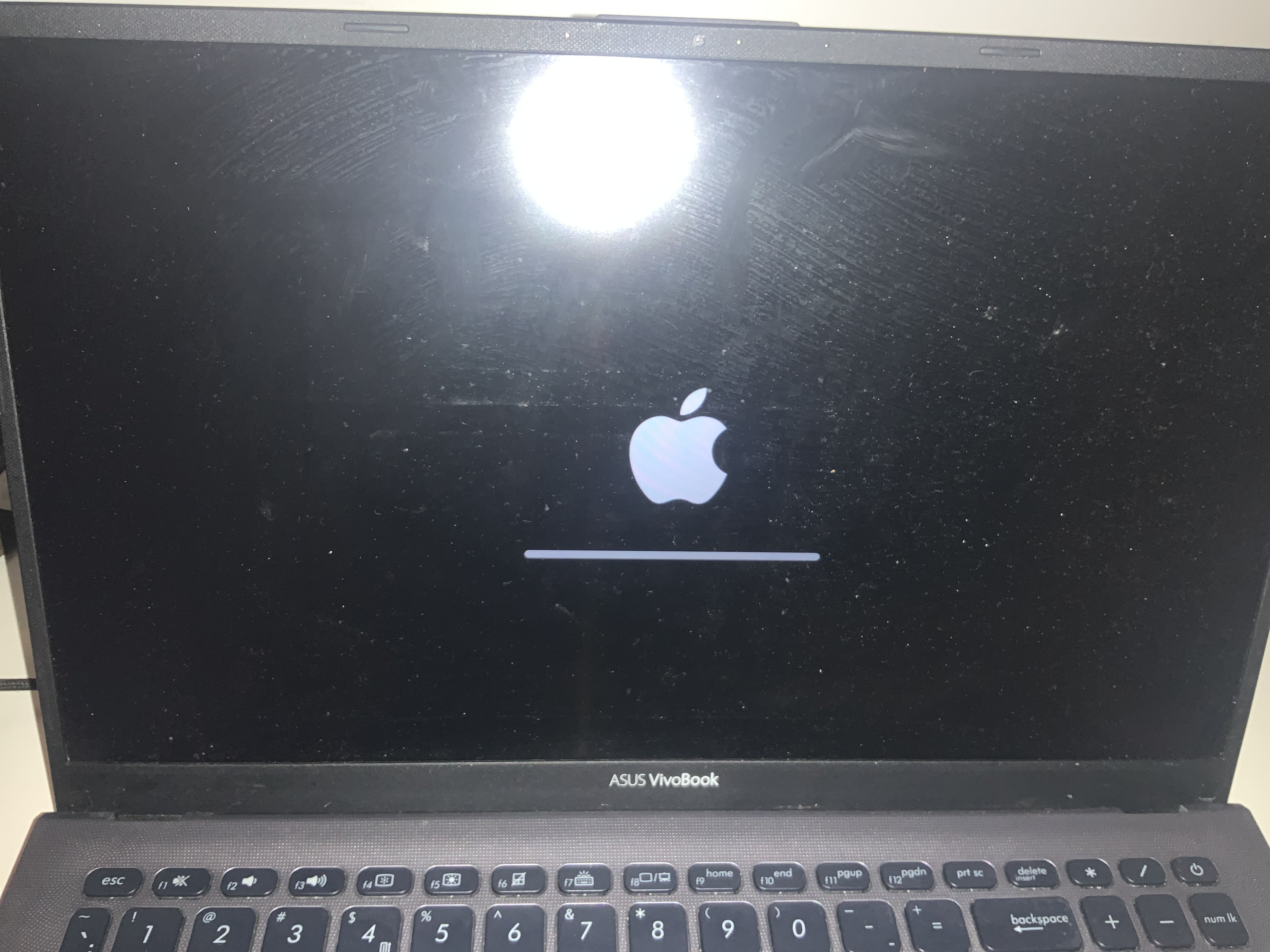

I don’t have any kernel panics any more but I’ve been stuck on this for the past 10 minutes

do you have a clue on what’s wrong?




Link to comment
Share on other sites
spakk
spakk
Posted
Posted

Not really, but did you have changed the boot-arg as described above?, if not then please change and restart

Link to comment
Share on other sites
yuvalz55
yuvalz55
Posted
  • Author
Posted
1 minute ago, spakk said:

Not really, but did you have changed the boot-arg as described above?, if not then please change and restart

It hasn’t booted yet it’s still stuck at the same point I figured if I’ll give it some time then it will work.

but I’ll restart my pc now and try and change what you said



Link to comment
Share on other sites
spakk
spakk
Posted
Posted

write this line in addition to the existing boot args: -v dart=0 darkwake=8 lilucpu=8 alcid=3

Link to comment
Share on other sites
spakk
spakk
Posted
Posted

I think you should use the upper OC folder with a few changes in the config.plist so that your laptop boots successfully.
Something else interests me. where did you get the contents of your ACPI folder? are the ACPI files generated from your system, or do they come from another user?

Link to comment
Share on other sites
 Share
Go to topic listing
×
×
  • Create New...
