Intel HD 530 not being detected in Mac OS

3 posts in this topic

Recommended Posts

I would like to learn what patches I would need to do in order for the HD 530 to be properly detected by Mac OS


I have dell Optiplex 5040 with Catalina 10.15.6 installed.

i7 6700 (Intel HD 530)

16 GB DDR3L ram


AMD RX 560


Boot & Kext settings:

Open Core 0.6.0

Plist Attached as well.




I have set 01001219 for iGPU to be in headless mode as well, to no avail.


BIOS settings

DVMT cannot be set in BIOS (shouldn't matter as only need Intel Quick Sync to work for Hardware Acceleration)

Intel Multi Display is enabled

Initial display is set Intel Integrated

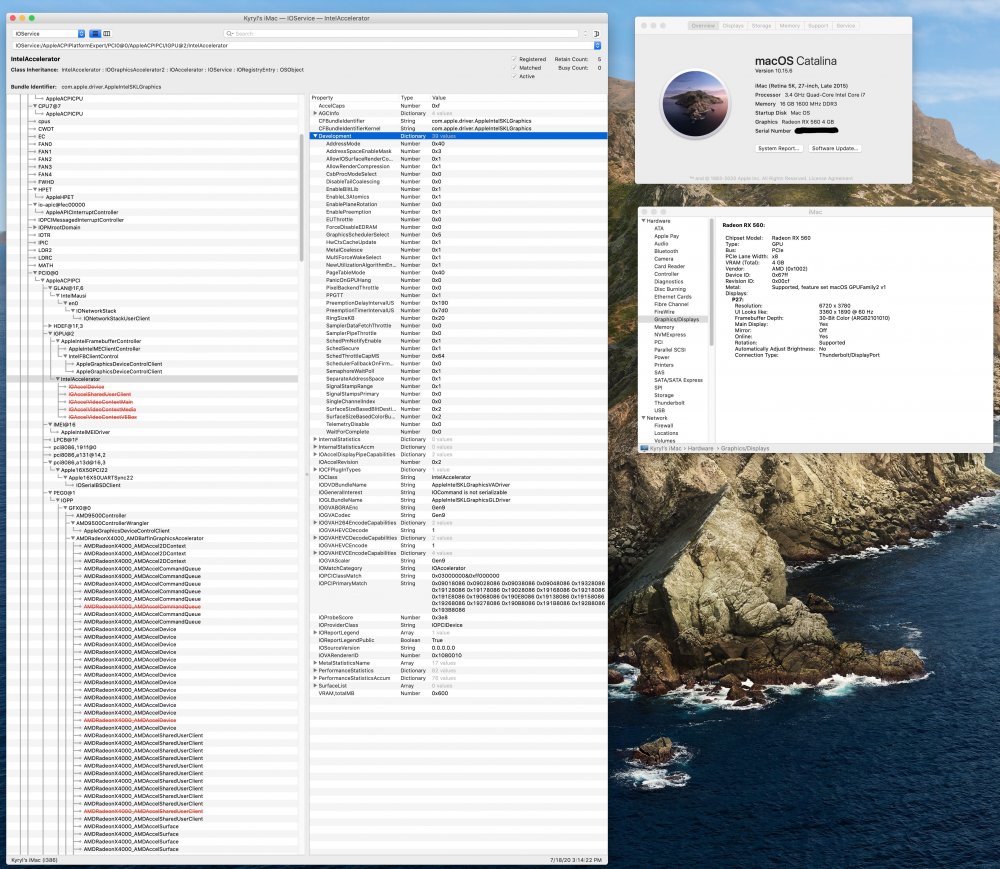

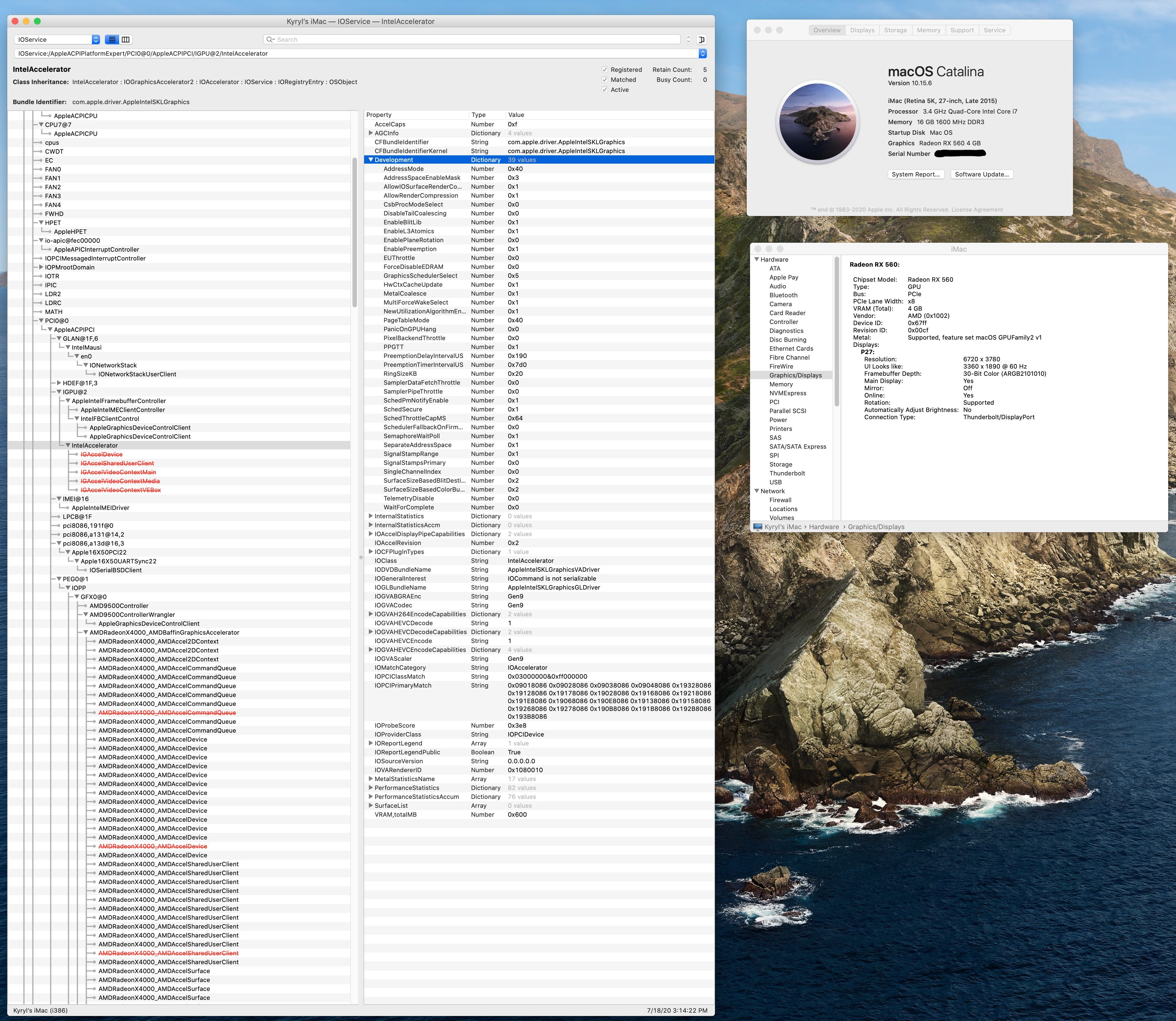

Mac OS.jpg

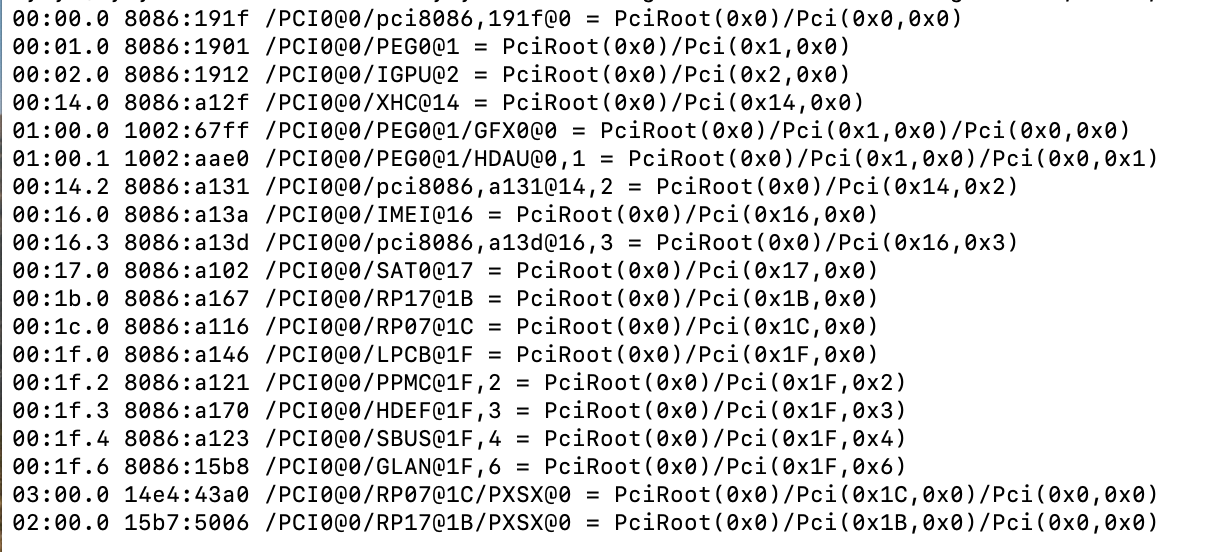

gfxutil output.png

Share this post

Link to post
Share on other sites



Set Primary GPU to IGFX in BIOS/UEFI

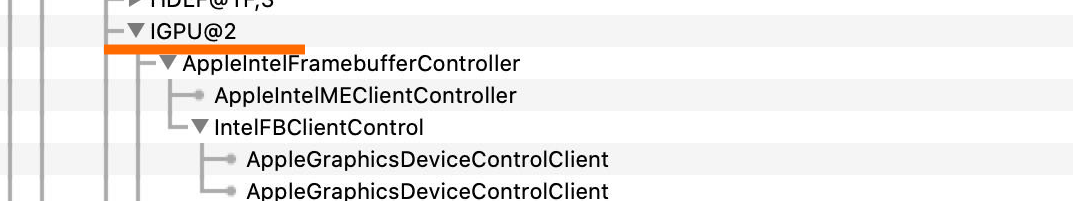

and look for the iGPU here to see if it's loaded, that's the only way I could get it to show in System Report





Share this post

Link to post
Share on other sites

Yep did that but still not showing up.


A workaround for getting hardware acceleration with an AMD GPU is to use this boot args for WEG:

shikigva=40 + shiki-id=Mac-7BA5B2D9E42DDD94

Share this post

Link to post
Share on other sites
