marzib

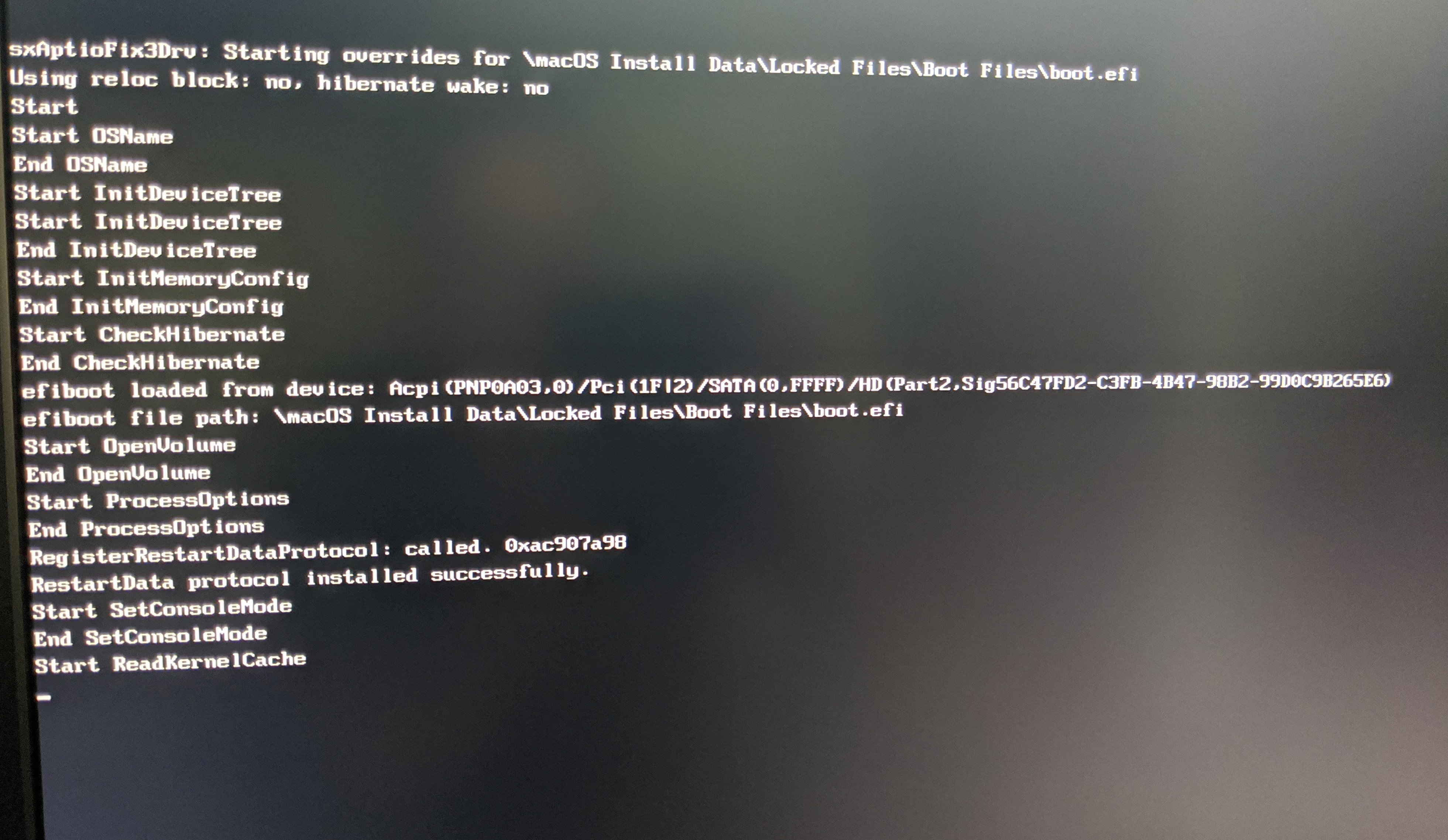

High Sierra Installer Stuck at "Start ReadKernelCache" on Boot

1 post in this topic

Recommended Posts

I'm trying to upgrade from Sierra to High Sierra. My Sierra is working and booting great with the latest Clover 5.0 r5115, but when trying to upgrade to High Sierra, any time the computer reboots into the installer, it gets stuck at the line "Start ReadKernelCache". The screenshot is attached. I've tried the following troubleshooting steps that I've read in other similar posts, none of which worked. It always remains stuck at that line:



  • Boot with UseKernelCache=No and/or -x and or -f
  • Temporarily remove discrete graphics card and try to install with integrated graphics
  • Add MATS to the Drop Tables list in Clover Configurator
  • Look for an option similar to "Above 4G Encoding". My motherboard doesn't seem to have that.
  • Try a bootable USB drive with the High Sierra installer instead of the App Store mechanism. The USB boots great, and I can initiate the installation, but upon reboot, I get the same issue trying to boot into the installer.
  • Disable integrated graphics in the motherboard's BIOS



Below are my system details. It seems like it should be possible, based on this post, to run High Sierra with this motherboard and CPU, but I can't get the installer to run.

Thanks for any help!



Motherboard: Gigabyte GA-Z77X-UP5-TH
CPU: Intel Core i7-3770K
Graphics: EVGA GeForce GTX 970
Clover: 5.0 r5115 with basically no mods from the default ISO aside from enabling APFS driver




Share this post


Link to post
Share on other sites

  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By kushwavez
      A really good motherboard with macOS compatible bult-in Wifi & Bluetooth

      ASUS Z170-Deluxe (with Wifi)
      BIOS: v3801
      CPU: i7-6700K 4.0 to 4.2 GHz (w/o OC)
      RAM: 1x 16 GB Corsair DDR4 2400 MHz
      GPU: Intel HD 530 (Headless) & ASUS Radeon RX 5700 OC 8 GB
      Audio: ALC 1150
      Ethernet: I219V2, I211-AT
      WiFi & Bluetooth: Broadcom BCM94360HMB Half-Mini-PCI-E
      More Specs: https://www.asus.com/Motherboards/Z170-DELUXE/specifications/

      El Capitan 10.11.6 -> Big Sur 11 - Windows 10

      What is working:
      BCM94360HMB Wifi and Bluetooth AirDrop, Handoff, FaceTime, Messages, App Store, iCloud, etc. Intel HD 530 (QE/CI tested, but now I'm using it in headless) Sleep RX 5700 (QE/CI with 2 1080p monitors connected) Sound (all ports) USB Ports Two Ethernet ports macOS with a light OC (4.12 GHz - 4.5 Ghz, XMP, ASUS optimal) ASUS HyperKit and M.2 with a KINGSTON NVMe SSD - 250 GB Hardware decoding/encoding on both HD 530 and RX 5700 (HD 530 up to HEVC, RX 5700 at the time of writing VP9) iGPU only (with QuickSync) is used in the default config.plist To use dGPU for hw decode/encode and also use Intel QuickSync you need to start with "config_headless.plist" This will use iMac17,2 SMBIOS and shikigva=80 To use dGPU only boot with "config_amd.plist" also disable iGPU completely in BIOS. This will use iMacPro1,1 SMBIOS without iGPU System Integrity Protection is Enabled by default. If you need to boot with SIP disabled you may use "config_debug.plist" or disable it manually in Clover settings. If you want Enabled SIP but with allowing unsigned kexts you may boot with "CsrActiveConfig = 0x01"
      What is not working:
      -

      Not tested:
      Thunderbolt (no equipment)
      Issues:
      None
      BIOS Settings:
      Boot\CSM (Compatibility Support Module): Launch CSM: Disabled Boot\Secure Boot: OS type: Other OS Secure Boot State: Disabled Advanced\System agent (sa) Configuration: VT-d: Enabled Graphics Configuration: (This is for HD 530 in headless) Primary Display: Auto (to use dGPU only this must be PEG) iGPU Multi-monitor: Enabled (to use dGPU only this must be Disabled) RC6(Render Standby): Enabled (to use dGPU only this must be Disabled) DVMT Pre-Allocated: 128M Advanced\PCH Storage Configuration: SATA Mode Selection: AHCI HyperKit: Enable (if you have NVMe SSD with ASUS HyperKit) Advanced\CPU Configuration: Intel Virtualization Technology: Enabled CPU- Power Management Control: CPU- C-States: Enabled Intel SpeedShift: Enabled
      Getting ready for installation:
      Download the bootpack (Clover v5126): Click here -> Z170-DELUXE_Clover_v5126.zip (Tested: El Capitan 10.11.6 -> macOS Big Sur 11.0.1)
      Installation:
      Create an installer with any method you know (- Mac: createinstallmedia, gibMacOS - Windows: Transmac, Vmware, Win32diskimager, gibMacOS) Copy my Clover folder to the USB's EFI folder Boot with the Installer USB If you have any problem (kp or freeze) boot with config_debug.plist to see what causes the issue
      Post Installation:
      Download Clover Configurator and generate a new Serial Number for yourself
      Some pictures:







      El Capitan 10.11.6

      Sierra 10.12.6

      High Sierra 10.13.6

      Mojave 10.14.6

      Catalina 10.15.7

      Catalina & Windows 10 Dual-Boot (clean install, on one drive):
       Boot into your Mac installer, Create 2 partitions in GUID table (1 for Win (I used FAT32 but I think it doesn't matter what you choose), 1 for Mac)
       Install Mac, boot with your USB, mount your EFI partition (use terminal or an EFI mounter app), create an EFI folder (if there is no folder), copy the CLOVER folder I attached to the EFI folder, restart
      Boot into your Win installer, Format the partition you created for Win, install.
      Now, it's automatically booting into Windows. To use Clover open cmd in administrator, type:
      bcdedit /set {bootmgr} path \EFI\CLOVER\CLOVERX64.efi
      You're done! It will booting into Clover when you start the system, and you can select Win or Mac (or another OS if installed on a 3rd partition).

      IF YOU GETTING ERRORS DURING WINDOWS INSTALLATION (could not be formatted, etc):
      Make sure you have GPT partitions, and GPT (UEFI) installer, also disconnect all external storage drives (except the installer USB)
      Mounting EFI from Windows:
      Open cmd in administrator mode and type: mountvol b: /s (This will mount your EFI) Open Total Commander or Explorer++ in administrator mode to manage EFI mountvol b: /d (This will unmount your EFI)
      Useful Applications for Mac:
      EFI Mountain Show -> To easily mount your EFI Clover Configurator -> To easily manage your config.plist https://mackie100projects.altervista.org/download-clover-configurator/ PlistEditPro -> Advanced plist editor https://www.fatcatsoftware.com/plisteditpro/ iStat Menus -> To monitoring your devices https://bjango.com/mac/istatmenus/ Boom 3D -> To significantly increase your audio quality https://www.globaldelight.com/boom/ TextMate -> a basic code editor just like Notepad++ on Windows https://macromates.com Modified Wineskin to run basic Windows 32-bit or 64-bit (or DX9 games) applications on Catalina -> https://www.reddit.com/r/MacOS/comments/fobx5t/i_didnt_want_to_boot_windows_every_time_when_i/ MaciASL -> View/Edit your .aml, .dsl files https://bitbucket.org/RehabMan/os-x-maciasl-patchmatic/downloads/ Hackintool -> All useful info, tools in one place https://github.com/headkaze/Hackintool IORegistryExplorer V2.1 -> To view your IO tables https://github.com/vulgo/IORegistryExplorer/releases/tag/v2.1 App Cleaner -> To delete your apps with caches https://freemacsoft.net/appcleaner/ Intel Power Gadget -> To see your frequencies https://software.intel.com/en-us/articles/intel-power-gadget Carbon Copy Cloner -> Advanced macOS drive backup utility https://bombich.com Commander One ->A Total Commander alternative for macOS https://mac.eltima.com/file-manager.html
      Useful Applications for Windows:
      Total Commander -> To easily manage EFI https://www.ghisler.com gibMacOS -> A python script for downloading/creating macOS Internet Recovery USB from Windows (working internet is needed when installing) https://github.com/corpnewt/gibMacOS mountvol b: /s -> To mount your system drive EFI
      EasyUEFI -> To manage boot orders and any bootloaders with ease https://www.easyuefi.com/index.html
      MiniTool Partition Wizard -> To mount your USB EFI, and manage other drives https://www.minitool.com/partition-manager/
      Notepad++ -> Basic code editor for all type of files https://notepad-plus-plus.org

      Notes:
      According to @albertoacj's comment Sidecar is only working in headless iGPU mode when using an AMD GPU, keep that in mind No need to change anything inside Clover from El Capitan to Big Sur For macOS Mojave and older you might need the full AirPortBrcmFixup.kext for full WiFi support
      Changelog:
      2020.11.12: Noticed that the CPU is always at 4200 Mhz, created an SSDT for proper CPU stepping. Updated to Big Sur release version, updated bootpack
      2020.11.03: Tested El Capitan, Sierra, High Sierra, Mojave, Catalina, Big Sur
      2020.11.01: Updated bootpack to Clover v5126, ready for macOS 11 Big Sur final release
      2020.04.23: Corrected layout-id to use all audio ports, updated bootpack
      2020.04.22: Deleted unnecessary boot-args, can boot without any custom boot-args (except agdpmod=pikera for RX 5700), updated bootpack
      2020.04.20: Deleted unnecessary lines from config.plist, updated bootpack
      2020.04.17: Replaced FakeSMC with VirtualSMC because FakeSMC is outdated (to see your frequencies use Intel Power Gadget) -> Removed unnecessary kexts, Updated all necessary kexts, updated Clover to v5112, updated bootpack, enabled SIP, deleted bootcamp theme
      2020.03.26: Updated to 10.15.4 -> Updated WhateverGreen, Lilu -> Updated Clover to v5107
      2020.03.23: Removed "EmuVariableUefi.efi" -> deleted, caused false nvram map, now it's native, updated Clover to v5106
      2020.02.11: Updated to 10.15.3 -> No problem when/after installing
      2020.01.19: Added ASUS HyperKit NVMe SSD to the "What is working" list
      2020.01.12: Tested system with OC, added more informations to BIOS settings
      2020.01.11: Added SmallTreeIntel82576.kext for 2nd Ethernet, Tested Ethernet ports
      2020.01.11: First upload

    • By SolidaSlOl
      Hello,

      I stuck on getting "root" as the last message after clicking install macOS:
      My build:
      Gigabyte Z370P D3 (BIOS version: F13)
      9400-F
      Gigabyte Radeon RX 5600 XT Gaming OC
      Samsung 970 Evo Plus 500GB

      I went through the whole OpenCore guide and tried the following (always got the same error):
      Both prebuild ACPI and "SSDTs: The easy way" (these are in the attached EFI folder) All types of HPET (as 4th file in ACPI) Without USBInjectAll.kext Changing USB after clicking "Install" (saw that recommendation somewhere) Both USB 2.0 and 3.0
      I would really appreciate any help, thanks.

      EFI.zip
      Also, attached bios configuration.



    • By skrypious
      Hi,
      I have been using my hackintosh for a while without any problems, until my monitor is replaced with a new one... Previously I was using 2 monitors connected via HDMI + DVI, now - with new one, I am using HDMI + DP, and my hackintosh stopped working. On every boot, everything I see is black screen... When I connect only one monitor (via HDMI or DP) - everything works fine.
      I have tried many things:
      - CSM off / on
      - PEG + iGPU (64MB/128MB) / only PEG
      - SSDT patching / DeviceProperties patch
      - VBIOS reflash
      - BIOS reflash
      - Changing cables
      - Resetting NVRAM
      - Changing SMBIOS
      Nothing helps…
      Fun fact - for 2 days everything was ok, the black screen problem appeared suddenly... So I am writing this post, maybe someone more knowledgeable will be able to help me
      Hardware:
      - Intel Core i5 4690k 3,5GHz (overclocked to 4,4GHz)
      - MSI Z97 Gaming 3
      - MSI Radeon R9 390 8GB
      - Kingston 16GB DDR3
      Software:
      - macOS Big Sur
      - Dual boot with Windows 10
      Screens:
      - Acer VG272U 2560x1440@170Hz (connected via DP 1.4)
      - LG 23MP48 1920x1080@60 (connected via HDMI 2.0)

      Hackintosh:
      - OpenCore 0.6.3
      - iMac15,1
      - Full EFI: https://drive.google.com/file/d/1eul7SnOEunfJOxBGD3Ygcmkc9f80DrlN/view?usp=sharing
      BIOS:
      - UEFI Boot Mode
      - CFG Lock and VT-D are disabled
      - iGPU is disabled right now, but it doesn't make any difference somehow in this situation. iGPU is HD4600
      More Info:
      - I have SSDT patch in my ACPI folder, which works fine - R9 390 works pretty fast, but I have never edited AMD8000Controller - is it required?
      - I also have all needed kexts (AppleALC, AetherosE2200Ethernet, Lilu, VirtualSMC, WhateverGreen)
      - if I made linguistic mistakes somewhere - forgive me, I don't use English every day
    • By kushwavez
      Acer Aspire V15 V5-591G - macOS Sierra 10.12.6 - Big Sur 11
      Running Big Sur 11.0.1!
      (Sierra, High Sierra and Mojave needs "SATA-100-series-unsupported.kext" and unmodified "AirPortBrcmFixup.kext")

      (Note: mine is 55TU version, but the bootpack will work fine with another versions of 591G, for example: V5-591G-71K2, -764Z, -59PU, etc.)
      Specifications:
      Motherboard: USOPP_SLS (Skylake-H PCH) BIOS: Insyde Corp. v 1.15 CPU: Intel Core i5-6300HQ 2.3 GHz (Skylake) GPU: NVIDIA GeForce GTX 950M 2 GB (Optimus) & Intel HD Graphics 530 RAM: 16 GB DDR4 (2x 8 GB SAMSUNG 2133 MHz) WiFi + Bluetooth: Qualcomm Atheros QCNFA344A 5 GHz (Later -> Broadcom BRCM94352Z M.2 5 GHz WiFi + 4.0 Bluetooth) Audio: Realtek HD Audio: ALC 255  Ethernet: Realtek RTL8168/8111 Card Reader: Realtek USB 2.0 Card Reader (USB2.0-CRW) Webcam: HD Webcam HDD: TOSHIBA 500 GB HDD SSD: KINGSTON A2000 NVMe PCI-e SSD (if you want Windows dual-boot then you need M.2 SATA SSD since NVMe will not work on Windows due interfering with NVIDIA GTX 950M (bluescreen when loading drivers)) Display: 1366x768 (15.6", Matte) Battery: 6 cell 56Wh / 5040mAh Connectors:  1x SD Card Reader 2x USB 3.0 (1x USB Charging), 1x USB 2.0 1x VGA 1x HDMI 1x 3.5mm microphone/audio combined jack connector 1x Ethernet (Rj-45) Keyboard & Touchpad: Multi-Touch & Multi-gestures ELAN 501 Touchpad, Backlight Keyboard. Working:
      Wi-Fi (with BCM94352Z) Bluetooth hand-off (With BCM94352Z) Full Graphics Acceleration Display: if default colour profile is corrupted (blue is not actual blue but purplish) Use "Rec. ITU-R BT. 709-5" Color Profile (System Pref. -> Displays -> Color) HDMI & VGA Outputs Audio  Ethernet  App Store, Messages, FaceTime, Siri, iCloud Integrated webcam 3.0 USB Touchpad and Keyboard (with working gestures and Fn+Brightness keys) Battery info Sleep Mode NVMe PCI-e x4 SSD Power Management Hardware decoding/encoding (up to HEVC) Not working:
      Original Wi-Fi (Qualcomm Atheros QCNFA344A):  Only Bluetooth is working, Wifi is unsupported, changed to Broadcom BCM94352Z NVIDIA GeForce GTX 950M: Optimus not supported. Card Reader: Unsupported For Wi-Fi:
      1st method: You can choose an external USB wifi dongle (I used TP-Link Archer T1U (5GHz support), TP-Link has official macOS drivers, you just need to install it 2nd and best method: Replace your M.2 Qualcomm Card with a compatible BCM94352Z card (you will have hand-off Bluetooth too), just install the kexts (enabled with BrcmFirmwareRepo, BrcmPatchRAM3, AirportBrcmFixup kexts they're all in my attached zip). Or buy BCM94360NG for OOB support. You could buy these cards from ebay, aliexpress, or amazon Issues:
      - Sometimes Combo Jack audio is not working after sleep
      Not tested:
      - Hibernation
      - FileVault
      BIOS Settings:
      - BIOS version 1.15 (irrelevant)
      - Secure Boot: Disabled
      - Touchpad: Advanced
      - Boot mode: UEFI
      Getting ready for Installation:
       Download the install zip (bootpack & postinstall):  Click here (v5126) -> Acer_Aspire_V5-591G_Clover_v5126.zip (Tested: Sierra 10.12.6 -> macOS Big Sur 11.0.1)
      Installation:
      - Create an installer with any method you know (- Mac: createinstallmedia, gibMacOS - Windows: Transmac, Vmware, Win32diskimager, gibMacOS)
      - Copy my Clover folder to the USB's EFI folder
      - Boot with the Installer USB
      - If you stuck in boot, reboot and in the Clover bootloader select "config_debug.plist" -> you'll have more informations about the freeze
      - To disable SIP boot with "config_debug.plist"

      Please open the README.pdf in my install zip for more informations about the USB Installer & Post installation!
      If you have a single RAM and getting panic at boot, then you need to edit the "config.plist" with these (SMBIOS->after "Version 1.0"):
      ->Edit "Frequency" and "Size" to match your RAM values
      <key>Version</key> <string>1.0</string> <key>Memory</key> <dict> <key>Channels</key> <integer>1</integer> <key>SlotCount</key> <integer>1</integer> <key>Modules</key> <array> <dict> <key>Slot</key> <integer>0</integer> <key>Size</key> <integer>8192</integer> <key>Frequency</key> <integer>2133</integer> <key>Type</key> <string>DDR4</string> </dict> </array> </dict> </dict> Before updating to a new version of macOS please update kexts (and clover if necessary) to newer versions to avoid kernel panics.
      Generate a serial number with Clover Configurator.app (open up your config.plist with CC then -> SMBIOS -> Serial Number -> Generate New)
      Here some pictures:


      Running fine on Big Sur 11.0.1


      Finally a fully working touchpad.

      Sierra 10.12.6

      High Sierra 10.13.6

      Mojave 10.14.6

      Catalina 10.15.7
      macOS & Windows 10 Dual-Boot:
      Dual-boot clean install (on one drive), UEFI Only:

       Boot into your Mac installer, Create 2 partitions in GUID table (1 for Win (I used FAT32 but I think it doesn't matter what you choose), 1 for Mac),   Install Mac, boot with your USB, mount your EFI partition (use terminal or an EFI mounter app), create an EFI folder (if there is no folder), copy the CLOVER folder I attached to the EFI folder, restart,  Boot into your Win installer, Format the partition you created for Win, install.   Now, it's automatically booting into Windows. To use Clover open cmd in administrator, type:  bcdedit /set {bootmgr} path \EFI\CLOVER\CLOVERX64.efi
            5.  You're done! It will booting into Clover when you start the system, and you can select Win or Mac (or another OS if installed on a 3rd partition).

      IF YOU GETTING ERRORS DURING WINDOWS INSTALLATION (could not be formatted, etc):
      Make sure you have GPT partitions, and GPT (UEFI) installer, also disconnect all external storage drives (except the installer USB)
      IF YOU CAN'T MOUNT YOUR EFI PARTITION (No EFI partition found):
      It's because your EFI is not 200 MB or not an "Apple" original EFI,  but don't worry, try another EFI mounter, or mount from terminal (I used EFI Mountain Show: Getting errors, but you can mount and use without problem) You also could "mount" the EFI from Windows: 1st method: open cmd in administrator mode and type:
      diskpart list vol (Now select the "System" volume,(FAT 32) For example I select 4) sel vol 4 list part (Select System type partition, for example 2) sel part 2 assign letter=b (This will "mount" your EFI partition) Open Explorer++ in administrator mode to manage EFI
      remove letter=b (This will "unmount" your EFI) 2nd method: open cmd in administrator mode and type:
      mountvol b: /s (This will mount your EFI) Open Explorer++ in administrator mode to manage EFI
      mountvol b: /d (This will unmount your EFI) Useful Applications for Mac:
      EFI Mountain Show -> To easily mount your EFI Clover Configurator -> To easily manage your config.plist https://mackie100projects.altervista.org/download-clover-configurator/ PlistEditPro -> Advanced plist editor https://www.fatcatsoftware.com/plisteditpro/ iStat Menus -> To monitoring your devices https://bjango.com/mac/istatmenus/ Boom 3D -> To significantly increase your audio quality https://www.globaldelight.com/boom/ TextMate -> a basic code editor just like Notepad++ on Windows https://macromates.com Modified Wineskin to run basic Windows 32-bit or 64-bit (or DX9 games) applications on Catalina -> https://www.reddit.com/r/MacOS/comments/fobx5t/i_didnt_want_to_boot_windows_every_time_when_i/ CrossOver 20 -> Run DirectX 11 applications on Catalina=< https://www.codeweavers.com/crossover/ MaciASL -> View/Edit your .aml, .dsl files https://bitbucket.org/RehabMan/os-x-maciasl-patchmatic/downloads/ Hackintool -> All useful info, tools in one place https://github.com/headkaze/Hackintool IORegistryExplorer V2.1 -> To view your IO tables https://github.com/vulgo/IORegistryExplorer/releases/tag/v2.1 App Cleaner -> To delete your apps with caches https://freemacsoft.net/appcleaner/ Intel Power Gadget -> To see your frequencies https://software.intel.com/en-us/articles/intel-power-gadget Carbon Copy Cloner -> Advanced macOS drive backup utility https://bombich.com Commander One -> A Total Commander alternative for macOS https://mac.eltima.com/file-manager.html
      Useful Applications for Windows:
      Total Commander -> To easily manage EFI https://www.ghisler.com mountvol b: /s -> To mount your system drive EFI EasyUEFI -> To manage boot orders and any bootloaders with ease https://www.easyuefi.com/index.html MiniTool Partition Wizard -> To mount your USB EFI, and manage other drives https://www.minitool.com/partition-manager/ Notepad++ -> Basic code editor for all type of files https://notepad-plus-plus.org gibMacOS -> A python script for downloading/creating macOS Internet Recovery USB from Windows (working internet is needed when installing) https://github.com/corpnewt/gibMacOS

      Notes:
      For Sierra, High Sierra, Mojave you need to download and use the full AirPortBrcmFixup.kext for WiFi, and replace CtlnaAHCIPort.kext with SATA-100-series-unsupported.kext for AHCI Sata drives For Sierra only you need to replace SMCBatteryManager.kext with ACPIBatteryManager.kext for working Battery indicator
      Changelog:
      2020.11.12: Touchpad now fully functional with gestures, Patched Fn+Brightness keys (Fn+Left, Fn+Right), repatched DSDT, changed SMBIOS to MacBookPro13,1 for better support, fixed CPU Stepping, fixed some wrong lines in config.plist, updated to Big Sur release, updated bootpack, updated guide. 2020.11.03: Tested macOS Sierra, High Sierra, Mojave, Catalina, Big Sur, updated guide 2020.11.01: Initial upload
    • By lucahappys
      Hi everyone, is my first post here.

      I I get very mad while try from two days to install Mojave on my Lenovo V530 Tower with this specs:

      CPU i5 8400 Coffeelake, 12gb ddr4, hd 1tb for MacOs, nvme 256gb for Win10, UHD630 + Nvidia Msi GT 730 2gb ddr5.

      With this EFI in attach files installation stuck on end randomseed and if i use Dell Smbios Patch i arrive to stuck on apfs module start 1393 ....

      There is someone can help me to find smile again and arriva just to installation of my hackintosh?

      Advanced help to everyone.
      EFI.zip
      config.plist

×
