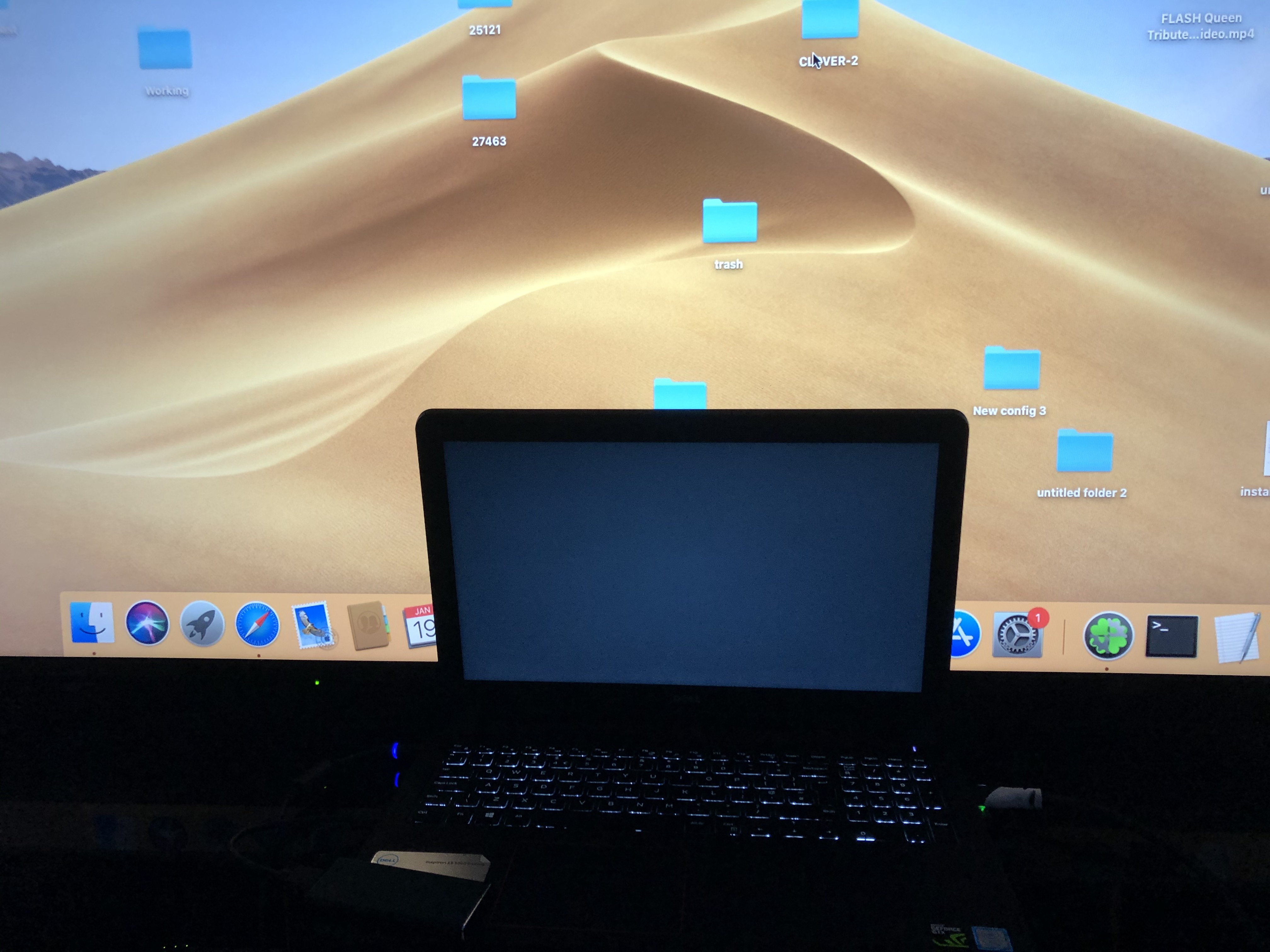

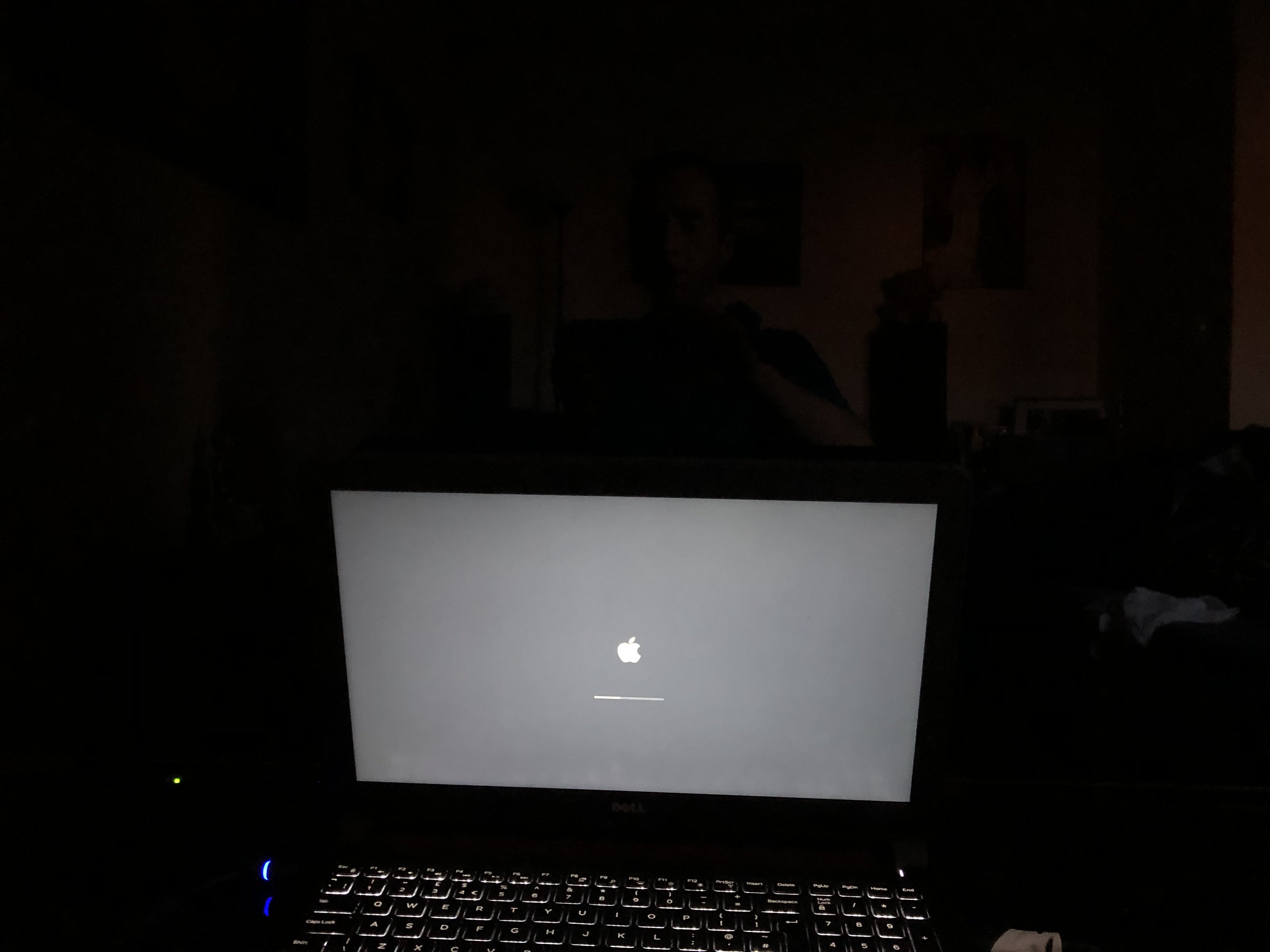

tomprescott_128 Posted January 19, 2020 Share Posted January 19, 2020 13 hours ago, ctich said: replace all. CLOVER.zip Good Morning, Thanks for this but the graphics card still boots up at 7MB. Someone from another forum as given me there files. Which the Intel HD graphics 630 card in the laptop works. So the problem now is when you boot up the apple logo boots half way and then goes to a black screen and continues to out put the graphics by the HDMI port as seen in the pictures and the laptop screen stays black. I have attached the new Debug files and a config file. I think the intel HD graphics 630 card should only push graphics to the laptop screen not the HDMI. If someone could help me with this I would be most greatful debug_24164.zip config.plist Link to comment Share on other sites More sharing options...
AkimoA Posted January 19, 2020 Share Posted January 19, 2020 In your config.plist Device -> Properties your 1st Framebuffer port is set to HDMI framebuffer-con1-type 00 08 00 00 so u could go ahead and try changing that to LVDS framebuffer-con1-type 02 00 00 00 Link to comment Share on other sites More sharing options...
tomprescott_128 Posted January 19, 2020 Share Posted January 19, 2020 1 hour ago, AkimoA said: In your config.plist Device -> Properties your 1st Framebuffer port is set to HDMI framebuffer-con1-type 00 08 00 00 so u could go ahead and try changing that to LVDS framebuffer-con1-type 02 00 00 00 Thanks I’ll give this a go later. fingers crossed Link to comment Share on other sites More sharing options...
tomprescott_128 Posted January 19, 2020 Share Posted January 19, 2020 4 hours ago, AkimoA said: In your config.plist Device -> Properties your 1st Framebuffer port is set to HDMI framebuffer-con1-type 00 08 00 00 so u could go ahead and try changing that to LVDS framebuffer-con1-type 02 00 00 00 How do I edit the framebuffer con 1? Do I use the software in the picture? Link to comment Share on other sites More sharing options...
AkimoA Posted January 19, 2020 Share Posted January 19, 2020 did u really read what i wrote ? anyway try this config.plist Link to comment Share on other sites More sharing options...
tomprescott_128 Posted January 19, 2020 Share Posted January 19, 2020 (edited) 46 minutes ago, AkimoA said: did u really read what i wrote ? anyway try this config.plist Yes Sorry, I open Plist and could not work out how to see or change the values. I’m using TextEdit. Thanks for doing this for me. I have tried the plist and it still boots up to a black screen on the laptop but no image now on the output from the HDMI. I just got white noise now. Edited January 19, 2020 by tomprescott_128 Link to comment Share on other sites More sharing options...
AkimoA Posted January 19, 2020 Share Posted January 19, 2020 im just trying something we might get lucky with it , if that doesnt work FB needs to be properly patched i guess config_tom.plist Link to comment Share on other sites More sharing options...
tomprescott_128 Posted January 19, 2020 Share Posted January 19, 2020 Thanks for your help. It boots up to a black screen again and when you plug an HDMI in it crash’s. Link to comment Share on other sites More sharing options...
AkimoA Posted January 20, 2020 Share Posted January 20, 2020 another attempt config_tom.plist Link to comment Share on other sites More sharing options...
tomprescott_128 Posted January 20, 2020 Share Posted January 20, 2020 2 hours ago, AkimoA said: another attempt config_tom.plist Thanks for this. I have just tried this and it crashes. Thanks again for your efforts. Link to comment Share on other sites More sharing options...
tomprescott_128 Posted January 28, 2020 Share Posted January 28, 2020 Thanks everyone on here who help me on my issue with the booting into a black screen using intel hd graphics 630. Morselina off olarila forums has solved this issue. Use boot arguments lilucpu=8 and then go to Devices, properties and change device-id = 19160000 and AAPL platform to 00001B19 This spoofs the Graphics card to an intel hd graphics 530. I also want to say Thanks to uzair12321 of tonyMacx86 forums who also help me on this issue. Link to comment Share on other sites More sharing options...
WDWViper Posted March 12, 2020 Share Posted March 12, 2020 Am 3.12.2019 um 22:11 Uhr sagte iCanaro: nicht L / E. LILU & WEG -> EFI Grafikkonfiguration einfügen -> Geräte -> Eigenschaften Hallo, Brache hilfe mit der UHD Intel 630 zum laufen zubringen, i9 9900k. Gigabyte z390 Auros Pro Wifi, GTX 780 3 GB Läuft mit Appel Driver. Danke im Voraus config.plist Link to comment Share on other sites More sharing options...
audio geek Posted December 9, 2021 Share Posted December 9, 2021 Check this i’m not sure it applies, but I needed to start with a Mojave install then I could get acceleration with Big Sur. Sorry if it’s off topic. There must be a way to get acceleration on mojave. Link to comment Share on other sites More sharing options...
